Sportline S7 User manual

S7
HEART RATE + CALORIE MONITOR
S7
SB4065IS01SPORB.indd 1SB4065IS01SPORB.indd 1 6/3/10 2:04 PM6/3/10 2:04 PM

TABLE OF CONTENTS
INTRODUCTION 1
HOW TO USE THIS MANUAL 1
ACTIVATING THE WATCH FROM POWER DOWN MODE 1
WARNINGS & CAUTIONS 2
CARE & MAINTENANCE 3
CUSTOMER SUPPORT 3
WATCH FUNCTIONS 4
KEYS AND THEIR FUNCTIONS 5-6
ACQUIRING HEART RATE 7
POWER DOWN MODE 8
VIEWING THE BACKLIGHT 8
MAIN OPERATING MODES 9
SB4065IS01SPORB.indd 2SB4065IS01SPORB.indd 2 6/3/10 2:04 PM6/3/10 2:04 PM

S7 Heart Rate + Calorie Monitor
TABLE OF CONTENTS
SETTING & OPERATING THE WATCH
SETTING TIME & DATE 10
SETTING PERSONAL PROFILE 11
SETTING DAILY ALARM 12
OPERATING THE CHRONOGRAPH 13
SETTING & OPERATING THE COUNTDOWN TIMER 14
OPERATING CALORIES/EXERCISE TIMER 15
RANGES & SPECIFICATIONS 16
REPLACING THE WATCH BATTERY 17
BATTERY SAFETY INFORMATION 18
TROUBLE SHOOTING 19
WARRANTY 20
SB4065IS01SPORB.indd 3SB4065IS01SPORB.indd 3 6/3/10 2:04 PM6/3/10 2:04 PM

1
Congratulations on your purchase of a Sportline Personal Fitness Monitor. Please keep in mind; your watch
is a sensitive technical instrument. With proper care and maintenance, it will last for many years. However,
improper care and handling can cause the various sensors to be damaged and to stop functioning.
HOW TO USE THIS MANUAL
Sportline Personal Fitness Monitors have many unique features and functions. Please read all sections of
this manual carefully and become fully familiar with the operation of the watch before using it in the field.
Proper setup and operation will greatly enhance the watches usefulness and your enjoyment.
The manual is divided into sections outlining each of the major functions of the watch. A drawing of the
watch screen that represents the starting point or other important screens for each operational process are
shown adjacent to the instructions for the process; important keys are shown indicating PRESS & HOLD
and PRESS.
The steps for the programming or operation are adjacent to the screen illustration. Key points and
important information are shown in highlighted blocks.
ACTIVATING THE WATCH FROM POWER DOWN MODE
PLEASE NOTE: Your watch was originally shipped in Power Down Mode to conserve battery life.
To deactivate Power Down mode: PRESS & HOLD HEART RATE SENSOR for 5 seconds (see page 8 for more
information on Power Down mode).
INTRODUCTION
SB4065IS01SPORB.indd 1SB4065IS01SPORB.indd 1 6/3/10 2:04 PM6/3/10 2:04 PM

2
S7 Heart Rate + Calorie Monitor
WARNING: Before starting any exercise program or performing any vigorous physical activity, we strongly
suggest you visit your doctor for a complete physical and to discuss your plans.
CAUTION: Your watch is designed to be water resistant to a static pressure of 5 ATM and can be worn while
showering and light swimming. However, we recommend that extensive use of the unit in the water be
avoided whenever possible. Care should be taken not to press any keys while the unit is submerged as this
can force moisture past the key seals and damage the unit.
CAUTION: Avoid exposing your watch to extreme conditions for a prolonged period of time.
CAUTION: Avoid rough usage or severe impacts to your watch.
DO NOT use hand cream as it will insulate the signal between the skin and sensor contacts.
DO NOT use the fingertips where the skin is dry and thick. For those with extremely dry skin, moisten
fingers and wrist with tap water or a conductive gel.
CLEAN the Back Cover occasionally by using a damp cloth. Then wipe dry to remove any residual grease.
CLEAN your skin and fingers with soap and water for a better signal transmission.
AVOID doing awkward motions during measurement. It may create inaccurate heart rate readings.
WARNINGS & CAUTIONS
SB4065IS01SPORB.indd 2SB4065IS01SPORB.indd 2 6/3/10 2:04 PM6/3/10 2:04 PM

3
CARE & MAINTENANCE
• NEVER attempt to disassemble or service your unit.
•DO NOT expose the unit to extreme heat, shocks, magnetic fields, electrical noise, strong vibration or
long-term exposure to direct sunlight.
• DO NOT drop or step on the watch.
• TO CLEAN THE UNIT: wipe with a lightly moistened cloth. Apply mild soap to the area if there are
stubborn stains or marks. Do not expose the unit to strong chemicals such as gasoline, cleaning solvents,
acetone, alcohol or insect repellents, as they may damage the unit’s seal, case and/or finish.
• STORE the unit in a dry place when you are not using it.
CUSTOMER SUPPORT
If you experience any problems with this product or have questions, please first contact our Customer
Service Team at 1-866-694-4575. We are ready to help.
SB4065IS01SPORB.indd 3SB4065IS01SPORB.indd 3 6/3/10 2:04 PM6/3/10 2:04 PM

4
S7 Heart Rate + Calorie Monitor
WATCH FUNCTIONS
TIME
•Time/Day/Date/Month
•12-/24-hour formats
•Daily Alarm
HEART RATE
•ECG Accurate Heart Rate
•Calorie Consumption
EXERCISE TIMER
•1/100 second resolution
•100-hr
CHRONOGRAPH
•10-hr
•1/100 second resolution
COUNTDOWN TIMER
•10-hr
•1-second resolution
OTHER
•EL Backlight System
•Water Resistant 50m (165ft)
SB4065IS01SPORB.indd 4SB4065IS01SPORB.indd 4 6/3/10 2:04 PM6/3/10 2:04 PM

5

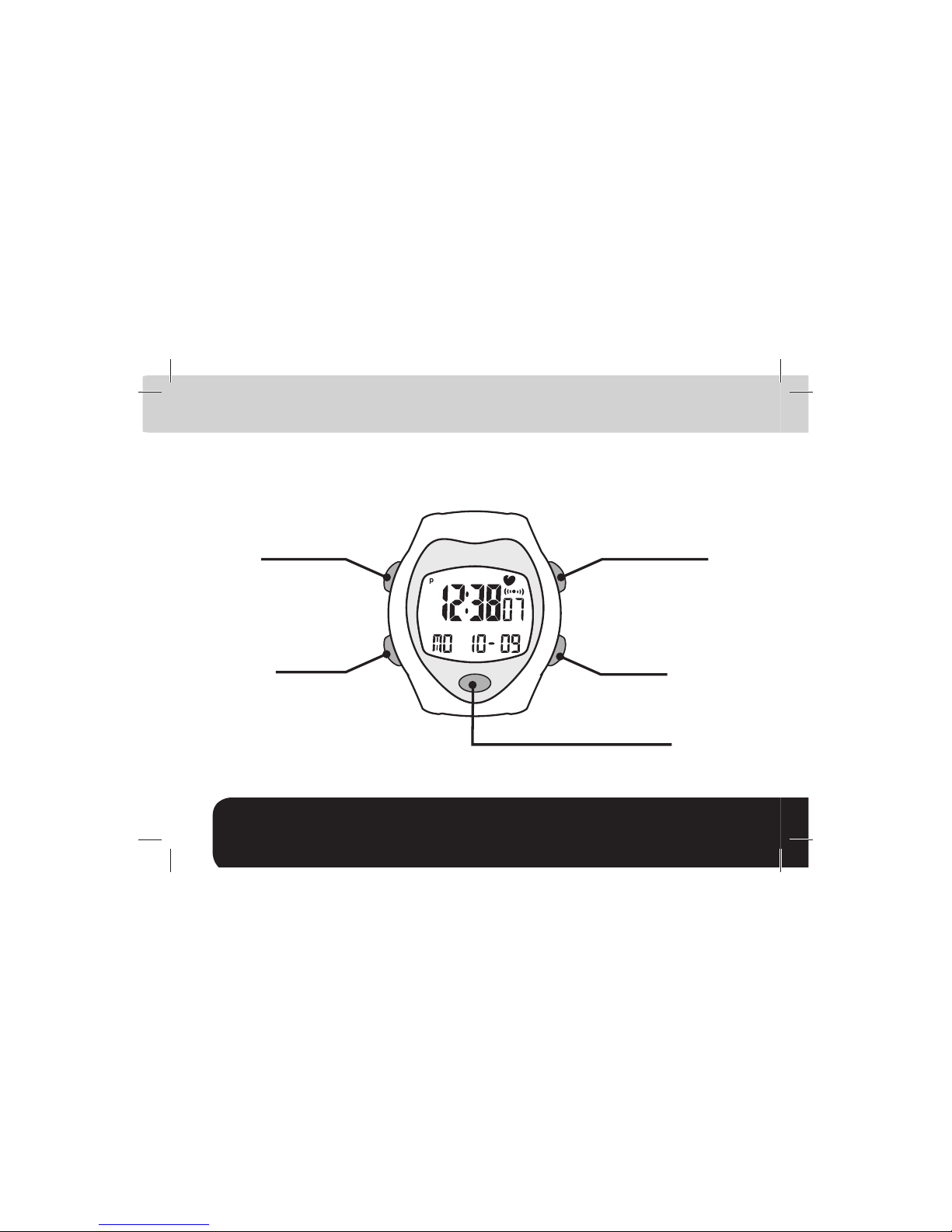

KEYS AND THEIR FUNCTIONS
RESET KEY
START/STOP KEY
LIGHT KEY
MODE KEY
HEART RATE SENSOR
SB4065IS01SPORB.indd 5SB4065IS01SPORB.indd 5 6/3/10 2:04 PM6/3/10 2:04 PM

6
S7 Heart Rate + Calorie Monitor
MODE KEY
•Scroll through operating modes
•Advance through variables in setting sequence
•PRESS & HOLD: Enter/Exit the programming
sequence
•Exit Finger Touch Heart Rate mode
START/STOP KEY (S/S)
•Start/Stop Chronograph
•Start/Stop Calories/Exercise Timer
•Start/Stop Countdown Timer
•Increase setting values during programming
sequence
RESET KEY (R)
•Reset Calories/Exercise Timer, Chronograph &
Countdown Timer
•Decrease setting values during programming
sequence
HEART RATE SENSOR
•TOUCH & HOLD: Activates Heart Rate
LIGHT KEY
•Activates (EL) backlight system
KEYS AND THEIR FUNCTIONS
SB4065IS01SPORB.indd 6SB4065IS01SPORB.indd 6 6/3/10 2:04 PM6/3/10 2:04 PM

7
ACQUIRING HEART RATE: FINGER TOUCH
Heart rate may be acquired from any operating mode (not in any Setting Sequence).
1. With the watch attached to your wrist, TOUCH & HOLD the HEART RATE SENSOR with your index finger.
NOTE: You may exit Heart Rate mode at any time by Pressing the Mode, Start/Stop or Reset key.
2. Continue TOUCHING & HOLDING until heart rate displays.
3. Once Heart Rate is acquired, RELEASE THE SENSOR. Heart Rate will continue to display for a period of
approximately 5 seconds.
NOTE: The Monitor displays both actual heart rate (in beats per minute) and percent of estimated
maximum heart rate.
ACQUIRING HEART RATE
SB4065IS01SPORB.indd 7SB4065IS01SPORB.indd 7 6/3/10 2:04 PM6/3/10 2:04 PM

8
S7 Heart Rate + Calorie Monitor
MAIN OPERATING MODES
POWER DOWN MODE
Power Down mode allows you to conserve battery life by deactivating the unit when the monitor is not being
used for long periods of time. To activate Power Down mode:
1. In Time mode, PRESS & HOLD the MODE, STOP/START & RESET keys for 5 seconds. The display will go
blank.
2. To deactivate Power Save mode and resume normal operation, PRESS & HOLD HEART RATE SENSOR for 5
seconds.
NOTE: All Time & Personal Profile and Memory settings will be lost.
VIEWING THE BACKLIGHT SYSTEM
The Sportline S7 is equipped with an electroluminescent (EL) Backlight System for viewing the display in low
light conditions. To operate the Backlight:
PRESS the LIGHT key. Backlight will illuminate for approximately 5 seconds.
NOTE: Excessive use of Backlight System may significantly reduce battery life.
SB4065IS01SPORB.indd 8SB4065IS01SPORB.indd 8 6/3/10 2:04 PM6/3/10 2:04 PM

9
MAIN OPERATING MODES
The Sportline S7 has 6 main operating modes: Time, Personal Profile, Alarm, Chronograph, Countdown Timer
and Calories/Exercise Timer. Scroll through main modes by PRESSING the MODE key. Acquire Finger Touch
Heart Rate by TOUCHING & HOLDING the HEART RATE SENSOR in any operating mode.
PRESS
MODE
PRESS
MODE
PRESS
MODE
PRESS
MODE
TIME PERSONAL PROFILE ALARM
CHRONOGRAPHCOUNTDOWN TIMERCALORIES/
EXERCISE TIMER
SB4065IS01SPORB.indd 9SB4065IS01SPORB.indd 9 6/3/10 2:04 PM6/3/10 2:04 PM

10
S7 Heart Rate + Calorie Monitor
SETTING & OPERATING THE WATCH
SETTING TIME AND DATE
In this Programming Sequence, you will program the Time & Calendar functions.
1. In Time mode, PRESS & HOLD the MODE key to enter the programming sequence. The
variable being adjusted will flash on and off.
2. Reset Seconds to zero (00) by PRESSING the START/STOP (S/S) or RESET (R) key.
Advance to Set Minutes by PRESSING the MODE key.
3. Adjust Minutes by PRESSING S/S (to increase) or R(to decrease). Set Minutes and
advance to Set Hour by PRESSING the MODE key.
4. Adjust Hour by PRESSING S/S or R. Set Hour and advance to Set Year by PRESSING
the MODE key.
5. Adjust Year by PRESSING S/S or R. Set by PRESSING MODE.
6. Adjust Month by PRESSING S/S or R. Set by PRESSING MODE.
7. Adjust Day by PRESSING S/S or R. Set by PRESSING MODE.
8. Adjust date format (month - day or day - month) by PRESSING S/S or R. Set Format by
PRESSING MODE.
9. Adjust 12/24-hour format by PRESSING S/S or R. Set Format by PRESSING MODE.
10.Turn Key Beep ON or OFF by PRESSING S/S or R. Set by PRESSING MODE.
11.PRESS & HOLD the MODE key to exit the Programming Sequence & resume Operating
mode.
ADJUST: S/S or R
SET: MODE
SB4065IS01SPORB.indd 10SB4065IS01SPORB.indd 10 6/3/10 2:04 PM6/3/10 2:04 PM

11
SETTING & OPERATING THE WATCH
SETTING PERSONAL PROFILE
The Sportline S7 uses an advanced algorithm based on your Personal Profile to estimate
your maximum heart rate and calculate calories burned. This sequence must be
completed to ensure accuracy of the watch’s functions.
1. In Personal Profile mode, PRESS & HOLD the MODE key to enter the programming
sequence. The variable being adjusted will flash on and off.
2. Adjust Age by PRESSING the START/STOP (S/S) or RESET (R) key. Advance to Set
Gender by PRESSING the MODE key.
3. Select Gender (M=male, F=female) by PRESSING the START/STOP (S/S) or RESET (R)
key. Set Gender by PRESSING the MODE key.
4. PRESS & HOLD the MODE key to exit the Programming Sequence & resume Operating
mode.
ADJUST: S/S or R
SET: MODE
SB4065IS01SPORB.indd 11SB4065IS01SPORB.indd 11 6/3/10 2:04 PM6/3/10 2:04 PM

12
S7 Heart Rate + Calorie Monitor
SETTING & OPERATING THE WATCH
SETTING DAILY ALARM
The Sportline S7 features a Daily Alarm. To set Alarm:
1. In Alarm mode, PRESS & HOLD the MODE key to enter the programming sequence.
2. Adjust Hour by PRESSING START/STOP (S/S) or RESET (R). Set by PRESSING MODE.
3. Adjust Minutes by PRESSING S/S or R. Set by PRESSING MODE.
4. PRESS & HOLD the MODE key to exit the Programming Sequence and return to Time mode.
5. Turn Alarm ON or Off by PRESSING the START/STOP (S/S) key. The Alarm icon
( ) will be visible when activated.
6. Turn Hourly Chime ON or Off by PRESSING the RESET (R) key. The Chime icon
( ) will be visible when activated.
ON/OFF: S/S
ADJUST: S/S or R
SET: MODE
SB4065IS01SPORB.indd 12SB4065IS01SPORB.indd 12 6/3/10 2:04 PM6/3/10 2:04 PM

13
SETTING & OPERATING THE WATCH
OPERATING THE CHRONOGRAPH
To operate the Chronograph:
1. To START timing, PRESS the START/STOP (S/S) key.
2. To STOP timing, PRESS the S/S key.
3. To RESET the Chronograph, PRESS & HOLD the RESET (R) key.
START/STOP TIMING:
PRESS S/S
RESET:
PRESS R
SB4065IS01SPORB.indd 13SB4065IS01SPORB.indd 13 6/3/10 2:04 PM6/3/10 2:04 PM

14
S7 Heart Rate + Calorie Monitor
SETTING & OPERATING THE WATCH
SETTING THE COUNTDOWN TIMER
The Sportline S7 is equipped with a 100-hour Countdown Timer. To set Timer:
1. PRESS & HOLD the MODE key in Timer mode.
2. Adjust Seconds byPRESSING START/STOP (S/S) or RESET (R). Set by PRESSING
MODE.
3. Adjust Minutes by PRESSING S/S or R. Set by PRESSING MODE.
4. Adjust Hours by PRESSING S/S or R. Set by PRESSING MODE.
5. PRESS & HOLD the MODE key to exit the Programming Sequence and return to Timer
mode.
OPERATING THE COUNTDOWN TIMER
To operate the Timer:
1. To START timing, PRESS the START/STOP (S/S) key.
2. To STOP timing, PRESS the S/S key.
3. To RESET the Timer, PRESS & HOLD the Rkey.
ADJUST: S/S or R
SET: MODE
SB4065IS01SPORB.indd 14SB4065IS01SPORB.indd 14 6/3/10 2:04 PM6/3/10 2:04 PM

15
SETTING & OPERATING THE WATCH
OPERATING CALORIES/EXERCISE TIMER
The Sportline S7 uses an advanced algorithm based on your Personal Profile to
estimate your maximum heart rate and calculate calories burned. The monitor displays
Total Exercise Time and Calories Burned (CA). To operate Calories/Exercise Timer:
1. To START timing, PRESS the START/STOP (S/S) key.
2. To STOP timing, PRESS the S/S key.
3. To RESET the Exercise Timer, PRESS & HOLD the Rkey.
TIP: The more frequent heart rate readings are taken, the more accurate the calories
burned estimate will be.
START/STOP TIMING:
PRESS S/S
RESET:
PRESS R
SB4065IS01SPORB.indd 15SB4065IS01SPORB.indd 15 6/3/10 2:04 PM6/3/10 2:04 PM

16
S7 Heart Rate + Calorie Monitor
RANGES & SPECIFICATIONS
TIME
•AM, PM, hour, minute, second
•12/24 hour format
•Calendar: month, date, day display with auto
leap year adjustment
ALARM
•Daily alarm
•Alarm duration: 30 seconds
EXERCISE TIMER
•Resolution: 1 second
•Measuring range: 99 hours, 59 minutes, 59.99
seconds
HEART RATE
•Range: 40-200 beats per minute
COUNTDOWN TIMER
•Resolution: 1 second
•Measuring Range: 99 hours, 59 minutes,
59 seconds
OTHER
•Electroluminescent (EL) backlight
•Water resistant up to 50 meters
•Battery: CR 2032
SB4065IS01SPORB.indd 16SB4065IS01SPORB.indd 16 6/3/10 2:04 PM6/3/10 2:04 PM

17
REPLACING THE WATCH BATTERY
The Sportline S7 uses a single CR2032 lithium battery.
BATTERY REPLACEMENT WILL BE REQUIRED FROM TIME TO TIME, AND SHOULD OCCUR
WHEN:
1. The display fades in part or completely
2. The heart rate function will not activate
3. Backlight System does not operate
4. The Low Battery icon is visible
To replace the battery of your Sportline S7, we recommend you take it to a watch repair service center or
certified jeweler. This will ensure that the water resistance will be retained after battery replacement.
CUSTOMER SUPPORT
If you have questions, comments or need assistance with your Sportline S7 Heart Rate Watch, you may
contact Customer Support by calling 1-866-694-4575.
SB4065IS01SPORB.indd 17SB4065IS01SPORB.indd 17 6/3/10 2:04 PM6/3/10 2:04 PM
