Sportline DUO 1025 User manual

DUO 1025
DUAL-USE HEART RATE MONITOR
DUO 1025

TABLE OF CONTENTS
INTRODUCTION 1
HOW TO USE THIS MANUAL 1
WARNINGS & CAUTIONS 2
CARE & MAINTENANCE 3
CUSTOMER SUPPORT 3
WATCH FUNCTIONS 4
KEYS AND THEIR FUNCTIONS 5-6
ACQUIRING HEART RATE 7-8
MAIN OPERATING MODES 9-10
SETTING THE WATCH FUNCTIONS 11
SETTING TIME & DATE 11
SETTING USER PROFILE 12
SELECTING YOUR TARGET HEART RATE ZONE 13-14
SETTING DAILY ALARM 15
SETTING DUAL TIME ZONE 16

DUO 1025 Dual-Use Heart Rate Monitor
TABLE OF CONTENTS
OPERATING THE WATCH 17
DISPLAY ICONS AND THEIR MEANINGS 17
OPERATING HEART RATE/EXERCISE TIMER MODE 18
INTELLITRACK HEART RATE VISUAL DISPLAY 19
HEART RATE/EXERCISE MEMORY 20
OPERATING THE CHRONOGRAPH 21
VIEWING THE CHRONOGRAPH MEMORY 22
SETTING & OPERATING THE COUNTDOWN TIMER 23
VIEWING THE EL BACKLIGHT SYSTEM 24
REPLACING THE WATCH BATTERY 25
REPLACING THE CHEST TRANSMITTER BATTERY 26
BATTERY SAFETY INFORMATION 27
TROUBLE SHOOTING 28
RANGES & SPECIFICATIONS 29
FCC COMPLIANCE 30
WARRANTY 31

1
Congratulations on your purchase of a Sportline Personal Fitness Monitor. Please keep in mind; your
watch is a sensitive technical instrument. With proper care and maintenance, it will last for many
years. However, improper care and handling can cause the various sensors to be damaged and to stop
functioning.
HOW TO USE THIS MANUAL
Sportline Personal Fitness Monitors have many unique features and functions. Please read all sections
of this manual carefully and become fully familiar with the operation of the watch before using it in
the field.
Proper setup and operation will greatly enhance the watches usefulness and your enjoyment.
The manual is divided into sections outlining each of the major functions of the watch. A drawing of
the watch screen that represents the starting point or other important screens for each operational
process are shown adjacent to the instructions for the process; important keys are shown indicating
PRESS & HOLD and PRESS.
The steps for the programming or operation are adjacent to the screen illustration. Key points and
important information are shown in highlighted blocks.
ACTIVATING THE WATCH FROM POWER DOWN MODE
PLEASE NOTE: Your watch was originally shipped in Power Down Mode to conserve battery life.
To deactivate Power Down mode: PRESS & HOLD ANY KEY for 3 seconds (see page 10 for more
information on Power Down mode).
INTRODUCTION

2
DUO 1025 Dual-Use Heart Rate Monitor
WARNING: Before starting any exercise program or performing any vigorous physical activity, we
strongly suggest you visit your doctor for a complete physical and to discuss your plans.
CAUTION: Your watch is designed to be water resistant to a static pressure of 5 ATM and can be worn
while showering and light swimming. However, we recommend that extensive use of the unit in the
water be avoided whenever possible. Care should be taken not to press any keys while the unit is
submerged as this can force moisture past the key seals and damage the unit.
CAUTION: Avoid exposing your watch to extreme conditions for a prolonged period of time.
CAUTION: Avoid rough usage or severe impacts to your watch.
DO NOT use hand cream as it will insulate the signal between the skin and sensor contacts.
DO NOT use the fingertips where the skin is dry and thick. For those with extremely dry skin, moisten
fingers and wrist with tap water or a conductive gel.
CLEAN the Back Cover occasionally by using a damp cloth. Then wipe dry to remove any residual
grease.
CLEAN your skin and fingers with soap and water for a better signal transmission.
AVOID doing awkward motions during measurement. It may create inaccurate heart rate readings.
WARNINGS & CAUTIONS

3
CARE & MAINTENANCE
• NEVER attempt to disassemble or service your unit.
• DO NOT expose the unit to extreme heat, shocks, magnetic fields, electrical noise, strong vibration
or long-term exposure to direct sunlight.
• DO NOT drop or step on the watch.
• TO CLEAN THE UNIT: wipe with a lightly moistened cloth. Apply mild soap to the area if there are
stubborn stains or marks. Do not expose the unit to strong chemicals such as gasoline, cleaning
solvents, acetone, alcohol or insect repellents, as they may damage the unit’s seal, case and/or
finish.
• STORE the unit in a dry place when you are not using it.
CUSTOMER SUPPORT
If you experience any problems with this product or have questions, please first contact our Customer
Service Team at 1-800-338-6337. We are ready to help.

4
DUO 1025 Dual-Use Heart Rate Monitor
WATCH FUNCTIONS
TIME
• Time/Day/Date/Month
• 12- or 24-hour format
• Daily Alarm
• Dual Time Zone
HEART RATE
• Finger-Touch or Chest Strap Transmitter HR
acquisition
• 4 user-selected HR Zones
• HR Zone Alert
• Calorie Consumption
• Fat Burn Measurement
• HR Zone Memory Recall
• Intellitrack HR Feature
• 7 Workout Memory
CHRONOGRAPH
• 1/100 second resolution
• 9 hours, 59 minutes, 59.99 seconds
• 100 laps
• Lap/Split Memory Recall
TIMER
• 1-second resolution
• Range: 23 hours, 59 minutes, 59 seconds
• Audible alarm
OTHER
• EL Backlight System

5
MODE/SET KEY
KEYS AND THEIR FUNCTIONS
LIGHT KEY
HEART RATE SENSOR
START/STOP KEY
(S/S)
LAP/VIEW KEY
(L/V)
HEART RATE SENSOR

6
DUO 1025 Dual-Use Heart Rate Monitor
MODE/SET KEY
• Scroll through operating modes
• PRESS & HOLD: Enter/Exit a programming
sequence
• Set values being adjusted in programming
sequence
• PRESS & HOLD: Enter/Exit Memory Recall in
Exercise and Chronograph modes
START/STOP KEY (S/S)
• Turn Alarm ON or OFF in Alarm mode
• Start/Stop Exercise Timer
• Start/Stop Countdown Timer
• Start/Stop Chronograph
• Increase setting values being adjusted in
programming sequence
• PRESS & HOLD: Reset Exercise Timer,
Chronograph
LAP/VIEW (L/V)
• Decrease setting values being adjusted in
programming sequence
• Start new Lap in Chronograph mode
• Reset Countdown Timer
• Scroll through current heart rate information
in Exercise mode
• PRESS & HOLD: Activate Power Save mode
from Time of Day mode
LIGHT KEY
• Activates (EL) backlight system
HEART RATE SENSORS
• Acquires Finger Touch Heart Rate
KEYS AND THEIR FUNCTIONS

7
ACQUIRING HEART RATE: FINGER TOUCH
Heart rate may be acquired from any operating mode (not in any Setting Sequence).
1. With the watch attached to your wrist, TOUCH & HOLD the HEART RATE SENSOR (anywhere on the
metal top plate of the watch) with your index finger.
NOTE: If Heart Rate Sensors are accidentally touched, the watch will automatically attempt to acquire heart rate. If no
heart rate is detected, watch will resume operating mode in approximately 10 seconds. This will not interfere with
any timing functions in progress.
NOTE: You may exit Heart Rate mode at any time by Pressing the Mode, Start/Stop or Reset key.
2. Continue TOUCHING & HOLDING until heart rate displays.
3. Once Heart Rate is acquired, RELEASE THE SENSOR. Heart Rate will continue to display for a period
of approximately 5 seconds.
ACQUIRING HEART RATE
OR

8
DUO 1025 Dual-Use Heart Rate Monitor
ACQUIRING HEART RATE

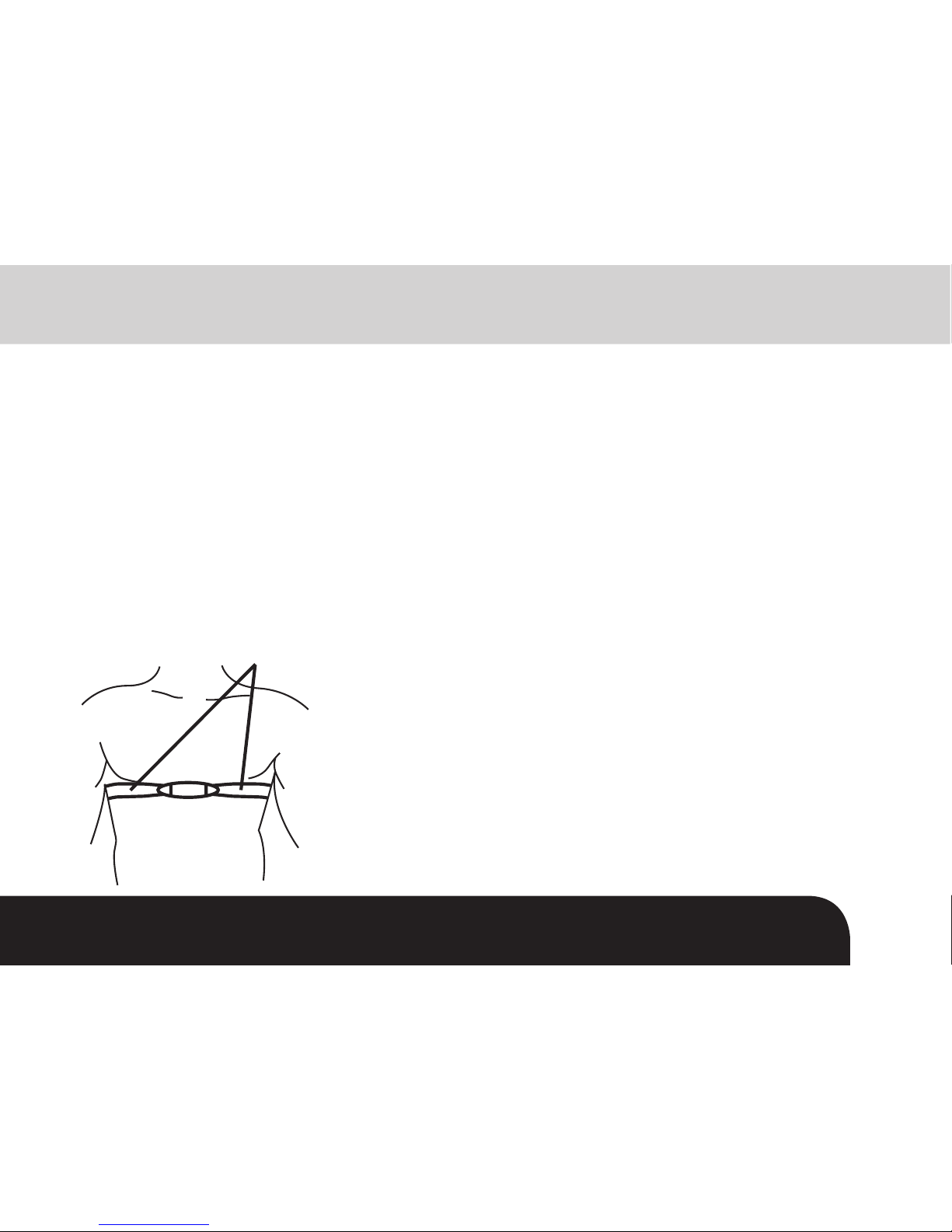

ACQUIRING HEART RATE WEARING THE CHEST STRAP TRANSMITTER
The Chest Strap Transmitter provides constant heart rate information throughout the duration of your
workout. To ensure a proper heart rate display, the chest transmitter must be properly adjusted. Snap
the plastic tabs at the end of the elastic belt into the holes at the end of the transmitter and adjust the
strap so that the transmitter fits tightly below the pectoral muscles, as shown in the drawing.
NOTE: Users with significant chest hair may have a problem obtaining contact between the transmitter electrodes and
their skin, resulting in poor performance. It may be necessary for these individuals to shave the area of their chest
beneath the transmitter.
NOTE: In dry and cold climates it may take a few minutes for a layer of perspiration to form between the chest strap
and the skin. Moistening the electrodes with saliva or ECG conductive gel can speed up this process.
NOTE:If Chest strap heart rate is captured, finger touch heart rate will be disabled.
ELECTRODES

9

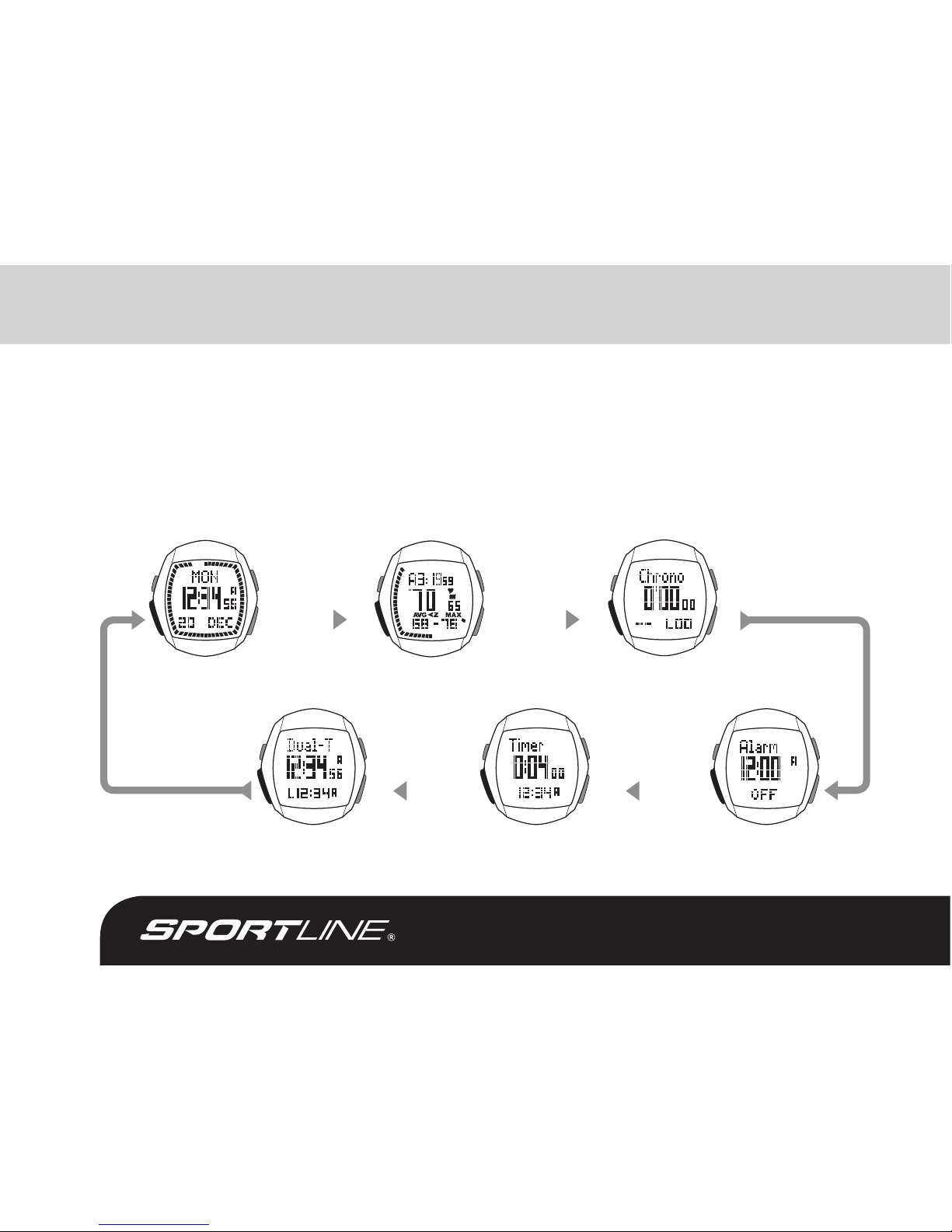

MAIN OPERATING MODES
The Sportline Duo 1025 has 6 main operating modes: Time, Heart Rate/Exercise Timer, Chronograph,
Alarm, Countdown Timer and Dual Time. Scroll through modes by PRESSING the MODE/SET (MODE)
key. You may acquire Finger Touch Heart Rate by TOUCHING & HOLDING the Hear Rate Sensor in any
operating mode.
CHRONOGRAPH
ALARM
HEART RATE/
EXERCISE TIMER
COUNTDOWN
TIMER
TIME
DUAL TIME
PRESS
MODE
PRESS
MODE
PRESS
MODE
PRESS
MODE

10
DUO 1025 Dual-Use Heart Rate Monitor
MAIN OPERATING MODES
POWER SAVE MODE
Power Save mode allows you to conserve battery life by deactivating the display
when the monitor is not being used. To activate Power Save mode:
1. In Time mode, PRESS & HOLD the LAP/VIEW key for 5 seconds. The display will
go blank.
2. To deactivate Power Save mode and resume normal operation, PRESS ANY KEY.
POWER DOWN MODE
Power Down mode allows you to conserve battery life by deactivating the unit
when the monitor is not being used for long periods of time. To activate Power
Down mode:
1. In Time mode, PRESS & HOLD the START/STOP & MODE keys for 5 seconds.
Note: Time/Date, User Profiles and Memory files will be preserved.
2. To deactivate Power Save mode and resume normal operation, PRESS ANY KEY
for 3 seconds.

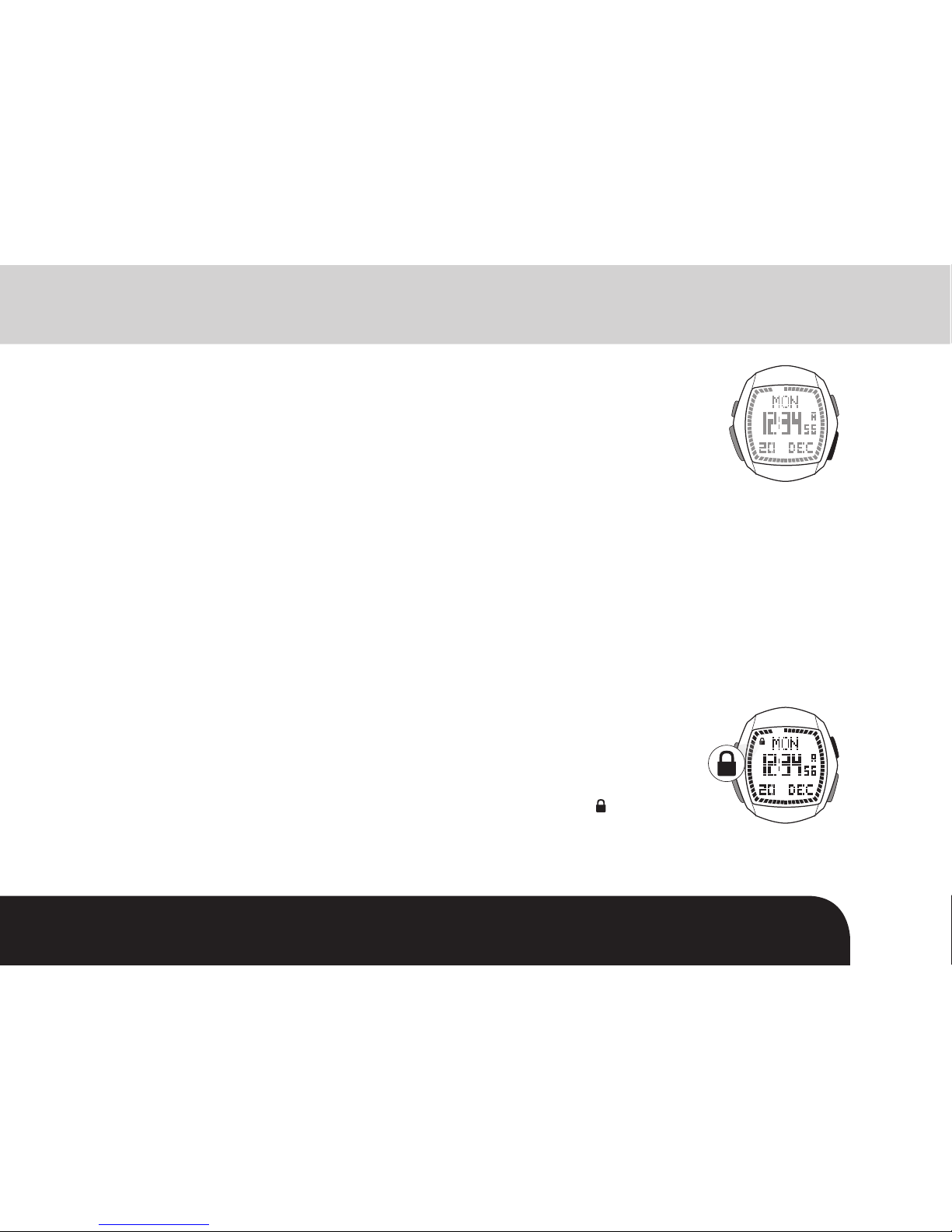

HEART RATE LOCK
To deactivate finger Touch Heart Rate (when you don’t want to accidentally acquire
heart rate):
1. In Time mode, PRESS & HOLD the START/STOP key. The lock icon ( ) will appear
in the upper left of the display.
2. To unlock, PRESS & HOLD the START/STOP key for 2 seconds in Time mode. The
lock icon will disappear.
PRESS & HOLD
LAP/VIEW
PRESS ANY KEY TO
RESUME OPERATION
PRESS & HOLD
START/STOP

11
SETTING THE WATCH FUNCTIONS
SETTING TIME AND USER PROFILE
In this Programming Sequence, you will program the Time & Calendar functions as
well as set your User Profile. This sequence must be completed to ensure accuracy
of the watch’s functions.
SETTING TIME AND DATE
1. In Time mode, PRESS & HOLD the MODE/SET (MODE) key to enter the
programming sequence. The variable being adjusted will flash on and off.
2. Reset Seconds to zero (00) by PRESSING the START/STOP (S/S) or LAP/VIEW (L/V)
key. Advance to Set Minutes by PRESSING the MODE key.
3. Adjust Minutes by PRESSING START/STOP (to increase) or LAP/VIEW (to
decrease). Set Minutes and advance to Set Hour by PRESSING the MODE key.
4. Adjust Hour by PRESSING S/S or L/V. Set Hour and advance to Set Year by
PRESSING the MODE key.
5. Adjust Year by PRESSING S/S or L/V. Set by PRESSING MODE.
6. Adjust Month by PRESSING S/S or L/V. Set by PRESSING MODE.
7. Adjust Day by PRESSING S/S or L/V. Set by PRESSING MODE.
8. Adjust 12/24-hour format by PRESSING S/S or L/V. Set Format by PRESSING
MODE.
10. Turn Hourly Chime ON or OFF by PRESSING S/S or L/V. Set by PRESSING MODE.
11. Turn Key Beep ON or OFF by PRESSING S/S or L/V. Set by PRESSING MODE.
CONTINUED ON NEXT PAGE
ADJUST: S/S or L/V
SET: MODE

12
DUO 1025 Dual-Use Heart Rate Monitor
SETTING THE WATCH FUNCTIONS
SETTING USER PROFILE
The Sportline Duo 1025 uses an advanced algorithm based on your User Profile
to estimate your maximum heart rate and calculate other heart rate information.
To ensure accuracy of the watch’s advanced functions, this information must be
programmed in the Programming Sequence.
12. Select Gender (M=male, F=female) by PRESSING the START/STOP (S/S) or LAP/
VIEW (L/V) key. Set Gender by PRESSING the MODE key.
13. Adjust Year of Birth (BIRTH in upper line of display) by PRESSING the S/S or L/V
key. Set by PRESSING MODE.
14. Select Units (Metric or Imperial) by PRESSING S/S L/V. Set by PRESSING MODE.
15. Adjust Height by PRESSING S/S or L/V. Set by PRESSING MODE.
16. Select Weight Units (LB=pounds, KG=kilograms) by PRESSING S/S or L/V. Set by
PRESSING MODE.
17. Adjust Weight by PRESSING S/S or L/V. Set by PRESSING MODE.
18. Select Activity Level (LOW, MEDIUM or HIGH) by PRESSING S/S or L/V. Set by
PRESSING MODE.
19. Adjust Display Contrast by PRESSING S/S or L/V. Set by PRESSING MODE.
20. PRESS & HOLD the MODE key to exit the Programming Sequence & resume
Operating mode.
NOTE: It is recommended to program your Heart Rate Zone before using the watch during
exercise (See page 14 “Setting Target Heart Rate Zone”).
ADJUST: S/S or L/V
SET: MODE

13
SETTING THE WATCH FUNCTIONS
HEART RATE TARGET ZONES
The Sportline Duo 1025 allows you to select from 3 preset Heart Rate Target Zones (ACTIVE, FAT
BURN and ENDURANCE) and 1 user-defined Target Zone. The watch tracks time IN, ABOVE and
BELOW Target Zone during exercise.
SELECTING YOUR TARGET HEART RATE ZONE
Losing weight and managing to keep it off is a lot easier when you exercise in your target heart rate
zone. To get the most out of any exercise program, you should target 50% to 85% of your maximum
heart rate depending on your fitness level and objectives.
Active Zone: 50% - 60% of maximum heart rate.
This zone is ideal for fitness beginners on a low to moderate intensity program. Exercising in this zone
reduces blood pressure and cholesterol.
Fat Burning Zone: 60% - 75% of maximum heart rate.
Exercising in this zone strengthens the cardiovascular system and nearly all the calories burned are
from fats.
Endurance Zone: 75% - 85% of maximum heart rate.
Reaching this zone requires more intense aerobic activity and is perfect for fitness enthusiasts
working to burn maximum calories from fat and carbohydrates. Cardiovascular strengthening,
increased metabolism and elevated caloric burn are the primary benefits.

14
DUO 1025 Dual-Use Heart Rate Monitor
SETTING THE WATCH FUNCTIONS
SETTING HEART RATE TARGET ZONES (continued)
The Sportline Duo 1025 automatically calculates your Maximum Heart Rate from
your User Profile and uses this information to display Heart Rate Zones.
NOTE: This information must be programmed prior to selecting Target Zone. See page 12.
1. In Heart Rate/Exercise Timer mode, PRESS & HOLD the MODE/SET (MODE) key
until SETTING appears in the upper line of the display to enter the Programming
Sequence.
2. Select Target Zone (Active, FatBurn, Enduranc or MyZone=User Defined) by
PRESSING the START/STOP (S/S) or LAP/VIEW (L/V). Set Target Zone by PRESSING
MODE.
3. Select Zone Alarms (Above Zone and Below Zone) ON or OFF by PRESSING S/S
L/V. Set Zone Alarms by PRESSING MODE.
NOTE: Zone Alarm is an audible signal that sounds when you are above or below your selected
Target heart Rate Zone.
4. Adjust MyZone Lower Limit by PRESSING S/S or L/V. Set by PRESSING MODE.
5. Adjust MyZone Upper Limit by PRESSING S/S or L/V. Set by PRESSING MODE.
6. PRESS & HOLD MODE to exit the Programming Sequence and return to HR/
Exercise mode.
ADJUST: S/S or L/V
SET: MODE

15
SETTING THE WATCH FUNCTIONS
SETTING DAILY ALARM
The Sportline Duo 1025 features a Daily Alarm. To set Alarm:
1. In Alarm mode, PRESS & HOLD the MODE/SET (MODE) key to enter the
programming sequence.
2. Adjust Hour by PRESSING S/S or L/V. Set by PRESSING MODE.
3. Adjust Minutes by PRESSING S/S or L/V. Set by PRESSING MODE.
4. PRESS & HOLD the MODE key to exit the Programming Sequence and return to
Time mode.
5. Turn Alarm ON or Off by PRESSING the START/STOP (S/S) key.
ADJUST: S/S or L/V
SET: MODE

16
DUO 1025 Dual-Use Heart Rate Monitor
SETTING THE WATCH FUNCTIONS
SETTING DUAL TIME ZONE
To set Dual Time:
1. In Dual Time mode, PRESS & HOLD the MODE/SET (MODE) key to enter the
programming sequence.
2. Adjust by PRESSING S/S or L/V. Set by PRESSING MODE.
NOTE: Dual Time is linked to the primary Time and is adjustable in 30-minute intervals.
3. PRESS & HOLD the MODE key to exit the Programming Sequence and return to
Dual Time mode.
ADJUST: S/S or L/V
SET: MODE

17
DISPLAY ICONS AND THEIR MEANING
The following table shows the watch’s display icons and their meaning:
OPERATING THE WATCH
symbol what it means
Heart Rate is below selected
Target Zone
Heart Rate is above selected
Target Zone
Heart Rate is in selected Target Zone
Maximum Heart Rate for workout
Average Heart Rate for workout
symbol what it means
Heart Rate is being detected
Exercise Timer is running
Heart Rate as a percentage of
calculated Maximum Heart Rate
Hourly Chime is activated
Daily Alarm is activated
Low Battery warning
