SportsArt Fitness XT20 Cross Trainer User manual

XT20
2005.3

SPORTS ART COMMERCIAL GRADE XT20
X-TRAINER
TABLE OF CONTENTS
A. SAFETY GUIDELINES .......................................................................................
B. INTRODUCTION.................................................................................................
C. ASSEMBLING YOUR X-TRAINER
List of parts..........................................................................................................
Step by step instructions......................................................................................
D. UNDERSTANDING THE XT20 DISPLAY CONSOLE
Windows...............................................................................................................
Keypad.................................................................................................................
E. OPERATING YOUR X-TRAINER
Power Up the X-Trainer........................................................................................
Quick Start............................................................................................................
Entering User's Personal Information...................................................................
Power Standby Mode...........................................................................................
Turn Off the X-Trainer...........................................................................................
F. OVERVIEW OF PROGRAMS
Manual Mode........................................................................................................
Random................................................................................................................
WT Loss (HRC 65%) / CARDIO (HRC 80%).......................................................
Conditioning and Advanced Conditioning............................................................
Cool Down............................................................................................................
Stop......................................................................................................................
Displaying Workout Data......................................................................................
G. SYSTEM DEFAULT SETTING
Setting Modify......................................................................................................
Setting Weight Units.............................................................................................
H. RANGES OF VARIOUS SETTINGS....................................................................
I. SETTING RANGES..............................................................................................
J. MAINTAINING THE X-TRAINER..........................................................................
K. GUIDELINES FOR EXERCISE
How long should I exercise?................................................................................
How often should I exercise?...............................................................................
L. TROUBLESHOOTING
Load response issues..........................................................................................
Appendix: Wiring Schematic................................................................................
1
2
3
4
10
11
13
13
14
15
15
16
17
18
19
20
21
22
23
23
23
24
24
24
24
25
26

A. SAFETY GUIDELINES:
Please read and follow the following safety guidelines:
Keep this owner's manual for future use and reference.
Read this owner's manual and follow the instructions.
Assemble and operate the SportsArt XT20 Trainer on a solid, level surface.
Never allow children on or near the machine.
Check the machine before every use. Make sure all parts are assembled; all nuts
and bolts are tightened. Do not use the machine if the unit is disassembled in any
way.
Keep your hands away from moving parts.
Wear proper workout clothing. Do NOT wear loose clothing. Do not wear shoes
with leather soles or high heels. Tie back all long hair.
Don't rock the unit from side to side; take care when mounting and dismounting
the unit.
Do not use any accessories that aren't specifically recommended by the
manufacturer as these might cause injuries or cause the unit to fail.
Work within your recommended exercise level. Do NOT work to exhaustion.
If you feel any pain or abnormal sensations, STOP YOUR WORKOUT.
Consult your physician immediately.
Allow sufficient space on both sides of the trainer for users to mount and dismount
the machine.
If any parts fail or are defective, please stop your workout immediately and contact
your authorized dealer for repairs.
1

2
B. INTRODUCTION
Congratulations on purchasing one of the finest pieces of commercial grade exercise
equipment in the market today, the SportsArt XT20. Constructed of high quality
materials and designed for years of trouble free usage, the XT20 will be an integral
part of your fitness regimen.
Before using your trainer, we recommend that you familiarize yourself with this
Owner's Manual. Whether you are a first time user of an X-trainer or a seasoned
"pro," understanding the correct use of the equipment will enhance your ability to
achieve your exercise goals safely and successfully.

C. ASSEMBLING YOUR X-TRAINER
LIST OF PARTS:
1. One Display Support Tube
2. One Left Pedal
3. One Right Pedal
4. One Seat Back
5. One Seat Bottom
6. One Left Upper Body Bar
7. One Right Upper Body Bar
8. Two Upper Body Bar Inner Covers
9. Two Upper Body Bar Exterior Covers
10. Three 5/16"* L19 bolts for the Display Pedestal
11. Three 5/16"* L19 bolts for the Seat Back
12. Three 5/16*D20*t2.0 Flat Washers for the Seat Back
13. Four 5/16*L19 Bolts for the Seat Bottom
14. Four Flat Washers 5/16*D20*t2.0 for the Seat Bottom
15. Eight 5/16*L19 Bolts for Left and Right Upper Body Bars
16. Eight D18*d8.5*t2.0 Washers for Left and Right Upper Body Bars
17. Four Flat Washers D17*d8.3*t2.0 for Left and Right Upper Body Bars
18. Eight Spring Washers 5/16 *t2.0 for Left and Right Upper Body Bars
19. Eight Phillips Head Screws M4*L20 for Upper Body Bar Covers
20. One Screwdriver
21. One Hex Allen Wrench
22. One Open-ended Wrench
23. Three Fuses ( 2 AMP x 2 and 3 AMP or 3.15 AMP)
3

STEP BY STEP INSTRUCTIONS
Before assembling your X-trainer, make sure that you have all parts listed on the
previous page. Refer to the product illustration below.
Product Illustration
4
Leg Resistance Switch
Upper Body Handle
Handlebar end cap
Arm Resistance Switch
Seat Back
Seat Adjustment Lever
Seat
Storage Tray
Rear Cover
Rear Cross Frame
Seat Back
Adjustment Lever
Magazine Tray
Pedal
Front Cover
Crank Access Cover
Front Cover Label
Electronics Package
Electronics Display Pedestal
Charger
Front Cross Frame Cover
Floor Level Adjustment
Floor Level Adjustment
Front Cross Frame
Base Frame
Base Frame Cover
Transport wheel
Upper Body Bar Covers
Rear Cover Label

The following steps explain how to assemble your SportsArt XT20. Please read
every step thoroughly. Follow the directions completely to ensure correct assembly.
1. Remove the trainer from the box and separate packing material from the trainer
parts.
2. Place all parts on a flat surface so that they can be found more easily.
3. Connect the data cables (female to male) between the pedestal and the trainer
frame. Install the Pedestal to the trainer frame. Install the pedestal to the trainer
frame. Firstly attach the top bolt A provide, don't tighten yet. If it is a bit to insert
the bolt A into the hole, please hold the pedestal to align the bole. Then attach two
bolts B below as well, don't tighten either. Finally fasten bolt A, then bolt B
clockwise to secure them completely.
5

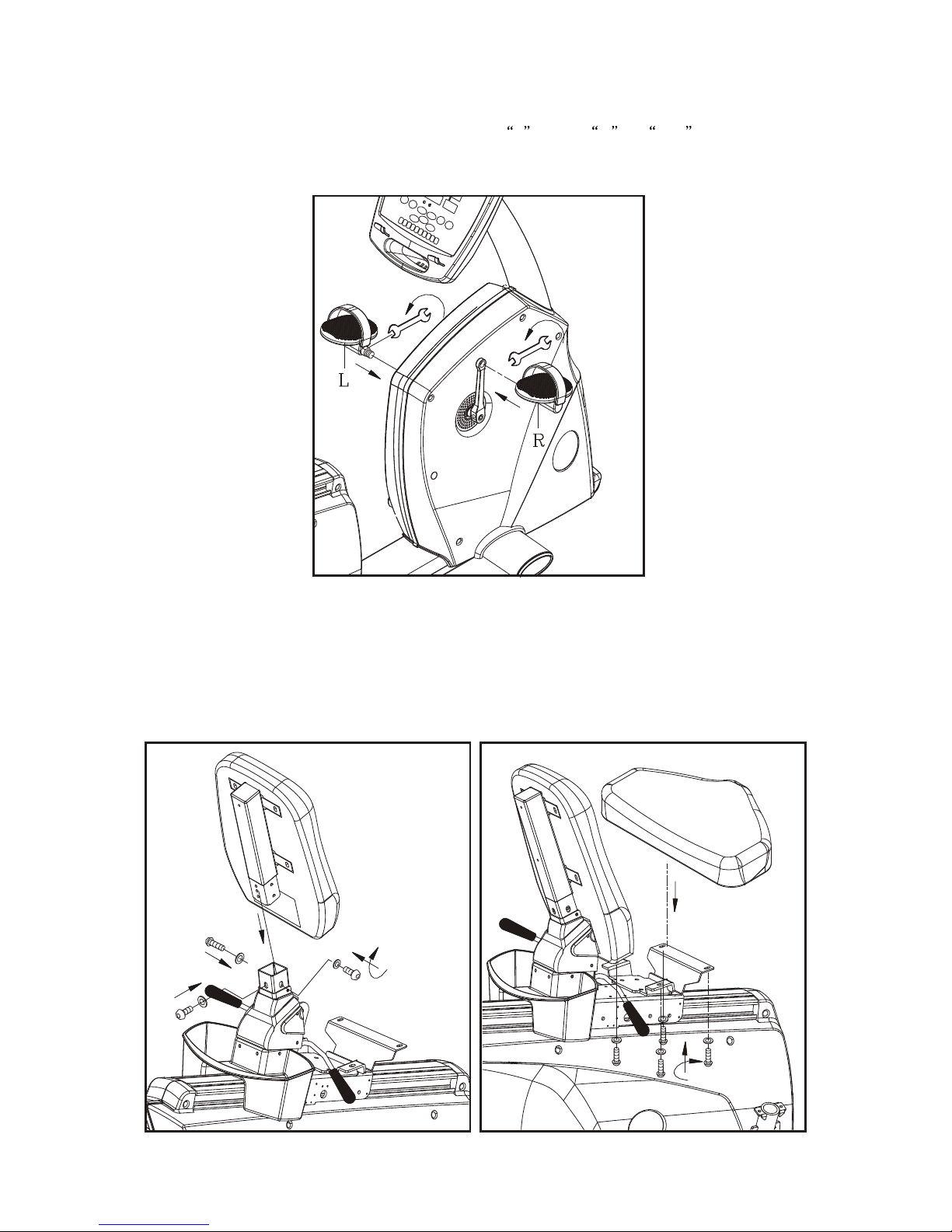

4. Install right and left Pedals to right and left crank arms respectively, using the
wrench provided. Be careful to distinguish L from R . Left is the user's
left, as he or she exercises on the equipment. After installation, rotate pedals
counterclockwise to secure them (see the following illustration).
5. Install the Seat Back onto the seat post by using the bolts and washers provided.
Make sure the bolts and washers are tightened to secure the Seat Back. Install
the seat to the handlebar mounting plate; fix the seat with the bolts and washers
provided. Secure the bolts from underneath the seat, with two bolts in front and
two in back, through the handlebar mounting plate. Tighten the bolts (see the
following illustration).
6

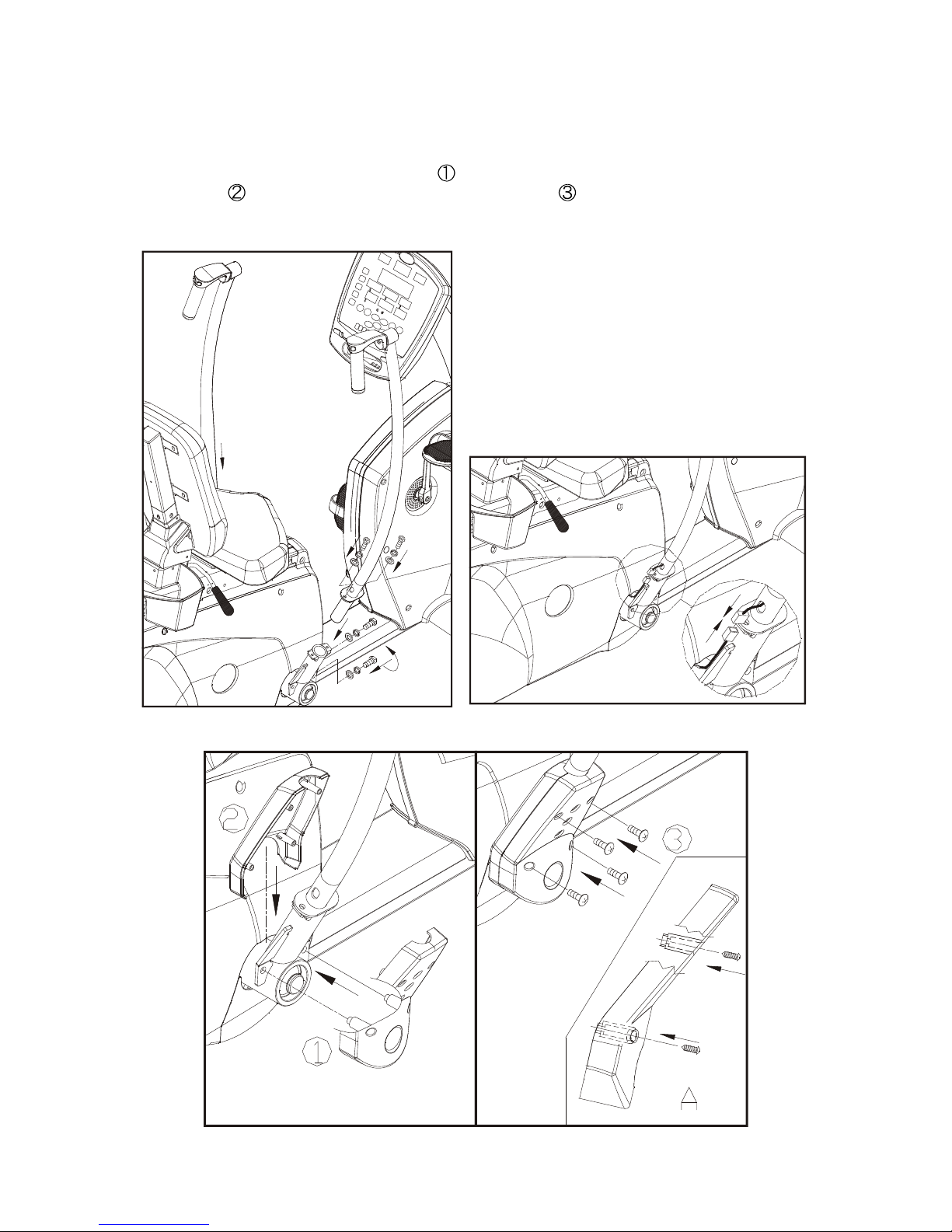

6. Insert right and left upper body bars into their respective connector tubes. Secure
the bars with the four bolts attached. Connect the wires in the upper body bars.
Attach the exterior enclosure firstly that two ribs on it go into the holes on the
bottom of upper body bars as step , then put the interior enclosure in placement
as step . Finally tighten 4 bolts provided as step . (Please fasten the top right
or left bolt firstly and keep the bolt to align the rib for easy assembly. See Fig. A)
7

7. Floor Level Adjustment
If the trainer is unsteady on the floor, turn the levelers on the front and rear feet.
Raise or lower the levelers to steady your trainer on the floor. Secure the
adjustment level with the washers attached, as illustrated below:
8. Seat Back/ Seat Bottom Adjustment
The XT20 is equipped with a two-piece seat, allowing you to adjust the angle of
the seat back and bottom. To adjust the seat back, pull the right lever by the seat
and press the seat back backwards to find the most comfortable position for you.
Then release the lever.
To adjust the seat bottom to the appropriate position for you, sit on the trainer with
both feet in the pedals, extend one leg as far as possible, and pull the left lever by
the seat. Move the seat forward or backward until you find yourself comfortable
with your position. Then release the lever.

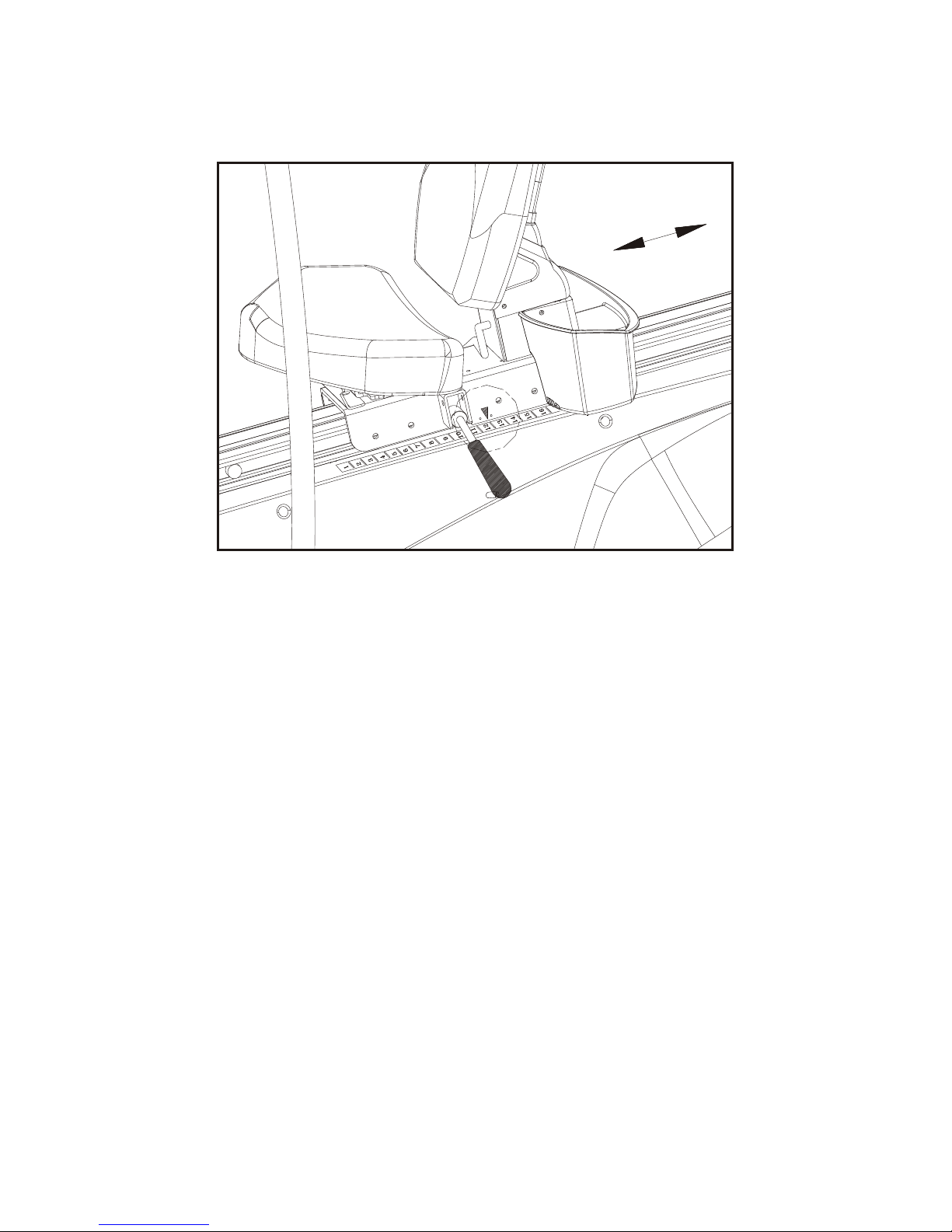

Please see the following illustration.
8

9. The marking on the seat rail is there to assist the user to record his or her favorite
position (as shown in the following illustration).
The XT20 Trainer is now assembled and ready for use.
9

D. UNDERSTANDING THE XT20 DISPLAY CONSOLE:
The SportsArt XT20 display console provides user-friendly control of all X-trainer
functions.
OVERVIEW OF THE DISPLAY CONSOLE
WINDOWS
a. 65% HR Target. The weight loss program adjusts resistance to keep the user's
heart rate at 65% of the maximum heart rate. This provides the optimum weight
loss workout.
b. HEART RATE shows the user's current heart rate.
kj
i
h
g
d
c
b
a
o
n
m
l
e
f
10

c. 80% HR Target. The cardio training program adjusts resistance to keep the user's
heart rate at 80% of the maximum heart rate. This provides the optimum cardio
training workout.

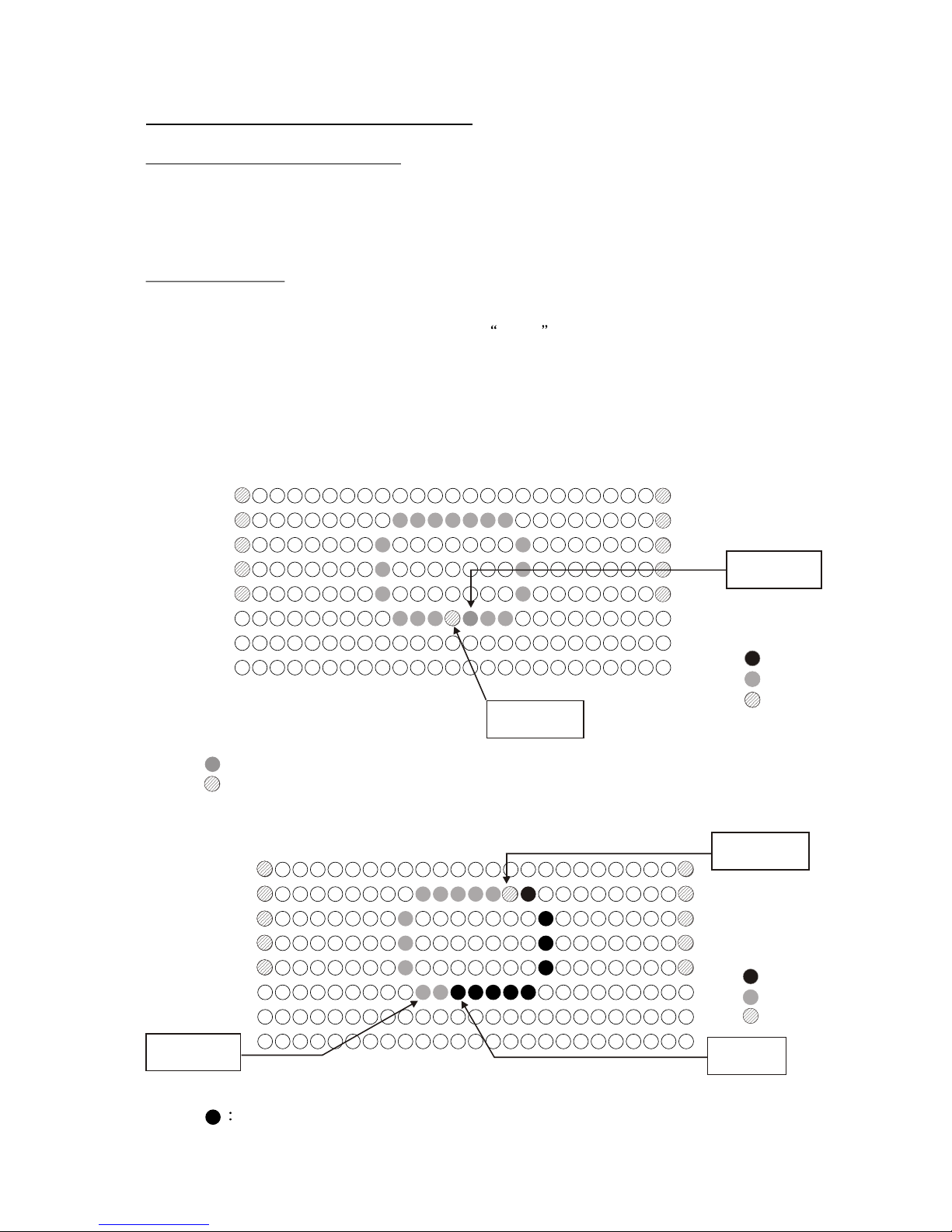

d. DOT MATRIX WINDOW shows operating instructions and workout feedback.
e. CALORIES or CAL/HR. When lit, the CALORIES indicator shows the total amount
of calories burnt since the beginning of the workout. When lit, the CAL/HR
indicator shows the average number of calories burnt per hour during the workout.
DISTANCE shows the accumulated distance covered during this workout.
METS/WATT. When the METS indicator is lit, the METS window shows the user's
workout level in METS (metabolic equivalents). One MET equals the consumption
of oxygen per 3.5 ml/kg/min. When the WATT indicator is lit, this window shows
the user's workout level in watts. WATT is the unit of measurement for power
output.
f. LEG RPM shows the speed at which the user pedals as revolutions per minute.
TIME shows the remaining time in the present workout, or, in QUICK START
mode, the accumulated workout time.
ARM RPM shows the speed at which the user strokes as revolutions per minute.
When the ARM RPM keeps below 40 RPM for a period of time, the message
"FOR GOOD BATTERY LIFE, PLEASE MOVE OVER 40 RPM" will be prompted
across the main display to remind the user to speed up.
KEYPAD
g. UP & DOWN (ARM WORK LEVEL). Press these buttons to input user information,
workout time, and arm resistance values.
h. START. Press this button to turn on the display. When the unit is powered, press
START to begin a workout. Press START anytime during a workout to input the
user's personal information.
i. DISPLAY LOCK. Press DISPLAY LOCK to constantly view CALORIES & METS or
CAL/HR & WATTS. If this button is not pressed, the feedback message will
alternate every four seconds from CALORIES to CAL/HR, CAL/HR to CALORIES,
METS to WATTS, or WATTS to METS.
j. ENTER. Press this button to confirm a selection.
k. NUMERIC KEYPADS. Press numeric keypads to input the user's personal
information or to set up the desired workout time length.
11

l. STOP/RESET. In any preset exercise program, press this button to end that
program. When this button is pressed, the dot matrix panel will show STOP
for 3 seconds and beep for 0.5 second. TOTAL TIME + AVERAGE HR will
appear. Total CALORIES consumed and total DISTANCE accumulated will appear
in their respective windows. Total workout time will appear in the TIME window.
The HEARTRATE window will show the average heart rate measured during this
workout.
In cool down mode, hold the STOP/RESET button to end the COOL DOWN
period. The message SELECT PROGRAM OR PRESS START will scroll
across the dot matrix window. Program indicators will blink simultaneously. Select
one program to start that workout.
Hold the STOP/RESET button for 2 seconds to reset the display and see the
initial banner. The display cannot be reset if the system is in POWER STANDBY
MODE.
m. QUICK START. Press this button to start a workout promptly without entering the
user's personal information.
n. UP & DOWN (LEG WORK LEVEL). Press these buttons to input user personal
information, workout time, and pedal resistance level values.
o. PRESET PROGRAM SELECTIONS. Press MANUAL, RANDOM, WT Loss/
CARDIO CONDITIONING, or ADVANCE CONDITIONING buttons to start a
preset workout.
12

E. OPERATING YOUR X-TRAINER
a. POWER UP THE X-TRAINER
Either press the <START> button, start pedaling, or start moving the arm
conditioner bars to activate the unit. "XT20" will appear on the dot matrix window.
No other messages will be shown on other windows at this time.
b. QUICK START
b-1. Press "QUICK START" on the console to start exercising promptly without
entering user personal information. 00:00 shows up in the TIME window.
Time starts counting once you pedal.
b-2. Preset values will show up as below: Age 35; Weight 75 kg or 165 lb. Arm
and leg resistance are both preset at level 1.
b-3. The following panel shows up:
: Green dots represent segments that have not yet been exercised.
: The orange dot represents segments started or now in motion.
b-4. the panel below appears during a workout:
Red dots represent segments that have already been exercised.
(Pattern 1)
Green dots
Green dots
Orange dot
Orange dot
Red dot
(Pattern 2)
13
OrangeOrange
GreenGreen
RedRed
Orange
Green
Red

NOTES: 1. The blinking dot moves only when you pedal. It does not move if you
only exercise your arms.
2. The distance exercised per dot cycle is 0.25 mile or 0.4 km.
b-5. While exercising, press < > < > buttons to change pedal or arm resistance.
The values shown for LEG WORK LEVEL & ARM WORK LEVEL (in upper
left and right corners of the dot matrix window) will also change according to
your setting.
b-6. When a workout is completed, the display windows appear as they do when
you first start up the machine (See E. OPERATING YOUR TRAINER).
b-7. You can switch from QUICK START to a preset PROGRAM simply by
pressing any PROGRAM button. When you select one program, the related
LED indicator lights, and the workout time automatically shows 30:00
minutes. Press < > < > buttons or the numeric keypad to adjust the
workout time length. Press ENTER to confirm your choice and begin your
workout.
c. ENTERING PERSONAL INFORMATION
If you prefer to enter personal information, do not press QUICK START ; Press
the <START> button. The display prompts the user to input personal information.
Follow the prompts.
c-1. Setting Age
Press the <START> button. The dot matrix window prompts the user to
"ENTER AGE". Then "AGE" appears. The TIME window shows "35". The
AGE indicator lights up.
Use < >< > buttons or numeric keys to set user age, then press the
<ENTER> button.
If the entry exceeds this age range, WRONG NUMBER will scroll
across the display. (The age value can range from 12 to 99.)
After the user age is entered, corresponding 65% and 80% target heart
rates appear in the Personal Cardio Advisor area of the display.
c-2. setting Weight
After the user age is set, the dot matrix window prompts the user to "ENTER
WEIGHT". Then LB or KG appears. The TIME window shows either
"165" if the unit is preset in pounds or "75" if preset in kilos. The WEIGHT
indicator under the TIME window lights up.
Use < >< > buttons or numeric keys to set user weight; then press the
<ENTER> button.
14

If the weight entry exceeds the weight range, "WRONG NUMBER" will
scroll across the display. (Weight values can range from 20 to 150 kgs or
from 50 to 330 lbs.)
c-3. Setting the Program
After the weight is set, "SELECT PROGRAM" scrolls across the dot matrix
window.
All program indicators on the left side of the display illuminate. Press the
desired program button to activate the program then press <ENTER> to
set workout time.
Time for CONDITIONING & ADVANCED CONDITIONING is preset (please
refer to descriptions of CONDITIONING & ADVANCED CONDITIONING 2).
The workout can be started now after you complete setting required
workout mode.
c-4. Setting Time
"ENTER TIME" scrolls across the dot matrix window, then "TIME" appears.
The time value appears as "30:00".
Use < >< > buttons or numeric keys to set workout time. Press the
<ENTER> button to confirm your choice.
If the exercise time value is not entered properly, "WRONG NUMBER" will
scroll across the dot matrix window. The minimum time setting is 5 minutes.
(The time value range is from 05:00 to 99:00.)
The time value counts down when the user starts to pedal. If the user does
not pedal, "PEDAL TO START" scrolls across the dot matrix window.
d. POWER STANDBY MODE
When the user has stopped pedaling for more than 30 seconds, or when no
buttons are pressed for 30 seconds, the trainer automatically enters standby
mode. Only two green dots move on the display. Press <START>, pedal, or
exercise your arms to resume workout operation.
e. TURN OFF THE TRAINER
Automatic: To turn off the trainer, do not pedal, exercise your arms, or press any
button. In two to three minutes, the trainer automatically shuts off.
Manual: Stop pedaling; simultaneously press and hold LEG WORK Level < > +
<ENTER> or ARM WORK Level < > + <ENTER> for one second. The
trainer will shut off.
15

F. OVERVIEW OF PROGRAMS
a. MANUAL
a-1. The first time you enter the Manual Mode, both upper body resistance and
lower body resistance are preset at LEVEL 1.
a-2. Press the MANUAL button to enter Manual Mode. This is the default setting.
Once the manual mode program is selected, the dot matrix window displays
the following pattern (see Pattern 3), which is similar to the pattern seen in
Quick Start Mode. The dots at the bottom line of the dot matrix window
represent the user's current position in respect to the whole workout. Orange
dots will start to blink once you exercise your arms or pedal. Dots turn red
when that segment of the workout is completed. Green dots represent the
area which has yet to be completed.
a-3. Pedal and arm resistance levels can be adjusted anytime during the workout
by pressing corresponding < > < > buttons. LEG WORK LEVEL & ARM
WORK LEVEL values (shown in upper left and right corners of the dot matrix
window) will change according to the setting.
a-4. The time bar is located at the bottom of the dot matrix window. The time
represented by each dot is the <preset total workout time/ 25>.
a-5. After one cycle, the illustration in the middle of dot matrix window reverts to
that of the initial screen.
a-6. Time starts to count down in the TIME window. The COOL DOWN procedure
begins when the workout time reaches 0 (zero).
a-7. To stop, press <STOP/RESET> anytime during a workout.
Red
Green
Red
Orange dot
(Pattern 3)
16
Orange
Green
Red

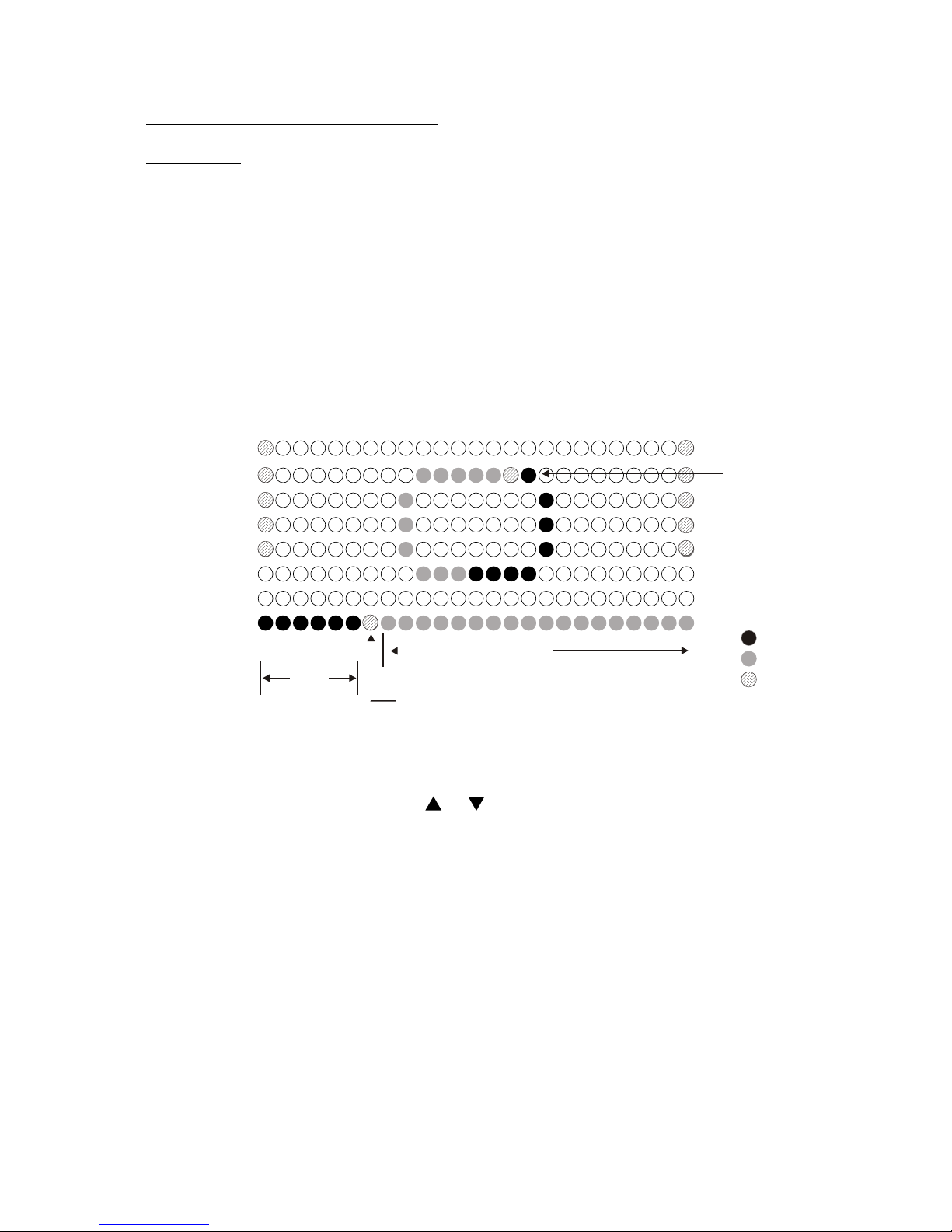

b. RANDOM
b-1. The first time you enter the Random Mode, the arm resistance is preset at
LEVEL 3 and the pedal resistance is preset at LEVEL 5. In this mode, the
workout always starts from column 10, as shown in the following illustration.
b-2. The orange dot starts to blink once you exercise your arms or legs. Dots turn
red to represent the completed part of the workout. Green dots represent
areas of the workout which have yet to be completed.
The base value of lower body resistance is LEVEL 4; the base value of upper
body resistance is LEVEL 9. The current location as illustrated above shows
lower body resistance at LEVEL 5 and upper body resistance at LEVEL 10.
b-3. Pedal and arm resistance base values can be adjusted anytime during the
workout by pressing < > < > buttons. The range that can be shown on the
display is from <BASE VALUE ~ BASE VALUE+7> as illustrated in Pattern 5.
exercise not yet
current location
(Pattern 4)
completed not yet complete
Current location (Pattern 5)
Arm Resistance
Level
Leg Resistance
Level
17
complete Orange
Orange
Green
Green
Red
Red

b-4. The workout illustration moves one column to the left every 10 seconds. The
dot at the current location blinks only when you pedal or exercise your arms.
The dot will be lit constantly if no action is taken.
b-5. Time starts to count down in the TIME window. The program begins the
COOL DOWN procedure when the time is 0 (zero).
b-6. To stop the workout, press the STOP/RESET button at any time.
b-7. During this mode, if the RANDOM button is pressed repeatedly, the
resistance levels will change randomly. The matrix display will be reset as
well.
c. WT Loss HRC 65% / CARDIO HRC 80%
Note: Some models of XT20 do not include the Heart Rate Control (HRC) function
explained below.
c 1. The Heart Rate Control function includes two settings: one for cardio
conditioning and another for weight loss conditioning. Press
CARDIO/WT to select the HRC function you desire, then press the
<ENTER> button to confirm your choice.
c 2. Once you enter the HRC program, 65% HR Target and 80% HR
Target windows will show maximum Heart Rate values which are calculated
according to the age input by the user. Once you begin the workout, the
center of the dot matrix window will show the Target Heart Rate, which is
obtained by the following calculation:
Maximum Heart Rate WT Loss: [(220-AGE) 65%]
CARDIO: [(220-AGE) 80%]
Target Heart Rate WT Loss: [(220-AGE) 65%]-25 (Minimum value is 84)
CARDIO: [(220-AGE) 80%]-25 (Minimum value is 84)
Note: If no age has been input, the dot matrix window prompts the user to
input his/her age so that a correct target heart rate can be obtained.
Press <ENTER> to confirm your choice and proceed to the next step.
c 3. If the parameter for MODIFY is preset to YES, the words MODIFY YOUR
HEART RATE LIMIT will scroll across the dot matrix window. Then
MDFY appears. The target heart rate will appear constantly in the TIME
window. Press to adjust the target heart rate. The target heart
rate cannot be greater than the maximum heart rate or less than the
minimum heart rate, 84. Press ENTER to confirm your choice.
Note: If the parameter for MODIFY is preset to NO, the procedure described
above will not be implemented.
18
