SPX FLOW APV DELTA SDMS4 User manual

APV DELTA SDMS4
DOUBLE SEAL VALVE WITH DIAPHRAGM AND “FAN SUPPORT”
FORM NO.: H329486 REVISION: UK-0 READ AND UNDERSTAND THIS MANUAL PRIOR TO OPERATING OR SERVICING THIS PRODUCT.
INSTRUCTION MANUAL

EU Declaration of Conformity
for Valves and Valve Manifolds
SPX FLOW TECHNOLOGY GERMANY GMBH
Gottlieb-Daimler-Str. 13, D-59439 Holzwickede
herewith declares that the
APV double seal and double seat valves of the series
SD4, SDT4, SDU4, SDMS4, SDMSU4, SDTMS4, SWcip4, DSV,
DA3, DA3SLD, DE3, DEU3, DET3, DKR2, DKRT2, DKRH2
in the nominal diameters DN 25 - 150, ISO 1“ – 6“ and 1 Sh5 - 6 Sh5
APV butterfly valves of the series SV1 and SVS1F, SVL and SVSL
in the nominal diameters DN 25 - 100, DN 125 - 250 and ISO 1“ – 4“
APV ball valves of the series KHI, KHV
in the nominal diameters DN 15 - 100
APV single seat, diaphragm and spring loaded valves of the series
S2, SW4, SWhp4, SW4DPF, SWmini4, SWT4, SWS4, MF4, MS4, MSP4, AP/T1, CPV,
RG4, RG4DPF, RGMS4, RGE4, RGE4DPF, RGEMS4, PR2, PRD2, SI2, UF/R3, VRA/H
in the nominal diameters DN 10 - 150, ISO 1/2“ – 4“ and 1 Sh5 - 6 Sh5
and the valve manifolds installed thereof
meet the requirements of the Directives 2006/42/EC (superseding 89/392/EEC
and 98/37/EC) and ProdSG (superseding GPSG - 9.GPSGV).
For official inspections, SPX FLOW presents
a technical documentation according to Appendix VII of the Machinery Directive,
this documentation consisting of documents of the development and construction,
description of measures taken to meet the conformity and to correspond with
the basic requirements on safety and health, incl. an analysis of the risks,
as well as an operating manual with safety instructions.
The conformity of the valves and valve manifolds is guaranteed.
Authorised person for the documentation:
Frank Baumbach
SPX FLOW TECHNOLOGY GERMANY GMBH
Gottlieb-Daimler-Str. 13, D-59439 Holzwickede, Germany
November 2017
Frank Baumbach
Regional Engineering Manager, F&B Components
UK

1
APV_SDMS4_UK-0_112017.indd
UK
Double seal valve with diaphragm and ,,fan support”
DELTA SDMS4
Instruction Manual UK-rev.0
APV
Table of Contents Page
1. General Terms 2
2. Safety Instructions 2 - 3
3. Intended Use 3
4. Mode of Operation 4
4.1. General terms
5. Auxiliary Equipment 5 - 6
5.1. Valve position indication - controlled valve (proximity switches)
5.2. Control Unit
5.3. Connections
6. Cleaning 6 - 7
6.1. Cleaning recommendation
7. Installation 8
7.1. Welding instructions
8. Dimensions / Weights 9
9. Technical Data 10 - 12
9.1. General terms
9.2. Compressed air quality
9.3. Kvs - values in m³/h
9.4. Closing times
9.5. Pneumatic air consumption
9.6. Valve stroke / Opening cross section
10. Maintenance 12 - 13
10.1. Assembly tool for seat seal
11. Service Instructions 14 - 16
11.1. Dismantling from the line system
11.2. Dismantling of wear parts (product-wetted parts)
11.3. Installation of seals and assembly of valve
11.4. Installation of valve insert / valve
12. Service Instructions Leakage Valve 17
12.1. Maintenance of leakage valves
13. Service Instructions - Actuator 18
13.1. Maintenance of actuator
13.2. Dismantling of seals
13.3. Installation of seals and assembly of actuator
14. Installation of Seat seal 19 - 20
14.1. Installation of seat seal in valve shaft
14.2. Manual installation of seat seal
15. Trouble Shooting 21
16. Spare Parts Lists 22
(see annex)
Double Seal Valve SDMS4 RN 01.054.70
Leakage Valve RN 01.054.67-1
Actuator RN 01.054.86

2
APV_SDMS4_UK-0_112017.indd
UK
Double seal valve with diaphragm and ,,fan support”
DELTA SDMS4
Instruction Manual UK-rev.0
APV
1. General Terms
This instruction manual has to be read carefully and observed by
the competent operating and maintenance personnel.
We have to point out that we will not accept any liability for damage
or malfunctions resulting from the non-compliance with this
instruction manual.
Descriptions and data given herein are subject to technical
changes.
2. Safety Instructions
The valve must be assembled, operated, dismantled, maintained
and serviced only by competent, trained personnel.
Please contact your local SPX FLOW site if necessary.
DANGER!
- The technical safety symbol draws your attention to important
  directionsforoperatingsafety.Youwillnditwhereverthe
activities described are bearing health hazards or risks for
persons or material assets.
- Do not reach into the open valve or yoke!
Risk of injury by suddenly operating valve. In dismantled state
there is the risk of bruising at movable parts of the valve.
- Attention!
Valve design NC (normally closed): Before releasing
the housing screws, relieve the valve insert by
controlling the actuator.
- During valve operation, operating leakage escapes from the
leakage valve to the bottom.
- Before any maintenance work, the line and cleaning system must
be depressurized and discharged if possible.
- Ifthediaphragmisdamaged,uidswillleakfromtheleakagebore
in the yoke area.
- Electric and pneumatic connections must be separated.
- Observe service instructions to ensure safe maintenance
of the valve.
- Schedule regular valve maintenance including the replacement of
all seals in order to prevent leakages of any type.

3
APV_SDMS4_UK-0_112017.indd
UK
Double seal valve with diaphragm and ,,fan support”
DELTA SDMS4
Instruction Manual UK-rev.0
APV
2. Safety Instructions
DANGER!
Welded actuators are preloaded by spring force.
Opening of the actuators is strictly forbidden.
Danger to life!
Actuators which are no longer used and / or defective
must be disposed in professional manner.
Defective actuators must be returned to your SPX FLOW company
for their professional disposal and free of charge for you.
Contact your local SPX FLOW partner.
3. Intended Use
  Theintendeduseaseldofapplicationofthedoublesealvalve
with diaphragm is the shut-off of pipeline sections.
Unauthorized, structural changes at the valve will affect
safety and the intended functionality of the valves
and are not permissible.
Approvals and External Evaluations:
3-A Sanitary Standards, Inc.
ATEX (Directive 2014/34/EU)

4
APV_SDMS4_UK-0_112017.indd
UK
Double seal valve with diaphragm and ,,fan support”
DELTA SDMS4
Instruction Manual UK-rev.0
APV
4. Mode of Operation
4.1. General terms
Use of high-quality stainless steel and seal materials to the
  speciedrequirements,thedoublesealvalvewithdiaphragm
and “fan support” DELTA SDMS4 is applicable in the food and
beverage industries as well as in the pharmaceutical and
chemical sector.
Double seal valves with diaphragm offer optimum protection
of the product in hygienic and aseptic applications. Product safety
is achieved by the hermetic separation of the product chamber
  totheoutside(atmosphere)bymeansofaexiblediaphragm
with “fan support”.
- Leakage at the diaphragm is shown via a leakage indicator
in the yoke area.
  TheeldofapplicationoftheDELTASDMS4comprisesthe
safe shut-off and separation of line sections being separated
from one another by two seat seals. A leakage chamber is
arranged between the seals, the leakage chamber being forcibly
closed by the two leakage valves or opened to the atmosphere.
- Leakage at the seat seals is discharged via the leakage valves
to the atmosphere and indicated.
- Operation by pneumatic actuator with air connection.
The actuator is generally mounted normally closed (NC).
- The inner parts of the actuator are maitenance-free.
- To avoid pressure hammers, the valve should be closed against
  theowdirectionoftheuid.
- As standard design a control unit DELTA CU41N with NOT
element is installed on top of the actuator for the pneumatic
  controlofthevalve.TheNOTelementfulllsthetasktoincrease
the closing forces of the closed valve.
- The luminous diodes in the control unit indicate the position
of the valve shaft.
- Observe service instructions to ensure safe maintenance of
the valve.

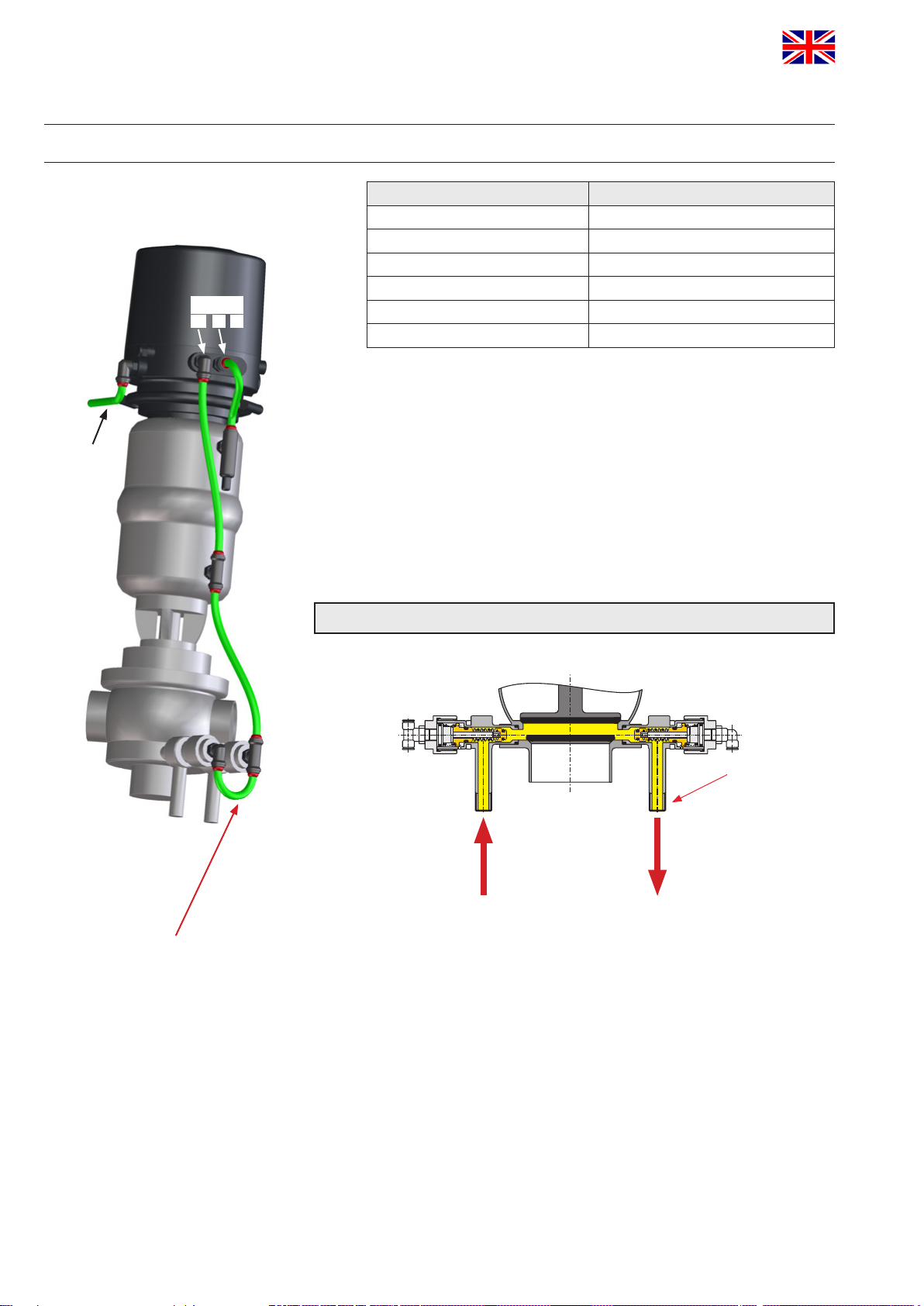

DELTA SDMS4
leakage indication
leakage valve
housing
yoke
actuator
control unit

5
APV_SDMS4_UK-0_112017.indd
UK
Double seal valve with diaphragm and ,,fan support”
DELTA SDMS4
Instruction Manual UK-rev.0
APV
5. Auxiliary Equipment

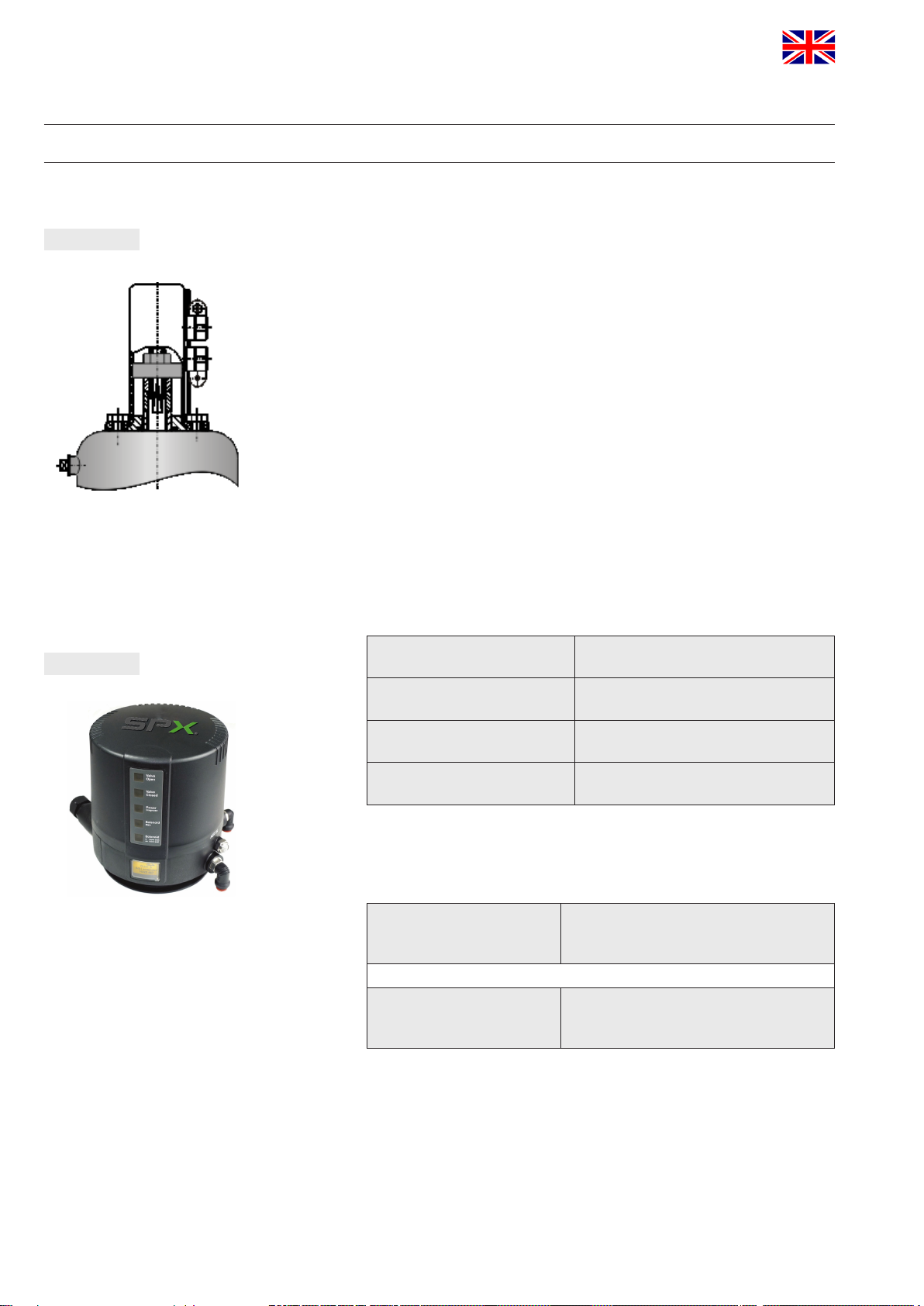

5.1. Valve position indication (fig. 5.1.)
A proximity switch holder for the valve position feedback can be
installed direct on the actuator.
Proximity switches to signal the limit position of the valve seat
can be installed at the proximity switch holder (PSH) if required.
We recommend to use APV standard proximity switches.
Operating distance : 5 mm / diameter : 11 mm.
Operating voltage: 10 - 30 VDC
Output: operating current pnp positive switching
Connection: moulded cable 5 m length
Protective class: IP 67
ref. No.: 08 - 60 - 011/93; ID-No.: H16223
If the customer decides to use a different valve position indicator,
we cannot take over any liability for a faultless function.
5.2. Control Unit (fig. 5.2.)
For the start-up as well as assembly and disassembly of the
different designs, the corresponding instruction manual must
be observed.
The following different designs are available:
Direct Connect
ref.-No.; ID-No.:
CU41N-S-Direct Connect
08-45-103/93; H320463
Profibus
ref.-No.; ID-No.:
CU31N Profibus
08 - 45 - 002/93; H315496
DeviceNet
ref.-No.; ID-No.:
CU31N DeviceNet
16 - 31 - 241/93; H209423
AS-interface extended
ref.-No.; ID-No.:
CU41N - S - AS-i extended
08 - 45 - 113/93; H320470
- For the installation of the control unit on the SDMS4 valve
an adapter is required.
Desingation:
ref.-No.; ID-No.:
CU3 adapter SD4/SDM4
08-48-415/93;
H209430
Desingation:
ref.-No.; ID-No.:
CU4-S adapter DN25 - 100 / 1” - 4”
08 - 46 - 600/93;
H320474
fig. 5.2.
fig. 5.1.

6
APV_SDMS4_UK-0_112017.indd
UK
Double seal valve with diaphragm and ,,fan support”
DELTA SDMS4
Instruction Manual UK-rev.0
APV
5. Auxiliary Equipment
5.3. Connections:
Beside the housings with weld ends, the following connections
are available:
- threaded connection acc. to DIN 11851
- threaded connection IDF / ISS acc. to ISO 2853
- threaded connection RJT acc. to BS 4825-5
- threaded connection SMS
- threaded connection acc. to DS 722
 - angeconnectionFGN1DIN
 - angeconnectionFGN1Inch
- clamp connection acc. to DIN 32676
- clamp connection acc. to ISO 2852
6. Cleaning
6.1. Cleaning recommendation
For the cleaning of SDMS4 valves distiction is made
between two areas.
- Flow areas
The passages of the valve are cleaned by the cleaning liquid
during cleaning of the connected pipelines.
- Leakage chamber
Cleaning of the leakage chamber is undertaken via the
leakage valves. The cleaning liquid is supplied via
one leakage valve and discharged to the atmosphere via the
second leakage valve.
The restraint passage of the cleaning liquid provides for
perfect cleaning of the whole leakage chamber.
Depending on the degree and constituents of soiling, the cleaning
liquids, times and processes must be scheduled for the individual
application.
The compatibility of the individually selected cleaning processes
  andliquidswiththerespectivelyusedsealsmustbeveried.
Under normal conditions, 15 valves DN 25/1” - 100/4”
can be cleaned via one spray distribution line DN 25.

7
APV_SDMS4_UK-0_112017.indd
UK
Double seal valve with diaphragm and ,,fan support”
DELTA SDMS4
Instruction Manual UK-rev.0
APV
6. Cleaning
cleaning step CIP spraying cycle
pre-flushing 2 x 10 sec.
caustic flushing 80° C 3 x 10 sec.
intermediate flushing 2 x 10 sec.
acid flushing 3 x 10 sec.
subsequent flushing 2 x 10 sec.
(with resp. break of 10 sec.)
- The cleaning cycles refer to a cleaning pressure of p = 2-5 bar.
- The spraying cycles indicated for the individual cleaning steps
arereferencevalues,only.Inspecicapplications,thesetimes 
must be adapted considering the product, pressure ratio and
degree of soiling.
- TheushingquantityperCIPsprayingcycleisabout 1.2 litre /
10 sec. at a cleaning pressure of min. 2 bar - max. 5 bar.
cleaning of the leakage chamber via leakage valves
Piping of the leakage valves:
Designation of terminals at the control unit CU41N
AIR IN : air supply with integrated particle filter
AIR OUT: 1control air connection for main actuator
2control air connection for spring-side support of actuator
with compressed air via NOT element
AIR OUT
AIR IN
1 32
G ¼
CIP OUTCIP IN

8
APV_SDMS4_UK-0_112017.indd
UK
Double seal valve with diaphragm and ,,fan support”
DELTA SDMS4
Instruction Manual UK-rev.0
APV
7. Installation
7.1. General terms
 Installationhastobedoneinsuchawaythatuidscandrain
off the valve housing and is preferably to be realized in vertical
position.
Attention: Observe welding instructions.
7.2. Welding Instructions
- Before welding of the valve, the valve insert and the leakage valves
must be dismantled from the housing. Careful handling to avoid
damage to the parts is necessary.
- Weldingshouldonlybecarriedoutbycertiedwelders (DIN EN ISO
9606-1) (Seam quality DIN EN ISO 5817).
- Welding of the valve housings must be undertaken in such
a way that the valve body is not deformed.
- The preparation of the weld seam up to 3 mm thickness must be
carried out as a square butt joint without air. (Consider shrinkage!)
TIG orbital welding is best!
- Afterweldingofthevalvehousingsorofthematingangesand 
after work at the pipelines, the corresponding parts of the
installation or pipelines must be cleaned from welding residues
and soiling. If these cleaning instructions are not observed,
welding residues and dirt particles can settle in the valve and
cause damage.
- Any damage resulting from the non-observance of these welding
instructions is not subject to our guarantee.
- For aseptic applications observe Welding Directives according to
AWS/ANSI and EHEDG.

9
APV_SDMS4_UK-0_112017.indd
UK
Double seal valve with diaphragm and ,,fan support”
DELTA SDMS4
Instruction Manual UK-rev.0
APV
8. Dimensions / Weights
housing variants
SDM 41
SDM 42
SDEM 43
SDEM 44
Dimensions in mm Weight
in kg
DN A A1 Ø Di E F F1 G H Ø K L
25 460,3 356,3 26 110 68 50 14,5 60 126 528,3 4,2
40 466,3 362,3 38 115 67 67 20,5 72 126 533,3 7,1
50 476,5 372,5 50 117 72 72 26,5 84 126 548,5 7,1
65 532,6 428,6 66 127 85 85 35,0 100 189 617,6 7,9
80 547,6 443,6 81 140 98 98 42,5 115 189 645,6 14,2
100 556,5 452,5 100 140 111 111 52,0 134,6 189 667,6 15,2
Inch
1” 458,3 354,3 22,6 110 68 50 12,7 55,8 126 526,3 4,2
1,5” 465,3 361,3 34,9 115 67 67 19,0 68,9 126 532,3 7,1
2” 475,0 371,0 47,6 117 72 72 23,8 81,6 126 547,0 7,1
2,5” 528,6 424,6 60,3 127 85 85 31,7 94,3 189 613,6 7,9
3” 535,4 431,4 72,9 123 90 90 38,0 107,0 189 625,4 14,5
4” 554,6 450,6 97,6 140 111 111 50,8 131,9 189 665,6 15,2
104
A1
valve position indication
200
176
ØK
Ø134
air IN
ØDi
ØDi
ØDi
G H A
ØDi
64
A
L
F
F1 F1
F
E
F

10
APV_SDMS4_UK-0_112017.indd
UK
Double seal valve with diaphragm and ,,fan support”
DELTA SDMS4
Instruction Manual UK-rev.0
APV
9. Technical Data
9.1. General terms
- Product-wetted parts: 1.4404 (DIN EN 10088)
- Other parts: 1.4301 (DIN EN 10088)
- Seals: standard: EPDM
Option: HNBR, VMQ, FPM
- Diaphragm: TFM/EPDM
- Actuator: 1.4301 (DIN EN 10088)
- Max. line pressure: 10 bar
with control unit CU41N (NOT element)
- max. operating temperature: 135°C EPDM, HNBR
*FPM, *VMQ
- short-term load: 140°C EPDM, HNBR
*FPM, *VMQ
*(no steam)
- air connection (for hose): 6 x 1mm
- max. pneumatic air pressure: 8 bar
- min. pneumatic air pressure: 6 bar
- leakage indication in yoke area: G1/8”
Use dry and clean air, only!
9.2. Specication of compressed air quality
compressed air quality: Quality class acc. to
DIN/ISO 8573-1
content of solid particles: Quality Class 3
max. size of solid particles per m³
10000 of 0.5 µm < d < 1.0 µm
500 of 1.0 µm < d < 5.0 µm
content of water: Quality Class 3
max. dew point temperature -20 °C
For installations at lower
temperatures or at higher
altitudes, additional measures
must be considered to reduce
the pressure dew point
accordingly.
content of oil: Quality Class 1
max. 0.01 mg/m³
The oil applied must be compatible with Polyurethane
elastomer materials.

11
APV_SDMS4_UK-0_112017.indd
UK
Double seal valve with diaphragm and ,,fan support”
DELTA SDMS4
Instruction Manual UK-rev.0
APV
9. Technical Data
9.3. Kvs values in m³/h
DN, Inch
25, 1" 22 22
40, 1.5" 42 38
50, 2" 73 70
65, 2.5" 120 112
3" 135 135
80 170 160
100, 4" 325 276
9.4. Closing times for single seat valve DELTA SDMS4
The opening and closing times of the valves equipped with a
control unit can be determined by adjusting the throttle screw at the
solenoid valve.
Closing times in sec.
at 6 bar control pressure
hose length in meter
DN Inch 1 m 10 m
25 1” 1 2
40 1.5” 3 4
50 2” 3 4
65 2.5” 5 6
80 3” 5 6
100 4” 5 6

12
APV_SDMS4_UK-0_112017.indd
UK
Double seal valve with diaphragm and ,,fan support”
DELTA SDMS4
Instruction Manual UK-rev.0
APV
9. Technical Data
9.5. Pneumatic air consumption at 6 bar control pressure
Actuator NL
per stroke
Ø 110 mm 2.1
Ø 165 mm 4.5
9.6. Valve stroke / Opening cross section (X)
DN, Inch Stroke X
25, 1" 13 10
40, 1,5" 13 10
50, 2" 16 13
65, 2,5" 23 20
3" 23 20
80 28 25
100, 4" 28 25
stroke
X

13
APV_SDMS4_UK-0_112017.indd
UK
Double seal valve with diaphragm and ,,fan support”
DELTA SDMS4
Instruction Manual UK-rev.0
APV
10. Maintenance
The maintenance intervals depend on the corresponding
application and are to be determined by the user himself carrying
out temporary checks.
The valve must not be cleaned with products containing abrasive
or polishing material. Especially the valve shaft must not, under
any circumstances, be cleaned with such agents.Damage of the
valve shaft can lead to leakages.
Replacement of seals according to Service Instructions.
Customer stock keeping of spare seals is recommended.
For valve service we supply complete seal kits including
seal grease (see spare parts lists)..
Required tools:
1x wrench SW13
1x wrench SW17
1x wrench SW19
1 x wrench SW30
1x hexagon socket wrench 6 mm
cleaning rag as well as a low solution of a suitable cleaning liquid
(observe safety data sheet of cleaning liquid producer).
Installation of seat seal see pages 19-20
- Provide all seals with a thin layer of grease before their installation!
- Provide the diaphragm at the product-averted side with a thin layer
of grease.
Recommendation:
APV assembly grease for EPDM, FPM, HNBR and NBR
(750 g/ tin - ref.-No. 000 70-01-019/93; H147382)
(60 g/ tube - ref.-No. 000 70-01-018/93; H147381)
Attention! Less suited grease types can inuence function
and lifetime.
Recommendation: screw locker
Type: Loctite 243 semi-solid
(50ml - ref.-No.00070-01-111/93; H206336)

14
APV_SDMS4_UK-0_112017.indd
UK
Double seal valve with diaphragm and ,,fan support”
DELTA SDMS4
Instruction Manual UK-rev.0
APV
10. Maintenance
10.1. Assembly tool for seat seal
! By means of the assembly tool, the upper seat seal (pos. 16)
can be installed, only (see chapter 14.1).
To simplify the installation of the seat seal, the following
assembly tool is available.
assembly tool SDM4
DN Inch reference number ID No.
25 1” 000 51-13-226/17 H314439
40 1,5” 000 51-13-227/17 H314440
50 2” 000 51-13-228/17 H314441
65 2,5” 000 51-13-229/17 H311447
3” 000 51-13-230/17 H314442
80, 100 4” 000 51-13-225/17 H314443

15
APV_SDMS4_UK-0_112017.indd
UK
Double seal valve with diaphragm and ,,fan support”
DELTA SDMS4
Instruction Manual UK-rev.0
APV
11. Service Instructions
11.1. Dismantling from the line system DELTA SDMS4
The reference numbers refer to the spare parts drawings
SDMS4 : DIN-design and Inch-design RN 01.054.70
1. Shut off the line pressure and discharge lines if possible
2. NC version: Control actuator with air.
Do not touch movable parts!
Risk of injury.
3. Remove hex. screws (9) and lift the complete valve insert
with actuator out of the housing.
4. NC version: Shut off compressed air and
remove compressed air connection.
5. Design with Control Unit: Remove the Control Unit.
- Design with valve position indicator (PSH):
Remove the proximity switches. Detach the indicator housing
(proximity switch holder; PSH) from the actuator.
11.2. Dismantling of wear parts (product-wetted parts )
1. Design with control unit and valve position indication:
  Atrst,unscrewtheactuatorscrew.Releasethehex.nut(26)
while holding up the centering washer (25).
Remove the centering washer.
2. Extract the shaft with guide rod (2), diaphragm (13), fan (14),
upper shaft (4) and diaphragm support (3) from the actuator (23).
Remove the seat seals (16, 17) and o-ring (15).
3. Remove the yoke (7) from the actuator (23).
- Actuator can be maintained.
(see 13. Service Instructions - Actuator).
4. Detach o-rings (5, 12) and guide bush (6) from the yoke (7).
5. Clean the valve housing, yoke, actuator and shaft with a low
solution of a cleaning agent. Never use cleaning agents
containing abrasive or polishing material.
!
actuator screw
centering disc
CU adapter
control unit
hex. nut
guide rod
actuator
yoke
seat seals
leakage valve
diaphragm
shaft
housing
upper
shaft
guide bushing
actuator screw
hex. nut
centering disc
guide rod
actuator
position indicator
housing
diaphragm
support
o-ring
o-ring
fan
o-ring
