APV DELTA SVS1F DN25-100, 1”-4”
BUTTERFLY VALVE
SAFETY AGAINST EXPLOSION - FOR SPECIFIC ATEX-APPLICATIONS
FORM NO.: H330527 REVISION: UK-0-ATEX READ AND UNDERSTAND THIS MANUAL PRIOR TO OPERATING OR SERVICING THIS PRODUCT.
INSTRUCTION MANUAL

Declaration of Conformity
for Valves and Valve Manifolds
SPX FLOW Technology Rosista GmbH, Gottlieb-Daimler-Straße 13, D-59439 Holzwickede
herewith declares that
APV butterfly valves of the series SVS1F ATEX design
in the nominal diameters DN 25 – 100, 1“ – 4“
meet the requirements of:
Machinery Directive 2006/42/EC
(superseding 89/392/EEC and 98/37/EC)
Equipment and Product Safety Act GPSG - 9.GPSGV
and
Directive on the Protection against Explosion 2014/34/EU ATEX (superseding 94/9/EC)
for Equipment Category -/2GD IIB TX
For official inspections, SPX FLOW Technology Rosista GmbH presents
a technical documentation according to Appendix VII of the Machinery Directive,
this documentation consisting of documents of the development and construction,
description of measures taken to meet the conformity and to comply with
the basic requirements on safety and health, incl. an analysis of the risks,
an analysis of ignition hazards as well as an instruction manual with safety instructions.
The conformity of the valves is guaranteed.
An ATEX documentation is lodged at the notified body DEKRA EXAM GmbH
in Bochum, Germany (No. 0158).
Authorised person for the documentation:
SPX FLOW Technology Rosista GmbH, Frank Baumbach, Gottlieb-Daimler-Straße 13,
D-59439 Holzwickede, Germany
January 2017
Manager Research and Development

1
APV_SVS1F_ATEX_UK-0_012017.indd
UK
Buttery Valve
DELTA SVS1F-ATEX
Instruction manual:UK - rev.0
APV
Inhalt Seite
1 General Terms 2
1.1. Symbols
1.2. Responsibility for ATEX certication - Scope of supply
2. Safety Instructions 3 - 4
3. Identicationofvalves,Temperatureclasses,Responsibilites  5-6
3.1. Identication of valves for application in ATEX environment
3.2. Temperature classes and permissible temperatures
3.3. Responsibilities
4. IntendedUse  6
5. ModeofOperation  7-8
5.1. General terms
5.2. Potential equalization
6. Cleaning  8
6.1. Cleaning recommendation
7. Installation/Connections  8-9
7.1. General terms
7.2. Connections
7.3. Welding instructions
8. Dimensions/Weights  10
9. TechnicalData  11-13
9.1. General data
9.2. Compressed air quality
9.3. Opening and closing times
9.3.1. Opening anc closing times for buttery valves
9.4. Torques Md [Nm] for buttery valves
9.5. Pneumatic air consumption at 6 bar control pressure
9.6. Kvs-values in m3/h
10. Materials        13
11. Maintenance        14-15
12. ServiceInstructions  16-18
12.1. Dismantling from line system
12.2. Disassembly of actuating device
12.3. Dismantling of inner parts
12.4. Replacement of seals
12.5. Installation of seals and bearing bushes
12.6. Installation of actuating device
12.7. Installation of proximity switches
13. SparePartsLists  19
 SparePartsListDNandInchdesign-actuated  RNATEX038.004
SparePartsListDNandInchdesign-handle  RNATEX038.000-2
 Turningactuator  RN01.073

2
APV_SVS1F_ATEX_UK-0_012017.indd
UK
Buttery Valve
DELTA SVS1F-ATEX
Instruction manual:UK - rev.0
APV
1. General Terms
This instruction manual applies for butterfly valves of the series
SVS1F in the nominal dimensions DN25-100, 1"-4" for use in
specific ATEX applications (according to Directive 2014/34/EU).
The valve must only be assembbled, operated, disassembled,
maintained and serviced by trained personnel. Please contact your
local SPX FLOW representative if required.
This instruction manual must be read and observed by the
responsible operating and maintenance personnel.
We point out that we will not accept any liability for damage or
malfunctions resulting from the non-compliance with this instruction
manual.
Descriptions and data given herein are subject to technical changes.
1.1. Symbols
This symbol draws your attention to important directions which have
to be observed with regard to the operation in explosive areas.
This technical safety symbol draws your attention to important
directions for operating safety. You will find it wherever the activities
described are bearing health hazards or risks for persons or
material assets.
1.2. ResponsibilityforATEXcertification-scopeofsupply
SPX FLOW will be held responsible only for the valves supplied
and selected according to the operating conditions indicated by the
customer or end user and as stated in the order conrmation. If in
doubt, contact your SPX FLOW partner.
All other assembled equipment and devices must have a separate
certication, provided by the supplier(s) of that equipment and
devices, of at least the same or higher grade of protection as the
valve supplied by SPX FLOW. The complete unit must be certied
separately by the nal assembling manufacturer and must have a
separate name plate supplied by the unit manufacturer.

3
APV_SVS1F_ATEX_UK-0_012017.indd
UK
Buttery Valve
DELTA SVS1F-ATEX
Instruction manual:UK - rev.0
APV
2. Safety Instructions
Danger!
Do not touch the open valve or the yoke!
Risk of injury due to sudden valve operation.
Risk of injury in dismantled valve state due to sudden valve
operation.
-Regular maintenance including the replacement of all seals and
bearing bushes must be scheduled in order to prevent leakages and
discharge of liquids.
-Before any maintenance work the line system must be
depressurized and drained if possible.
-Separate all electric and pneumatic connections.
-Observe the following Service Instructions to ensure safe
maintenance of the valve.
Danger!
Welded actuators are preloaded by spring force.
Openingoftheactuatorsisstrictlyforbidden.
Dangertolife!
Actuators which are no longer used or defective must be diposed in
professional manner.
Defective actuators must be returned to your SPX FLOW
representative for their professional disposal and free of charge for
you.
Please address to your local SPX FLOW representative.

4
APV_SVS1F_ATEX_UK-0_012017.indd
UK
Buttery Valve
DELTA SVS1F-ATEX
Instruction manual:UK - rev.0
APV
2. Safety Instructions
Installation, connection, start-up, maintenance and repair work must
only be carried out by qualied personnel.
The following aspects must be observed:
-The instructions of this manual together with all relevant instructions
for the components, equipment and installations installed.
-Warnings and installations xed to the components.
-The specic regulations for and requirements to the system in which
the valve is installed.
-The currently valid regional, national and international regulations.
-The potential equalization between disc and housing by means of
the spring must generally be ensured.
-Any special requirement and national legislation relative to
the use of ammable liquids or tools, e.g. the risk of ignition
in case of spark formation, must be observed.
It must be ensured that the group, the category and the temperature
class of the valve complies with the minimum requirements of the
operating environment!
Inammable gas mixtures or dust concentrations in connection with
hot, operational and movable parts of the valve can lead to serious
or fatal injury!
Before start of assembly the operator must make sure that an
explosive atmosphere does not exist (detection/measurement of
potential concentration of hazardous substances).
Conductive connection to the pipeline must be provided.
The integration into the internal potential equalization must be
guaranteed!
The APV CU2, CU3 and CU4 Control Units are not suited for use in
ATEX environments!

5
APV_SVS1F_ATEX_UK-0_012017.indd
UK
Buttery Valve
DELTA SVS1F-ATEX
Instruction manual:UK - rev.0
APV
3. Identicationofvalves,
TemperatureClasses,Responsibilites
3.1. IdenticationofvalvesforuseinATEXenvironment
ATEX-identication:
-Equipment group II
- Equipment category outside 2GD
inside no equipment
- Explosion subcategroy IIB
Ambient temperature for the operation
0 °C ≤ Tamb ≤ 40 °C
- Temperature classes TX (according to table 3.2)
3.2. Temperatureclassesandpermissibletemperatures
Media temperature ≤ 75 °C ≤ 95 °C ≤ 130 °C
up to
140 °C
= Tmax.
Saftety addition + 5 °C + 5 °C + 5 °C + 5 °C
Temperature class T6 T5 T4 T3
Under standard operating conditions the highest surface
temperature will be comparably as high as the temperature of the
medium plus a safety addition for local temperature increases. The
valve must be completely free to the environment in order to provide
for sufficient heat release.
All data (temperature classes) refer to an ambient temperature
of 0 °C to 40 °C. If the ambient temperature is above 40 °C, the
temperature difference must be adjusted. In all cases, contact your
responsible SPX FLOW representative!

6
APV_SVS1F_ATEX_UK-0_012017.indd
UK
Buttery Valve
DELTA SVS1F-ATEX
Instruction manual:UK - rev.0
APV
3. Identicationofvalves,
TemperatureClasses,Responsibilites
3.3 Responsibilites
It is within the operator`s responsibility to ensure that the specied
product temperatures are not exceeded and that regular inspections
and maintenance are carried out to provide for proper function of
the valve.
4. Intended Use
The intended use as field of application of the butterfly valves
is the shut-off of line sections, especially in beverage and food
installations.
Its use is permissible only within the admissible pressure and
temperature margins and under consideration of chemical and
corrosive influences.
Any use exceeding the margins and specifications set forth,
is considered to be not intended.
Any damage resulting therefrom is not within the responsibility
of the manufacturer.
The user will bear the full risk.
Attention!
Improper use of the valve leads to:
- damage
- leakage
- destruction.
Failures in the production process are possible.
Warning!
The valve is suitable for use in hazardous areas
as identified on the valve according to Directive 2014/34/EU.
Earthing of the valves must be guaranteed.
Arbitrary, constructive changes at the valve will influence safety
as well as the intended functionality of the valve and are not
permissible.
AuthorizationsandExternalEvaluations
ATEX (Directive 2014/34/EU)

7
APV_SVS1F_ATEX_UK-0_012017.indd
UK
Buttery Valve
DELTA SVS1F-ATEX
Instruction manual:UK - rev.0
APV
5. ModeofOperation
5.1. Generalterms
Use of high-quality steel and seal materials to the specified
requirements, the butterfly valve range DELTA SVS1F is applicable
in the food and beverage industries as well as in the chemical and
pharmaceutical industries.

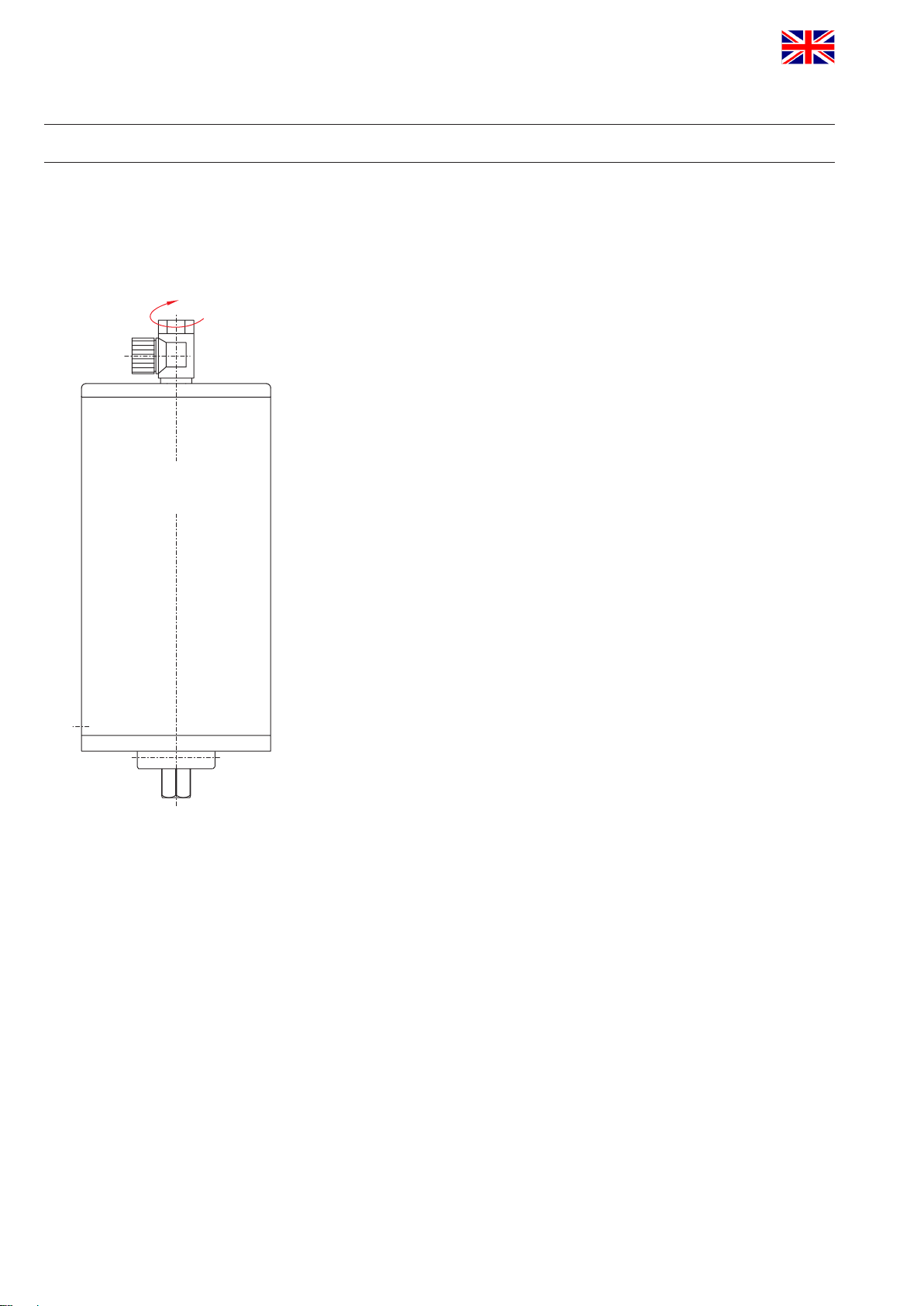

Valves of the series DELTA SVS1F can either be operated manually
or remote controlled via a pneumatic actuator. Manual operation
and pneumatic actuator including add-on pieces are
interchangeable.
The valves are designed for universal applications and stand out
for their increased mechanical reliability and absolute ease of
service.
In the standard design "NC", the pneumatic turning actuator opens
the valve with compressed air.
Reset by spring force into the limit position "closed".
The butterfly valve can also be used in vacuum systems.
The valve opens and closes by turning the disc by 90°.
Smooth valve passage without diversion of line flow.
The opening diameter complies with the size of the inner line
diameter.
Proximity switches to signal the final position of the valve disc can
be mounted in the yoke area.
The use of valve position indicators which are approved for the
application in explosive atmosphere is compulsary.
The use and operation of valve position indicators shall be
evaluated by the operator of the installation!

8
APV_SVS1F_ATEX_UK-0_012017.indd
UK
Buttery Valve
DELTA SVS1F-ATEX
Instruction manual:UK - rev.0
APV
5. ModeofOperation

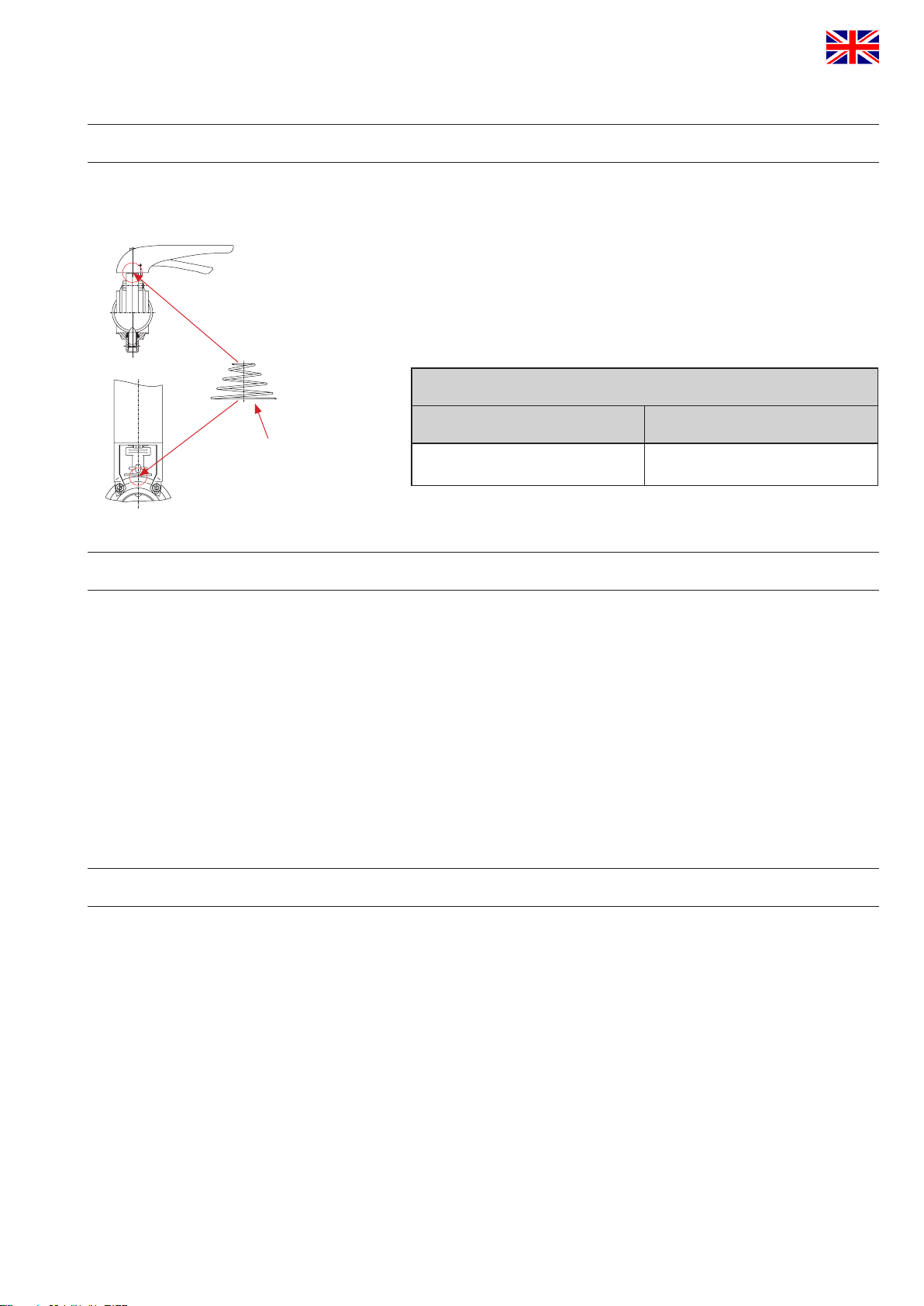

5.2. PotentialEqualization
A possible risk may result from a potential difference between the
components. With non-conducting media or empty pipline sections,
a conducting connection must be created between the valve
components. With butery valves, this is reached by the installation
of a spring.
In explosive atmospheres, we generally recommend to ensure the
potential equalization between disc and housing by installation of
the spring mentioned below.
DN25–100/Inch1"–4"
Designation: Referencenumber:
* pressure spring SV/SVS1F
potential equalization
000-60-06-003/13
H311618
6. Cleaning
6.1. Cleaningrecommendation
The valve passage is cleaned by the cleaning liquids during
cleaning of the connected pipelines.
Depending on the degree and constituents of soiling, the cleaning
liquids, times and processes must be scheduled for the individual
application.
The compatibility of the individually selected cleaning processes
and liquids with the respectively used seals must be veried.
7. Installation
7.1. Generalterms
In normal installation position, the actuator is positioned vertically to
the top. Depending on the respective application, optional
installation positions can, however, also be realized.
SVS1F valves are intended for assembly between FG1 anges.
7.2. Connections
Standard plain anges FG1 between which the valve is installed,
form part of the scope of supply.
The anges have weld ends in the respective nominal dimension.
Attention! Observe Welding Instructions 7.3.
spring for potential
equalization

9
APV_SVS1F_ATEX_UK-0_012017.indd
UK
Buttery Valve
DELTA SVS1F-ATEX
Instruction manual:UK - rev.0
APV
7. Installation

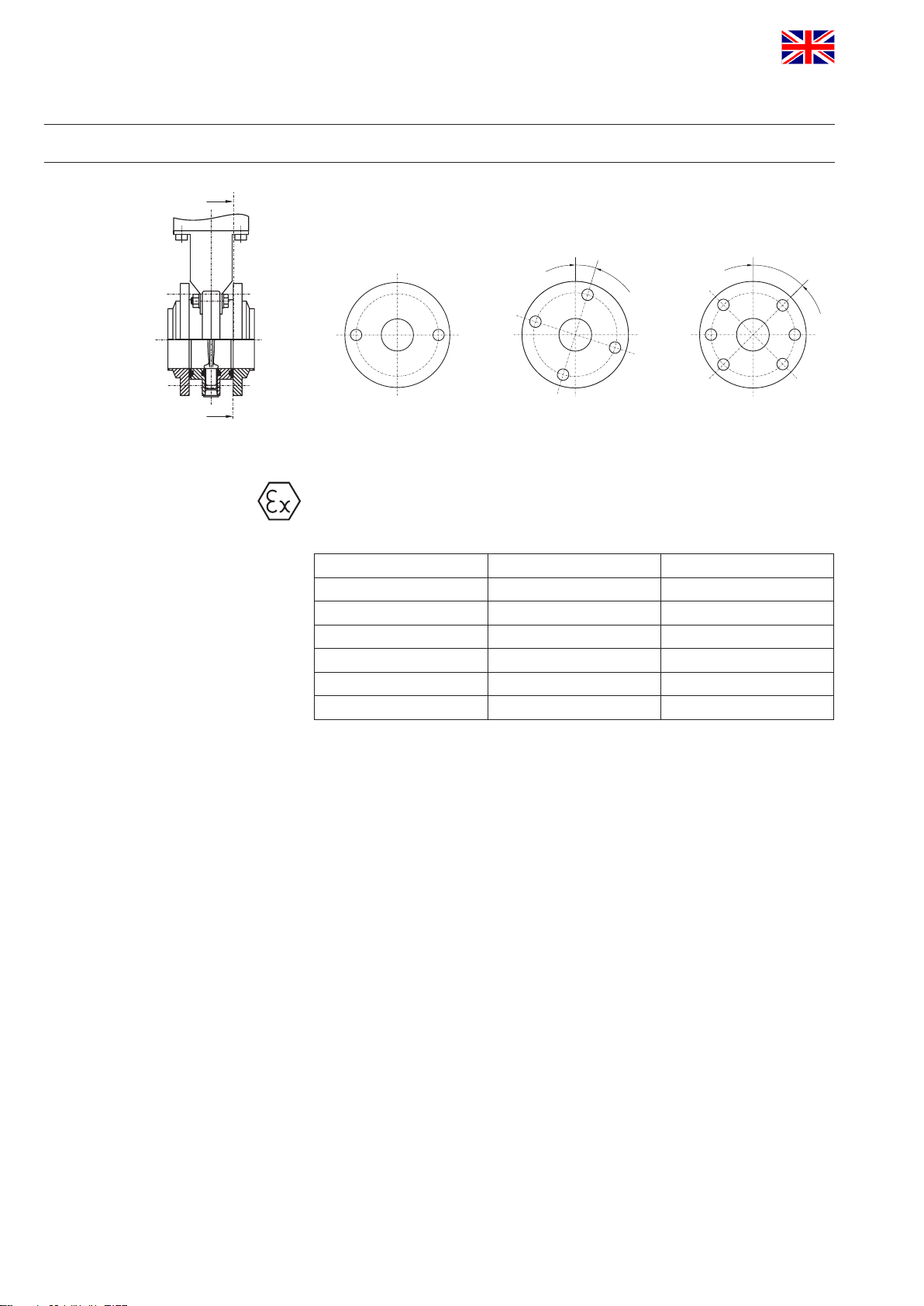

7.3. WeldingInstructions
Observe the bore position during welding of the mating flanges (see
fig. and table).
Conductive connection to the pipeline must be provided.
The integration into the internal potential equalization must be
guaranteed!
DN Inch a°
25 1" -
40 1,5" 18°
50 2" 16°
65 2,5" 14°
3" 13°
80, 100 4" 45°
-Welding may only be carried out by certified welders (DIN EN ISO
9606-1). (seam quality DIN EN ISO 5817).
-Welding of the mating anges must be undertaken is such a way
that deformation strain cannot be transferred.
-The preparation of the weld seam up to 3 mm thickness must be
carried out as a square butt joint without air.
(Consider shrinkage!)
-TIG orbital welding is the most appropriate method.
-Before welding, all sensitive parts of the valve must be removed!
Remove valve core with seals from the mating anges.
After welding of the mating anges and after work at the pipelines,
the corresponding parts of the installation or pipelines must be
cleaned from welding residues and soiling.
If these cleaning instructions are not observed, welding residues
and dirt particles can settle in the valve and cause damage or be
carried over to other parts of the installation.
-Any damage resulting from the non-observance of these welding
instructions is not subject to our guarantee.
DN25,1"
(ange 4 bores)
– 2 screws
DN40–65,1,5"–3"
(ange 4 bores)
– 4 screws
DN80,100,4"
(ange 8 bores)
– 6 screws
a°
a°

10
APV_SVS1F_ATEX_UK-0_012017.indd
UK
Buttery Valve
DELTA SVS1F-ATEX
Instruction manual:UK - rev.0
APV
8. Dimensions/Weights
Dimensions in mm Weights in kg
DN A B∅ C∅ Di ∅ EF G manual actuated
25 98 271,5 85 26 29 88 165 2,2 5,0
40 98 280 85 38 41 96,5 165 2,9 5,7
50 98 285 85 50 53 101,5 165 3,3 6,4
65 98 293,5 85 66 70 110 165 4,0 7,0
80 98 301 85 81 85 117,5 165 4,8 7,4
100 98 311 85 100 104 127,5 165 5,2 8,8
Inch
1" 98 271,5 85 22,6 25 88 165 2,2 5,0
1,5" 98 280 85 34,8 38 96,5 165 2,9 5,7
2" 98 285 85 47,8 51 101,5 165 3,3 6,4
2,5" 98 293,5 85 60,3 63,5 110 165 4,0 7,0
3" 98 297 85 72,9 76,1 117,5 165 4,8 7,4
4" 98 311 85 97,6 101,6 127,5 165 5,2 8,8
SVS1F–with
turningactuator
SVS1F–with
manualoperation
Ø Di Ø Di
A A
B
Ø E
Ø C
Ø E
F
G

11
APV_SVS1F_ATEX_UK-0_012017.indd
UK
Buttery Valve
DELTA SVS1F-ATEX
Instruction manual:UK - rev.0
APV
9. TechnicalData
9.1. Generaldata
-max. line pressure: 10 bar
-max. operating temperature: 135°C EPDM, HNBR
*FPM, *VMQ
-short-term load: 140°C EPDM, HNBR
*FPM, *VMQ
*(no steam)
-Ambient temperature: 0 - 40 °C
-Air connection (for hose): 6 x 1mm
-max. pneumatic air pressure: 10 bar
-min. pneumatic air pressure: 6 bar
Use dry and clean pneumatic air only.
9.2. Compressedairquality
-Compressed air quality: quality class according to ISO 8573-1
-Content of solid particles: quality class 3,
max. number of particles per m³
10000 of 0,5 μm < d ≤ 1,0 μm
500 of 1,0 μm < d ≤ 5,0 μm
-Content of water: quality class 4,
max. dew point temperature +3 °C
For installations at lower temperatures
or at higher altitudes, additional
measures must be considered to reduce
the pressure dew point accordingly.
-Content of oil: quality class 1,
max. 0,01 mg/m³
The oil applied must be compatible with Polyurethane elastomer
materials.
elbow union – G1/8“
slewable
tightening torque 2 Nm
turning actuator
K080 F/L

12
APV_SVS1F_ATEX_UK-0_012017.indd
UK
Buttery Valve
DELTA SVS1F-ATEX
Instruction manual:UK - rev.0
APV
9. TechnicalData
9.3. Openingandclosingtimes
The actuating times depend on the length of the air line between
the magnet valve to the air control and the actuator.
For air lines with a length of up to 1 m, the opening time for
buttery valves DN 25/1” to DN 100/4” at 6 bar control air pressure
amounts to about 1 second. The closing time, after air shut-off,
depends on the nominal dimension and amounts to 2 to 3
seconds.
If the valves are subject to strong friction, e.g. through dry seals,
the actuating times extend accordingly.
9.3.1.Openingandclosingtimes-butterflyvalves
Opening times in sec.
pneumatic pressure
6 bar
Closing times in sec.
DN Inch hoselength1m
25 1" 1 sec. 1,5 sec.
40 1,5" 1 sec. 1,5 sec.
50 2" 1 sec. 1,5 sec.
65 2,5" 1 sec. 2,5 sec.
80 3" 1 sec.. 3,0 sec.
100 4" 1,2 sec. 3,5 sec.
9.4. TighteningtorquesMd[Nm]-butterflyvalves
DN Inch Md(Nm)
25 1" 10
40 1,5" 12
50 2" 16
65 2,5" 20
80 3" 22
100 4" 24
9.5. Pneumaticairconsumptionat6barpneum.airpressure
actuatorK080(F/L)perstroke1.8(NL)

13
APV_SVS1F_ATEX_UK-0_012017.indd
UK
Buttery Valve
DELTA SVS1F-ATEX
Instruction manual:UK - rev.0
APV
9. TechnicalData
9.6. Kvs-valuesinm3/h
DN Inch
25 1" 40
40 1,5" 89
50 2" 160
65 2,5" 250
80 3" 440
100 4" 630
10. Materials
-valve disc 1.4571/1.4404 (DIN EN
10088)
-housing ange, mating ange
DN 25–100 1.4301/1.4404
(DIN EN 10088)
1"–4" 1.4404(DIN EN 10088)
-SV seal, ange seal
standard: EPDM
option: HNBR,VMQ,FPM
-bearing bush polyamidePA12
-handle polyamidePA6.6
-spring - potential equalization 1.4310
Actuator
-yoke, actuator 1.4301(DIN EN 10088)
-coupling 1.4308(DIN EN 10088)
-indicator PE–hart
-piston polyacetalPOM
-spindle bearing polyamidePA12
-air connection polyamide6.6

14
APV_SVS1F_ATEX_UK-0_012017.indd
UK
Buttery Valve
DELTA SVS1F-ATEX
Instruction manual:UK - rev.0
APV
11. Maintenance
The maintenance intervals depend on the corresponding
application and are to be determined by the operator himself
carrying out temporary checks.
Before start of maintenance and assembly the operator must make
sure that an explosive atmohsphere does not exist (detection/
measurement of potential concentration of hazardous substances).
Alternatively, use spark-resistant tools!
-There are a few wear parts on SV1 buttery valves, principally
the SV seal and bearings.
Customer stock keeping of spare seals is recommended.
For valve service actions we supply complete seal kits (see spare
parts lists).
-If damaged seals are replaced, generally all seals and bearings
should be changed.
-Dismantling and installation of seals according to Service
Instructions.
-All seals must be slightly greased before their installation.

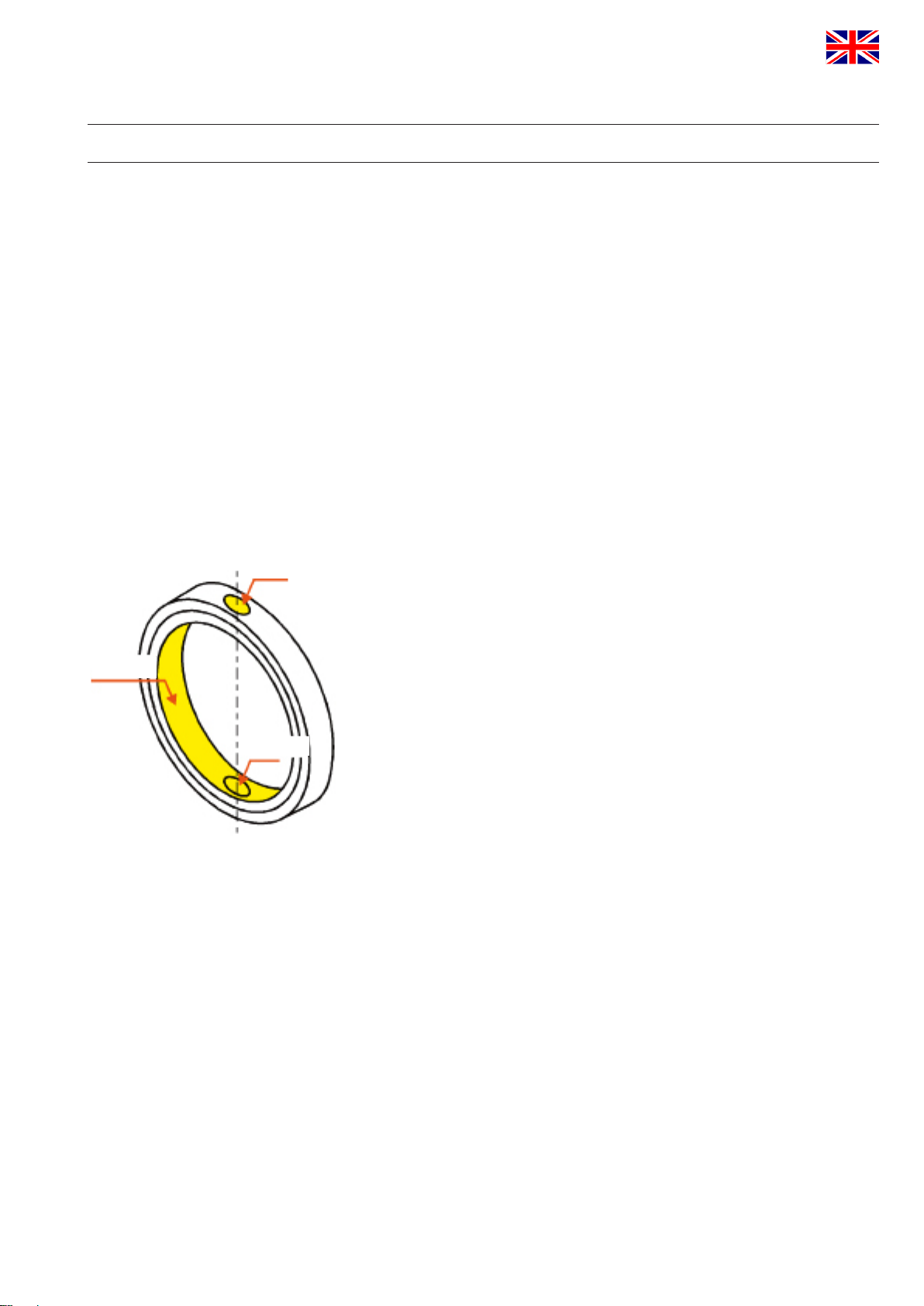

Grease SV seal according to illustration - especially in the cross
bores.
-Assembly of valve and change of valve design NC or NO
by installation of the turning actuator according to Service
Instructions.
-The inner parts of the actuator are maintenance free.
Attention! Use food-grade special grease being suited for the
respective seal material, only.
Recommendation:
APV assembly grease for EPDM, FPM, HNBR and NBR
(0,75 kg /can - ref. No. 000 70-01-019/93, H147382)
(60 g /tube - ref. No. 000 70-01-018/93, H147381)
or
APV assembly grease for VMQ
(0,6 kg /can - ref. No. 000 70-01-017/93, H147380)
(60 g /tube - ref. No. 000 70-01-016/93, H147379)
! Do not use grease containing mineral oil for EPDM seals.
! Do not use Silicone-based grease for VMQ seals.
Less suited grease types can influence the function and
life time.
grease
grease
grease
SV seal

15
APV_SVS1F_ATEX_UK-0_012017.indd
UK
Buttery Valve
DELTA SVS1F-ATEX
Instruction manual:UK - rev.0
APV
11. Maintenance
Additionally required maintenance for applications in ATEX
environment
SVS1F valve - pneumatic and manual actuation:
Replacement of spring for potential equalization if damaged.
SVS1FValve-pneumaticactuation
Valvemaintenancefor
actuatorwithspring
Note
Functional test,
visual inspection of actuator
movement (turning angle) and
control of abnormal running
noise of spring
1 x per year
Change interval of actuator
(turning actuator)
In case of damage,
incomplete actuator movement
(turning angle), considerable
running noise of spring as well as
after 250,000 cycles* as
preventive measure, however,
after 10 years at the latest.
*complies with about 8 years in 1-shift-operation and 10-15 cycles per hour.
