ACCUTORQ™
CLIKKER TORQUE WRENCHES
The Clikker Torque Wrenches are torque-limiting tools. A steel case encloses a power spring, a torque signaling
mechanism, a ratchet drive tang at the head of the case, and an adjustable hand grip (with lock) in the handle. The case
and grip have a calibration scale that is set and read like a micrometer.
OPERATING INSTRUCTIONS
Setting the TORQUE
The following example demonstrates how to set a torque of 64 ft. lbs.

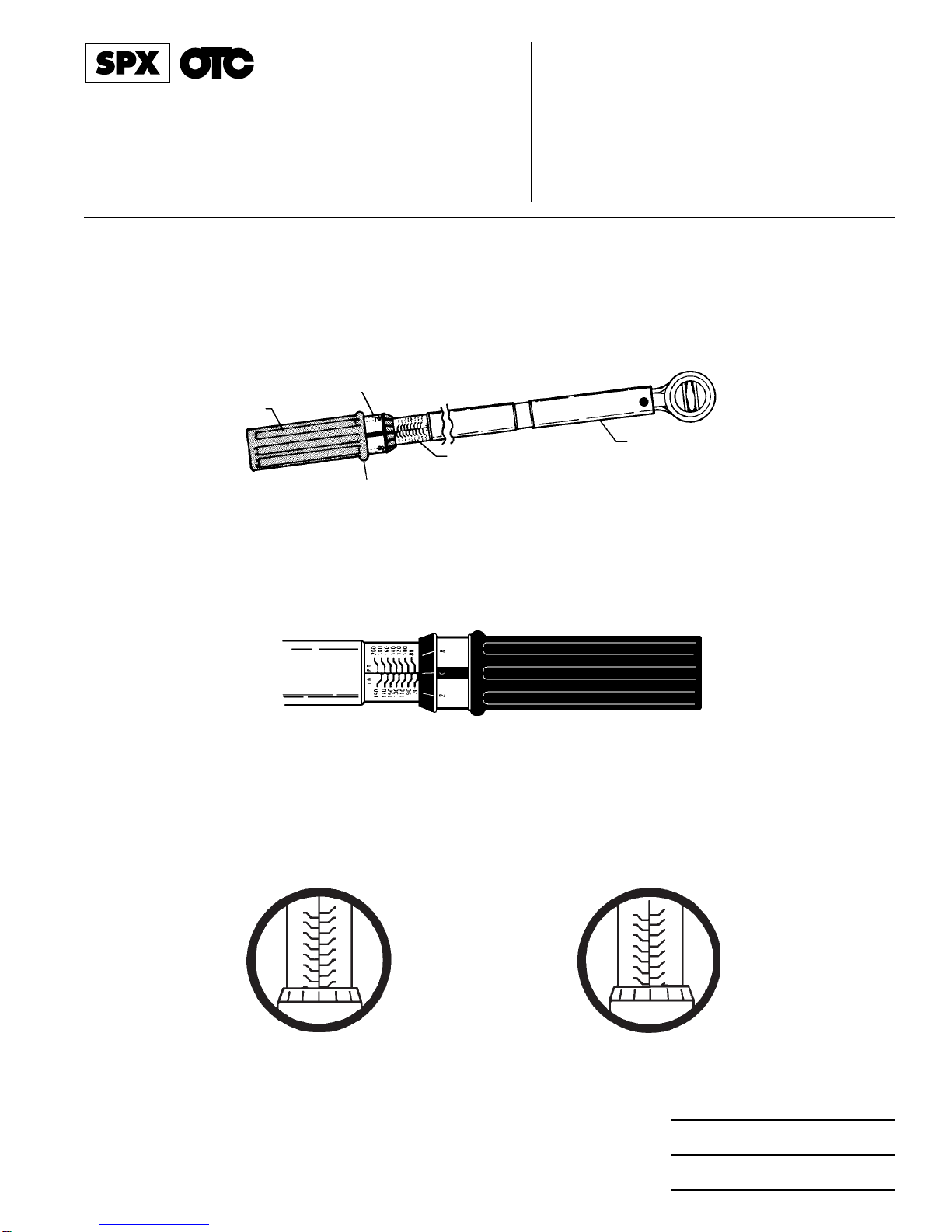

1. Unlock the handle by holding the tube and firmly pulling the handle back. See Figure A.
NOTE: Keep pressure (a rearward pull) on the handle during Steps 2 and 3.
2. Align the thimble edge with the “60” graduation cross line on the tube. Align the zero (0) on the thimble with the vertical
line on the tube. See Figure B. The wrench is now set at 60 ft. lbs.
3. By turning the handle, align the four (4) on the thimble with the vertical line on the tube. See Figure C. The wrench is
now set at 64 ft. lbs.
4. Push the handle forward until it clicks into the lock position. NOTE: The handle will lock only when a line on the
thimble is in line with the vertical line on the tube. See Figure D.
Form No. 105152
Operating Instructions
for: 7375
7377
7378
7379
HANDLE
THIMBLE
MAJOR
GRADUATIONS
TUBE
MINOR
GRADUATIONS
FIGURE A
Handle in the Unlocked Position
FIGURE B
Set at 60 ft. lbs. FIGURE C
Set at 64 ft. lbs.
1 of 2
Rev. 5-1-98
190
170
150
130
110
90
70
50
200
180
160
140
120
100
80
60
2 08
LB. FT.
6 42
190
170
150
130
110
90
70
200
180
160
140
120
100
80
60
LB. FT.
SPX Corporation
655 Eisenhower Drive
Owatonna, MN 55060-0995 USA
Phone: [phone]
Tech. Serv.: [phone]
Fax: [phone]
Order Entry: [phone]
Fax: [phone]
International Sales: [phone]
Fax: [phone]

Operating Instructions Form No. 105152 ,Sheet 1of 2, Back
FIGURE D
Handle in the Locked Position
IMPORTANT: The handle must be in the locked position before torque is applied. See Figure D.
5. Applythewrenchtothenutorbolt,andpulluntilyoufeeland/orhearthewrenchclick.Release.Thewrenchautomatically
resets for the next operation.
IMPORTANT: To prevent equipment damage,
• do not continue pulling on the wrench after the click.
• use special care at low torque settings to stop pulling after the wrench clicks.
METRIC SETTINGS
1. The metric graduations are on the reverse side of the barrel and thimble, and the same steps are used to set a metric
torque.
NOTE:Themetricscaleisnotinevengraduations.Setthetorquebyaligningthethimblezero(0)withthecrossline
on the tube that is nearest to the metric setting. See Figure E. Turn the handle to add metric graduations as needed to
bring the torque setting as close as possible to the required metric setting. See Figure F.
MAINTENANCE
1. If the torque wrench has not been used or has been in storage for some time, use it ten times at a low torque setting.
This releases an internal lubricant to coat the internal working parts again.
2. Keep the wrench set at a low torque when it's not being used.
3. Do not turn the handle below the lowest torque setting. If the handle is turned five or six turns below the minimum
setting, the handle will disengage.
The handle, when disengaged from the internal screw, turns free on the tube. The handle is held on the tube by an
internal spring-lock, and should never be pulled off the wrench. If the handle is accidentally removed, it should be
replacedimmediatelywithenoughforcetoovercometheresistanceofthe internal spring-lock. Ifthehandleisreplaced
without disturbing its internal parts, the wrench will remain in calibration. Use the following steps to engage the internal
screw again:
A. Gently push the handle toward the graduations scale while turning it to engage the internal screw again.
B. After the internal screw has been engaged, turn the handle while pulling backward lightly until the lowest torque
reading is set. The wrench can be used again, and the calibration has not been altered.
4. The tool is durable and designed for use in a shop, but the tool is also a precision measuring instrument and should be
treated as such.
5. Wipe the wrench clean. Do not immerse the wrench in any type of cleaner that may affect the high pressure lubricant
inside the tube.
FIGURE F
Set at 134 Nm
Nm
251
224
197
169
142
264
237
210
183
156
129
6 4 2
8 3 5
FIGURE E
Set at 129 Nm
Nm
251
224
197
169
142
115
264
237
210
183
156
129
2 0 8
3 11

Sheet No.
Issue Date:
Litho in USA
Operating Instructions Form No. 105152
One Year Limited Warranty
Effective 2-17-97
This product, and all parts making up this product, with the exceptions noted below or otherwise stated under
a separate warranty, are warranted against defects in materials and workmanship for a period of one year from
date of purchase.
This warranty is expressly limited to the original retail purchaser of the product or part for use in the ordinary
course of the buyer’s business.
This warranty does not cover any product or part that has been abused, worn out, contaminated, rusted, heated, ground,
or otherwise altered, damaged due to side loading, used for a purpose other than for which it was intended, or used in a
manner inconsistent with any instructions regarding its use.
Chains,batteries,electricmotors,knives,andcutterblades,whicharesoldwithOTCproducts,arenotcoveredunderthis
warranty. Electric motors are separately warranted by manufacturers under conditions stated in their warranties.
THIS WARRANTY IS EXCLUSIVE OF THIS PRODUCT, AND OTC MAKES NO OTHER WARRANTY OF ANY KIND
WHATSOEVER, EXPRESSED OR IMPLIED, WITH RESPECT TO THE PRODUCTS MANUFACTURED OR SOLD BY
IT, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR ANY OTHER MATTER.
Noagent,employee,orrepresentativeofOTChasanyauthoritytobindOTCtoanyaffirmation,representation,orwarranty
concerning OTC products or parts, except as stated herein.
To qualify for warranty consideration, return the OTC product, freight prepaid, to an OTC authorized hydraulic service
center. If any product or part, manufactured or distributed by OTC, is found to be defective by OTC, in its sole judgment,
OTC will, at its option, either repair or replace such defective product or part, and return it via best ground transportation,
freight prepaid.
THIS SHALL BE THE EXCLUSIVE REMEDY AVAILABLE FOR ANY DEFECTS IN THE PRODUCTS OR PARTS
MANUFACTURED OR SOLD BY OTC, OR FOR DAMAGES RESULTING FROM ANY OTHER CAUSE WHATSO-
EVER, INCLUDING, WITHOUT LIMITATION, OTC’S NEGLIGENCE. OTC SHALL NOT, IN ANY EVENT, BE LIABLE
TO ANY BUYER FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES OF ANY KIND, WHETHER FOR DEFECTIVE
OR NON-CONFORMING GOODS, NEGLIGENCE, ON THE BASIS OF STRICT LIABILITY, OR FOR ANY OTHER
REASON.
The purpose of this exclusive remedy shall be to provide the buyer with repair or replacement of products or parts,
manufacturedordistributedbyOTC,foundtobedefectiveinmaterialsorworkmanship,ornegligentlymanufactured.This
exclusive remedy shall not be deemed to have failed its essential purpose so long as OTC is willing and able to repair or
replace said defective products or parts in the prescribed manner.
Repair Service
Should your torque wrench require repair service, contact your nearest OTC authorized
torquewrenchrepaircenter,andprovidethemwiththe date of purchase information.Ifthe
unitisdeterminedtobeinwarranty,itwillberepairedorreplacedatnochargeandreturned
freight prepaid.
Iftheunitisdeterminedtobeoutofwarranty,itwillberepairedforanominalservicecharge
plus return freight.
2 of 2
Rev. 5-1-98
