SQ Professional BLITZ 8244 User manual

SQIM 8244-1143 19-05-2020 V7
instruction manual
BEFORE OPERATING THIS UNIT, PLEASE CAREFULLY READ THE FOLLOWING INSTRUCTIONS.
2 IN 1 FOOD PROCESSOR

1 Blender Jug Cap
2 Blender Jug Lid
3 Blender Jug
4 Connector
5 Safety Interlocks
6 Motor Unit
7 Speed Control
8 PULSE Button
SPECIFICATIONS
Rated Voltage: .............. 220-240V~
Frequency: ........................ 50Hz
Rated Power: ................. 700W
IMPORTANT!
Due to sharp parts and potential hazards, this appliance is not suitable for use by
children under the age of 8 years old.
When off, please keep the appliance and mains cable out of reach from children.
Children over 8 years old must be supervised by an adult, at all times, when using
or cleaning the appliance. This is not a toy!
The appliance can be used by persons with reduced physical, sensory or mental
capabilities, if they have been given sufficient supervision and instruction, and
understand its usage and hazards involved.
Always disconnect the appliance from the socket if it is left unattended and before:
assembling, disassembling or cleaning. If the mains cable is damaged, it must be
replaced by qualified persons in order to avoid any hazards.
READ THE INSTRUCTIONS AND KEEP THEM SAFE. REMOVE ALL PACKAGING BEFORE USE.
FEATURES
20
21
22
23
24
9 Push Cover
10 Feeder Tube
11 Mixing Bowl Cover
12 Mixing bowl
13 Citrus Juicer Basket
14 Juicing Cone
15 Drive Shaft
16 Blade Disc
17 Chopping Blade
18 Mixing Blade
19 Blade Retainer
20 Fine Slicing Blade
21 Coarse Slicing Blade
22 Fine Shredding Blade
23 Coarse Shredding Blade
24 Potato Slurry Blade
SHARP BLADES!
3
6
7
5
4
1
2
8
5
5
16
17
18
19
9
15
10
11
12
19
5
5
13
5
14
SQIM 8244-1143 19-05-2020 V7 | SQ Professional Ltd © 2020 All Rights Reserved
2 in 1 Food Processor Instruction Manual
FEATURES
2

2 This appliance is intended for household use only. It is
not suitable for commercial use such as kitchen areas
and other working environments.
3 Ensure that the appliance and mains cable are always placed on
a firm and flat surface, away from the any edges of the worktop
and out of reach from children. Do not place the appliance onto
a metal tray or metal surface whilst in use. Do not place the
appliance on, or near, hot gas or an electric burner or in a heated
oven. Do not operate the appliance with wet hands or barefeet.
4 Route the mains cable so it does not overhang, and cannot be
tripped over or caught.
5 Do not let the mains cable run across an open space, such as,
between a low socket and a table or across any hot area, such as a
cooker, as the heat may damage it.
6 The connections on both sides of the mains cable (the appliance
and socket) should never be strained. If the mains cable is
damaged, it must be replaced by a qualified person or service,
to avoid any hazards.
7 Do not use the appliance in a bathroom, near water, or
outdoors. Do not immerse any of the parts (appliance,
mains cable, plug) in water or other liquids - this is to
protect against fire, electric shock and personal injury.
8 Do not use the appliance if it is damaged or
is malfunctioning. Do not leave the appliance
unattended whilst in use. Use and store it out of reach
from children.
9 This appliance must not be operated by an external timer or a
remote control system.
10 SQ Professional Ltd may not be held liable for eventual damages
to persons, animals or objects caused by incorrect installation or
deriving from improper, erroneous or unreasonable use.
11 The top of the motor unit
6
should always be kept dry. Before
cleaning and drying, disconnect the power supply. Ensure that
the motor unit
6
is completely dry before you reconnect the
appliance to the power supply.
12 To reduce the risk of injury, ensure that blades
are correctly attached. Always handle the blades
carefully, as they are extremely sharp.
13 Ensure the blender jug
2
, mixing bowl
12
, juicing bowl
13
and any attachments are securely in place before operating the
appliance.
14 Always close the blender jug lid
2
or have the mixing bowl cover
11
securely locked in place before you switch the appliance on. Do
not open the blender jug lid
2
or the mixing bowl cover
11
whilst
the appliance is running.
15 Never switch on the appliance when it is empty. Always ensure
there is at least the minimum amount of liquid or solid ingredients
in the blender jug
3
or mixing bowl
12
when operating the
appliance.
16 Keep hands and utensils out of the blender jug
3
or mixing bowl
12
while the appliance is running,
to reduce the risk of severe injury to persons or
damage to the appliance. A scraper may be used but
only when the appliance is not running.
17 Always use the push cover
9
to push food down the feeder
tube
10
. Never use your fingers, a fork, a spoon, a knife or other
utensils.
18 Never process hot liquids and ingredients, as they
may be ejected due to a sudden build-up of steam.
19 Never use the chopping blade
17
together with
the mixing blade
18
or keep either of them in the
mixing bowl while using the blade disc
16
or citrus
juicer basket
13
.
20 Only remove the attachments when the appliance
has come to a complete stop.
21 Always switch off the appliance and unplug the mains cable from
the power socket before changing attachments, or approaching
parts that move while in use. Unplug the appliance when not in
use.
22 Ensure that the appliance has come to a complete stop before
cleaning and storing away. Keep the attachments, motor unit
6
,
cable, and plug away from sources of heat. Store in a dry place.
23 Do not use the appliance for any purpose, aside from its intended
use.
24 Use the blender jug
3
, mixing bowl
12
and citrus juicer
13
only with the motor unit
6
supplied (and vice versa) and do not
tamper with the connector
4
in any way.
25 Operate the appliance for 40-60 seconds, then let it rest for 3
minutes before restarting. After five cycles, rest the appliance for
20 minutes. To fully protect the appliance, the maximum duration
for continuous operation should be 40 seconds, with a resting
period of 30 minutes before restarting. Thus, after five 40-second
cycles, rest the appliance for 1 hour.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!
IMPORTANT SAFEGUARDS
WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY PRECAUTIONS
SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:
1 Read all instructions carefully before using the appliance.
All images are for illustration purposes only. Actual products may vary.
IMPORTANT SAFEGUARDS
2 in 1 Food Processor Instruction Manual
3

SLICING & SHREDDING
F G H I
Food Processing
CHOPPING
A B
JUICING
N O
C
P
E
R
D
Q
BLENDING
MLJ K
SQIM 8244-1143 19-05-2020 V7 | SQ Professional Ltd © 2020 All Rights Reserved
2 in 1 Food Processor Instruction Manual

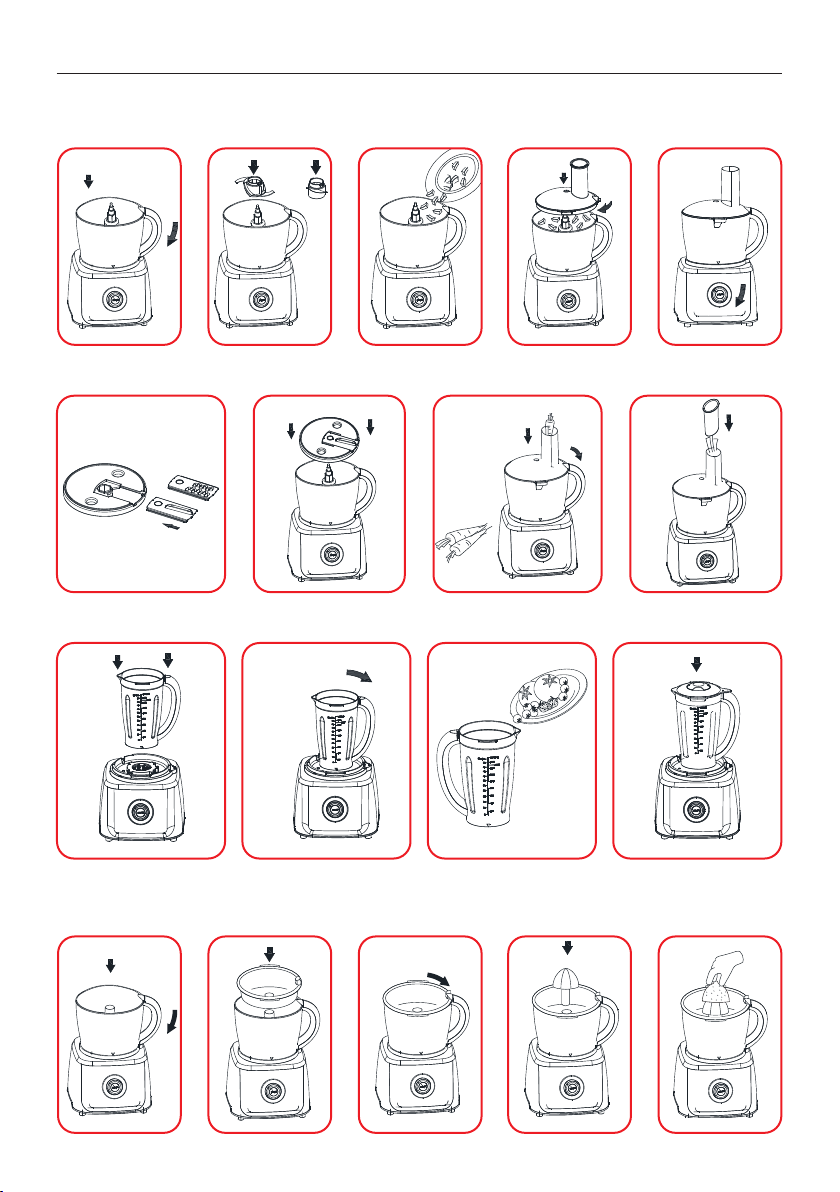

OPERATON DIAGRAMS
4

BEFORE FIRST USE
BEFORE ATTACHING OR REMOVING ANY PARTS, MAKE SURE THE MAINS
CABLE IS UNPLUGGED FROM THE POWER SOCKET AND THE SPEED CONTROL
IS IN THE 0 POSITION.
Prior to first use, wash all the parts that come into contact with food
with warm soapy water and dry thoroughly (see section on Cleaning
& Storage).
ALWAYS TAKE CARE WHEN HANDLING THE STAINLESS STEEL
BLADES AS THEY ARE VERY SHARP.
OPERATING INSTRUCTIONS
Follow the Important Safeguards and instructions below to achieve the best
results and to keep your appliance in good working condition.
• Do not exceed the recommended maximum quantities.
• Do not use the appliance to process ingredients that are hard (e.g.
frozen meat, inedible parts of ingredients such as bones and pips),
rubbery or sticky (e.g. candied orange peel).
FOOD PROCESSING
ALWAYS REMOVE THE BLADES BEFORE REMOVING THE INGREDIENTS FROM
THE BOWL.
THE APPLIANCE WILL NOT OPERATE IF THE MIXING BOWL COVER OR BLENDER
JUG LID ARE NOT CORRECTLY FITTED.
DO NOT ATTEMPT TO REMOVE THE BLENDER JUG LID OR MIXING BOWL COVER
WHILE THE APPLIANCE IS IN OPERATION.
CHOPPING
Suitable for single stage cake mixes, kneading butter into flour, adding
water to mixtures and chopping, puréeing or whisking.
1 Ensure that the appliance is unplugged, then place the drive shaft
15
on the motor unit
6
.
2 Place the mixing bowl
12
on the drive shaft
15
with the handle on
the right-hand side. Align the triangle on the bottom edge of the
mixing bowl
12
with the open lock symbol on the motor unit
6
.
3 Turn the mixing bowl
12
clockwise to lock it in place. The triangle
on the bottom edge of the mixing bowl
12
must be aligned with the
closed lock symbol on the motor unit
6
in order to operate the
appliance. operation diagram a
4 Mount the blade retainer
19
on the tube in the middle of the
mixing bowl
12
. operation diagram b
5 Fit the chopping blade
17
onto the blade retainer
19
and ensure
that it sits flat on the bottom of the mixing bowl
12
, with the lower
blade almost touching the bottom. Exercise extreme care
when handling the chopping blade
17
as it is very
sharp. Only hold the plastic part.
6 Place ingredients into the mixing bowl
12
. Large pieces of food
should be cut into 2cm cubes first. operation diagram c
7 Place the mixing bowl cover
11
onto the mixing bowl
12
with the
feeder tube
10
on the right-hand side. Align the triangle on the
edge of the mixing bowl cover
11
with the open lock symbol on
the upper rim of the mixing bowl
12
.
8 Hold the feeder tube
10
with your left hand and the mixing bowl
12
handle with your right hand. Turn the mixing bowl cover
11
clockwise
until it clicks into place. This will engage the safety interlocks
5
in
the handle and ensure the mixing bowl
12
is securely attached, so
that the appliance is safe to operate. operation diagram d
9 Plug the mains cable into the electric socket. Rotate the speed
control
7
to the desired speed. operation diagram e
10 To activate a short, powerful impulse movement, press the PULSE
button
8
and hold for the desired time. When released, the
appliance will return to the initial speed setting selected on the
speed control
7
.
11 When the chopping process is finished, turn the speed control
7
to 0, ensure the appliance has come to a complete stop and then
unplug the mains cable from the electric socket.
12 Hold the handle of the mixing bowl
12
with your right hand and
the feeder tube
10
with your left hand, and turn it anti-clockwise
to release the safety interlock
5
. After this, remove the mixing
bowl cover
11
by turning it anti-clockwise to unlock it.
13 Carefully lift the blade retainer
19
with the chopping blade
17
attached, then push the handle of the mixing bowl
12
anti-
clockwise to unlock it. Following this, lift the mixing bowl
12
carefully
and empty the ingredients.
WHISKING
Suitable for beating egg whites, mixing eggs and sugar, making a batter,
and whipping cream.
The whisking function has the same operating steps as the chopping
function. Simply replace the chopping blade
17
with the mixing blade
18
. operation diagram b
SLICING, GRATING AND SHREDDING
FOOD SHOULD BE CLEANED AND CUT INTO PIECES THAT FIT INTO THE FEEDER
TUBE. ALWAYS USE THE PUSH COVER TO PUSH THE FOOD DOWN.
Suitable for processing firm foods such as carrots and hard cheeses, as
well as softer foods such as tomatoes and cucumbers.
1 Ensure that the appliance is unplugged, then place the drive shaft
15
on the motor unit
6
.
2 Place the mixing bowl
12
onto the drive shaft
15
with the handle
on the right-hand side. Align the triangle on the bottom edge of the
mixing bowl
12
with the open lock symbol on the motor unit
6
.
Turn the mixing bowl in a clockwise direction to lock it in place. The
triangle on the bottom edge of the mixing bowl
12
must be aligned
with the closed lock symbol on the motor unit
6
in order to work
the appliance.
3 Mount the blade retainer
19
onto the tube in the middle of the
mixing bowl
12
. operation diagram a
4 Hold the blade disc with one hand and insert one of the slicing
blades
20
21
, shredding blades
22
23
or a slurry blade
24
onto
the opening of the blade disc
16
with the other hand. Ensure that
the hole in the blade sits on top of the hole in the centre of the
blade disc
16
. operation diagram f
All images are for illustration purposes only. Actual products may vary.
USE & CARE
2 in 1 Food Processor Instruction Manual
5

5 Place the assembled blade disc
16
on the blade retainer
19
and
ensure that it is stable. operation diagram g
6 Place the mixing bowl cover
11
on the mixing bowl
12
with the feeder
tube
10
on the right-hand side. Align the triangle on the edge of the
mixing bowl cover
11
with the open lock symbol on the upper rim of
the mixing bowl
12
.
7 Hold the feeder tube
10
with your left hand and the mixing bowl
12
with your right hand. Turn the mixing bowl cover
11
clockwise until it
clicks into place, as this will engage the safety interlocks
5
.
8 Plug the mains cable into the electric socket then select the desired
speed by rotating the speed control
7
. operation diagram h
9 Place the ingredients into the feeder tube
10
and slowly push the
food down with the push cover
9
. operation diagram i.
10 To switch the appliance off, turn the speed control
7
to 0and
unplug the mains cable from the electric socket. Turn the mixing
bowl cover
11
anti-clockwise to unlock and remove it.
11 Remove any food left on top of the blade disc
16
with an
appropriate utensil. Use the large holes on the blade disc
16
to
safely lift it off of the blade retainer
19
.
12 Remove the blade by carefully sliding it outwards, then remove
the blade retainer
19
, detach the mixing bowl
12
and empty the
ingredients.
BLENDING
1 Ensure that the appliance is unplugged from the electric socket, then
remove the drive shaft
15
from the motor unit
6
.
2 Place the blender jug
3
on the motor unit
6
with the handle on
the right-hand side. Align the triangle on the bottom edge of the
blender jug
3
with the open lock symbol on the inside rim of the
motor unit
6
. There is no safety interlock
5
sensor on the left-
hand side of the motor unit
6
and therefore, the appliance will
not operate if the blender jug handle
3
is on the left-hand side.
operation diagram j
3 Once the blender jug
3
has been correctly aligned, turn its
handle in a clockwise direction until it clicks and locks in place.
operation diagram k
4 Place ingredients into the blender jug
3
, then place the blender
jug lid
2
on top with its long tab on the right-hand side. Rotate
the blender jug lid
2
clockwise until it clicks into place. This will
engage the safety interlocks
5
in the handle and ensure that the
blender jug
3
is securely attached, making the appliance safe
to operate. Insert the blender jug cap
1
into the lid opening.
operation diagrams l&m
5 Plug the mains cable into the electric socket and rotate the speed
control
7
to select the desired speed.
6 To activate a short, powerful impulse movement press and hold
the PULSE button
8
for the desired amount of time.
7 To add liquids during the blending process, remove the blender jug
cap
1
and slowly pour the liquid into the jug.
8 To switch the appliance off, turn the speed control
7
to 0, ensure
it has come to a complete stop and then unplug the mains cable
from the electric socket.
9 Following this, turn the blender jug lid
2
anti-clockwise to
disengage the safety interlocks
5
and then remove it. After this,
turn the blender jug
3
anti-clockwise to remove it from the motor
unit
6
and pour the contents out.
JUICING
WHEN JUICING LARGE AMOUNTS OF CITRUSES ENSURE THAT THE LIQUID IN
THE MIXING BOWL DOES NOT EXCEED THE 2000 ML.
1 Ensure that the appliance is unplugged, then place the drive shaft
15
on the motor unit
6
.
2 Place the mixing bowl
12
on the drive shaft
15
with the handle on the
right-hand side. Align the triangle on the bottom edge of the mixing bowl
12
with the open lock symbol on the motor unit
6
then turn it clockwise
to lock it in place. The triangle on the bottom edge of the mixing bowl
12
must be aligned with the closed lock symbol on the motor unit
6
to
activate the safety interlocks
5
.operation diagram n
3 Place the citrus juicer basket
13
on the mixing bowl
12
. Rotate it
clockwise until the tab on its rim locks into place. This will engage
the safety interlock
5
in the handle and ensure that the citrus
juicer basket
13
is securely attached, making sure the appliance is
safe to operate. operation diagram o&p
4 Insert the juicing cone
14
into the citrus juicer basket
13
and ensure that
it sits snuggly on the drive shaft
15
.
5 Plug the mains cable into the electric socket and select the desired speed
by rotating the speed control
7
. operation diagram q
6 Carefully place a halved citrus fruit on the juicing cone
14
andgently
press down to extract the juice. Using lower speeds is recommended
when juicing citruses. operation diagram r
FOOD PROCESSING
MAX
PROCESSING TIME
INGREDIENTS
MAX
QUANTITY SLICING SHREDDING
SLICING POTATOES , MELON,
CARROT 500g 60s 60s
CHOPPING
&
WHISKING
MEAT 500g
50s
HAM 400g
ONIONS 500g
STRAWBERRIES 300g 45s
CHEESE, ALMONDS,
HAZELNUTS,
WALNUTS 200g
EGG 8-10 yolks
30-40s
8 egg whites
CREAM 450ml
BLENDING
APPLES, ORANGES,
GRAPES,
STRAWBERRIES 300g 40-50s
INGREDIENTS SHOULD BE CUT TO
CUBES, MAX. 2 x 2 x 2 cm / PIECE WATER VOLUME: 450ml
SQIM 8244-1143 19-05-2020 V7 | SQ Professional Ltd © 2020 All Rights Reserved
2 in 1 Food Processor Instruction Manual
USE & CARE
6

7 To switch off the appliance, turn the speed control
7
to 0, ensure the
appliance has come to a complete stop then unplug the mains
cable from the electric socket.
8 When the juicing process is completed, first remove the juicing cone
14
. To remove the citrus juicer basket
13
turn it anti-clockwise to
disengage the safety interlock
5
and remove it.
9 Turn the mixing bowl
12
anti-clockwise to unlock and remove it
from the motor unit
6
and then pour out your fresh juice.
CLEANING
ALWAYS UNPLUG FROM THE POWER SOCKET BEFORE CLEANING.
NEVER IMMERSE THE MOTOR UNIT IN WATER.
EXERCISE EXTREME CARE WHEN HANDLING THE STAINLESS STEEL BLADES.
THE BLADES CAN NOT BE SHARPENED.
Wipe the motor unit
6
clean with a damp cloth, then dry immediately
with a soft cloth, to avoid scratches and water marks on the surface.
Ensure that the connector
4
is completely dry.
LIGHT CLEANING
1 After the blender jug
3
or mixing bowl
12
have been emptied,
fill either one of them half way with tepid water and a mild
detergent, then return it to the motor unit
6
. If using the mixing
bowl
12
ensure the chopping blade
17
or mixing blade
18
are
correctly inserted.
2 Cover with the blender jug lid
2
or mixing bowl cover
11
and
ensure they are correctly fitted and locked.
3 Turn the speed control
7
to 1and press the PULSE button
8
,
holding for a few seconds each time. Empty the blender jug
3
or
mixing bowl
12
, rinse until clean, then dry thoroughly.
THOROUGH CLEANING
1 Hand-wash the blender jug
3
, mixing bowl
12
and all the
attachments with warm water and mild detergent. Handle the
blades carefully to avoid injury.
2 Use a small dry brush to clean any citrus bits stuck in the slits of
the juicer bowl and any food residue that may be obstructing the
safety interlocks
5
, connector
4
, blades or any parts that come
in contact with the connector
4
.
3 All attachments except the blender jug
3
and mixing bowl
12
can be washed in the dishwasher. Place the attachments in the
upper part of the dishwasher but make sure that the water never
exceeds a maximum temperature of 50°C.
4 Do not use harsh scourers, sponges, chemical or
abrasive substances on any parts.
STORAGE
MAKE SURE THAT YOUR APPLIANCE AND ALL ITS ACCESSORIES ARE
COMPLETELY DRY BEFORE PUTTING THEM AWAY.
The 2 in 1 Food Processor has a space-saving storage system where
all accessories can be put away tidily in the mixing bowl
12
. Store the
appliance in a dry and cool place.
WIRING
Should the power cable or the power
plug become damaged, arrange for
these to be replaced by Customer
Service or a qualified person before
continuing to use the appliance. This
appliance is fitted with a 5A BS1362
fuse in a 5A BS 1363 plug.
Do not use a non-wireable plug unless
the fuse cover is in place.
ENVIRONMENTAL PROTECTION
To avoid environmental and health problems due to
hazardous substances in electrical and electronic goods,
appliances marked with this symbol must not be disposed
of with unsorted municipal waste, but recovered, reused
or recycled.
SERVICE
The product is not user-serviceable. If it is not working, read the
instructions, check the plug fuse and main fuse/circuit breaker. If it is
still not working, consult your retailer. If that does not solve the problem
ring Customer Service – they may be able to offer technical advice.
Please have the Model Number to hand, as they will not be able to
help you without it. If you are advised to return the product to us, pack
it carefully, include a note with your name, address, day phone number,
and description of the problem. If under a guarantee, say where and
when it was purchased and include a valid VAT receipt. Send it to SQ
Professional Ltd.
GUARANTEE
THE GUARANTEE FOR THIS PRODUCT IS COVERED BY SQ
PROFESSIONAL LIMITED. ANY FAULTS WITH THIS PRODUCT ARISING
THROUGH A MANUFACTURER DEFECT WILL BE COVERED FOR 1 YEAR
FROM THE DATE OF PURCHASE, SUBJECT TO A VALID VAT RECEIPT
BEING PRESENTED. THIS DOES NOT INCLUDE FAULTS OR DAMAGE
CAUSED BY MISUSE OF GENERAL WEAR AND TEAR.
PLEASE CONTACT CUSTOMER SERVICES ON 01992 716 070 OR
SEND AN E-MAIL TO [email protected], MONDAY
TO FRIDAY FROM 09:30 - 17:30.
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
All images are for illustration purposes only. Actual products may vary.
SERVICE
2 in 1 Food Processor Instruction Manual
7
5 AMP

SCAN THE QR CODE TO EXPLORE
OUR FULL PRODUCT RANGE.
Voltage Business Centre, Units 1 - 3
6 Mollison Avenue, Enfield, EN3 7XQ
T: 01992 716 070 | F: 01992 700 538
E: [email protected]
WWW.SQPROFESSIONAL.COM
