Square S4 User manual
Square Mobile PIN
Security Policy and Procedures
PCI Software PIN on COTS
Table of Contents
- Version Control
- Introduction
- Installation and User Guidance
- Reader Authentication and Use
- Square POS Application Use
- Reader Security
- Appendix A: Magstripe Readers
Version Control
Version
Effective Date
Author(s)
Version Description
1.0
6/23/19
Square Inc
Document Creation and Publication
1.1
9/18/19
Square Inc
Addition of Appendix A
1.2
4/14/20
Square Inc
Addition of SPF1-01
Introduction
Square’s Mobile PIN solution (the Solution) for contactless and chip enables acceptance of EMV based
transactions. It meets the security requirements published by the Payment Card Industry (PCI) Security
Standards Council (SSC), PIN Transaction Security (PTS) Point of Interaction (POI) standard, version 5.1 and
Payment Card Industry (PCI) Software-based PIN Entry on COTS standard, version 1.0.
The purpose of this document is to inform Square sellers of how to use the Reader and Point of Sale (POS)
application in a secure fashion, including information on key-management responsibilities, administrative
responsibilities, device functionality, identification, and environmental requirements. The security policy defines
the roles supported by the Reader and POS application and indicates the services available for each role.
For a tutorial on how to get started using this device, click here.
Installation and User Guidance
The Square Mobile PIN solution for contactless and chip is a secure payment device that is designed for use by
Sellers in many industries for accepting card-present payment transactions. The Solution consists of the Square
Reader and the Square Point of Sale (POS) application. The Solution only works with a compatible mobile
device. There is no configuration of the Reader required other than to verify that the Reader is fully powered
and connected via a USB port to the Square Stand or via bluetooth to your mobile device.
Initial Inspection
Upon receipt of the Reader, the Seller should inspect that the hardware version and serial number are visible on
the underside of the Reader. The correct hardware version number for this approved reader is SPC1-01, S8, and
S8-1.

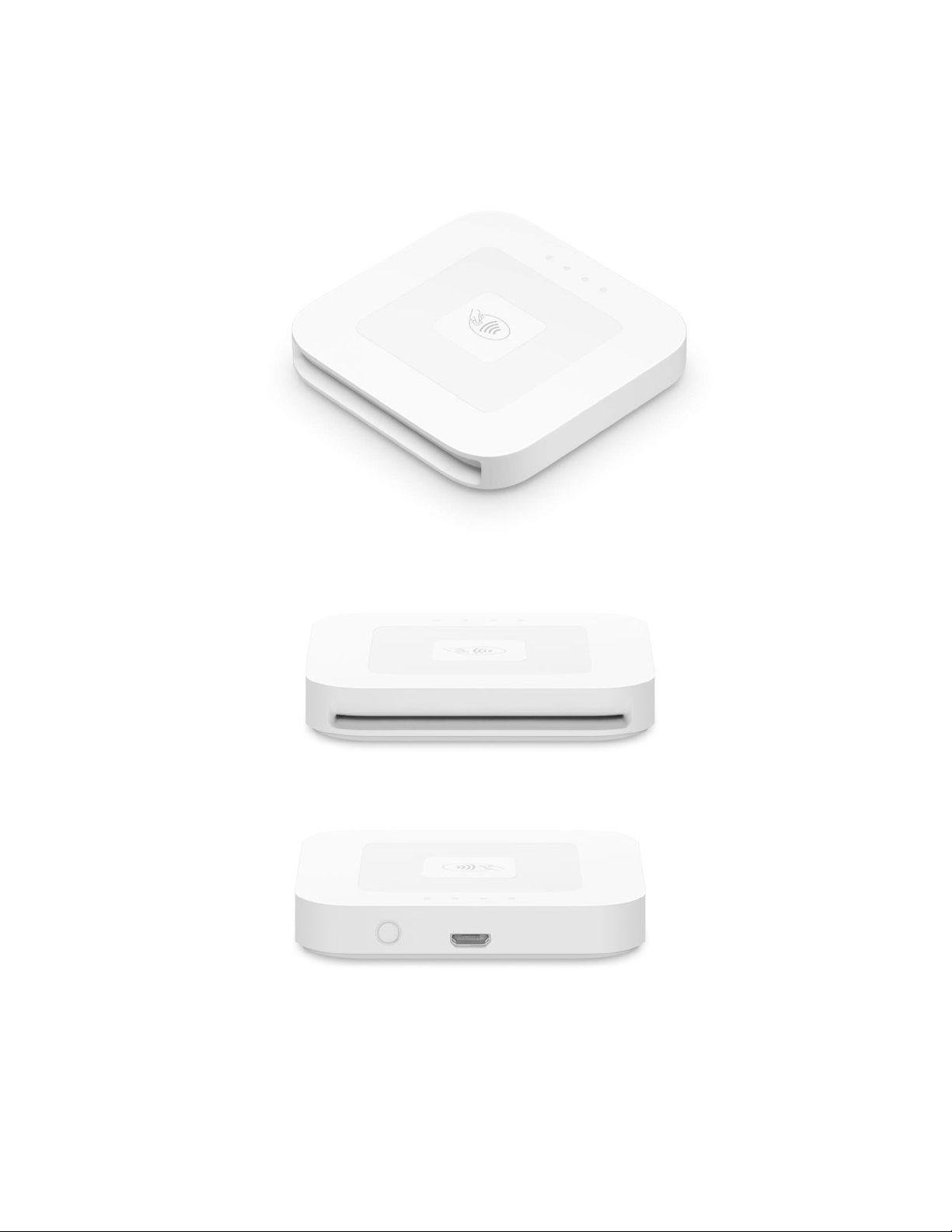

Bottom view:
Top view:
Front view:
Back view:
Installation
Before setting up your Square Reader for Contactless and Chip, make sure you have a compatible device with
the latest version of the Square Point of Sale app.
For a full overview on setting up your reader, watch this video.
1. Check the Battery of Your Square Reader
For an accurate battery reading, unplug your reader from any power source.
Firmly press and release the button on the reader. Green lights indicate that you’re
charged and ready to go. If you see a single red light, charge up immediately. Once
your reader is on, you don’t need to worry about turning it off. It’ll automatically go
into sleep mode after 2 hours of inactivity. To wake it up from sleep mode, firmly
press the button on the side of the reader.
2. Charge Your Square Reader
Connect one end of the accompanying USB cable to your reader and the other end
to a USB port like a cell phone charger, computer, or car charger.
It will take around 2 hours for a reader with low battery to charge completely.
Note: You can also use the Dock for Square Reader to charge and accept
payments.
3. Wirelessly Connect Your Square Reader
The new reader connects wirelessly with Bluetooth Low Energy (Bluetooth LE). Be
sure you have the latest version of the Square Point of Sale app for your
device–only the latest version supports the contactless and chip card reader.
Watch this video to learn how to wirelessly connect your reader
Connecting
You’ll need to connect through both your device’s Bluetooth settings and through
the Square Point of Sale app.
To connect your reader:
1. Press and release the button on your reader to turn it on.
2. Go to your device settings and make sure Bluetooth is turned on.
3. Open the Square app and tap: Three Horizontal Lines or the down arrow at
the top of the Square Point of Sale app.
4. Tap Settings > Card Readers > “Connect a Reader.” On an iOS device, tap
“Contactless + Chip Reader.”
5. Put your reader into pairing mode by pressing the reader’s button for 3-10
seconds.
6. Remove your finger as soon as you see orange flashing lights. If you see red
flashing lights, you’ve held the button too long and you’ll need to try again
When connected, the reader will be listed as Ready in-app.
Any necessary firmware updates will be automatically installed once the reader has been
connected.
Note: The wireless connection can be lost if the reader and device are more than 3m apart.
Reader Authentication and Use
Authentication of the Reader
Upon receipt, the Seller can connect the Reader to the USB hub of the Square Stand or to their mobile device
running the Square Point of Sale Application using bluetooth. The Reader is cryptographically authenticated to
both the Point of Sale application and the Square back-end servers. If the Reader is valid, it will register as such
with the Square Point of Sale application. If the Seller has received an unauthorized reader, the Square Point of
Sale application will indicate that the reader cannot be used with the application. The Seller does not have
permissions to configure the Point of Sale application or Reader settings for the authentication function.
Using the Reader
How to obtain a Reader
The Reader may be obtained either via the Square website www.squareup.com or via an approved retail
location. The Reader is ready for use upon receipt. The Seller should verify that Square offers payment
processing in their country of intended operation, from a retailer located in the same country.
Attributes of a Reader
The Reader has the following PCI PTS approval class: Secure Card Reader - PIN. The Reader is intended for use
in countertop and/or handheld environments with attended and semi-attended payments; it is not intended for
use as an unattended payment terminal (UPT). Use of the device in an unapproved method invalidates the PCI
PTS approval of this device.
How to store a Reader
To store the Reader simply remove it from the Square Stand USB port and store for next use. In the event the
Seller will not use the Reader for more than twelve (12) months at a time, be sure to charge the Reader prior to
storage and periodically to preserve its readiness. If the Reader is not fully charged annually it will enter into a
tampered state and become inoperable.
Procedures for using a Reader
It is important that each day or before use the Seller check the Reader to make sure it has not been tampered
with between uses. This can be easily done by looking at the chip card slot to verify there are no foreign objects
such as capture devices, card skimmers, extra wires/cables or other materials.
The Square Point of Sale application will convey operational messages from the Reader including when the
device is ready for payment and when a payment data capture is complete. The Reader has no
user-configurable security options.
Security Self-Tests
In addition to continual tamper detection and response, the Reader authenticates the firmware and terminal
configurations using RSA 3072/SHA-256 every time it is powered on. The Reader also implements a forced
reboot every 23.5 hours which initiates the same self-tests as when the device is powered on.
How to decommission a Reader
To decommission the Reader please ship the device to the following address for decommissioning:
Square, Inc.
℅: Reader Decommissioning
1455 Market St, Suite 600
San Francisco, CA 942103
USA
How to review the hardware and firmware version
A Square Seller can confirm the hardware version by physical inspection as described above. In addition, the
Seller can confirm the hardware and firmware version via an the Settings > Card Readers screen of the Square
Point of Sale application.
The PCI approved firmware version is displayed as “SCRP.1.x.xx.xx”.
The firmware version of valid S4, SPM1-01, and SPF1-01 magnetic stripe readers is “M1”. Only MSRs with “S4”,
“SPM1-01”, or “SPF1-01” etched on the device casing contain this valid “M1” firmware. The firmware version of
valid S089 magnetic stripe readers is “S089”. Only MSRs with “S089” etched on the device casing contain this
firmware.
Square POS Application Use
User Roles and Permissions
There are two roles for use by the Square Mobile PIN solution:
Seller
The Seller (you) is the person(s) operating the mobile PIN device and providing goods or services being
purchased by the customer. The Seller has no security configuration abilities within the Solution, but can initiate
a self-test of the Reader by turning that device off then on, or on the Square POS app by restarting the
application.
Customer
The Customer is purchasing goods or services from the Seller using the Customer’s payment card and PIN. The
Solution encrypts and transmits payment card and PIN data The Customer has no security configuration
permissions.
Secure Use
Upon starting the application and pairing the Reader, the Square Mobile PIN solution will perform multiple
security checks on the mobile device to ensure that it is suitable for PIN entry. If these checks fail, there is an
incompatibility with the mobile device, and the Point of Sale app will not accept PIN entry. The Seller should be
able to address these issues based on feedback from the Square Point of Sale app, or by contacting Square for
additional support.
Privacy Shielding
The Reader is not a PIN-entry device. Instead, PINs are entered into the mobile device running the Square Point
of Sale (POS) application. During PIN entry, the Customer should hold the mobile device closely so as to
minimize exposure of the Customer’s PIN to other parties, including the Seller.
Reader Security
Firmware and software update
Square will update the firmware associated with the Reader and POS application automatically as needed. For
the Reader, this will occur automatically with limited Seller interaction required. For the Square POS app, the
user will be prompted through standard OS messaging in addition to messaging within the app, once started.
These updates may address various issues, including security updates. In the event of a critical update, the
Square Point of Sale app will notify the Seller of the critical nature of the update and advise a course of action
for applying the update. Based on the criticality of the update, Square may disable transaction processing until
the update is successfully applied. For the Point of Sale (POS) application, the Seller will see updated
applications released every two (2) weeks. Based on the criticality of the updates that have been made to the
application, and the age of the currently installed app, Square may disable transaction processing until an
updated application is successfully installed.
Infrequent or seasonal use
The Reader has a primary battery and backup battery. The primary battery is used for operation of the Reader.
The backup battery is used to maintain the tamper-detection features of the Reader. If the primary battery is
entirely discharged the backup battery will maintain tamper-detection of the device for one year. If the Reader is
not fully charged annually it may enter into a tampered state and become inoperable.
Common use and recharging of the primary battery will prevent the Reader from entering a tampered state. For
infrequent or seasonal users of the Reader we recommend charging the Reader fully at least once each year.
Tamper detection and response
External Inspection of Reader
Under normal operation, the Reader employs internal active tamper-response mechanisms as described below.
These mechanisms are enforced automatically and do not require any initial configuration by the user.
Prior to accepting payments with the Reader, the Seller must inspect the Reader for evidence of external
tampering. Procedures should include, at minimum, examination to identify:
●Evidence of inserts, wires, overlays or any unknown component connected to the
Reader or inside the card slot
●Evidence of modification or disassembly of the Reader
●Visible or tactile changes to the cable connections or card slot
Please contact Square Support if you discover any evidence of external tampering.
Inspection of Point of Sale Application
The Square POS application provides its own internal integrity verification processes. Ensure you are using the
latest version of the app by checking your native application store. The SPoC-enabled application will show
“SPoC version 1.0” under Support -> About -> Application.
Automatic Tamper Response
The Reader may identify certain events as attempts to tamper with its operations to alter its inner workings. If the
Reader identifies a tamper event it will erase the encryption key material it contains and become inoperable.
The Reader is rated for normal operation and any of the below scenarios may tamper the device and cause it to
become inoperable:
●Temperatures outside of the range of 0 and 40 degrees Celsius
●Voltage greater or less than 5V input for charging the device via USB
●Any attempt to open/disassemble/take apart the Reader or access parts inside
The Reader is intended to be fully charged once a year. If the Reader’s primary battery is fully discharged and
left for more than a year without a recharge it may become inoperable.
The Seller can detect if a tamper event has occurred by connecting the Reader to an approved mobile device
with the Point of Sale application installed. Opening the Point of Sale application will notify the Seller if the
device has experienced a tamper event.
If the Reader experiences one of the above tamper events, Square will reach out to the Seller and communicate
as appropriate how to return the Reader to Square for secure disposal and replacement.
Software Development Guidance
The Reader is designed for use with Square products and applications, and does not work with other
applications. All code is developed, written, and managed by Square. Square developers must refer to the
Software Engineering and Vulnerability Management Procedures when developing new software for Readers.
Encryption and key management
The Reader is only intended for use with other Square applications and services. Square performs all key
management, key loading, and acquiring. Attempts to operate the Reader with any other key loading, acquirer,
or key management will render the device inoperable. In addition, use of the Reader with different key
management systems will invalidate the PCI approval of this device.
All of the cryptographic keys used by the Reader to protect the confidentiality and integrity of sensitive data are
injected at the time of manufacture using a Square-proprietary protocol. The keys are stored within the Reader’s
secure boundary, and are protected from both disclosure and modification; such protection is achieved with a
key-encrypting key that meets the PCI PTS key strength requirements. Sensitive data is encrypted by a unique
key per transaction using AES CCM, which is an authenticated encryption mode for AES that provides both
confidentiality and authentication.
The Reader only supports injection of keys during the manufacturing process; no remote key injection is
required as the Reader communicates directly with Square servers. During the manufacturing process, Square's
key provisioning equipment authenticates incoming Readers. Readers entering the key provisioning stage
authenticate the key-bundles received as having originated from Square's factory key provisioning module. The
Reader does not accept keys from any entity other than the factory provisioning module. Using the
Square-proprietary protocol, the cryptographic keys are injected into new devices in encrypted form. The
Square keys are injected and maintained under Square control and the details are transparent to the merchant.
The Reader does not provide or allow any user-configurable encryption key management functions.
Thank you for reading!
Appendix A: Magstripe Reader Use
The Square Mobile PIN solution can be used in conjunction with a Magstripe (Swipe) reader. These
transactions do not support the use of PIN. Availability of Swipe-based transactions varies by geographical
market.
Approved Swipe Readers

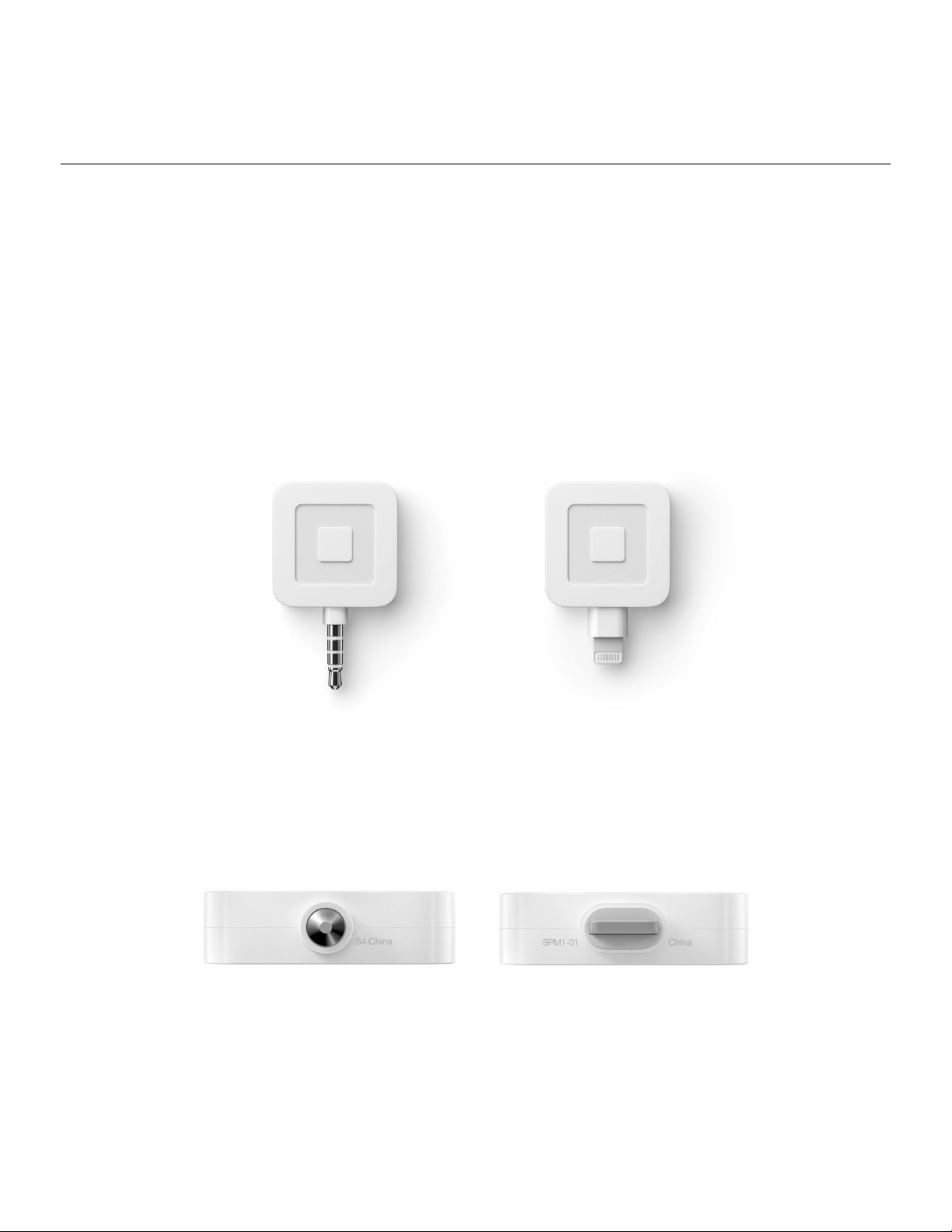

S4 SPM1-01

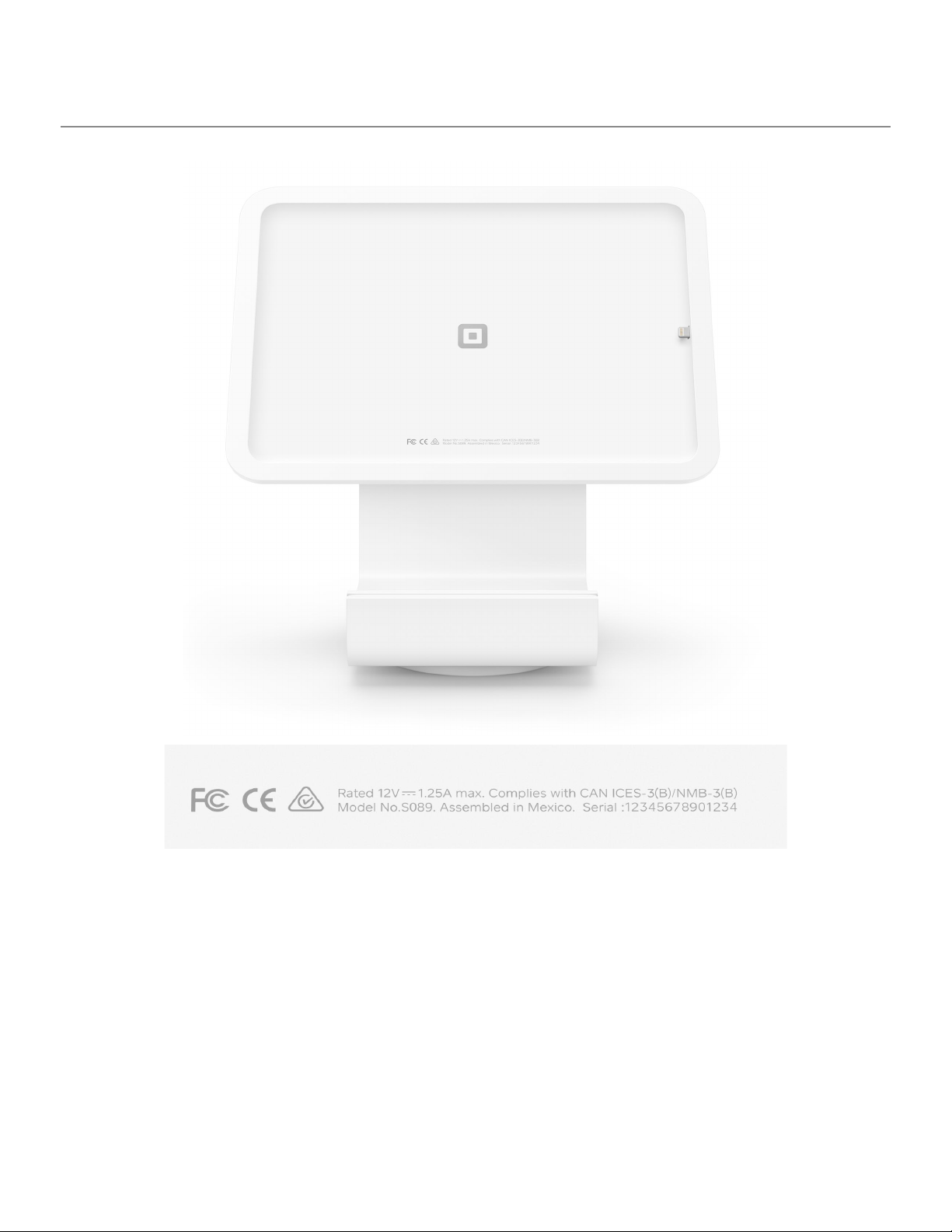

S089
SPF1-01
This manual suits for next models
3
Table of contents
Other Square Payment Terminal manuals
