SRAM Rock Shox Lyrik RC User manual

GEN.0000000005042 Rev E
© 2022 SRAM, LLC
2016-2017 Lyrik
service
manual

SRAM LLC WARRANTY
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AGAINST SRAM, LLC. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM
STATE TO STATE, COUNTRY, OR PROVINCE. THIS WARRANTY DOES NOT AFFECT YOUR STATUTORY RIGHTS. TO THE EXTENT THIS
WARRANTY IS INCONSISTENT WITH THE LOCAL LAW, THIS WARRANTY SHALL BE DEEMED MODIFIED TO BE CONSISTENT WITH SUCH
LAW. FOR A FULL UNDERSTANDING OF YOUR RIGHTS, CONSULT THE LAWS OF YOUR COUNTRY, PROVINCE, OR STATE.
THIS WARRANTY APPLIES TO SRAM PRODUCTS MADE UNDER THE SRAM, ROCKSHOX, TRUVATIV, ZIPP, QUARQ, AVID AND TIME
BRAND NAMES.
EXTENT OF LIMITED WARRANTY
Except as otherwise set forth herein, SRAM warrants its bicycle components to be free from defects in materials or workmanship for a period of two
(2) years after original purchase of the product.
SRAM warrants all Zipp MOTO Wheels and Rims to be free from defects in materials or workmanship for the lifetime of the product.
SRAM warrants all non-electronic Zipp branded bicycle components, Model Year 2021 or newer, to be free from defects in materials or workmanship
for the lifetime of the product.
GENERAL PROVISIONS
This warranty only applies to the original owner and is not transferable. Claims under this warranty must be made through the retailer where the
bicycle or the SRAM product was purchased or a SRAM authorized service location. Original proof of purchase is required. All SRAM warranty claims
will be evaluated by a SRAM authorized service location whereupon acceptance of the claim the product will be repaired, replaced, or refunded at
SRAM's discretion. To the extent allowed by local law claims under this warranty must be made during the warranty period and within one (1) year
following the date on which any such claim arises.
NO OTHER WARRANTIES
EXCEPT AS DESCRIBED HEREIN, AND TO THE EXTENT ALLOWED BY LOCAL LAW, SRAM MAKES NO OTHER WARRANTIES, GUARANTIES, OR
REPRESENTATIONS OF ANY TYPE (EXPRESS OR IMPLIED), AND ALL WARRANTIES (INCLUDING ANY IMPLIED WARRANTIES OF REASONABLE
CARE, MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE) ARE HEREBY DISCLAIMED.
LIMITATIONS OF LIABILITY
EXCEPT AS DESCRIBED HEREIN, AND TO THE EXTENT PERMITTED BY LAW, IN NO EVENT SHALL SRAM OR ITS THIRD PARTY SUPPLIERS BE
LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES. SOME STATES (COUNTRIES AND PROVINCES) DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
LIMITATIONS OF WARRANTY
This warranty does not apply to products that have been incorrectly installed, adjusted, and/or maintained according to the respective SRAM user
manual. The SRAM user manuals can be found online at sram.com/service.
This warranty does not apply to damage to the product caused by a crash, impact, abuse of the product, non-compliance with manufacturer's
specifications of intended usage, or any other circumstances in which the product has been subjected to forces or loads beyond its design.
This warranty does not apply when the product has been modified, including but not limited to, any attempt to open or repair any electronic and
electronic related components, including the motor, controller, battery packs, wiring harnesses, switches, and chargers.
This warranty does not apply when the serial number or production code has been deliberately altered, defaced, or removed.
SRAM components are designed for use only on bicycles that are pedal powered or pedal assisted (e-Bike/Pedelec).
Notwithstanding anything else set forth herein, the battery pack and charger warranty does not include damage from power surges, use of improper
charger, improper maintenance, or such other misuse.
This warranty shall not cover damages caused by the use of parts of dierent manufacturers or parts that are not compatible or suitable for use with
SRAM components.
This warranty shall not cover damages resulting from commercial (rental) use.
WEAR AND TEAR
This warranty does not apply to normal wear and tear. Wear and tear parts are subject to damage as a result of normal use, failure to service
according to SRAM recommendations, and/or riding or installation in conditions or applications other than recommended.
WEAR AND TEAR PARTS INCLUDE:
• Aero bar pads
• Air sealing o-rings
• Batteries
• Bearings
• Bottomout pads
• Brake pads
• Bushings
• Cassettes
• Chains
• Cleats
• Corrosion
• Disc brake rotors
• Dust seals
• Free hubs, Driver bodies, Pawls
• Foam rings, Glide rings
• Handlebar grips
• Jockey wheels
• Rear shock mounting
hardware and main seals
• Rubber moving parts
• Shifter and Brake cables
(inner and outer)
• Shifter grips
• Spokes
• Sprockets
• Stripped threads/bolts (aluminum,
titanium, magnesium or steel)
• Tires
• Tools
• Transmission gears
• Upper tubes (stanchions)
• Wheel braking surfaces
ZIPP IMPACT REPLACEMENT POLICY
Zipp branded products, Model Year 2021 or newer, are covered under a lifetime impact-damage replacement policy. This policy can be used to obtain
a replacement of a product in the event of non-warranty impact damage occurring while riding your bicycle. See www.zipp.com/support for more
information.

TABLE OF CONTENTS
EXPLODED VIEW  A1 LYRIK RCT3/DUAL POSITION AIR DPA ...............................................................................................................5
EXPLODED VIEW  B1 LYRIK RC/SOLO AIR SA ..........................................................................................................................................6
ROCKSHOX SUSPENSION SERVICE................................................................................................................................................................7
PARTS, TOOLS AND SUPPLIES ...................................................................................................................................................................................................................7
MODEL CODE IDENTIFICATION .................................................................................................................................................................................................................7
RECOMMENDED SERVICE INTERVALS....................................................................................................................................................................................................8
RECORD YOUR SETTINGS............................................................................................................................................................................................................................8
TORQUE VALUES.............................................................................................................................................................................................................................................8
FLUID VOLUME.................................................................................................................................................................................................................................................8
LOWER LEG REMOVAL .......................................................................................................................................................................................9
50/200 HOUR SERVICE
LOWER LEG REMOVAL...................................................................................................................................................................................................................................9
50 HOUR SERVICE
LOWER LEG SERVICE..................................................................................................................................................................................................................................... 11
200 HOUR SERVICE
LOWER LEG SEAL SERVICE........................................................................................................................................................................................................................ 12
AIR SPRING SERVICE........................................................................................................................................................................................15
200 HOUR SERVICE
AIR SPRING REMOVAL................................................................................................................................................................................................................................. 15
AIR SPRING TRAVEL CHANGE AND BOTTOMLESS TOKENS OPTIONAL...............................................................................................................................20
SOLO AIR TRAVEL OPTIONS AND BOTTOMLESS TOKEN TUNING ............................................................................................................................................20
DUAL POSITION AIR TRAVEL OPTIONS AND BOTTOMLESS TOKEN TUNING ....................................................................................................................... 20
BOTTOMLESS TOKEN INSTALLATION OPTIONAL........................................................................................................................................................................... 21
AIR SPRING INSTALLATION....................................................................................................................................................................................................................... 22
DAMPER SERVICE ............................................................................................................................................................................................ 25
200 HOUR SERVICE
CHARGER DAMPER REMOVAL................................................................................................................................................................................................................. 25
CHARGER REBOUND DAMPER RETUNE OPTIONAL.................................................................................................................................................................... 29
CHARGER DAMPER ASSEMBLY............................................................................................................................................................................................................... 32
CHARGER DAMPER BLEED ....................................................................................................................................................................................................................... 35
CHARGER DAMPER INSTALLATION.......................................................................................................................................................................................................40
LOWER LEG ASSEMBLY................................................................................................................................................................................... 43
50/200 HOUR SERVICE
LOWER LEG INSTALLATION ...................................................................................................................................................................................................................... 43

SAFETY FIRST!
We care about YOU. Please, always wear your safety glasses and
protective gloves when servicing RockShox products.
Protect yourself! Wear your safety gear!

5Exploded View - (A1) Lyrik RCT3/Dual Position Air (DPA)
Exploded View - (A1) Lyrik RCT3/Dual Position Air (DPA)
Retaining Rings
Bladder Sleeve
Bladder
Bladder
Coupler
Cartridge Tube
Rebound Damper Shaft
Rebound Damper Seal Head
Top Out Bumper
DPA Piston
Backup Ring
Wave Spring
DPA Seal Head
Retaining Ring
Air Shaft
Bottom Bolt
Bottom Bolt
Set Screw
Rebound Adjuster Knob
Compression Top
Cap Assembly
Compression Top
Cap Assembly
Compression Cam Assembly
Low Speed Compression
Adjuster
Low Speed Compression
Adjuster Knob
Knob Retaining Nut
Knob Retaining Nut
Compression Mode
Adjuster Knob
DPA Adjuster Knob
Air Valve Cap
DPA Top Cap
Low Speed Compression Needle
Compression Piston Assembly
RCT3
Coupler
Bottomless Token(s)
Knob Retaining Screw
Air Shaft Assembly
Rebound Damper
Assembly
Compression Damper
Assembly
Rebound Damper Piston

6Exploded View - (B1) Lyrik RC/Solo Air (SA)
Exploded View - (B1) Lyrik RC/Solo Air (SA)
RC
Retaining Rings
Bleed Plug
Bladder Sleeve
Bladder
Compression Top
Cap Assembly
Compression Adjuster
Low Speed Compression Needle
Compression Piston Assembly
Bladder
Coupler
Cartridge Tube
Rebound Damper Shaft
Rebound Damper Seal
Head
Bottom Bolt
Rebound Adjuster Knob
Compression Top Cap
Assembly
Knob Retaining Nut
Low Speed Compression
Adjuster Knob
Top Out Bumper
SA Piston
Backup Ring
Wave Spring
SA Seal Head
Retaining Ring
Air Shaft
Bottom Bolt
Air Valve Cap
SA Top Cap
Bottomless Token(s)
Set Screw
Coupler
Air Shaft Assembly
Compression Damper
Assembly
Rebound Damper
Assembly
Rebound Damper Piston

7RockShox Suspension Service
RockShox Suspension Service
We recommend that you have your RockShox suspension serviced by a qualified bicycle mechanic. Servicing RockShox suspension requires
knowledge of suspension components, as well as the use of specialized tools and lubricants.
Visit www.sram.com/service for the latest RockShox Spare Parts catalog and technical information. For order information, please contact your local
SRAM distributor or dealer.
For recycling and environmental compliance information, please visit www.sram.com/en/company/about/environmental-policy-and-recycling.
Information contained in this publication is subject to change at any time without prior notice. Your product's appearance may dier from the pictures
contained in this publication.
Parts, Tools and Supplies
Parts
• Lyrik Service Kit - 200 Hour
Safety and Protection Supplies
• Apron
• Clean, lint-free rags
• Nitrile gloves
• Oil pan
• Safety glasses
Lubricants and Fluids
• Isopropyl alcohol
• Maxima PLUSH Dynamic Suspension Lube Light or
RockShox 0w-30 Suspension Oil
• Maxima PLUSH 3wt or RockShox 3wt suspension oil
• SRAM Butter (grease)
RockShox Tools
• RockShox Charger Bleed kit
• RockShox dust seal installation tool (35 mm)
• RockShox rear shock vise blocks (3 hole)
Bicycle Tools
• Bicycle work stand
• Downhill tire lever
• Shock pump
Common Tools
• 2, 2.5, 4, 5, 8 mm hex wrenches
• 2, 2.5, 4, 5, 8 mm hex bit sockets
• 6, 10, 15, 24, 30 mm socket wrenches
• 15, 23 mm open end wrench
• 23 mm crowfoot wrench
• Air compressor with air gun nozzle
• Bench vise
• Flat blade screwdriver
• Internal retaining ring pliers - large and small
• Long plastic or wooden dowel
• Needle nose pliers
• Pick
• Rubber or plastic mallet
• Socket wrench
• Torque wrench
SAFETY INSTRUCTIONS
Always wear safety glasses and nitrile gloves when working with suspension oil.
Place an oil pan on the floor underneath the area where you will be working on the fork.
NOTICE
For the most eective access to the fork while servicing, clamp the fork steerer tube into a bicycle work stand.
Model Code Identification
Product model code and specification details can be identified with the serial number on the product. Model codes can be used to identify the
product type, series name, model name, and product version associated with the production model year. Product details can be used to identify spare
parts, service kit, and lubricant compatibility.
Model Code example: FS-LYRK-RCT3-A1
FS = Product Type - Front Suspension
LYRK = Platform/Series - Lyrik
RCT3 = Model - RCT3
A1 = Version - (A- first generation, 1- first iteration)
To identify the model code, locate the serial number on the product and enter it into the Search by Model Name or Serial Number field at
www.sram.com/service.

8Recommended Service Intervals
Recommended Service Intervals
Regular service is required to keep your RockShox product working at peak performance. Follow this maintenance schedule and install the service
parts included in each service kit that corresponds with the Service Hours Interval recommendation below. For spare part kit contents and details,
refer to the RockShox Spare Parts Catalog at www.sram.com/service.
Service Hours Interval Maintenance Benefit
Every ride Clean dirt from upper tubes and wiper
seals
Extends wiper seal lifespan
Minimizes damage to upper tubes
Minimizes lower leg contamination
Every 50 Hours Perform lower leg service
Restores small bump sensitivity
Reduces friction
Extends bushing lifespan
Every 200 Hours
or yearly Perform damper and spring service
Extends suspension lifespan
Restores small bump sensitivity
Restores damping performance
Record Your Settings
Use the charts below to record your shock settings to return your shock to its pre-service settings. Record your service date to track service intervals.
Service Hours Interval Date of Service Air Pressure
Rebound setting - count the
number of clicks while turning the
rebound adjuster fully counter-
clockwise.
Low speed compression setting -
count the number of clicks while
turning the compression adjuster
fully counter-clockwise.
50
100
150
200
Torque Values
Part Tool Torque
Bottom bolts 5 mm hex bit socket 7.3 N•m (65 in-lb)
Top caps 24 mm and 30 mm socket 28 N•m (250 in-lb)
Fluid Volume
Damper Side Spring Side
Damper
Technology
Cartridge Tube Lower Leg
Spring
Technology
Upper Tube Lower Leg
Fork Model Volume
(mL) Oil Volume (mL) Oil** Grease Volume (mL) Oil**
Lyrik
RC
Charger Bleed
Maxima
PLUSH
3wt
10 mL
Maxima
PLUSH
Dynamic
Suspension
Lube
Light
Solo Air SRAM
Butter
Grease
Grease
Air
Piston
10 mL
Maxima
PLUSH
Dynamic
Suspension
Lube
Light
RCT3 Dual
Position Air
**Suspension oil/fluid - Maxima PLUSH Dynamic Suspension Lube and RockShox 0w-30 suspension oils/fluids are forward and backward
compatible with RockShox Dynamic Seal Grease and SRAM Butter Grease.
Use ONLY RockShox, SRAM, and Maxima suspension oils/fluids and grease, unless otherwise specified. Use of any other lubricants can damage
seals and decrease performance.

9Lower Leg Removal
Lower Leg Removal
50/200 Hour Service Lower Leg Removal
Remove the air valve cap from the top cap located on the spring side
fork leg.
Use a small hex wrench to depress the Schrader valve and release all
air pressure from the air chamber.
⚠CAUTION EYE HAZARD
Verify all pressure is removed from the fork before proceeding. Failure
to do so can result in injury and/or damage to the fork. Wear safety
glasses.
Use a 2.5 mm hex wrench to loosen the set screw and remove the
rebound adjuster knob located at the bottom of the damper side
fork leg.
Use a 5 mm hex wrench to loosen both bottom bolts 3 to 4 turns.
1
DPA
SA
2
DPA
SA
3
2.5 mm
4
5 mm

10Lower Leg Removal
Place an oil pan beneath the fork to catch any draining oil.
Use a rubber or plastic mallet to firmly strike each bottom bolt to
dislodge the air and damper shafts from the lower leg.
Use a 5 mm hex wrench to remove the bottom bolts from the lower leg.

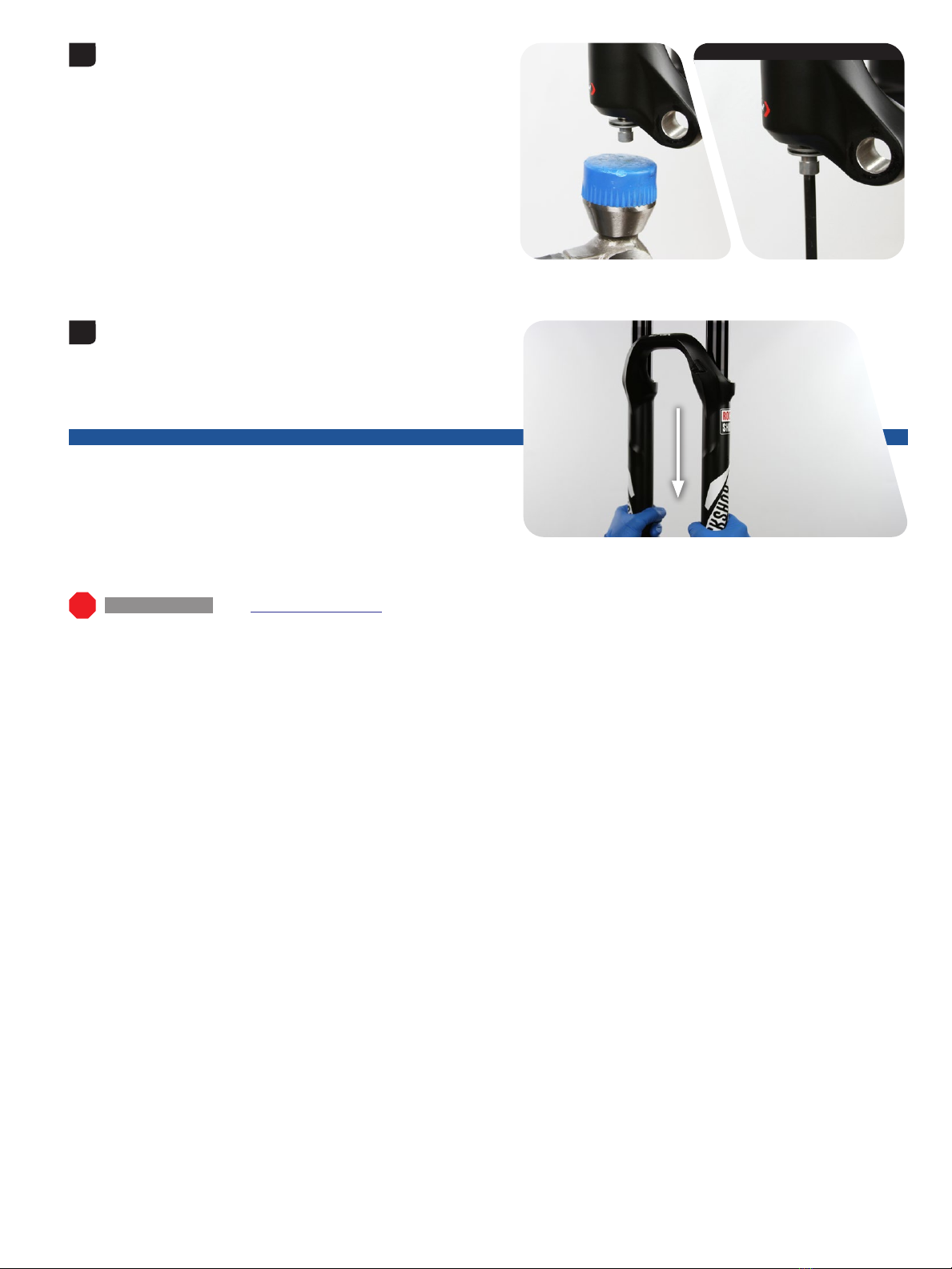

Firmly pull the lower leg downward until oil begins to drain. Continue
pulling downward to remove the lower leg from the fork.
If the lower leg does not slide off of the upper tubes or if oil does
not drain from either side, the press fit of the shaft(s) to the lower
leg may still be engaged. Reinstall the bottom bolts 2 to 3 turns and
repeat the previous step.
NOTICE
Do not hit the fork arch with any tool when removing the lower leg as
this could damage the fork.
200 Hour Service Go to Lower Leg Seal Service to continue with the 200 Hour Service.
5
5 mm
6

11Lower Leg Service
50 Hour Service Lower Leg Service

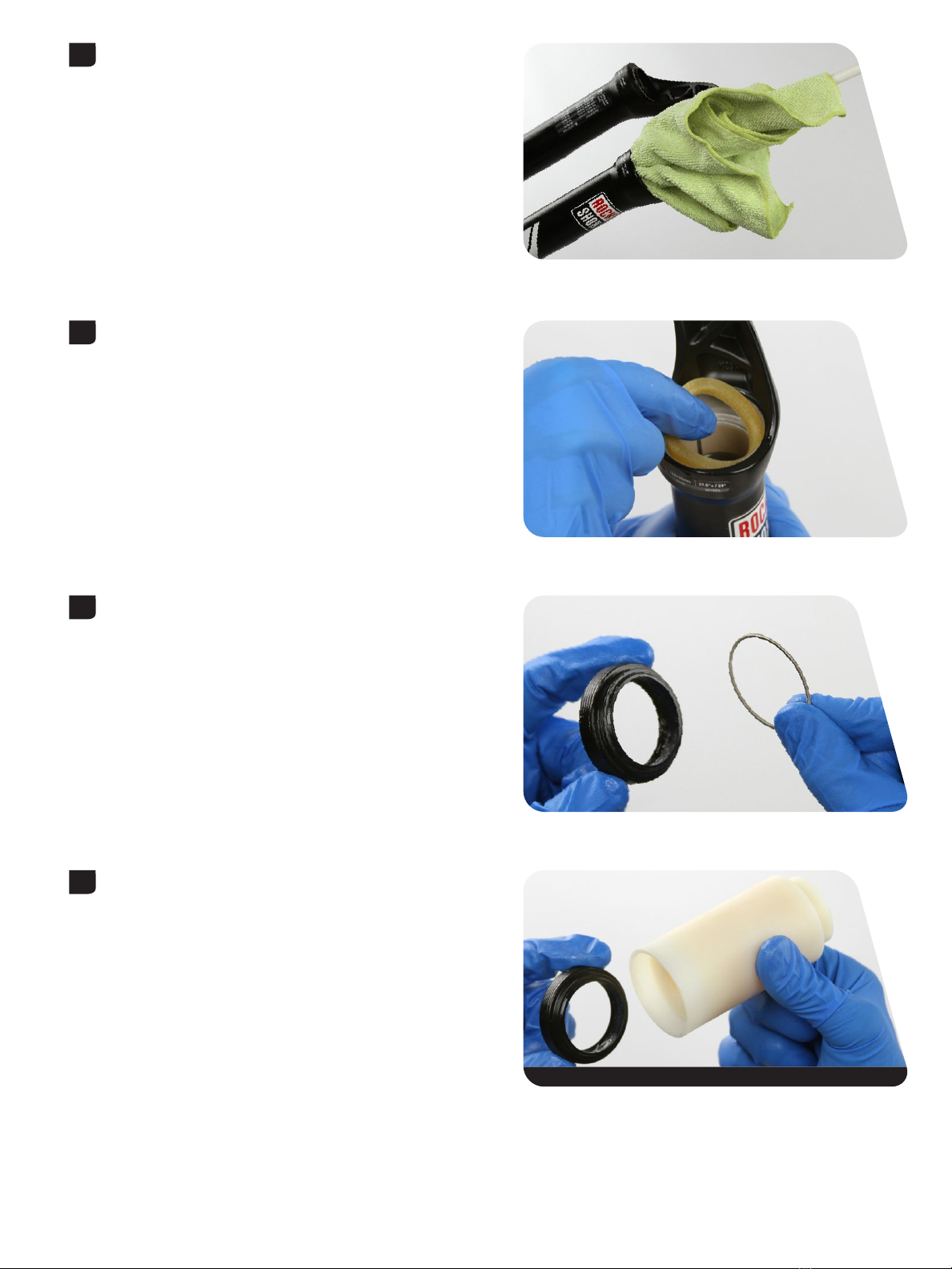

Remove the foam rings and clean them with isopropyl alcohol and a
clean rag.
Soak the foam rings in suspension oil.
Spray isopropyl alcohol on the inside and outside of the lower leg and
wiper seals.
Install the foam rings back into the lower leg under the wiper seals.
50 Hour Service To continue with the 50 Hour Service, proceed to Lower Leg Installation.
1
2
Maxima PLUSH Dynamic Suspension Lube Light
3
4

12Lower Leg Seal Service
200 Hour Service Lower Leg Seal Service
Place the tip of a downhill tire lever underneath the lower lip of the
dust wiper seal.
NOTICE
If using a flat blade screwdriver, make sure it has a round shaft. A
screwdriver with a square shaft will damage the fork leg. Wrap a rag
around the screwdriver to protect the lower leg.
Stabilize the lower leg on a bench top or on the floor. Press down on
the tire lever handle to remove the dust wiper seal.
Repeat on the other side.
Discard the dust seals after they are removed.
NOTICE
Keep the lower leg assembly stable. Do not allow the lower leg to twist
in opposite directions, compress toward each other, or be pulled apart.
This will damage the lower leg.
Use your fingers to remove and discard the foam rings inside the lower
leg.
Soak the new foam rings in suspension oil.
1
2
3
4
Maxima PLUSH Dynamic Suspension Lube Light

13Lower Leg Seal Service
Spray isopropyl alcohol on the inside and outside of the lower leg.
Clean the outside of the lower leg with a rag.
Wrap a rag around a long dowel and insert it into each lower leg to
clean the inside of the lower leg.
Install the new foam rings in the lower leg.
Remove the wire spring from the new dust wiper seal and set it aside.
Insert the narrow end of a new dust wiper seal into the recessed end of
the RockShox 35 mm dust seal installation tool.
5
6
7
8
RockShox Dust Seal Installation Tool

14Lower Leg Seal Service

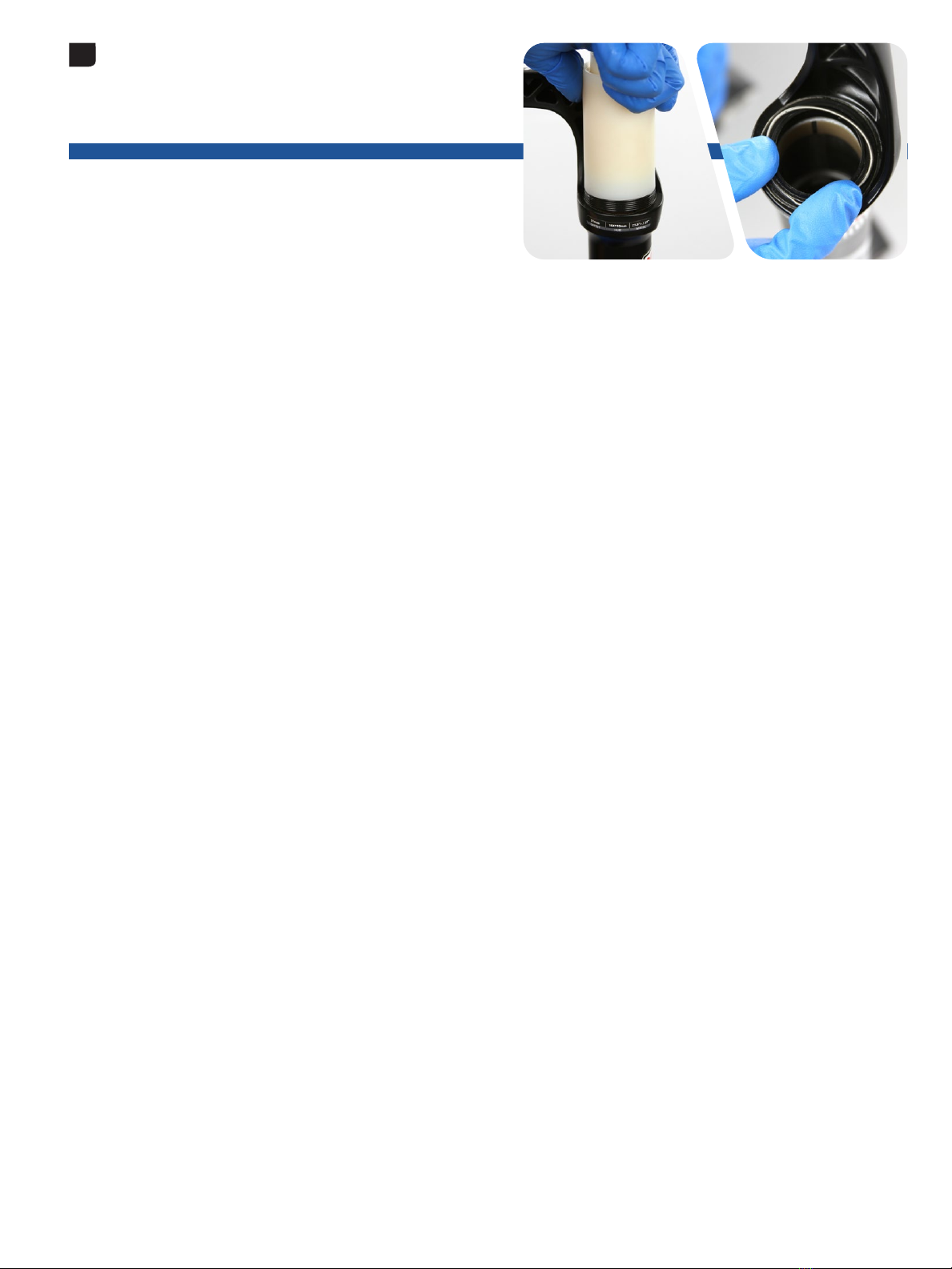

Hold the lower leg steady and use the RockShox 35 mm dust seal
installation tool to press the dust wiper seal evenly into the lower leg
until the seal surface is flush with the top of the lower leg surface.
Reinstall the wire spring onto the dust wiper seal.
Repeat steps 7, 8, and 9 for the other side of the lower leg.
NOTICE
Only press the dust wiper seal into the lower leg until it is flush with the
top surface of the lower leg. Pressing the dust wiper seal past the top
surface of the lower leg can damage the foam rings.
9

15Air Spring Service
Air Spring Service
200 Hour Service Air Spring Removal
NOTICE
Inspect each part for scratches. Do not scratch any sealing surfaces
when servicing your suspension. Scratches can cause leaks.
When replacing seals and o-rings, use your fingers or a pick to remove
the seal or o-ring. Spray isopropyl alcohol on each part and clean with
a rag. Apply SRAM Butter grease to the new seals and o-rings.
Dual Position Air: Use a 10 mm socket wrench to remove the DPA
travel adjuster knob retaining nut. Remove the DPA travel adjuster
knob.
1
10 mm

16Air Spring Removal
Use a 24 mm socket wrench to remove the top cap from the upper
tube.
Spray isopropyl alcohol on the upper tube threads and clean the
threads with a rag.
Use your fingers or a pick to remove the top cap o-ring.
Use your fingers to install a new o-ring.
Do not apply grease to the top cap threads.
2
24 mm
DPA
SA
3
DPA Pick
SA Pick

17Air Spring Removal
Dual Position Air: Push the air shaft into the upper tube to prevent it
from getting scratched while removing the retaining ring.
Use a flat blade screwdriver to push the seal head tab under the
retaining ring.
NOTICE
Scratches on the air shaft will allow air to bypass the seal head into the
lower leg, resulting in reduced spring performance.
Place the tips of large internal retaining ring pliers into the eyelets of
the retaining ring. Press firmly on the pliers to push the seal head into
the upper tube enough to compress and remove the retaining ring.
Solo Air: Use a flat blade screwdriver to push the SA seal head tab
under the retaining ring.
NOTICE
Scratches on the air shaft will allow air to bypass the seal head into the
lower leg, resulting in reduced spring performance.
Place your finger over the end of the air spring shaft to prevent it from
getting scratched while removing the retaining ring.
Place the tips of large internal retaining ring pliers into the eyelets of
the retaining ring. Press firmly on the pliers to push the SA seal head
into the upper tube enough to compress and remove the retaining ring.
Slide the retaining ring onto your finger and release the air spring shaft.
4
Flat Blade Screwdriver DPA
Retaining Ring Pliers DPA
DPA
Flat Blade Screwdriver SA
Retaining Ring Pliers SA
SA

18Air Spring Removal
Use your fingers to install the bottom bolt into the air shaft.
Firmly pull on the air shaft and bottom bolt to remove the air shaft
assembly from the upper tube.
Unthread and remove the bottom bolt from the air shaft.
Clean and inspect the assembly for damage.
Spray isopropyl alcohol on the inside and outside of the upper tube
and clean it with a rag.
Wrap a rag around a long dowel and insert it into the upper tube to
clean inside the upper tube.
Remove the seal head, wave spring, and backup ring from the air shaft.
Discard the seal head assembly and wave spring.
NOTICE
Do not install a new seal head at this time. The seal head will be
replaced in the Installation section.
5
DPA
DPA
SA
SA
6
7
DPA
SA

19Air Spring Removal
Dual Position Air: Use your fingers or a pick to remove the outer air
piston o-ring. Use a pick to pierce and remove the inner o-ring.
Install new o-rings.
Solo Air: Use your fingers or a pick to remove the air piston quad ring.
Install a new quad ring.
8
DPA
DPA
SA

20Air Spring Travel Change and Bottomless Tokens (optional)
Air Spring Travel Change and Bottomless Tokens (optional)
To increase or decrease the travel in your RockShox Lyrik fork, the
air spring must be replaced with the correct length air spring shaft
assembly. For example, to change a Lyrik with a maximum of 140 mm
of travel to a maximum of 160 mm of travel, a 160 mm air spring shaft
assembly must be installed. Fork travel can be identified at the bottom
of the air spring shaft.
Bottomless Tokens can be added to, or removed from, the Solo Air (SA)
top cap or the Dual Position Air (DPA) air spring assembly to fine-tune
the bottom-out feel and spring curve. Use the chart below to help
determine the number of Bottomless Tokens that can be used with
each maximum fork travel option. If fork travel is changed from stock, it
may be necessary to add or remove Bottomless Tokens. Red (DPA) and
grey (SA) Bottomless Tokens are compatible with all Lyrik forks.
Refer to the RockShox Spare Parts Catalog available on our website at
www.sram.com/service for spare part kit details.
For part ordering information, please contact your local SRAM
distributor or dealer.
Solo Air Travel Options and Bottomless Token Tuning
27.5"+ / 29" / 29" Boost Wheel 27.5" / 27.5" Boost Wheel
Fork Travel
(etched on air shaft)
Bottomless Tokens
Factory Installed
Maximum Bottomless
Tokens
Fork Travel
(etched on air shaft)
Bottomless Tokens
Factory Installed
Maximum Bottomless
Tokens
LYRIK/YARI
180 0 4 LYRIK/YARI 180 0 4
LYRIK/YARI
170 1 4 LYRIK/YARI 170 1 4
LYRIK/YARI
160 2 5 LYRIK/YARI 160 2 5
LYRIK/YARI
150 2 5 - - -
Dual Position Air Travel Options and Bottomless Token Tuning
27.5"+ / 29" / 29" Boost Wheel 27.5" / 27.5" Boost Wheel
Fork Travel
(etched on air shaft)
Bottomless Tokens
Factory Installed
Maximum Bottomless
Tokens
Fork Travel
(etched on air shaft)
Bottomless Tokens
Factory Installed
Maximum Bottomless
Tokens
---LYRIK/YARI
180 0 4
---LYRIK/YARI
170 0 5
LYRIK/YARI
160 1 5 LYRIK/YARI 160 1 5
LYRIK/YARI
150 1 6 - - -
DPA air spring shaft identification
SA air spring shaft identification
