SSA RITS-N RC-200 User manual

D
oor Key
(RC-200)
1
Digital
User's Guide
Thank you so much for buying this RITS-N Digital Door Key. This Digital Door Key was designed to open automatically
a door in the manner of inputting an authorized password or approaching an authorized ID card to the door.
( DC12V Only )
PARTS DESCRIPTION
인증번호: RSN-RIN-RC100
Screw (￠4X38) : 2
Cover
System LED
Operation LED
Harness
202-503, Bucheon Techno Park, 192, Yakdae-Dong, Wonmi-ku, Bucheon-Si,Kyunggido, Korea
www.ssamotor.co.kr TEL : [phone] FAX : [phone]
2
12V Input power( Gray ) 2 Wires
External input(white) 2 Wires
Output contact(yellow) 2 Wires
+12V output (orange) 1 Wire
GND output (brown) 1 Wire
3
INSTALLATION AND WIRING
OPERATION CHECK & CAUTION
Error LED
3
1. Digital Door Key is 12V Power Supply only.
2. Once it has been connected to the power supply for the first time, the System LED turns on and
simultaneously the Number Indicator blinks once, followed by “beep” sound.
3. Any wrong wiring may cause a serious damage to the unit.
202-503, Bucheon Techno Park, 192, Yakdae-Dong, Wonmi-ku, Bucheon-Si,Kyunggido, Korea
www.ssamotor.co.kr TEL : [phone] FAX : [phone]

4
5
Card Registration
①②③④ → ①②③④ → # → ① → # → Access Card (serial Registration is possible) → # → *(End)
①②③④ → ①②③④ → # → ① → # → Card address(0001~0500) → Card → # → *(End)
ex) Serial registration: If the first addrss is [0100] , next address is [0101] automatically increase
Password Registration
①②③④ → ①②③④ → # → ② → # → Password(4digit) → # → *(End)
(Serial Registration)
Card address Delete
①②③④ → ①②③④ → # → ③ → # → Card address(4digit or serial delete) → # → *(End)
Contact Time
①②③④ → ①②③④ → # → ⑤ → # → 01 ~ 60 (01 sec~60 sec) → # → *(End)
ex) 5's Setup: 0 + 5, 20's Setup: 2 + 0
Operating Temperature -10℃ ~ 60℃
Type Password & Card combined type
No of Card / Password Max 500pcs / Max 20 code(4 digit)
Digital Door Key ( RC-200 )
Components
Digital Door Key 1EA
Screw (4*38) 2EA
User's Guide 1 copy
Specifications
Power Supply DC 12V
Relay Contact Capacity 24V/1A
Power Consumption Rated Operating Current 190 mA
Card Type EM4100 (125KHz)
SPECIFICATIONS
USER MANUAL USER MANUAL
202-503, Bucheon Techno Park, 192, Yakdae-Dong, Wonmi-ku, Bucheon-Si,Kyunggido, Korea
www.ssamotor.co.kr TEL : [phone] FAX : [phone]
ex) 5's Setup: 0 + 5, 20's Setup: 2 + 0
All Card Delete
①②③④ → ①②③④ → # → ⑥ → # → (End)
All Password Delete
①②③④ → ①②③④ → # → ⑦ → # → (End)
Card or Password Delete
①②③④ → ①②③④ → # → ⑧ → # → Access Card(serial delete possible) → # → *(End)
①②③④ → ①②③④ → # → ⑧ → # → Password → # (Delete) → *(End)
Contact Change(NC or NO)
①②③④ → ①②③④ → # → ⑨ → # → 0/1 → #(End) (0: NO, 1:NC)
System Password
①②③④ → ①②③④ → # → * → # → # → Current System password → # → New system password → #(End)
ex) Defalut System Password : ①②③④
Factory Initialize
①②③④ → ①②③④ → * → # → LED Blink → End
*. press "Admission Password+#" Then, the door will be opened.
6

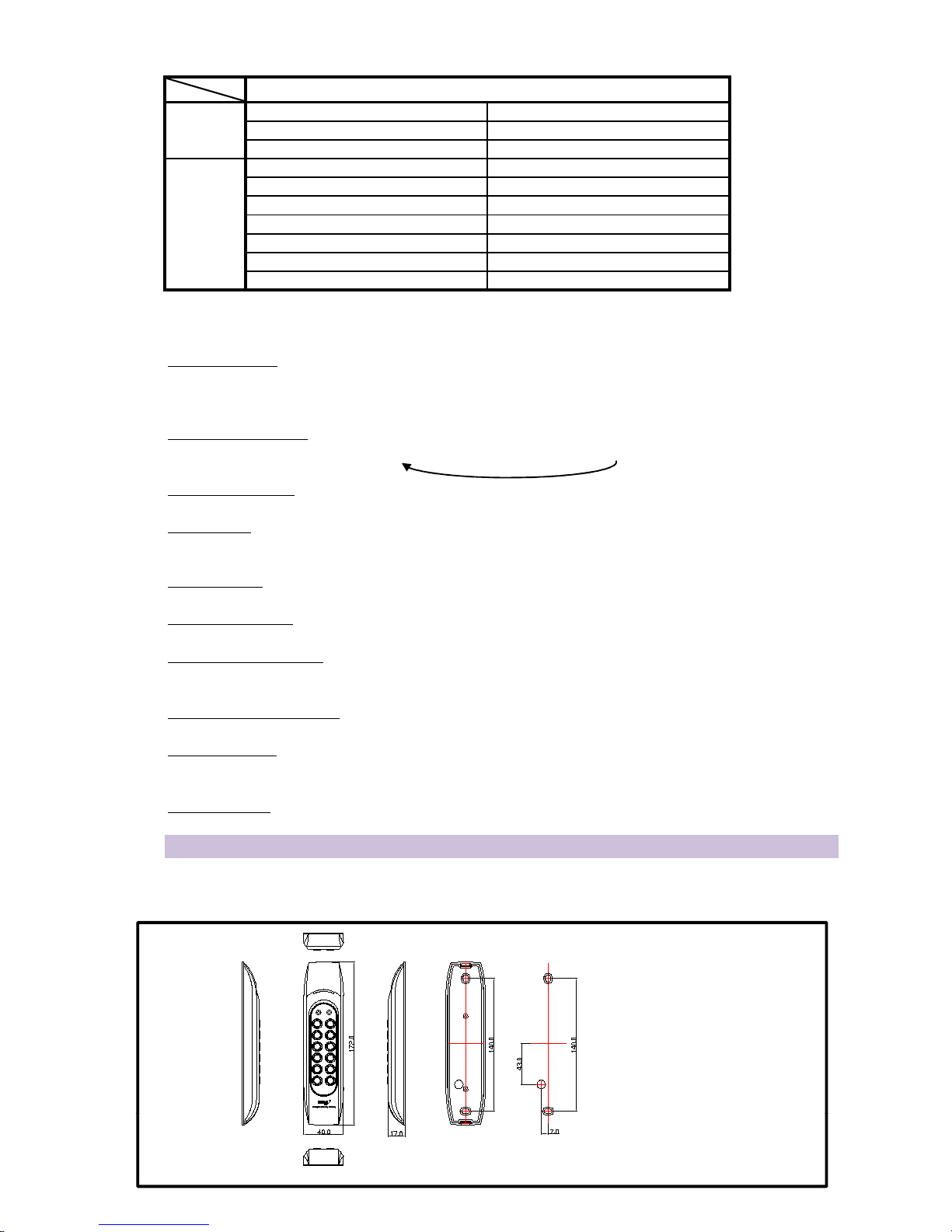

EXTERNAL DIMENSIONS
