Assa Abloy Yale eBoss 8850FL Series User manual

Operational Modes
Lockout
Lockset will not accept any
assigned user codes except
for the Supervisor and
Emergency Codes.
FEATURES
Battery Operated (Hardwire Capable)
Motorized Grade 1 Mortise Lock
94 User Code Capacity
All Metal Escutcheon and
Pushbuttons
LED Function Indicator
Weather Resistant, ADA
Compliant 12-Button Keypad
Modular Design
(Simple Installation)
Audible Pushbutton
Patented (Pat # 7,091,429)
Blinders
Request to Enter Input
Emergency, Supervisor, Passage,
Lockout and Master Codes
Deadbolt Monitoring Feature for
Deadbolt Applications (8852FL & 8853FL).
Keypad
Secure
Normal locked state. Any
assigned user code can gain
access. Lock relocks
automatically.
Passage
Maintains unlocked state.
Relocks by entering passage
code the second time.
8850FL Series Mortise
Installation Instructions
An ASSA ABLOY Group brand
80-9086-0050-010 (10-12)

An ASSA ABLOY Group brand
80-9086-0050-010 (10-12)
2
Table of Contents
Section I List of components
A. Necessary Tools..........................................................................................2
B. Non-Deadbolt functions 8850FL-8851FL……...…..…...…….………………3
C. Deadbolt functions 8852FL-8853FL………………………….….…………....4
Section II Prepare the door
A. Determine hand of door…………………………………..…….…..…….…....5
B. Mark centerline for lever position and door template..................................5
C. Drill holes in door………………………………………………….…...........….5
D. Mark frame for strike mortise cavity…………………………….….......……..5
E. Drill mortise cavities in door and frame………………………….……...…….5
F. Install strike …………………………………………………………....…...……5,6
Section III Handing the Mortise Lock
A. Handing the latchbolt………………………………………………....…..…….6
B. Handing the hubs……………………………………………...……….…...…..6
Section IV Installing Assembly on Door
8850FL & 8852FL
A. Installing keypad, long escutcheon and controller board…..……..….……. 7
B. Installing lockbody, short escutcheon and levers………………..….……….8
8851FL & 8853FL
C. Installing keypad and controller board…………………………..……...…….9
D. Installing lockbody, large escutcheon, small escutcheon and levers..…….10
8850FL, 8851FL, 8852FL, 8853FL
E. Installing the battery escutcheon and adjusting for appearance…..……….11
F. Tightening the cylinder (if needed) and installing the armor front ....……....12
G. 13
Section V Hardwire Options Diagram
A. Hardwire options diagram……………………………………….....…....……..12

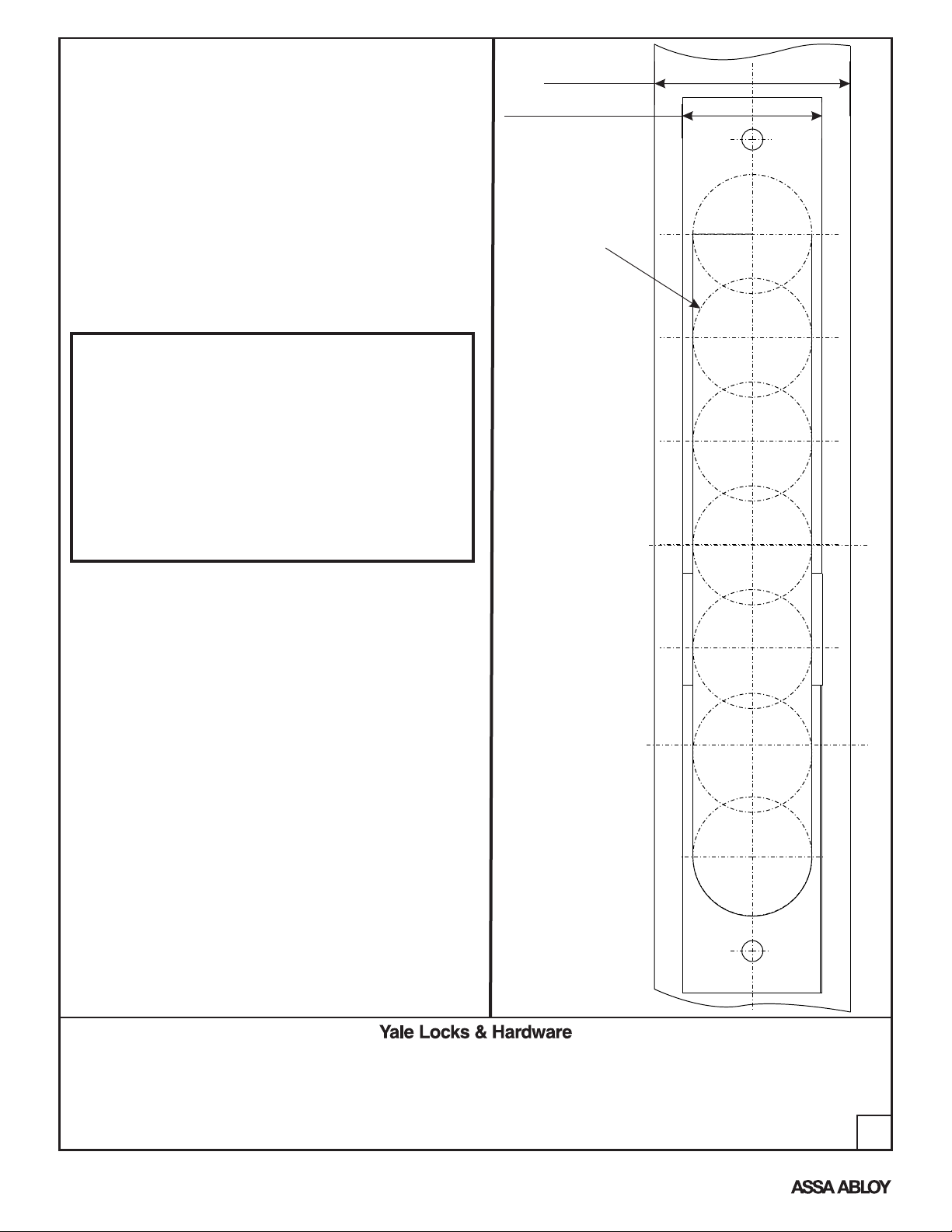

Template for drilling a mortise pocket on the edge of a door......................
#2 Phillips screwdriver
#3 Phillips screwdriver
1/8" Allen wrench
Small flat blade screw driver
Hole saw set
I-A Necessary tools
Section I List of Components

An ASSA ABLOY Group brand
80-9086-0050-010 (10-12)
3

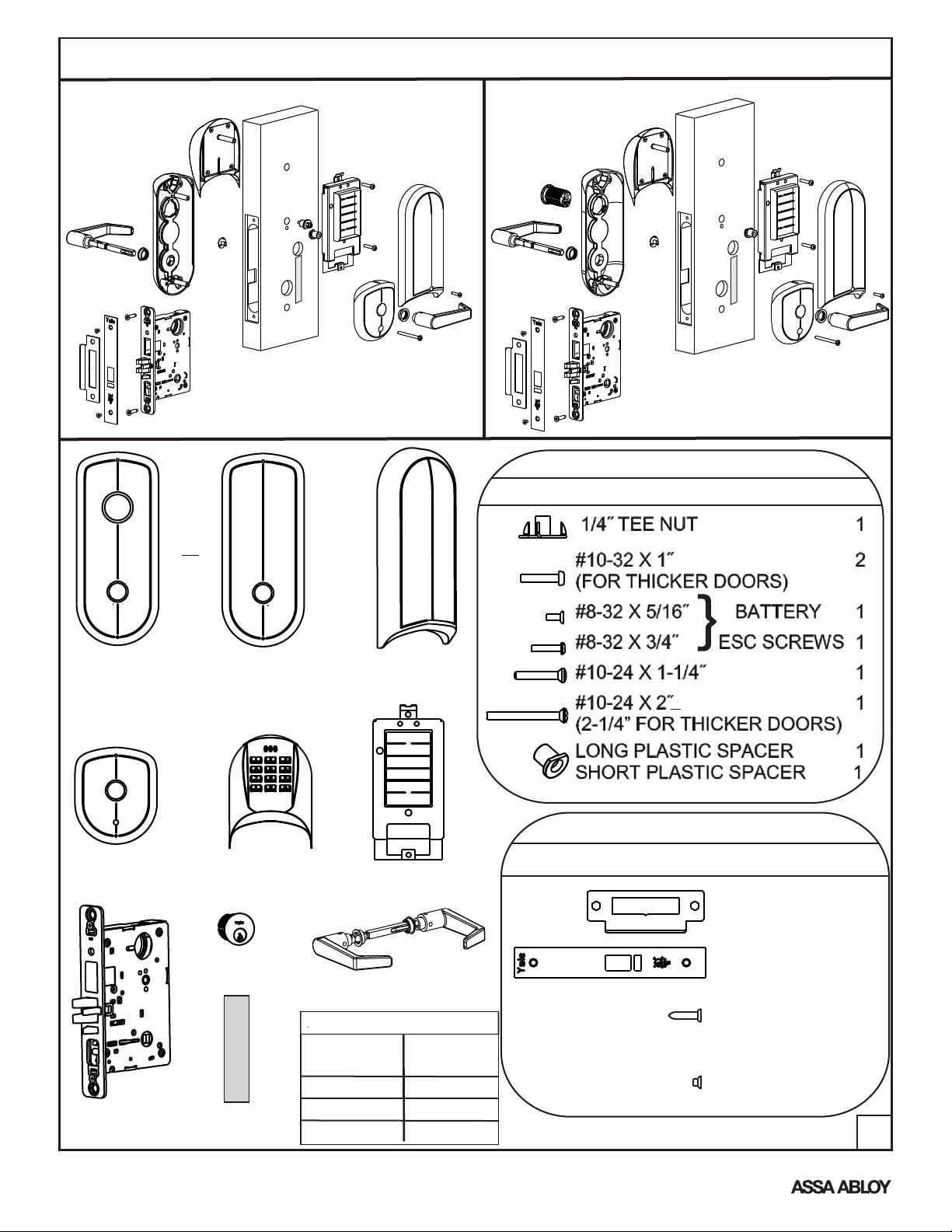

8850FL
Less Cylinder
8851FL
With Cylinder
I-B Non-Deadbolt Functions
or
Battery
Escutcheon
Controller
Board
Keypad
Assembly
DESCRIPTION Qty
ARMOR 1
FRONT
STRIKE 1
STRIKE PACK
ARMOR 2
FRONT
SCREW
COMBINATION 4
SCREW
O/S Long
Escutcheon
W/ Cylinder
O/S Long
Escutcheon
W/O Cylinder
Mortise
Lockbody
I/S Short
Escutcheon
Spindle Asm
Cylinder
Door Cylinder
Thickness Size
1-3/4 1-3/4
2 1-3/4
2-1/4 2
˝ ˝
˝ ˝
˝ ˝
Cylinder Chart
Grounding
Strip
DESCRIPTION Qty
SCREW PACK

An ASSA ABLOY Group brand
80-9086-0050-010 (10-12)
4
or
Battery
Escutcheon
Controller
Board
Keypad
Assembly
DESCRIPTION Qty
DESCRIPTION Qty
ARMOR 1
FRONT
STRIKE 1
STRIKE PACK
ARMOR 2
FRONT
SCREW
COMBINATION 4
SCREW
SCREW PACK
8852FL
Less Cylinder
8853FL
With Cylinder
I-C Deadbolt Functions
O/S Long
Escutcheon
W/ Cylinder
O/S Long
Escutcheon
W/O Cylinder
Mortise
Lockbody
I/S Short
Escutcheon
Spindle Asm
Door Cylinder
Thickness Size
1-3/4 1-3/4
2 1-3/4
2-1/4 2
˝ ˝
˝ ˝
˝ ˝
Cylinder Chart
Cylinder
Grounding
Strip

An ASSA ABLOY Group brand
80-9086-0050-010 (10-12)
5
Section II Prepare the Door
B) Mark centerline for lever position and door template
1. Draw a horizontal centerline for the lock lever/spindle on both sides of door at desired height
above finished floor line. Standard height for horizontal centerline is 39-15/16˝ above finished
floor.
2. Compare the lock function number being installed with hole chart (See Template) to determine
the holes to be marked.
3. Position the installation template on the door so that the horizontal centerline lines up with the
marked horizontal line on the door, and the desired edge of the template lines up with the edge of
the door.
4. Mark the holes to be drilled using a scribe, center punch, or nail on the inside and outside of door.
To avoid shifting of the template, it may be taped to the door during this step.
C) Drill holes in door
1. Bore marked trim holes (step B4). To avoid splintering wood, bore thru holes from both sides of
door.
D) Mark frame for strike mortise cavities
1. Mark the vertical position of strike on jamb using the reference centerline on installation template.
Mark location of strike lip.(FIRST DETERMINE IF SILENCERS ARE TO BE USED) To locate
horizontal centerline of strike, take half the door thickness PLUS the thickness of silencer (if used).
Use this dimension to locate the strike centerline from the doorstop. (See Fig. 1, page 6)
E) Drill Mortise Cavities in door and frame
1. Align mortise pocket template on edge of door using the spindle height mark.
2. Mark door edge for lock body attaching screws and mortise pocket.
3. Mortise door edge for lock body 4½˝ deep. See page 14 for Template.
4. Drill pilot holes for attaching screws.
5. Slide lock body into cavity and attach using the combination attaching screw. Install armor front
and use as template. Mark outline.
6. Mortise door edge for lock front (7/32˝) deep.
7. Mortise jamb for strike (3/32˝ deep). Be sure to mortise 1˝ (25mm) deep to accommodate lock
bolts or strike
F) Install Strike
1. Attach strike to jamb using two #12 combination attaching screws. (See Fig. 1, page 6).
A) Determine hand of door
Face the door a from the outside to determine its hand. Please note the outside is either the key
side of an entrance door or the corridor side of a room door. The outside of a single communication
door is the side opposing the hinges. The outside of a twin communicating doors is the space
between the doors.

An ASSA ABLOY Group brand
80-9086-0050-010 (10-12)
6
A/F Lever
Section II Prepare the Door (CONTINUED)
(Fig.2) 8800 Series Lock Shown
(Fig.1) 8800 Series Strike Shown
Combination screws
Combination screws

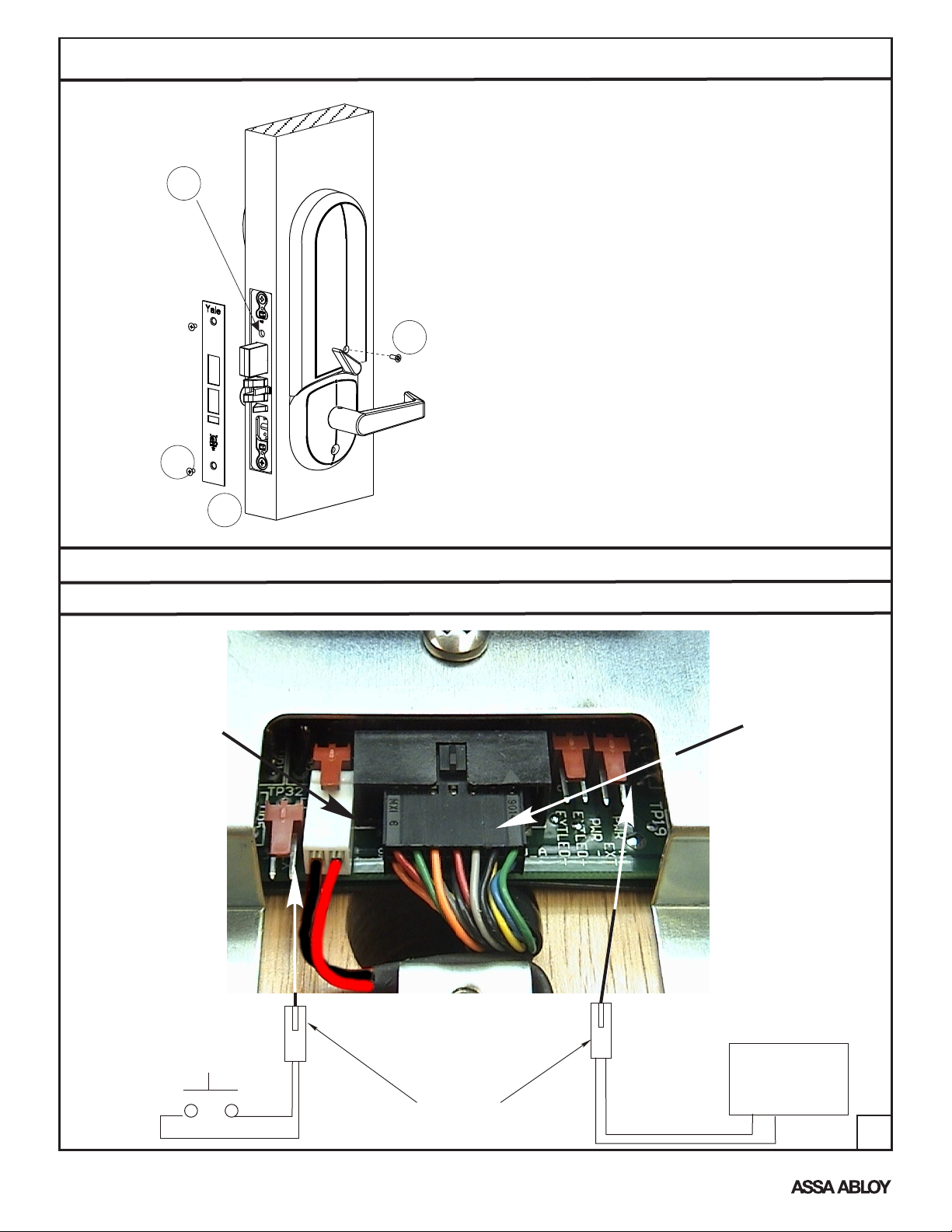

Section III Handing the Mortise Lock
Handing the Latchbolt
1. Insert flat blade screwdriver into cover slot.
2. Pull back on screwdriver until latchbolt
extends past base front and rotate the head
to the desired position.
Handing the Hubs
1. Locate RED MARK on locking piece.
2. Push toggle button slide away from "square
spindle hole".
3. With blade screw driver push RED MARK on
slide nearest "square spindle hole".
4. RED MARK indicates locked side!

An ASSA ABLOY Group brand
80-9086-0050-010 (10-12)
7
Steps
a) Route keypad harness thru hole “E”, all the way thru door.
b) Route keypad post thru hole “G”.
2. Install O/S long escutcheon posts in holes “D” and “H”. This will hole the keypad in place.
3. Install short plastic spacer with flat down in hole “H” on inside of door.
4. Securely fasten the #10-24 X 1-1/4 screw thru the short plastic spacer.
5. Install the tee nut from the inside of the mortise pocket thru hole “I”. See template.
6. Install long plastic spacer with flat up in the back of the controller board.
7. Secure grounding strip to door making sure the strip connects the controller board to the I/S Short Esc.
8. Loosely fasten the controller board to the tee nut using #10-32 X 1 screw thru the
long plastic spacer.
9. Loosely fasten the top of the controller board using #10-32 X 1 screw thru hole “G”.
1. Install keypad housing:
"
"
"
Section IV Installing Assembly on Door
1
5
7
8
6
4
3
2

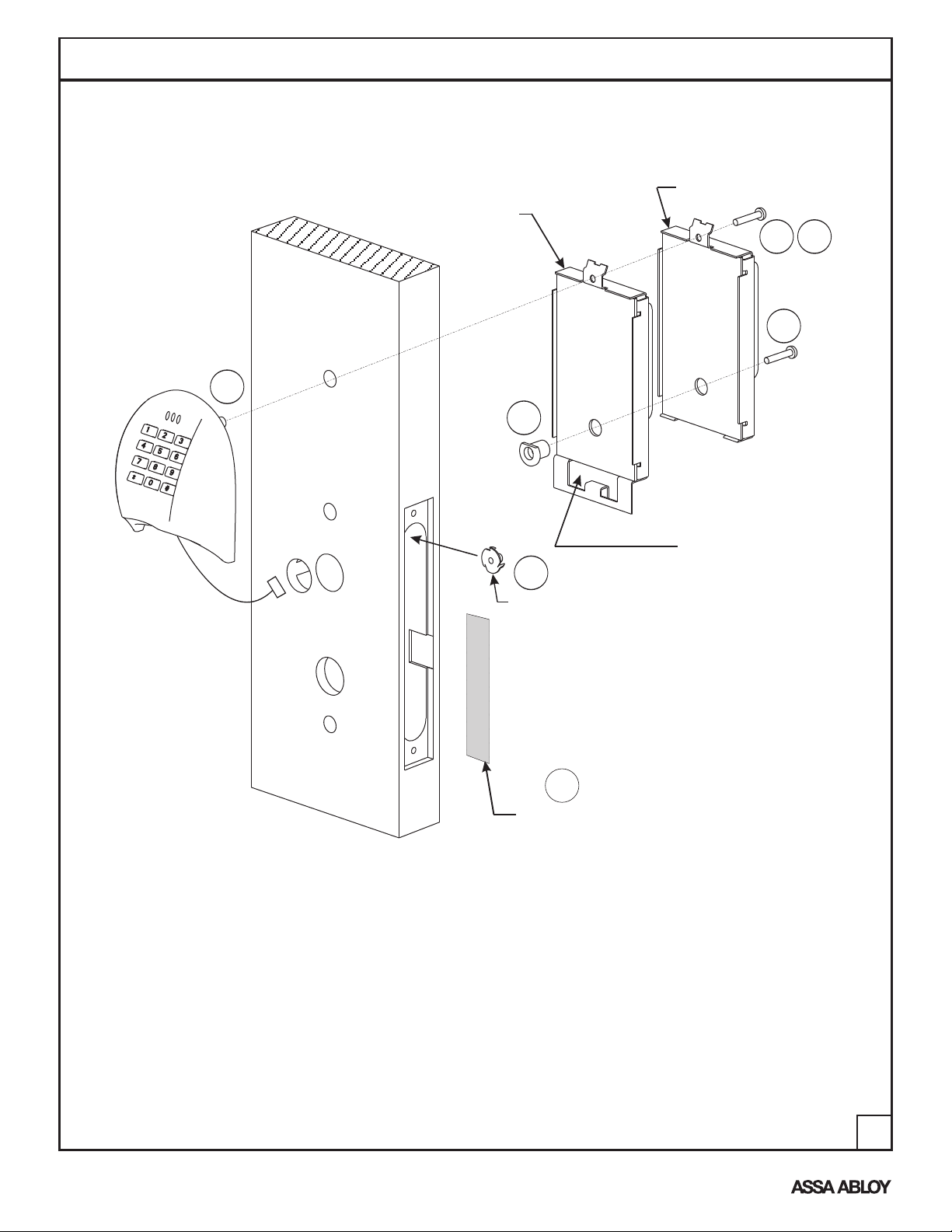

IV-A Installing keypad, long escutcheon and controller board
Tee Nut
Install thru hole “I”
see template
Non-Cylinder Applications
8850FL & 8852FL
Controller Board
for 8852FL
Controller Board
for 8850FL
G
H
E
A
D
Grounding Strip
9

An ASSA ABLOY Group brand
80-9086-0050-010 (10-12)
8
Steps
9. Route all lockbody harnesses thru the mortise pocket and thru hole “E”.
10. Loosely fasten lockbody to door using combination screws.
11. Install I/S short escutcheon by loosely attaching the #10-24 X 2 screw thru
hole “D” and to the post of the O/S long escutcheon.
12. Installing the spindle assembly thru the lock. Loosen the set screw on the inside lever and
remove inside lever before installing thru lock. Be sure that the lever on the
pinned end of the assembly goes on the outside of the door and the ramp
of the inside spindle goes towards the set screw on the inside lever.
13. Install the inside lever and securely tighten the set screw.
14. Install harness connectors to the controller board (see Wiring Diagram on page 12).
15. Skip to page 11.
"
REMOVE
BEFORE
USE
Keypad connector
Lockbody motor
See picture for
to circuit board
connecting
REMOVE
BEFORE
USE
IV-B Installing lockbody, short escutcheon and levers
Non-Cylinder Applications
8850FL & 8852FL
D
A
11
9
12
13
10
E
Grounding Strip

An ASSA ABLOY Group brand
80-9086-0050-010 (10-12)
9
Steps
1.
a) Route keypad harness thru hole “E”, all the way thru door
b) Route keypad post thru hole “G”.
2. Loosely fasten the #10-32 X 1 screw thru hole “G” and into the keypad post.
3. Install the tee nut from the inside of the mortise pocket thru hole “I”. See template.
4. Install the long plastic spacer (with flat any orientation) in the back of the controller board.
5. Secure grounding strip to door making sure the strip connects the controller board to the I/S Short Esc.
6. Loosely fasten the controller board to the tee nut using #10-32 X 1 screw thru the long
plastic spacer.
7. Loosely fasten the #10-32 X 1 screw thru hole “G” and into the keypad post.
Install keypad housing:
"
"
"
IV-C Installing keypad and controller board
Cylinder Applications
8851FL & 8853FL Controller Board
for 8853FL
Controller Board
for 8851FL
Route keypad
wire/connector
through controller
Board housing
4
1
2
3
6
Install thru hole “I”
see template
G
H
E
A
D
7
B
5
Grounding Strip

An ASSA ABLOY Group brand
80-9086-0050-010 (10-12)
10
Steps
6. Route all lockbody harnesses thru the mortise pocket and thru hole “E”.
7. Loosely fasten lockbody to door using combination screws.
8. Install the bottom post of O/S long escutcheon thru hole “D” and attach the
cylinder to the lockbody thru hole “B”.
9. Install the I/S short escutcheon by loosely fastening the #10-24 X 2 screws
thru hole “D” and to the post of the O/S long escutcheon.
10. Install the spindle assembly thru the lock. Loosen the set screw on the inside
lever and remove inside lever before installing thru lock. Be sure that the
lever on the pinned end of the assembly goes on the outside of the door and the
ramp of the inside spindle goes towards the set screw on the inside lever.
11. Install the inside lever and securely tighten the set screw.
12. Install harness connectors to the controller board (See Wiring Diagram on page 12).
For deadbolt monitoring connection see picture above.
13. Skip to page 11.
˝
Cylinder Applications
8851FL & 8853FL
Keypad
connector
Lockbody
motor
See picture for
to circuit board
connecting
Deadbolt
monitoring

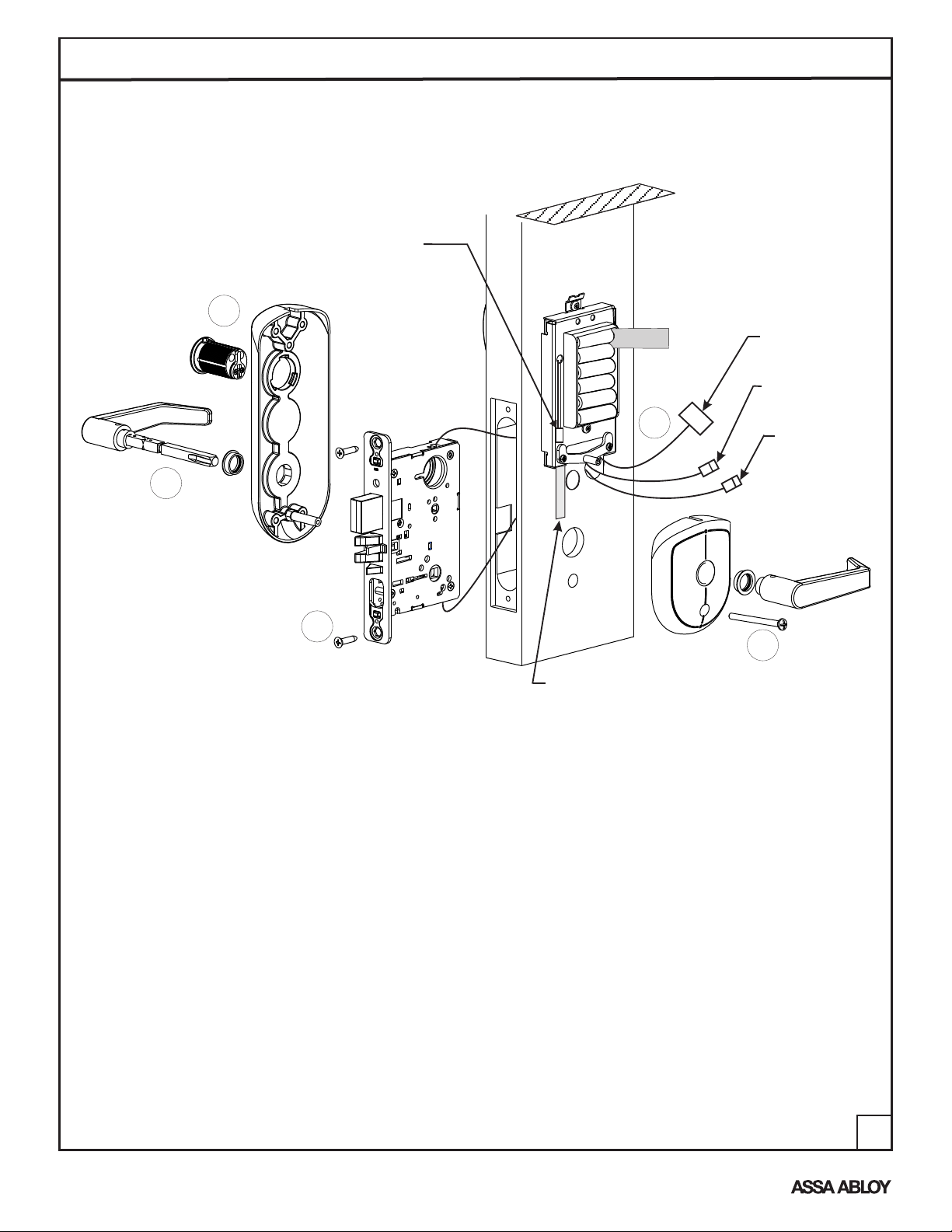

IV-D Installing lockbody, short escutcheon and levers
8
9
10
7
6
REMOVE
BEFORE
USE
REMOVE
BEFORE
USE
Connect to
deadbolt monitoring
connector from lock
Grounding Strip

An ASSA ABLOY Group brand
80-9086-0050-010 (10-12)
11

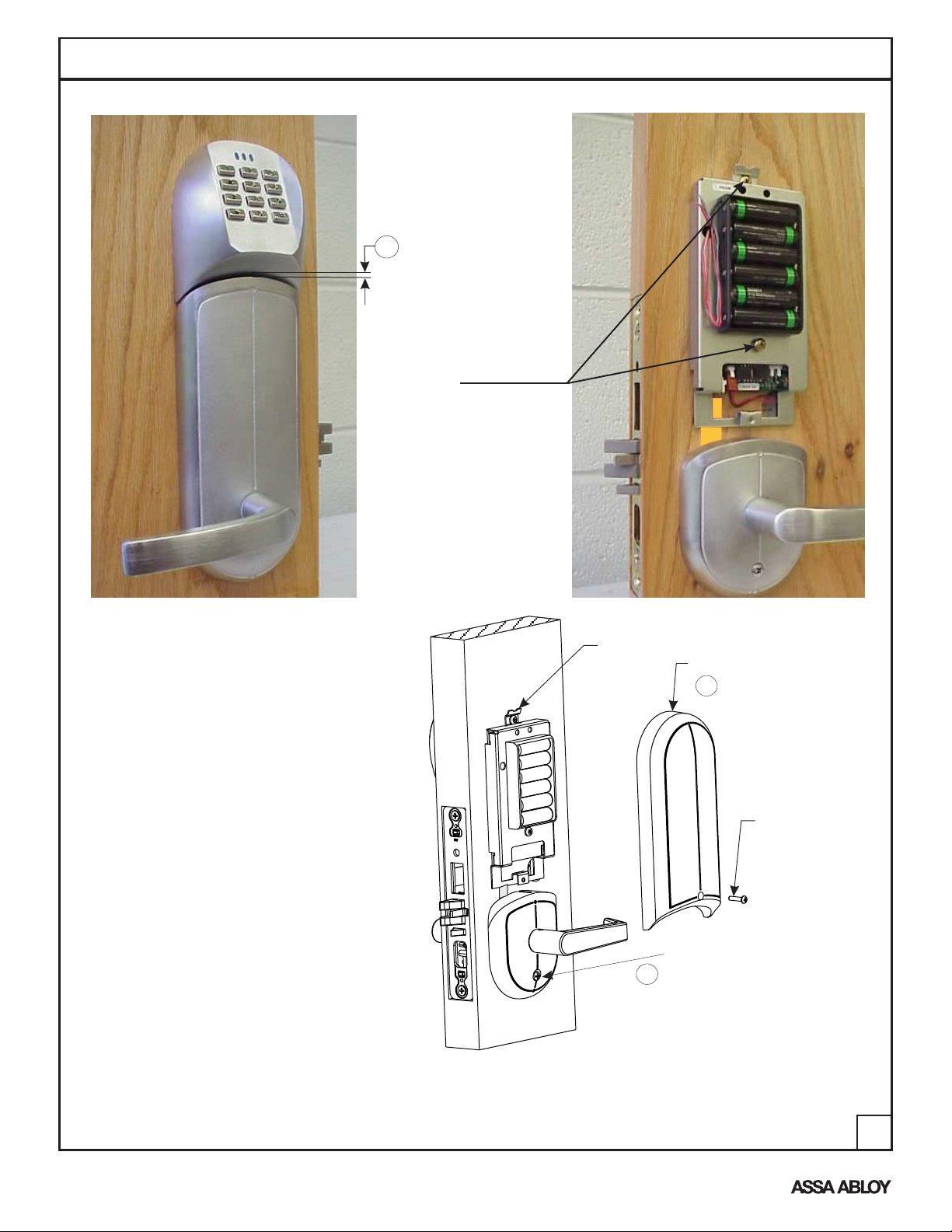

2 Minimize gap
between keypad
and escutcheon
by gently pushing
them together,
then tighten both
controller board
screws.
IV-E Installing the battery escutcheon and adjusting for appearance
Installing the Battery Escutcheon and
minimizing the clearance between the
Battery Escutcheon and the Small Rose
Escutcheon.
1. **Dry fit the Battery Escutcheon
to the Small Rose Escutcheon.
NOTE: IT IS VERY IMPORTANT TO KEEP
WIRES FROM GETTING PINCHED
WHILE ATTACHING BATTERY
COVER.
2. Check the clearance where
the two meet, see top picture. If
the clearance is acceptable tighten
the Battery Escutcheon screw.
3. If the clearance is too great
loosen the Small Rose Escutcheon
screw then push up and re-tighten the
screw. Recheck clearance.
If the clearance is still not acceptable
remove Battery Escutcheon and loosen
the two Controller Board screws and
adjust the controller board up or down.
Re-tighten controller board screws and
refer to step #2.
**Battery Escutcheon
Battery
Escutcheon
Screw
**Hook
** Battery Escutcheon has a machined
slot that engages the hook at the top of
the Controller Board prior to mating up
with Rose Escutcheon.
1
All Applications
Small Rose Escutcheon
and Screw
3

An ASSA ABLOY Group brand
80-9086-0050-010 (10-12)
12
Tighten cylinder
thru this hole.
1. Align the cylinder face to desired
orientation and tighted the cylinder thru
the hole indicatied above.
2. Securely fasten the lockbody screws.
3. Install the armor front with the 2
#10 x 21 5/16" screws provided.
4. Fasten battery cover screw.
IV-F Tightening the cylinder (if needed) and installing the armor front
2
4
1
3
9VDC
Power input
784
(9 Volt Power
Supply)
Hardwiring
Harnesses
Normally Open
Momentary Switch
NO C
Remote Entry Input
P/n: 14-5496-0212
Section V WIRING DIAGRAM
V-A Wiring diagram
Keypad connector
Lockbody motor

An ASSA ABLOY Group brand
80-9086-0050-010 (10-12)
13
Centerline
of spindle
1 3/4"
1 1/4"
Ø 1-1/16
X 4.5 DEEP˝
Centerline
of lockbody
IV-G Template for drilling a mortise pocket on the
edge of the door
Finish Care
This lockset is designed to provide the highest
standard of product quality and performance.
Care should be taken to insure a long-lasting
finish. When cleaning is required use a soft,
damp cloth. Using lacquer thinner, caustic
soaps, abrasive cleaners or polishes could
damage the coating and result in tarnishing.
If installation instructions are not followed this may result in damage to
the lock and void the factory warranty. Removing cover screws voids
lock body warranty. Any retrofit or other field modification to a fire rated
opening can potentially impact the fire rating of the opening, and Yale
Locks & Hardware makes no representations or warranties concerning
what such impact may be in any specific situation. When retrofitting
any portion of an existing fire rated opening, or specifying and
installing a new fire-rated opening, please consult with a code
specialist or local code official (Authority Having Jurisdiction) to ensure
compliance with all applicable codes and ratings.
Yale® and eBoss® are registered trademarks of Yale Security Inc., an ASSA ABLOY Group company. Other products' brand names may be trademarks or registered trademarks of their
respective owners and are mentioned for reference purposes only. These materials are protected under U.S. copyright laws. All contents current at time of publication.
Yale Security Inc. reserves the right to change availability of any item in this catalog, its design, construction, and/or its materials.
Copyright © 2005, 2012 Yale Security Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
Product Support Tel 800. • www.yalelocks.com810.WIRE (9473)
Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company.
