Ssl ColourLine LazerLine Wet Owner's manual

1
t800.900.1730
3609 Swenson Ave.
St. Charles, IL 60174
CONFIDENTIAL THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF SOLID STATE LUMINAIRES. ANY UNAUTHORIZED TRANSFER, USE OR REPRODUCTION IS STRICLY PROHIBITED. ©SOLID STATE LUMINAIRES. TG-DM-071823
CLZWETii
ColourLine™LazerLine Wet - INSTALLATION and OPERATION INSTRUCTIONS
CAUTION: BEFORE CONNECTING THE FIXTURE TO A POWER SUPPLY, MAKE SURE THE POWER IS SWITCHED OFF.
CLZWET
GENERAL:
1. Before starting the installation, make sure all electricity has been turned off and electrical breaker has been locked out and tagged out.
2. To ensure the success of the installation, be sure to read these instructions and review the diagrams thoroughly before beginning.
3. All electrical connections must be in accordance with local codes, ordinances, or the National Electrical Code.
NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur.
INSTALLATION:
1) Verify Physical Layout Plan.
a) Ensure all hardware is present.
b) Ensure all electrical feeds are correctly positioned with all hardware and any other active components.
c) Conrm DMX Addressing Plan.
i. SSL recommends pre-addressing xtures before mounting installation.
ii. Ensure that addressing is documented for future upgrading, conguring or troubleshooting.
iii. Create an addressing table to document all xture IDs and their physical location.
HARDWARE: May include RDM Controller, Exterior Rated Data Line, AC Power Feed, PDX/S box, PDX2 box, Starter Cords, Terminator Caps, Extension Cables and xtures.
NOTE: Use Extension Cable when necessary, for corners and extending xture runs.
IMPORTANT: Max Run Length: see Chart A.
REQUIRED: Starter Cable (SC05/10/25/50LZWET or SC10LZWETL) and Terminator Cap (TCAPDCLZWET) are required for every run.

2
t800.900.1730
3609 Swenson Ave.
St. Charles, IL 60174
CONFIDENTIAL THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF SOLID STATE LUMINAIRES. ANY UNAUTHORIZED TRANSFER, USE OR REPRODUCTION IS STRICLY PROHIBITED. ©SOLID STATE LUMINAIRES. TG-DM-071823
CLZWETii
AC Input
(120–277V )
End Runs with
Terminator Cap
DETAILED ILLUSTRATION
End-to-End Connection (or)
Extension Cable
(ECxxLZWET)
xx = 24", 60", 120" or 240"
CLZWET - Single Segment Conguration
ColourLine™LazerLine Wet - INSTALLATION and OPERATION INSTRUCTIONS
CAUTION: BEFORE CONNECTING THE FIXTURE TO A POWER SUPPLY, MAKE SURE THE POWER IS SWITCHED OFF.
Starter Cable
SCxxLZWET
xx = 5', 10', 25' or 50'
Max Run Length:
See Chart A
RDM Controller
ColourLine Select / Pharos Controller / Nicolaudie
AC Input
(120V )
PDX2PDX2
Data Line
(Belden 3105A-Exterior)
Max Run Length 120V 277V
5W/FT 160'360'
10W/FT 80'180'
Chart A
DMX
Controller
CLZWET

Data Line
(Belden 3105A - Exterior)
AC Input
(120V )
120V AC
DMX
Controller
3
t800.900.1730
3609 Swenson Ave.
St. Charles, IL 60174
CONFIDENTIAL THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF SOLID STATE LUMINAIRES. ANY UNAUTHORIZED TRANSFER, USE OR REPRODUCTION IS STRICLY PROHIBITED. ©SOLID STATE LUMINAIRES. TG-DM-071823
CLZWETii
End Runs with
Terminator Cap
ColourLine™LazerLine Wet - INSTALLATION and OPERATION INSTRUCTIONS
CAUTION: BEFORE CONNECTING THE FIXTURE TO A POWER SUPPLY, MAKE SURE THE POWER IS SWITCHED OFF.
DETAILED ILLUSTRATION
End-to-End Connection (or)
Extension Cable (ECxxLZWET)
xx = 24", 60", 120" or 240"
CLZWET - Multiple Segment Conguration
Starter Cable
(Male End)
SCxxLZWET
xx = 5', 10', 25' or 50'
Important:
Align rst xture
to accept the
Male End of
Starter Cord.
AC Input
(120–277V )
AC Input
(120–277V )
AC Input
(120–277V )
CLZWET
Max Run Length 120V 277V
5W/FT 160'360'
10W/FT 80'180'
Chart A
PDX2PDX2
PDX2PDX2
PDX2PDX2

4
AC Input
(120–277V )
CLZWET - Extended Segment Conguration
Starter Cable
SCxxLZWET
xx = 5', 10', 25' or 50'
AC Input
(120V )
Segment 1 Segment 2 Segment 3 Segment 4 Segment 5
PDX2PDX2 PDX2PDX2 PDX2PDX2 Repeater PDX2PDX2 PDX2PDX2
Three Max Run Length Segments can be connected before requiring a Repeater.
3 Max Run Length Segments
PDX2PDX2
AC Input
(120–277V )
Data Bridge Cable
DB25LZWET (25')
Max Extension Cable Length:
See Chart A
Data Line
(CD-25/50/100)
DMX
Controller
Starter Cable
SCxxLZWET
xx = 5', 10', 25' or 50'
PDX2PDX2
t800.900.1730
3609 Swenson Ave.
St. Charles, IL 60174
CONFIDENTIAL THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF SOLID STATE LUMINAIRES. ANY UNAUTHORIZED TRANSFER, USE OR REPRODUCTION IS STRICLY PROHIBITED. ©SOLID STATE LUMINAIRES. TG-DM-071823
CLZWETii
DETAILED ILLUSTRATION
ColourLine™LazerLine Wet - INSTALLATION and OPERATION INSTRUCTIONS
CAUTION: BEFORE CONNECTING THE FIXTURE TO A POWER SUPPLY, MAKE SURE THE POWER IS SWITCHED OFF.
Max Extension Cable Length:
See Chart A
CLZWET
Max Run Length 120V 277V
5W/FT 160'360'
10W/FT 80'180'
Chart A

5
t800.900.1730
3609 Swenson Ave.
St. Charles, IL 60174
CONFIDENTIAL THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF SOLID STATE LUMINAIRES. ANY UNAUTHORIZED TRANSFER, USE OR REPRODUCTION IS STRICLY PROHIBITED. ©SOLID STATE LUMINAIRES. TG-DM-071823
CLZWETii
GENERAL:
1. Before starting the installation, make sure all electricity has
been turned off and electrical breaker has been locked out
and tagged out.
2. To ensure the success of the installation, be sure to read
these instructions and review the diagrams thoroughly
before beginning.
3. All electrical connections must be in accordance with local
codes, ordinances, or the National Electrical Code.
NOTE: The important safeguards and instructions appearing in
this manual are not meant to cover all possible conditions and
situations that may occur.
INSTALLATION:
1) Personality Conguration
a) The CLZWET “Personality” is the resolution increments that
can be congured via software.
NOTE: Personality conguration must be set before setting the
DMX addresses.
NOTE: Each increment shows the number of DMX addresses
that are used in each xture for the corresponding personality.
DETAILED ILLUSTRATION
ColourLine™LazerLine Wet - INSTALLATION and OPERATION INSTRUCTIONS
CAUTION: BEFORE CONNECTING THE FIXTURE TO A POWER SUPPLY, MAKE SURE THE POWER IS SWITCHED OFF.
4 foot xture (only) congured in 2 foot increments (4 Channels/2ft - R,G,B,W)
Personality 2
CLZWET - RGBW Personality Options
4 foot xture (only) congured in 1 foot increments (4 Channels/1ft - R,G,B,W)
Personality 3
1,2,3,4 5,6,7,8 9,10,11,12 13,14,15,16
1,2,3,4 5,6,7,8 9,10,11,12 13,14,15,16 17,18,19,20 21,22,23,24 25,26,27,28 29,30,31,32
1,2,3,4 5,6,7,8
4 foot & 1 foot xtures congured 4 Channels per xture (R,G,B,W)
Personality 1
CLZWET
•Full Power LED with any color transition
•Consistent rich color across the light spectrum
•Full output power with any color
FULL LUMEN COLOR CHANGING
Colour Full
ColourFull xtures provide maximum
output at all times – with all colors,
so your application receives the
maximum color saturation. Using a
Custom Tooled Native Optic with a
collimating color mixing chamber that
mixes at the phosphor level enabling
unique color combinations.

6
PDX2 - Power/Data Box
t800.900.1730
3609 Swenson Ave.
St. Charles, IL 60174
CONFIDENTIAL THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF SOLID STATE LUMINAIRES. ANY UNAUTHORIZED TRANSFER, USE OR REPRODUCTION IS STRICLY PROHIBITED. ©SOLID STATE LUMINAIRES. TG-DM-071823
CLZWETii
DETAILED ILLUSTRATION
ColourLine™LazerLine Wet - INSTALLATION and OPERATION INSTRUCTIONS
CAUTION: BEFORE CONNECTING THE FIXTURE TO A POWER SUPPLY, MAKE SURE THE POWER IS SWITCHED OFF.
CLZWET
GENERAL:
1. Before starting the installation, make sure all electricity has
been turned off and electrical breaker has been locked out
and tagged out.
2. To ensure the success of the installation, be sure to read
these instructions and review the diagrams thoroughly
before beginning.
3. All electrical connections must be in accordance with local
codes, ordinances, or the National Electrical Code.
NOTE: The important safeguards and instructions appearing in
this manual are not meant to cover all possible conditions and
situations that may occur.
INSTALLATION:
1) PDX2 (Power/Data Box )
a) Mount PDX2 (PDX2 is exterior-rated).
NOTE: Use appropriate fasteners for mounting to surface type.
BLACK - LINE
WHITE - NEUTRAL
GREEN - GROUND
PURPLE - DATA+
PINK - DATA-
3.6"
7.4"
3.8"
6.6"
6.1"
7.8"
4.8"
6.8"
Top View
Front View Side View
Use
(4) #10
Screws
Cable Accessories (order seperately)
Accessories (Indicate the quantity needed for each item.) REQUIRED: Starter Cable (SCxxCLZ) and Terminator Cap (TCAPDCLZWET) for every run.
_______ SC10CLZ 10 ft. Starter Connection Cord
_______ SC25CLZ 25 ft. Starter Connection Cord
_______ SC50CLZ 50 ft. Starter Connection Cord
_______ TCAPDCLZWET Data Terminator Cap (120 Ohm)
_______ EC24LZWET 24 in. Extension Cord
_______ EC60LZWET 60 in. Extension Cord
_______ EC120LZWET 120 in. Extension Cord
_______ EC240LZWET 240 in. Extension Cord

7
PDX2 - Power/Data Box
t800.900.1730
3609 Swenson Ave.
St. Charles, IL 60174
CONFIDENTIAL THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF SOLID STATE LUMINAIRES. ANY UNAUTHORIZED TRANSFER, USE OR REPRODUCTION IS STRICLY PROHIBITED. ©SOLID STATE LUMINAIRES. TG-DM-071823
CLZWETii
DETAILED ILLUSTRATION
ColourLine™LazerLine Wet - INSTALLATION and OPERATION INSTRUCTIONS
CAUTION: BEFORE CONNECTING THE FIXTURE TO A POWER SUPPLY, MAKE SURE THE POWER IS SWITCHED OFF.
CLZWET
Ground (G)
Neutral (N)
Line (L)
AC Power (IN)
Shield
(+) Data (Purple)
(–) Data (Pink or Gray)
Ground (G)
Neutral (N)
Line (L)
Fixture (OUT)
TOP VIEW
DMX Controller
(IN)
Wire Shield
Shield
Data (+) (Blue w/ White Dash)
Data (–) (White w/ Blue Dash)
PDX2 Wiring
GENERAL:
1. Before starting the installation, make sure all
electricity has been turned off and electrical
breaker has been locked out and tagged out.
2. To ensure the success of the installation, be sure
to read these instructions and review the diagrams
thoroughly before beginning.
3. All electrical connections must be in accordance
with local codes, ordinances, or the National
Electrical Code.
NOTE: The important safeguards and instructions
appearing in this manual are not meant to cover all
possible conditions and situations that may occur.
INSTALLATION:
1) PDX2 (Power/Data Box )
a) Mount PDX2 (PDX2 is exterior-rated).
NOTE: Use appropriate fasteners for mounting to
surface type.
b) PDX2 Wiring Diagram
BLACK - LINE
WHITE - NEUTRAL
GREEN - GROUND
PURPLE - DATA+
PINK - DATA-

8
t800.900.1730
3609 Swenson Ave.
St. Charles, IL 60174
CONFIDENTIAL THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF SOLID STATE LUMINAIRES. ANY UNAUTHORIZED TRANSFER, USE OR REPRODUCTION IS STRICLY PROHIBITED. ©SOLID STATE LUMINAIRES. TG-DM-071823
CLZWETii
.40
VERIFY THAT TERMINATING
CAP IS PLACED UPON FINAL
MODULE IN THE CHAIN
INPUT CONNECTOR
OUTPUT CABLE END
TO ADD A SECOND UNIT TO THE CHAIN,
CONNECT ONE MODULE'S CABLE TO
ANOTHER MODULE'S INPUT CONNECTOR
MAKE SURE TO CHECK THE ORIENTATION
OF THE THREE PRONGS ON THE CONNECTORS
INPUT
OUTPUT

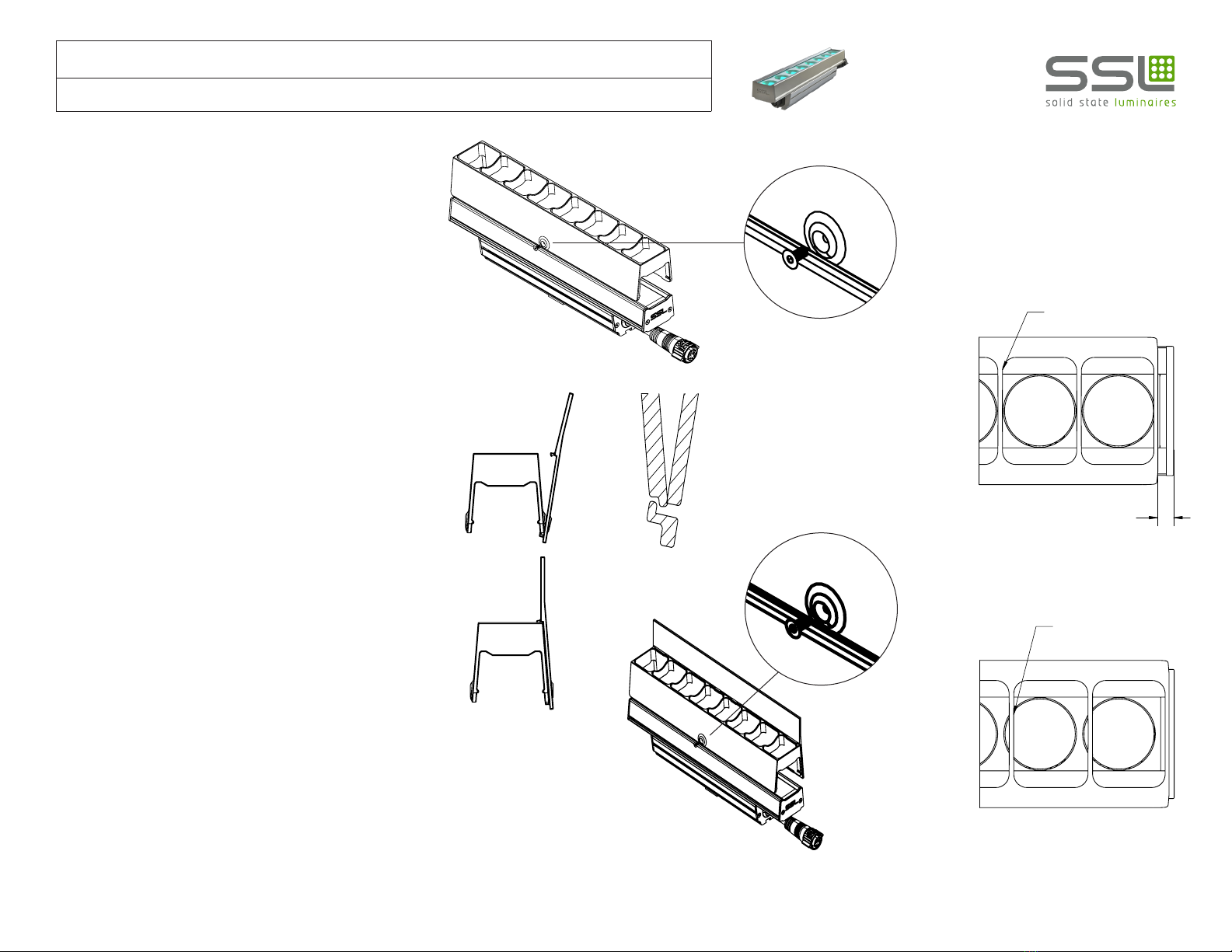

CORNERS & CORD BENDING
LOUVER DIMENSIONS
STANDARD DIMENSIONS & CABLES
2.75
2.75
2.0
4.0
A
1.75
1.3
OUTPUT
0.5" BEND RADIUS
B
C
EXTENSION
CABLE
STARTER CABLE
MODEL A
CLZWET-1 11.8"
CLZWET-4 47.2"
MODEL B
SC05LZWET 5'
SC10LZWET 10'
MODEL C
EC24LZWET 24"
EC60LZWET 60"
2.75
2.75
2.0
4.0
A
1.75
1.3
OUTPUT
0.5" BEND RADIUS
B
C
EXTENSION
CABLE
STARTER CABLE
MODEL A
LZWET-1 12.3"
LZWET-4 48"
MODEL A
LZXWET-1 12.3"
LZXWET-4 48"
MODEL B
SC05LZWET 5'
SC10LZWET 10'
MODEL B
EC24LZWET 24"
EC60LZWET 60"
2.75
2.75
2.0
4.0
A
1.75
1.3
OUTPUT
0.5" BEND RADIUS
B
C
EXTENSION
CABLE
STARTER CABLE
MODEL A
LZWET-1 12.3"
LZWET-4 48"
MODEL A
LZXWET-1 12.3"
LZXWET-4 48"
MODEL B
SC05LZWET 5'
SC10LZWET 10'
MODEL B
EC24LZWET 24"
EC60LZWET 60"
90°
.75
VERIFY THAT REQUIRED TERMINATOR CAP (TCAPLZWET)
IS PLACED AT THE END OF EACH FIXTURE RUN
INPUT
.4
SPACING & TERMINATING CAP
OUTPUT
ColourLine™LazerLine Wet - INSTALLATION and OPERATION INSTRUCTIONS
CAUTION: BEFORE CONNECTING THE FIXTURE TO A POWER SUPPLY, MAKE SURE THE POWER IS SWITCHED OFF.
CLZWET
Max Run Length 120V 220V 277V
1' Fixture 43'86'99'
4' Fixture 56'116'136'
3.6
11.8/47.2
2.3
11.8/47.2
5.2
2.4

9
t800.900.1730
3609 Swenson Ave.
St. Charles, IL 60174
CONFIDENTIAL THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF SOLID STATE LUMINAIRES. ANY UNAUTHORIZED TRANSFER, USE OR REPRODUCTION IS STRICLY PROHIBITED. ©SOLID STATE LUMINAIRES. TG-DM-071823
CLZWETii
SLIDE MOUNTING BRACKET
INTO CHANNEL TO THE
DESIRED LOCATION
TIGHTEN SET SCREW USING
3/32 HEX TOOL
(TORQUE: 1.5 FT/LBS)
SLIDE MOUNTING BRACKET
INTO CHANNEL TO THE
DESIRED LOCATION
TIGHTEN SET SCREW USING
3/32 HEX TOOL
(TORQUE: 1.5 FT/LBS)
BRACKET MOUNTING
COVE SPACING
USE SLOTS ON
MOUNTING-BRACKET
TO ATTACH THE FIXTURE
TO DESIRED SURFACE
INPUT
2.1
4.000
3.250
.500
BRACKET FOOTPRINT
2.6
1.0 1.0
2.8
1.000
H
0.5
DETAIL H
SCALE 1 : 1.5
BRACKET MOUNTED
RIGHT SIDE
90°
G
DETAIL G
SCALE 1 : 1
90° ROTATION
BRACKET MOUNTED
LEFT SIDE
90°
G
DETAIL G
SCALE 1 : 1
90° ROTATION
90°
G
DETAIL G
SCALE 1 : 1
90°
G
DETAIL G
SCALE 1 : 1
1.00”
1.00”
1.00”2.00”
G3 UNIT MUST HAVE 1" CLEARANCE
ON ALL 3 SIDES
0.5"
MOUNTING BRACKET
MUST BE AT LEAST
0.5" AWAY FROM EDGE
X X
BOTH BRACKETS MUST BE
EQUIDISTANT FROM THEIR
RESPECTIVE EDGE
CENTER BRACKET FOR 1 FT FIXTURE
2.75”
2.75”
UNIT MUST HAVE 1” CLEARANCE
MOUNTING BRACKET MUST BE AT
LEAST .5” AWAY FROM EDGE
DETERMINE INSTALL ORIENTATION
OF FIXTURE BEFORE ATTACHING
THE MOUNTING BRACKET
ON THE APPROPRIATE SIDE
TO CHANGE THE ROTATION ANGLE
LOOSEN THE CENTER SCREW
WITH A 5MM HEX TOOL
ADJUST AND THEN RETIGHTEN.
(TORQUE: 3.5 FT/ LBS)
ColourLine™LazerLine Wet - INSTALLATION and OPERATION INSTRUCTIONS
CAUTION: BEFORE CONNECTING THE FIXTURE TO A POWER SUPPLY, MAKE SURE THE POWER IS SWITCHED OFF.
CLZWET

10
t800.900.1730
3609 Swenson Ave.
St. Charles, IL 60174
CONFIDENTIAL THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF SOLID STATE LUMINAIRES. ANY UNAUTHORIZED TRANSFER, USE OR REPRODUCTION IS STRICLY PROHIBITED. ©SOLID STATE LUMINAIRES. TG-DM-071823
CLZWETii
1. TO FIELD-INSTALL THE LOUVER,
PLACE THE LOUVER UPON THE
TOP OF THE FIXTURE AND FIRMLY
PRESS DOWN UNTIL IT SNAPS IN
PLACE.
2. ADJUST THE LOUVER LEFT-TO-
RIGHT SO THAT EACH OF THE
LOUVER FINS SITS BETWEEN TWO
OPTICAL LENSES
3. WHEN THE DESIRED POSITION
IS OBTAINED, USE AN M2 HEX
KEY TO TIGHTEN THE SCREWS
LOCATED ON BOTH SIDES OF
THE LOUVER TO LOCK IT IN
PLACE.
NOTE: MULTIPLE SEGMENTS
MUST BE USED TO LOUVER A
FOUR FOOT LONG FIXTURE.
REV. ECN / NPS DESCRIPTION DATE APPROVED
REVISIONS
A RELEASE XX/XX/XXXX
THE INFORMATION CONTAINED IN THISDRAWING IS THE SOLE PROPERTY OFFC LIGHTING. ANY REPRODUCTION IN PART OR AS A
WHOLE WITHOUT THE WRITTEN PERMISSION OF FC LIGHTING IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
X.XX 0.015
X.XXX 0.005 X° 1°
Sheet 1 of 2
Part Number:
X.X 0.06
Designed by:
X/X 1/8
REVISION#
Material:
X.X° 0.1°
Date:
DESCRIPTION:
12/8/2022
NOTES:
1. Dimensions in [mm] inches.
2. All parts to be deburred and degreased/clean of oil
3. All parts to be adequately packaged
4. Undefined dimensions are to be obtained from the 3-D model
Approved:
NETPATH: \\fclight-srv01\data\ENGINEERING\Project Definition Form Master\Definitions in Place\0104 - PIR-09122022 LazerLine Louver (Tooled)\05 - Marketing\
FILENAME: INSTALL INSTRUCTIONS
Sheet Scale:
1:8
TOLERANCES UNLESS NOTED:
Drawn by:
A
AA
BB
REMOVE THE SCREW LOCATED ON THE SIDE OF 1.
THE LOUVER YOU WISH TO ADD A HOUSE-
SHIELD UPON
LOCATE THE LIP ON THE UNDERSIDE OF THE 2.
LOUVER'S EDGE. THIS IS MOST EASILY DONE PRE-
INSTALL.
HOOK THE UNDERSIDE OF THE HOUSE-SHIELD 3.
ONTO THE LIP
ROTATE THE HOUSE-SHIELD UPWARD SO THAT IT 4.
CLIPS ONTO THE TOP OF THE LOUVER
TO FIELD-INSTALL THE LOUVER, PLACE THE 5.
LOUVER UPON THE TOP OF THE FIXTURE AND
FIRMLY PRESS DOWN UNTIL IT SNAPS IN PLACE
ADJUST THE LOUVER LEFT-TO-RIGHT SO THAT 6.
EACH OF THE LOUVER FINS SITS BETWEEN TWO
OPTICAL LENSES
OBTAIN THE 8MM SCREW THAT WAS INCLUDED 7.
WITH THE HOUSE-SHIELD. USING AN M2 ALLEN
KEY, INSTALL THE LONGER SCREW ON THE
HOUSE-SHIELD SIDE OF THE LOUVER
USING THE SAME ALLEN KEY, INSTALL THE 6MM 8.
SCREW UPON THE OPPOSITE SIDE TO SECURE
THE LOUVER IN PLACE
NOTE: MULTIPLE SEGMENTS MUST BE USED TO 9.
LOUVER A FOUR FOOT LONG FIXTURE.
REV. ECN / NPS DESCRIPTION DATE APPROVED
REVISIONS
A RELEASE XX/XX/XXXX
THE INFORMATION CONTAINED IN THISDRAWING IS THE SOLE PROPERTY OFFC LIGHTING. ANY REPRODUCTION IN PART OR AS A
WHOLE WITHOUT THE WRITTEN PERMISSION OF FC LIGHTING IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
X.XX 0.015
X.XXX 0.005 X° 1°
Sheet 2 of 2
Part Number:
X.X 0.06
Designed by:
X/X 1/8
REVISION#
Material:
X.X° 0.1°
Date:
DESCRIPTION:
12/8/2022
NOTES:
1. Dimensions in [mm] inches.
2. All parts to be deburred and degreased/clean of oil
3. All parts to be adequately packaged
4. Undefined dimensions are to be obtained from the 3-D model
Approved:
NETPATH: \\fclight-srv01\data\ENGINEERING\Project Definition Form Master\Definitions in Place\0104 - PIR-09122022 LazerLine Louver (Tooled)\05 - Marketing\
FILENAME: INSTALL INSTRUCTIONS
Sheet Scale:
1:8
TOLERANCES UNLESS NOTED:
Drawn by:
A
ColourLine™LazerLine Wet - INSTALLATION and OPERATION INSTRUCTIONS
CAUTION: BEFORE CONNECTING THE FIXTURE TO A POWER SUPPLY, MAKE SURE THE POWER IS SWITCHED OFF.
CLZWET
LOUVER INSTALLATION - LCLZWL-1:
1. To eld-install the louver, place the louver upon the top of the xture
and rmly press down until it snaps in place.
2. Adjust the louver left-to-right so that each of the louver ns sits
between two optical lenses.
3. When the desired position is obtained, use a 2mm Hex Driver to
tighten the screws located on both sides of the louver to lock it in
place.
NOTE: Multiple segments must be used to louver a four foot long xture.
LOUVER INSTALLATION - LCLZWHS-1:
1. Remove the screw located on the side of the louver you wish to add a
House-Shield upon.
2. Locate the lip on the underside of the louver’s edge. This is most
easily done pre-install.
3. Hook the underside of the House-Shield onto the lip.
4. Rotate the House-Shield upward so that it clips onto the top of
the louver.
5. To eld-install the louver, place the louver upon the top of the xture
and rmly press down until it snaps in place.
6. Adjust the louver left-to-right so that each of the louver ns sits
between two optical lenses.
7. Obtain the longer 8mm Screw that was included with the House-
Shield. Using a 2mm Hex Driver, install the longer screw on the
House-Shield side of the louver.
8. Using the same 2mm Hex Driver, install the 6mm Screw upon the
opposite side to secure the louver in place.
NOTE: Multiple segments must be used to louver a four foot long xture.
AA
BB
REMOVE THE SCREW LOCATED ON THE SIDE OF 1.
THE LOUVER YOU WISH TO ADD A HOUSE-
SHIELD UPON
LOCATE THE LIP ON THE UNDERSIDE OF THE 2.
LOUVER'S EDGE. THIS IS MOST EASILY DONE PRE-
INSTALL.
HOOK THE UNDERSIDE OF THE HOUSE-SHIELD 3.
ONTO THE LIP
ROTATE THE HOUSE-SHIELD UPWARD SO THAT IT 4.
CLIPS ONTO THE TOP OF THE LOUVER
TO FIELD-INSTALL THE LOUVER, PLACE THE 5.
LOUVER UPON THE TOP OF THE FIXTURE AND
FIRMLY PRESS DOWN UNTIL IT SNAPS IN PLACE
ADJUST THE LOUVER LEFT-TO-RIGHT SO THAT 6.
EACH OF THE LOUVER FINS SITS BETWEEN TWO
OPTICAL LENSES
OBTAIN THE 8MM SCREW THAT WAS INCLUDED 7.
WITH THE HOUSE-SHIELD. USING AN M2 ALLEN
KEY, INSTALL THE LONGER SCREW ON THE
HOUSE-SHIELD SIDE OF THE LOUVER
USING THE SAME ALLEN KEY, INSTALL THE 6MM 8.
SCREW UPON THE OPPOSITE SIDE TO SECURE
THE LOUVER IN PLACE
NOTE: MULTIPLE SEGMENTS MUST BE USED TO 9.
LOUVER A FOUR FOOT LONG FIXTURE.
REV. ECN / NPS DESCRIPTION DATE APPROVED
REVISIONS
A RELEASE XX/XX/XXXX
THE INFORMATION CONTAINED IN THISDRAWING IS THE SOLE PROPERTY OFFC LIGHTING. ANY REPRODUCTION IN PART OR AS A
WHOLE WITHOUT THE WRITTEN PERMISSION OF FC LIGHTING IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
X.XX 0.015
X.XXX 0.005 X° 1°
Sheet 2 of 2
Part Number:
X.X 0.06
Designed by:
X/X 1/8
REVISION#
Material:
X.X° 0.1°
Date:
DESCRIPTION:
12/8/2022
NOTES:
1. Dimensions in [mm] inches.
2. All parts to be deburred and degreased/clean of oil
3. All parts to be adequately packaged
4. Undefined dimensions are to be obtained from the 3-D model
Approved:
NETPATH: \\fclight-srv01\data\ENGINEERING\Project Definition Form Master\Definitions in Place\0104 - PIR-09122022 LazerLine Louver (Tooled)\05 - Marketing\
FILENAME: INSTALL INSTRUCTIONS
Sheet Scale:
1:8
TOLERANCES UNLESS NOTED:
Drawn by:
A
LCLZWL-1
LCLZWHS-1:
1. TO FIELD-INSTALL THE LOUVER,
PLACE THE LOUVER UPON THE
TOP OF THE FIXTURE AND FIRMLY
PRESS DOWN UNTIL IT SNAPS IN
PLACE.
2. ADJUST THE LOUVER LEFT-TO-
RIGHT SO THAT EACH OF THE
LOUVER FINS SITS BETWEEN TWO
OPTICAL LENSES
3. WHEN THE DESIRED POSITION
IS OBTAINED, USE AN M2 HEX
KEY TO TIGHTEN THE SCREWS
LOCATED ON BOTH SIDES OF
THE LOUVER TO LOCK IT IN
PLACE.
NOTE: MULTIPLE SEGMENTS
MUST BE USED TO LOUVER A
FOUR FOOT LONG FIXTURE.
REV. ECN / NPS DESCRIPTION DATE APPROVED
REVISIONS
A RELEASE XX/XX/XXXX
THE INFORMATION CONTAINED IN THISDRAWING IS THE SOLE PROPERTY OFFC LIGHTING. ANY REPRODUCTION IN PART OR AS A
WHOLE WITHOUT THE WRITTEN PERMISSION OF FC LIGHTING IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
X.XX 0.015
X.XXX 0.005 X° 1°
Sheet 1 of 2
Part Number:
X.X 0.06
Designed by:
X/X 1/8
REVISION#
Material:
X.X° 0.1°
Date:
DESCRIPTION:
12/8/2022
NOTES:
1. Dimensions in [mm] inches.
2. All parts to be deburred and degreased/clean of oil
3. All parts to be adequately packaged
4. Undefined dimensions are to be obtained from the 3-D model
Approved:
NETPATH: \\fclight-srv01\data\ENGINEERING\Project Definition Form Master\Definitions in Place\0104 - PIR-09122022 LazerLine Louver (Tooled)\05 - Marketing\
FILENAME: INSTALL INSTRUCTIONS
Sheet Scale:
1:8
TOLERANCES UNLESS NOTED:
Drawn by:
A
AA
BB
REMOVE THE SCREW LOCATED ON THE SIDE OF 1.
THE LOUVER YOU WISH TO ADD A HOUSE-
SHIELD UPON
LOCATE THE LIP ON THE UNDERSIDE OF THE 2.
LOUVER'S EDGE. THIS IS MOST EASILY DONE PRE-
INSTALL.
HOOK THE UNDERSIDE OF THE HOUSE-SHIELD 3.
ONTO THE LIP
ROTATE THE HOUSE-SHIELD UPWARD SO THAT IT 4.
CLIPS ONTO THE TOP OF THE LOUVER
TO FIELD-INSTALL THE LOUVER, PLACE THE 5.
LOUVER UPON THE TOP OF THE FIXTURE AND
FIRMLY PRESS DOWN UNTIL IT SNAPS IN PLACE
ADJUST THE LOUVER LEFT-TO-RIGHT SO THAT 6.
EACH OF THE LOUVER FINS SITS BETWEEN TWO
OPTICAL LENSES
OBTAIN THE 8MM SCREW THAT WAS INCLUDED 7.
WITH THE HOUSE-SHIELD. USING AN M2 ALLEN
KEY, INSTALL THE LONGER SCREW ON THE
HOUSE-SHIELD SIDE OF THE LOUVER
USING THE SAME ALLEN KEY, INSTALL THE 6MM 8.
SCREW UPON THE OPPOSITE SIDE TO SECURE
THE LOUVER IN PLACE
NOTE: MULTIPLE SEGMENTS MUST BE USED TO 9.
LOUVER A FOUR FOOT LONG FIXTURE.
REV. ECN / NPS DESCRIPTION DATE APPROVED
REVISIONS
A RELEASE XX/XX/XXXX
THE INFORMATION CONTAINED IN THISDRAWING IS THE SOLE PROPERTY OFFC LIGHTING. ANY REPRODUCTION IN PART OR AS A
WHOLE WITHOUT THE WRITTEN PERMISSION OF FC LIGHTING IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
X.XX 0.015
X.XXX 0.005 X° 1°
Sheet 2 of 2
Part Number:
X.X 0.06
Designed by:
X/X 1/8
REVISION#
Material:
X.X° 0.1°
Date:
DESCRIPTION:
12/8/2022
NOTES:
1. Dimensions in [mm] inches.
2. All parts to be deburred and degreased/clean of oil
3. All parts to be adequately packaged
4. Undefined dimensions are to be obtained from the 3-D model
Approved:
NETPATH: \\fclight-srv01\data\ENGINEERING\Project Definition Form Master\Definitions in Place\0104 - PIR-09122022 LazerLine Louver (Tooled)\05 - Marketing\
FILENAME: INSTALL INSTRUCTIONS
Sheet Scale:
1:8
TOLERANCES UNLESS NOTED:
Drawn by:
A
M3x6mm Screw
2mm Hex Driver
1.5 IN/LBS Torque
M3x8mm Screw
2mm Hex Driver
1.5 IN/LBS Torque
Ideal spacing is an approx.
6mm gap from the edge
of louver to edge of fixture
Louver fins are located
between fixture optics
Louver fins should not
overlap fixture optics
CORRECT PLACEMENT INCORRECT PLACEMENT
REV. ECN / NPS DESCRIPTION DATE APPROVED
REVISIONS
A RELEASE XX/XX/XXXX
THE INFORMATION CONTAINED IN THISDRAWING IS THE SOLE PROPERTY OFFC LIGHTING. ANY REPRODUCTION IN PART OR AS A
WHOLE WITHOUT THE WRITTEN PERMISSION OF FC LIGHTING IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
X.XX 0.015
X.XXX 0.005 X° 1°
Sheet 1 of 1
Part Number:
X.X 0.06
Designed by:
X/X 1/8
REVISION#
Material:
X.X° 0.1°
Date:
DESCRIPTION:
7/12/2023
NOTES:
1. Dimensions in [mm] inches.
2. All parts to be deburred and degreased/clean of oil
3. All parts to be adequately packaged
4. Undefined dimensions are to be obtained from the 3-D model
Approved:
NETPATH: \\fclight-srv01\Users\tgrunden\Desktop\
FILENAME: Install instruction lzwet
Sheet Scale:
1:4
TOLERANCES UNLESS NOTED:
Drawn by:
A
Ideal spacing is an approx.
6mm gap from the edge
of louver to edge of fixture
Louver fins are located
between fixture optics
Louver fins should not
overlap fixture optics
CORRECT PLACEMENT
INCORRECT PLACEMENT
REV. ECN / NPS DESCRIPTION DATE APPROVED
REVISIONS
A RELEASE XX/XX/XXXX
THE INFORMATION CONTAINED IN THISDRAWING IS THE SOLE PROPERTY OFFC LIGHTING. ANY REPRODUCTION IN PART OR AS A
WHOLE WITHOUT THE WRITTEN PERMISSION OF FC LIGHTING IS PROHIBITED.
PROPRIETARY AND CONFIDENTIAL
X.XX 0.015
X.XXX 0.005 X° 1°
Sheet 1 of 1
Part Number:
X.X 0.06
Designed by:
X/X 1/8
REVISION#
Material:
X.X° 0.1°
Date:
DESCRIPTION:
7/12/2023
NOTES:
1. Dimensions in [mm] inches.
2. All parts to be deburred and degreased/clean of oil
3. All parts to be adequately packaged
4. Undefined dimensions are to be obtained from the 3-D model
Approved:
NETPATH: \\fclight-srv01\Users\tgrunden\Desktop\
FILENAME: Install instruction lzwet
Sheet Scale:
1:4
TOLERANCES UNLESS NOTED:
Drawn by:
A
LOUVER PLACEMENT
