Stage right 612730 User manual
CONTENTS
SAFETY WARNINGS AND GUIDELINES................................................................................................................................... 3
Power........................................................................................................................................................................................................... 3
Environment ........................................................................................................................................................................................... 3
Maintenance...........................................................................................................................................................................................4
INTRODUCTION..........................................................................................................................................................................................4
FEATURES........................................................................................................................................................................................................5
CUSTOMER SERVICE ..............................................................................................................................................................................5
PACKAGE CONTENTS............................................................................................................................................................................6
MENU DISPLAY AND CONTROLS ................................................................................................................................................6
DMX CONTROL........................................................................................................................................................................................... 7
BARNDOORS ................................................................................................................................................................................................ 7
MASTER/SLAVE MODE........................................................................................................................................................................8
DIMMING AND STROBE CONTROL ............................................................................................................................................8
Dimmer Mode .......................................................................................................................................................................................8
Strobe Mode ..........................................................................................................................................................................................9
AC POWER CABLE....................................................................................................................................................................................9
TECHNICAL SUPPORT..........................................................................................................................................................................10
SPECIFICATIONS......................................................................................................................................................................................10
REGULATORY COMPLIANCE ..........................................................................................................................................................11
Notice for FCC......................................................................................................................................................................................11
Notice for Industry Canada.......................................................................................................................................................11
3
SAFETY WARNINGS AND GUIDELINES
Power
Use this light fixture with a constant voltage power supply only. Using it with a
dimmer can result in unexpected operation and damage to the fixture.
Unplug this device from the power source when not in use.
Prior to operation, check the unit and power cord for physical damage. Do not use if
physical damage has occurred.
Before plugging the unit into a power outlet, ensure that the outlet provides the
same type and level of power required by the device.
This device uses a grounded power cord and requires a ground connection for safe
operation. Ensure that the power source has a proper ground connection. Do not
modify the plug or use a "cheater" plug to bypass the ground connection.
Do not allow the power cord to be crimped, pinched, stepped on, etc. Ensure that
the power cord does not present a tripping hazard.
Never unplug the unit by pulling on the power cord. Always grasp the connector
head.
Ensure that power is turned off and disconnected before making any electrical
connections.
Environment
Avoid direct eye exposure to the light from this device.
When installing this device, ensure that the mount is sufficiently robust to support
the weight of the unit and to prevent unwanted movement.
Do not subject the product to extreme force, shock, or fluctuations in temperature
or humidity.
This device is intended for indoor use only.
4
Do not expose this device to rain, water, or moisture of any kind. Do not use in
extremely dusty environments. Do not touch the device or power cord with wet
hands.
When installing this device, ensure that there are no flammable materials within
about 8 feet above and on all sides. Ensure that there is at least 2 feet of clearance
between the unit and any walls.
This device ventilates excessive heat through the slots and openings in the case. Do
not block or cover these openings. Ensure that the device is in an open area where
it can get sufficient airflow to keep from overheating.
Maintenance
Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
Keep away from corrosive materials.
Keep the original packaging material for use when transporting the device.
This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.
INTRODUCTION
Thank you for purchasing this LED stage light!
This light fixture uses seven 20-watt white LEDs, features a motorized, adjustable beam
angle, and can produce up to 2780 lux of illumination. It supports 4-channel DMX512
control, includes a built in Strobe program, and can be configured as a DMX Slave light.
5
FEATURES
7x 20-watt 3200K white LEDs
Adjustable 28°-70° beam angle
Up to 2780 lux at 2 meters
Motorized zoom control (DMX control only)
4-leaf manually adjustable barndoor for beam shaping
4-channel DMX control
Built-in Strobe program
NAC3 power input and pass-through output
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-
6
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x 7x20-Watt COB LED theater PAR light
1x AC power cord (NEMA 5-15P to NAC3)
1x NAC3 output connector
1x User's manual
MENU DISPLAY AND CONTROLS
MENU: Press the MENU button to cycle through the DMX512, Dimmer, and Strobe modes.
After setting a DMX512, Dimmer, or Strobe value, press the MENU button to accept
the setting.
Enter: Press the ENTER button to edit the value for the display mode.
Up: Press the UP button to increase the displayed value. Press and hold the button to
rapidly increase the displayed value.
Down: Press the DOWN button to decrease the displayed value. Press and hold the button
to rapidly decrease the displayed value.
7
DMX CONTROL
A single light fixture can be connected to and controlled by a DMX512 controller. To use
the light with a controller, repeatedly press the Menu button until Addr is displayed, then
press the Enter button to edit the value.
Use the Up and Down buttons to select a channel from 001-512. Note that when you enter
DMX512 mode, the built-in programs are disabled.
The four channels control the following functions with the listed values:
Channel
Function
Value
Control
1
Dimmer
0-255
0-100% brightness
2
Zoom
0-255
Adjust beam angle (0=28°, 255=70°)
3
Strobe Speed
0-10
No function
11-255
Strobe speed 5-20Hz
4
Dimmer Speed
0-64
Real time
65-128
Fast controlled response*
129-192
Medium controlled response
193-255
Slow controlled response
*The Fast controlled response option is recommended for use with less expensive DMX512
controllers.
Note that the Zoom/Beam Angle can only be adjusted using a DMX controller. The light
defaults to a 70° beam angle.
BARNDOORS
This fixture is equipped with a full set of four barndoor leaves, which allow you to shape
the emitted beam of light. These are useful for preventing unwanted light from scattering
or washing onto areas of the stage or audience, which you want to remain dark. The leaves
are independently adjustable, so you can control just a single edge or all four as needed.
8
MASTER/SLAVE MODE
When using the built-in program, the fixture is considered to be in Master mode. You can
then daisy-chain additional fixtures configured as Slaves to perform the same actions as
the Master.
To configure a fixture as a Master, set the light to any mode except DMX mode.
To configure a fixture as a Slave, enter DMX mode and set the channel to 001.
Note that you cannot use a DMX controller when connecting multiple lights in
Master/Slave mode.
DIMMING AND STROBE CONTROL
Dimmer Mode
The Dimmer function controls the light's brightness. To enter Dimmer Mode, press the
Menu button repeatedly until rL-- is displayed, then press the Enter button to edit the
value.
Use the Up and Down buttons to adjust the displayed value. The dimmer can be set to any
value between 0(off) and 255 (maximum brightness).
Note that when rL-- is displayed, the light will not strobe.
When set to its highest value (255), the light will produce the illumination levels and beam
diameters at the listed distances for the two beam angle extremes.
Distance (m)
2
4
6
8
10
Lux at Center at 28°
2780
730
360
215
142
Beam Diameter at 28° (cm)
130
170
280
350
430
Lux at Center at 70°
1015
280
1745
90
56
Beam Diameter at 70° (cm)
340
650
900
1200
1500
9
Strobe Mode
To enter Strobe Mode, press the Menu button repeatedly until FLAS is displayed, then
press the Enter button to edit the displayed value.
Use the Up and Down buttons to adjust the displayed value. The strobe speed can be set
to any value between 0(5 flashes per second) and 12 (20 flashes per second). The light will
continue to strobe as long as the display shows either RLxx or RL--, where xx is a value
between 0 and 12.
AC POWER CABLE
Warning! Power cable wiring should only be done by experienced, qualified individuals or
professional electricians. DO NOT attempt to make AC power cables unless you know
exactly what you are doing and have previously done so.

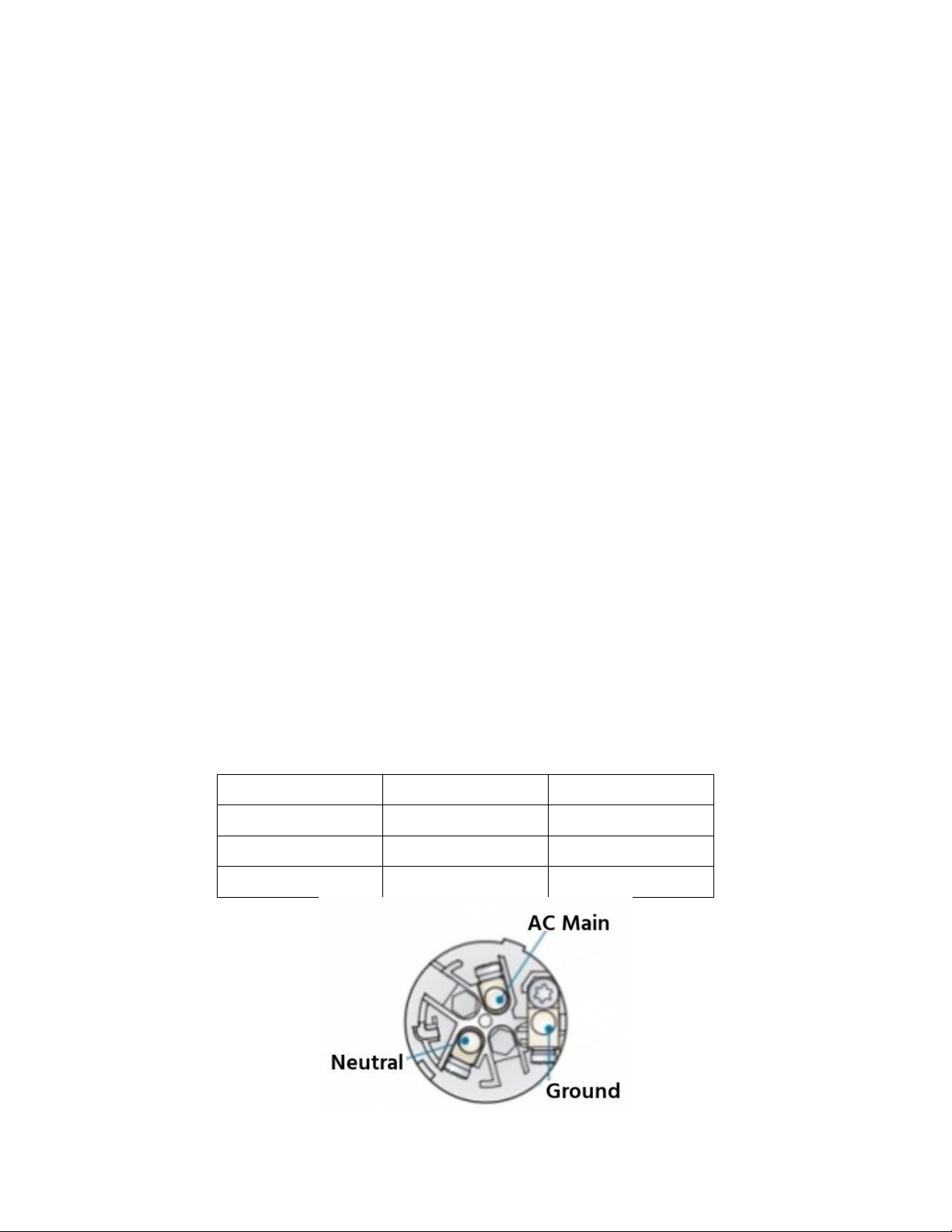

This light uses NAC3 connectors for power input and pass-through output. A NEMA 5-15P
to NAC3 AC power cable is included, as well as an NAC3 output connector, so you can
make a pass-through power cable.
Note that this light requires the use of a three-conductor AC cable and plug with a
dedicated ground/earth pin. Three conductor AC cabling in the US uses different jacket
colors than that used in the EU. The following table shows the jacket colors to connect to
the labeled pins on the connector:
AC Conductor
US Standard
EU Standard
AC Main
Black
Brown
Neutral
White
Blue
Ground
Green
Green & Yellow
10
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with any
questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come online
to talk to one of our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website www.monoprice.com
during regular business hours, 7 days a week. You can also get assistance through email by
SPECIFICATIONS
Light Source
7x 3200K white 20-watt LEDs
Maximum Illumination
2780 lux at 2 meters
Minimum Beam Angle
28°
Maximum Beam Angle
70°
DMX Control
4-channels
DMX Input/Output
3-pin XLR input and pass-through output
Power Input/Output
NAC3 input and pass-through output
Maximum Power Consumption
160 watts
Input Voltage
100 ~ 240 VAC, 50/60 Hz
Dimensions
22.8" x 11.0" x 8.3" (34 x 31 x 25.6 cm)
Weight
17.6 lbs. (8kg)
11
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Modifying the equipment without Monoprice’s authorization may result in the equipment no
longer complying with FCC requirements for Class B digital devices. In that event, your right to use
the equipment may be limited by FCC regulations, and you may be required to correct any
interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Table of contents
Other Stage right Lighting Equipment manuals
