GLP Patend Light 1200 HMI User manual

Instruction Manual
From Version 1.2
email: [email protected]
Internet: http://www.GLP.de

GLP •German Light Production (V2.1) 2

GLP •German Light Production (V2.1) 3
Contents
1Introduction.............................................................................................................5
1.1 Safety Rules .....................................................................................................7
2Installation...............................................................................................................8
2.1 Mounting...........................................................................................................8
2.1.1 Clamps (Hooks)......................................................................................8
2.1.2 Mountingplate (optional).........................................................................8
2.2 Secure the Patend Light 1200 ..........................................................................8
2.3 Connectors .......................................................................................................9
2.3.1 AC Connectors.......................................................................................9
2.3.2 DMX.......................................................................................................9
2.4 Fuses................................................................................................................9
3The Menu Field......................................................................................................10
3.1 Adjust the DMX-Address.................................................................................10
3.2 Read out the Running Time of Lamp and Unit................................................11
3.2.1 Lamp Time 1 ........................................................................................11
3.2.2 Lamp Time 2 ........................................................................................11
3.2.3 Life Time ..............................................................................................11
3.3 The CODE Level.............................................................................................11
3.4 The Test Level................................................................................................12
3.4.1 Selftest Procedure................................................................................12
3.5 Temperature Control 1....................................................................................12
4Channel selection ( Overview table )...................................................................13
5Change the Lamp..................................................................................................16
5.1 Safety Rules ...................................................................................................16
5.2 How to change the lamp.................................................................................17

GLP •German Light Production (V2.1) 4
6Change the Gobos ................................................................................................18
6.1 Safety Rules ...................................................................................................18
6.2 How to change the Gobos ..............................................................................18
7Maintenance the PATEND-LIGHT 1200................................................................20
7.1 Mirror and Optical System ..............................................................................20
7.1.1 Cleaning the inside Mirror and the outside Optical System..................20
7.1.2 Cleaning the outside Optical System....................................................21
7.2 Ventilation System..........................................................................................22
8Technical Data /Overview.....................................................................................23

GLP •German Light Production (V2.1) 5
1 Introduction
Illustration 1-1

GLP •German Light Production (V2.1) 6
Illustration 1-2

GLP •German Light Production (V2.1) 7
1.1 Safety Rules
The P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0 is a High-Tech Product. To guarantee a smooth
operation, it is necessary to keep following rules.
1. Make sure that Head and Mirror of the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0, can rotate
without any mechanical problems and that all fan openings are clean and not
blocked by anything.
2. Touching the head while moving can cause serious injuries
3. Unplug the
P
PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0 from the AC outlet before any service
4. It is necessary to wait at least 30 minutes after disconnecting the AC before
you open the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0. Please do not touch the Bulb if you are
not absolutely sure it is cold. -Danger of BURNING-
5. The PATEND-LIGHT 1200 is provided with a protective switch to switch off the
lamp when opening it. By no means do not bridge these switch. This can
cause serious injuries of your retina.
6. To allow a secure operation, follow also the Installation guide described in
chapter 2. Operating the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0without suited safety aids like
Safety cables or clamps/hooks can increase the risk of an accident.
7. The installation should be done by qualified staff only. You need to pay
attention to the common rules of technology that are not explicit mentioned in
this manual.

GLP •German Light Production (V2.1) 8
2 Installation
2.1 Mounting
To mount the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0use the 8 threads M12 at the backside of the
system or use the slidenuts at the side of the body.
2.1.1 Clamps (Hooks)
Mount clamps and/or hooks directly to the base plate.
Please make sure to use right sized clamps and hooks and fit them
securely.
2.1.2 Mountingplate (optional)
For an easy mounting you can get this as an accessory. In this case a light
mountingplate is premounted. After this the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0can
easily hang up.
The P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0is fully operational whether it stands, hangs or is
mounted to the wall.
Using the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0standing on the ground requires a rough
but even surface. Make sure that the fan openings are not blocked by any
circumstances.
2.2 Secure the Patend Light 1200
Use always safety wires to secure the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0, connect them with
the eye bolt in the slide nut and check the tight fit!

GLP •German Light Production (V2.1) 9
2.3 Connectors
2.3.1 AC Connectors
230 Volt, 50 Hz
2.3.2 DMX
DMX 512 Standard input/output
Please see printing on the case for the right Pin usage!
[+] = Pin 3 / [-] = Pin 2 / [Ground] = Pin 3
The DMX- Address starts at the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0at the DMX-
Address [001] (from software version P 3.0).
This can be changed to the DMX- Startaddress [000]. For this hold the
Menu and Data+ key while switching on the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0. .
2.4 Fuses
The P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0 electronic system is protected by a 5x20 T4A fuse
250V. The lamp is protected by a 5x20 T10A fuse 250V. Please see the printing
on the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0, , for more details look at the Illustration 1-1 in
Chapter 1
Disconnect AC outlet before changing a fuse !!!

GLP •German Light Production (V2.1) 10
3 The Menu Field
3.1 Adjust the DMX-Address
Right after turning on the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0you can see the current DMX-
Address. Choose this as follows.
Select the DMX-Level and press the menu key.
This level is called on automatically after turning on the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0.
Select the figure you want to adjust by pressing the Cursor key.
The selected figure begins to flash.
Adjust the figure by pressing the Data+ or Data- key.
Confirm the DMX-Address by pressing the Menu key once.
If there is no DMX- Signal, a (-) is flashing in the display.
The DMX-Address is stored also while switching off the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0 !!!

GLP •German Light Production (V2.1) 11

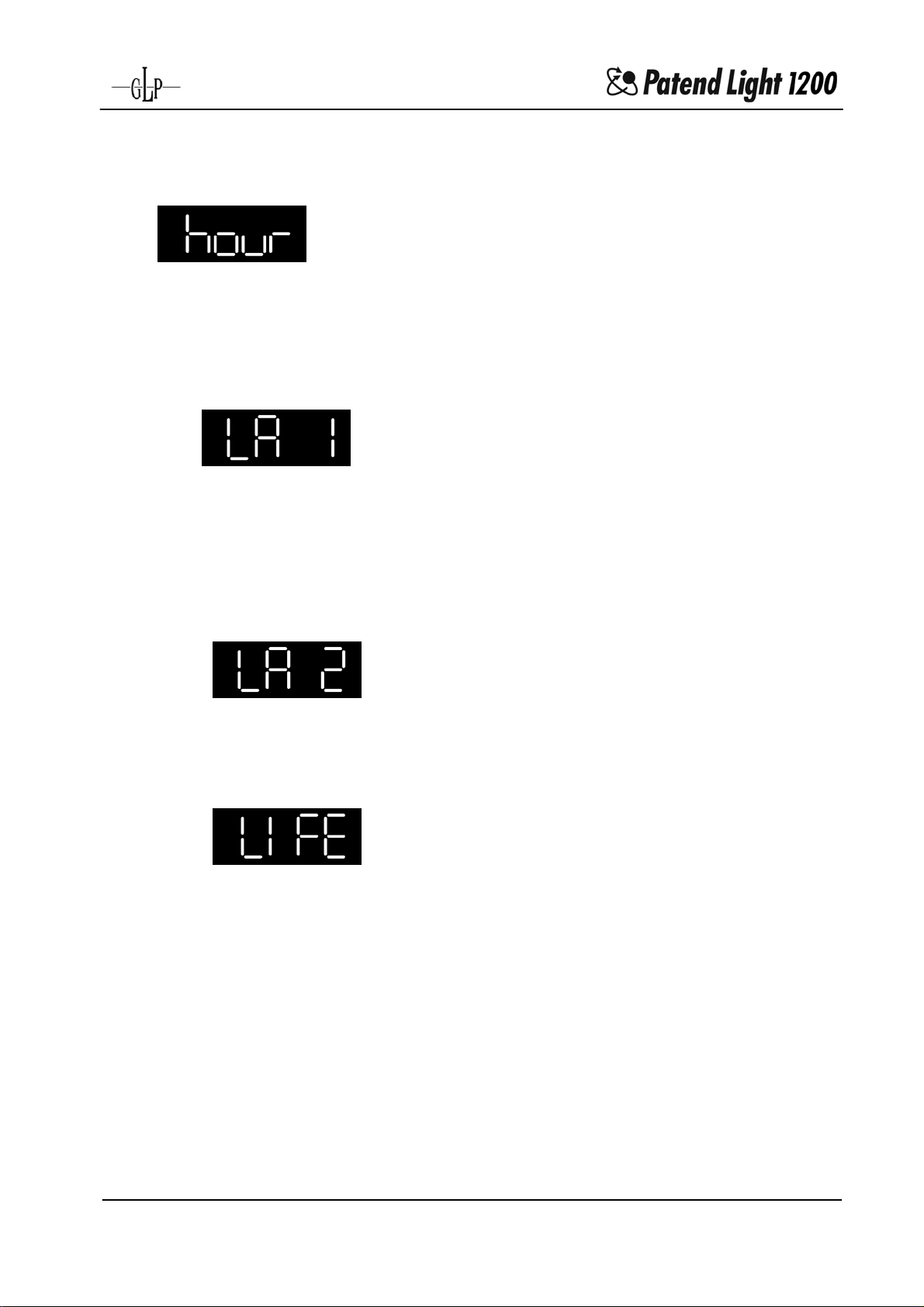

3.2 Read out the Running Time of Lamp and Unit
Select the time level by pressing the Menu key twice.
Select the requested time by pressing the Cursor key,
3.2.1 Lamp Time 1
The current lamp time is shown alternating with LA 1.
This time can be cleared by pressing the Data + and Data – keys at the
same time.
3.2.2 Lamp Time 2
The total lamp time is shown alternating with LA 2.
3.2.3 Life Time
The life time is shown alternating with LIFE.
3.3 The CODE Level
This level is accessed by authorised dealers only.
In this level you can adjust all functions. Also the change of Pan/Tilt high-byte and
low-byte is possible.

GLP •German Light Production (V2.1) 12
3.4 The Test Level
The Test Level makes a function test or a selftest procedure possible.
3.4.1 Selftest Procedure
Select the requested test level by pressing the Cursor key.
Start the Selftest program by pressing the Data+ key. The lamp can be
started by pressing the Data+ and Data- keys for 5 seconds at the same
time.
You have the following sections:
PR Selftest of all funktions
PAN Test Head movement
TILT Test Mirror movement
PSA Test Prisma
DI Test Dimmer
Shut Test Shutter
CLr Test Colorwheel
GB1 Test Gobowheel 1
GB2 Test Gobowheel 2
IrIS Test Iris
Gr1 Test Gobo rotation 1
FOCS Test Focus
Gr2 Test Gobo rotation 2
Forward with the Data+ key. – Backward with the Data- key.
3.5 Temperature Control 1
Deviates the temperature value too much from the system standard, the lamp will
turn off automatically.
Reconnection can only be made by authorized dealers.

GLP •German Light Production (V2.1) 13
4 Channel selection ( Overview table )
Channel Description DMX-Value Hex-Value Value %
1) Head Headposition, High Byte (0o-360o) 0 - 255 0 - FF 0 – 100%
2) Head Headposition, Low Byte (0o-1,41o) 0 - 255 0 - FF 0 – 100%
3) Mirror Mirrorposition, High Byte (0o-360o) 0 - 255 0 - FF 0 – 100%
4) Mirror Mirrorposition, Low Byte(0o-1,41o) 0 - 255 0 - FF 0 – 100%
5) Speed
Head Speed Head, 1/8min - 7/sec 0 - 255 0 - FF 0 – 100%
6) Speed
Mirror Speed Mirror, 1/4min - 3/sec 0 - 255 0 - FF 0 – 100%
7) Special
Function Head Mirror
Relative Movement
0 0 0%
Pos < 360oPos < 360o1 - 19 1 - 13 1 – 7%
Pos > 360oPos > 360o20 - 29 14 - 1D 8 – 11%
Pos < 360oPos > 360o30 - 39 1E -27 12 – 15%
Pos > 360oPos < 360o40 - 49 28 - 31 16 – 19%
Rotation left Pos < 360o50 - 59 31 - 3B 20 – 23%
Rotation left Pos > 360o60 - 69 3C - 45 24 – 27%
Rotation right Pos < 360o70 - 79 46 - 4F 28 – 30%
Rotation right Pos > 360o80 - 89 50 - 59 31 – 35%
Pos < 360oRotation left 90 - 99 5A - 63 36 – 38%
Pos > 360oRotation left 100 - 109 64 - 6D 39 – 42%
Pos < 360oRotation right 110 - 119 6E - 77 43 – 46%
Pos > 360oRotation right 120 - 129 78 - 81 47 – 50%
Rotation left Rotation left 130 - 139 82 - 8B 51 – 54%
Rotation right Rotation right 140 - 149 8C - 95 55 – 58%
Rotation left Rotation right 150 - 159 96 - 9F 59 – 62%
Rotation right Rotation left 160 - 254 A0 - FE 63 – 98%
Reset without Shutter 254 FE 99%
Reset for all Functions 255 FF 100%
8) Color color 1 (white) 0 - 4 0 - 4 1%
bi (white – green) 5 - 9 5 - 9 2 – 3%
color 2 (green) 10 - 14 A - E 4 – 5%
bi (green – red) 15 - 19 F - 13 6 – 7%
color 3 (red) 20 -24 14 - 18 8 – 9%
bi (red – dark blue) 25 - 29 19 - 1D 10 – 11%
color 4 (dark blue) 30 - 34 1E - 22 12 – 13%
bi (dark blue – yellow) 35 - 39 23 - 27 14 – 15%
color 5 (yellow) 40 - 44 28 - 2C 16 – 17%
bi (yellow – pink) 45 - 49 2D - 31 18%
8) Color color 6 (pink) 50 - 54 32 - 36 19 – 20%

GLP •German Light Production (V2.1) 14
Channel Description DMX-Value Hex-Value Value %
bi (pink – turquiose) 55 -59 37 - 3B 21 – 22%
color 7 (turquiose) 60 - 64 3E - 40 23 – 24%
bi (turquiose – orange) 65 - 69 41 - 45 25 – 26%
color 8 (orange) 70 - 74 46 - 4A 27 – 28%
bi (orange – cyan) 75 - 79 4B - 4F 29 – 30%
color 9 (cyan) 80 - 84 50 - 54 31 – 32%
bi (cyan – magenta) 85 - 89 55 - 59 33 – 34%
color 10 (magenta) 90 - 94 5A - 5E 35 – 36%
bi (magenta – white) 95 - 99 5F - 63 37 – 39%
rotation cw slow – fast 128 - 191 80 - BF 50 – 74%
stop 192 C0 75%
rotation ccw slow – fast 193 - 255 C1 - FF 76-100%
9) Gobow. 1 Gobo 1 (open) 0 - 9 0 - 9 0 – 3%
Gobo 2 (rotation + posi) 10 - 19 A - 13 4 – 7%
Gobo 3 (rotation + posi) 20 - 29 14 - 1D 8 – 11%
Gobo 4 (fixed) 30 - 39 1E - 27 12 – 15%
Gobo 5 (rotation + posi) 40 - 49 28 - 31 16 – 19%
Gobo 6 (rotation + posi) 50 - 127 32 - 7F 20 – 50%
rotation cw fast – slow 128 - 191 80 - BF 51 – 74%
stop 192 C0 75%
rotation ccw slow – fast 193 - 255 C1 – FF 76-100%
10) Schutter shutter open 0 - 9 0 – 9 0 – 3%
shutter close 1 10 – 19 A – 13 4 – 7%
shutter close 2 20 - 29 14 – 1D 8 – 11%
shutter slow – fast 30 – 99 1E – 63 12 – 38%
shutter close 1 100 – 250 64 – FA 39 – 98%
shutter open 251 - 255 FB - FF 99-100%
11) Gobo 1 stop 0 – 4 0 – 4 0 – 1%
Rotation 1 rotation cw slow – fast 5 – 24 5 – 18 2 – 9%
stop 25 – 29 19 – 1D 10 – 11%
rotation ccw slow – fast 30 – 49 1E – 31 12 – 19%
stop 50 – 54 32 – 36 20 – 21%
gobo position 55 - 255 37 – FF 22-100%
12) Iris Iris 100% - 4% open 0 - 255 0 – FF 0 – 100%
13) Fokus min -. max 0 - 255 0 – A 0 – 100%
14) Gobow. 2 Gobo 1 (open) 0 – 9 0 - 9 0 – 3%
Gobo 2 (rotation) 10 – 19 A - 13 4 – 7%
Gobo 3 (rotation) 20 – 29 14 - 1D 8 – 11%
Gobo 4 (color correction filter) 30 – 39 1E - 27 12 – 15%
Gobo 5 (rotation) 40 – 44 28 – 7B 16 – 17%
Gobo 6 (rotation) 45 – 123 2D – 7B 18 – 49%
rotation cw slow . fast 124 – 191 80 - BF 50 – 74%

GLP •German Light Production (V2.1) 15
Channel Description DMX-Value Hex-Value Value %
stop 192 C0 75%
rotation ccw slow – fast 193 – 255 C1 - FF 76 – 100%
15) Gobo 2 stop 0 – 15 0 - F 0 – 5%
Rotation rotation cw slow – fast 16 – 143 10 - 8F 6 – 55%
stop 144 90 56%
rotation ccw slow – fast 145 –255 91 - FF 57 – 100%
16) Prism open 0 – 9 0 – 9 0 – 3%
prism 1 10 – 19 A – 13 4 – 7%
rot. cw prism 1 slow – fast 20 – 69 14 – 45 8 – 26%
stop 70 46 27%
rot. ccw prism 1 slow – fast 71 – 119 47 – 77 28 – 46%
stop 120 78 47%
Effect (frost filter) 121 - 129 79 – 81 48 – 50%
prism 2 130 – 139 82 – 8B 51 – 54%
rot. cw prism 2 slow – fast 140 – 189 8C – BD 55 – 73%
stop 190 BE 74%
rot. ccw prism 2 slow – fast 191 – 239 BF – EF 75 – 93%
stop 240 – 255 F0 – FF 94 – 100%
17) Dimmer close (0%) 0 – 9 0 – 9 0 – 3%
close – open (0 – 100%) 10 – 249 A – F9 4 – 97%
open (100%) 250 – 255 FA – FF 98 – 100%
Lamp on Shutter (min 2 sec)
dimmer 240 – 245 250 – 255 F0 – F5 FA – FF 94 – 96% 98 – 100%
Lamp on
(from software-
version 2.2, this is
also shown in the
dislpay)
Shutter (min 2 sec)
dimmer 240 – 255 250 – 255 F0 – FF FA – FF 94 – 100% 98 – 100%
Lamp off shutter (min 2sec)
dimmer
iris (max 5sec)
246 – 250
0 – 9
x– 255- 0
F6 – FA
0 – 9
x - FF - 0
97 – 98%
0 – 3%
x– 100 –0%
Lamp off
(from software-version
2.2, this is also shown in
the dislpay)
shutter (min 2sec)
dimmer
iris (max 5sec)
230 – 250
0 – 9
x– 255- 0
E6 – FA
0 – 9
x - FF - 0
90 – 98%
0 – 3%
x– 100 –0%
Relative Movement:
If DMX- Channel Nr.7 (Special) is on DMX- [000] you can control the P PA AT TE EN ND D- -L LI IG GH HT T
1
12 20 00 0in Relative Movement. Therefore the Speed channels No. 5/6 must be also on
DMX- [000] If you have a DMX- Value on one of these channels it is automatically on
A
bsolute Movement. While programming circles or other movements please use the
Absolute Movement.

GLP •German Light Production (V2.1) 16
5 Change the Lamp
For a hassle free change of the Light bulb, it is absolutely necessary to follow all
descriptions in this chapter step by step.
5.1 Safety Rules
•Unplug AC power connection
•Allow to cool (min. 30 minutes)
•Don’t touch lamp with bare fingers.
•Install the lamp with the filler to the right direction. (see Illustration 5-1)
•Distance between lamp and lens holder must bee min. 5mm.
•Close the
P
PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0before you connect the AC power!
Illustration 5-1

GLP •German Light Production (V2.1) 17
5.2 How to change the lamp

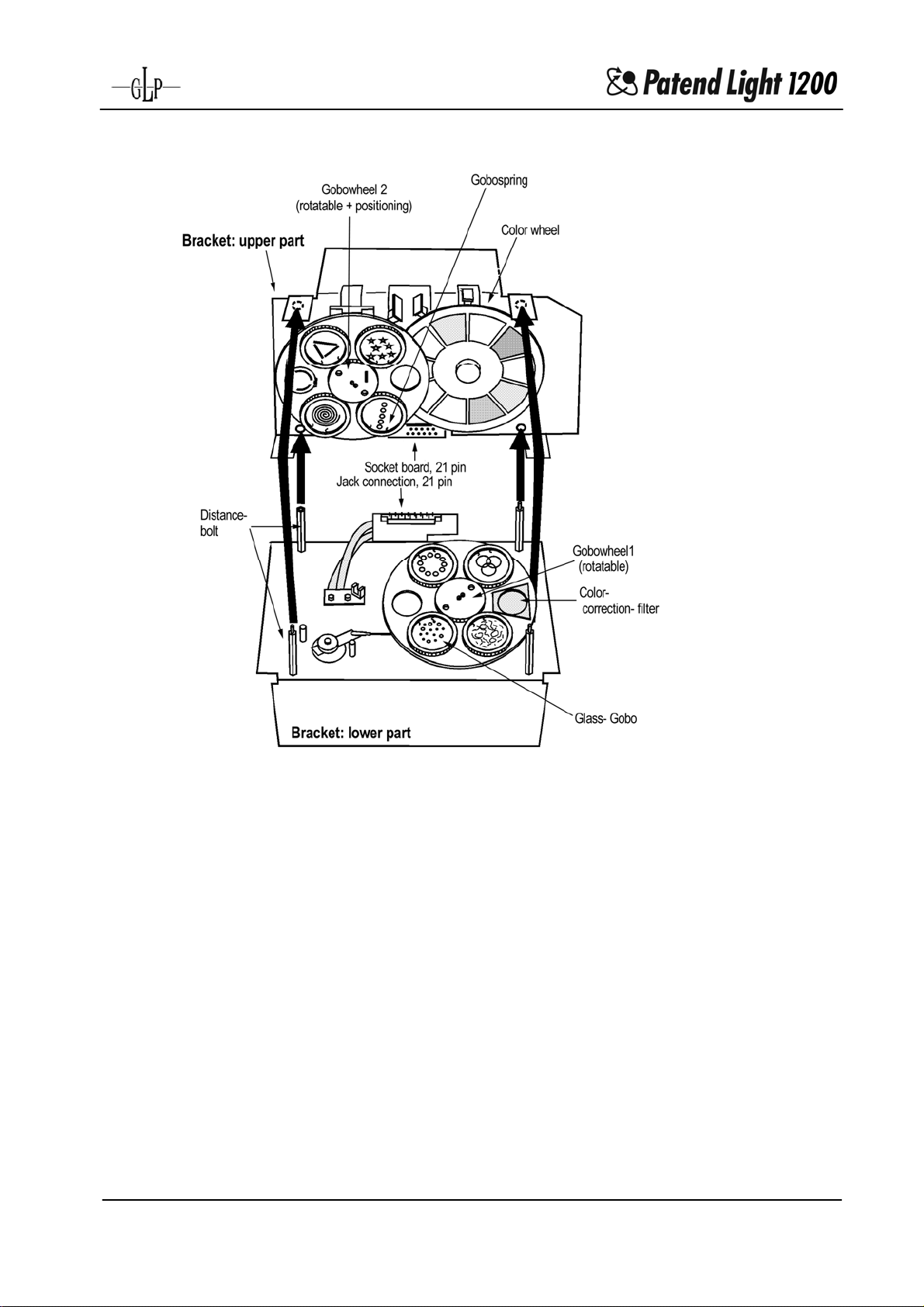

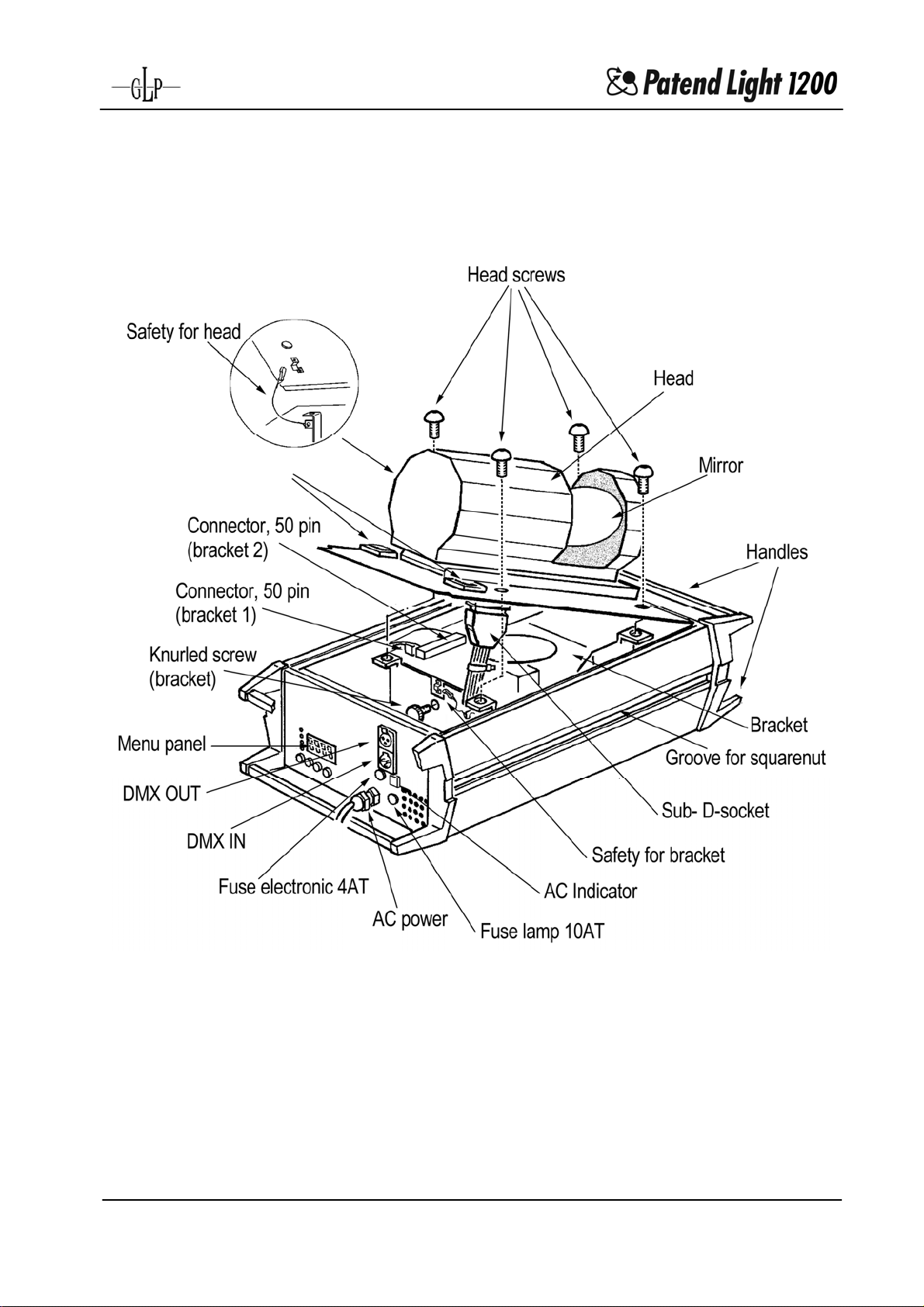

Please look also Illustration 1-1 and 5-1/2.
1. Unscrew screws on the head with 8mm wrench.
2. Press the two safety levers at the same time and lift carefully the head plate.
3. Remove Sub-D socket by pressing the safety clips. Hang out the safety loop
and lift the head plate cautiously.
4. Remove the multiple pin strip 1 and 2.
5. Open the knurled screw of the Optical Slide.
6. Hang out the safety of the Optical Slide in.
7. Take out the Optical Slide in carefully.
8. Unscrew the M4 screw of the optical plate.
9. Open the upper part of the optical device.
10.Unscrew the HMI lamp nuts and change the lamp.
The lamp filler must be placed like in the illustration !!!
11.Close the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0 in reverse order.
Attention: Make sure that the optical slide in fits in both grooves !!!
Illustration 5-2

GLP •German Light Production (V2.1) 18
6 Change the Gobos
The PATEND-LIGHT 1200 is fitted with standard Gobos (37,5 mm, picturesize 27,0
mm). To change one of these it is necessary to open the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0and to
remove the optical system.
6.1 Safety Rules
•Unplug AC power connection
•Allow to cool (over 30 minutes)
•Don’t touch lamp with bare fingers.
•Close the
P
PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0before you connect the AC power!
6.2 How to change the Gobos
Please look also Illustration 1-1 and 6-1.
1. Unscrew screws on the head with 8mm wrench.
2. Press the two safety levers at the same time and lift carefully the head plate.
3. Remove Sub-D socket by pressing the safety clips. Hang out the safety loop
and lift the head plate cautiously.
4. Remove the multiple pin strip 1 and 2.
5. Open the knurled screw of the Optical Screw.
6. Hang out the safety of the Optical Slide in.
7. Take out the Optical Slide in carefully.
8. Unscrew the 4 screws of the Optical Slide in.
9. Put down the upper part of the Optical Slide in head firts.
10.Remove the little claps which holds the Gobos with a little screwdriver.
11.Change the Gobos and mount the claps aback to its position. Please make
sure, that the Gobo fits correct.
12.Close the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0 in reverse order.

GLP •German Light Production (V2.1) 19
Illustration 6-1
Attention: Make sure that the optical slide in fits in both grooves !!!
If you use Glass-Gobos make sure that the mirror side looks towards the lamp
side.

GLP •German Light Production (V2.1) 20
7 Maintenance the PATEND-LIGHT 1200
The cleaning of the inner optical System, color filters, color correction filter and lenses
should be done by qualified person only! Contact your local GLP Dealer for details.
Use no strong detergents, acid etc. for cleaning the case.
7.1 Mirror and Optical System
Clean the P PA AT TE EN ND D- -L LI IG GH HT T 1 12 20 00 0 optical system with a moistened cloth and a little
cleaner.
7.1.1 Cleaning the inside Mirror and the outside Optical System

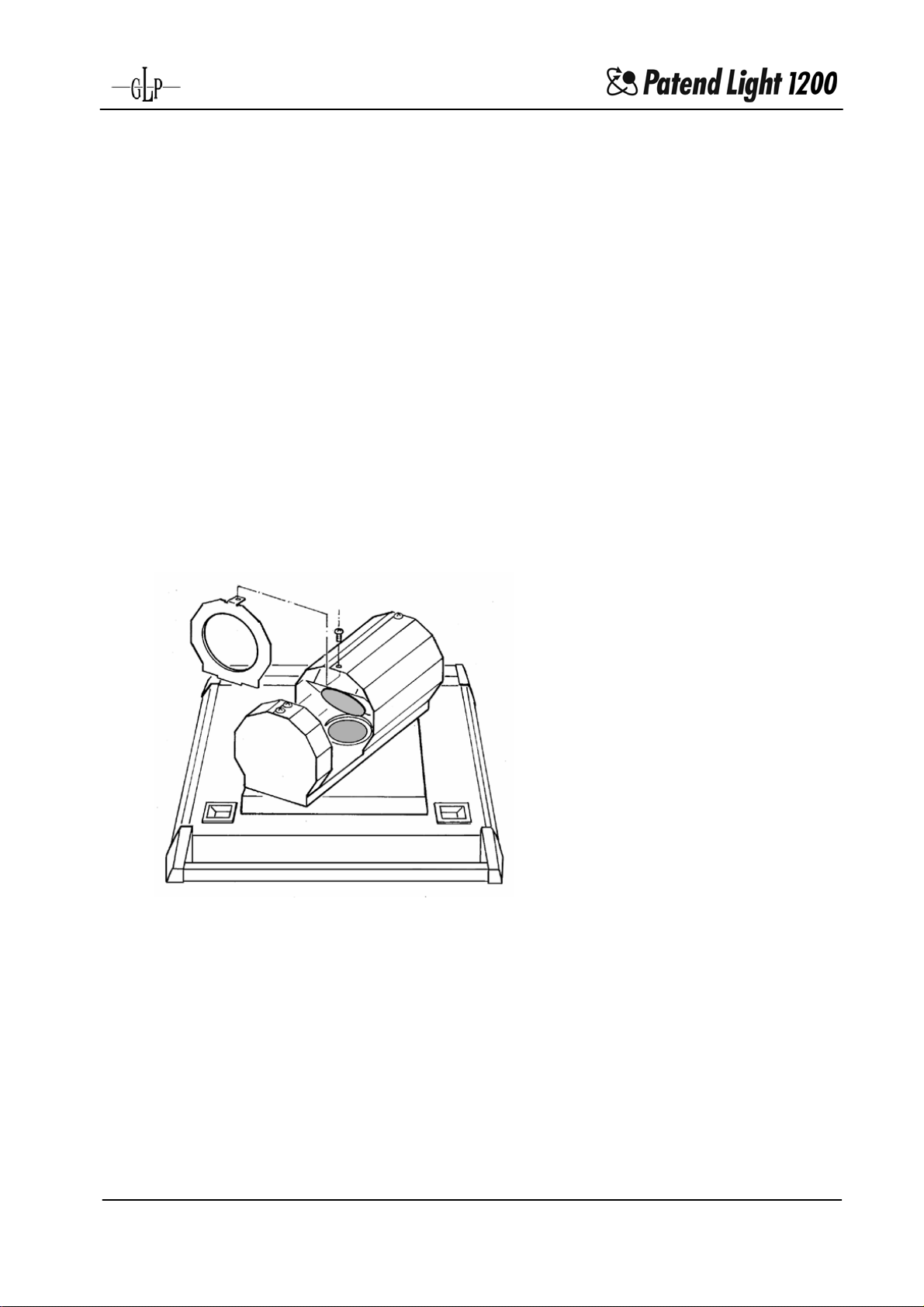

Illustration 7-1
Open the screws
Remove the Mirror Blind
