Stagg PMS8A170 UBTR User manual

2- VOLUME 1: Volume of Microphone / Line inputs
3- VOLUME 2: Volume of line inputs
14- MP3 VOLUME: Volume of USB / SD player, FM radio & Bluetooth
MODE Switch
between
USB / SD FM RADIO BLUETOOTH
Play/Pause Press long for
starting scan
Repeat
Last Previous preset
Next Next preset
1
12
10
9
13
11
14
3
2
4
5
7
6
8
15
16
FUNCTIONS
1- MP3 player / FM RADIO & Bluetooth controls.
By pushing the mode button you can choose to use the USB /SD card player, listen radio or use the
Bluetooth media transfer, or neither. Before being able to use the FM radio you have to do a scan of
all available radio stations, you can do this by pressing the button till the scan starts.
It will take a couple of minutes before the radio has stored all stations. Once fi nished you can choose
your preferred radio station by using and . In Bluetooth mode the display will show a blinking
- - - - - till you make a connection from your smartphone. To do so go into your phone settings, go
into Bluetooth, look into the list of unknown available Bluetooth units for the speaker, connect. Once
connected the display on the speaker will show - - - - - -. Then allow your music player in your
smartphone to connect with Bluetooth. Open the MP3 volume to hear the result.
• This active speaker system must be connected to a mains (AC) outlet to work properly and must be earthed
to operate safely.
• Ensure that correct AC mains voltage and socket - fi tted with a real ground connection - are available
before powering up the unit.
• Check mains power cable and plugs before switching on the equipment. If the mains cable and/or plug are
damaged, replace the whole cable immediately. For your own and other people’s safety, never repair or
modify the mains power cable. Dispose of the defective cable properly for waste and recycling purpose.
• After following the instructions outlined above, if your powered speaker fails to function, please contact your
vendor. Under no circumstances should the cabinet be opened. Leave all servicing to qualifi ed personnel.
• Electrical appliances must never be used in conditions of high humidity or heat. To prevent any risk of fi re
or electric shock, never spill or splash liquids on the amplifi er. Should this happen, unplug the power cable
from the mains outlet and switch off the powered speaker immediately.
• May we draw your attention to the instructions printed on the rear panel of the cabinet.
• Make sure that the cabinet is placed or installed in such way that it can never injure people
• Do not place objects which are sources of heat on the speaker cabinet such as lighting equipment
or smoke machines.
IMPORTANT SAFETY INSTRUCTIONS
READ AND KEEP THESE INSTRUCTIONS. HEED ALL WARNINGS.
WARNING
Exposure to extremely high noise levels may cause permanent hearing damage. Please use this amplifi ed
speaker responsibly for you and your neighbourhood..
CLEANING
Do not attempt to clean the plastic enclosure with solvents or petrochemical based cleaners.
MARKING & CONFORMITY
• The CE mark on this product means it conforms to the EMC Directive (2004/108/CE), CE marking Directive
(93/68/EEC) and Low Voltage Directive (2006/95/EC).
• The “Crossed-out Wheelie Bin” is to draw your attention to the WEEE (Waste Electric & Electronic
Equipment) Directive (2002/96/EC). It means this apparatus must be collected separately for recycling.
• “RoHS compliant” means this device conforms to the (2002/95EC) Directive on the restriction of the use of
certain hazardous substances in electrical and electronic equipment, such as: Mercury, Lead, Cadmium,
Hexavalent Chromium, Polybrominated Buphenyl (PBB) and Polybrominated Diphenyl Ethers (PBDE).
1
12
10
9
13
11
14
3
2
4
5
7
6
8
16
15
!

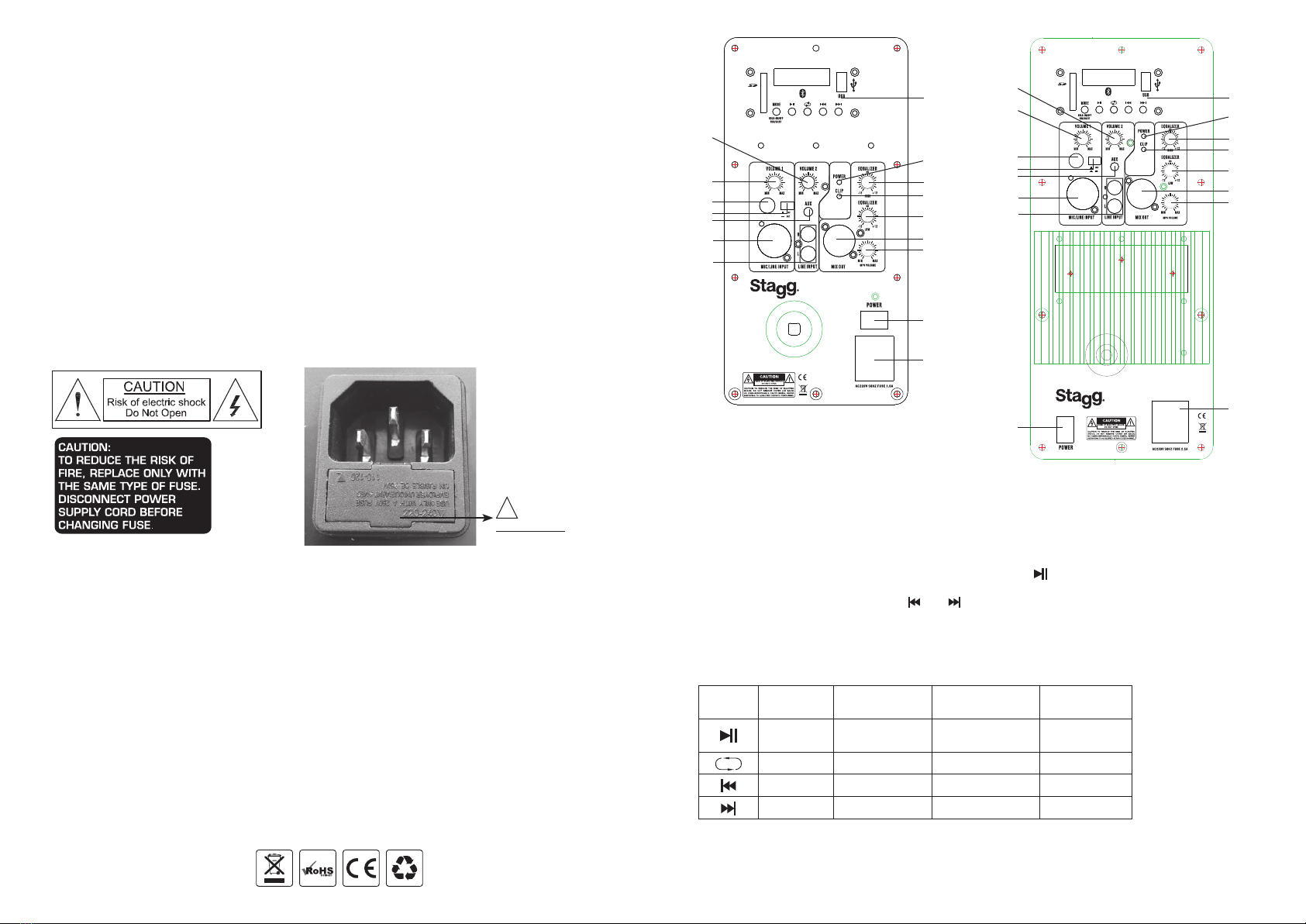

AC VOLTAGE
turn plate if not correct and
change value of fuse
220-240
110 -12 0

User’s manual
MULTI PURPOSE AMPLIFIED
SPEAKER CABINETS
2-WAY, POWERED SPEAKERS
PMS8A170 UBTR & PMS10A170UBTR
EMD Music - 04/2015
MULTI PURPOSE AMPLIFIED
SPEAKER CABINETS
Features and Specifi cations are subject to change without notice.
4- MIC INPUT: ¼” phone jack connector to connect microphone or high impedance sources such as
guitars or keyboards.
5- LINE /MIKE switch: In up position both inputs are line level inputs. In down position they become
Microphone level .
6- MIC INPUT: XLR connector to connect microphone (low impedance balanced)
7- AUX INPUT: 3,5mm mini stereo input jack
8- LINE INPUT: RCA left & right channels input. Allows you to connect an external audio device such
as CD player or Recording device line level .
11- LINE OUT XLR connector to connect an amplifi er or another powered speaker cabinet in series.
Wiring of the 3-pin connector: Pin 1= Shield ; Pin 2 = Positive (Hot); Pin 3 = Negative (Cold).
12- EQUILIZER HIGH: Controls the amount of high frequencies in the output signal. (-12dB to + 12dB)
13- EQUILIZER LOW: Controls the amount of low frequencies in the output signal. (-12dB to + 12dB)
10- CLIP LED: LED warning indicator. This LED comes on when the input signal reaches distortion.
Reduce the input level in order to reduce the distortion.
9- POWER INDICATOR: LED indicator light for when unit is receiving mains power.
15- POWER SWITCH : This switch turns on/off the power
16- AC CONNECTOR & voltage switch: Attention ! The fuse cover plate acts as switch between
110-120V 60Hz and 220-250V 50Hz. The orientation is important! Make sure that your local voltage
corresponds with the voltage indication above the arrow. If not, turn the plate and use the appropriate fuse.
Model PMS8A170 UBTR PMS10A170 UBTR
Description 8″2way plastic active
speaker
10″ 2way plastic active
speaker
Amplifi er system analog, Class A/B analog, Class A/B
Cross over passive passive
Max rated power 85W RMS 85W RMS
170W peak 170W peak
Max SPL 91dB 90dB
Specifi cations: Woofer 8" 30oz 1,5"VC 10" 30oz 1.5"VC
Tweeter 1"Ti.Diap.Driver 8Ω 1"Ti.Diap.Driver 8Ω
Freq Resp 30Hz-20KHz 30Hz-20KHz
Sensitivity 90dB±2dB 90dB±2dB
Impedance 4Ω 4Ω
Special features bluetooth bluetooth
USB/SD (folder MP3 player) USB/SD (folder MP3 player)
remote control remote control
radio FM + presets radio FM + presets
Pole insert diameter 35mm 35mm
Cabinet dim. WxDxH 25x20x38,5cm 31,5x25x49cm
Cabinet weight 6kg 8,5kg
Package WxDxH 29,5x24,5x43,5cm 35,5x29,5x54,5cm
Voltage manual switch 110-120V/
220-240V
manual switch 110-120V/
220-240V
