Stanley PP10 User manual

PP10
HYDRAULIC POST PULLER
SERIOUS INJURY OR DEATH COULD
RESULT FROM THE IMPROPER RE-
PAIR OR SERVICE OF THIS TOOL.
REPAIRS AND / OR SERVICE TO THIS
TOOL MUST ONLY BE DONE BY
AN AUTHORIZED AND CERTIFIED
DEALER.
© 2006, THE STANLEY WORKS, ALL RIGHTS RESERVED
OPS USA
59020 - 5/2006 Ver 3
Safety and Operation
User’s Manual

INDEX
1
SERIOUS INJURY OR DEATH COULD RESULT FROM THE IMPROPER
REPAIR OR SERVICE OF THIS TOOL.
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE
BYAN AUTHORIZED AND CERTIFIED DEALER.
SERVICING THE PP10 POST PULLER: This manual contains safety, operation, service and rou-
tine maintenance instructions. Stanley Hydraulic Tools recommends that servicing of hydraulic
tools, other than routine maintenance, must be performed by an authorized and certified dealer.
Please read the following warning.
Accessories..........................................................................................................................15
Index (this page) ....................................................................................................................1
Hydraulic Hose Requirements ..........................................................................................6 - 7
Hydraulic Requirements.........................................................................................................8
Operation ...............................................................................................................................9
Parts Drawing.......................................................................................................................11
Parts List..............................................................................................................................12
Safety Precautions............................................................................................................2 - 3
Specifications.......................................................................................................................13
Tool Stickers and Tags......................................................................................................4 - 5
Troubleshooting ...................................................................................................................10
Warranty...............................................................................................................................14

Tool operators and maintenance personnel must always comply with the safety precautions given in this
manual and on the stickers and tags attached to the tool and hose.
These safety precautions are given for your safety. Review them carefully before operating the tool and
before performing general maintenance or repairs.
Supervising personnel should develop additional precautions relating to the specific work area and local
safety regulations. If so, place the added precautions in the space provided on page 3.
GENERAL SAFETY PRECAUTIONS
The models PP10 Hydraulic Post Puller will provide safe and dependable service if operated in accor-
dance with the instructions given in this manual. Read and understand this manual and any stickers and
tags attached to the PP10 before operation. Failure to do so could result in personal injury or equipment
damage.
• Operator must start in a work area without bystanders. The operator must be familiar with all prohib-
ited work areas such as excessive slopes and dangerous terrain conditions.
• Establish a training program for all operators to ensure safe operation.
• Do not operate the tool unless thoroughly trained or under the supervision of an instructor.
• Always wear safety equipment such as goggles, ear and head protection, and safety shoes at all times
when operating the tool.
• Do not inspect or clean the tool while the hydraulic power source is connected. Accidental engage-
ment of the tool can cause serious injury.
• Always connect hoses to the tool hose couplers before energizing the hydraulic power source. Be
sure all hose connections are tight.
• Do not operate the tool at oil temperatures above 140°F/60°C. Operation at higher temperatures can
cause higher than normal temperatures at the tool which can result in operator discomfort.
• Do not operate a damaged, improperly adjusted, or incompletely assembled tool.
• Stay clear of all moving parts.
• Never wear loose clothing that can get entangled in the working parts of the tool.
• To avoid personal injury or equipment damage, all tool repair, maintenance and service must only be
performed by authorized and properly trained personnel.
• System pressure hose must always be connected to the tool “IN” or “P” port and system return hose
must be connected to the tool “OUT” or “T” port. Reversing connections or reversing flow to the tool
can
result in severe personal injury.
• Never use tools near energized transmission lines. Know the location of buried or covered services
before starting your work.
SAFETY PRECAUTIONS
2

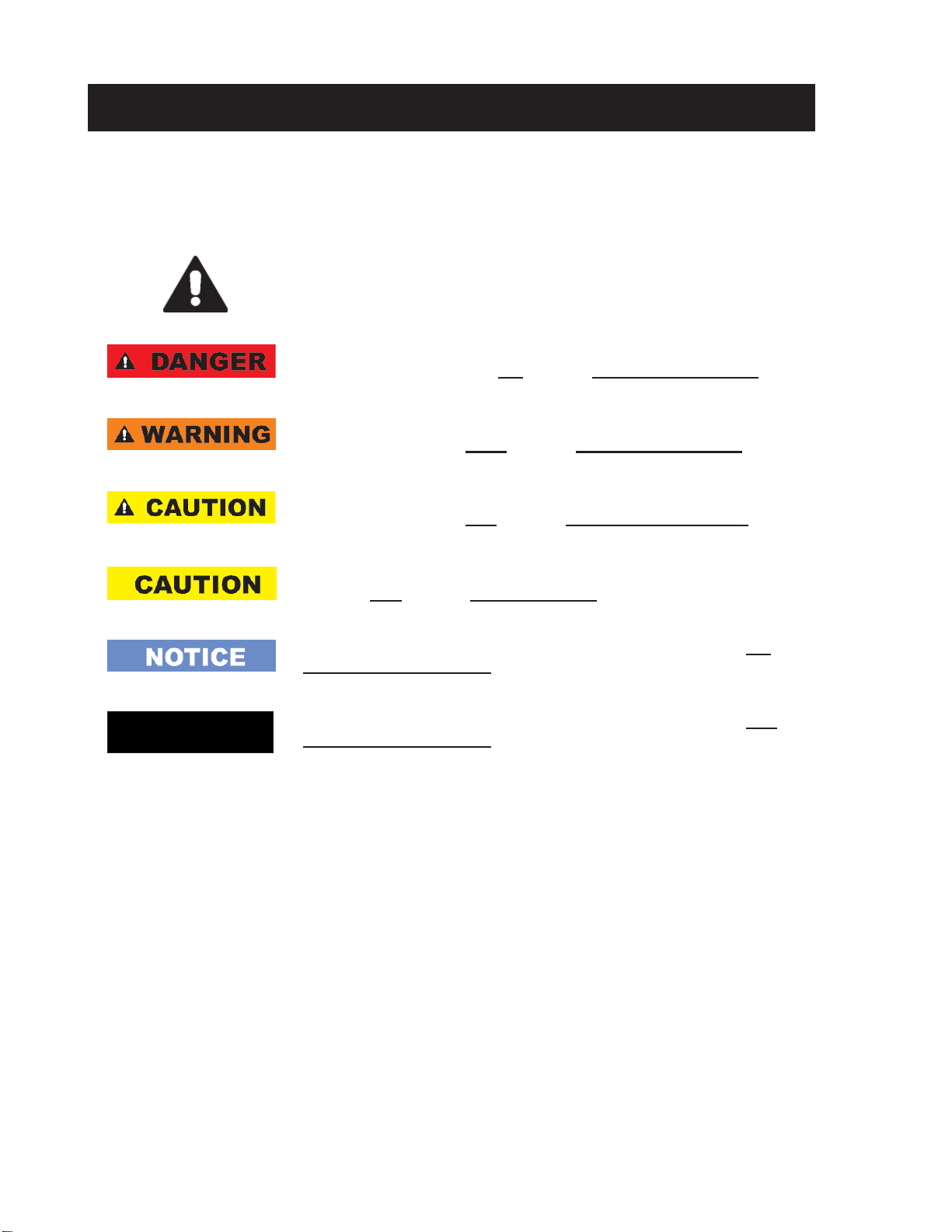

SAFETY SYMBOLS
Safety symbols and signal words, as shown below, are used to emphasize all operator, maintenance and
repair actions which, if not strictly followed, could result in a life-threatening situation, bodily injury or damage
to equipment.
This safety alert and signal word indicate an imminently hazardous situa-
tion which, if not avoided, will result in death or serious injury.
Always observe safety symbols. They are included for your safety and for the protection of the tool.
This is the safety alert symbol. It is used to alert you to potential personal
injury hazards. Obey all safety messages that follow this symbol to avoid
possible injury or death.
This safety alert and signal word indicate a potentially hazardous situation
which, if not avoided, could result in death or serious injury.
This safety alert and signal word indicate a potentially hazardous situation
which, if not avoided, may result in minor or moderate injury.
This signal word indicates a potentially hazardous situation which, if not
avoided, may result in property damage.
This signal word indicates a situation which, if not avoided, will result in
damage to the equipment.
This signal word indicates a situation which, if not avoided, may result in
damage to the equipment.
IMPORTANT
3

4
Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and
maintenance personnel.
The safety related stickers and tags attached to the tool prior to shipment from the factory are shown
below and on the next page. The pressure and flow rates specified must never be exceeded. All stickers
and tags must be read and understood prior to operating the tool. The information listed on these stickers
and tags must be legible at all times. Always replace those that have become worn or damaged. Re-
placements are available from your Stanley distributor.
LOCAL SAFETY REGULATIONS

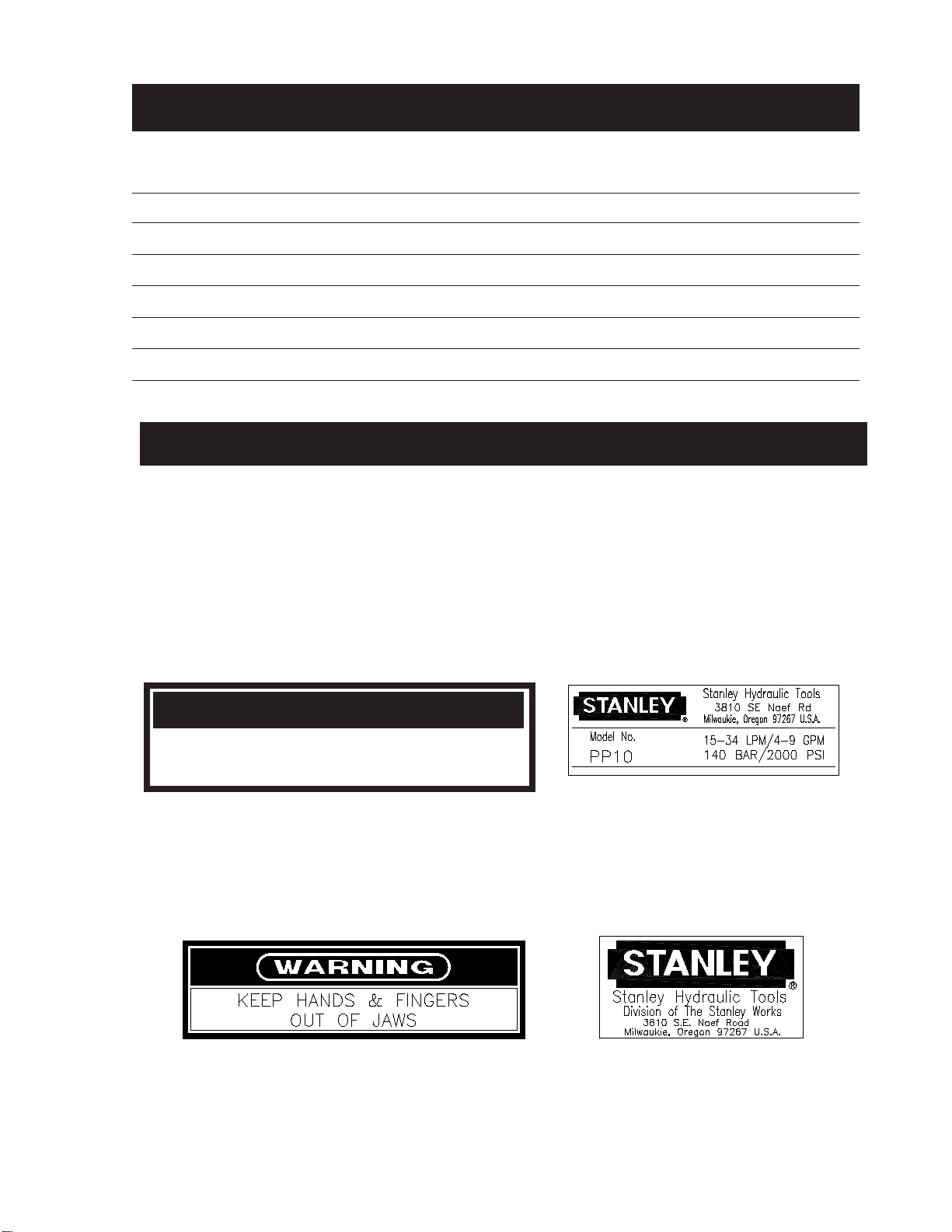

TOOL STICKERS & TAGS
PINCH POINT
STAY CLEAR OF ALL MOVING PARTS
PINCH POINT WARNING STICKER p/n 17572 NAME TAG PP10 p/n 17573
WARNING STICKER p/n 35210 STANLEY STICKER p/n 05152

IMPORTANT
READ OPERATION MANUAL AND
SAFETY INSTRUCTIONS FOR THIS
TOOL BEFORE USING IT.
USE ONLY PARTS AND REPAIR
PROCEDURES APPROVED BY
STANLEY AND DESCRIBED IN THE OPERA-
TION MANUAL.
TAG TO BE REMOVED ONLY BY
TOOL OPERATOR.
SEE OTHER SIDE
1. FAILURETOUSEHYDRAULIC HOSE LABELEDAND CERTIFIED
AS NON-CONDUCTIVE WHEN USING HYDRAULIC TOOLS
ON OR NEAR ELECTRICAL LINES MAY RESULT IN DEATH
OR SERIOUS INJURY.
BEFORE USING HOSE LABELED AND CERTIFIED AS NON-
CONDUCTIVE ON OR NEAR ELECTRIC LINES BE SURE THE
HOSE IS MAINTAINED AS NON-CONDUCTIVE. THE HOSE
SHOULD BE REGULARLY TESTED FOR ELECTRIC CURRENT
LEAKAGE IN ACCORDANCE WITH YOUR SAFETY DEPART-
MENT INSTRUCTIONS.
2. AHYDRAULIC LEAK OR BURST MAY CAUSE OIL INJECTION
INTO THE BODY OR CAUSE OTHER SEVERE PERSONAL
INJURY.
A DO NOT EXCEED SPECIFIED FLOW AND PRESSURE FOR
THIS TOOL. EXCESS FLOW OR PRESSURE MAYCAUSEA
LEAK OR BURST.
B DO NOT EXCEED RATED WORKING PRESSURE OF HY-
DRAU LIC HOSE USED WITH THIS
TOOL. EXCESS PRESSURE MAY
CAUSE A LEAK OR BURST.
C CHECK TOOLHOSE COUPLERSAND CONNECTORS DAILY
FOR LEAKS. DO NOT FEEL FOR LEAKS WITH YOUR
HANDS. CONTACT WITH A LEAK MAY
IMPORTANT
READ OPERATION MANUAL AND
SAFETY INSTRUCTIONS FOR THIS
TOOL BEFORE USING IT.
USE ONLY PARTS AND REPAIR
PROCEDURES APPROVED BY
STANLEY AND DESCRIBED IN THE OPERA-
TION MANUAL.
TAG TO BE REMOVED ONLY BY
TOOL OPERATOR.
SEE OTHER SIDE
D DO NOT LIFT OR CARRY TOOL BY THE HOSES. DO
NOT ABUSE HOSE. DO NOT USE KINKED, TORN OR
DAMAGED HOSE.
3. MAKESUREHYDRAULIC HOSESARE PROPERLYCONNECTED
TO THE TOOL BEFORE PRESSURING SYSTEM. SYSTEM
PRESSURE HOSE MUSTALWAYS BE CONNECTED TO TOOL
“IN” PORT. SYSTEM RETURN HOSE MUST ALWAYS BE
CONNECTED TO TOOL “OUT” PORT. REVERSING CONNEC-
TIONSMAYCAUSEREVERSETOOLOPERATION WHICHCAN
RESULT IN SEVERE PERSONAL INJURY.
4. DO NOT CONNECT OPEN-CENTER TOOLS TO CLOSED-CEN-
TER HYDRAULIC SYSTEMS. THIS MAY RESULT IN LOSS OF
OTHER HYDRAULIC FUNCTIONS POWERED BY THE SAME
SYSTEM AND/OR SEVERE PERSONALINJURY.
5. BYSTANDERS MAY BE INJURED IN YOUR WORKAREA. KEEP
BYSTANDERS CLEAR OF YOUR WORK AREA.
6. WEAR HEARING, EYE, FOOT, HAND AND HEAD PROTEC-
TION.
7. TO AVOID PERSONAL INJURY OR EQUIPMENT DAMAGE, ALL
TOOL REPAIR MAINTENANCEAND SERVICE MUSTONLY BE
PERFORMED BY AUTHORIZED AND PROPERLY TRAINED
PERSONNEL.
SAFETY TAG P/N 15875
5
(shown smaller than actual size)
The safety tag (p/n
15875) at right is attached
to the tool when shipped
from the factory. Read
and understand the safety
instructions listed on this
tag before removal. We
suggest you retain this tag
and attach it to the tool
when not in use.
TOOL STICKERS & TAGS Continued. . .
PINCH POINT WARNING
STICKER p/n 17572 PINCH POINT WARNING STICKER p/n 17572
NAME TAG PP10 p/n 17573
STANLEY STICKER p/n 05152
STANLEY STICKER p/n 05152
WARNING STICKER p/n 35210
GPM/PRESSURE STICKER
p/n 16599
GPM/PRESSURE STICKER
p/n 16599

6
HOSE TYPES
The rated working pressure of the hydraulic hose must be equal to or higher than the relief valve setting on the
hydraulic system.There are three types of hydraulic hose that meet this requirement and are authorized for use
with Stanley Hydraulic Tools. They are:
Certified non-conductive - constructed of thermoplastic or synthetic rubber inner tube, synthetic fiber
braid reinforcement, and weather resistant thermoplastic or synthetic rubber cover. Hose labeled certified non-
conductive is the only hose authorized for use near electrical conductors.
Wire-braided (conductive) - constructed of synthetic rubber inner tube, single or double wire braid rein-
forcement, and weather resistant synthetic rubber cover. This hose is conductive and must never be used near
electrical conductors.
Fabric-braided (not certified or labeled non-conductive) - constucted of thermoplastic or synthetic rubber
inner tube, synthetic fiber braid reinforcement, and weather resistant thermoplastic or synthetic rubber cover. This
hose is not certified non-conductive and must never be used near electrical conductors.
hOSE SAFETY TAGS
To help ensure your safety, the following DANGER tags are attached to all hose purchased from Stanley Hydrau-
lic Tools. DO NOT REMOVE THESE TAGS.
If the information on a tag is illegible because of wear or damage, replace the tag immediately. A new tag may be
obtained from your Stanley Distributor.
THE TAG SHOWN BELOW IS ATTACHED TO “CERTIFIED NON-CONDUCTIVE” HOSE
The tag shown below is attached to “conductive” hose.
TOOL HOSE INFORMATION
SIDE 1 SIDE 2
D A N G E R
DO NOT REMOVE THIS TAG
D A N G E R
1 FAILURE TO USE HYDRAULIC HOSE LABELEDAND CERTIFIED AS NON-CONDUCTIVE
WHEN USING HYDRAULIC TOOLS ON OR NEAR ELECTRIC LINES MAYRESULT IN DEATH
OR SERIOUS INJURY.
FOR PROPER AND SAFE OPERATION MAKE SURE THAT YOU HAVE BEEN PROPERLY
TRAINED IN CORRECT PROCEDURES REQUIRED FOR WORK ON ORAROUND
ELECTRIC LINES.
2. BEFORE USING HYDRAULIC HOSE LABELED AND CERTIFIEDAS NON-CONDUCTIVE ON
OR NEAR ELECTRIC LINES. WIPE THE ENTIRE LENGTH OF THE HOSEAND FITTING
WITH ACLEAN DRY ABSORBENT CLOTHTO REMOVE DIRTAND MOSISTURE AND TEST
HOSE FOR MAXIMUM ALLOWABLE CURRENT LEAKAGE IN ACCORDANCE WITH SAFETY
DEPARTMENT INSTRUCTIONS.
DO NOT REMOVE THIS TAG
3. DO NOT EXCEED HOSE WORKING PRESSURE OR ABUSE HOSE. IMPROPER USE OR
HANDLING OF HOSE COULD RESULT IN BURST OR OTHER HOSE FAILURE. KEEP
HOSE AS FAR AWAY AS POSSIBLE FROM BODYAND DO NOT PERMIT DIRECT CONTACT
DURING USE. CONTACTAT THE BURSTCAN CAUSE BODILY INJECTION AND SEVERE
PERSONAL INJURY.
4. HANDLE AND ROUTE HOSE CAREFULLY TOAVOID KINKING, ABRASION, CUTTING, OR
CONTACT WITH HIGH TEMPERATURE SURFACES. DO NOT USE IF KINKED. DO NOT USE
HOSE TO PULLOR LIFT TOOLS, POWER UNITS, ETC.
5. CHECK ENTIRE HOSE FOR CUTS CRACKS LEAKS ABRASIONS, BULGES, OR DAMAGE TO
COUPLINGS IF ANYOF THESE CONDITIONS EXIST, REPLACE THE HOSE IMMEDIATELY.
NEVER USE TAPE ORANY DEVICE TOATTEMPT TO MEND THE HOSE.
6. AFTER EACH USE STORE INACLEAN DRYAREA.
3(shown smaller than actual size)
(shown smaller than actual size)
D A N G E R
DO NOT REMOVE THIS TAG
D A N G E R
1 DO NOT USE THIS HYDRAULIC HOSE ON OR NEAR ELECTRIC LINES. THIS HOSE IS
NOT LABELED OR CERTIFIEDAS NON-CONDUCTIVE. USING THIS HOSE ON OR NEAR
ELECTRICAL LINES MAY RESULT IN DEATH OR SERIOUS INJURY.
2. FOR PROPER AND SAFE OPERATION MAKE SURE THAT YOU HAVE BEEN PROPERLY
TRAINED IN CORRECT PROCEDURES REQUIRED FOR WORK ON ORAROUND
ELECTRIC LINES.
3. DO NOT EXCEED HOSE WORKING PRESSURE OR ABUSE HOSE. IMPROPER USE OR
HANDLING OF HOSE COULD RESULT IN BURST OR OTHER HOSE FAILURE. KEEP
HOSE AS FAR AWAY AS POSSIBLE FROM BODYAND DO NOT PERMIT DIRECT CONTACT
DURING USE. CONTACTAT THE BURSTCAN CAUSE BODILY INJECTION AND SEVERE
PERSONAL INJURY.
4. HANDLE AND ROUTE HOSE CAREFULLY TOAVOID KINKING, CUTTING, OR CONTACT
WITH HIGH TEMPERATURE SURFACES. DO NOT USE IF KINKED. DO NOT USE HOSE TO
PULL OR LIFTTOOLS, POWER UNITS, ETC.
DO NOT REMOVE THIS TAG
5. CHECK ENTIRE HOSE FOR CUTS CRACKS LEAKS ABRASIONS, BULGES, OR DAMAGE TO
COUPLINGS IF ANYOF THESE CONDITIONS EXIST, REPLACE THE HOSE IMMEDIATELY.
NEVER USE TAPE OR ANY DEVICETOATTEMPT TO MENDTHE HOSE.
6. AFTER EACH USE STORE INACLEAN DRYAREA.
SEE OTHER SIDE
SIDE 1 SIDE 2

Oil Flow Each Hose Length Inside Diameter USE Wire Braid
Hose Spec Working Pressure Fiber Braid
Hose Spec Operating Pressure
GPM LPM FEET METERS INCH MM PSI BAR PSI BAR
5-8 19-30 up to 50 up to 15 1/2 13 Both SAE 100R17-8 3000 230 SAE 100R7-8 2000 140 5-8 19-30 51-100 15-30 5/8 16 Both SAE 100R17-10 3000 230 SAE 100R8-10 2750 190 5-8 19-30 100-300 30-90 5/8 16 Pressure SAE 100R2-10 2750 190 SAE 100R8-10 2750 190
3/4 19 Return SAE 100R1-12 1250 86 SAE 100R7-12 1250 86
9-12 34-45 up to 50 up to 15 5/8 16 Both SAE 100R17-10 3000 230 SAE 100R8-10 2750 190 9-12 34-45 51-100 15-30 5/8 16 Pressure SAE 100R2-10 2750 190 SAE 100R8-10 2750 190
3/4 19 Return SAE 100R1-16 1000 69 SAE 100R7-12 1250 86
9-12 34-45 100-200 30-60 3/4 19 Pressure SAE 100R17-12 3000 230 NA NA NA
1 25.4 Return SAE 100R1-16 1000 69 NA NA NA
13-16 49-60 up to 25 up to 8 5/8 16 Pressure SAE 100R2-10 2750 190 SAE 100R8-10 2750 190
3/4 19 Return SAE 100R1-12 1250 86 SAE 100R7-12 1250 86
13-16 49-60 26-100 8-30 3/4 19 Pressure SAE 100R17-12 3000 230 NA NA NA
1 25.4 Return SAE 100R1-16 1000 69 NA NA NA
Typical Hose Connections
Tool To Circuit Hose Recommendations
HYDRAULIC CIRCUIT
CONTROL PANEL
FLOW>>>
TOOL
RETURN
PRESSURE
<<<FLOW
H.T.M.A. FEMALE QUICK DISCONNECT COUPLER
H.T.M.A. MALE QUICK DISCONNECT COUPLER
MALE PIPE HOSE END
PRESSURE RETURN
MALE PIPE HOSE END
ADAPTER OR HOSE WHIPS, 3/8 INCH MALE PIPE x -8 SAE O-RING
PRESSURE
RETURN
NOTE: SAE 100R16 may be used in place of SAE100R2
7

HYDRAULIC REQUIREMENTS
ambient temperature.
• The hydraulic system should have a minimum
of 25 micron filtration. Recommend using filter
elements sized for a flow of at least 30 gpm/114
lpm for cold temperature startup and maximum dirt
holding capacity.
• The hydraulic fluid used should have a viscosity
between 100 and 400 ssu/20 and 82 centistokes
at the maximum and minimum expected operat-
ing temperatures. Petroleum base hydraulic fluids
with antiwear properties and a viscosity index over
140 ssu/28 centistokes will meet the recommended
requirements over a wide range of operating tem-
peratures.
• The recommended hose size is .500 inch/12 mm
I.D. up to 50 ft/15 m long and .625 inch/16 mm I.D.
minimum up to 100 ft/30 m long.
Failure to use hydraulic hose labeled and
certified as non-conductive when using
hydraulic tools on or near electric lines may
result in death or serious injury.
Make sure that you have been properly
trained in correct procedures required for
work on or around electric lines.
• Quick disconnect couplings must conform to
NFPA T3.20,15/HTMA specifications.
IMPORTANT
• Do not exceed the rated limits or use the tool for
applications beyond its design capacity.
• Always keep critical tool markings, such as labels
and warning stickers legible.
• Always replace hoses, couplings and other parts
with replacement parts recommended by Stanley
Hydraulic Tools. Supply hoses must have a mini-
mum working pressure rating of 2500 psi/175 bar.
• Permit only experienced personnel to perform
tool repair.
• Be sure to wipe all couplers clean before con-
necting. Use only lint-free cloths.
• The hydraulic circuit control valve must be in
the “OFF” position when coupling or uncoupling
the tool. Failure to do so may result in damage to
the quick couplers and cause overheating of the
hydraulic system.
• Check fastener tightness often and before each
use daily.
8
In addition to the Safety Precau-
tions on pages 2 thru 5 of this
manual, observe the following
for equipment protection and
care.
HYDRAULIC SYSTEM
REQUIREMENTS
• The hydraulic system should provide a flow of
3-9 gpm/11-34 lpm at an operating pressure of
1000-2000 psi/70-140 bar. Recommended relief
valve setting is 2100-2250 psi/145-155 bar.
• The system should have no more than 250
psi/17 bar backpressure measured at the tool end
of the operating hoses.
• The hydraulic system should have enough heat
rejection capacity to limit the maximum oil tem-
perature to 140°F/60°C at the maximum expected

PREOPERATION
PROCEDURES
 CHECK HYDRAULIC POWER
SOURCE
1. Using a calibrated flowmeter and pressure
gauge, check that the hydraulic power source de-
velops a flow of 3-9 gpm/11-34 lpm at 2000
psi/140 bar.
2. Make certain the hydraulic power source is
equipped with a relief valve set to open at 2100-
2250 psi/145-155 bar minimum.
 CHECK TOOL
1. There should be no signs of leaks.
2. The tool should be clean, with all fittings and
fasteners tight.
 CONNECT HOSES
1. Wipe all hose couplers with a clean lint-free
cloth before making connections.
2. Connect the hoses from the hydraulic power
source to the tool fittings or quick disconnects. It
is a good practice to connect the return hose first
and disconnect it last to minimize or avoid trapped
pressure within the tool.
3. Observe flow indicators stamped on hose cou-
plers to be sure that oil will flow in the proper direc-
tion. The female coupler is the inlet coupler.
NOTE: The pressure increase in uncoupled
hoses left in the sun may result in making them
9
 PREPARATION FOR INITIAL
USE
Each unit as shipped has no special unpacking or
assembly requirements prior to usage. Inspection
to assure the unit was not damaged in shipping
and does not contain packing debris is all that is
required.
OPERATION
difficult to connect. When possible, connect
the free ends of operating hoses together.
4. Observe all safety precautions.
5. Move the hydraulic circuit control valve to the
“ON” position to operate the tool.
1. Observe all safety precautions.
2. For flanged posts, position the base weldment
on a flat surface with the post engaged in the jaws
of the tool.
3. For solid or square posts, position the base
weldment on a flat surface and wrap a chain
around the post. Place the chain in the slots on the
post puller frame.
4. Actuate the control lever from the “NEUTRAL”
position to the “UP” position until the post raises
approximately eight inches.
5. Move the control lever from the “UP” position
past the “NEUTRAL” position to the “DOWN” posi-
tion. This releases the jaws (or chain) from the post
and lowers the lift frame weldment down to the
base weldment (bottom of post).
6. Repeat steps one through five until the post is
fully removed.
If the post puller is to be used during cold weather,
preheat the hydraulic fluid at low engine speed.
When using the normally recommended fluids,
fluid temperature should be at or above 50 °F/10°C
(400 ssu/82 centistokes) before use.
Damage to the hydraulic system or post puller can
result from use with fluid that is too viscous or thick.
TOOL OPERATION
COLD WEATHER
OPERATION

TROUBLESHOOTING
If symptoms of poor performance develop, the fol-
lowing chart can be used as a guide to correct the
problem.
When diagnosing faults in operation of the Post
Puller, always check that the hydraulic power
source is supplying the correct hydraulic flow and
pressure to the post puller as listed in the table.
Use a flowmeter known to be accurate. Check
the flow with the hydraulic oil temperature at least
80°F/27°C.
10
Post Puller does not run. Power unit not functioning. Check power unit for proper flow and
pressure (3-9 gpm/11-34 lpm, 2000
psi/140 bar).
Coupler or hoses blocked. Remove restriction.
Mechanical failure of lift cylinder Disassemble post puller and inspect
assembly. for damaged parts.
Post Puller does not pull. Power unit not functioning. Check power unit for proper pressure
effectively. (2000 psi/140 bar).
Couplers or hoses blocked. Remove restriction.
Post Puller operates slow. Low gpm supply from power unit Check power source for proper flow
(3-9 gpm/11-34 lpm).
Couplers or hoses blocked. Remove restriction.
Relief valve set too low. Adjust relief valve to 2100-2250 psi
/145-155 bar.
Post Puller gets hot. Hot fluid going through tool. Check power unit. Make sure the flow
rate is not too high causing part of the
fluid to go through the relief valve.
Provide cooler to maintain proper
fluid temperature (140°F/60°C max).
Check relief valve setting.
Eliminate flow control devices.
PROBLEM POSSIBLE CAUSE SOLUTION

11

PR41 PARTS LIST
1 17533 1 T-bar
2 04985 2 Spring Washer
3 17553 2 Shoulder Screw, 3/4 x 3/4 Hex
Socket Head
4 00166 1 Retaining Ring, 1.850 Heavy
Duty (Internal)
5 17526 1 Seal Retainer
6 03127 1 Rod Wiper 
7 09642 1 Washer
8 09647 1 Rod Seal 
9 09790 2 O-ring, 2-1/4 x 2-1/2 x 1/8 
10 17546 1 Piston Rod
11 17536 1 Cylinder
12 17552 1 Piston
13 17554 2 Wear Ring 
14 04984 1 Elastic Stop Nut, 3/4-16 Hex
15 17550 1Lift Frame Weldment
16 371500 8 Elastic Stop Nut, 1/2-13 Hex
17 01751 2 O-ring 3/8 x 9/16 x 3/32 
18 06736 4 Capscrew, 5/16-18 x 2-1/4 Hex
Head
19 01752 1 Adapter Fitting
20 35518 1 Valve Assembly
21 18514 1 Guard Weldment
22 17556 2 Elbow
23 17557 1 Elbow, 45°-3/8 NPT M-6 Tube
24 17558 1 Hose Assembly
25 17537 4 Tie Rod
26 17538 1 Base Weldment
27 01532 1 Elbow, 90°-6 SAE/-6 Tube
28 17545 1 Cylinder Base
29 17549 1 Cylinder Bearing
30 17544 1 Adapter Block
31 17529 1 Chain Assy (Accessory Item)
32 17559 2 Washer, 7/8 Narrow Type B
33 17534 2 Modified Capscrew
34 17540 2 Shoulder Screw
35 17543 1 Jaw, R.H. (Model PP10100)
33452 1 Jaw, R.H. (Model PP10100A)
36 17542 1 Jaw, L.H. (Model PP10100)
33453 1 Jaw, L.H. (Model PP10100A)
37 17541 1 Pivot Block
38 00569 2 Capscrew, 5/16-18 x 1 Hex Hd
39 03031 2 Lockwasher, 5/16
40 16599 1 GPM Sticker
41 05152 2 Stanley Sticker
42 17572 2 Pinch Point Warning Sticker
43 17573 1 Name Tag
44 19220 1 TFE Ring 
45 19221 1 O-ring 
35213 2 Swivel, Hydraulic Inc.#956P6-P6
(Used on Model PP10100A only)
35149 1 Post (Model PP10100Aonly)
35212 1 Hitch PinAssy (Model
PP10100A only)
24069 1 Coupler set (Model PP10100A
only)
35210 1 Warning Decal (Both Models)
Item Part Qty Description
No No SEAL KIT 19219
 Denotes part in seal kit
NOTE: Use Part Number and Part Name
when ordering.
12
The Following Items Are Not Pictured

13
SPECIFICATIONS
Capacity (Lift per Stroke)...............................................................................................................8 in./20
cm
Pulling Force........................................................................................................................9800 lbs/4450
kg
Weight..........................................................................................................................................62 lbs/28
kg
Flow Range ....................................................................................................................3-9 gpm/ 11-34 lpm
Pressure Range...................................................................................................................2000 psi/140
bar
Porting..............................................................................................................3/8 NPT Female Pipe
Thread
Connect Size ................................................................................................................90° Elbow 3/8
ACCESSORIES
17529 Chain Assy
Note
Weights, dimensions, and operating specifications listed
are subject to change without notice. Where specifications
are critical to your application, please consult the factory.

14
