Star Lake SR10-SCH User manual

User’s Manual
Revision Date: SEP.20, 2016
SR10-SCH
MIL-STD Rugged Computer
User’s Manual

SR10-SCH User’s Manual
Revision Date: SEP.20, 2016
1
Safety Information
Electrical safety
To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the
system.
When adding or removing devices to or from the system, ensure that the power cables for the devices are
unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing
system before you add a device.
Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.
Seek professional assistance before using an adapter or extension cord. These devices could interrupt the
grounding circuit.
Make sure that your power supply is set to the correct voltage in your area.
If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your local
distributor.
Operation safety
Before installing the motherboard and adding devices on it, carefully read all the manuals that came with the
package.
Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If
you detect any damage, contact your dealer immediately.
To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become
wet.
Place the product on a stable surface.
If you encounter any technical problems with the product, contact your local distributor
Statement
All rights reserved. No part of this publication may be reproduced in any form or by any means, without prior
written permission from the publisher.
All trademarks are the properties of the respective owners.
All product specifications are subject to change without prior notice

SR10-SCH User’s Manual
Revision Date: SEP.20, 2016
2
Specifications
System
CPU
Socket LGA 1151 for Intel® Core i7/i5/i3/Celeron® (Supports up to 65W) Intel®
Core™i7-9700TE (8C x 3.8 GHz), 12MB Cache
Memory type
2 x SO-DIMM DDR4 2400/2666 MHz up to 64GB
Chipset
Intel® Q370 Chipset
Display
Display Port
Resolution up to 4096 x 2304 60@Hz
Storage
M.2
Up to 1TB
Ethernet
Ethernet
Intel® I210 & I219LM GbE LAN (10/100/1000 Mbps supported )
2 x 100Base-FX port supported
Ethernet
Intel® I210 & I219LM GbE LAN (10/100/1000 Mbps supported )
2 x 100Base-FX port supported
Rear I/O
Display Port
1 x DP, resolution up to 4096 x 2304
Ethernet
2 x RJ45, 2 x 100Base-FX port
Audio
2 x 3.5mm Audio Jacks (1 x MIC, 1 x Line-Out)
USB
4 x USB 3.0
DC-IN
2
Button
1 x Power Button w/Indicator LED
COM
8 x 232/422/485 variable
Power Requiremen
Power Input
67.2V~143V DC-in
Applications, Operating System
Applications
Energy/Smart Grid/Power Plant Management, Intelligent Automation and
manufacturing applications
Operating System
Windows 10 64Bit ,Windows server 2012 r2, Windows server 2016
Ubuntu13.04, Ubuntu13.10, Ubuntu14.04, Fedora20

SR10-SCH User’s Manual
Revision Date: SEP.20, 2016
3
Physical
Dimension
450 x 482 x 44 mm (W x D x H)
Weight
TBC
Chassis
SECC
Heatsink
Aluminum Alloy, Corrosion Resistant
Finish
Anodic aluminum oxide
Environmental
Compliance
MIL-STD-810G, IEC-61850-3, IEEE-1613, CE and FCC, RoHS
Operating Temp.
-20 to 60°C
Storage Temp.
-40 to 85°C
Relative Humidity
5% to 95%, non-condensing

SR10-SCH User’s Manual
Revision Date: SEP.20, 2016
4
Revision History
Packing list
Accessories Kit
Ordering information

SR10-SCH User’s Manual
Revision Date: SEP.20, 2016
5
Table of contents
Safety Information .........................................................................................................................1
Specifications.................................................................................................................................2
Revision History .............................................................................................................................4
Packing list.....................................................................................................................................4
Accessories Kit ...............................................................................................................................4
Ordering information .....................................................................................................................4
Table of contents............................................................................................................................5
Chapter 1: Product Introduction .....................................................................................................7
1.1 Key Features................................................................................................................7
1.2 Front Panel Components .............................................................................................9
1.3 Back Panel Components ..............................................................................................9
1.4 Mechanical Dimensions.............................................................................................10
Chapter 2: Jumpers and Connectors Locations ..............................................................................11
2.1 Front Panel Connector Pin Definitions..............................................................................11
2.2 Rear Panel Connector Pin Definitions...............................................................................13
2.3 Internal Connector and Jumper Setting............................................................................15
Chapter 3: AMI BIOS UTILITY ........................................................................................................17
3.1 Starting...........................................................................................................................17
3.2 Navigation Keys...............................................................................................................17
3.3 Main Menu.....................................................................................................................18
3.4 Advanced Menu..............................................................................................................19
3.4.1 PCI Subsystem Settings .........................................................................................20
3.4.2 ACPI Settings ........................................................................................................22
3.4.3 CPU configuration.................................................................................................23
3.4.4 SATA Configuration ...............................................................................................28
3.4.5 Intel Rapid Start Technology..................................................................................31
3.4.6 PCH-FW Configuration ..........................................................................................31
3.4.7 Intel Anti-Theft Technology Configuration..............................................................32
3.4.8 AMT Configuration ...............................................................................................33
3.4.9 USB Configuration.................................................................................................35
3.4.10 IT8786 Super IO Configuration ............................................................................36
3.4.11 IT8786 HW Monitor............................................................................................38
3.4.12 Serial Port Console Redirection ...........................................................................38

SR10-SCH User’s Manual
Revision Date: SEP.20, 2016
6
3.4.13 Network Stack ....................................................................................................39
3.5 Chipset ...........................................................................................................................40
3.5.1 PCH IO configuration.............................................................................................41
3.5.2 System AGENT SA .................................................................................................51
3.6 Boot ...............................................................................................................................53
3.7 Security ..........................................................................................................................55
3.8 Save and Exit...................................................................................................................56

SR10-SCH User’s Manual
Revision Date: SEP.20, 2016
7
Chapter 1: Product Introduction
1.1 Key Features

SR10-SCH User’s Manual
Revision Date: SEP.20, 2016
8

SR10-SCH User’s Manual
Revision Date: SEP.20, 2016
9
1.2 Front Panel Components
1.3 Back Panel Components

SR10-SCH User’s Manual
Revision Date: SEP.20, 2016
10
1.4 Mechanical Dimensions

SR10-SCH User’s Manual
Revision Date: SEP.20, 2016
11
Chapter 2: Jumpers and Connectors Locations
This chapter describes the jumpers and connectors on the systems’ motherboard.

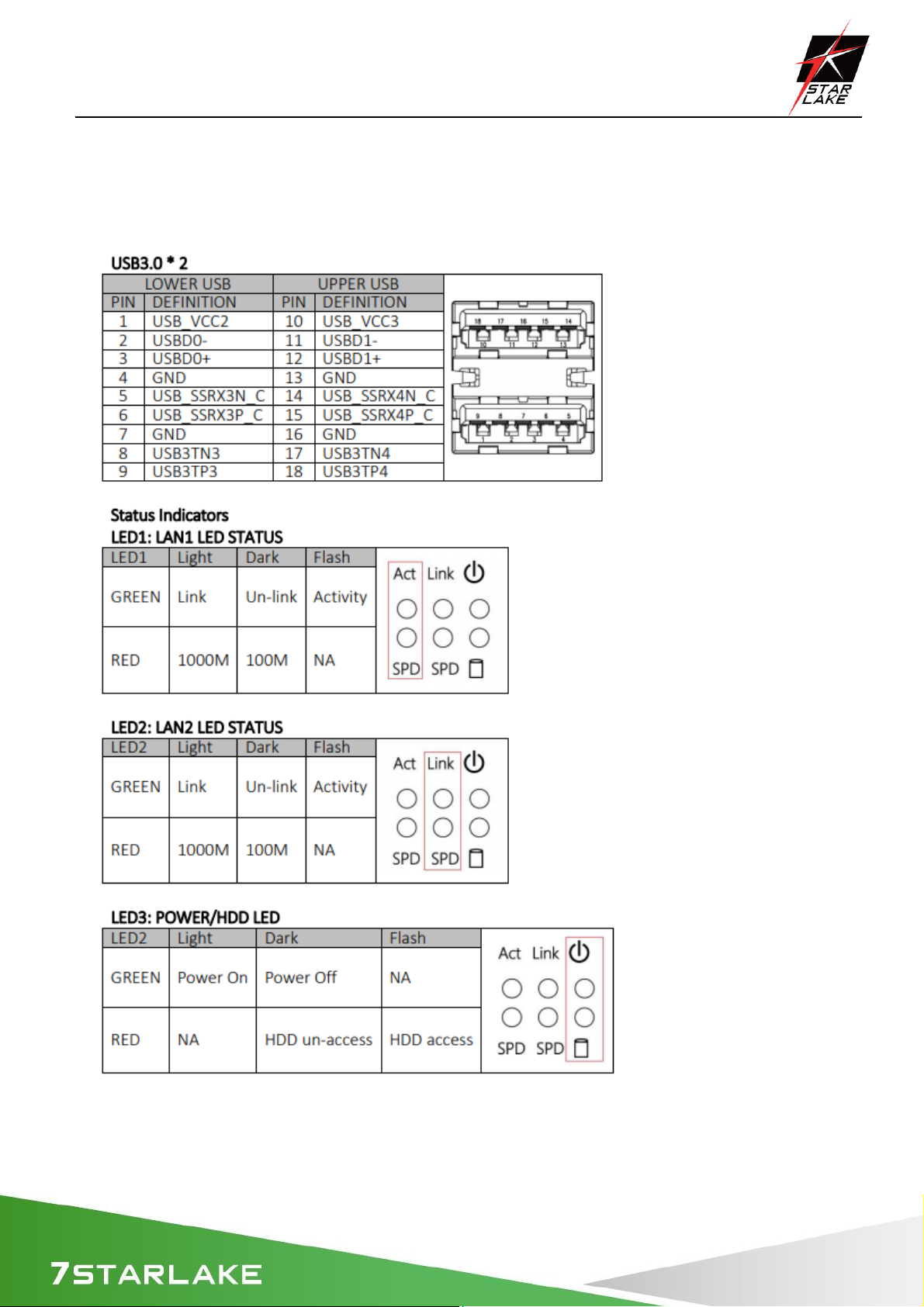

2.1 Front Panel Connector Pin Definitions

SR10-SCH User’s Manual
Revision Date: SEP.20, 2016
12

SR10-SCH User’s Manual
Revision Date: SEP.20, 2016
13
2.2 Rear Panel Connector Pin Definitions

SR10-SCH User’s Manual
Revision Date: SEP.20, 2016
14

SR10-SCH User’s Manual
Revision Date: SEP.20, 2016
15
2.3 Internal Connector and Jumper Setting

SR10-SCH User’s Manual
Revision Date: SEP.20, 2016
16

SR10-SCH User’s Manual
Revision Date: SEP.20, 2016
17
Chapter 3: AMI BIOS UTILITY
This chapter provides users with detailed descriptions on how to set up a basic system configuration
through the AMI BIOS setup utility.
3.1 Starting
3.2 Navigation Keys

SR10-SCH User’s Manual
Revision Date: SEP.20, 2016
18
3.3 Main Menu

SR10-SCH User’s Manual
Revision Date: SEP.20, 2016
19
3.4 Advanced Menu
