INTRODUCTION
This manual describes the LC-4511,4521 dot matrix printer.
Itisdesignedforuseasareferenceforperiodicinspectionsandmaintenanceprocedurestobeexecutedby
servicepersonnel.Itisnotintendedforthegeneraluser.Usersofthismanualshouldhaveabasicknowledge
and understanding of the English language.
•This manual is divided into the following sections:
Chapter 1 General Specifications
Chapter 2 Theory of Operation
Chapter 3 Adjustments
Chapter 4 Parts Replacement
Chapter 5 Maintenance and Lubrication
Chapter 6 Troubleshooting
Chapter 7 Parts List
•First edition : Mar. 1996
Second edition : Aug. 1997
1
2
3
4
5
6
7

CHAPTER 1
GENERAL SPECIFICATIONS
1. General Specifications..........................................................................................3
2. External Appearance and Composition ..............................................................6
3. Control Panel .........................................................................................................8
3-1. Switch Combination Functions ............................................................................. 8
3-2. EDS Mode Settings................................................................................................. 9
4. Parallel Interface..................................................................................................10
4-1. General Specifications ......................................................................................... 10
4-2. Connector Signals ................................................................................................ 10
5. Serial Interface (optional) ...................................................................................11
5-1. General Specifications ......................................................................................... 11
5-2. Connector Signal and Functional Descriptions (SPC-8K, IS-8H192)............... 12
5-3. DIP Switch Settings (SPC-8K, IS-8H192) ............................................................ 12
6. EE-PROM mode ...................................................................................................13
6-1. Outline ................................................................................................................... 13
6-2. Explanation of special control codes ................................................................. 13
6-3. EE-PROM MAP ...................................................................................................... 14
6-4. Rewriting the EE-PROM ....................................................................................... 17
1

– 3 –
GENERAL SPECIFICATIONS
1. General Specifications
Printing System Serial Impact Dot-Matrix
Printing Speed Pitch Draft (cps/dpi) LQ (cps/dpi)
LC-4521 Pica (10 cpi) 300/120H (Normal) 100/360H
400/80H (HS)
Elite (12 cpi) 360/120H 120/360H
Semi-condensed(15 cpi(S)) 450/120H 150/360H
Semi-condensed(15 cpi(I)) 225/240H 150/360H
Condensed pica (17 cpi) 255/240H 170/360H
Condensed elite (20 cpi) 300/240H 198/360H
24cpi (I) 360/240H 238/360H
LC-4511 Pica (10 cpi) 225/120H 75/360H
Elite (12 cpi) 270/120H 90/360H
Semi-condensed(15 cpi(S)) 337/120H 112/360H
Semi-condensed(15 cpi(I)) 168/240H 1112/360H
Condensed pica (17 cpi) 191/240H 127/360H
Condensed elite (20 cpi) 225/240H 149/360H
24cpi (I) 270/240H 178/360H
H: half-dot
(S) : Standard mode only
(I) : IBM mode only
Print Direction Draft: Bi-directional logic seeking
LQ: Bi-directional logic seeking
Bit-Image: Uni-directional/ bi-directional logic seeking (selectable)
Print Head Number of pins: 24
Life: 200 million dots/pin (Normal Mode)
100 million dots/pin (Multi-Part Mode)
Line Spacing 1/6”, 1/8”,7/60”,n/180”,n/360”
7/72”, n/72”, n/216” : software
Character Matrix Pitch Draft LQ
LC-4521 Pica (10 cpi) 24 ×9H (Normal) 24 ×31H
24 ×7H (HS)
Elite (12 cpi) 24 ×9H 24 ×27H
Semi-condensed(15 cpi(S)) 16 ×7H 16 ×21H
Semi-condensed(15 cpi(I)) 24 ×9H 24 ×16H
Condensed pica (17 cpi) 24 ×9H 24 ×16H
Condensed pica (20 cpi) 24 ×9H 24 ×16H
24cpi (I) 24 ×9H 24 ×14H
LC-4511 Pica (10 cpi) 24 ×9H 24 ×31H
Elite (12 cpi) 24 ×9H 24 ×27H
Semi-condensed(15 cpi(S)) 16 ×7H 16 ×21H
Semi-condensed(15 cpi(I)) 24 ×9H 24 ×16H
Condensed pica (17 cpi) 24 ×9H 24 ×16H
Condensed elite (20 cpi) 24 ×9H 24 ×16H
24cpi (I) 24 ×9H 24 ×14H

– 4 –
GENERAL SPECIFICATIONS
H: half-dot
(S) : Standard mode only
(I) : IBM mode only
Environment Operating temperature: 41°F to 95°F (5°C to 35°C)
Storage temperature: –22°F to 149°F (–30°C to 65°C)
Operating humidity: 30% to 80% (non-condensing)
Storage humidity: 20% to 90% (non-condensing)
Paper Cut-sheet (manual feeding)
Paper width: 7” to 16.54” / 178 to 420 mm
Paper length: 5.5” to 14” / 140 to 356 mm
Paper thickness: 0.00276” to 0.00472” / 0.07 to 0.12 mm
Paper weight: 14 to 24 lbs. / 52 to 90 g/m2/ 45 to 77 kg
Cut-sheet (with optional automatic sheet feeder)
Paper size: B5, A4, LT, B4, A3, Legal
Paper thickness: 0.00315” to 0.00472” / 0.08 to 0.12 mm
Paper weight: 16 to 24 lbs. / 60 to 90 g/m2/ 52 to 77 kg
Hopper: 50 sheets of 64 g/m2
30 sheets of 80 g/m2
Stacker: 10 sheets
Fanfold (with push tractor feeder)
Paper width: 4” to 16.5” / 101.6 to 419 mm
Paper thickness: 0.00276” to 0.00433” / 0.07 to 0.11 mm (one-ply)
0.01378”/0.35 mm maximum (total thickness of multi-ply
paper, non-carbon)
Paper weight: 14 to 22 lbs. / 52 to 82 g/m2/ 45 to 70 kg (one-ply)
11 to 14 lbs. / 40 to 52 g/m2/ 34 to 45 kg (multi-ply)
Copies: Original + 1 or 2 (Normal Mode)
Original + 3 or 4 (Multi-Part Mode)
* Multi-Part Mode is recommended when using optional
pull tractor unit.
Fanfold (with optional pull tractor feeder)
Paper width: 4” to 16.0” / 101.6 to 406 mm
Paper thickness: 0.00276” to 0.00433” / 0.07 to 0.11 mm (one-ply)
0.01378”/0.35 mm maximum (total thickness of multi-ply
paper, non-carbon)
Paper weight: 14 to 22 lbs. / 52 to 82 g/m2/ 45 to 70 kg (one-ply)
11 to 14 lbs. / 40 to 52 g/m2/ 34 to 45 kg (multi-ply)
Copies: Original + 1 or 2 (Normal Mode)
Original + 3 or 4 (Multi-Part Mode)
Labels
Backing sheet: 4.5” to 16.5” / 114 to 419 mm
Thickness
Backing sheet: 0.00268” to 0.0035” / 0.07 to 0.09mm
Total: 0.0075” / 0.19mm max.

– 5 –
GENERAL SPECIFICATIONS
Emulation Standard Mode: EPSON ESC/P (24-pin)
NEC Graphic compatible
IBM Mode: Proprinter XL24E
Interface Standard: Centronics parallel
Option: RS-232C/RS-422 serial
Ribbon Type On-carriage, dedicated
Monochrome (Y24WH), Black only
Ribbon Life 2.5 million characters (Draft 10 cpi)
Power Supply 120V AC +10%/–17%, 230V AC +14%/–13%; 50/60Hz
(depending on country of purchase)
Power Consumption
LC-4521 14W during standby / 63W during ASCII draft printing
LC-4511 9W during standby / 45W during ASCII draft printing
Options PT-15HA Pull Tractor Unit
SF-15HA Single-Bin Automatic Sheet Feeder
IS-8H192 Serial Interface Unit
IS-32H768 Serial Interface Unit
SPC-8K Serial-To-Parallel Converter
Fig. 1-1 External dimensions
Weight : 19.2lbs/8.7kg
590mm
23.2"
355mm
13.9"
186mm
7.3"

– 6 –
GENERAL SPECIFICATIONS
2. External Appearance and Composition

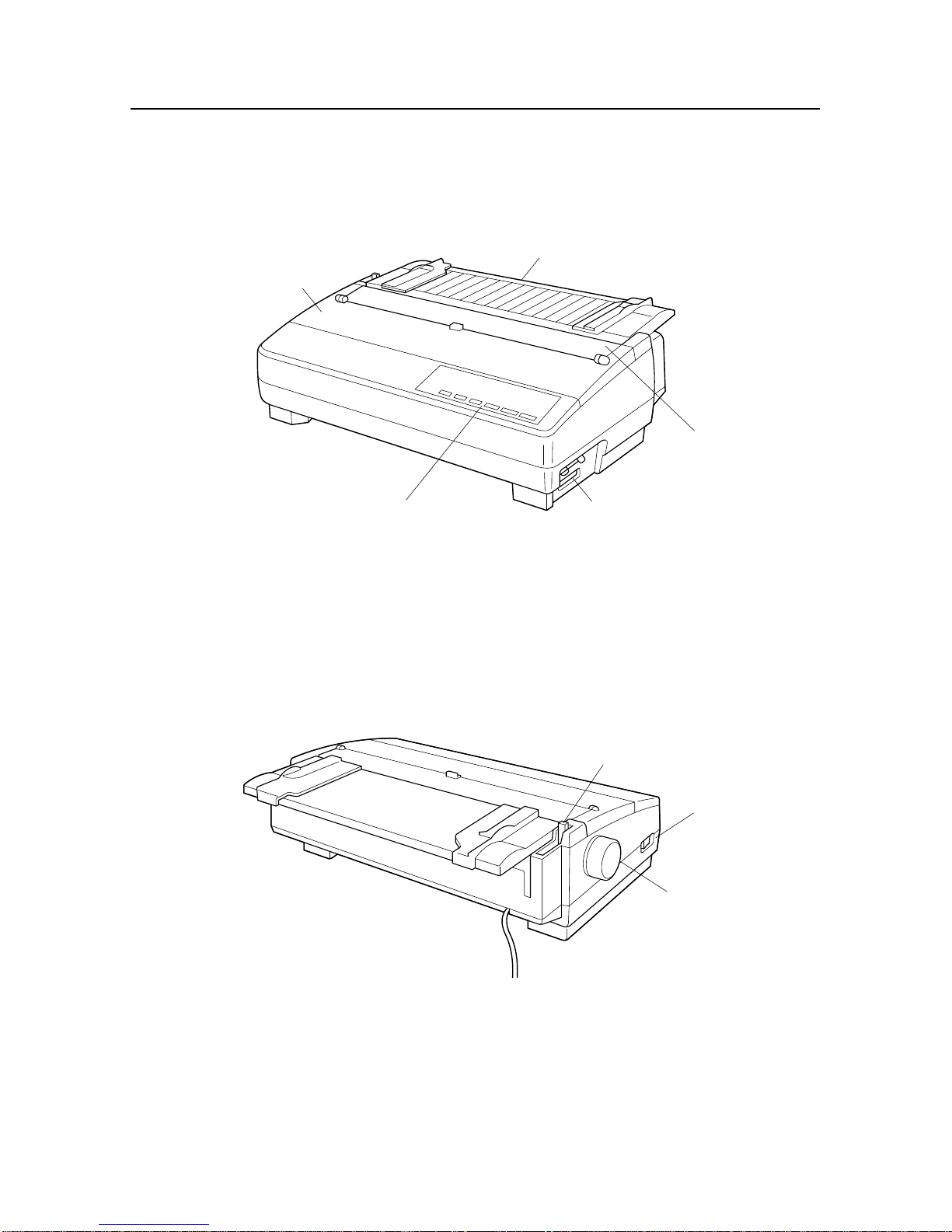

Fig. 1-3 Rear view of the Printer
Fig. 1-2 Front view of the Printer
Paper guide
Front cover
Interface connector
Control panel
Mute cover
Release lever
Power switch
Platen knob

– 7 –
GENERAL SPECIFICATIONS
Fig. 1-4 Front cover removed
Fig. 1-5 Diagram of internal layout

– 8 –
GENERAL SPECIFICATIONS
3. Control Panel
3-1. Switch Combination Functions
BANK
HS-DRAFT/DRAFT
A1
B2
COURIER
FONT
BANK
C3
ROMAN
SANSERIF
ORATOR
PRESTIGE
10 CPI
SW 12 CPI
COND
E5
PROP
D4
F6
POWER
SWITCH
PITCH
ON/OFF
FORM FEED
STATUS PRINT
LINE FEED
EXIT
SET/EJECT
PARK ON LINE
MICRO FEED
EDS
Font & Pitch Lock
EDS Mode
On-LineLine FeedForm FeedPitch Selection Set/Eject/ParkFont Selection
Off-LineTear off (Short)Tear off (Long)Quiet Mode
Forward
Panel Macro
Set TOF
Buffer Clear & All Reset OFF-LINE
Exit
PrintSwitch StatusBank
POWER-ON
Exit
NextRightLeft
EDS MODE
DOT-ADJUSTMENT MODE
Short TestLong TestMulti-part ModeFont Lock
ON-LINE
Hex Dump ModePitch Lock
Dot-Adjustment Mode
On/Off
Micro FeedBack ward
Auto Loading Position Change Mode
Factory settings
Cancel
ForwardPaper Loading Back ward
Save
Set
AUTO LOADING POSITION CHANGE MODE
Aging Mode
Dot-Adjustment Print Mode
EE-PROM Data Initialize
15 CPI

– 9 –
GENERAL SPECIFICATIONS
3-2. EDS Mode Settings
Bank Switch Function ON OFF
A 1 Emulation STANDARD / EPSON IBM
2 Character Table (CT) Standard / EPSON mode Graphics Italics
IBM mode IBM #2 IBM #1
3 RAM Usage Input Buffer Download Buffer
4 Auto Sheet Feeder Not installed Installed
5 Paper Out Enabled Disabled
6 Multi-Part Mode Disabled Enabled
B 1 Graphics Direction Bi-directional Uni-directional
2 Tear-off Disabled Enabled
3 Line Spacing 1/6" 1/8"
4 Auto LF with CR Disabled Enabled
5 Zero Style Normal Slashed
6 Strobe Timing Normal Reverse
C 1, 2 Print Mode
LQ ON ON
Draft OFF ON
HS-Draft ON OFF
3,4,5 Print Pitch
10cpi ON ON ON Proportional OFF ON OFF
12cpi OFF ON ON
15cpi ON OFF ON
17cpi OFF OFF ON
20cpi ON ON OFF
6 Quiet Disabled Enabled
D 1,2,3,4 Page Length
11"/Letter ON ON ON ON 14"/Legal OFF ON OFF ON
8" OFF ON ON ON 10.5"/Executive ON OFF OFF ON
11.7"/A4 ON OFF ON ON 7.25"/Executive OFF OFF OFF ON
12" OFF OFF ON ON 3.5" ON ON ON OFF
8.5"/Letter ON ON OFF ON 5.5" OFF ON ON OFF
5 CR Centering Position Long Short
E 1,2,3,4,5 IBM Code Page (CT=Graphics, IBM #1, #2)
#437 ON ON ON ON ON #3844 ON OFF ON OFF ON
#850 OFF ON ON ON ON #3845 OFF OFF ON OFF ON
#860 ON OFF ON ON ON #3846 ON ON OFF OFF ON
#861 OFF OFF ON ON ON #3847 OFF ON OFF OFF ON
#863 ON ON OFF ON ON #3848 ON OFF OFF OFF ON
#865 OFF ON OFF ON ON #852 OFF OFF OFF OFF ON
#866 ON OFF OFF ON ON #737 ON ON ON ON OFF
#3840 OFF OFF OFF ON ON #851 OFF ON ON ON OFF
#3841 ON ON ON OFF ON #869 ON OFF ON ON OFF
#3843 OFF ON ON OFF ON #928 OFF OFF ON ON OFF
International Character Set (CT=Italics)
U.S.A. ON ON ON ON ON Japan ON ON ON OFF ON
France OFF ON ON ON ON Norway OFF ON ON OFF ON
Germany ON OFF ON ON ON Denmark-2 ON OFF ON OFF ON
England OFF OFF ON ON ON Spain-2 OFF OFF ON OFF ON
Denmark-1 ON ON OFF ON ON Latin America ON ON OFF OFF ON
Sweden OFF ON OFF ON ON Korea OFF ON OFF OFF ON
Italy ON OFF OFF ON ON Ireland ON OFF OFF OFF ON
Spain-1 OFF OFF OFF ON ON Legal OFF OFF OFF OFF ON
F 1, 2, 3, 4, 5 NLQ Font Selection
Roman ON ON ON ON ON
Sanserif OFF ON ON ON ON
Courier ON OFF ON ON ON
Prestige OFF OFF ON ON ON
Orator OFF OFF OFF ON ON
Option
Script ON ON OFF ON ON Cinema ON OFF OFF OFF ON
OCR-B OFF ON OFF ON ON Code 39 OFF OFF OFF OFF ON
OCR-A ON OFF OFF ON ON UPC/EAN ON ON ON ON OFF
Orator-2 ON ON ON OFF ON Old-Stile OFF ON ON ON OFF
TW-Light OFF ON ON OFF ON Firenze ON OFF ON ON OFF
L-Gothic ON OFF ON OFF ON Arabic Naskh OFF OFF ON ON OFF
Blippo OFF OFF ON OFF ON Arabic Koufi ON ON OFF ON OFF
H-Gothic ON ON OFF OFF ON
Arabic Naskh-Eilani OFF ON OFF ON OFF
Orane OFF ON OFF OFF ON

– 10 –
GENERAL SPECIFICATIONS
4. Parallel Interface
4-1. General Specifications
Item Specifications
Interface Centronics-compatible
Synchronization System Via externally supplied STROBE pulse
I/F Protocol Using ACK and BUSY signals
Logic Level Compatible with TTL level
These signals represent information for the 1st through 8th bit of
paralleldata, respectively. Eachsignalis HIGH when dataislogical 1,
and LOW when logical 0.
Fig. 1-6 Timing Charts for Parallel Interface
4-2. Connector Signals
Pin Name Function
1 STROBE Goes low for ≥0.5µs when active.
2 DATA0
3 DATA1
4 DATA2
5 DATA3
6 DATA4
7 DATA5
8 DATA6
9 DATA7
10 ACK 10µs low to acknowledge receipt of data.
11 BUSY Printer sets line low when ready to receive data.
12 PAPER High when paper runs out.
13 SELECT High when printer is on-line.
14 AFXT Printer ignores this signal.
15 Not used.
16 SIGNAL GND Signal ground
17 CHASSIS Chassis ground (isolated from signal ground)
18 +5V +5V DC output from printer
19~30 GND Twisted pair ground return
31 RESET Printer is reset when this signal goes low.
32 ERROR Low when printing cannot continue due to error.
33 EXT GND External ground
34~35 Not used
36 SELECT IN Printer ignores this signal.
ACK
Data
STROBE
(EDS B-6 : ON)
STROBE
(EDS B-6 : OFF)
BUSY
5µs
t : More than 0.5µs
5µs
tttt

– 11 –
GENERAL SPECIFICATIONS
5. Serial Interface (optional)
When using the serial interface, the optional Serial-Parallel Converter must be connected to the printer.
5-1. General Specifications
(SPC-8K)
Interface RS-232C-level
Synchronization Asynchronous
Baud rate 150, 300, 600, 1200, 2400, 4800, 9600, 19200 BPS (selectable)
Word length
Start bit 1
Data bits 7 or 8 (selectable)
Parity bit Odd, even, none (selectable)
Stop bits One or more
Signal polarity
Mark Logical 1 (-3V to -15V)
Space Logical 0 (+3V to +15V)
Handshaking DTR, XON/XOFF, ETX/ACK
Data buffer 8 kbytes (standard)
(IS-8H192)
Interface RS-232C-level only
Synchronization Asynchronous
Baud rate 150, 300, 600, 1200, 2400, 4800, 9600, 19200 BPS (selectable)
Word length
Start bit 1
Data bits 7 or 8 (selectable)
Parity bit Odd, even, none (selectable)
Stop bits One or more
Signal polarity
Mark Logical 1 (–3V to –15V)
Space Logical 0 (+3V to +15V)
Handshaking DTR, XON/XOFF, ETX/ACK
Data buffer 8 kbytes (standard)
(IS-32H768)
RS-232C Interface
Synchronization Asynchronous
Baud rate 150, 300, 600, 1200, 2400, 4800, 9600, 19200 BPS (selectable)
Word length
Start bit 1
Data bits 7 or 8 (selectable)
Parity bit Odd, even, none (selectable)
Stop bits One or more
Signal polarity
Mark Logical 1 (–3V to –15V)
Space Logical 0 (+3V to +15V)
Handshaking DTR, XON/XOFF, ETX/ACK
Data buffer 32 kbytes (standard)
RS-422A Interface
Synchronization Asynchronous
Baud rate 150, 300, 600, 1200, 2400, 4800, 9600, 19200 , 38400, 76800 BPS (selectable)
Word length
Start bit 1
Data bits 7 or 8 (selectable)
Parity bit Odd, even, none (selectable)
Stop bits One or more
Signal polarity
Mark Logical 1 (A is –0.2 V or less than B)
Space Logical 0 (A is +0.2 V or more than B)
Handshaking DTR, XON/XOFF, ETX/ACK
Data buffer 32 kbytes (standard)

– 12 –
GENERAL SPECIFICATIONS
5-2. Connector Signal and Functional Descriptions (SPC-8K, IS-8H192)
Pin No. Signal name Direction Function
1 GND —
2 TXD OUT
3 RXD IN
4 RTS OUT
5 CTS —
6NC
7 GND —
8~10 NC
11 RCH OUT
12~19 NC
20 DTR OUT
21~25 NC
5-3. DIP Switch Settings (SPC-8K, IS-8H192)
Switch ON OFF
1 8 data bits 7 data bits
2 No parity Parity checked
3
4
5 Odd parity Even parity
6
7 Data transfer rate – see table below
8
All switches are set to ON before the printer leaves the factory.
Protocol Switch 3 Switch 4
DTR mode ON ON
XON/XOFF mode ON OFF
ETX/ACK mode OFF ON
Baud rate Switch 6 Switch 7 Switch 8
150 OFF OFF OFF
300 OFF OFF ON
600 OFF ON OFF
1200 OFF ON ON
2400 ON OFF OFF
4800 ON OFF ON
9600 ON ON OFF
19200 ON ON ON
Handshaking protocols – see table below
Printer chassis ground.
This pin carries data from the printer.
This pin carries data to the printer.
Always space.
This signal is space when the computer is ready to send data.
The printer does not check this pin.
Unused.
Signal ground.
Unused.
The printer sets this signal to space when it is ready to receive data.
This line carries the same signal as pin 20.
Unused.
The printer sets this signal to space when it is ready to receive data.
Unused.

– 13 –
GENERAL SPECIFICATIONS
6. EE-PROM mode
6-1. Outline
Thesesettings can be changed in the EE-PROM mode by writing data directly to the EE-PROM on the main logic board:
Setting EE-PROM mode
• Send <ESC><SUB>(09)H command.
Canceling EE-PROM mode
• Initialize the printer by sending <ESC>@
6-2. Explanation of special control codes
<ESC>@ Exits printer from EE-PROM mode and initializes the printer.
<ESC>M@ Returns all data in the EE-PROM to the factory settings. After the buffer is cleared, the buzzer sounds. If
the printer is powered off before the buzzer sounds, all data in the buffer is not cleared.
If all data is not cleared from the buffer, operation is not guaranteed. Be sure to allow the buzzer
to sound before you turn the printer off!
<ESC>MWn Code Function Address Capacity
<ESC>MW0 <data> Stores data into entire area of EE-PROM. 00H-7FH 128bytes
<ESC>MW1nm Stores data (m) into the address (n) nH 1 byte
<ESC>MW2<data> Stores auto-start software data into 40H-5EH 30bytes
EE-PROM. 5FH-7DH 30bytes
• The data (m) used in the commands above are stored in the specified address in order (n).
• When the data to be stored exceeds the specified capacity, subsequent data are ignored.
• Data are stored in the EE-PROM according to the memory map. (See section 3. EDS mode setting and
6-3. EE-PROM Map.)
• After all data are stored, a beep indicates the completion of storage.
• If the printer is powered off during data storage, data stored before power off are valid, but subsequent
operation of the printer is not guaranteed.
Do not power off the printer while data is being stored!
<ESC>MR Dumps all data in the EE-PROM to a hard copy.
For an example of using these control codes, see section 6-4. For the corresponding EE-PROM addresses, see the
EE-PROM memory map in section 3-2. EDS mode setting and 6-3 EE-PROM Map.

– 14 –
GENERAL SPECIFICATIONS
Address Function Factory data
00H EDS setting FFH
Bit Function 1 0
b0 Emulation STANDARD/EPSON IBM
Character Table
b1 Standard / EPSON mode Graphics Italics
IBM mode IBM #2 IBM #1
b2 RAM Usage Input Buffer Download Buffer
b3 Auto Sheet Feeder Not installed Installed
b4 Paper out Detector Enabled Disabled
b5 Multi-Part Mode Disabled Enabled
01H EDS setting FFH
Bit Function 1 0
b0 Graphics Direction Bi-directional Uni-directional
b1 Tear-off Disabled Enabled
b2 Line Spacing 1/6" 1/8"
b3 Auto LF with CR Disabled Enabled
b4 Zero Style Normal Slashed
b5 Strobe Timing Normal Reverse
02H EDS setting FFH
Print Mode Function b2 b3 b4
Function b0 b1 10cpi 1 1 1
LQ 1 1 12cpi 0 1 1
Draft 0 1 15cpi 1 0 1
HS-Draft 1 0 17cpi 0 0 1
20cpi 1 1 0
Proportional 0 1 0
Bit Function 1 0
b5 Quiet Disabled Enabled
03H EDS setting FFH
Page Length
Function b0 b1 b2 b3 Function b0 b1 b2 b3
11"/Letter 1111 14"/Legal 0 1 0 1
8" 0111 10.5"/Executive 1 0 0 1
11.7"/A4 1011 7.25"/Executive 0 0 0 1
12" 0011 3.5" 1 1 1 0
8.5"/Letter 1101 5.5" 0 1 1 0
Bit Function 1 0
b4 CR Centering Position Long Short
6-3. EE-PROM MAP
Print Pitch

– 15 –
GENERAL SPECIFICATIONS
04H EDS setting FFH
IBM Code Page (Character Table=Graphics, IBM#1, #2)
Function b0 b1 b2 b3 b4 Function b0 b1 b2 b3 b4
#437 1 1 1 1 1 #3844 1 0 1 0 1
#850 0 1 1 1 1 #3845 0 0 1 0 1
#860 1 0 1 1 1 #3846 1 1 0 0 1
#861 0 0 1 1 1 #3847 0 1 0 0 1
#863 1 1 0 1 1 #3848 1 0 0 0 1
#865 0 1 0 1 1 #852 0 0 0 0 1
#866 1 0 0 1 1 #737 1 1 1 1 0
#3840 0 0 0 1 1 #851 0 1 1 1 0
#3841 1 1 1 0 1 #869 1 0 1 1 0
#3843 0 1 1 0 1 #928 0 0 1 1 0
International Character Set (Character Table=Italics)
Function b0 b1 b2 b3 b4 Function b0 b1 b2 b3 b4
U.S.A. 1 1 1 1 1 Japan 1 1 1 0 1
France 0 1 1 1 1 Norway 0 1 1 0 1
Germany 1 0 1 1 1 Denmark-2 1 0 1 0 1
England 0 0 1 1 1 Spain-2 0 0 1 0 1
Denmark-1 1 1 0 1 1 Latin America 11001
Sweden 0 1 0 1 1 Korea 0 1 0 0 1
Italy 1 0 0 1 1 Ireland 1 0 0 0 1
Spain-1 0 0 0 1 1 Legal 0 0 0 0 1
05H EDS setting FDH
NLQ Font Selection Option
Function b0 b1 b2 b3 b4 Function b0 b1 b2 b3 b4
Roman 1 1 1 1 1 Script 1 1 0 1 1
Sanserif 0 1 1 1 1 OCR-B 0 1 0 1 1
Courier 1 0 1 1 1 OCR-A 1 0 0 1 1
Prestige 0 0 1 1 1 Orator-2 1 1 1 0 1
Orator 0 0 0 1 1 TW-Light 0 1 1 0 1
L-Gothic 1 0 1 0 1
Blippo 0 0 1 0 1
H-Gothic 1 1 0 0 1
Orane 0 1 0 0 1
Cinema 1 0 0 0 1
Code 39 0 0 0 0 1
UPC/EAN 1 1 1 1 0
Old-Style 0 1 1 1 0
Firenze 1 0 1 1 0
Arabic Naskn 0 0 1 1 0
Arabic koufi 1 1 0 1 0
Arabic Naskn-Eilani 01010
06H (Not used) 00H
07H Misalignment correction 60 DPI (F) 80H
08H Misalignment correction 80 DPI (H) HS-DRAFT 80H
09H Misalignment correction 80 DPI (F) 80H
0AH Misalignment correction 120 DPI (H) 80H
Address Function Factory data

– 16 –
GENERAL SPECIFICATIONS
0BH Misalignment correction 120 DPI (F) 80H
0CH Misalignment correction 180 DPI (H) 80H
0DH Misalignment correction 180 DPI (F) 80H
0EH Misalignment correction 240 DPI (H) 80H
0FH Misalignment correction 360 DPI (H) 80H
10H Misalignment correction 120 DPI (H) DRAFT-TEXT 80H
11H Misalignment correction 360 DPI (H) LQ-TEXT 80H
12H (Not used) 00H
13H Misalignment correction Multi-part Mode 60 DPI (F) 80H
14H Misalignment correction Multi-part Mode 80 DPI (H) HS-DRAFT 80H
15H Misalignment correction 80 DPI (F) 80H
16H Misalignment correction Multi-part Mode 120 DPI (H) 80H
17H Misalignment correction Multi-part Mode 120 DPI (F) 80H
18H Misalignment correction Multi-part Mode 180 DPI (H) 80H
19H Misalignment correction Multi-part Mode 180 DPI (F) 80H
1AH Misalignment correction Multi-part Made 240 DPI (H) 80H
1BH Misalignment correction Multi-part Made 360 DPI (H) 80H
1CH Misalignment correction Multi-part Made 120 DPI (H) DRAFT-TEXT 80H
1DH Misalignment correction Multi-part Made 360 DPI (H) LQ-TEXT 80H
1EH (Not used) 00H
1FH Misalignment correction Half-dot Made 60 DPI (F) 80H
20H Misalignment correction Half-dot Made 80 DPI (H) HS-DRAFT 80H
21H Misalignment correction 80 DPI (F) 80H
22H Misalignment correction Half-dot Made 120DPI (H) 80H
23H Misalignment correction Half-dot Made 120 DPI (F) 80H
24H Misalignment correction Half-dot Made 180 DPI (H) 80H
25H Misalignment correction Half-dot Made 180 DPI (F) 80H
26H Misalignment correction Half-dot Made 240 DPI (H) 80H
27H Misalignment correction Half-dot Made 360 DPI (H) 80H
28H Misalignment correction Half-dot Made 120 DPI (H) DRAFT-TEXT 80H
29H Misalignment correction Half-dotMade 360 DPI (H) LQ-TEXT 80H
2AH (Not used) 00H
2BH, 2CH Top Margin in Auto-loading Friction 3CH
00H
2DH, 2EH Top Margin in Auto-loading Tractor 3CH
00H
2FH, 30H Top Margin in Auto-loading ASF 3CH
00H
31H Paper End Sensor A/D Valve 99H
32H~35H Macro set for Standard/EPSON Mode 00H
00H
36H~39H Macro set for IBM Mode 00H
00H
3AH, 3BH TEAR OFF (Short) 00H
80H
3CH, 3DH TEAR OFF (Long) 00H
80H
Address Function Factory data
