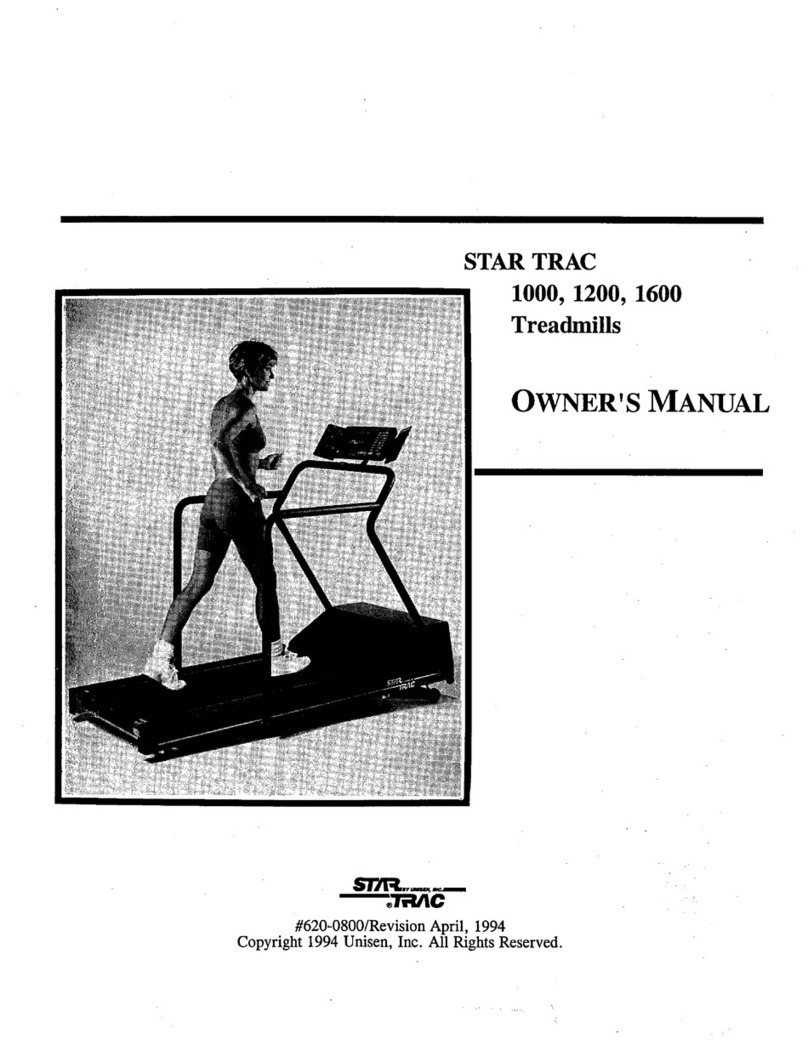

OWNER’S Manual
STAR TRAC
1000, 1200, 1600
Treadmills
eTrl/IC
#620-0800/Revision April, 1994
Copyright 1994 Unisen, Inc. All Rights Reserved.

Copyright 1994, Unisen, Inc. All rights reserved, including those to reproduce this book or parts thereof in any
form without first obtaining written permission from Unisen, Inc.
Every effort has been made to keep the information current; however, periodically changes are made to the infor¬
mation herein and these changes will be incorporated into new editions of this publication. All product names and
logos are trademarks of their respective owners. Printed in the USA, 05-10-94

Warning
The STAR TRAC 1000, 1200, 1600 is designed for aerobic exercise.
Please check with your physician prior to beginning any exercise program.
Do not push yourself to excess. Stop if you are feeling faint, dizzy,
or exhausted. Use common sense when exercising on the STAR T^C 1000,
1200 or 1600. Please read the Owner's Manual in its entirety before
operating the treadmills.

Table of Contents
CONTENTS PAGE NUMBER
INTRODUCTION 1
CHAPTER ONE: Safety Notes 2
CHAPTER TWO: Assembly 3
. CHAPTER THREE: Control Panels 8
Programmable 8
Non-programmable 9
CHAPTER FOUR: Operating Instructions 10
CHAPTER FIVE: Helpful Hints 11
CHAPTER SIX: Getting Started 14
CHAPTER SEVEN: Preventive Maintenance 16
CHAPTER EIGHT: Diagnostic Tests 19
CHAPTER NINE: Bed/Belt Adjustments 20
CHAPTER TEN: Troubleshooting 21
Star Trac Specifications 23
Designed and manufactured by:
Star Trac by Unisen, Inc.
14352 Chambers Road
Tustin, CA 92680
714-669-1660
714-669-1660
800-535-4634 - service

Introduction
Welcome to the world of STAR TRAC. In your hands is the owners manual that will acquaint
you with the Star Trac 1000, 1200 or 1600 model treadmills. From assembly to maintenance,
this manual was prepared to help you have the most enjoyable treadmill experience possible. If
you would like to speak with a Star Trac representative regarding your treadmill, please call
800-535-4634.
1

Chapter One
Safety Notes
Consult your doctor prior to engaging in strenuous exercise.
DOS
Discuss your health or fitness program with a
healthcare professional, especially if they
have not exercised for several years, are over
35 or overweight.
Stop operating the treadmill if dizziness or
faintness occurs.
Perform regular preventive maintenance.
Set goals (see "Getting Started").
Exercise at a lower speed until a level of
comfort and security are reached.
Complement your walking/jogging/running
with a nutritious diet.
Try holding weights while using the tread¬
mill.
Wait until running belt has stopped before
getting off the machine.
Try charting your progress using the feed¬
back the treadmill gives you.
Use a tooth brush or compressed air to clean
the RPM sensor and disc.
Unplug from outlet prior to cleaning.
Use only for its intended use, as described in
this manual.
DO NOTs
Allow unsupervised children to operate
treadmill.
Store treadmill outdoors or in an enclosed
pool environment.
Jump on or off the treadmill while it is run¬
ning.
Place filled water bottles or cups on the
treadmill.
Stand or position your feet under the unit.
Allow running in bare or stocking feet.
Over tighten the running belt.
Use spray contact cleaners or any other
product containing TRICHLOROTRI-
FLUOROETHANE to clean the RPM (speed)
sensor or plastic RPM disc.
Operate treadmill if it has a damaged cord or
plug.
Drop or insert any object - hands or feet -
into any opening or underneath treadmill.
Remove any guards or modify this equip¬
ment.
2

Chapter Two
Assembly
This chapter details how to assemble your Star Trac. Please begin by verifying the following
parts were included in your shipment:
3

Assembly
Step One: Remove packaging material (protective plastics, box).
Step Two: Remove screws (#5) from the rear of the motor shroud (m), and remove motor
shroud.
4

Assembly
Step Three: Remove the two screws from center of handrail where display console will be
placed.
Step Four: Connect display cable from display console to handrail, making sure the cable'
nine pins line up correctly. Connect two-pin stop switch cable.
Step Five: Position display console onto handrail and install screws, making sure the
screws are not driven through the cable.

Assembly
Step Six: Raise display handrail assembly until bolt holes near the base of the front end of
the treadmill line up with the frame holes. Install bolts securing handrail assembly into upright
position.
Step Seven: Install side handrails - one at a time - starting with the upper screw connection.
Handrail screw will be located in the end of the handrail. Do not overtighten because you may
need to adjust side handrails for bottom connection to fit properly. Remove bolt, washer and
nut from treadmill frame base. Position handrail so that screw hole lines up with treadmill
frame screw holes. Install bolt, washer and nut. Tighten all screw and bolts.
Step Eight: Slip motor shroud into position. Install shroud screws
6

Assembly
Step Nine: Your treadmill should now be assembled. Place treadmill in the location you
desire, near an outlet. Plug in the treadmill. DO NOT KEEP TREADMILL OUTDOORS.
NOTE: GROUNDING INSTRUCTIONS: This product must be grounded. If it should mal¬
function or breakdown, grounding provides a path of least resistance for electric current to
reduce the risk of electric shock. This product is equipped with a cord having an equipment
-grounding conductor and a grounding plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
DANGER: Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt as to
whether the product is properly grounded. Do not modify the plug provided with the product -
if it will not fit the outlet, have a proper outlet installed by a qualified technician.
This product is for use on a circuit having a nominal rating of equal to or grater than 120 volts
and can demand more than 15 amperes. It is equipped with a specific electic cord and plug to
permit connection to a proper electric circuit. Make sure that the product is connected to an
outlet having the same configuration as the plug. No adapter should be used with this product.
If the product must be reconnected for use on a different type of electgric circuit, the reconnec¬
tion should be made by Certified Star Trac Service Representative.
7

Chapter Three
Control Panels
PROGRAMMABLE
1. ELAPSED TIME
2. DISTANCE
3. SPEED
4. TOTAL CALORIES
5. LAPS
6. PACE
7. DISPLAY TRACK
8. ELEVATION SETTING
9. SHIFT KEY
10. NUMBER KEYS
11. SPEED CONTROL KEYS
12. ELEVATION CONTROL KEYS
13. HEART-RATE TIMER
14. START KEY
15. STOP KEY
16. PRESET PROGRAMS
17. CUSTOM PROGRAM KEY
18. INSTRUCTIONS
SITRL,
THiAC
• Press Q or to change speed
• Press Q or □ to change
elevation
to end operation
•Press
• Respond to duration, weight and
speed commands by entering
irrformation with number keys
• Enter your choice \T] - ^
• Respond to duration, weight and
speed commands by entering
information with number keys
• Press after each entry
Press after each entry
• Respond to duration, weight, speed,
angle and laps commands up to
five intervals by entering
information with number keys
• Press after each entry
• Press ^22 two times after
any laps command for less than
five intervals
•M/liort*/ ti Uj ii wL ow an SXUTTItAC
ratniAjOTMi v neriM CrwaMitt. UMTSfN INC
USSZ DwmtMtl Ad Tunm. CA »VUO U.SJL (900) 22»-M3S
•* «
\ .y' \
• ELAPSED TiptE • I
SPEED/ ^ Gff40C / PRf-DeS/GNED PROGRAMS
• TOTAL CALORIES • LAPS • P4C
^ ^ ◄ ]- < ^ ^ ^
r
- 2 n6 MILE
Y 0.0 XU
SUVL wruiaxM. mcaa
—;7^?/ic
A.
ns MILE —
O.IKM A
1L4P ■ V4MILI
I 0.4 KM *
[D[II[I](I ]0
OBTAIN PROPER INSTRUCTIONS BEFORE USING TREADMILL I Vp
USE COMMON SENSE. STOP IF YOU FEEL FAiNT.DtSY, OR EXHAUSTED! 1 t
10^0
UOSi C/mmtMn Ad. Tusba CA USA.
AUCr 7 T 4 ;« 3«-|216
* 15
8

Percent
of
High
Speed
Entered
Percent
Grade

Percent
of
High
Speed
Entered
Percent
Grade
Slarlrac Terrain Profile
Program § 2 ,
Elevation
15
14
13
12
11
10
9
0
7
6
5
4
3
2
1
0
LEGEN D
IHH Elevation
(Maximum 3%)
0 1 2 3 4 5 () 7 » 9 1011121314 1510 17 1319
Time (Minutes)
Speed
95
90
85
80
/•}
70
05
00
55
50
45
40
35
30
T T T T T T
0 1 2 3 4 5 0 7 8 9 1011121314 1010171819
Time (Minutes)
LEGEN D
HH HiSpeed %

Percent
of
High
Speed
Entered
Percent
Grade
Startrac Terrain Profile
Program
Elevation
LEGEN D
HHI Elevation
(Maximum 5%)
do -
:i I T) (j 7 h <) 10 11 i2i:jM 151(5 17 1011)
Time (Minutes)
Speed
LEGEND
HHI lliSpeed %
0 1 2 3 '1 5 0 7 0 0 1011 1213M 1510171019
Time (Minutes)

Percent
of
High
Speed
Entered
Percent
Grade

Percent
of
High
Speed
Entered
Percent
Grade
