Vision Fitness T80 User manual

1

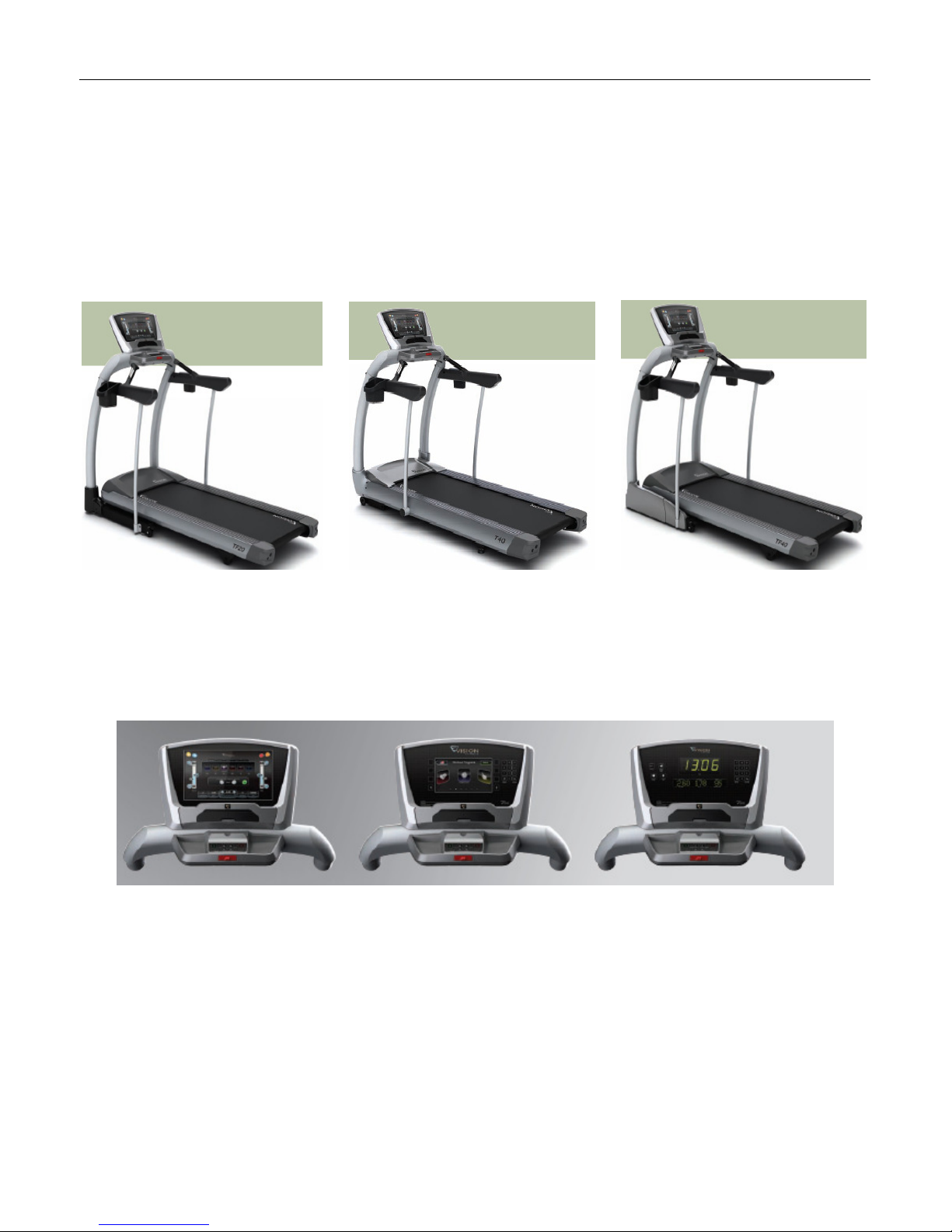

Vision Fitness T80 Frame with
Classic / Elegant / Touch Console
Service Manual

2
TABLE OF CONTENTS
CHAPTER 1: SERIAL NUMBER LOCATION
1.1 Serial Number Location – T80 Frame……………………………………………..………………….…..3
1.2 Serial Number Location – Classic / Elegant / Touch Console…..………………………………...…….4
CHAPTER 2: ENGINEERING MODE
2.1 Engineering Mode - Classic Console………………………… ………………………………..….……..5
2.2 Engineering Mode Overview - Classic Console………………………………………………………….6
2.3 Engineering Mode - Elegant Console………………………… ……………………………..…………..7
2.4 Engineering Mode Overview - Elegant Console………………………………………….……………..8
2.5 Engineering Mode - Touch Console………………………………………………………………..…….13
2.4 Engineering Mode Overview - Touch Console………………………………………………….....……14
CHAPTER 3: TROUBLESHOOTING
3.1 ELECTRICAL DIAGRAMS………………………………….…………………………………………….23
3.2 MCB WIRING INSTRUCTIONS…………………………………………………………….…….….….26
3.3 MCB LED PLACEMENT AND DEFINITIONS .……………………………………………..……….....27
3.4 MCB SWITCH SETTING DEFINITION .……..………………………………………….……..……….28
3.5 Troubleshooting - Machine Will Not Start…….…………………………….………..….……….....…..29
3.6 Troubleshooting - Touch Panel Issues..………………………………………………….…….....…….29
3.7 Troubleshooting - Heart Rate Issues…………………………………………………….……………...30
3.8 Troubleshooting - iPod Issues……………………………………………………………………………31
3.9 Troubleshooting – Speaker / Audio Issues…….………………………………………………………..32
3.10 Troubleshooting – Radio Frequency (RF) Board Issues………………….…………………………...33
3.11 Troubleshooting – Virtual Active (VA) Issues…………………………………………………………...34
CHAPTER 4: UPDATE OS&SOFTWARE&IO
4.1 Update OS & Software……………………………………………………………………………..……..35
4.2 Update IO…………………………………………………………………………………………………...35

3
CHAPTER 1: Serial Number Location 1

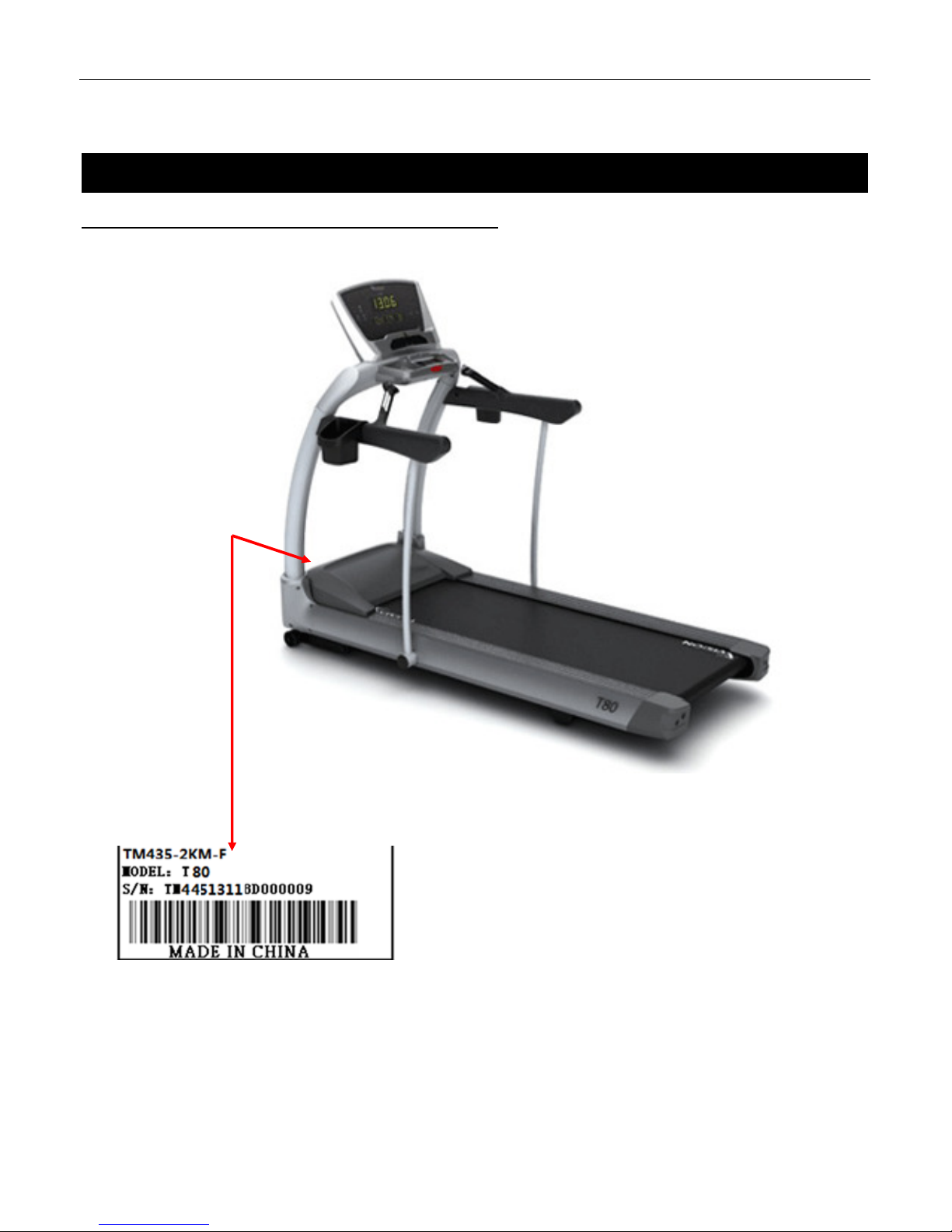

1.1 SERIAL NUMBER LOCATION – T80

4
CHAPTER 1: Serial Number Location 1

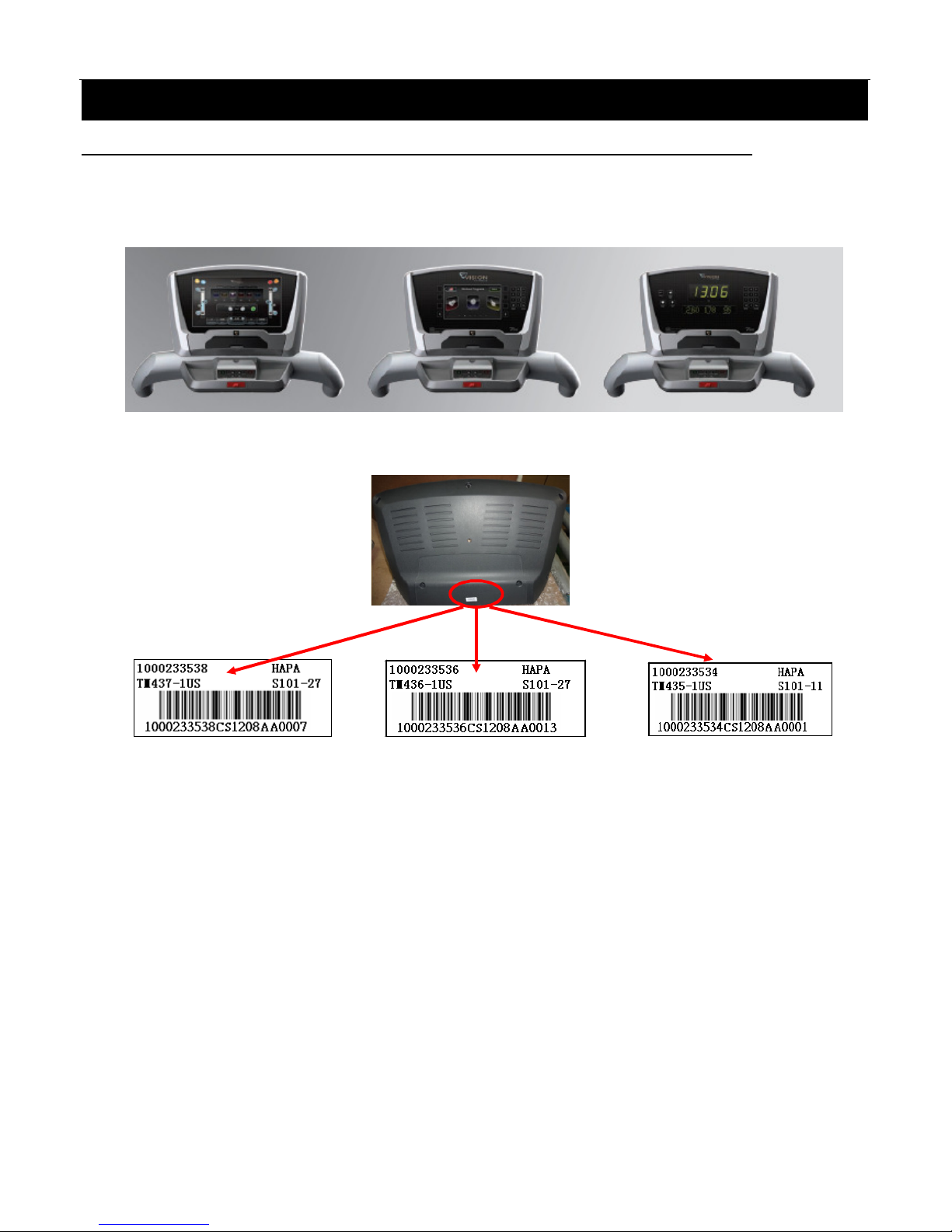

1.2 SERIAL NUMBER LOCATION - Touch / Elegant / Classic Console
Touch Elegant Classic

5
CHAPTER 2: Engineering Mode
2.1 ENGINEERING MODE - Classic Console
1) To enter Engineering Mode, press & hold the INCLINE UP “▲”and SPEED DOWN “▼
▼▼
▼” keys at the same time for 3-5
seconds until Engineering Menu appears on the display.
2) Use the INCLINE and SPEED UP and DOWN keys to select a parameter.
3) Press ENTER to enter a parameter setting.
4) Use the INCLINE and SPEED UP and DOWN keys to change the parameter.
5) Press the START key to save the change to the parameter.
6) Press and hold the STOP key to exit Engineering Mode and return to normal operation.

6
CHAPTER 2: Engineering Mode
2.2 ENGINEERING MODE OVERVIEW - Classic Console
MODE FUNCTION DESCRIPTION
ENG 0 Display Test Start Key – LCD/LED on
Stop Key – LCD/LED off
Any Other Key - Will show on the display window.
Hold the STOP key for 3 seconds to return to the Engineering Menu.
ENG 1 Hardware Test Motor, Incline Motor, & Heart Rate Test.
ENG 2 Auto Calibration If you have a digital MCB, Auto Calibration is not necessary. Press the
START key, the words “NO FUNCTION” will scroll on the screen.
ENG 3 Switch Function - Use the INCLINE or SPEED UP and DOWN keys to switch Energy Save
Mode (ESM) off or on (shown in the SPEED window).
- Use the START key to select unit (Miles or Kilometers) (shown in the
INCLINE window).
Press the ENTER key to enter the Language setting:
-Use the INCLINE or SPEED UP and DOWN keys to select the languages
(English, German, Dutch, French will scroll on the middle window).
ENG 4 Information Accumulated Time, Distance, and Aged
Press and hold the START key for 5 seconds to clear all data.
Remarks: Unit of Time is Hour.
Unit of Distance is KM or Mile.
Unit of Aged is Minute. (factory only setting)
ENG 5 Set Machine Set the Machine Type – Options include TF20, T40, and TF40.
Set the Distance Type – Options are Mile or Kilometer.
Press ENTER to scroll to the other settings.
SECOND LEVEL
ENG 8
Software Version To Get to ENG 8 - Enter into ENG 3, then press and hold the SPEED
DOWN and INCLINE UP key at the same time for 3-5 seconds.
Press ENTER at P0 - Software version.
Press ENTER at P1 - Select speed up rate (normal or quick).
Press ENTER at P3 - Hold the START key to clear all data.
※
※※
※Press the “START” key to save any changes.

7
CHAPTER 2: Engineering Mode
2.3 ENGINEERING MODE - Elegant Console
1) To enter Engineering Mode, press & hold the INCLINE UP “▲” and SPEED DOWN “▼
▼▼
▼” keys at the same time for 3-5
seconds until Engineering Menu appears on the display.
2) The Engineering Mode parameter list will be displayed on the screen.
3) Press the ATM style key on either side of the screen to enter the appropriate screen settings.
4) Set all the information using the ATM style keys.
5) Press and hold the “STOP” key to exit Engineering Mode.

8
CHAPTER 2: Engineering Mode
2.4 ENGINEERING MODE OVERVIEW - Elegant Console
2.4.1 ENGINEERING MODE (Elegant Console) – About
The Engineering Mode displays the basic parameters of the console, such as Model Type, Software Version, MCB Version,
etc…
Use the ATM style keys located on both sides of the screen to enter into the parameter.
NOTE：Navigation of the other Engineering Mode screens is the same, instructions are not repeated.
Engineer Mode
- About
Function & Default Descriptions Modified
Accumulated
Data
Accumulated Distance Total distance displayed in native
units (miles or kilometers), not
editable
Cannot be modified
Accumulated Time Total time, not editable Cannot be modified
Main Board
Information
UI Software Version Application version, not editable Cannot be modi fied
IO Version Sub UCB software version, not editable Cannot be modified
OS Version Operation System Version, not editable Cannot be modified
MCB
Information
MCB Type The frame MCB type, for example:
2.75HP digital MCB
Cannot be modified
MCB Software Version MCB Software Version Cannot be modified
Arrows point directly to the
corresponding ATM style key

9
2.4.2 ENGINEERING MODE (Elegant Console) - Settings Tab

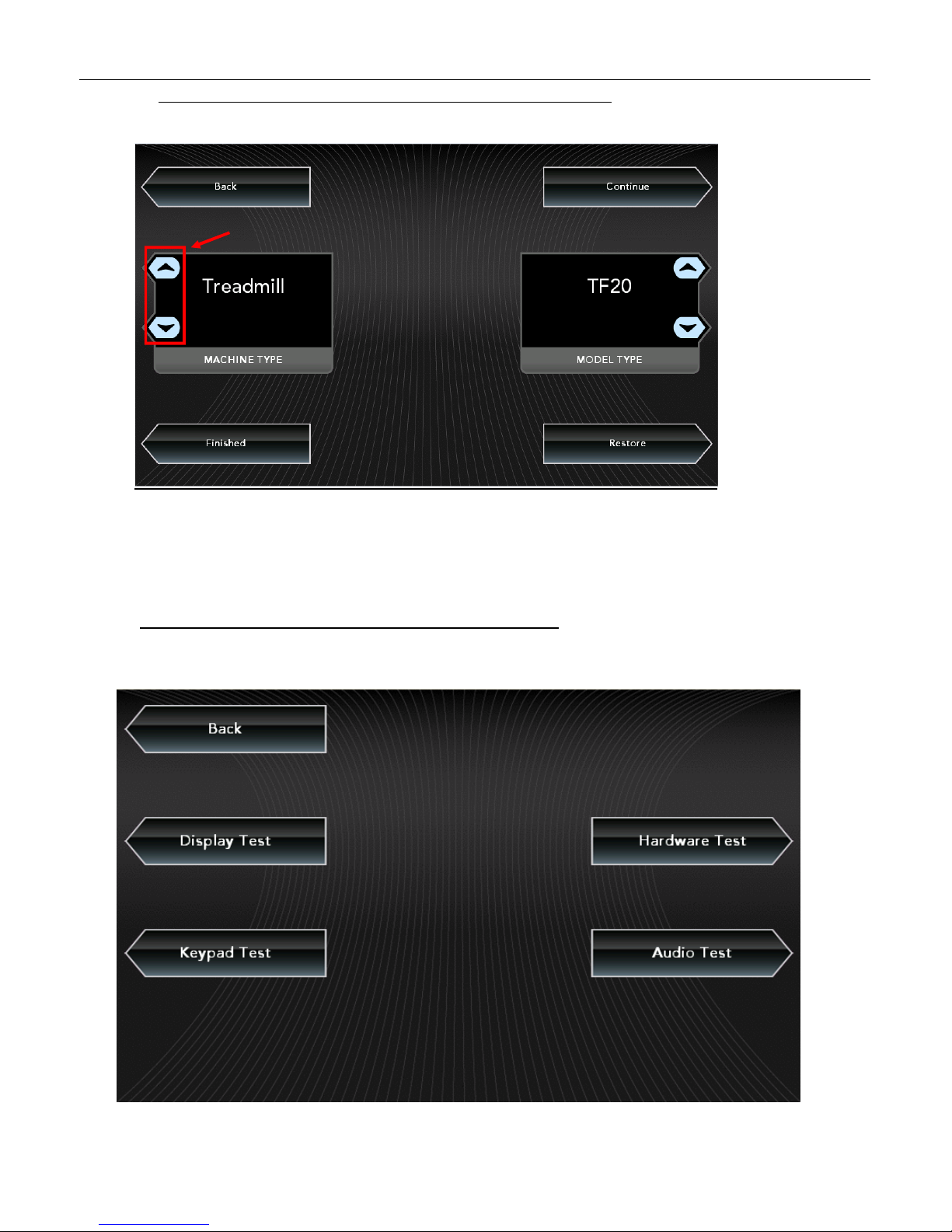

The Settings Tab includes options for setting Machine Type, Model Type, Energy Saver, First Boot, and Program Speed.
Press the key next to "Continue" to enter the next page of settings. Set these settings the same way as Machine Type.
NOTE: After changing a setting on any page, select "Finished" to complete the setup, the other items will keep the
default settings, press "Restore" to restore to the factory settings.

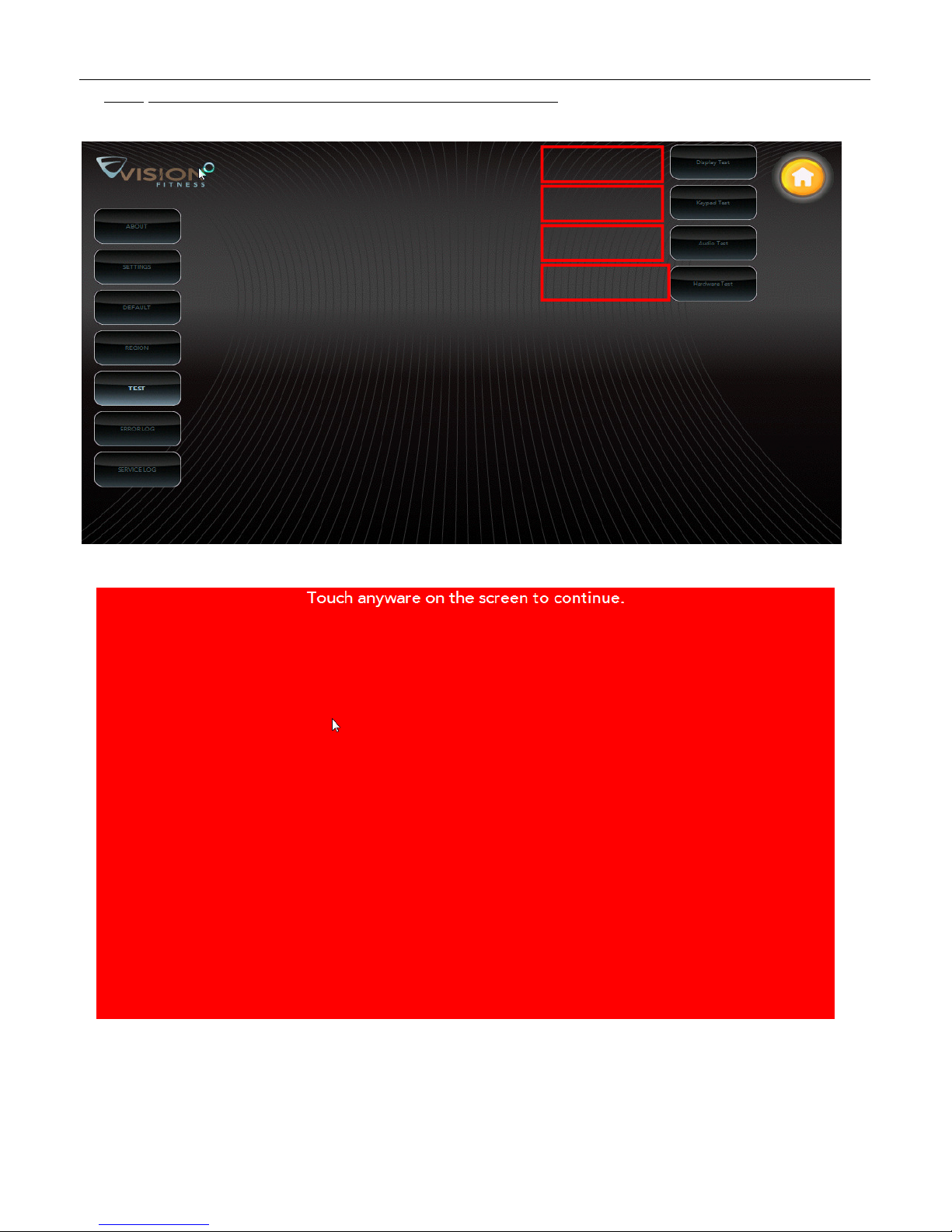

2.4.3 ENGINEERING MODE (Elegant Console) - Test Tab
The Test Tab includes various tests of the functions of the unit.
Go UP and DOWN to choose

10
Display test – This tab tests the color settings of the console. The console will cycle between red, green, and blue when
the Continue key is selected.
Hardware Test – This tab allows a service technician to test the RPM sensor and / or the incline motor. Changing a
setting should cause the belt and / or the incline motor to operate.

11

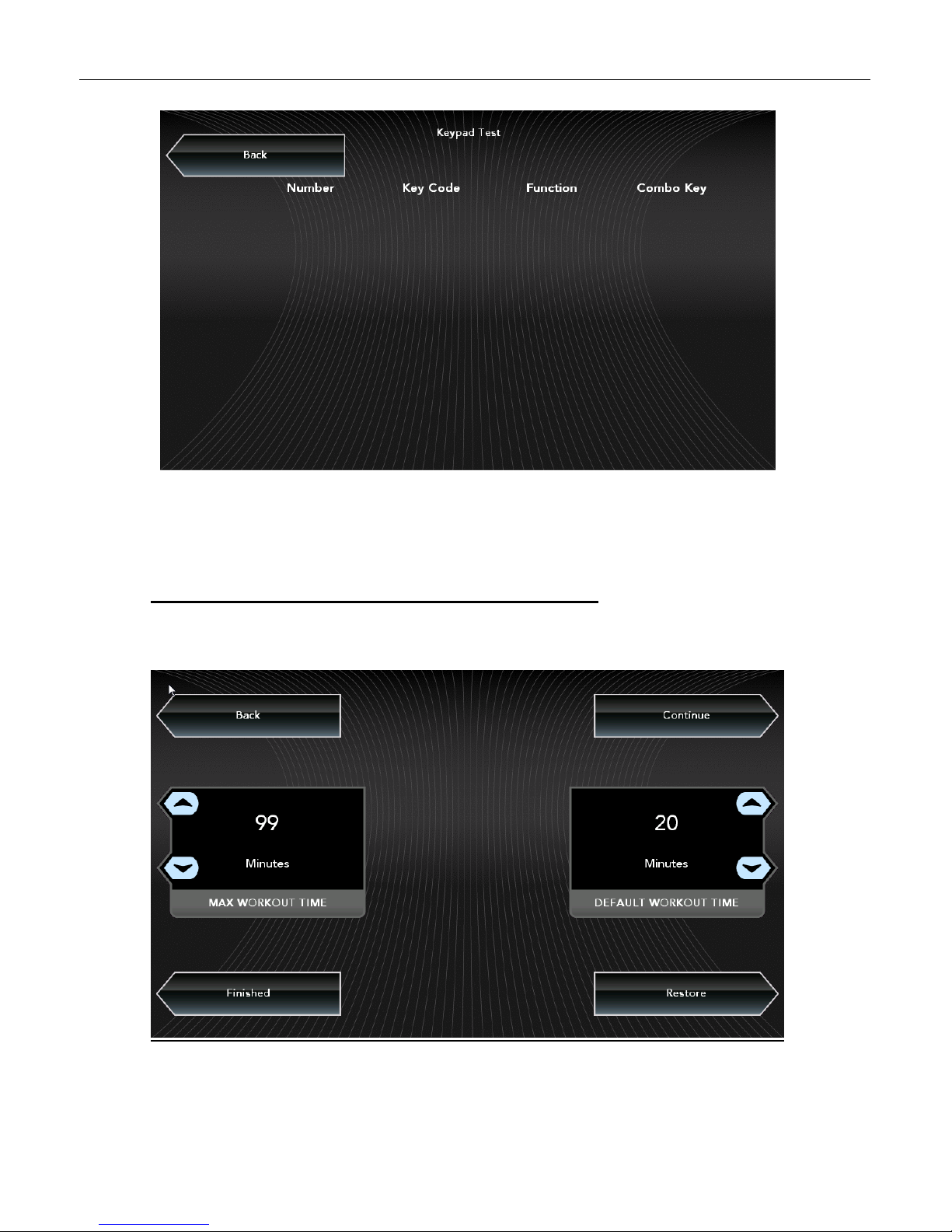

Key Test – Press any key to test the function.
Audio Test – When this test is chosen, the console chime should sound.
2.4.4 ENGINEERING MODE (Elegant Console) – Default Tab
The Default Tab includes options for setting Max Workout Time, Default Workout Time, Warm-up Time, Cool Down Time,
and Pause Time.
Press the key next to "Continue" to enter the next page of defaults. Set these defaults using the arrow keys. NOTE:
After changing a setting on any page, select "Finished" to complete the setup, the other items will keep the default settings,
select "Restore" to restore to the factory settings.

12
2.4.5 ENGINEERING MODE (Elegant Console) - Error Log Tab
The console will automatically show an error code history for the unit.
2.4.6 ENGINEERING MODE (Elegant Console) – Region Tab

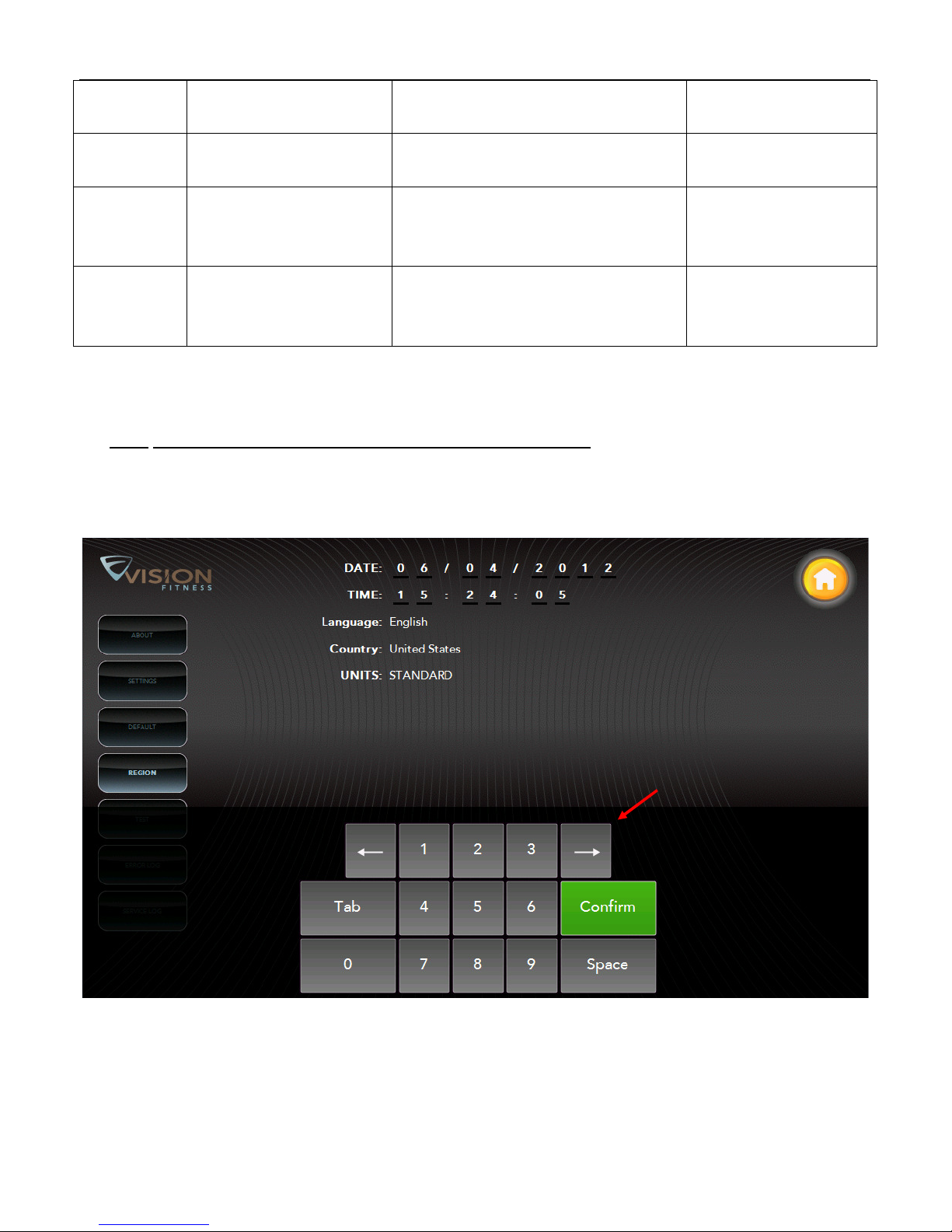

The Region Tab includes settings for Month, Day, Year, Time (hour / minute), Language, Country, and Units (miles /
kilometers).
Press the key next to "Continue" to enter the next page of region settings. Set these region settings using the arrow keys.
NOTE: After changing a region setting on any page, select "Finished" to complete the setup, the other items will keep the
default region settings, select "Restore" to restore to the factory settings.

13

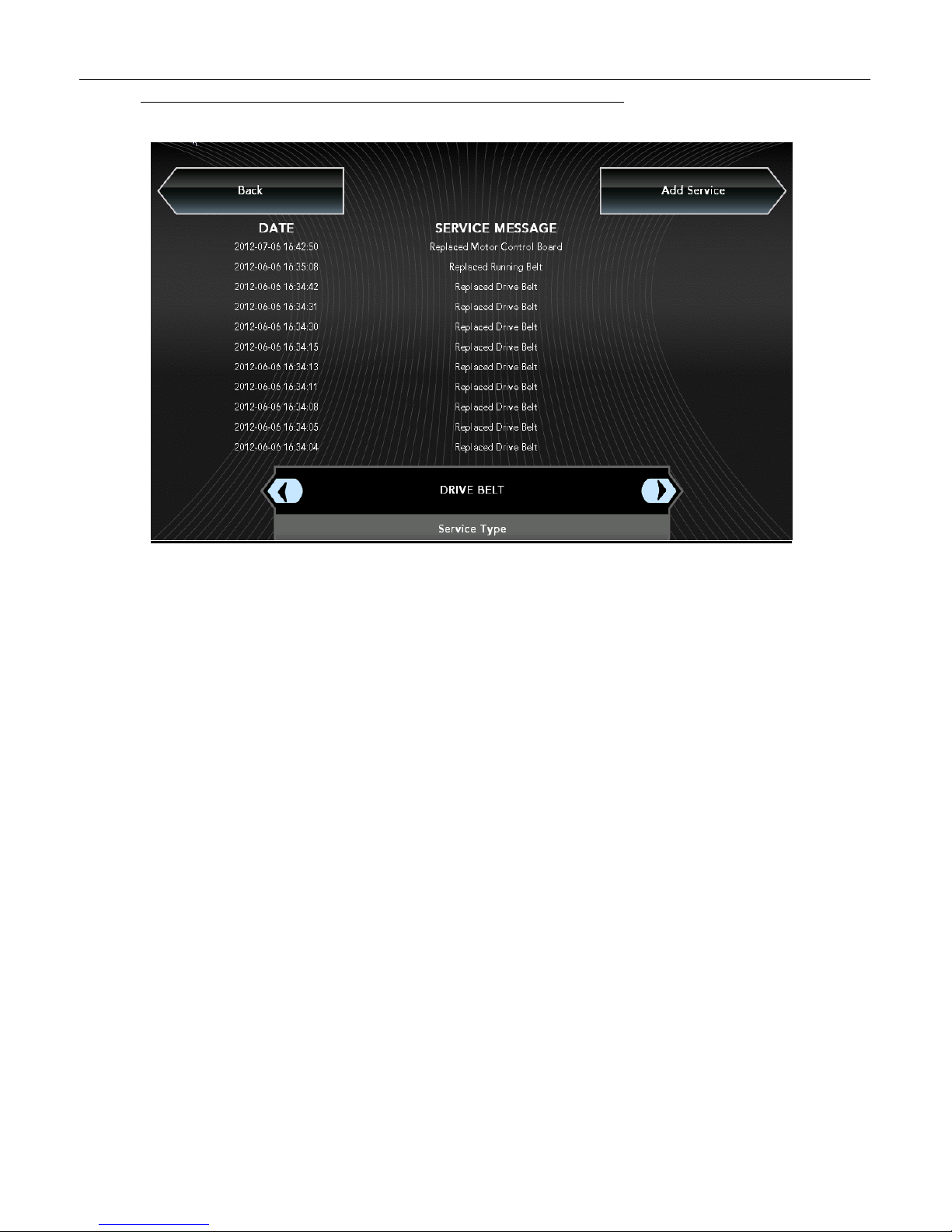

2.4.7 ENGINEERING MODE (Elegant Console) - Service Log Tab
The Service Log Tab allows the club / service provider to keep track of the service history.

14
CHAPTER 2: Engineering Mode
2.5 ENGINEERING MODE - Touch Console

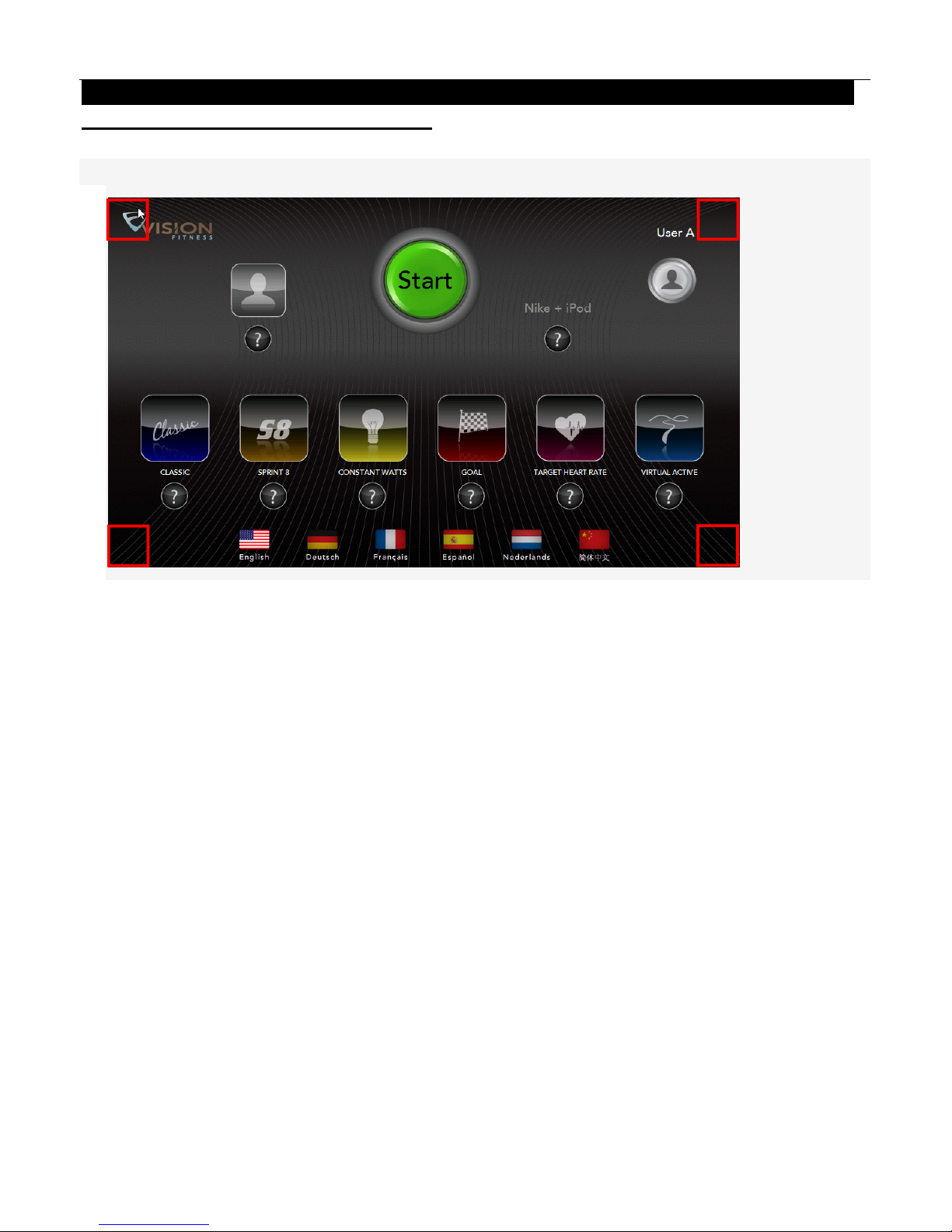

1) To enter Engineering Mode, touch the four corners of the touch screen from 1-4 as shown below.
2) An Engineering Mode parameter list will be displayed on the screen.
3) Select the parameter by touching the parameter list.
4) Set all information using the Touch panel.
5) Press the Home key to save the change to the parameter and exit the Engineering Mode.
1 2
3
4

15
CHAPTER 2: Engineering Mode
2.6 ENGINEERING MODE OVERVIEW - Touch Console

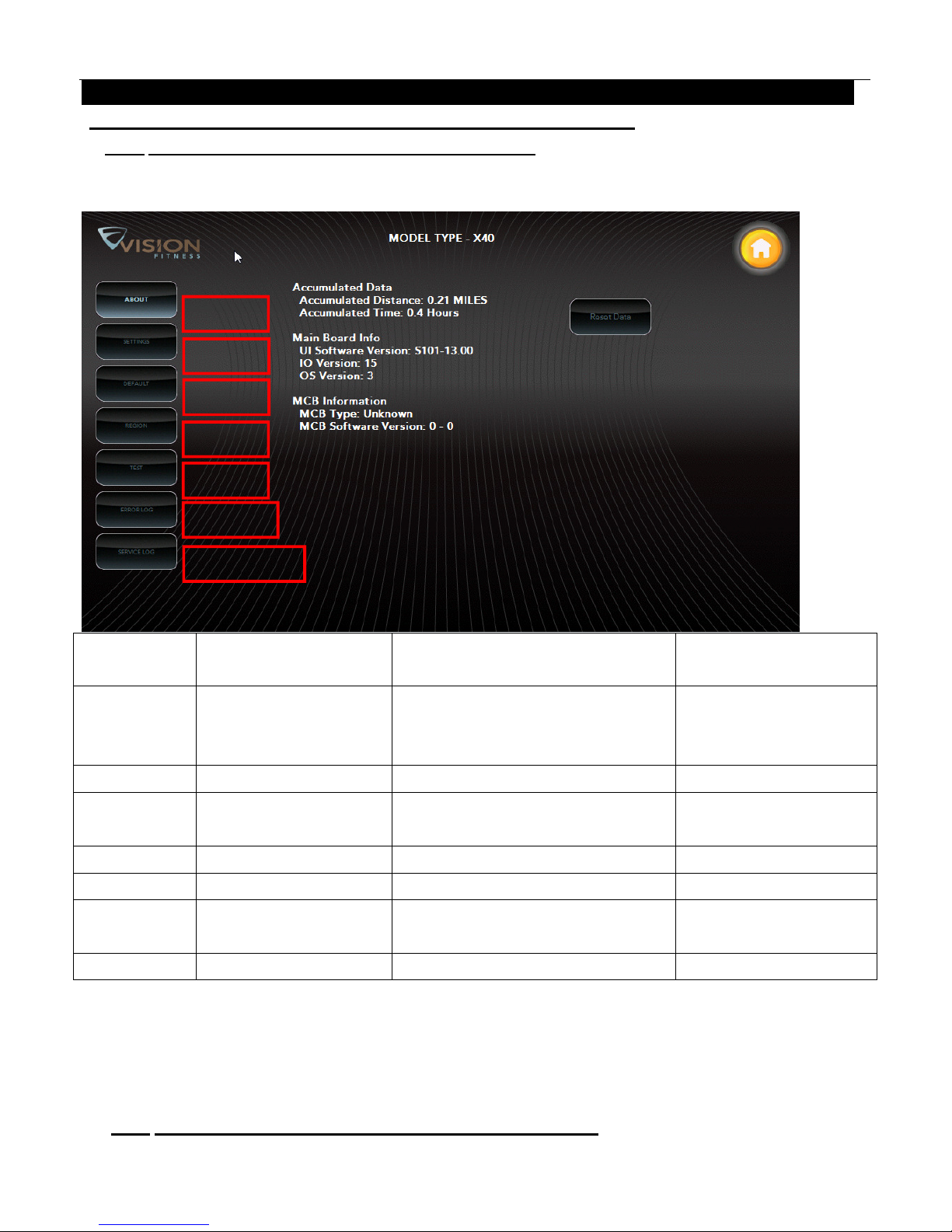

2.6.1 ENGINEERING MODE (Touch Console) - About
The About Tab shows the basic parameters of the console, such as Model Type, Software Version, MCB Version etc…
NOTE: Press the Home key at any time to return to normal operation.
Engineer Mode
- About
Function & Default Descriptions Modified
Accumulated
Data
Accumulated Distance Total distance displayed in native
units (miles or kilometers), not
editable
Cannot be modified
Accumulated Time Total time, not editable Cannot be modified
Main Board
Information
UI Software Version Application version, not editable Cannot be modi fied
IO version Sub UCB software version, not editable Cannot be modified
OS Version Operation system version, not editable Cannot be modified
MCB
Information
MCB Type The frame MCB type, for example:
2.75HP digital MCB
Cannot be modified
MCB Software Version MCB Software Version Cannot be modified
2.6.2 ENGINEERING MODE (Touch Console) - Settings Tab
About
Setting
Default
Region
Test
Error log
Service Log

16

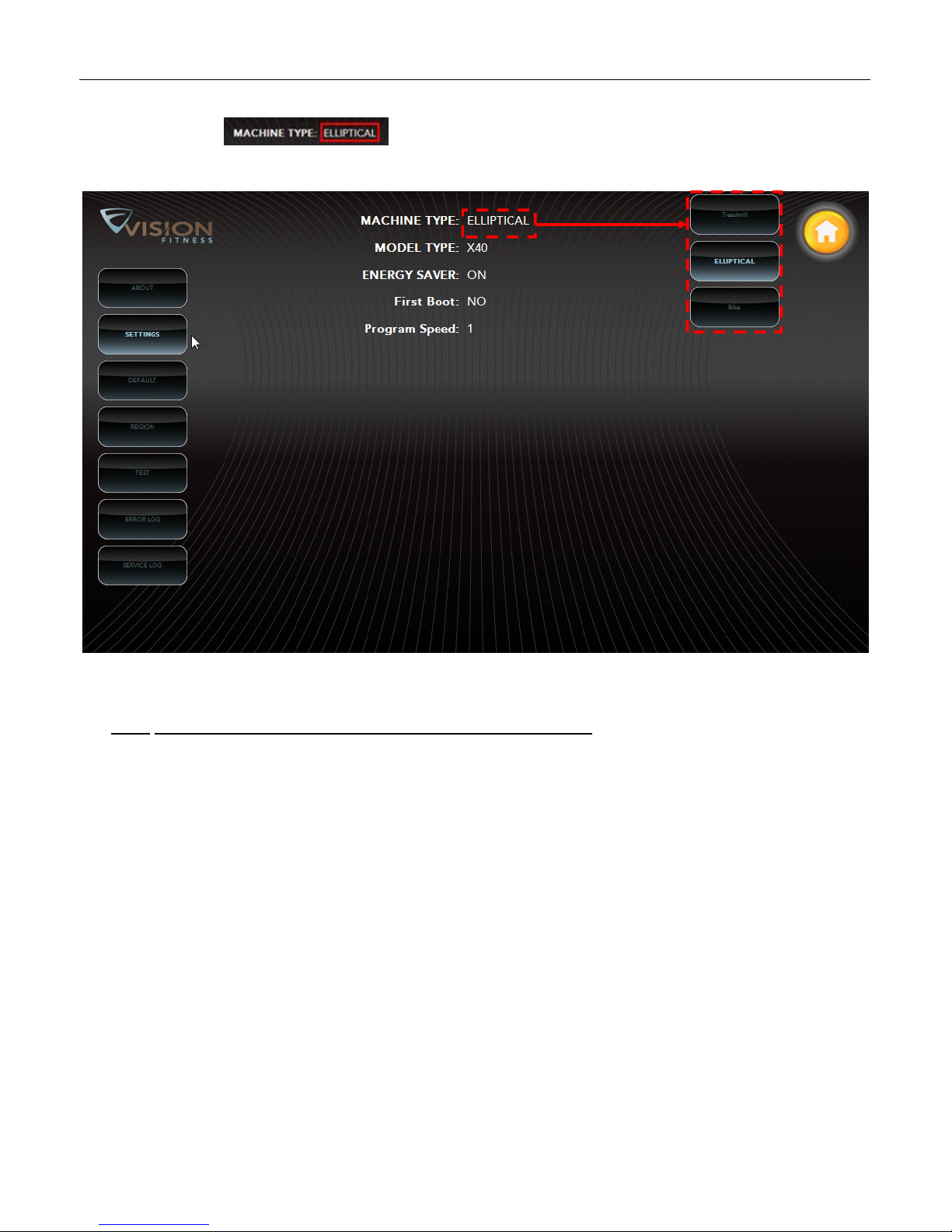

The Settings Tab used to set the Machine Type, Model and if the Energy Saver is turned on.
Setting: Pressing the will automatically bring up the corresponding select block, according to the
frame type to select the appropriate machine, TREADMILL, ELLIPTICAL or BIKE.
Use the same procedure as Machine Type to set the Model Type, Energy Saver, First Boot and Program Speed.
2.6.3 ENGINEERING MODE (Touch Console) – Default Tab

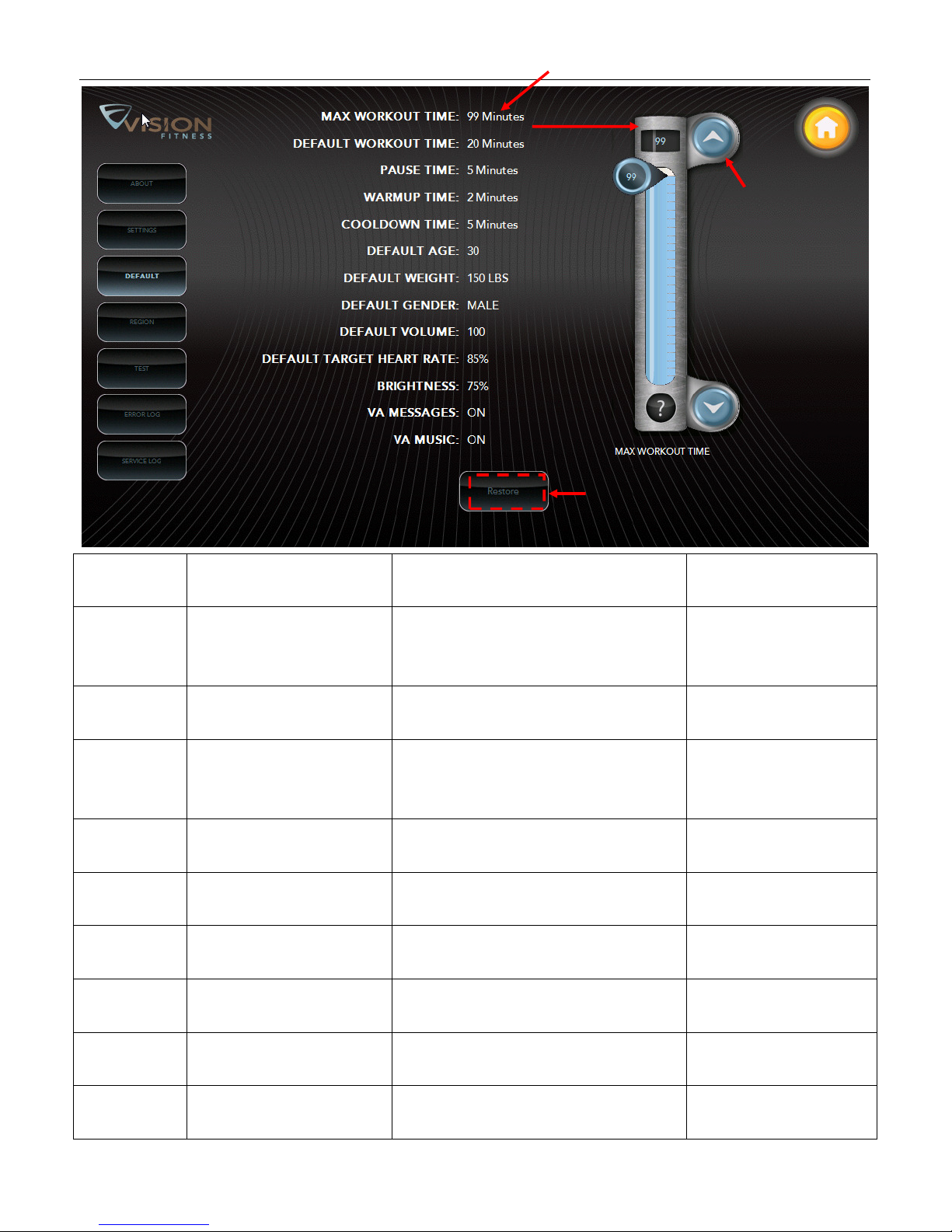

The Default Tab displays the default information of the console, such as Workout Time, Weight, Age etc…
Selecting the data that needs to be set will bring up a slider to adjust the corresponding information. Refer to the figure
below:
automatically bring up
the corresponding
select block

17
Engineer
Mode - Default
Function & Default Descriptions Modified
Time Maximum Workout Ti me
Default: 99 minutes
This option enabl es you t o set the
maximum workout durati on limits
Maximum: 99 Minut es
Minimum: 5 Minutes
Default Workout Time
Default: 20 minutes
This option enables you to set user
default workout time
Maximum: 99 Minut es
Minimum: 5 Minutes
Pause Time
Default: 5 minutes
This option enables you to set workout
pause time, the console will reset when this
time expires
Maximum: 99 Minut es
Minimum: 5 Minutes
Warm Up Time
Default: 2 minutes
This option enables you to set user’s
warm up time
Maximum: 99 Minut es
Minimum: 5 Minutes
Cool Down Time
Default: 5 minutes
This option enables you to set users Cool
Down Time after a workout
Maximum: 99 Minut es
Minimum: 5 Minutes
Age Default Age
Default: 30
This option enables you to set the user’s
default age if not selected during setup
Maximum: 99
Minimum: 13
Weight Default Weight
Default:150LBS
This option enables you to set user’s
default weight if not selected during setup
Maximum: 375LBS
Minimum: 55LBS
Gender Default Gender
Default: Male
This option enables you to set user’s
gender if not selected during setup
Male/Female
Volume Default Volume
Default: 20
This option enables you to set speaker or
earphone volume
Maximum: 20
Minimum: 0
Touching here will bring up a slider
Touch this
arrow to
adjust the
information
Restore to the factory settings

18
Heart Rate Default Target Heart Rate
Default: 85%
This option enables you to set target
heart rate for some heart rate programs
Maximum:100%
Minimum: 0
Brightness Brightness
Default: 75%
This option enables you to set the LCD
panel brightness level
Maximum:100%
Minimum: 0
Virtual Active
Message
VA Message
Default: on
This option enables you to set the VA,
user can choose the VA message
displayed on the screen or not
On/off
Virtual Active
Music
VA Music
Default: on
This option enables you to set the VA,
user can choose the VA music played or
not
On/off
Use the same operation as Max Workout Time to adjust the other Default information.
Press "Restore" to restore to the factory settings.
2.6.4 ENGINEERING MODE (Touch Console) – Region Tab
The Region Tab is used to set Date, Time, Language, Country, and Units. Touch the item that needs to be set, the screen
will display a number keypad. Use the keypad to set the information, and press "Home" to save the information. Refer to
the figure below:
HOME ICON
Number setting keypad

19
2.6.5 ENGINEERING MODE (Touch Console) - Test Tab
The Test Tab is used to test the corresponding hardware.
Display Test – Tests the reliability of the LCD and Touch panel.
Display Test - Touch panel Test
Use your finger to draw a line following the instructions on the screen. If the test fails, selecting "continue" will bring the
user directly into the calibration screen. Refer to the figure below：
Display Test
Key Test
Audio Test
Hardware Test

20
Key Test – Tests the functionality of the keys. Select any key on the keypad to display the definition, the function, and
the code of the key. If there is no feedback, check the keypad connection with the UCB. Select Continue to exit the
test.d
Audio Test – When the Audio Test key is pressed, the console should chime.
