PSB241.doc Page 1of 3
PRODUCT SUPPORT BULLETIN
Title: TR 4500/ TR 3900 - Rewaxing Procedure with Waxing Bottle
Date:
May 12, 2000 Distribution to: Written by: Jason Buelna
Bulletin No.
635-0241
þService Providers
þProduct Support
þStar Trac Sales
Approval(s)
Signature on file
Revision Letter:
A
¨Product Users
þDistributor ECO Reference N/A
Date of Last Revision
N/A
þInstaller Model(s) Affected
TR 4500/TR 3900
Starting with serial numbers: D13838 (TR 4500) and G07341 (TR 3900), the re-lubrication wax
for the treadmills will be stored in a plastic bottle. The bottle will be kept in the right side rail of

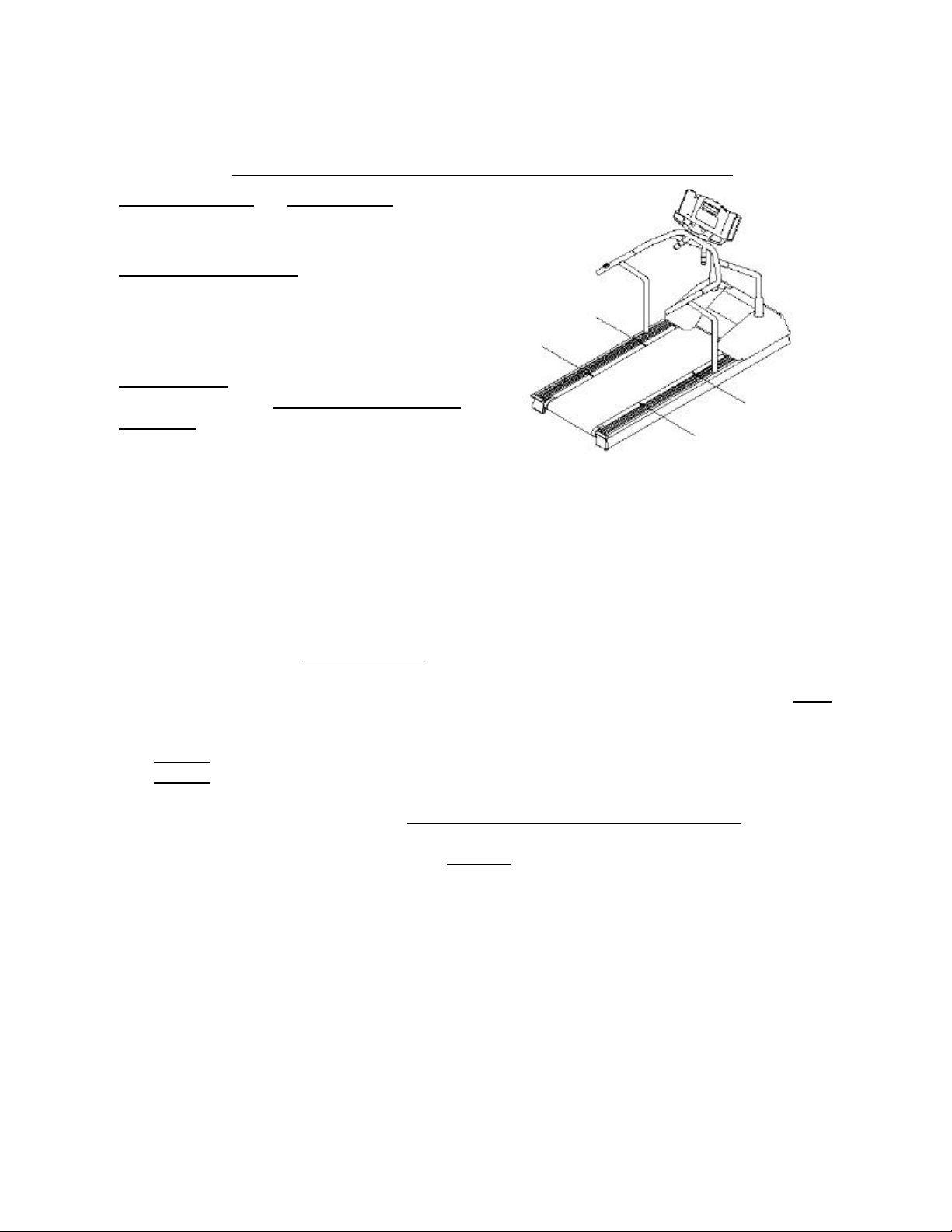

the frame, behind the end cap (see picture below).
Pages 2 and 3 will explain how to use the bottle when rewaxing the running belt. These
instructions are also included with the wax bottle when it is shipped from the factory.

PSB241.doc Page 2of 3
By performing the following quick and easy re-waxing procedure (every 2000 miles or 3000 KM
of usage), you will reduce running belt downtime, and maximize your running belt life! The
wax bottle enclosed contains over 4 full applications. Keep these instructions with the bottle.
TREADMILL RUNNING BELT/DECK RE-WAXING PROCEDURE
TIME REQUIRED FREQUENCY
5 Minutes Every 2000 miles (3000
km) of use.
TOOLS & MATERIALS
1 Bottle of Wax Powder
1 Clean Towel,
1 Paint Stick or Ruler
Diluted All-purpose Cleaner (409)
PROCEDURE
Apply wax powder while belt and deck are
still warm, (5 minutes minimum use) for
optimum benefit.
1. POWER OFF THE TREADMILL.
2. CLEAN DECK & BELT:
A. Using the stick or ruler, slide a towel under the middle of the belt from one side of
the frame to the other.
B. Hold the edges of the towel,pull to the tailroller, pull to the head-roller, then pull the
belt down to wipe the remaining belt.
TIP: Fold the dirty towel & shake into trash.
3. LIFT BELT: Lift the left side (facing display) of the belt, about 12 inches down from the
cover (see figure). Hold the belt up to elevated the belt from the deck.
4. SPREAD WAX: Flip up the nozzle on the cap of the wax bottle. Point the nozzle at the
deck. Be sure that the bottle is tilted at a downward angle. Squeeze the wax bottle twice
between the running belt and the deck.
TIP: Gently shake bottle between each squeeze.
5. Repeat steps 3 & 4, about 18 inches from the end of the deck.
6. Repeat steps 3 through 5, on the right side of the belt/deck.
7. WALK: Power ON the treadmill. Start the treadmill at 1 mph and walk on all sections of
the belt and deck for 1 minute to ensure the wax has been evenly distributed and worked-
in properly.
8. CLEANUP: Power OFF the treadmill. Remove any excess wax with diluted cleaner (409)
and towel.
TIP: Blow away extra wax first (like dust), then wipe.
9. CALL: If you need additional information or assistance, call Star Trac at 1-800-503-1221.
SEE THE PAGE 2 PAGE FOR RE-WAX MESSAGE OR LED UPDATING INSTRUCTIONS.

PSB241.doc Page 3of 3
Turning off the “RE-WAX LED” for the TR 3900:
1. Power ON the treadmill.
2. Press the TIME, DISTANCE and SPEED keys simultaneously.
3. Power OFF the treadmill to reset the LED.
4. Power ON the treadmill. The re-wax LED light should be off.
Clearing the “RE-WAX BELT” Message for the TR 4500:
1. Power ON the treadmill.
2. Enter “Maintenance” mode, by holding down the “0”, “2” and “Start” keys at the same time,
and then let go of the “2” only. The display will read “MAINTENANCE SETTINGS”. If you
do not get it to go into the Maintenance mode, press the “STOP” key twice and try again.
Note: This can be difficult. Keep trying.
3. Press the elevation “↑” key until the display window reads “LST DCK”.
4. Press the “♥” key to enter the distance the treadmill has accumulated.
5. Press the “START” key and the display window will show “UPDATING”. This will save the
accumulated distance in the parameter. The display will go back to “LST DCK” and to the
right of those words will be the accumulated distance.
6. Press the “STOP” key to exit the mode.
7. The “REWAX BELT” message should be gone.
CALL STAR TRAC AT 1-800-503-1221 IF YOU NEED ADDITIONAL ASSISTANCE.
