StarTech.com InfoSafe UNI3510U2EB User manual

Manual Revision: 03/28/2012
For the most up-to-date information, please visit: www.startech.com
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
UNI3510U2EB
UNI3510UEBEU
UNI3510UEBGB
3.5 eSATA USB 2.0 to IDE SATA External
Hard Drive Enclosure
*actual product may vary from photos

Instruction Manual
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use ofTrademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.

Instruction Manual
i
Table of Contents
Introduction............................................................................................1
Packaging Contents ................................................................................................................................. 1
System Requirements.............................................................................................................................. 1
Hardware Guide .....................................................................................2
Front Panel................................................................................................................................................... 2
Rear Panel .................................................................................................................................................... 2
Installation ..............................................................................................3
Hardware Installation .............................................................................................................................. 3
Driver Installation...................................................................................................................................... 4
Software Installation................................................................................................................................ 4
Recognizing the Hard Drive .................................................................6
Windows XP ................................................................................................................................................ 6
Windows Vista ............................................................................................................................................ 7
Specications..........................................................................................8
Technical Support ..................................................................................9
Warranty Information............................................................................9

Instruction Manual
1
Introduction
This enclosure lets you turn almost any high capacity 3.5” Serial ATA (SATA) or IDE hard
drive into an eSATA (SATA only) or USB (SATA or IDE) external hard drive, allowing you
to customize your external storage solution based on your preference of hard drive
model and manufacturer.
Packaging Contents
• Hard Drive Enclosure
• USB Mini B Cable
• eSATA Cable
• IDE Cable
• Driver CD
• Enclosure Stand
• Power Adapter
• SP4 to LP4 Adapter Cable
• SATA 7+15 pin cable
System Requirements
• Available USB 2.0 or eSATA port on computer system
• Microsoft® Windows® 2000/XP/Vista/Server 2008 R2/7 (32/64-bit)
• Apple® Mac OS® 9.x/10.x, or Linux® kernel 2.4.1.0 and above

Instruction Manual
2
Hardware Guide
Front Panel
Rear Panel
1
2
3
4
1
2

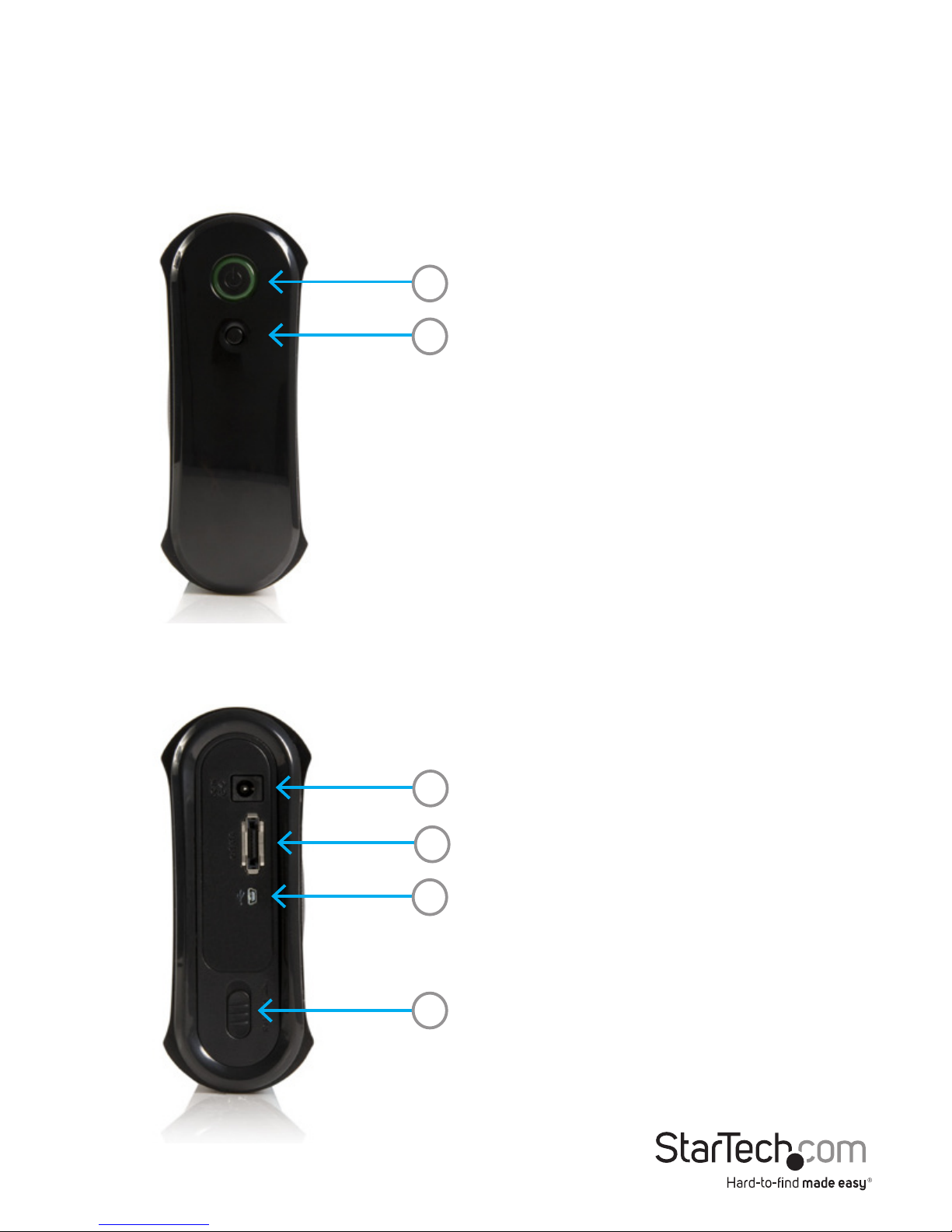

1. Power Button/LED
2. Backup Button
1. DC In Port
2. eSATA Port
3. Mini USB Port
4. Hard Drive Release Switch

Instruction Manual
3
Installation
Hardware Installation
1. Open the hard drive enclosure by pushing the rear panel release button to the right
and sliding the hard drive bracket out of the external casing from the front.
2. If using an IDE/ATA hard drive, ensure that the hard drive you are using is set to MASTER.
3. Pull the two tabs on either side of the hard drive holding mechanism up, then
connect the provided SATA or IDE data and power supply cables to the rear ports of
the drive.

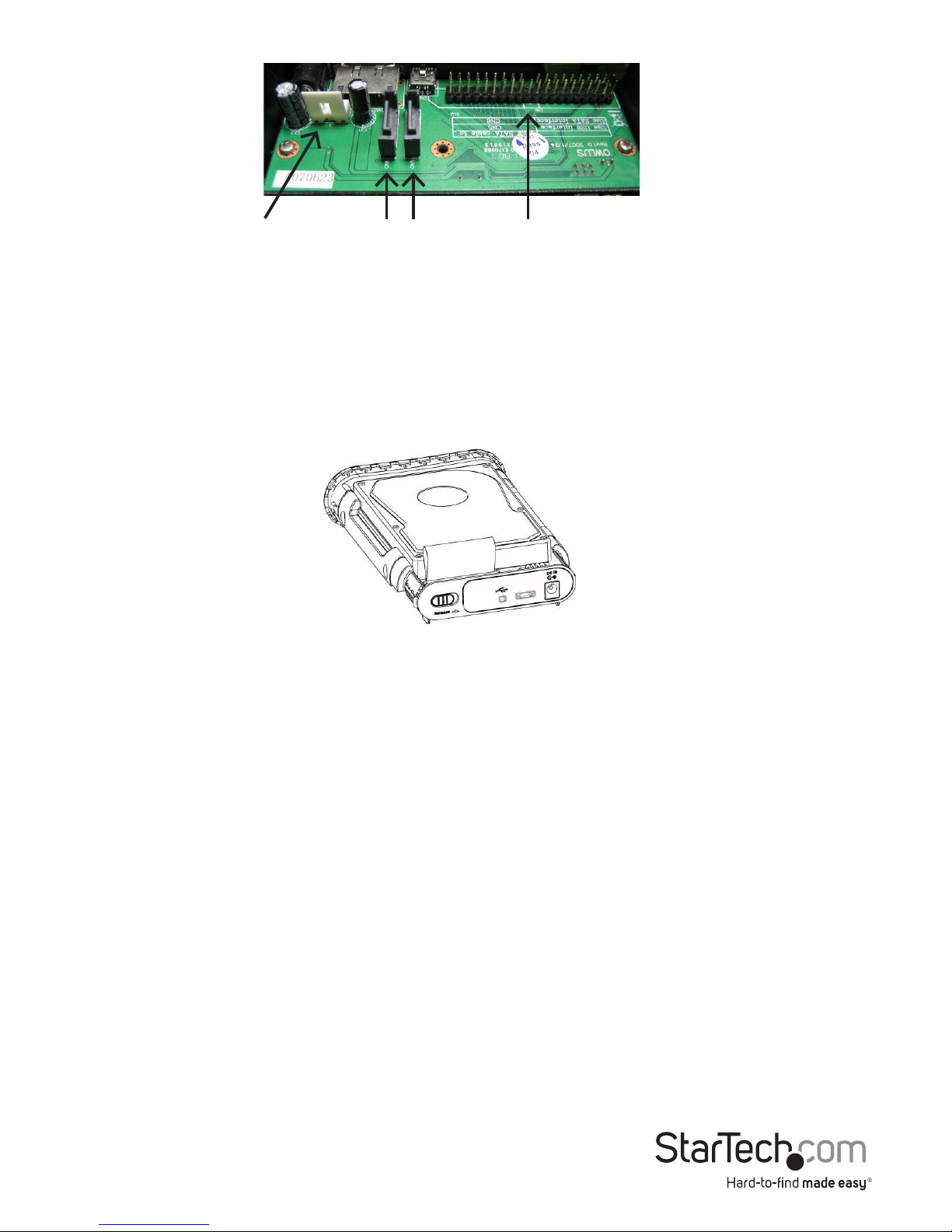

4. SATA HDD: If you will be using the USB 2.0 interface to connect to the enclosure,
plug the SATA data cable into the port labelled CN5 on the enclosure’s PCB board.
If using the eSATA interface to connect to the enclosure, plug the SATA data cable
into the port labeled CN6 on the enclosure’s PCB board. The locations of the CN5
and CN6 ports are shown below. Plug the power connector into the J1 port on the
PCB board.

Instruction Manual
4
5. IDE HDD: Only the USB 2.0 interface is available for connecting an IDE hard drive to
the host computer. Plug the 40-pin IDE data cable into the port labelled CN1 on the
enclosure’s PCB board. Plug the included 4-pin SP4 to LP4 power adapter cable into
the J1 connector.
6. To mount the hard drive, place it into the holding tray and press the tabs on either
side down to secure the drive in the enclosure.
7. Slide the hard drive holding mechanism into the external casing, ensuring that the
release button on the rear panel returns to its original, locked position.
Driver Installation
Windows® 2000/XP/Vista/7, Mac OS® 9.x/10.x, Linux Kernel® 2.4.x +
No driver installation is required for these operating systems, as this enclosure is
natively supported, so the drivers are already installed.
CN5
CN6
J1 CN1

Instruction Manual
5
Software Installation
The following steps outline the procedure to install the software included with your
drive enclosure in Windows.

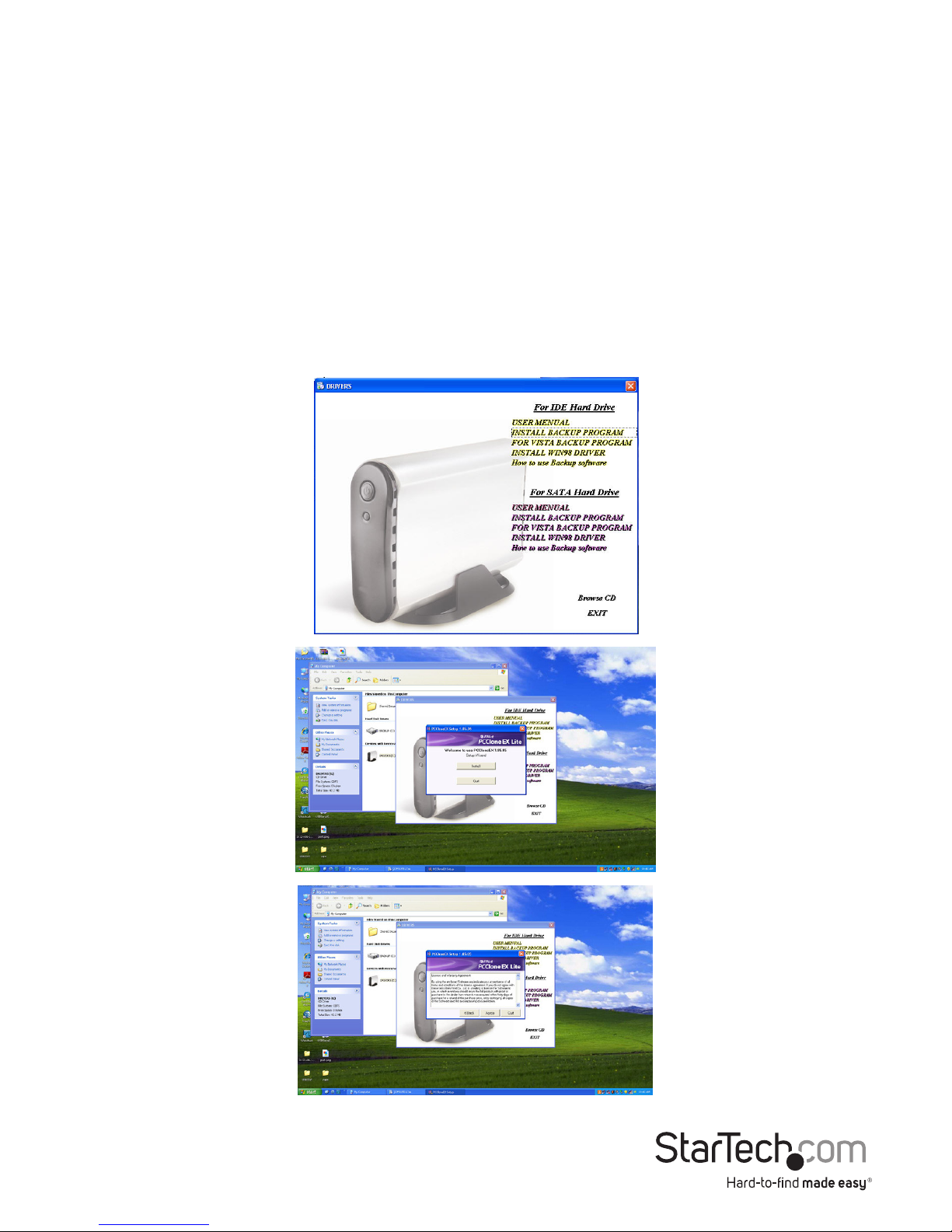

1. Insert the Drivers CD into your computer’s CD-ROM. Open the DRIVERS.exe
