STC GZ620H User manual

of 20
1
www.stcny.com
Systems Trading Corporation
450 7th Avenue Suite 2809, New York, NY 10123
Customer service: [phone] Email: [email protected]
Assembly Instructions
Gazebo GZ620H

of 20
2
www.stcny.com
Introduction
Thank you for purchasing the Gazebo GZ620H.
When properly assembled and maintained, this gazebo will provide many years of enjoyment!
These instructions include helpful hints and important information needed to safely assemble and properly
maintain the gazebo. Please read these instructions completely before you begin.
Our patented gazebo has been designed for easy assembly. All steps can be completed by a team of
three people. The assembly should take about two hours.
Before Starting Assembly:
CAREFULLY READ ALL THE INSTRUCTIONS BEFORE YOU BEGIN AND FOLLOW THE
STEPS IN THE ORDER THEY ARE PRESENTED.
1.Make sure you have all the necessary parts:
Compare the contents of the two cartons to the List of Parts. If any parts are missing or damaged, or
you have any questions, please contact Customer service:
[phone] or by email at
[email protected] before beginning assembly.
2.Lay the parts out in separate staging areas:
The List of Parts has the corresponding step number referenced to each part. We recommend that
while you go through the list, make staging areas for each step and place the parts necessary for
each step in these areas. This will save you time and effort during assembly.
3.Select a Location:
When selecting a location for your gazebo, a flat level area is essential and if possible with proper
water drainage and easy access to power and water, if neccessary.
Choose a sunny, level position away from overhanging trees and power lines and protected from the
wind as much as possible. Locate underground pipes or cables before preparing the site or anchoring
the gazebo.
Note: You may assemble the gazebo on a hard level surface and move it to its final location when
finished. Make sure that there are no obstacles between the assembly area and the final position.
4. Prepare a Foundation:
After choosing a location, proper preparation of the site is recommended. The site must be level.
If the site is not level, create a base slightly larger than the outside dimensions of the gazebo using a
perimeter of two by fours filled with either soil, sod or gravel.
Make sure the base is square by measuring the diagonals from both directions and making sure
they are equal. The gazebo is secured with pegs into holes cast with concrete.
If you decide to have a concrete base, it is best to contact a reliable contractor to make sure it is flat
and level. Make sure you have checked with your local authorities regarding any required building
permits.
5. Make sure you have the proper tools:
• Tape Measure • 2 Small Step Ladders
• Work Gloves • Wooden Mallet
• Safety goggles • Scissors
• Phillips Screwdriver • Liquid soap or WD40 Lubricant
• Spirit Level • Hex Key (included)
NOTE: A cordless drill with Phillips head bit is highly recommended but not essential.

of 20
3
www.stcny.com
Safety Advice
• The gazebo must be positioned and fixed
on a flat level surface.
• Dispose of all plastic bags safely. Keep
them out of the reach of children.
• Keep children and pets away from the
assembly area until the work is completed.
• Always wear shoes, gloves and safety
goggles when working.
• Take special care not to touch overhead
power lines with the aluminium profiles.
• Do not attempt to assemble the gazebo in
windy or wet conditions.
• Do not position your gazebo in an area
exposed to excessive wind.
• If using power tools or a ladder, always fol-
low the manufacturers safety instructions.
• Hot items such as recently used grills,
blowtorches etc. must not be stored in the
gazebo.
• Make sure the gazebo complies with local
building codes.
General Order of Assembly
Step 1: Assembling the Corner profiles
Step 2: Assembling the Roof Profiles
Step 3: Attaching the Roof Profiles to the
Corner Profiles
Step 4: Attaching the Roof Connectors
Step 5: Securing the gazebo to the ground.
Step 6: Installing the Roof Gables
Step 7: Installing the Upper Roof Panels
Step 8: Installing the Lower Roof Panels
1
1
5
5
5
5
1
1
2
34
67
8
Table of Contents
Introduction.............................................. 2
Table of Contents...................................... 3
List of Parts............................................... 4
Step 1 Assembling the Corner Profiles......... 6
Step 2 Assembling the Roof Profiles............. 7
Step 3
Attaching the Roof Profiles to Corner Profiles ... 9
Step 4 Attaching the Roof Connectors........... 12
Step 5 Securing the Gazebo to the ground..... 13
Step 6 Installing the Roof Gables................... 14
Step 7 Installing the Upper Roof Panels........... 17
Step 8 Installing the Lower Roof Panels........... 18
Optional
Securing the Gazebo to a Concrete Floor........ 19

of 20
4
www.stcny.com
List of Parts
The gazebo is shipped in two cartons. These cartons are heavy. Be careful when lifting them.
Wear proper safety gear including work shoes, gloves and goggles.
The parts are identified by removable stickers.
Place all the parts for each step in staging areas, checking that you have all parts as you go.
If any parts are missing or damaged, contact STC customer service before beginning assembly:
Customer service: [phone] Email: [email protected]
No. Profile Qty Step
14 1
24 1
32 2
42 2
52 2
62 2
78 4
86 4
94 4
No. Profile Qty Step
10 1 6
11 4 6
12 6 6
13 4 7
14 4 7
15 2 7
16 1 6
17 4 8
18 4 8
2200mm
1822mm
2171mm
1584mm
1822mm
1350mm
1350mm

of 20
5
www.stcny.com
We included some extra screws and bolts for your convenience.
23 12 5
24 20 6
25 116
26 16
3
27 90 7,8
28 12
19 2 8
20 1
21 4
2
22 4 3

of 20
6
www.stcny.com
x 4
x 4
Corner prole (1)
x 4
Support plate (2)
x 4
Screw (25)
x 12
1
1 1 1 1
1
2
2 2 2 2
2
25
25
25
1.A
1.B
Assembling the Corner Profiles
Place all the parts for the Floor Frame face on a level surface .
Make sure the pieces are in the correct positions before assembling.
Carefully follow the order of assembly to ensure an easy installation.
Wear proper safety gear including work shoes, gloves and goggles.
Place corner profiles (1) parallel to each other the
ground. Slide support plates (2) into corner profiles
from the end with a single screw hole, as shown.
Fasten each plate to profile using three screws (25).
STEP 1
Components

of 20
7
www.stcny.com
x 2
x 2
21
21
21
3
3
3
4
4
4
3
4
25
2.A
2.B
Assembling the Roof Profiles
Insert connecting profile (21)
into long roof profiles (3,4).
Fasten together using screws (25).
Repeat steps 2A and 2B to make the
two long roof profile sets.
STEP 2
Components
Roof prole (3)
1822mm
x 2
Roof prole (4)
1822mm
x 2
Connecting prole (4)
x 2
Screw (25)
x 16

of 20
8
www.stcny.com
21
21
5
5
6
6
2.C
Roof prole (5)
1350mm
x 2
Roof prole (6)
1350mm
x 2
Connecting prole (4)
x 2
Screw (25)
x 12
Insert connecting profile (21)
into short roof profiles (5,6).
x 2
5
6
25
2.D
Fasten together using six screws (25).
Repeat steps 2A and 2B to make the
two short roof profile sets.
Components
ATTENTION: Insert screws exactly as shown.
You will need the two empty screw holes to
fasten connector (8) in step 4.
6
5
21

of 20
9
www.stcny.com
x 2
Attach long roof profile set to corner profiles as shown, making
sure the side with the ridge faces toward the corner profiles.
Fasten together using two screws (26) on each side.
Repeat to create two sides for the gazebo.
Screw (26)
x 8
3
3
3
4
4
4
26
26
1
1
1
1
1
1
1
26
3.A
3.B
Attaching Roof Profiles to Corner
Profiles
STEP 3
Components

of 20
10
www.stcny.com
Screw (26)
x 8
3.C

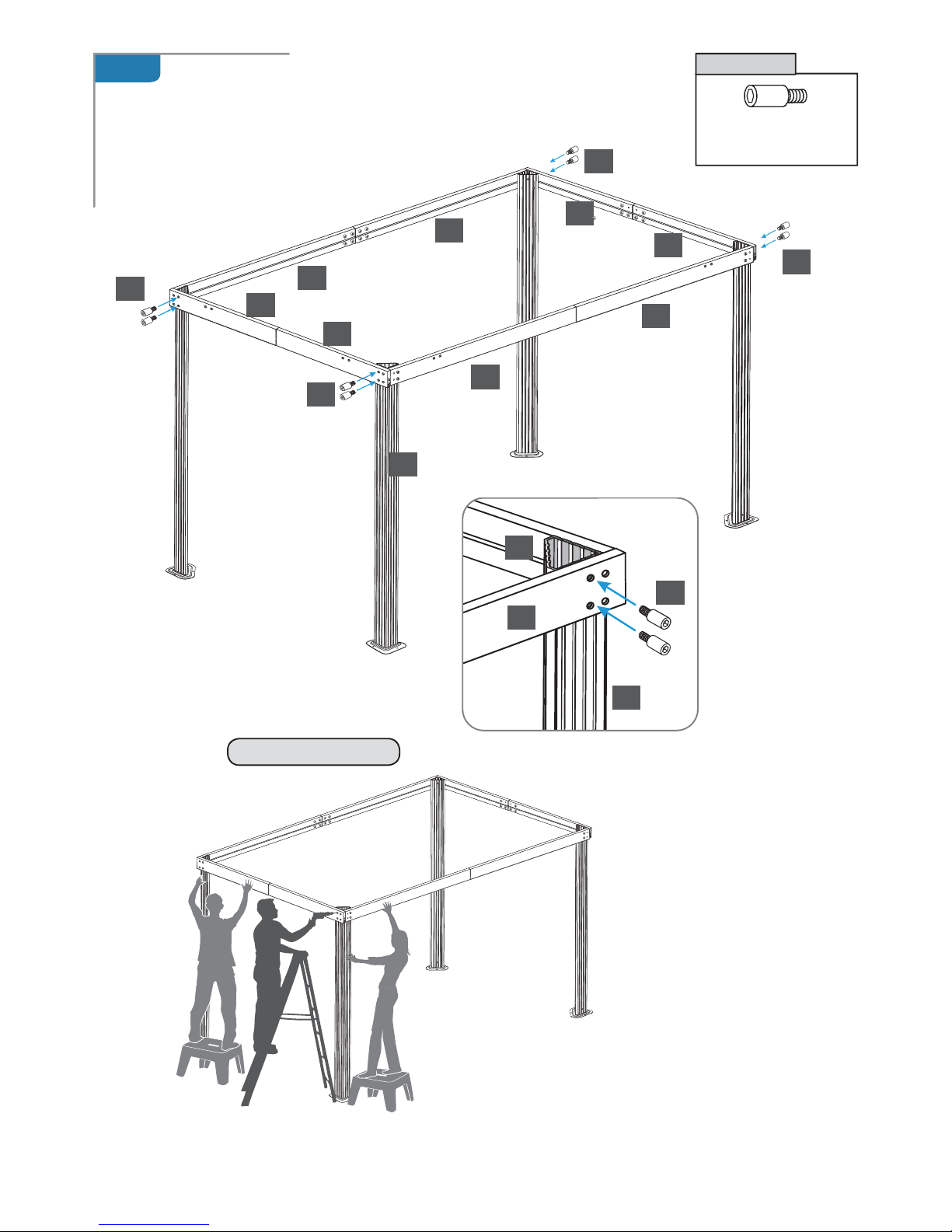

Using three people, attach the short roof profile sets to corner profiles
as shown, making sure the side with the ridge faces toward the corner
profiles. Use screws (26).
ILLUSTRATION
Components
26
26
26
26
26
1
1
5
5
6
6
6
3
3
3
4
4

of 20
11
www.stcny.com
Screw (25)
x 28
Corner connecting part (22)
x 4
3.D
Attach corner connecting part (22) to inside of each corner
using seven screws (25) for each corner.
IMPORTANT: After this step you should place the gazebo frame in its desired location.
Make sure all corners are squared at 90 degrees.
IMPORTANT: After this step you should place the gazebo frame in its desired location.
Make sure all corners are squared at 90 degrees.
Components
25
1
22

of 20
12
www.stcny.com

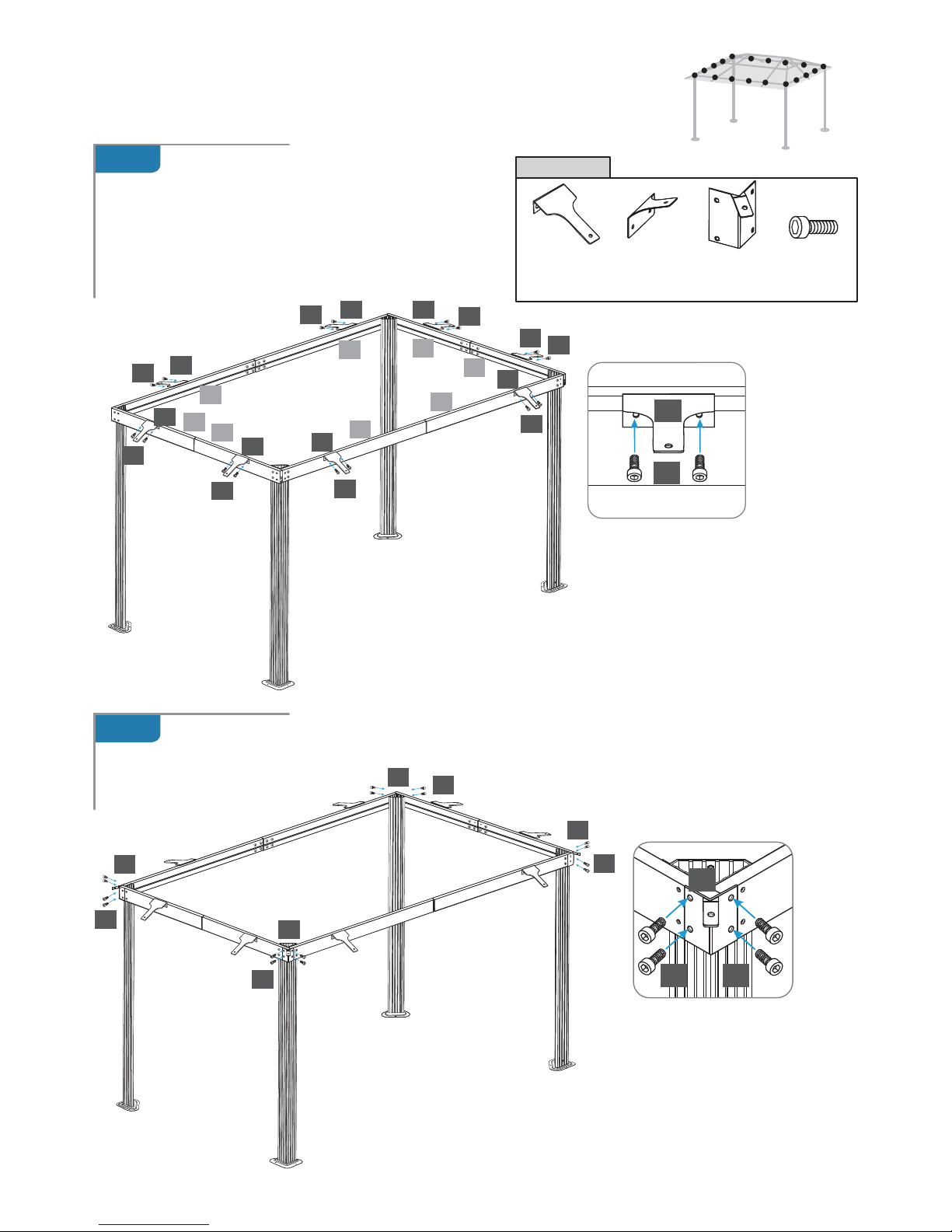

Attach roof connectors (7) to roof profiles
(3,4,5,and 6) as shown, using two screws (25)
for each connector.
Attach roof corner connectors (9) to roof profiles (3,4,5,and 6) as shown, using four screws (25)
for each connector.
4.A
4.B
Attaching the Roof Connectors
STEP 4
Components
Screw (25)
x 44
Roof
connector (7)
x 8
Roof
connector (8)
x 6
Roof
connector (9)
x 4
5
5
6
7
77
7
7
7
9
9
9
9
7
7
9
7
25
2525
25
25
25
25
25
25
25
25
25
25 25
25
6
33
4
4

of 20
13
www.stcny.com
8
8
5
3 - 4
6
25
25

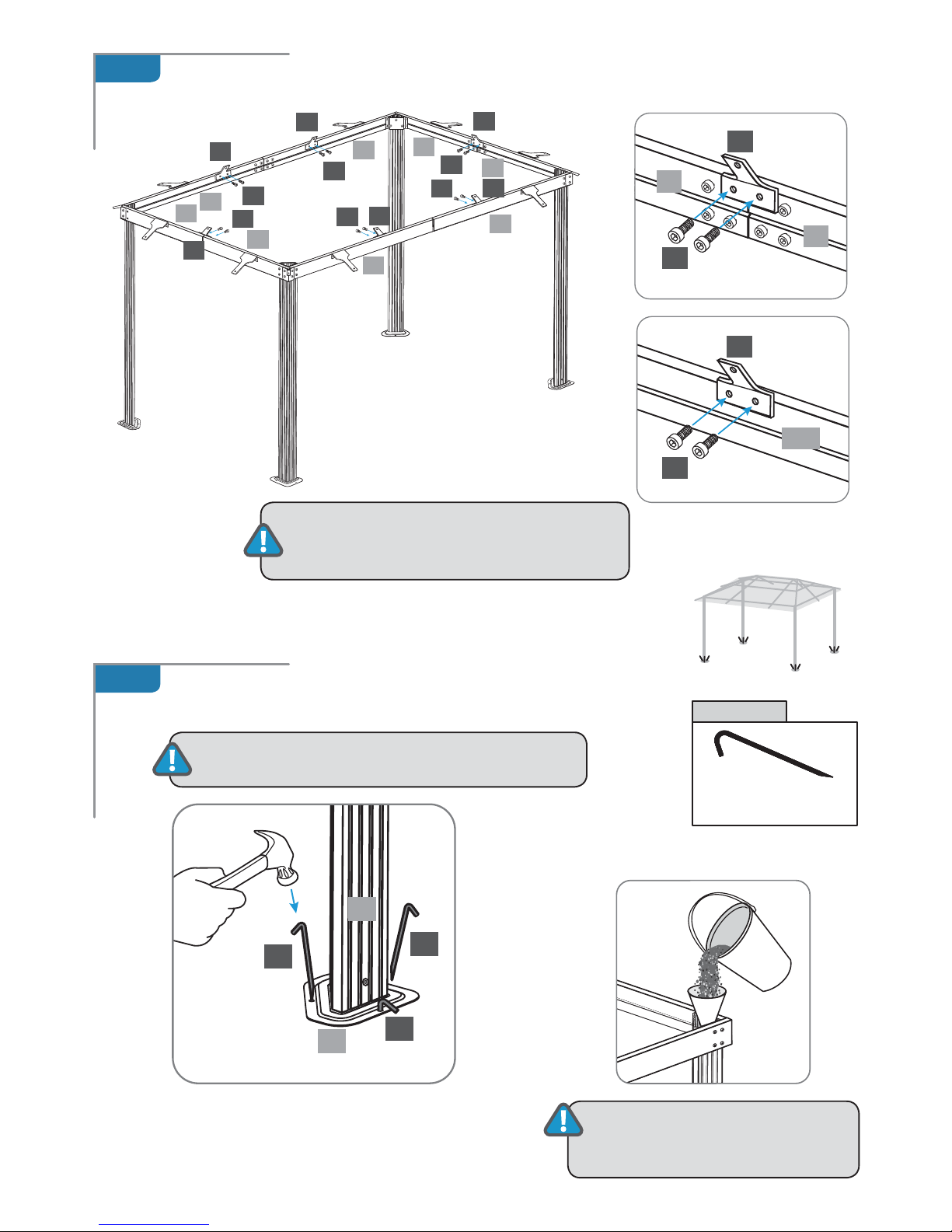

From inside of the gazebo frame, attach roof connectors (8) to roof profiles (3,4,5 and 6) as shown.
4.C
Securing the Gazebo to the Ground
STEP 5
Components
5
5
6
8
88
8
8
8
23
23
23
1
2
25
25
25
25
25
25
6
3
3
4
4
ATTENTION: Insert screws exactly as shown.
In roof profiles (5,6), use empty screw holes.
In roof profiles (3,4), use pre-drilled screw holes.
ATTENTION: For special instructions how to secure the
gazebo to a concrete floor, please turn to page 19.
5.A
Fasten the gazebo frame to the ground, using three spikes (23)
for each support plate.
Ground spike (23)
x 12
After securing the gazebo to the ground,
we highly recommend filling the corner
profiles with gravel for extra stability.

of 20
14
www.stcny.com
Using at least three people, install the roof gables (11,12) in the following order:
VIEW FROM TOP
6.A
Installing the Roof Gables
STEP 6
Components
Roof top
plate (16)
x 1
Roof top
plate (10)
x 1
Roof gable (11)
2171mm
x 4
Roof gable (12)
1584mm
x 6
Screw (25)
x 4
12
16 12
12
11
12
11 11
1111 12
Screw (24)
x 20
12
12
1.
1.
2.
2.
3.
3.
4. 4.
4.4.
IMPORTANT:
The roof gable profiles (11,12) have two small protrusions underneath on each end.
The end with the shorter distance to the protrusions is connected to the roof top plate (16) and
the end with the longer distance to the protrusions is connected to the roof connectors (8,9).
Toward roof top plate (16) Toward roof connectors (8, 9)

of 20
15
www.stcny.com
24
24
12
16
Slide screws (24) into profiles (12) and connect one end to roof top plate (16) and the other end to
roof connectors (8), using the bolts. The protrusions will stop the profiles from sliding too far.
24
24 24
12
8
816
12
12
ILLUSTRATION
Install roof gable profiles (11) in the same way. Slide screws (24) into profiles (11) and connect
one end to roof top plate (16) and the other end to roof connectors (9), using the bolts.
The protrusions will stop the profiles from sliding too far.
6.B
ILLUSTRATION
11
9
1

of 20
16
www.stcny.com
6.C
Connect the roof top plate (10) to the roof top plate (16) as shown, using four screws (25).
VIEWS FROM BELOW
2525
25
10
10
16
16

of 20
17
www.stcny.com
Slide upper roof panels (13,14,15) into
their positions as shown.
7.A
7.B
Installing the Upper Roof Panels
STEP 7
Components
Roof panel
(13)
x 4
Roof panel
(14)
x 4
Roof panel
(15)
x 2
Screw (27)
x 42
15
15
13
13
13
13
14
14
14
14
15
12
16
27
27
13
15
27
13
VIEWS FROM BELOW
VIEW FROM SIDE
15
14
14
13
13
Fasten roof panel (15) to roof top plate (10) with screws (27).
Fasten roof panels (13,14,15) to roof gables (11,12) at mid point
and end with screws (27).
Remove protective plastic from both sides of upper roof panels (13,14,15).
Place side to face toward the sun facing out when installing.
VIEW FROM BELOW
(from inside gazebo)
10
10

of 20
18
www.stcny.com
Slide lower roof panels (17,18,19) into
their positions as shown.
8.A
Installing the Lower Roof Panels
STEP 8
Roof panel
(17)
x 4
Roof panel
(18)
x 4
Roof panel
(19)
x 2
Screw (27)
x 48
Components
8.B
Fasten roof panels (17,18,19) to roof gables (11,12) at
mid point and at end with screws (27).
Fasten roof panels (19) to connectors (7) with screws (27).
18
17
17
18
18
18
19
19
19
19
19
17
18
18
18
18
7
18
17
17
17
27
27
27
Remove protective plastic from both sides of lower roof panels (17,18,19).
Place side to face toward the sun facing out when installing.
VIEW FROM BELOW
(from inside gazebo)

of 20
19
www.stcny.com
Securing the Gazebo to a Concrete Floor
Components
Bolts, disks and nuts (28)
x 12
Optional
1. 2. 3.
1. Using an electric concrete drill, drill holes into the concrete floor, corresponding
to the holes in the support plates.
2.
Insert concrete bolts (28) into the holes and hammer into place, using a mallet.
3. Fasten concrete bolts with discs and nuts.

of 20
20
www.stcny.com
Systems Trading Corporation
450 7th Avenue Suite 2809, New York, NY 10123
Customer service: [phone] Email: [email protected]
EasyGrow
8’x 12’ Greenhouse
Gazebo GZ620H
Assembly Instructions
Visit: http://www.stcny.com
for more Lawn and Garden products
