Stealth SAHP1402 User manual

4 Gallon High Pressure
Air Compressor
To Reduce The Risk Of Injury, User Must Read And Understand
Operator’s Manual. Save These Instructions For Future Reference.
Toll Free Helpline:
OPERATOR’S MANUAL
CAUTION:
1-888-899-0146
Product Model # SAHP1402
Item # 0200481

2
2
Safety Guidelines..................................................................................................................... 3
Key Parts Diagram.................................................................................................................... 5
Assembly Instructions............................................................................................................. 7
Operating Instructions............................................................................................................ 8
Maintenance............................................................................................................................ 10
Troubleshooting....................................................................................................................... 11
Technical Specifications........................................................................................................
Exploded View.......................................................................................................................... 13
Parts List.................................................................................................................................... 14
Warranty....................................................................................................................................15
TABLE OF CONTENTS
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions.
Read all instructions and follow them with use of this product.
*CFM: Cubic Feet per Minute.
This compressor is rated in accordance with ISO 1217, displacement compressors acceptance
tests.
TECHNICAL SPECIFICATIONS
PRODUCT NUMBER
RUNNING HORSEPOWER
TANK SIZE(TOTAL)
AIR DELIVERY(CFM*)@40PSI
AIR DELIVERY(CFM*)@90PSI
CUT-IN PRESSURE(PSI)
CUT-OUT PRESSURE(PSI)
PUMP DESIGN
MOTOR
POWER
WEIGHT
POWER CORD
0200481
4U.S. Gallons(15L)
180
225
OIL-FREE
UMC
120V, 60Hz, 15A
68lbs(31kg)
SJT 14 AWG / 72"(1.83m)
2
6.0
5.0

3
Hot SurfaceFlying Objects
WarningElectrical ShockToxic Fumes
Operator's Manual BurstingFire
SAFETY GUIDELINES
Important Safety Information
Safety Symbols and Meanings
The manufacturer cannot possibly anticipate every possible circumstance that might involve a hazard.
The warnings in this manual, and the tags and decals affixed to the unit are, therefore, not all-inclusive.
If you use a procedure, work method, or operating technique that the manufacturer does not
specifically recommend, you must satisfy yourself that it is safe for you and others. You must also make
sure that the procedure, work method, or operating technique that you choose does not render the
compressor unsafe.
The safety alert symbol indicates a potential hazard to personal injury. A signal word (DANGER,
WARNING, or CAUTION) is used with the alert symbol to designate a degree or level of hazard
seriousness. A safety symbol may be used to represent the type of hazard. The signal word
NOTICE is used to address practices not related to personal injury.
DANGER: Indicates a hazard which, if not avoided, will result in death or serious injury.
WARNING: Indicates a hazard which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a hazard which, if not avoided, could result in minor or moderate injury.
NOTICE: Address practices not related to personal injury.

4
.
WARNING
This product can expose you to chemicals including lead, which is known to the State of
Californiato cause cancer, birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
WARNING:
SAFETY INFORMATION
DO NOT OPERATE THIS UNIT UNTIL YOU READ AND UNDERSTAND THIS
INSTRUCTION MANUAL FOR SAFETY, OPERATION, AND MAINTENANCE
INSTRUCTIONS.
Risk of fire caused by sparks from motor and pressure switch could result in death or serious injury.
Do not operate compressor near flammable gas or vapor. Never store flammable liquids or gas es
in vicinity of compressor.
High pressure air could result in death or serious injury.
Hot compressors surfaces could result in serious injury. Allow compressor to cool before touching.
Inhalation hazard. Using compressor to supply breathing air could result in death or serious injury.
Do not use compressor to supply breathing air.
Risk of fire could result in death or serious injury.
Risk of serious eye injury. Always wear ANSI Z87.1 approved safety goggles when using air
compressor.Do not spray any part of the body.
Shock risk could result in death or serious injury. Only connect compressor to a properly grounded
receptacle. KEEP CHILDREN AWAY FROM THE AIR COMPRESSOR AT ALL TIMES.
Dust can be created when cutting, sanding, drilling or grinding materials such as wood, paint,
metal, concrete, cement, or other masonry. To reduce your exposure to these chemicals, work in a
well ventilated area and ALWAYS wear approved safety equipment.
Never operate above maximum operating pressure of the spray gun or tool. Drain water from
tank after each use. Do not weld or repair tank.
Do not operate with pressure switch or safety valve set above maximum allowable working
pressure.
Do not spray flammable materials in vicinity of any flame or ignition sources including the
compressor unit.
Do not restrict compressor ventilation openings or place objects against or on top of
compressor.Operate compressor only in a clean, dry, well ventilated area.
Do not operate unattended. Always turn off and unplug unit when not in use.
•
•
•
•
•

5
K. Power Cord
E. Air Pressure Regulator
G. Outlet Pressure Gauge
F. Tank Pressure Gauge
D. ON/OFF Switch
H. Quick CouplerB. Air Compressor Pump
A. Electrical Motor
J. Air Tank
I. Drain ValveC. Safety Valve
J
I
H
C
B
E
A
K
F
KEY PARTS DIAGRAM
G
D

6
A
B
C
I
J
E
K
D
F
G
H
Figure 1
DANGER Grounded
outlet
Grounding Pin
Plug

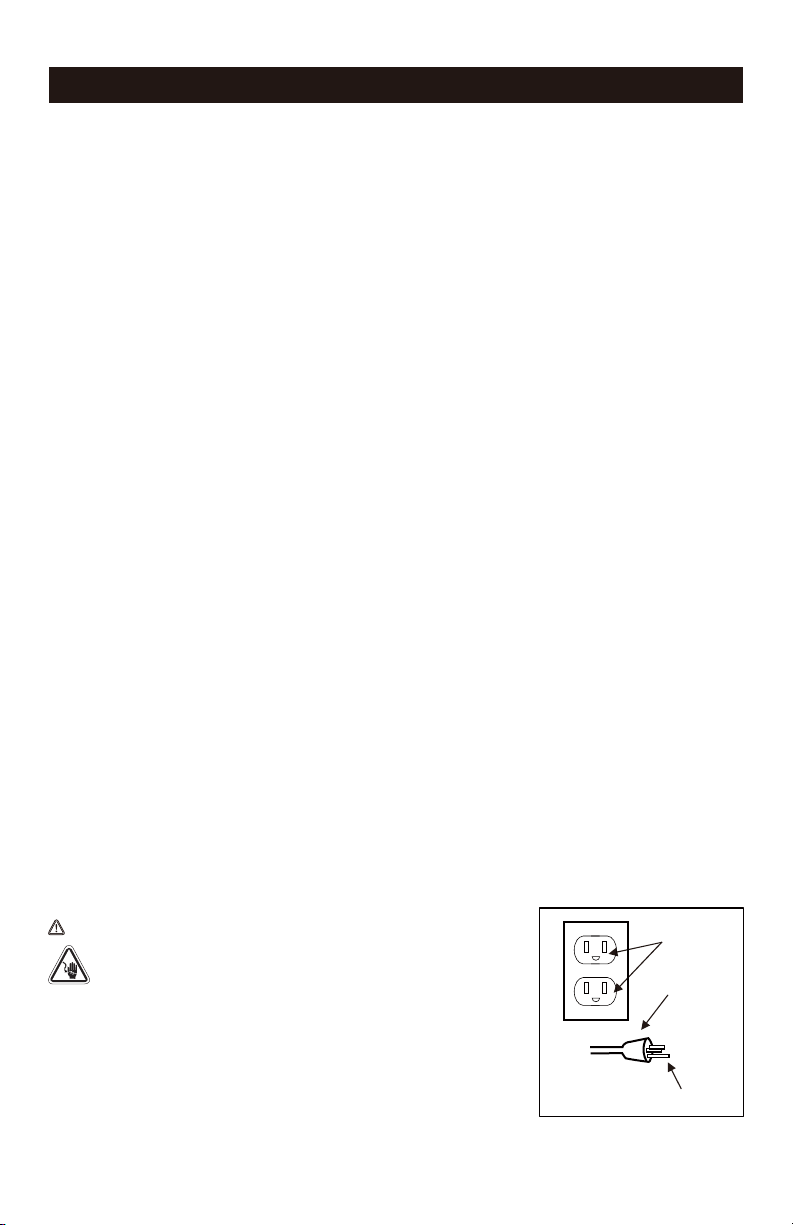

PARTS DESCRIPTION
Electric Motor
The motor is used to power the pump. It is equipped with a thermal overload protector. If the motor
overheats for any reason, the thermal overload protector will shut it down in order to prevent the motor
from being damaged.
Air Compressor Pump
The pump compresses the air and discharges it into the tank via the piston that moves up and down in the
cylinder.
Safety Valve
This valve is used to prevent the compressor from building too much pressure. If the pressure reaches the
preset level of the motor, it will automatically pop open. You can also pull the ring on the valve to open
manually.
ON/OFF Switch
This switch turns on the compressor and is operated manually.When in the ON position, it allows the
compressor to start up or shut down automatically, without warning, upon air demand.ALWAYS set this
switch to OFF when the compressor is not being used and before unplugging the compressor.
Air Pressure Regulator
The regulator is used to adjust the pressure inside the line to the tool that is being used. Turn the knob
clockwise to increase the pressure and counter-clockwise to decrease the pressure.
Tank Pressure Gauge
The gauge measures the pressure level of the air that is stored in the tank. It cannot be adjusted by the
operator and it does not indicate the pressure inside the line.
Outlet Pressure Gauge
The gauge measures the regulated outlet pressure.
Quick Coupler
The quick coupler is connected to a quick connector which is connecting to air hose.
Drain Valve
The drain valve is used to remove moisture from the air tank after the compressor is shut off.
Air Tank
The tank is where the compressed air is stored.
Power Cord
This product is for use on a nominal 120-volt circuit and should be grounded. A cord with a grounding plug
as illustrated must be used. Make sure that the product is connected to an outlet that has the same
configuration as the plug (see Figure 1). No adapter should be used with this product. Check with a
licensed electrician if the grounding instructions are not understood or there is doubt as to whether the
product is properly grounded. Do not modify the the plug provided. If it will not fit the outlet, have the
proper outlet installed by a licensed electrician.
Improper installation of the grounding plug will result in a risk of
electric shock. If repair or replacement of the cord or plug is
necessary, do not connect the grounding wire to either flat blade
terminal. The grounding wire is in the green outer surface.

7
ASSEMBLY INSTRUCTIONS
1
Fig A
12 / 31 cm
2
3
Unpack the air compressor unit. Inspect the unit for damaged. If the unit has been damaged, contact the
retailer immediately.
Check the air compressor’s identification label to ensure that you have purchased the intended model and
that it has the required pressure rating for its intended use.
Air compressor
Owner's manual
The carton should contain:
Positioning of the air compressor
Connect air hose to compressor
Note:
Position the air compressor (1) near an electrical outlet (2) (Fig A).
The compressor must be at least 12”(31cm) from any wall (3) or
obstruction, in a clean, well-ventilated area to ensure sufficient air flow
and cooling (Fig A).
Place the air compressor on the floor or a hard,level surface.The air
compressor must be level to ensure proper drainage of the moisture in the
tank.
Connect the air hose (1) to the compressor’s quick coupler (2) with the
quick conncetor (3) (Fig B).
Air hose and quick connector are not provided, need to be purchased
sepa rately. Apply plumber's tape on all the threads to prevent air
leakage.
1.
2.
3.
1.
High pressure air could result in death or serious injury. Never operate above maximum
operating pressure of the spray gun or tool.
Hot compressor surfaces could result in serious injury. Allow compressor to cool before
touching.
WARNING
WARNING
Notice
If the pump has been transported or turned upside down (even partially), allow the pump to sit
in a normal, upright position for approximately 10 minutes before starting.
Risk of serious eye injury from moisture and debris. Always wear ANSI Z87.1 safety
goggles when opening drain valve.
High pressure air could result in death or serious injury. Shut off unit, unplug and
release air pressure prior to servicing.
High pressure air containing water condensation could result in minor or moderate
injury. Do not spray at any person.
WARNING
WARNING
CAUTION
•
•
•
•
Fig B 1
3
2

8
OPERATING INSTRUCTIONS
Fig E
1
Fig C OFF
1
Fig D
1
OFF
ON
1
OFF
ON
Fig F ON
1

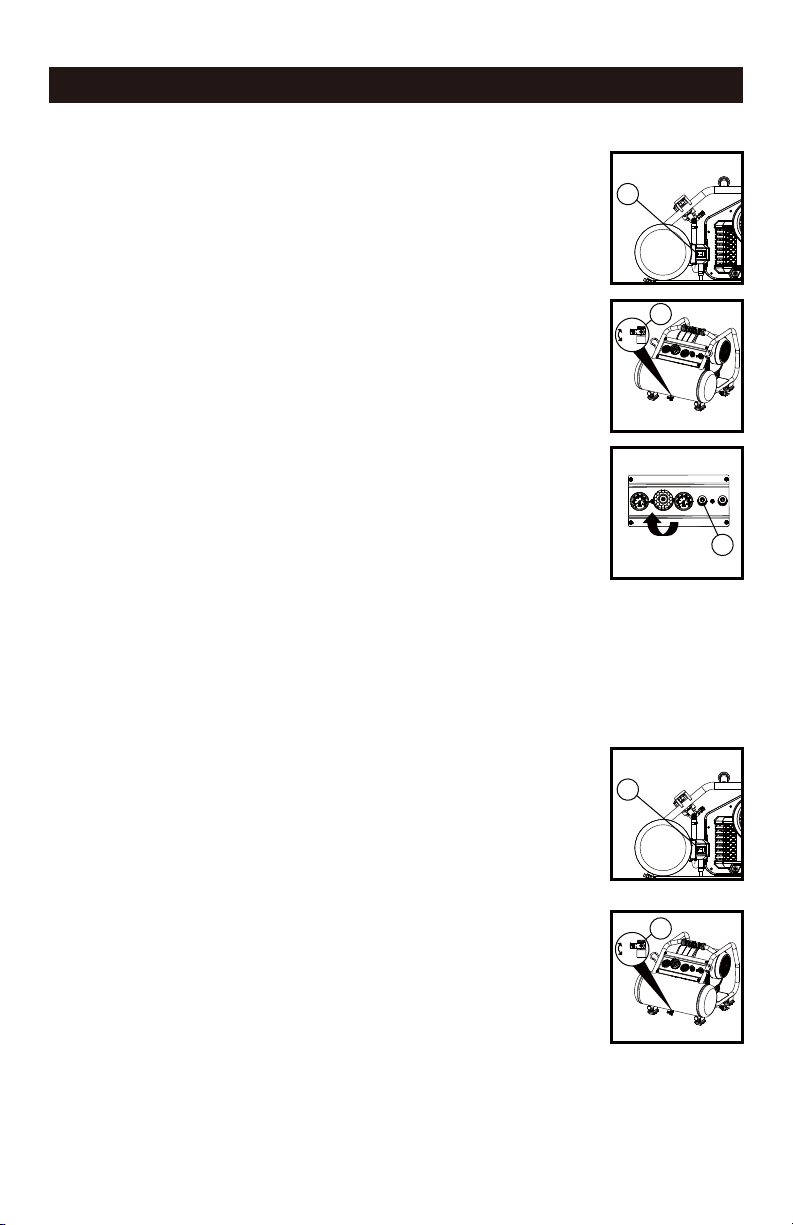

Break in the pump
1.Set the ON/OFF switch (1) to the OFF position (Fig C).
2.Open tank drain valve (1) by turning it counter-clockwise to permit the air to escape
3.Turn the air pressure regulator knob (1) clockwise until it stops (Fig E).
4.Plug in the power cord
and prevent air pressure build-up in the air tank during the break-in period (Fig D).
5.Set the ON/OFF switch (1) to the ON position. The compressor will start. Run the
compressor for 30 minutes. If it fails, turn it off immediately and call the toll-free
helpline at: 1-888-899-0146.
Please note that breaking-in the unit is noly requiresd prior to first use (Fig F).
After 30 minutes, turn off the ON/OFF switch.
Close the tank drain valve (1) by turning it clockwise (Fig G).
Set the ON/OFF switch to the ON position. The air receiver will fill to "cut-out"pressure
and then the compressor's motor will stop. The compressor is now ready for use.
Use a dedicated circuit. The compressor will use the full capacity of a typical 15A household circuit. If
any other electrical devices are drawing from the compressor's circuit, the air compressor may fail to
start voltage or an overload circuit can result in sluggish starting that causes the motor overload
protection system or circuit breaker to trip, especially in cold conditions.
Disconnect the power cord only after break-in process has been completed, otherwise the motor might
get damaged.
6.
7.
8.
Fig G
•
•

9
OPERATING INSTRUCTIONS
Fig J
2
Fig K
1
OFF
ON
Fig L
1
3
2

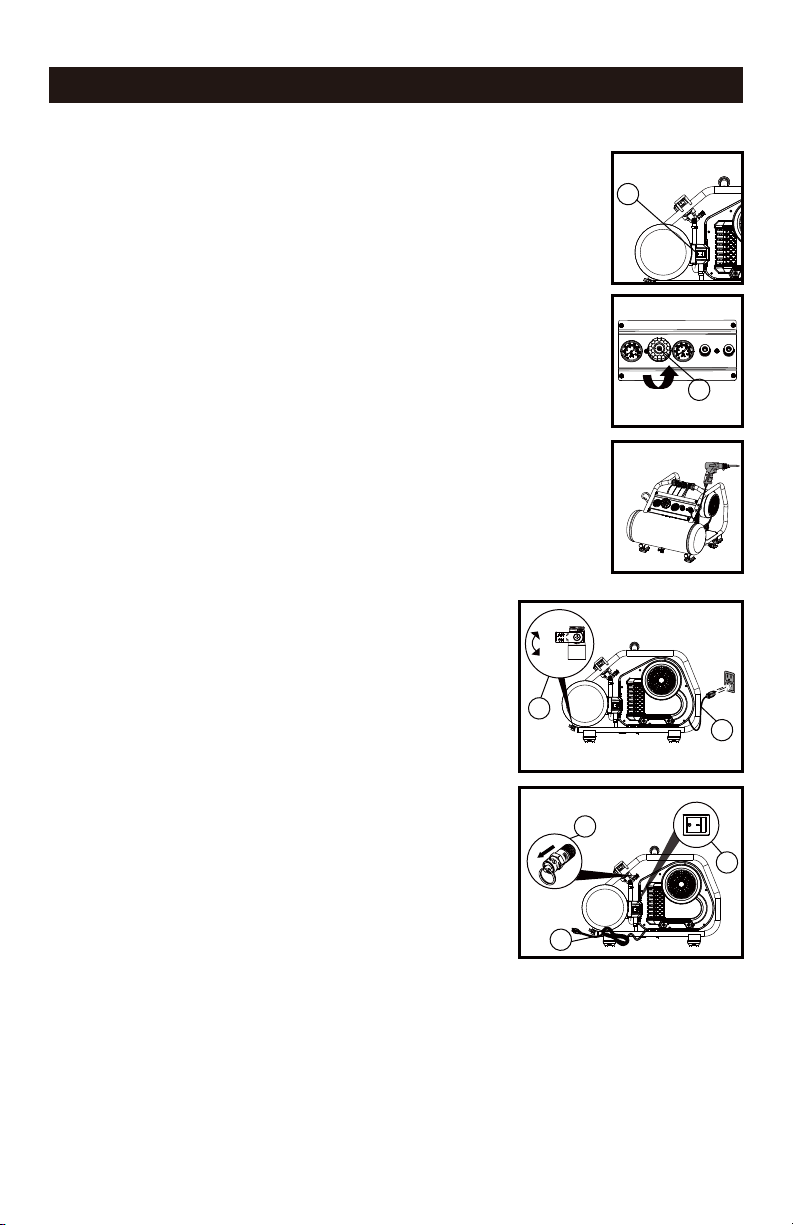

Before each start-up
1.Set the ON/OFF switch (1) to the OFF position (Fig H).
2.Turn the air pressure regulator knob (1) counter-clockwise until it stops (Fig I).
3.Attach hose and accessories (Fig J).(Hose and accessories need to be purchased
How to start
How to shut down
separately.)
5.
Close the tank drain valve (Fig K).
Plug-in the power cord (2) (Fig K).
Set the ON/OFF switch to the ON position and allow the tank pressure
to build. Motor will stop when tank pressure reaches cut-out pressure.
Turn the air pressure regulator knob clockwise until desired pressure is
reached.
The compressor is ready for use.
Set the ON/OFF switch (1) to the OFF position.
Unplug the power cord (2).
Reduce the pressure in the tank through the outlet hose. Pulling the
safety valve ring (3) and keeping it open will also reduce the pressure in
the tank (Fig L).
Set the tank drain valve (1) to ON to ensire tank is drained (Fig K).
2.
3.
4.
1.
4.
3.
2.
1.
Fig H OFF
1
Fig I
1

10
DESCRIPTION / REASON SERVICE
INTERVAL
ITEM
Daily
Daily
Monthly
MAINTENANCE
Through normal operation of your air compressor, condensation of water
will accumulate in the tank. To prevent corrosion of the tank from the inside,
condensation must be drained at the end of every workday. Be sure to wear
protective goggles. Relieve the air pressure in the system then open the
drain valve on the bottom of the tank to drain. Under cold conditions it is
especially important to drain the tank after each use to reduce the chance
of problems resulting from the freezing of condensation water.
NOTE: Refer to instructions on how to drain tank (page 10).
Pull the safety valve daily to ensure that it is operating properly and to clear
the valve of any possible obstructions.
Check that all connections are tight. Small leaks in the tank,
hoses,connections or transfer tubes will substantially reduce the air
compressor and tool performance. Spray a small amount of soapy water
around the area of suspected leaks with a spray bottle. If bubbles appear,
repair, replace or reseal the faulty component. Do not over-tighten any
connections.
Before storing the air compressor:
Drain the tank
Check the valve
Test for leaks
Prior to
storing
• Drain tank (page 10).
• Use an air blow gun to clean all dust and debris from the compressor.
• Disconnect and wind up the power cord.
• Clean the ventilation openings on the motor enclosure with a damp cloth.
• Drain all moisture from the tank.
• Pull the pressure safety valve to release all pressure from the tank.
• WARNING:Storage covers could cause a fire resulting in death or serious injury.
• Store the air compressor in a clean and dry location.
• In cold weather, store the compressor in a warm building when it is not in use.
This will reduce problems related to starting the motor and the freezing of water
condensation.
-Do not place a storage cover over a hot air compressor.
-Let equipment cool for a sufficient time before placing the cover on the
equipment.
Storage
Check Safety Valve
Before starting the compressor, pull the ring on the safety valve to make sure that the safety valve operates
freely. If the valve is stuck or does not operate smoothly, contact a trained service technician.
How To Drain Tank
1. Set the ON/OFF switch to the O (OFF) position.
2. Unplug the power cord.
3. Turn air pressure regulator knob counter-clockwise to set the outlet pressure to zero.
4. Pull and hold ring on safety valve, allowing air to bleed from the tank until air pressure is minimized.
5. Place suitable container under unit to catch water.
6. Slightly tilt unit and turn drain valve counter-clockwise to open.
7. After the water has been drained,close the drain valve(clockwise). The air compressor can now be stored.
How to Clean The Air Filter
A dirty filter will reduce the unit s performance and life. To avoid any contamination inside the
pump, the filter should be cleaned weekly and replaced on a regular basis. The cartridge filter
should be cleaned with blow gun.

11
TROUBLESHOOTING
The motor will
not run or start.
POSSIBLE CAUSE
PROBLEM SOLUTIONS
The motor runs
continuously
when the
ON/OFF
switchis in the
ON position.
The regulator
does not
regulate the
pressure.
The power cord is not plugged in.
The on/off switch is in the O (OFF)
position.
The extension cord is the wrong wire
gauge or is too long.
The motor’s thermal overload
protection has tripped.
A fuse has blown or a circuit breaker
has been tripped.
The air tank pressure exceeds the
preset pressure switch limit.
The safety valve is stuck open.
Electrical connections are lose.
The motor, capacitor or safety valve is
defective.
The ON/OFF switch does not shut off
the motor when the air compressor
reaches the cut-out pressure and the
safety valve activates.
The compressor’s capacity is not
enough.
The regulator or its internal parts are
dirty or damaged.
Plug the power cord into a grounded outlet.
Set the on/off switch to the ON position.
Check extension cord information for the proper
wire gauge and cord length.
Turn the air compressor off, unplug the power
cord and wait until the motor has cooled down.
Plug in the power cord only after the motor has
cooled down, and wait at least 5 minutes to make
sure the thermal overload protector has
recovered.
Replace the fuse or reset the circuit breaker.
Verify that the fuse has the proper amperage.
Check for low voltage conditions.
Disconnect any other electrical appliances from
the circuit or operate the compressor on a
dedicated circuit.
The motor will start automatically when the tank
pressure drops below the cut-in pressure.
Clean or replace the safety valve.
Contact an authorized service center, or call
1-888-899-0146.
Contact an authorized service center, or call
1-888-899-0146.
Set the ON/OFF switch to the OFF position. If the
motor does not shut off, unplug the air
compressor. If the pressure switch is defective,
replace it.
Check the air requirements of the accessory that
is being used. If it is higher than the CFM (Cubic
Feet per Minute) and pressure supplied by the
compressor (page 2), a larger capacity air
compressor is needed.
Most accessories are rated at 25% of actual CFM
while running continuously.
Replace the regulator.

12
POSSIBLE CAUSE
PROBLEM SOLUTIONS
The pressure is
low or there is
not enough air.
There is
moisture in the
discharge air.
The compressor
overheats.
TROUBLESHOOTING
There is a leak at one of the fittings.
The tank drain valve is open.
The air intake is restricted.
Prolonged excessive use of air.
There is a hole in the air hose.
The tank leaks.
The valve is leaking.
There is condensation in the air tank
caused by a high level of atmospheric
humidity or because the air
compressor has not been running long
enough.
The ventilation is inadequate.
Cooling surfaces are dirty.
The valve is leaking.
Check the fittings with soapy water. Tighten or
reseal leaking fittings (apply plumber s tape on
threads).Do not over tighten.
Close the drain valve.
Clean or replace the air filter element.
Decrease the amount of air used.
Check the air hose and replace it if necessary.
Replace the tank immediately. Do not attempt to
repair it.
Check for worn parts and replace them if
necessary.
Drain the air tank after each use. Drain the air
tank more often in humid weather and use an
air-line filter.
Relocate the compressor to an area with cool, dry
and well-circulated air.
Clean all cooling surfaces on the pump and the
motor thoroughly.
Replace worn parts and reassemble using new
plumber's tape.

13
EXPLODED VIEW

14
PARTS LIST
Description Qty.No.
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
Bolt M6x16
Foot Mat
Drain Valve
End Cap
Tank
Bolt M5x12
Quick Coupler
Right Chassis
Nut M5
Infinity Clamp
Handgrip
Check Valve
Elbow Fitting
Pressure Regulator
Safety Valve
Rubber Hose
Pressure Gauge
Control Panel
Pressure Regulator Knob
Screw M4x10
4
4
1
1
2
1
1
1
2
2
1
1
4
1
2
1
1
6
2
1
Self-Tapping Screw ST3.9x16F 6
Description Qty.No.
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
42
41
Aluminum Tube Assembly
Air Filter
Screw 8#×9
Front Motor Retaining Plate
Motor Fixing Cap
Bolt M5x12
Wire Cards
Power Cord
Switch Box
Back Motor Retaining Plate
Screw 1/4-20×19
Left Chassis
Self-Tapping Screw 10#x15
ON/OFF Switch
Damping Pads
Connector Cable
Screw M5x14
Pressure Switch
Crimping Board
1
1
3
1
1
3
3
1
1
1
3
1
1
6
1
1
1
1
1
Lock Washer Ø5
Screw M5x10
2
2

STEALTH WARRANTY
LIMITED LIFETIME WARRANTY
15
Warranty covers any defects in materials or workmanship of the enclosed product.
Alton Industry Ltd. Group will repair or replace any defective materials due to
craftsmanship of the product.
THIS WARRANTY DOES NOT COVER ANY PROBLEM CAUSED BY MISUSE,
ABUSE, ACCIDENTS OR ACTS OF GOD, SUCH AS FLOODS OR HURRICANES.
CONSEQUENTIAL AND INCIDENTAL DAMAGES ARE NOT COVERED UNDER
THIS WARRANTY. HUMAN DAMAGE AND DISASSEMBLY WILL NOT BE
COVERED BY THE WARRANTY.
If you feel you have a defective product, please submit a copy of your receipt to the
address below and call 1-888-899-0146 for instructions prior returning this item to the
store or sending back to:
We will inspect the product and contact you within 72 hours to give you the results of
our inspection. We reserve the right to repair or replace the product at our discretion.
However, we may replace the product with one of similar but not exact features.
Parts and Service Information available call Alton Industry at 1-888-899-0146.
This warranty gives you specific legal rights. You may have other rights which vary
from state to state.
Alton Industry Ltd. Group
1031 North Raddant Rd
Batavia, Illinois 60510
WWW.StealthCompressors.com/Register
ONLY THE PUMP AND MOTOR ARE COVERED IN THE
LIFETIME WARRANTY
SAVE YOUR RECEIPTS - THIS WARRANTY IS
VOID WITHOUT PROOF OF PURCHASE
