Stealth TWB User manual

USER MANUAL
Upper Extremities
TWB Shoulder Retractors
Stealth’s User Manual and Maintenance Guide for
The World’s Best Shoulder Retractors

i
Customer Satisfaction 1.0
Stealth Products strives for 100% customer satisfaction. Your complete
satisfaction is important. Please contact us with feedback or suggested changes
that will help improve the quality and usability of our products. You may reach
us at:
General
Read and understand all instructions prior to the use of the product. Failure to
adhere to instructions and warnings in this document may result in property
damage, injury, or death. Product misuse due to failure of the following
instructions will void the warranty.
Immediately discontinue use if any function is compromised, parts are missing,
loose, or shows signs of excessive wear. Consult with your supplier for repair,
adjustment, or replacement.
MDSS GmbH
Schiffgraben 41
30175 Hannover, Germany
Stealth Products, LLC
104 John Kelly Drive, Burnet, TX 78611
Phone: [phone] Toll Free: 1(800) 965-9229
Fax: [phone] Toll Free: 1(800) 806-1225
[email protected] www.stealthproducts.com

ii
Important Information 2.0
Important Information!
All persons responsible for fitting, adjustment, and daily use of the devices
discussed in these instructions must be familiar with and understand all safety
aspects of the devices mentioned. In order for our products to be used
successfully, you must:
 Read and understand all instrucons and warnings
 Maintain our products according to our instrucons on care and maintenance.
 Devices should be installed and adjusted by a trained technician.
Supplier Reference
Supplier:
Telephone:
Address:
Purchase Date:
Model:

iii
Introduction 3.0
Before you install or begin using this product, it is important that you read and
understand the content of these installation and operating instructions. The
installation instructions will guide you through the possibilities with the
shoulder retractors.
Instructions are written with the expressed intent of use with standard
configurations. They also contain important safety and maintenance
information. For further assistance, or more advanced applications, please
contact your supplier or Stealth Products at [phone] or toll free at
1-800-965-9229.
Always keep the operating instructions in a safe place so they may be
referenced as necessary.
All information, pictures, illustrations, and specifications are based on the
product information that was available at the time of printing. Pictures and
illustrations show in these instructions are representative examples and are
not intended to be exact depictions of the various parts of the product.
Ordering Documentation
You can download additional copies of this User Manual on the Stealth website:
https://stlpro.site/stealth-docs
and search:
TWBSHR User Manual in the search bar at the top of the page.

iv
Warranty 4.0
Our products are designed, manufactured, and produced to the highest of
standards. If any defect in material or workmanship is found, Stealth Products
will repair or replace the product at our discretion. Any implied warranty,
including the implied warranties of merchantability and fitness for a particular
purpose, shall not extend beyond the duration of this warranty. Stealth
Products, LLC does not warrant damage due to, but not limited to:
Misuse, abuse, or misapplicaon of products.
Modicaon or product without wrien approval from Stealth Products, LLC.
Any alteraon or lack of serial number, where applicable, will automacally
void this warranty.
Stealth Products, LLC is liable for replacement parts only.
Stealth Products, LLC is not liable for any incurred labor costs.
No person is authorized to alter, extend, or waive the warranties of Stealth
Products, LLC.
Stealth Products warrants against failure due to defective materials
or workmanship:
Covers: 2 years
Hardware: 5 years
Electronics: 3 years
In Case of Product Failure
In the event of product failure covered by our warranty, please follow the
procedures outlined below:
1. Call Stealth at [phone] or toll free [phone].
2. Request the Returns Department or obtain an RA from the Returns Department and
follow department or documentaon instrucons.

v
Table of Contents 5.0
1.0 Customer Satisfaction............................................................................. i
2.0 Important Information .......................................................................... ii
3.0 Introduction ........................................................................................... iii
4.0 Warranty ................................................................................................. iv
5.0 Table of Contents ................................................................................... v
6.0 Warning Labels ...................................................................................... vi
6.1 Warning Labels.................................................................................................... vi
6.2 Limited Liability ................................................................................................... vi
6.3 Testing .................................................................................................................... vi
7.0 Installation Instructions......................................................................... 1
7.1 Mounting to the Chair....................................................................................... 1
7.2 Mounting the Pad ............................................................................................... 1
7.3 Adjusting the Hardware .................................................................................... 2
Angle Adjustment…………………………………………………………………………. 2
Height Adjustment………………………………………………..……..…………..…… 2
Set Screw Adjustment…………………………………………………………………… 2
7.4 Full Surface Contact Option ........................................................................... 2
8.0 First Time Use.......................................................................................... 3
8.1 Dealer Assistance................................................................................................ 3
8.2 User Testing.......................................................................................................... 3
8.3 Conditions of Use............................................................................................... 3
9.0 Maintenance............................................................................................ 4
9.1 Cleaning ................................................................................................................. 4
9.2 Maintenance......................................................................................................... 4

vi
Warning Labels 6.0
Warning Labels 6.1
Warnings are included for the safety of the user, client, operator and property.
Please read and understand what the signal words SAFETY, NOTICE, CAUTION,
WARNING and DANGER mean, how they could affect the user, those around
the user, and property.
Limited Liability 6.2
Stealth Products, LLC accepts no liability for personal injury or damage to
property that may arise from the failure of the user or other persons to follow
the recommendations, warnings, and instructions in this manual.
Testing 6.3
Initial setup and driving should be done in an open area free of obstacles until
the user is fully capable of driving safely.
The shoulder retractors should always be adjusted with the user in the chair in
order to promote the best position and maximum comfort for the client.
NOTI CE
Identifies important information not related to injury, but
possible property damage.
SAFETY
Indicates steps or instructions for safe practices, reminders of
safe procedures, or important safety equipment that may be
necessary.
CAUTION Identifies a potential situation which (if not avoided) will
result in minor to moderate injury,and property damage.
WAR NING Identifies a potential situation which (if not avoided) will
result in severe injury, death,and property damage.
DANGER Identifies an imminent situation which (if not avoided) will
result in severe injury, death,and property damage.

1
Installation Instructions 7.0
Parts and Accessories 7.1
 1/4-20 Buon Head Screws for Links
 1/4-20 Socket Head Screws for Mounng Hardware
Mounting to the Chair 7.2
In order to mount the shoulder retractors to the chair:
1. Locate the T-Nuts or designated holes on the seat back. Line up the holes on the tracks to
the designated holes on the seat back.
2. Insert the track nut onto the track.
3. Insert the two 1/4-20 Socket Head Screws into the holes and ghten using a 3/16 hex key.
4. Line up the slots on the mounng bracket with the holes of the track nut.
5. Insert the two 1/4-20 Buon Head Screws.
6. Tighten with a 5/32 hex key.
Mounting the Pad 7.3
To mount the pad onto the shoulder retractor:
1. Line up the slot on the pad mount with the designated holes on the pad.
2. Place a star washer onto each Buon Head Screw.
3. Insert the two 10-32 Buon Head Screws and ghten using a 5/32 hex key.

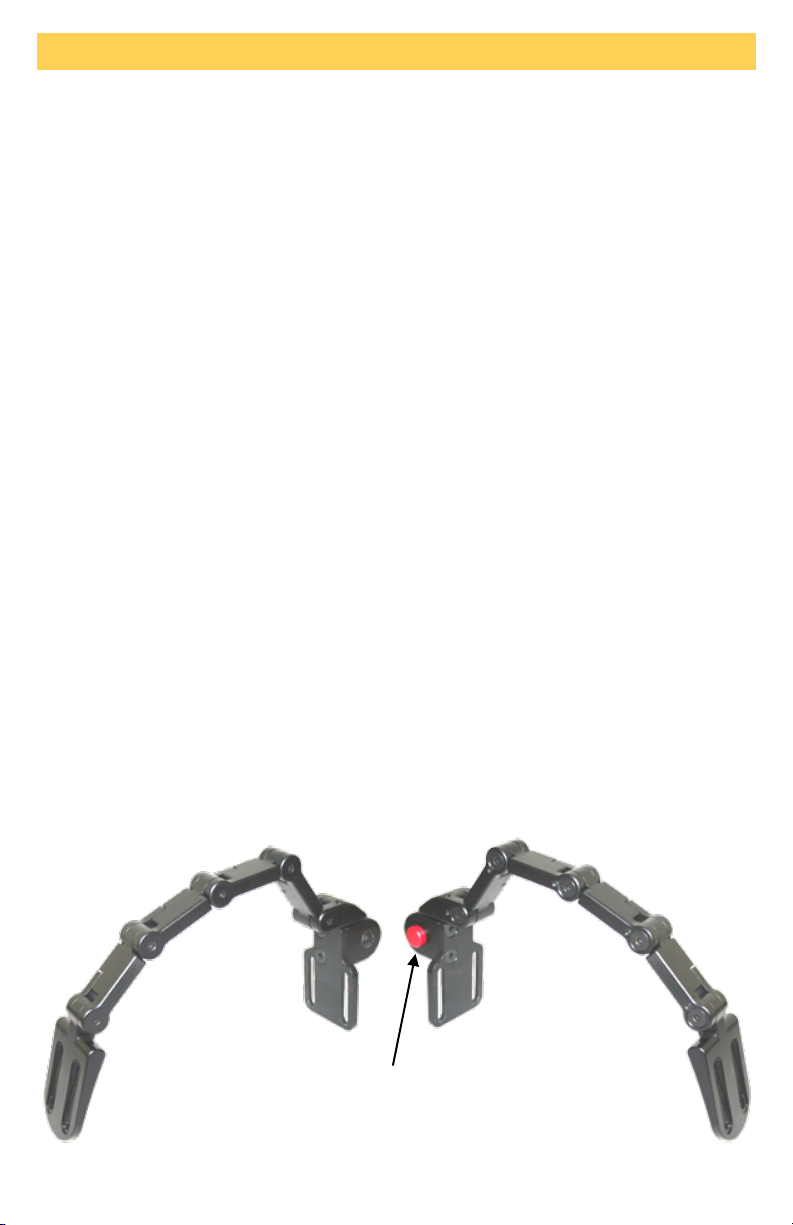

To use the flip down function, press the red release button (A). The hardware
will flip down. The hardware will automatically lock into place when returning to
the upright position.
(A)

2
Installation Instructions 7.0

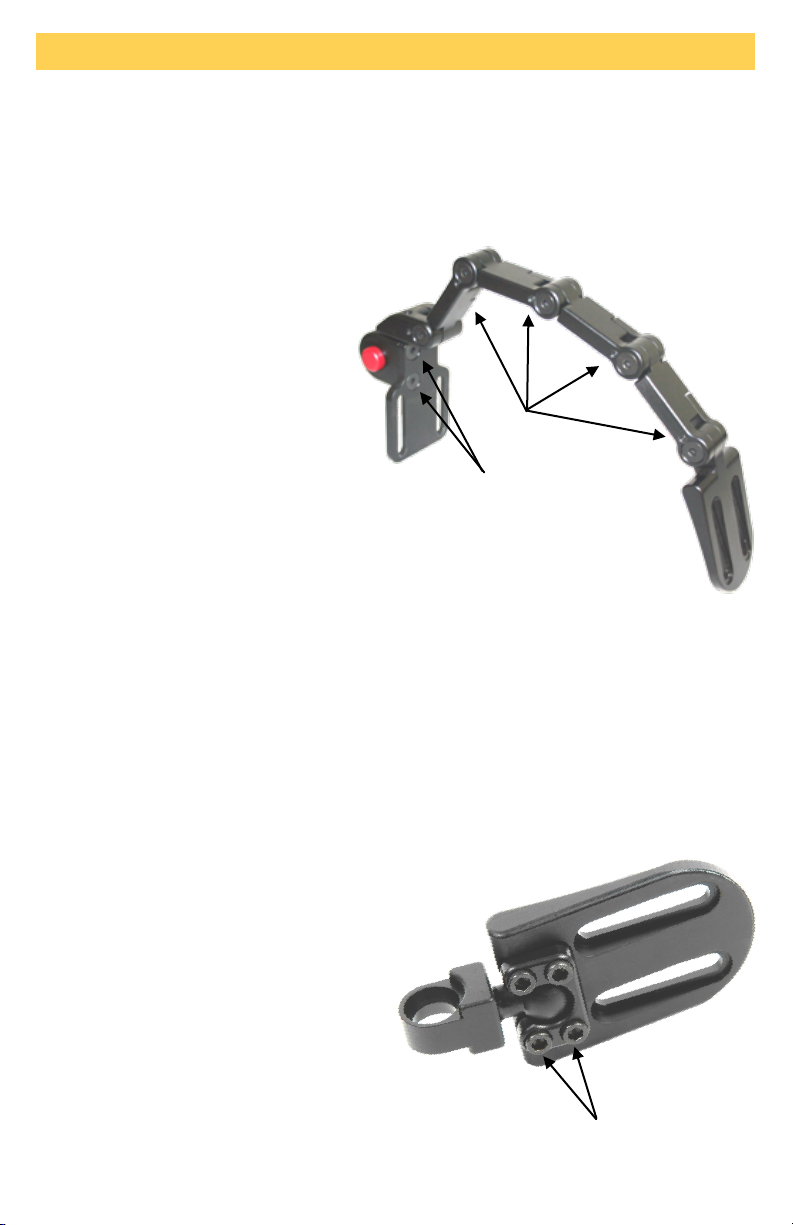

Adjusting the Hardware 7.3
Angle Adjustment
For angle adjustment of the shoulder retractors:
1. Lightly loosen the Flat Head Screws (A).
2. Set the desired angle.
3. Reghten the screws using a 5/32
hex key.
Height Adjustment
To adjust the height of the
shoulder retractors:
1. Loosen the Buon Head Screws (B).
2. Set the desired height.
3. Reghten the screws using a 5/32
hex key.
Set Screw Adjustment
To adjust the set screws on the shoulder retractors:
1. Adjust the set screw (C) using a 1/8 hex key.
Full Surface Contact Mount Option 7.4
The Full Surface Contact Mount is
another alternative pad mount
TWBSHR.
To adjust the pad mount:
1. Loosen the 10-32 x 1/2” Socket Head
Screws (A) with a 3/16 T-Handle.
2. Adjust the pad mount to the desired
angle and reghten screws.
(A)
(A)
(B)

3
First Time Use 8.0
Dealer Assistance 8.1
During first time use by the client, it is advised that the dealer or service
technician assists and explains the configurations to the customer (the user
and/or the attendant). If needed, the dealer can make final adjustments.
User Testing 8.2
It is important that the customer is fully aware of the installation, how to use it,
and what can be adjusted in order to gain as much mobility as possible. As a
dealer, proceed as follows:
 Explain and show the customer how you have executed the installaon, and explain the
funcon of every item.
Have the user test the shoulder retractors:
 Is the hardware in the proper posion for the client?
 Can the user safely operate the wheelchair with minimal eort?
 Is the placement of the shoulder retractors in an opmal posion for the user?
If needed, adjust the shoulder retractors to the proper position.
Explain to the customer possible problems and how to address them.
Conditions of Use 8.3
The World’s Best Shoulder Retractors (TWBSHR) are intended for use as
installed by the dealer, in accordance to the installation instructions in
this manual.
 The foreseen condions of use are communicated by the dealer or service technician
to the user and/or aendant during rst me use.
 If the usage condions change signicantly, please contact your dealer or a qualied
service technician to avoid excessive wear and tear or unintended damage.
