STEELE PRODUCTS SP-H076 User manual

CONGRATULATIONS!
The Oil Filled Radiator you have just purchased is a safe and powerful heater, designed to heat a room after
a few minutes of operation. The radiator heater technology has been in use for many years and has proven
as an excellent system for safely heating whole rooms, while saving on heating bills.
Additionally, this radiator heaters have added safety features and operate quietly.
Before using your new Radiator Heater, please take a few minutes to read these instructions, review the
product limited warranty, and complete and mail the Warranty Registration Card,Thank you!
.
CAUTION-High temperature, keep electrical cords, drapery, and other furnishings at least 3
feet (0.9m) from the front of the heater and away from the sides and rear.
IMPORTANT INSTRUCTIONS
When using this appliance, basic precautions should always be followed to reduce the risk of fire, electric
shock and injury to persons, including the following:
1. Read all the instructions before using this heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use
handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers,
clothes, and curtains at least 3 feet (0.9m) from the front of the heater and keep them away from the sides
and rear.
3. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the
heater is left operating and unattended.
4. Always unplug heater when not in use.
5. Do not operate the heater with a damaged cord or plug, or after the heater malfunctions, has been dropped,
or damaged in any manner. Return the heater to an authorized service facility for examination, electrical or
mechanical adjustment, or repair.
6. Do not use outdoors.
7. This heater is not intended for use in bathrooms, laundry areas, or similar indoor locations. Never locate
the heater where it may fall into a bathtub or other water container.
8. Do not run the cord under carpeting and do not cover the cord with throw rugs, runners or the like. Arrange
the cord away from traffic areas and where it will not be tripped over.
9. To disconnect heater, turn controls to OFF, then remove plug from outlet.
10. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an
electric shock, fire, or damage to the heater.
11. To prevent a possible fire, do not block air intakes or exhaust openings in any manner. Do not use on soft
surfaces, like a bed, where openings may become blocked. Use the heater on flat, dry surfaces only.
12. A heater has hot and arcing or sparking parts inside. Do not use the heater in areas where gasoline, paint,
or flammable liquids are used or stored.
13. Use this heater only as described in this manual. Any other use not recommended by the manufacturer
may cause fire, electric shock, or injury to persons.
14. Never clean this heater while it is plugged in. Do not immerse in water. To disconnect, turn control to OFF,
then remove the plug from the outlet by grasping it and pulling it from the outlet. Never yank on the cord.
15. Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire. If
this heater is used with an extension cord, the cord should be 14AWG minimum size and rated not less
than 1875W.
16. This heater includes an overheat protection system that shuts off the heater when parts of the heater are
getting excessively hot.
SAVE THESE INSTRUCTIONS
WARNING! To reduce the risk of fire, electric shock, or
personal injury, read all the instructions before using this
heater.
2
Owner’s Manual

CAUTION: THIS APPLIANCE HAS A POLARIZED PLUG (ONE BLADE IS WIDER THAN THE OTHER) TO
REDUCE THE RISK OF ELECTRIC SHOCK. THIS PLUG IS INTENDED TO FIT IN A POLARIZED OUTLET
ONLY ONE WAY. IF THE PLUG DOES NOT FIT FULLY IN THE OUTLET, REVERSE THE PLUG. IF IT STILL
DOES NOT FIT, CONTACT A QUALIFIED ELECTRICIAN. DO NOT ATTEMPT TO DEFEAT THIS SAFETY
FEATURE.
ASSEMBLE
The heater is packaged with the feet unattached. You must attach them before operating the heater.
1. Place the radiator body upside-down on a scratch-free location, make sure it is stable and will not fall.
Note: do not over tighten, which may cause the damage of radiator flange.
5、Screw off spherical nut from the castor, align the shaft to the hole of the castor mounting plate, insert in,
and screw on the spherical nut. See figure 2
6. Turn the heater upright.
Now your heater is ready for use
Note: the rear castors must be mounted between the end two fins.
CAUTION- Risk of fire-Do not operate without legs attached.
CAUTION- Operate the heater in upright position only (wheels on the bottom; controls on the top).Any
other position could create a hazardous situation.
OPERATION
1. LOCATION
Before using the heater make sure that it is on a flat and stable surface. Damage may occur if it is placed on
an incline or decline.
Place heater on floor beneath coldest window in the room or any desired location. Your heater will minimize
3
Owner’s Manual
2. Screw off the wing nuts from the U-shaped bolt provided, attach the U-shaped bolt to the U-facing flange
between the last 2 fins.
Figure 2
3. To attach the castor mounting plate to the radiator body, you should insert the threaded ends of the U bolt
in the holes on the castor mounting plate.
4. Screw the wing nuts back to the U bolt and fasten the wing nut properly.
See figure 2

the effect of cold drafts.
2. CONNECTION
The radiator must be connected to a properly household outlet in perfect working conditions.
Keep loose clothing or bedding, furniture and flammable material away from the wall outlet where the heater
plug is fitted in.
3. OPERATIONS AND USE
4
Owner’s Manual
1) TURNING HEATER ON:
Turn the master power switch (located below the digital control panel on the side of the heater) to the ON
position. The switch will illuminate when in the ON position. This master power switch allows power to go to
the digital controls. Operating instructions below will show you how to operate the digital controls.
2) OPERATING INSTRUCTIONS:
This heater is equipped with digital controls that provide the ability to set the temperature to the exact degree
desired. To operate, simply follow these instructions. NOTE: The temperature display will not reflect the
accurate room temperature until the heater has been operating for at least 20 minutes.
3) OPERATING INSTRUCTIONS (continued):
* Press the power button once to start the heater on High Power ( symbol), Continuous Run. If left at this
setting, the unit will run continuously on High Power and will not shut off until the unit is manually turned off.
* Press the power button again to change to Lower Power ( symbol), Continuous Run. If left at this setting,
the unit will run continuously on Lower Power and will not shut off until the unit is manually turned off.
* Press the power button a third time to turn the heater OFF.
4) TEMPERATURE SETTING:

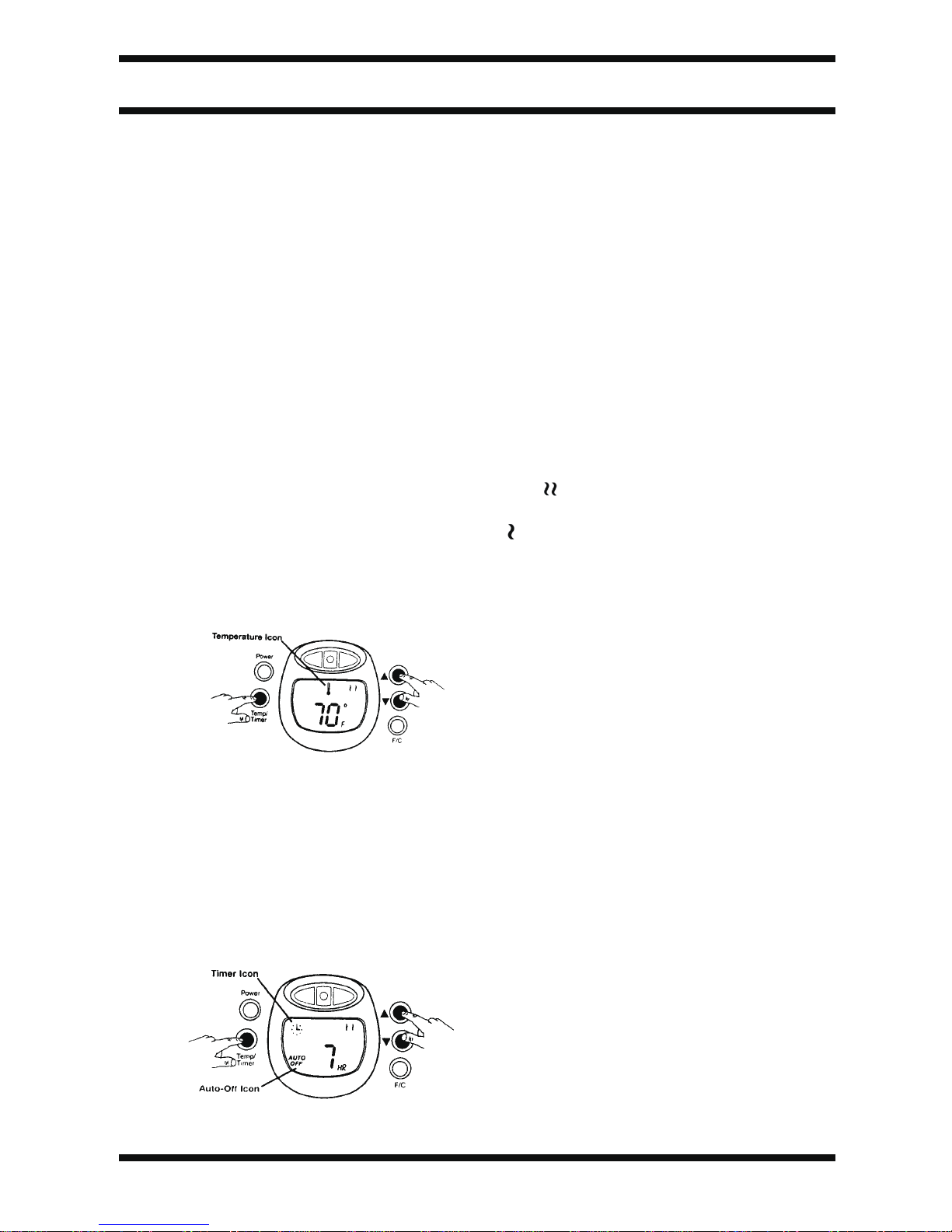

*Press the Temp/Timer button until the temperature icon blinks.
*Use the Up and Down arrows to set the desired temperature.
*The temperature icon will stop blinking and the current room temperature will appear after the
desired temperature is set.
*The heat will turn-off shortly after the desired temperature is reached and the temperature
display will blink.
*The heater will turn back on when the room temperature drops below the desired temperature.
The temperature display will then stop blinking and will display the current room temperature.
5) TIMER SETTING:

5
Owner’s Manual
AUTO-OFF
NOTE: This function should only be set if you desire that the heater be automatically shut off
after a certain period of time (1 to 10 hours from the time the function is set)
NOTE: Always set the desired temperature prior to setting the Timer, so that the heater will
shut off at the desired temperature setting.
*Press the Temp/Timer button until the timer icon blinks. The hour display will appear. The
Auto Off icon will also appear.
*Use the Up and Down arrow buttons to set the heater operation time between 1 and 10 hours.
This function will activate once the timer icon stops blinking.
*The heater will automatically turn-off when time runs out.
NOTE: If the desired temperature was set prior to setting the timer function, the heater will
cycle on and off as per the selected desired temperature setting and will discontinue operation
once the programmed timer setting has been reached.
AUTO-ON
NOTE: This function provides a delayed start option and should only be set if you desire that
the heater be automatically turned ON after a certain period of time (1 to 10 hours from the
time the function is set).
NOTE: Always set the desired temperature prior to setting the timer, so that the heater will turn
on at the desired temperature setting.
*Press the Temp/Timer button until the timer icon blinks. The hour display will appear .The
Auto On icon will also appear.
*Use the Up and Down arrow buttons to set the heater start time between 1 and 10 hours. This
function will activate once the timer icon stops blinking.
*The heater will automatically turn on when time expires.
NOTE: If the desired temperature was set prior to setting the timer function, the heater will
cycle on and off as per the selected desired temperature setting once the heater begins to
operate.
6) FAHRENHEIT/CELSIUS FUNCTION:
NOTE: This heater offers the option to read the temperature setting in either
Fahrenheit or Celsius scales.
*F/C feature functions from only the power or set temperature screens.
*Press F/C button to toggle between Fahrenheit and Celsius.
NOTE: If not use the heater, please turn off the master power switch (located below the digital control panel on
the side of the heater) to OFF position.

require the heater to be off, push the button “hour” and “minute” until your required operating time appears.
The operating time has a span of 24 hours. Auto on and auto off default value is “00:00”.
c) Auto
Press the button “booking timer” until the LCD appears “AUTO”. This indicates that the auto mode comes
into effect. The timing pilot lamp (yellow lamp) now lights up.
During operating in the auto mode, you can use the button “+”or “-“to set the desired comfort temperature as
described above and the appliance will automatically switch on or off at the preset time and automatically
maintain the preset comfort temperature.
NOTE: Do not press the button “power setting” when operating in the auto mode, this will cancel the function
of “booking timer”.
To cancel the function of “booking timer”, press the button “booking timer” until blank appears and wait for 5
seconds or press the button “power setting” , the timing pilot lamp (yellow lamp) will be extinguished.
NOTE: To keep the heater’s memory programmed, always leave the heater plugged in at the mains socket.
If the heater looses its electricity supply, e.g. switched off at the mains socket or in the event of a power
failure, the heater’s programs will be lost, and the heater will not work until reset.
This heater includes an overheat protection system that shuts off the heater when parts of the heater are
getting excessively hot. Once it occurs, the heater’s programs will be lost.
To completely shut the heater off, set the button “power setting” to OFF, then remove plug from the
socket-outlet.
POWER SUPPLY CORD
Plug the power supply cord into a wall outlet (120V AC 60Hz).
This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the
plug fully into the outlet, try reversing the plug.
MAINTENANCE
1. Always remove the plug from the power socket and allow the radiator to cool down. Wipe radiator with a
soft damp (not wet) cloth. Do not use detergents and abrasives. Do not allow the interior to get wet as
this could create a hazard.
2. To store away the heater, wind the cable around the cord bobbin, and store in a clean dry place.
3. This appliance has been built to give many years of trouble-free service. In case of malfunction of doubt,
do not try to repair the radiator yourself; it may results in a fire hazard of electric shock. Call the nearest
Service Center.
6
Owner’s Manual

Special Features
Power Cord Bobbin-For safe to wind the electrical cord.
Safety Tip Over Protection-Your heater is designed to automatically shut-off when tipped. When
returned to normal upright position, heat will automatically come on again. This is a safety feature to
avoid the possibility of fire once the unit accidentally upsets
PRODUCT SPECIFICATIONS
●Model No:SP-HO76
●Voltage: AC 120V, 60 Hz
●Current :Maximum continuous draw: 12.5 amps
●Output : 2050/3070/5120BTUS
●Power: I : 900Watts
II : 1500Watts
●Operating Costs:Variable, depending upon electric Kwh cost, ambient temperature, Revalue of
insulation, outside or cooler air infiltration, filter cleanliness and other factors.
●Tolerances on all specifications:+5%, -10%
WARNING
This heater is intended for use on floors, not on elevated locations such as table or counters.
Avoid the use of an extension cord because the extension cord may over-heat and cause risk of fire.
However, if you have to use an extension cord, the cord
Shall be No. 14AWG minimum size and rated not less than 1875W.
This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use
handles when moving the heater. Keep combustible materials, such as furniture, pillows, bedding, papers,
clothes, and curtains at least 3 feet(0.9m) from the front of the heater and keep them away from the sides
and rear.
This heater is not intended for use in bathrooms, laundry areas, and similar indoor locations. Never locate a
heater where it may fall into a bathtub or other water container.
7
Owner’s Manual
Features
A. LCD
D. Master power switch
B. Function button
E. Radiator fins
C. Carry handle
F. Front cover
G.
H.
Castor
Castor mounting plate
A
E
H
B
C
D
F
G
