1800 PSI Pressure Washer

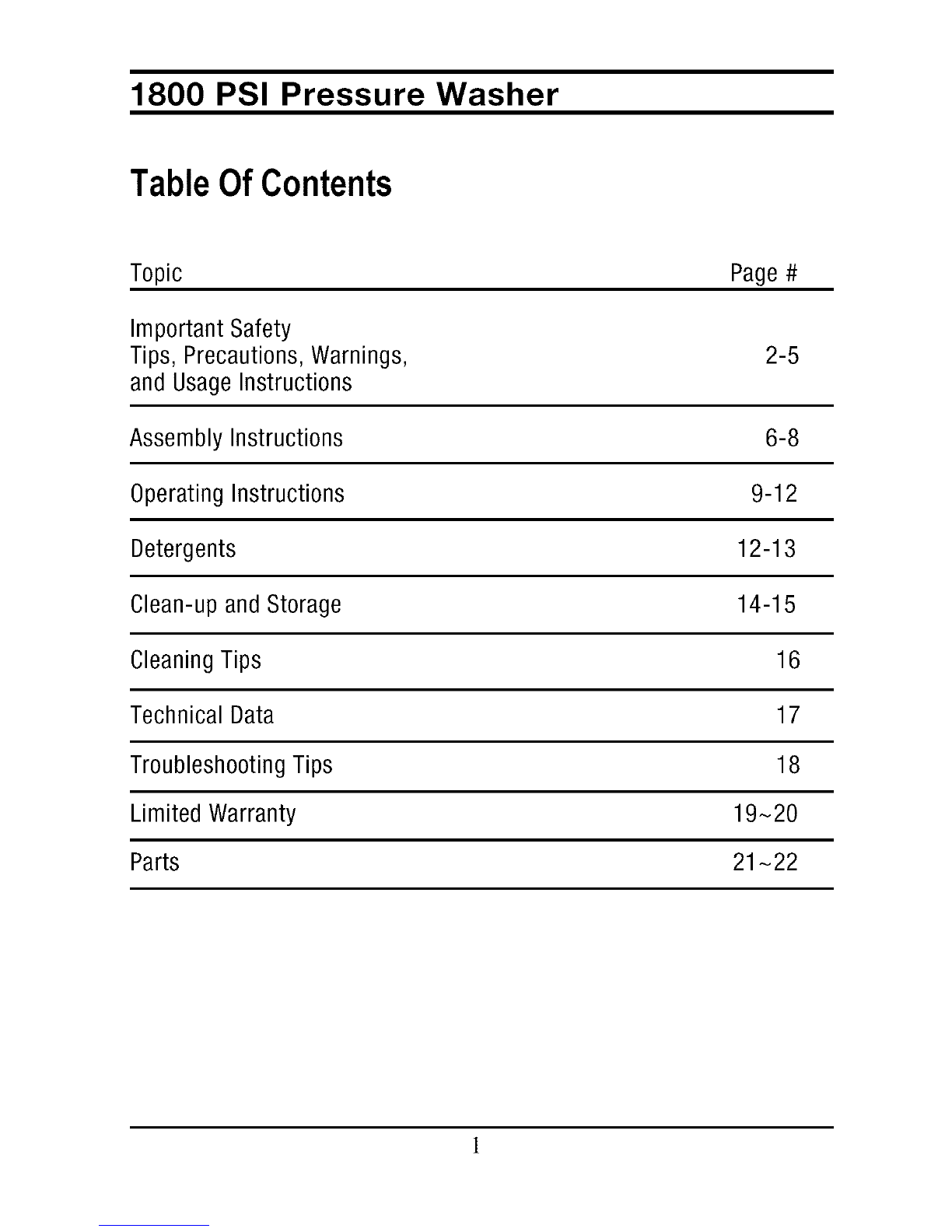

TableOf Contents
Topic
Important Safety
Tips, Precautions, Warnings,
and Usage Instructions
Assembly Instructions
Operating Instructions
Detergents
Clean-up and Storage
Cleaning Tips
Technical Data
Troubleshooting Tips
Limited Warranty
Parts
Page #
2-5
6-8
9-12
12-13
14-15
16
17
18
19-20
21-22

1800 PSI Pressure Washer

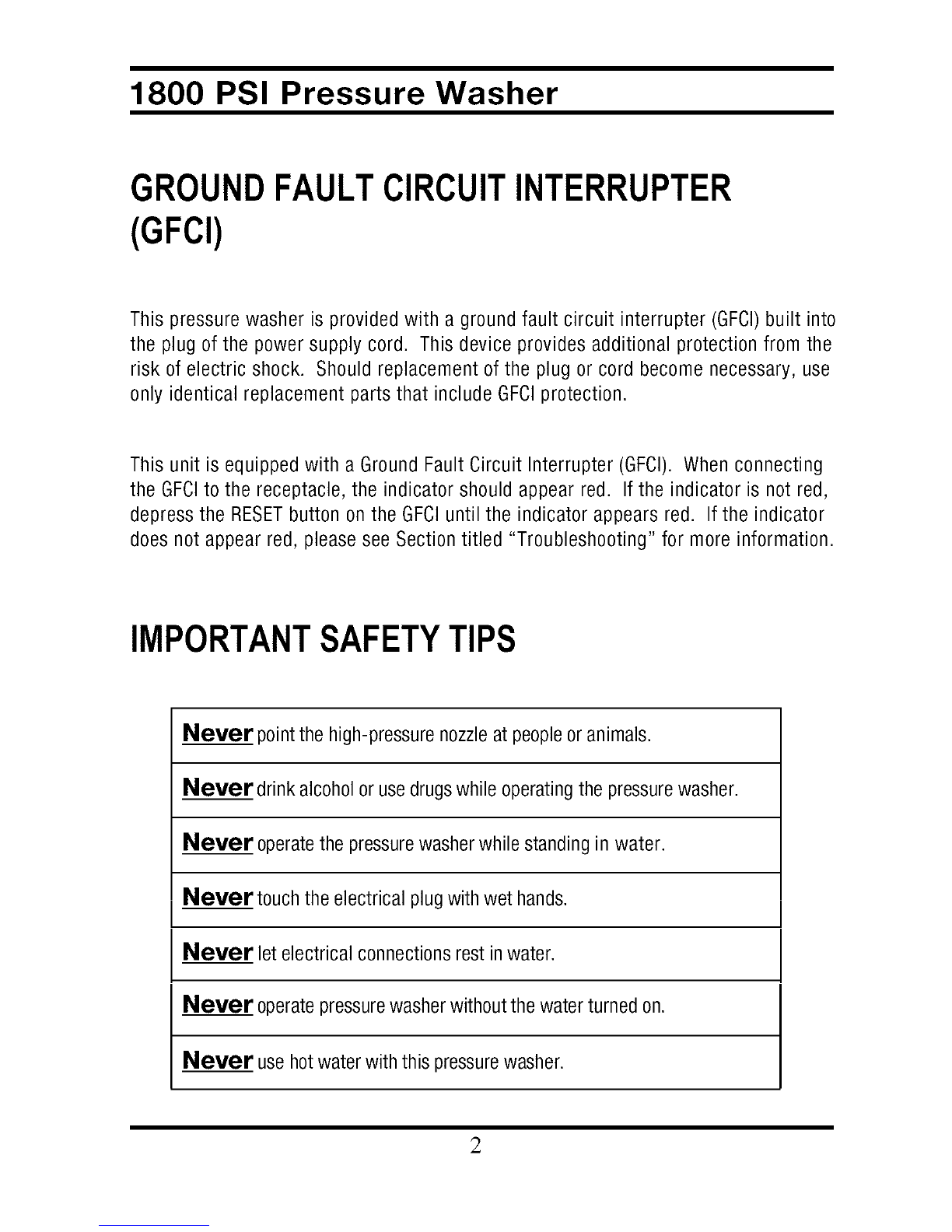

GROUNDFAULTCIRCUITINTERRUPTER
(GFCI)
This pressurewasher is providedwith a ground fault circuit interrupter (GFCI)built into
the plug of the powersupply cord. This device provides additional protectionfrom the
risk of electric shock. Should replacement ofthe plug or cord become necessary,use
only identical replacement parts that includeGFCIprotection.
This unit is equipped with a GroundFault Circuit Interrupter (GFCI).Whenconnecting
the GFCIto the receptacle,the indicator shouldappear red. If the indicator is not red,
depress the RESETbutton on the GFCIuntil the indicator appearsred. If the indicator
does not appear red, pleaseseeSectiontitled "Troubleshooting" for more information.
IMPORTANTSAFETYTIPS
Never pointthe high-pressurenozzleat peopleoranimals.
Never drinkalcoholor usedrugswhileoperatingthe pressurewasher.
Never operatethepressurewasherwhilestandingin water.
Never touchthe electricalplugwithwet hands.
Never let electricalconnectionsrestin water.
Never operatepressurewasherwithoutthewater turnedon.
Never usehotwaterwith this pressurewasher.
2

1800 PSI Pressure Washer

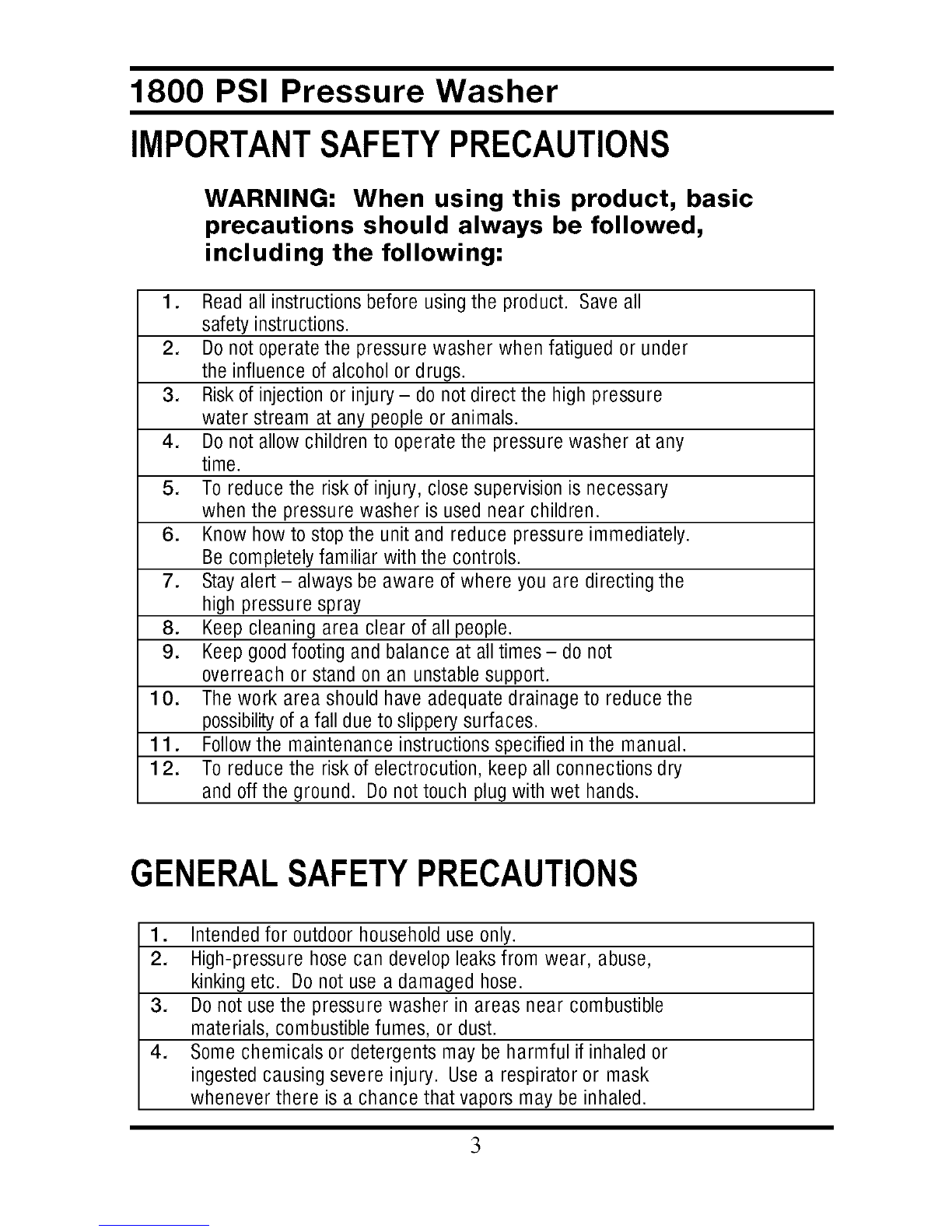

IMPORTANTSAFETYPRECAUTIONS
WARNING: When using this product, basic
precautions should always be followed,
including the following:
1. Readall instructionsbefore usingthe product. Saveall
safetyinstructions.
2. Donot operatethe pressure washer when fatiguedor under
the influence of alcoholor drugs.
3. Riskof injectionor injury- do notdirect the high pressure
water stream at anypeopleor animals.
4. Donot allowchildrento operatethe pressurewasher at any
time.
5. To reducethe risk of injury,close supervisionis necessary
when the pressurewasher is usednear children.
6. Knowhowto stopthe unit and reduce pressureimmediately.
Becompletelyfamiliar with the controls.
7. Stayalert- alwaysbe aware of where you are directingthe
highpressure spray
8. Keepcleaningarea clear ofall people.
9. Keepgoodfooting and balance at alltimes- do not
overreach or standon an unstablesupport.
10. Thework area shouldhaveadequatedrainage to reducethe
possibilityof afall due to slipperysurfaces.
11. Followthe maintenance instructionsspecifiedin the manual.
12. To reducethe risk of electrocution,keepall connectionsdry
and off the ground. Donottouch plugwith wet hands.
GENERALSAFETYPRECAUTIONS
1. Intendedfor outdoorhouseholduse only.
2. High-pressurehosecan developleaksfrom wear, abuse,
kinkingetc. Donotuse a damaged hose.
3. Donot usethe pressurewasher in areas near combustible
materials, combustiblefumes, or dust.
4. Somechemicals or detergentsmay be harmful ifinhaled or
ingestedcausingsevere injury. Usea respiratoror mask
whenever there isa chance that vapors may be inhaled.
3

1800 PSI Pressure Washer
Readall instructions includedwith the mask soyou are certain
the maskwill providethe necessaryprotection against inhaling
harmful vapors.
5. Beforestarting the pressurewasher in cold weather, checkall
ofthe parts ofthe equipment and be sure that ice has not
formed. Donotstore the unit anywherethat the temperature
will fall below O°C (32°F).
6. DONOTMAKEANYMODIFICATIONSTOANYOFTHE
COMPONENTS!Unitswith brokenor missing parts, or without
the protective housingor coversshould NEVERbe operated
7. Keepthe high-pressure hoseconnectedto the pressure
washer and the spray gun while the system is pressurized.
Disconnectingthe hosewhile the unit is pressurizedis
dangerous,and maycause injury.
8. Donot leavethe pressure washer unattendedwhile the power
switch is ON.
9. Keepwater spray awayfrom electrical wiring or fatal electric
shock may result.

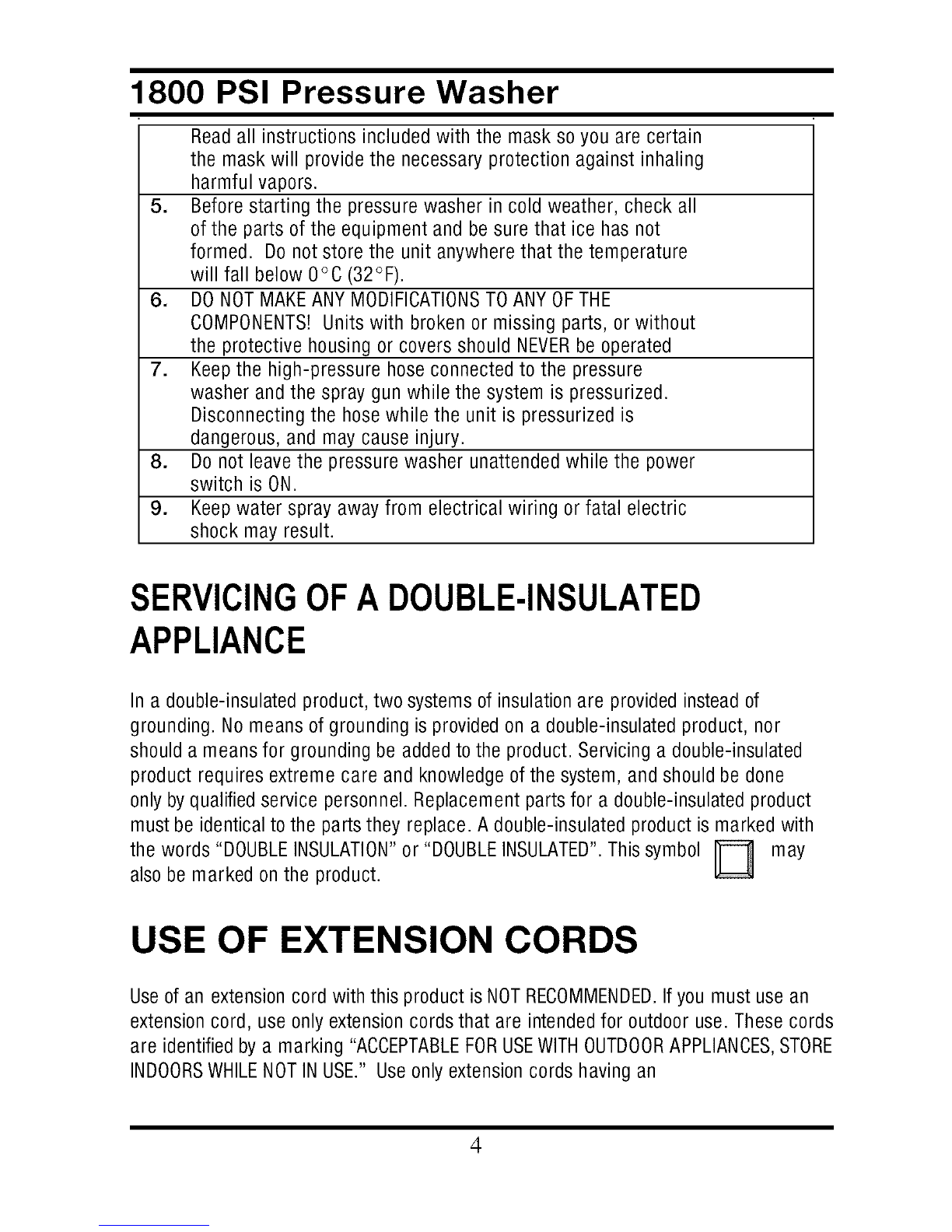

SERVICINGOFA DOUBLE-INSULATED
APPLIANCE
Ina double-insulatedproduct,two systemsof insulationare providedinsteadof
grounding. Nomeans of groundingis providedon a double-insulatedproduct, nor
shoulda meansfor grounding be addedtothe product.Servicinga double-insulated
product requires extremecare and knowledgeofthe system,and shouldbe done
onlybyqualifiedservicepersonnel. Replacementpartsfor a double-insulatedproduct
mustbe identicalto the partsthey replace. A double-insulatedproduct ismarked with
the words "DOUBLEINSULATION"or "DOUBLEINSULATED".Thissymbol [F_ may
alsobe marked onthe product.
USE OF EXTENSION CORDS
Useof an extensioncord with this product isNOTRECOMMENDED.If you mustusean
extensioncord, useonly extensioncordsthat are intendedfor outdoor use. Thesecords
are identifiedbya marking "ACCEPTABLEFORUSEWITHOUTDOORAPPLIANCES,STORE
INDOORSWHILENOTINUSE." Useonlyextensioncords having an
4

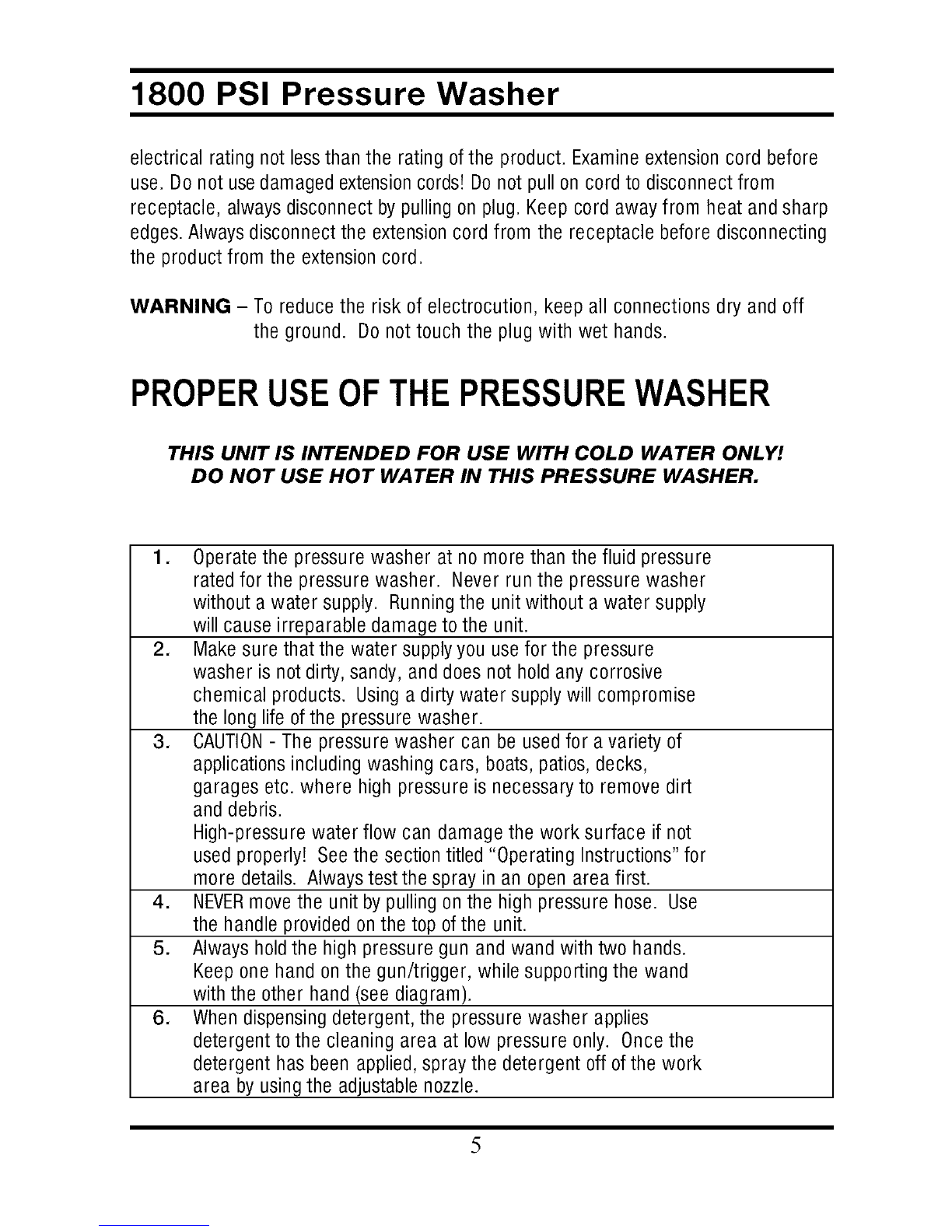

1800 PSI Pressure Washer
electrical ratingnot lessthan the rating ofthe product.Examineextensioncord before
use. Donot usedamagedextensioncords!Donot pullon cordto disconnectfrom
receptacle, alwaysdisconnectbypulling on plug.Keep cord away from heat and sharp
edges.Alwaysdisconnectthe extensioncord from the receptacle beforedisconnecting
the productfrom the extensioncord.
WARNING - To reducethe risk of electrocution, keepall connections dry and off
the ground. Donottouch the plug with wet hands.
PROPERUSEOFTHEPRESSUREWASHER
THIS UNIT IS INTENDED FOR USE WITH COLD WATER ONLY!
DO NOT USE HOT WATER IN THIS PRESSURE WASHER.
.
.
.
.
5.
6.
5
Operatethe pressure washer at no more than thefluid pressure
ratedfor the pressure washer. Never run the pressure washer
withouta water supply. Runningthe unit withouta water supply
will cause irreparable damageto the unit.
Makesure that the water supplyyou usefor the pressure
washer is notdirty, sandy,and doesnot holdany corrosive
chemical products. Usinga dirty water supplywill compromise
the longlife ofthe pressurewasher.
CAUTION- The pressurewasher can be usedfor avariety of
applicationsincludingwashing cars, boats,patios,decks,
garages etc. where high pressure is necessaryto remove dirt
and debris.
High-pressurewater flow can damagethe work surface if not
usedproperly! Seethe sectiontitled "OperatingInstructions"for
more details. Alwaystestthe spray in an open area first.
NEVERmovethe unitbypullingon the high pressure hose. Use
the handle providedonthe top ofthe unit.
Alwaysholdthe high pressure gun and wandwith two hands.
Keepone hand onthe gun/trigger, while supportingthe wand
with the other hand (see diagram).
Whendispensingdetergent,the pressure washer applies
detergentto the cleaningarea at low pressure only. Oncethe
detergent hasbeen applied,spraythe detergent off ofthe work
area byusingthe adjustablenozzle.

1800 PSI Pressure Washer
ASSEMBLYINSTRUCTIONS

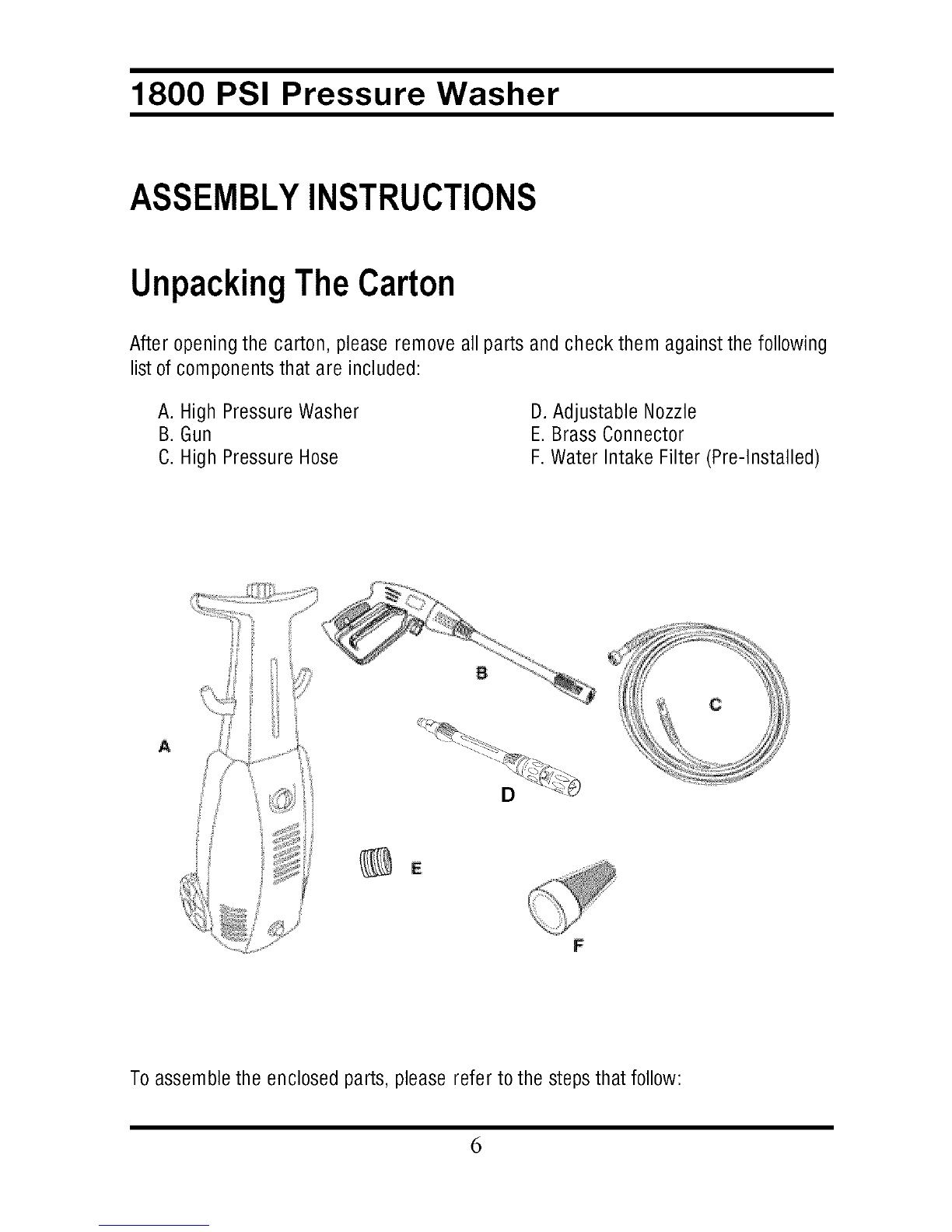

UnpackingTheCarton
After openingthe carton, please remove all parts and checkthem againstthe following
listof componentsthat are included:
A. HighPressureWasher
B. Gun
C. HighPressureHose
D. Adjustable Nozzle
E.Brass Connector
F. Water Intake Filter (Pre-lnstalled)
A
Toassemblethe enclosedparts, pleaserefer tothe stepsthat follow:

1800 PSI Pressure Washer

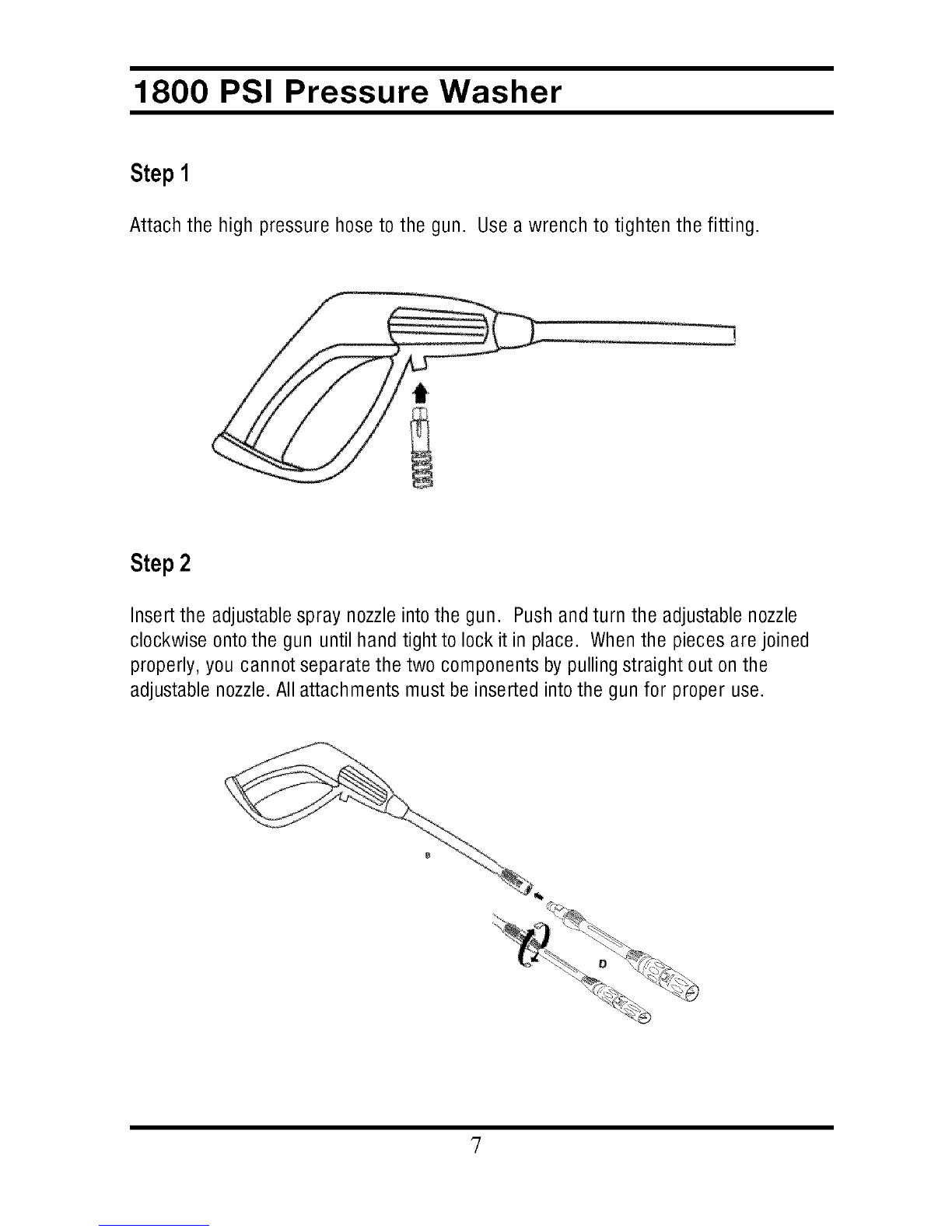

Step 1
Attach the high pressure hoseto the gun. Usea wrenchto tighten the fitting.
Step 2
Insertthe adjustablespray nozzleintothe gun. Pushandturn the adjustablenozzle
clockwise ontothe gun untilhand tight to lockit in place. Whenthe pieces are joined
properly,you cannot separatethe two componentsbypullingstraightout onthe
adjustablenozzle.All attachments mustbe inserted intothe gun for proper use.

1800 PSI Pressure Washer
Step 3
Attach the high-pressure hoseto the malefitting onthe front of the pressure washer.
Beforeattachingthe high-pressure hoseto the malefitting, removethe plastic cap,
which is insertedonto thefitting beforeshipping. This plastic cap can be discarded
once removed. Twist ontight to avoid leakage.

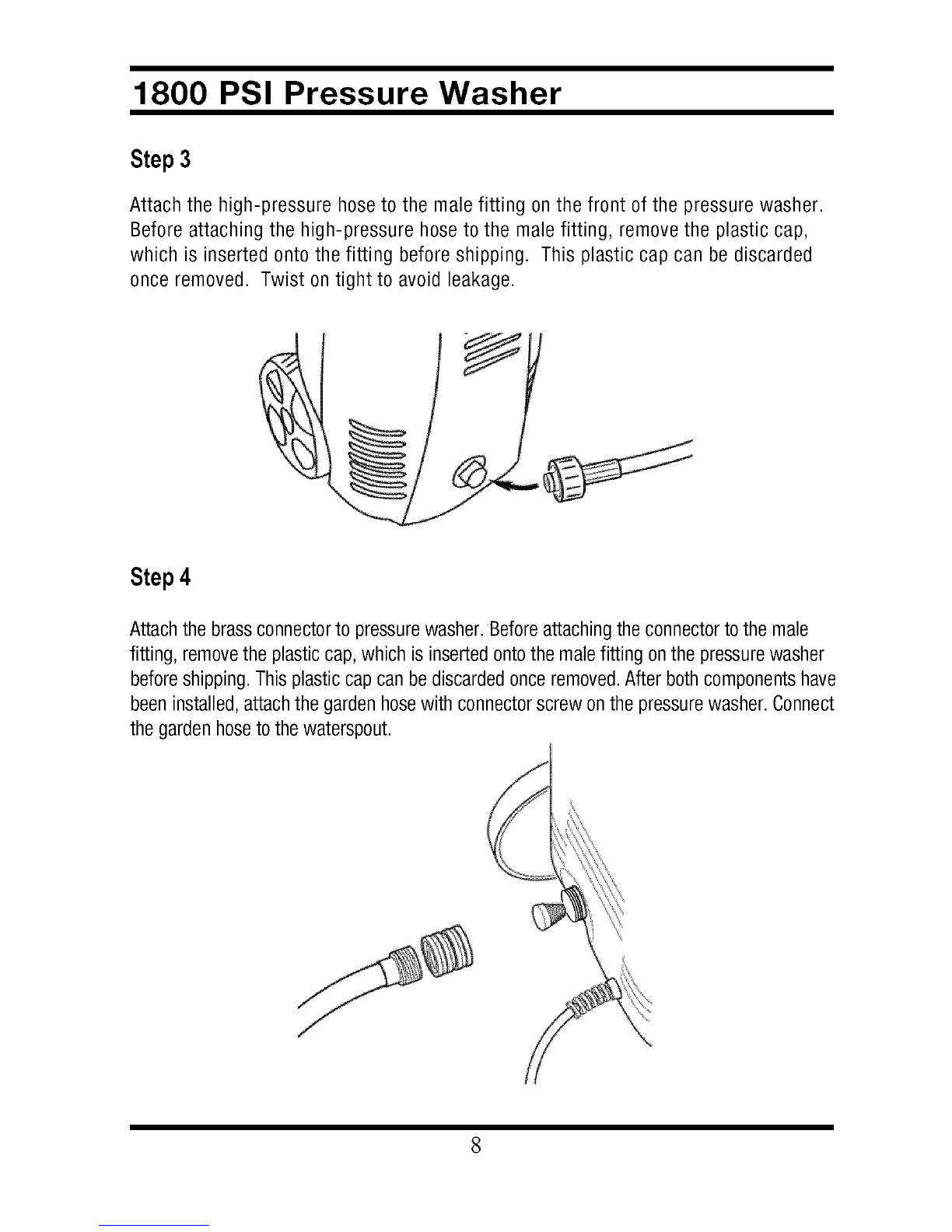

Step 4
Attachthe brassconnectorto pressurewasher.Beforeattachingthe connectortothemale
fitting, removethe plasticcap,which isinsertedontothemalefittingonthepressurewasher
beforeshipping.Thisplasticcapcanbediscardedonceremoved.Afterbothcomponentshave
beeninstalled,attachthegardenhosewith connectorscrewonthepressurewasher.Connect
thegardenhosetothewaterspout.

1800 PSI Pressure Washer

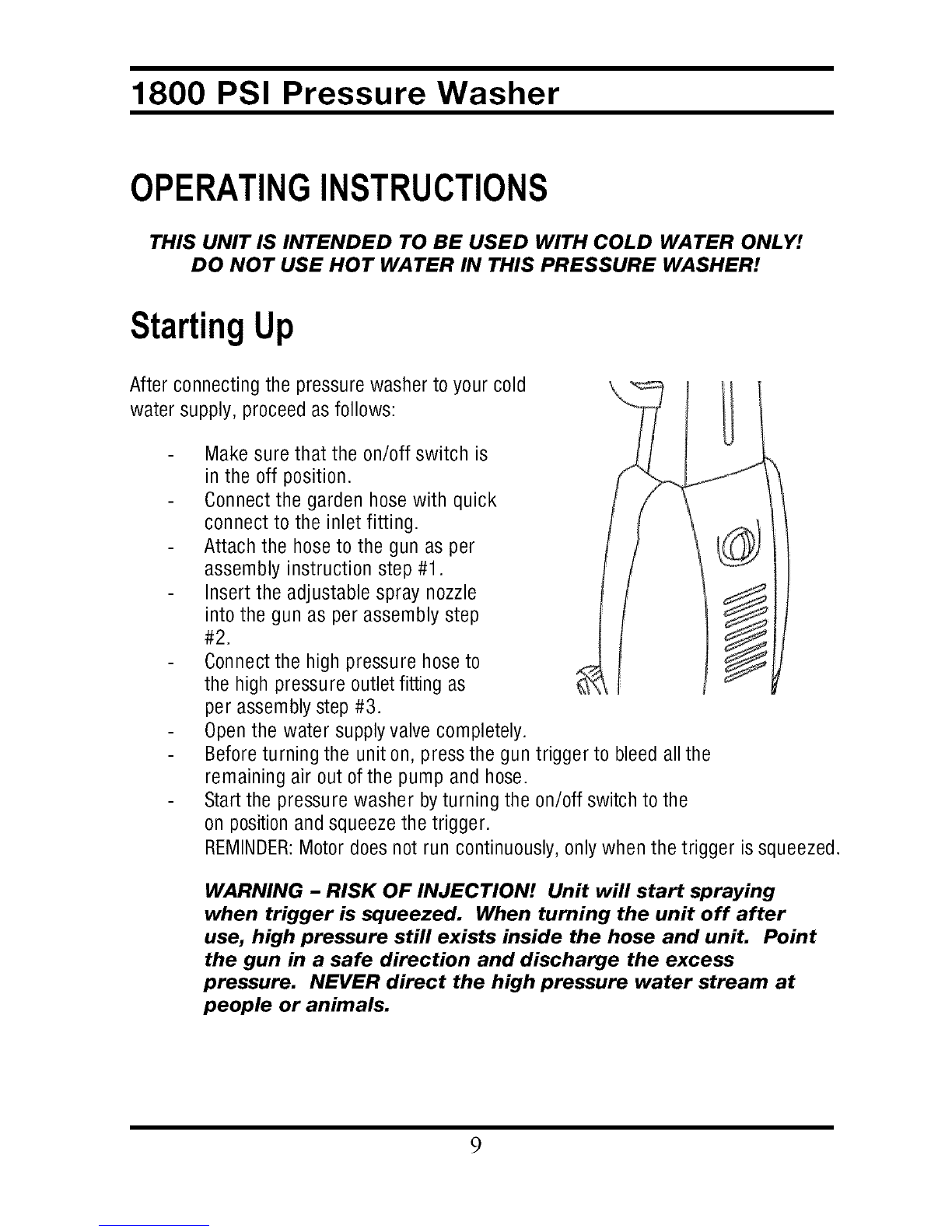

OPERATINGINSTRUCTIONS
THIS UNIT IS INTENDED TO BE USED WITH COLD WATER ONLY!
DO NOT USE HOT WATER IN THIS PRESSURE WASHER!
StartingUp
After connectingthe pressurewasher toyour cold
water supply, proceedasfollows:
Makesure that the on/off switch is
in the off position.
Connectthe garden hosewith quick
connect to the inletfitting.
Attach the hoseto the gun as per
assembly instruction step #1.
Insertthe adjustable spray nozzle
intothe gun as per assembly step
#2.
Connectthe high pressure hoseto
the high pressure outletfitting as
per assemblystep #3.
Openthe water supplyvalve completely.
Beforeturning the uniton, pressthe guntrigger to bleedall the
remainingair out ofthe pump and hose.
Startthe pressurewasher byturning the on/off switchto the
on positionandsqueezethe trigger.
REMINDER:Motor doesnot run continuously,onlywhen the trigger issqueezed.
WARNING -RISK OF INJECTION! Unit will start spraying
when trigger is squeezed. When turning the unit off after
use, high pressure still exists inside the hose and unit. Point
the gun in a safe direction and discharge the excess
pressure. NEVER direct the high pressure water stream at
people or animals.

1800 PSI Pressure Washer

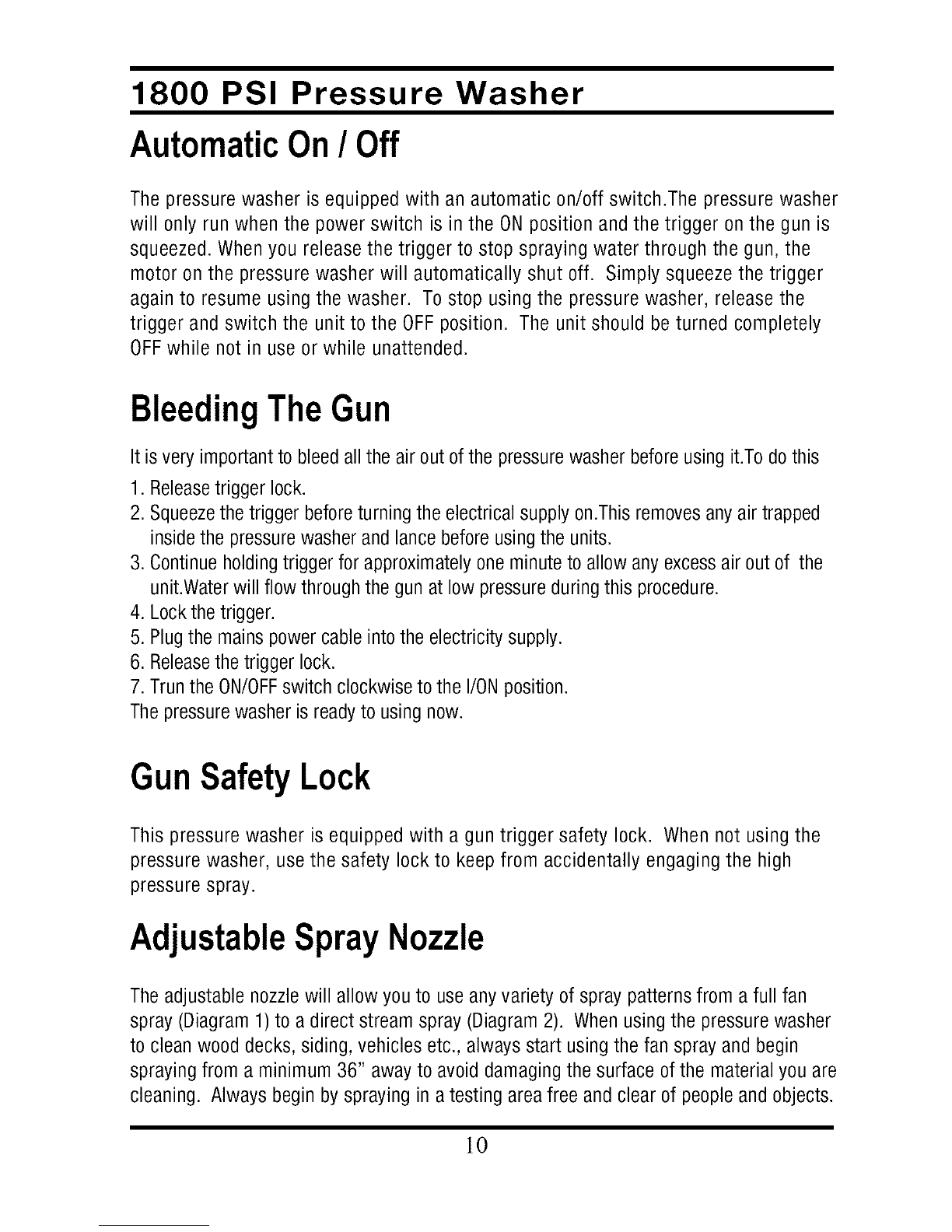

AutomaticOn/Off
The pressurewasher isequippedwith an automatic on/off switch.The pressurewasher
will only run when the power switch is in the ONposition and the trigger on the gun is
squeezed.Whenyou releasethe trigger to stop spraying water through the gun, the
motor on the pressurewasher will automaticallyshut off. Simplysqueezethe trigger
again to resume usingthe washer. Tostop usingthe pressurewasher, releasethe
trigger and switch the unit to the OFFposition. Theunit should be turned completely
OFFwhile not in useor while unattended.
BleedingThe Gun
It isveryimportantto bleedallthe air outofthe pressurewasherbeforeusingit.Todothis
1.Releasetriggerlock.
2. Squeezethe triggerbeforeturningthe electricalsupplyon.Thisremovesanyair trapped
insidethe pressurewasherand lancebeforeusingthe units.
3. Continueholdingtriggerfor approximatelyoneminuteto allowanyexcessair outof the
unit.Waterwill flow throughthegun atlow pressureduringthis procedure.
4. Lockthetrigger.
5. Plugthe mainspowercableintotheelectricitysupply.
6. Releasethetrigger lock.
7. TruntheON/OFFswitch clockwisetothe I/ONposition.
Thepressurewasherisreadyto usingnow.
GunSafetyLock
This pressurewasher is equippedwith a gun trigger safety lock. Whennot usingthe
pressurewasher, usethe safety lock to keepfrom accidentally engagingthe high
pressurespray.
AdjustableSprayNozzle
Theadjustablenozzlewill allowyouto useanyvarietyof spraypatternsfrom afull fan
spray (Diagram1)to a direct streamspray(Diagram2). Whenusingthe pressurewasher
to cleanwooddecks,siding,vehiclesetc., alwaysstart usingthe fanspray andbegin
sprayingfrom a minimum36" awayto avoiddamagingthe surfaceofthe materialyouare
cleaning. Alwaysbegin bysprayingin a testingareafree andclearof peopleandobjects.
]0

1800 PSI Pressure Washer

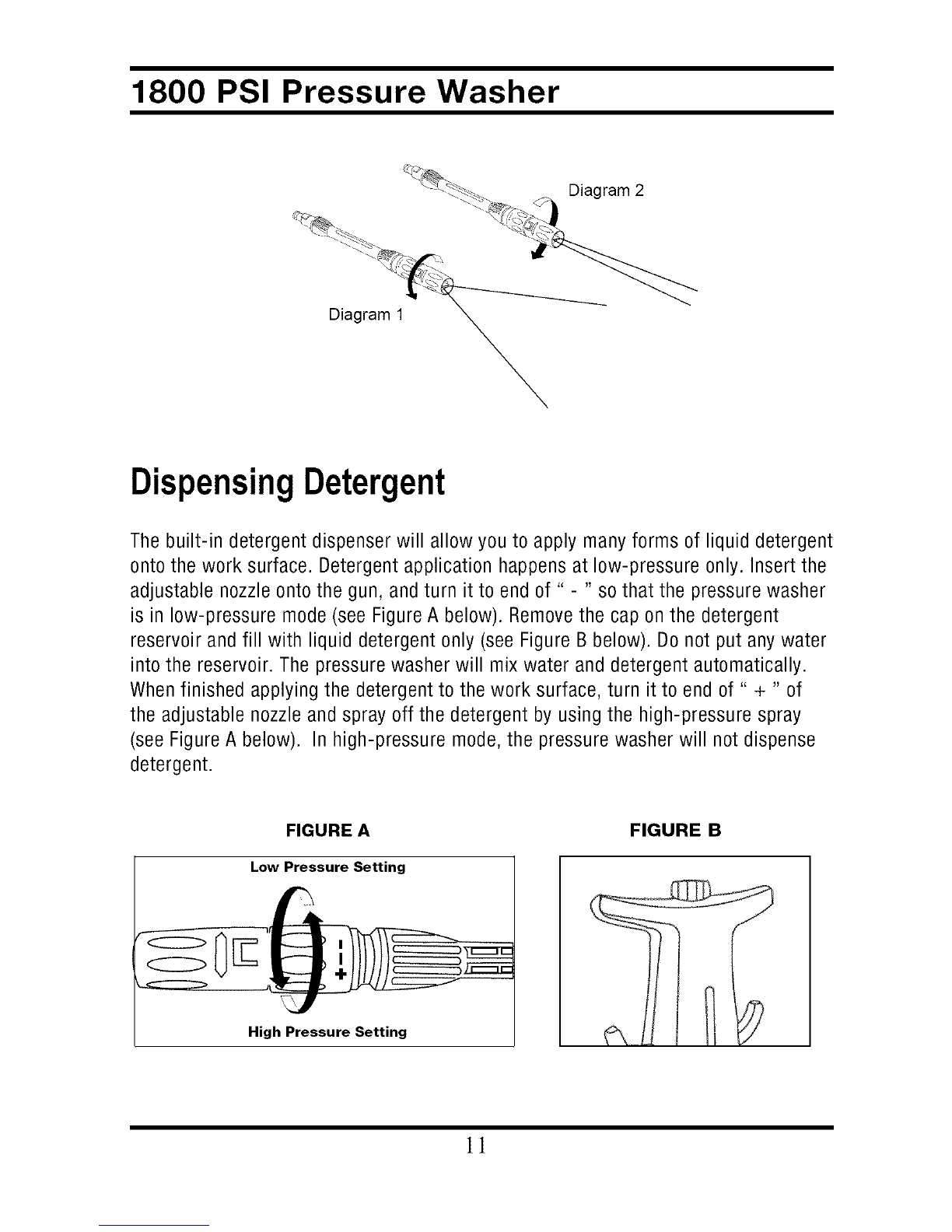

*_-. _ Diagram 2
Diagram 1
DispensingDetergent
The built-in detergent dispenserwill allowyou to apply manyforms of liquid detergent
onto the work surface. Detergentapplication happensat low-pressure only. Insert the
adjustable nozzleontothe gun, andturn it to end of .... sothat the pressurewasher
is in low-pressure mode(see FigureA below). Removethe capon the detergent
reservoir andfill with liquid detergentonly (seeFigureB below). Donot put anywater
intothe reservoir.The pressurewasher will mix water and detergent automatically.
Whenfinished applyingthe detergentto the work surface, turn it to end of" + " of
the adjustable nozzleand spray off the detergent by usingthe high-pressure spray
(see FigureA below). In high-pressure mode,the pressure washer will not dispense
detergent.
FIGURE A
Low Pressure Setting
High Pressure Setting
FIGURE B
]!

1800 PSI Pressure Washer

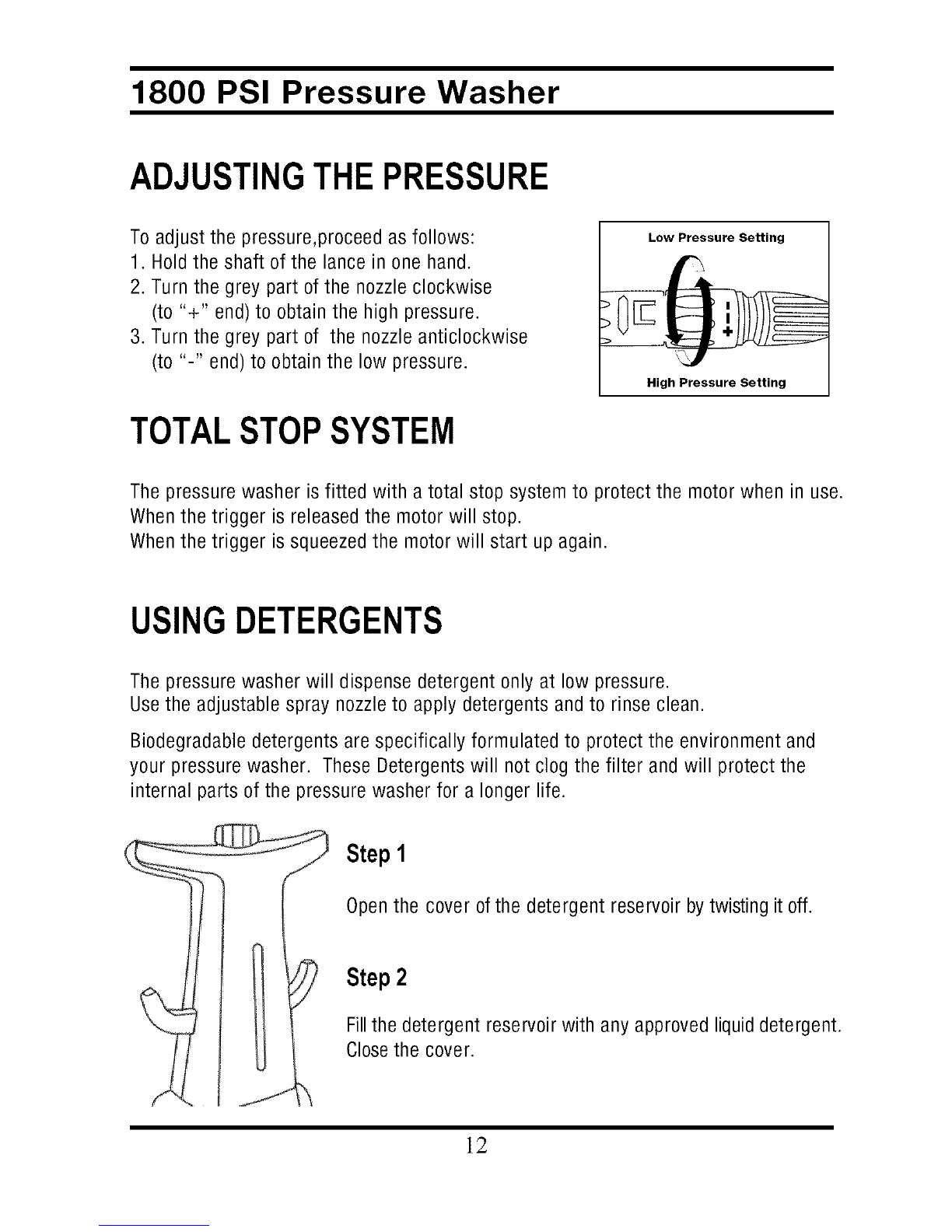

ADJUSTINGTHEPRESSURE
To adjust the pressure,proceedas follows:
1. Holdthe shaft of the lancein one hand.
2. Turnthe grey part of the nozzleclockwise
(to "+" end)to obtainthe high pressure.
3. Turnthe grey part of the nozzleanticlockwise
(to "-" end)to obtainthe low pressure.
TOTALSTOPSYSTEM
Low Pressure Setting
High Pressure Setting
The pressurewasher isfitted with a total stop systemto protect the motor when in use.
Whenthe trigger is releasedthe motor will stop.
Whenthe trigger is squeezedthe motor will start up again.
USING DETERGENTS
The pressurewasher will dispensedetergent onlyat low pressure.
Usethe adjustable spray nozzleto applydetergents andto rinse clean.
Biodegradabledetergents are specifically formulated to protect the environment and
your pressure washer. These Detergentswill not clogthe filter and will protect the
internal parts of the pressurewasher for a longer life.
Step 1
Openthe cover ofthe detergent reservoir bytwisting it off.
Step 2
Fillthe detergent reservoirwith any approvedliquiddetergent.
Closethe cover.
]2

1800 PSI Pressure Washer

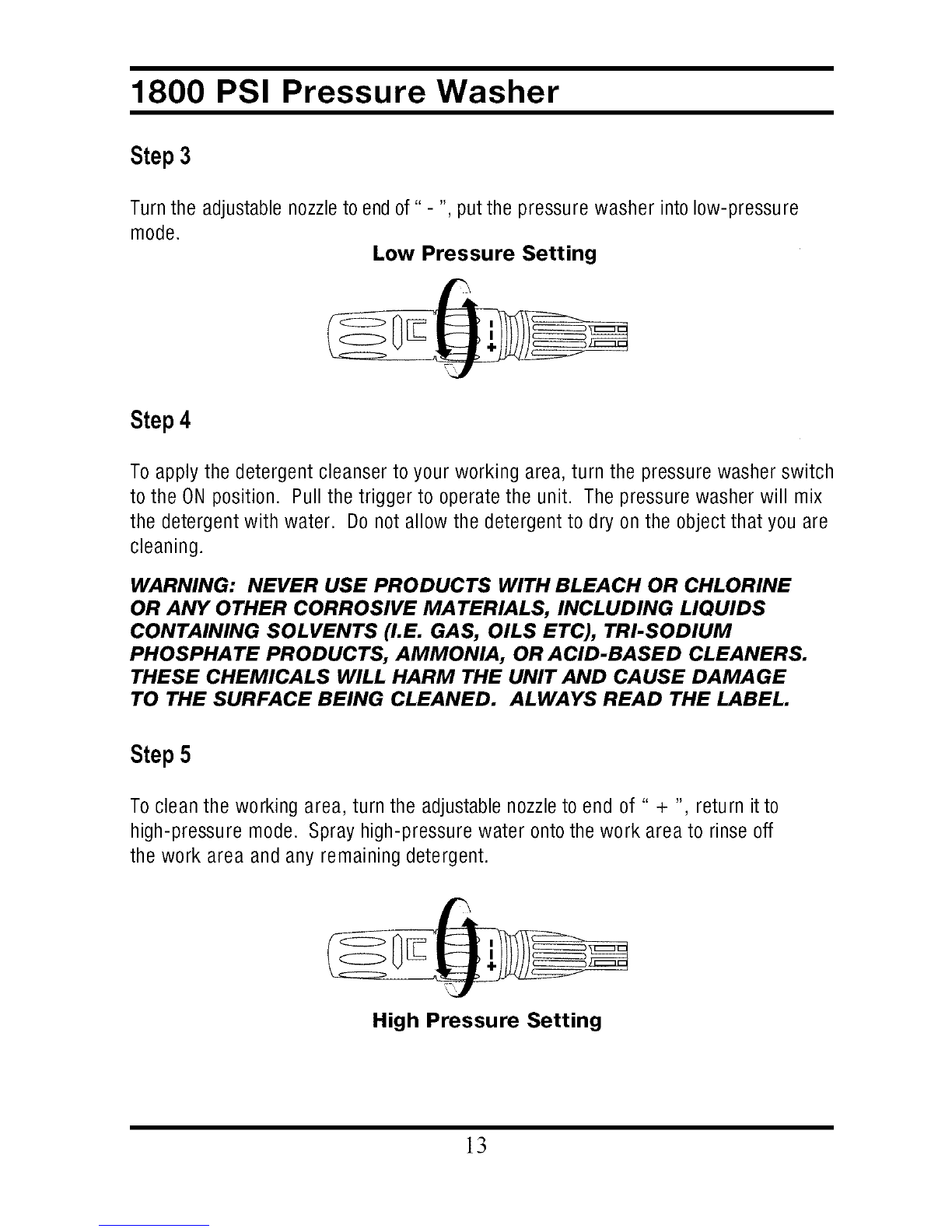

Step 3
Turnthe adjustablenozzleto endof" - ", put the pressurewasherintolow-pressure
mode. Low Pressure Setting
Step 4
To applythe detergent cleanserto your working area,turn the pressurewasher switch
to the ONposition. Pull the trigger to operatethe unit. Thepressure washer will mix
the detergentwith water. Donotallow the detergent to dry on the objectthat you are
cleaning.
WARNING: NEVER USE PRODUCTS WITH BLEACH OR CHLORINE
OR ANY OTHER CORROSIVE MATERIALS, INCLUDING LIQUIDS
CONTAINING SOLVENTS (I.E. GAS, OILS ETC), TRI-SODIUM
PHOSPHATE PRODUCTS, AMMONIA, OR ACID-BASED CLEANERS.
THESE CHEMICALS WILL HARM THE UNIT AND CAUSE DAMAGE
TO THE SURFACE BEING CLEANED. ALWAYS READ THE LABEL.
Step 5
Toclean the working area, turn the adjustablenozzleto end of " + ", return itto
high-pressure mode. Sprayhigh-pressure water ontothe work area to rinseoff
the work area and any remainingdetergent.
High Pressure Setting
13

1800 PSI Pressure Washer

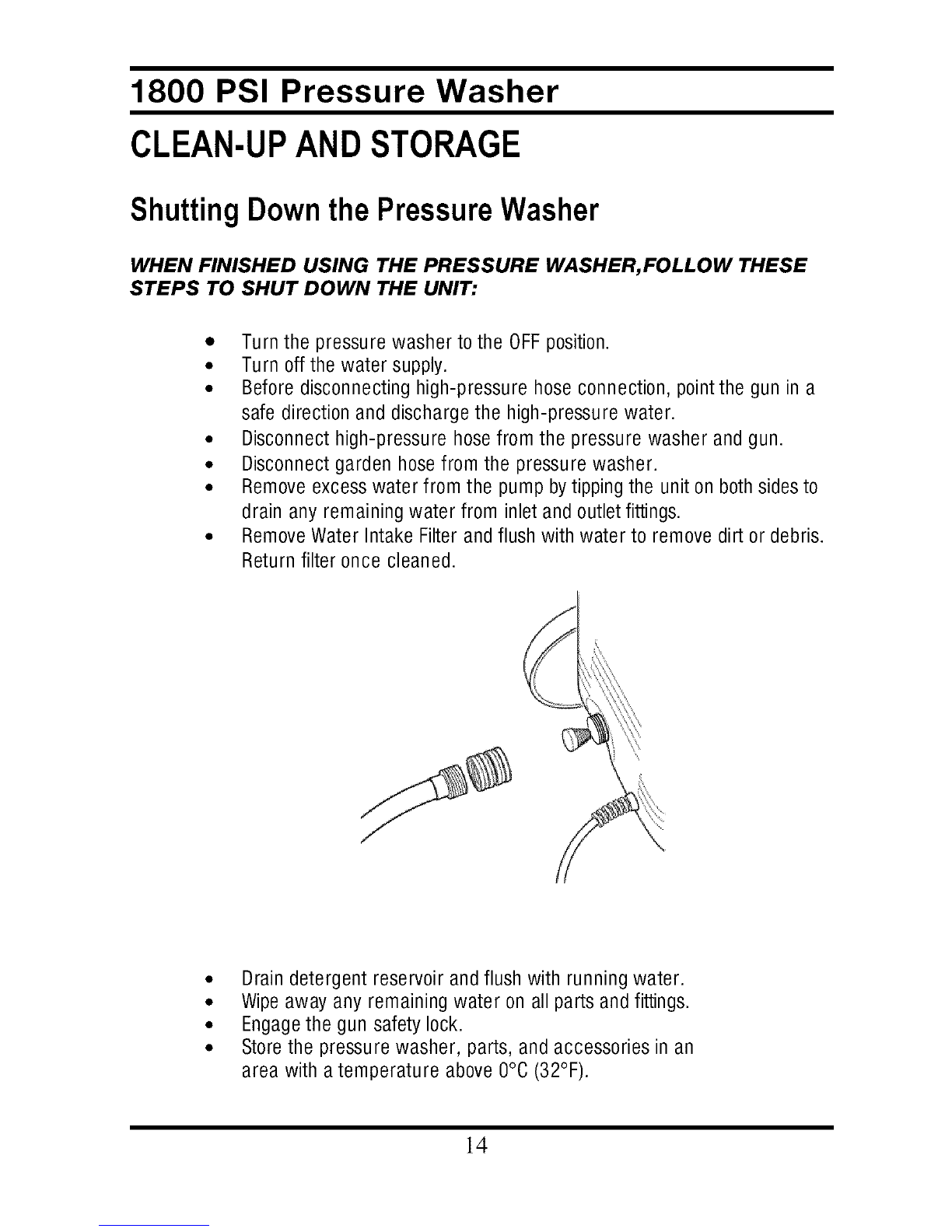

CLEAN-UPANDSTORAGE
ShuttingDownthe PressureWasher
WHEN FINISHED USING THE PRESSURE WASHER, FOLLOW THESE
STEPS TO SHUT DOWN THE UNIT:
•Turnthe pressure washer to the OFFposition.
•Turn off the water supply.
• Beforedisconnectinghigh-pressure hoseconnection, pointthe gun in a
safe directionand dischargethe high-pressurewater.
• Disconnecthigh-pressure hosefrom the pressure washer and gun.
• Disconnectgarden hosefrom the pressure washer.
• Removeexcesswater from the pumpbytippingthe uniton bothsidesto
drain any remainingwater from inlet and outletfittings.
• RemoveWater IntakeFilter andflush with water to remove dirt or debris.
Returnfilter once cleaned.
• Draindetergent reservoir andflush with running water.
• Wipeaway any remainingwater on all parts andfittings.
• Engagethe gun safety lock.
• Storethe pressure washer, parts,and accessoriesin an
area with a temperature above0% (32°%
]4

1800 PSI Pressure Washer

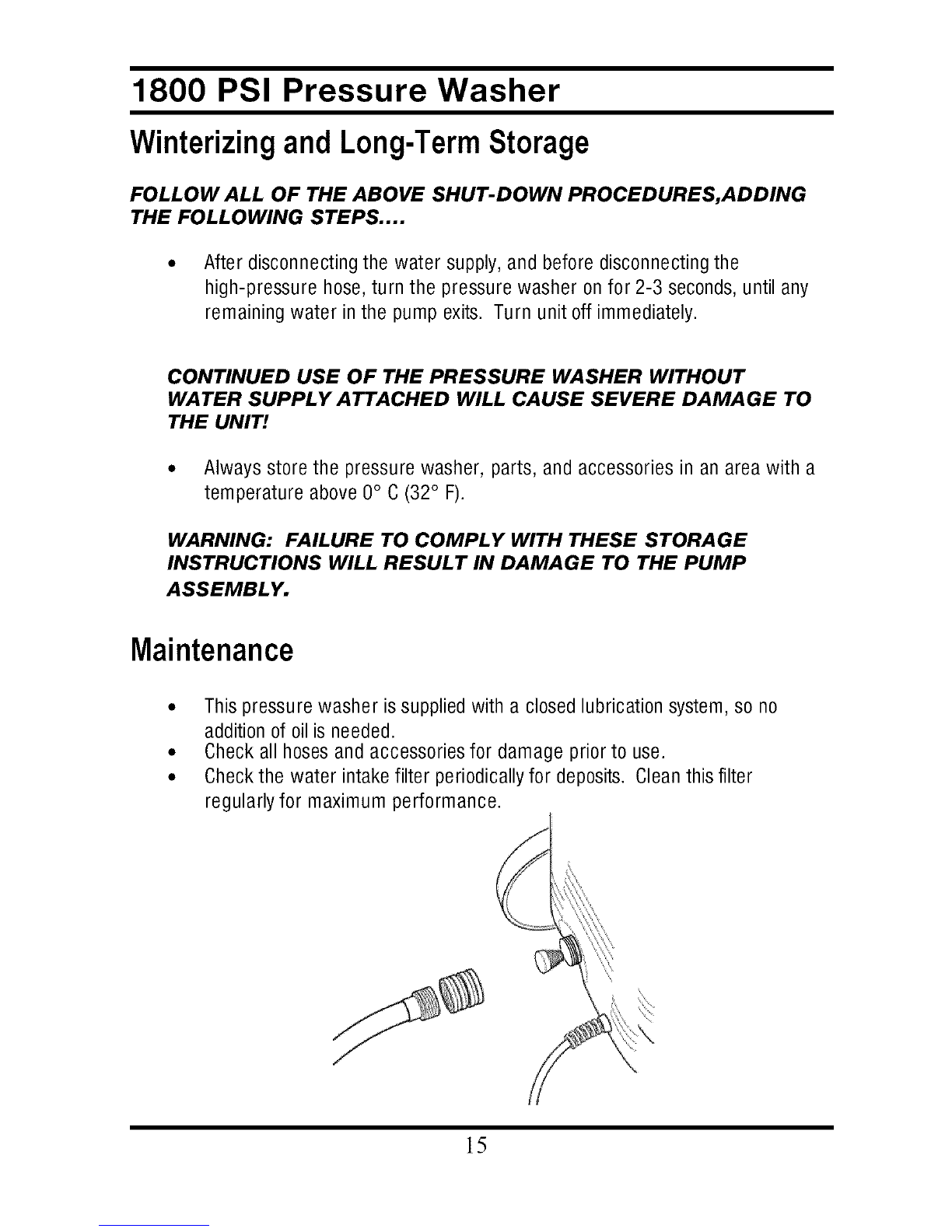

WinterizingandLong-TermStorage
FOLLOW ALL OF THE ABOVE SHUT-DOWN PROCEDURES,ADDING
THE FOLLOWING STEPS ....
•After disconnectingthe water supply,and before disconnectingthe
high-pressure hose,turn the pressure washer onfor 2-3 seconds,untilany
remainingwater in the pumpexits. Turn unitoff immediately.
CONTINUED USE OF THE PRESSURE WASHER WITHOUT
WATER SUPPLY ATTACHED WILL CAUSE SEVERE DAMAGE TO
THE UNIT!
• Alwaysstore the pressure washer, parts, and accessoriesin an area with a
temperature above0° C(32° F).
WARNING: FAILURE TO COMPLY WITH THESE STORAGE
INSTRUCTIONS WILL RESULT IN DAMAGE TO THE PUMP
ASSEMBLY.
Maintenance
• This pressurewasher issuppliedwith a closedlubricationsystem,so no
additionofoil is needed.
• Checkall hosesand accessoriesfor damage prior to use.
• Checkthe water intakefilter periodicallyfor deposits. Cleanthis filter
regularlyfor maximum performance.
15

1800 PSI Pressure Washer

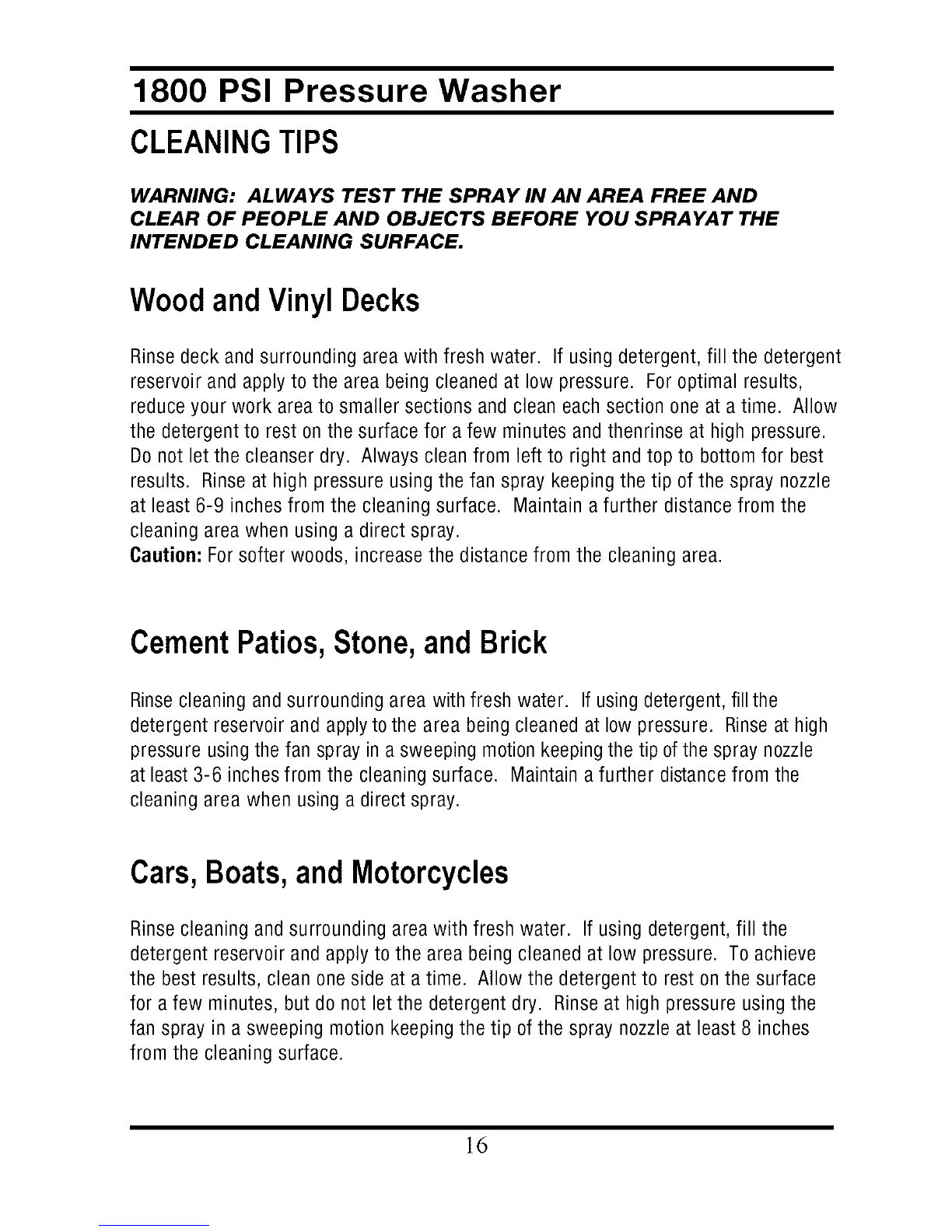

CLEANINGTIPS
WARNING: ALWAYS TEST THE SPRAY IN AN AREA FREE AND
CLEAR OF PEOPLE AND OBJECTS BEFORE YOU SPRAYAT THE
INTENDED CLEANING SURFACE.
WoodandVinylDecks
Rinsedeck and surrounding area withfresh water. If using detergent,fill the detergent
reservoir and applyto the area being cleanedat low pressure. Foroptimal results,
reduceyourwork areato smaller sections and clean eachsection one at a time. Allow
the detergentto rest on the surfacefor a few minutesand thenrinse at high pressure.
Donot let the cleanser dry. Always cleanfrom left to right andtop to bottom for best
results. Rinseat high pressure usingthe fan spray keepingthe tip of the spray nozzle
at least 6-9 inchesfrom the cleaningsurface. Maintain a further distancefrom the
cleaning area when using a direct spray.
Caution:Forsofter woods,increasethe distancefrom the cleaningarea.
CementPatios,Stone,andBrick
Rinsecleaning andsurrounding area with fresh water. If usingdetergent,fillthe
detergent reservoir and applytothe area being cleanedat low pressure. Rinseat high
pressure usingthe fan spray in a sweeping motionkeepingthe tip ofthe spray nozzle
at least 3-6 inchesfrom the cleaningsurface. Maintaina further distancefrom the
cleaning area when using a direct spray.
Cars,Boats,andMotorcycles
Rinsecleaningand surrounding area with fresh water. If using detergent,fill the
detergent reservoir and applyto the area being cleaned at low pressure. Toachieve
the best results, cleanone side at a time. Allow the detergent to rest on the surface
for a few minutes, but do not letthe detergent dry. Rinseat high pressureusing the
fan spray in a sweeping motionkeepingthe tip ofthe spray nozzleat least 8 inches
from the cleaning surface.
16

1800 PSI Pressure Washer
Maintain a further distancefrom the cleaning area when usinga direct spray. Wipe
surface dry for a polishedfinish.
BarbecueGrills,PowerEquipment,andGardenTools
Rinsecleaning andsurrounding area withfresh water. If usingdetergent,fillthe
detergent reservoir and applytothe area being cleanedat low pressure. Allowthe
detergent to rest onthe surface for a few minutes,but do notletthe detergent dry.
Rinseat high pressure usingthe fan spray keepingthe tip ofthe spray nozzleat least
1-3 inches from the cleaningsurface. Maintaina further distancefrom the cleaning
area when usinga direct spray.

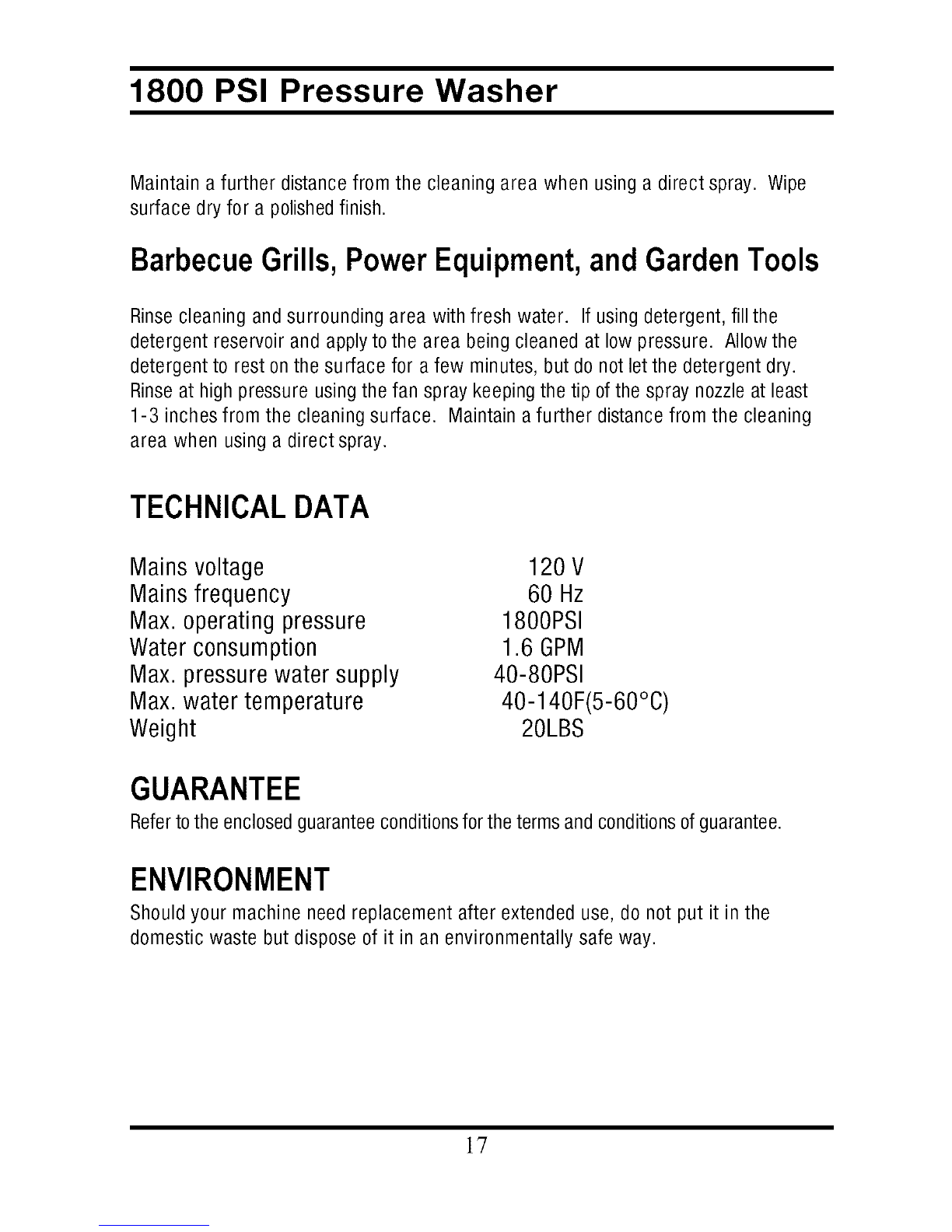

TECHNICALDATA
Mains voltage
Mains frequency
Max. operating pressure
Water consumption
Max. pressure water supply
Max. water temperature
Weight
120V
60 Hz
1800PSI
1.6 GPM
40-80PSI
40-140F(5-60°C)
20LBS
GUARANTEE
Refertothe enclosedguaranteeconditionsforthetermsand conditionsofguarantee.
ENVIRONMENT
Should your machine need replacementafter extended use, do not put it in the
domestic waste but dispose of it in an environmentallysafe way.
]?

1800 PSI Pressure Washer

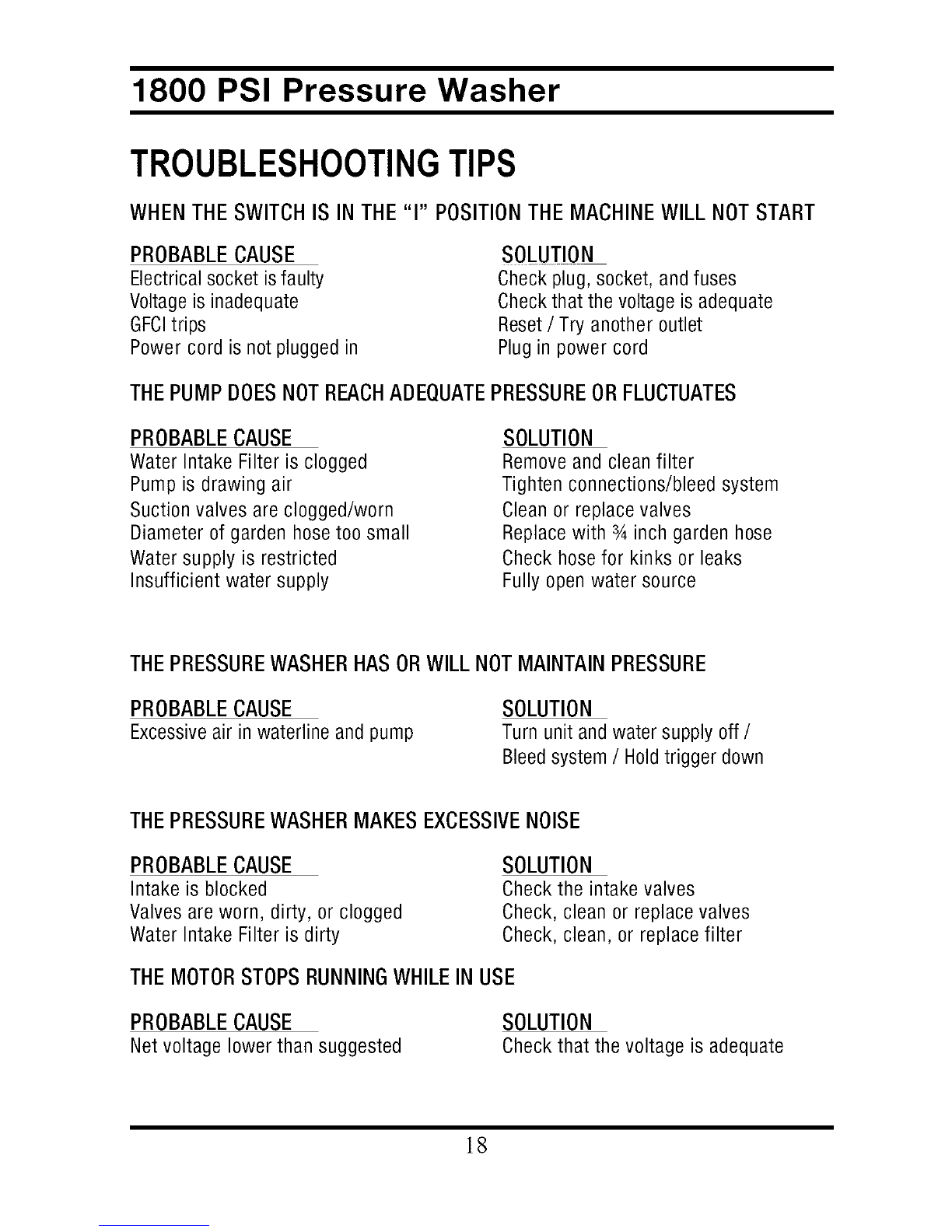

TROUBLESHOOTINGTIPS
WHEN THE SWITCH IS IN THE "1" POSITIONTHE MACHINE WILL NOT START
PROBABLECAUSE
Electricalsocket isfaulty
Voltageisinadequate
GFCItrips
Powercord is notpluggedin
SOLUTION
Checkplug, socket,and fuses
Checkthat thevoltage isadequate
Reset/Try another outlet
Plugin power cord
THE PUMP DOESNOT REACHADEQUATEPRESSUREORFLUCTUATES
PROBABLECAUSE
Water Intake Filter is clogged
Pumpis drawing air
Suction valves are clogged/worn
Diameterof garden hosetoo small
Water supply is restricted
Insufficient water supply
SOLUTION
Removeand cleanfilter
Tighten connections/bleed system
Cleanor replacevalves
Replacewith 3Ainch garden hose
Checkhosefor kinks or leaks
Fully openwater source
THE PRESSUREWASHERHASORWILL NOTMAINTAINPRESSURE
PROBABLECAUSE
Excessiveair in waterline andpump SOLUTION Turn unitand water supplyoff /
Bleedsystem/Holdtrigger down
THE PRESSUREWASHERMAKES EXCESSIVENOISE
PROBABLECAUSE
Intakeis blocked
Valvesare worn, dirty, or clogged
Water Intake Filter is dirty
SOLUTION
Checkthe intake valves
Check, clean or replacevalves
Check, clean, or replacefilter
THE MOTORSTOPSRUNNINGWHILE IN USE
PROBABLECAUSE
Netvoltage lowerthan suggested SOLUTION Checkthat the voltage is adequate
18

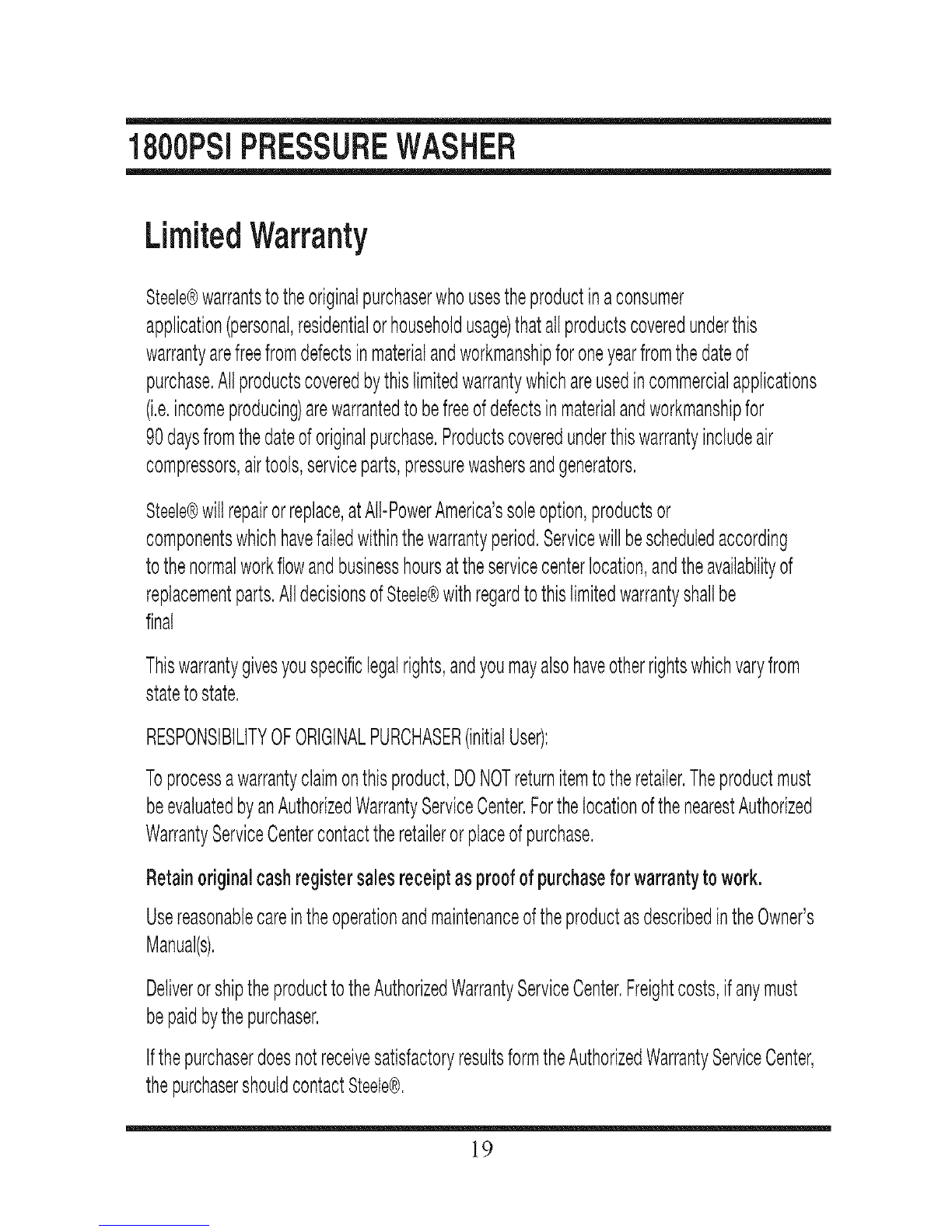

1800PSIPRESSUREWASHER
LimitedWarranty
Steele®warrantstotheoriginalpurchaserwhousestheproductinaconsumer
application(personal,residentialorhouseholdusage)thatallproductscoveredunderthis
warrantyarefreefromdefectsinmaterialandworkmanshipforoneyearfromthedateof
purchase.Allproductscoveredbythislimitedwarrantywhichareusedincommercialapplications
(i.e.incomeproducing)arewarrantedtobefreeofdefectsinmaterialandworkmanshipfor
90daysfromthedateoforiginalpurchase.Productscoveredunderthiswarrantyincludeair
compressors,airtools,serviceparts,pressurewashersandgenerators.
Steele®willrepairorreplace,atAll-PowerAmerica'ssoleoption,productsor
componentswhichhavefailedwithinthewarrantyperiod.Servicewillbescheduledaccording
tothenormalworkflowandbusinesshoursattheservicecenterlocation,andtheavailabilityof
replacementparts.AlldecisionsofSteete®withregardtothislimitedwarrantyshallbe
final
Thiswarrantygivesyouspecificlegalrights,andyoumayalsohaveotherrightswhichvaryfrom
statetostate.
RESPONSIBILITYOFORIGINALPURCHASER(initialUser):
Toprocessawarrantyclaimonthisproduct,DONOTreturnitemtotheretailer.Theproductmust
beevaluatedbyanAuthorizedWarrantyServiceCenter.ForthelocationofthenearestAuthorized
WarrantyServiceCentercontacttheretailerorplaceofpurchase.
Retainoriginalcashregistersalesreceiptasproofofpurchaseforwarrantytowork.
UsereasonablecareintheoperationandmaintenanceoftheproductasdescribedintheOwner's
Manual(s)
DeliverorshiptheproducttotheAuthorizedWarrantyServiceCenter.Freightcosts,ifanymust
bepaidbythepurchaser.
IfthepurchaserdoesnotreceivesatisfactoryresultsformtheAuthorizedWarrantyServiceCenter,
thepurchasershouldcontactSteele®.
19
