SteelMax SM-D1 User manual

STEELMAX®d1
Portable Magnetic Drilling Machine
OPERATOR’S MANUAL
EYE PROTECTION
REQUIRED HEARING PROTECTION
REQUIRED
MODEL #SM-D1
Serial # Date of Purchase
WARNING!
BEFORE USE, BE SURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS
ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL.
NEVER PLACE
FINGERS NEAR
CUTTING AREA OR
MACHINE ARBOR
LINE VOLTAGE
PRESENT BEWARE OF ROTATING
MACHINE PARTS

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5--6
Grounding Instructions and Extension Cords . . . . . . . . . . . . . . . . . . . . . . . . .7
Special Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Contents of Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Ready for Cutting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
After Cutting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Normal Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
TroubleShooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Machine Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Available SteelMax Cutters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
2
TABLE OF CONTENTS
S TEEL M AX D RILLS AND C UTTERS , LLC
Tel ·
·303.690.9146 or Fax · ·303.690.9172
6200 S. Troy Circle. Suite 110. Centennial, CO 80111
email
·
·
[email protected] / web
·
·
steelmax.com

Congratulations on your purchase of a SteelMax portable magnetic drilling machine. SteelMax drilling machines are
designed to deliver fast, efficient hole drilling performance in portable applications. SteelMax drills are
fast becoming the most cost effective and efficient way to drill holes not only at steel fabricating work-
shops or steel building sites, but also at virtually every factory maintenance workshop, truck manufacturer
& repair company, military equipment service, onboard ship maintenance shop etc.
The full advantages of your SteelMax electromagnetic drilling machine can only be achieved with opti-
mal tooling. Milling cutters are designed and manufactured specifically for use with these machines and
offer a wide range of advantages, such as 1.5 inch diameter holes through 2 inch steel, in one pass
and with precision not otherwise attainable without heavy stationary equipment. This performance
advantage has been virtually impossible in a drill with the size and weight of the SteelMax d1 until now.
The SteelMax d1 provides the latest state of the art features in portable drilling equipment. Among the
features are a no-maintenance rail system that eliminates older gib type systems, which lowers
maintenance and maximizes the life of your SteelMax annular cutters. Energy saving and safety features
are also provided through the use of a powerful new generation, low heat electromagnet with
Condensed Magnetic Flux (CMF) and magnetic field control system. This new system provides safety,
energy saving, maintenance, weight and operational advantages over other brand drills.
PPlleeaasseettaakkeeaammoommeennttttooccoommpplleetteeaannddmmaaiillyyoouurrpprroodduuccttwwaarrrraannttyyrreeggiissttrraattiioonn
ccaarrdd..DDooiinnggssoowwiillllvvaalliiddaatteeyyoouurrmmaacchhiinnee’’sswwaarrrraannttyyppeerriiooddaannddeennssuurreepprroommpptt
sseerrvviicceeiiffnneeeeddeedd..
SteelMax®d1 Portable Magnetic Drilling Machine
3

SteelMax Drills and Cutters, L.L.C. (SteelMax) will, within twelve (12)
months from the original date of purchase, repair or replace any
goods found to be defective in materials or workmanship, provided
the product warranty registration card has been returned to SteelMax
within thirty (30) days of purchase date. This warranty is void
if tool has been damaged by accident, neglect, improper service,
or other causes not arising out of defects in materials or workmanship.
This warranty does not apply to machines and/or components which
have been altered, changed, or modified in any way, or subjected to
use beyond recommended capacities and specifications. All
goods returned defective shall be returned prepaid freight to
SteelMax, which shall be the buyer’s sole and exclusive remedy
for defective goods. In no event shall SteelMax be liable for loss or
damage resulting directly or indirectly from the use of
merchandise or from any other cause. SteelMax is not liable
for any costs incurred on such goods or consequential damages.
No officer, employee or agent of SteelMax is authorized to make oral
representations of fitness for any particular purpose or to waive
any of the foregoing terms of sale and none shall be binding
on SteelMax.
LIMITED WARRANTY
STEELMAX DRILLS AND CUTTERS, LLC RESERVES THE RIGHT TO MAKE
IMPROVEMENTS AND MODIFICATIONS TO DESIGN WITHOUT PRIOR NOTICE.
4

IMPORTANT SAFETY INSTRUCTIONS
5
WARNING!
WHEN USING ELECTRIC TOOLS,BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED
TO REDUCE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY.
READ AND SAVE ALL INSTRUCTIONS FOR FUTURE REFERENCE.
1. Never Remove Swarf With Bare Hands
• Use a tool designed for the job to avoid injuries.
2. Never Touch Spindle During Operation
• Cutters are extremely sharp and cause serious injuries.
3. Keep Work Area Clean
•Cluttered areas and benches invite injuries.
4. Consider Work Area Environment
•Do not expose power tools to rain.
• Do not use power tools in damp or wet locations.
• Keep work area well lit.
• Do not use tool in presence of flammable liquids or gases.
5. Guard Against Electric Shock
•Prevent body contact with grounded surfaces. For example: pipes, radiators, ranges and refrigerator enclosures.
6. Keep Children Away
• Do not let visitors contact tool or extension cord.
• All visitors should be kept away from work area.
7. Store Idle Tools
• When not in use, tools should be stored in a dry, high and locked-up place, out of reach of children.
8. Do Not Force Tool
•It will do the job better and safer at the rate for which it was intended.
9. Use Right Tool
• Do not force a small tool or attachment to do the job of a heavy-duty tool.
• Do not use tool for unintended purpose.
10. Dress Properly
• Do not wear loose clothing or jewelry. They can be caught in moving parts.
• Rubber gloves and non-skid footwear are recommended when working outdoors. Never wear gloves near
rotating machine parts.
•Wear protective hair covering to contain long hair.
11. Use Safety Glasses and Hearing Protection
•Also use face or dust mask if cutting operation is dusty.
12. Do Not Abuse Electrical Cord
•Never carry tool by cord or yank it to disconnect from receptacle.
• Keep cord from heat, oil and sharp edges.

13. Secure Work
• Use clamps or a vise to hold work. It’s safer than using your hand and it frees both hands to operate tool.
14. Do Not Overreach
• Keep proper footing and balance at all times.
15. Maintain Tools With Care
• Keep tools sharp and clean for better and safer performance.
• Follow instructions for lubricating and changing accessories.
• Inspect tool cords periodically and if damaged, have repaired by authorized service facility.
• Inspect extension cords periodically and replace if damaged.
• Keep handles dry, clean, and free from oil and grease.
16. Disconnect Tools Prior to Service
• Unplug when not in use, before servicing, and when changing accessories, such as blades, bits and cutters.
17. Remove Adjusting Keys And Wrenches
• Form habit of checking to see that keys and adjusting wrenches are removed from tool before turning it on.
18. Avoid Unintentional Starting
• Do not carry a plugged-in tool. Always disconnect from power source before moving.
• Be sure switches are off before connecting to a power source.
19. Outdoor Use Extension Cords
•When tool is used outdoors, use only extension cords intended for use outdoors and so marked.
20. Stay Alert
• Watch what you are doing. Use common sense. Do not operate tool when you are tired.
• Do not use when taking medications that may cause drowsiness.
21. Check For Damaged Parts
• Before further use of the tool, a guard or other part that is damaged should be repaired and performance
verified prior to operation.
• Check alignment of moving parts, binding of parts, breakage of parts, mounting, and any other conditions
that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced
by an authorized service center.
• Do not use this tool if switches do not turn it on and off. Have defective switches replaced by authorized
service center.
22. Never Operate Drill In An Explosive Environment
• Sparks are generated internally by the motor brushes during normal operation.
IMPORTANT SAFETY INSTRUCTIONS (CONT.)
6

Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole receptacles. Make sure
extension cord is in good condition. Replace or repair damaged cords.When using an extension cord, limit
length to 50ft. or less. Only use a cord of 12 gage or larger diameter. An undersized cord will cause a drop in line
voltage resulting in loss of power and overheating. If in doubt, use the next heavier gauge. The smaller the gauge
number, the heavier the cord.

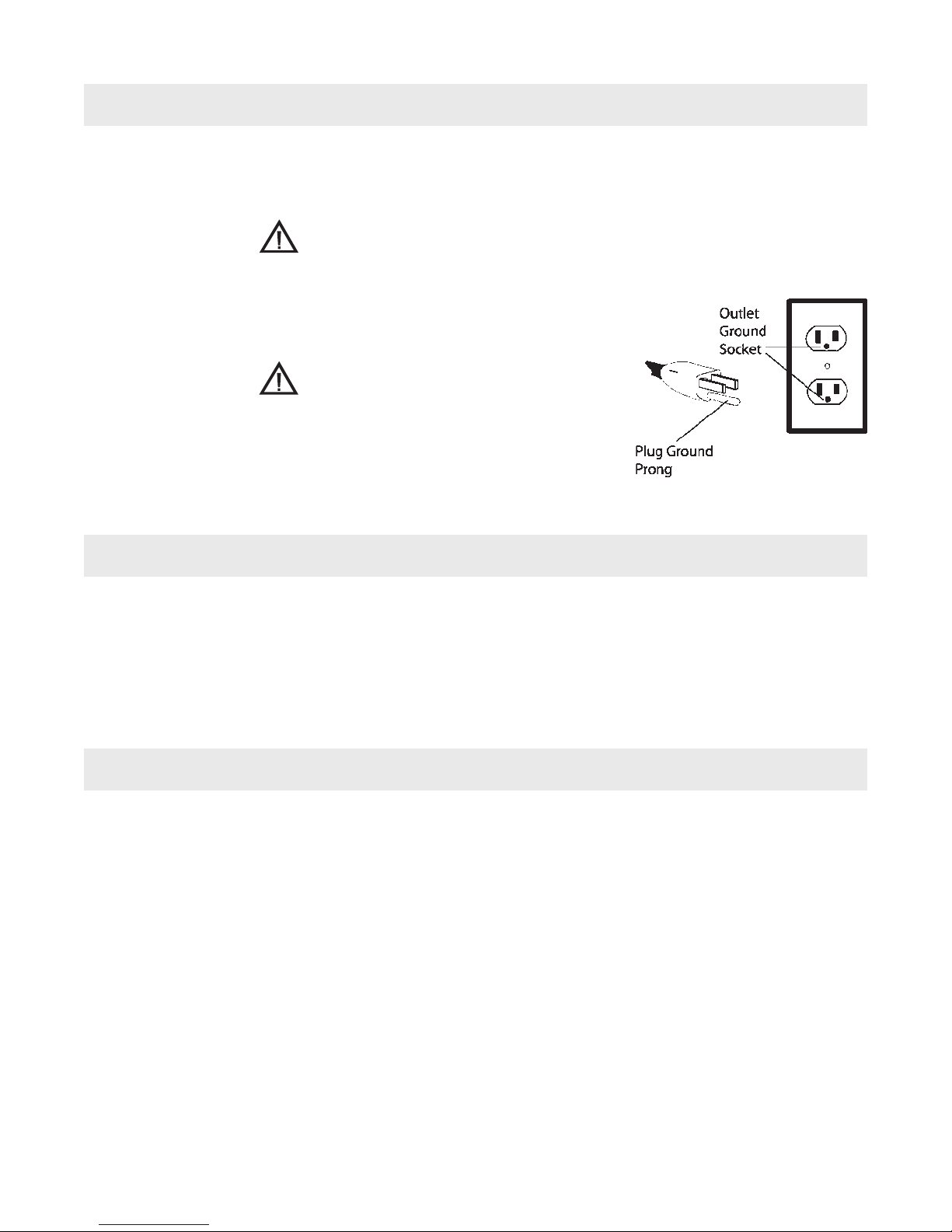

The d1drill must be plugged into a three prong outlet, properly installed and
grounded in accordance with all codes and ordinances. The plug and outlet
should look like those in diagram. If in doubt of proper grounding, contact a
qualified electrician. WARNING!
A shock hazard can result from improperly connecting the grounding wire.
Do not modify the electrical plug provided with tool. Never remove the
grounding prong from the plug. If the cord or plug is damaged, have it
repaired before using. If the plug will not fit the outlet, have a proper outlet
installed by a qualified electrician.
WARNING!
DO NOT USE STEELMAX DRILLING MACHINES ON SURFACES OR MATERIALS BEING
WELDED. DOING SO CAN RESULT IN PERSONAL INJURY AND/OR DAMAGE TO THE DRILLING
MACHINE.
GROUNDING INSTRUCTIONS
EXTENSION CORDS
7
1. Read and follow operator’s manual thoroughly. Instructions are intended as a guide in safe operating
procedures and practices. Always contact SteelMax in the event any instruction is not clearly understood.
2. Never wear loose clothing or gloves when working near cutting area or machine arbor.
3. DO NOT touch rotating cutter or machine parts.
4. DO NOT use dull or broken cutters.
5. To reduce the risk of electrical shock, DO NOT remove or alter electrical panels or use machine in damp
areas.
6. Always stop machine completely and unplug from power source before changing cutters, clearing swarf,
filling coolant reservoir or performing maintenance.
7. Always wear eye protection. Any tool can shatter.

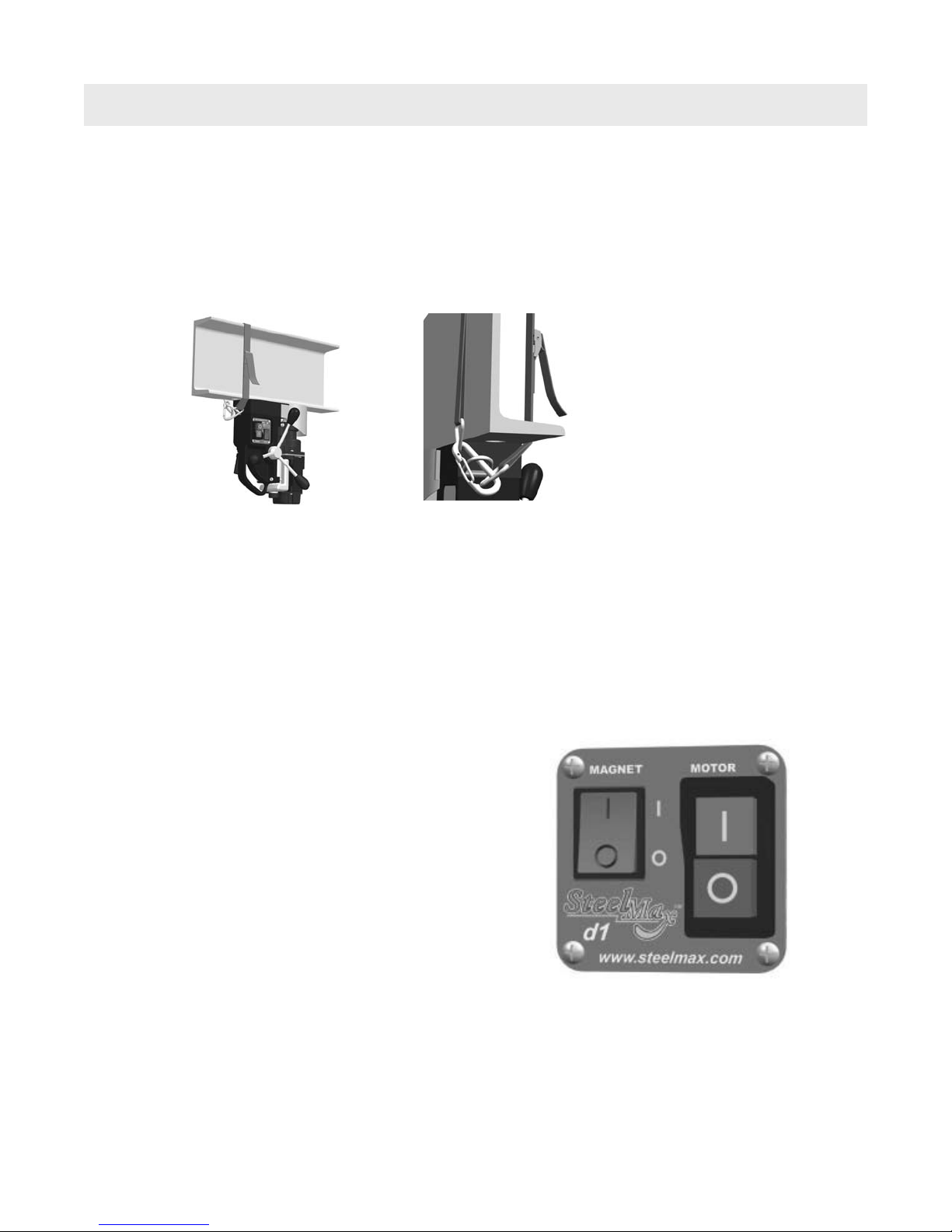

8. Always use safety strap provided with machine.
9. Always use proper tooling. Keep cutters securely fastened.
10. Beware of ejected slugs core at end of cut. They become HOT during the cut.
11. Keep all safety features functioning and working properly.
12. Use only authorized service centers for repairs.
SPECIAL INSTRUCTIONS

Remove all contents from packaging and inspect to ensure no damage was incurred during shipping.
Your SM-d1 package should include the following:
OPERATING INSTRUCTIONS (BEFORE YOU BEGIN)
DESCRIPTION PART #QTY
METAL TOOL BOX C31272-220-00-00 1
SAFETY STRAP SS-D1-27 1
HEX WRENCH 4 H00643-504-01-00 1
OPERATORS MANUAL LIT-015 1
SPOKE HANDLE WITH KNOBS C31249-010-50-00 3
CHIP GUARD C31272-120-00-00 1
WHAT YOU SHOULD KNOW BEFORE YOU DRILL
CAUTION!
BESURE YOUR SM-D1IS DISCONNECTED FROM THE POWER SOURCE BEFORE MAKING ADJUSTMENTS.
1. Assemble (3) spoke handles (item 05) to the pinion hub (item 01.02) NOTE: Pinion assembly is mounted on
the left side of the machine frame. If necessary, it can be reversed to operate from the right side of the
frame. To do so, remove the external retaining ring (item 01.08) from the right edge of the pinion. Using a
5mm wrench (not supplied) loosen the guide rail hex socket retaining bolts about 2-3 turn each (item 19)
just enough for the pinion shaft to slide out of the machine frame without hitting the gear rack (item
02.01.02). Insert the pinion assembly from the opposite side of machine frame. Reassemble in reverse
order and tighten all fasteners securely.
8
1. Type of material to be drilled, Brinnell or Rockwell hardness, material thickness and position should all be
determined to ensure proper selection of SteelMax cutting tools.
2. Remove any excessive scale or rust from surface to be drilled.
3. When drilling thin materials, SteelMax recommends placing a steel plate under the work piece and d1
magnet area to increase magnetic holding force. Failure to do so may result in dangerous operation.
4. Material that has been flame cut may become heat treated and therefore difficult to drill. Avoid drilling near such
areas whenever possible.
5. Paste type cutter lubricant is available for using the d1 drill and annular cutters in the horizontal or inverted
position. Consult you distributor for more information.
Caution: Do not drill on material where welding is also simultaneously being performed. Drilling
machine will be damaged.
Caution: Powering drilling machine from generator without proper surge protection device
between generator and drilling machine may cause damage to the circuitry in machine.

1.Insert the annular cutter in to the machine arbor, lining up the flats on the cutter shank drive with the set
screws on the arbor. Secure the set screws making sure the screws are recessed in arbor body.
2. Fill the coolant reservoir with a water-soluble coolant. Do not overfill! If drilling horizontally or inverted, use coolant
paste.
3. Position the d1 drill on the work surface. Always use safety strap to prevent injury. Refer to the drawing
below.
4. Lower cutter to surface of material. Turn on coolant flow valve. Coolant flow will start when pilot pin is
depressed. Lifting pilot pin off work surface will stop coolant flow. Always remember to close valve when not
in use.
5. Position chip guard toward work area before drilling.
6. Place the drilling machine on the work piece, with pilot pin over the center of the hole to be cut.
7. Move the magnet “ON” switch to the ON position. The switch will illuminate to indicate DC
power is going to the magnet.
8.Depress motor “ON” switch to start drill. If drill
momentarily turns on but will not continue to run,
check to make certain material is thick enough.
Insufficient thickness can cause magnet to loose hold,
causing an operator hazard. If necessary, clamp an
additional section of steel to the work-piece to
increase magnetic adhesion. If material thickness is
less than 3/16” (5mm), the magnetic field control
system will not allow motor to start. This system will
turn OFF the motor after even minor movement of
magnetic base. If holes must be made regularly in thin (less than 3/8”) material, the magnetic field control
system can be disabled permanently. (Consult Factory)
*Operational Note: Models manufactured after 11-2006 have an electronic overload feature. If the drill
experiences over-current due to excessive cutter penetration speeds, the circuit will stop the drill motor. If this
should occur, simply reset the motor switch to the off position and then turn back on. Proceed with a slower
feed rate without forcing the cutter.
READY TO MAKE THE CUT
9

11. The SteelMax d1 drilling machine is equipped with new unique system for elimination of excess play in
slide guides.This rail guide system completely eliminates maintenance or adjustment.
22. After every 250 hours of operation, check the condition of the carbon brushes (03.01.07). If their length is
less than 5 mm they should be replaced with new ones. Replacement of brushes is possible without
removal of motor from the drill.To replace the brushes, remove the 4 screws
(03.01.09) securing the motor field frame cover (03.01.03). Remove the 2 brush holder screws (03.01.10)
and carefully remove the brushes. Reverse the procedure to re-install. After replacement, new brushes
should be run-in without load for about 20 min. Other repair work should only be performed by authorized
service centers. Replacement of brushes is possible without removal of motor from the drill.
33. To prevent the machine from rusting (especially when used outdoors) all steel parts should be covered
with thin layer of grease film.
44..Keep the magnet clean and free of chips, oil or other contaminant's.
55..Occasionally check the magnet base for flatness to ensure proper magnetic holding force.
6. Replace any worn parts and tighten fasteners that become loose during normal usage.
NORMAL MAINTENANCE
10
CAUTION! SLUG IS EXTREMELY HOT!
1. After the cut has finished, the slug should automatically eject from the cutter*. Slug can eject with significant
force due to the pilot pin spring pressure. Always be prepared for the ejected slug.
2. Return motor to the full upright position, depress motor OFF button and wait until motor fully stops. Move
magnet switch to the OFF position to release the magnetic base from the material.
*Note: If the slug does not eject after the cut, disconnect the machine from the power source and remove
the cutter from the arbor body, then expel the slug. (Caution: Do not use the pilot pin as damage can result).
AFTER THE CUT
CCAAUUTTIIOONN!!
AANNAALLTTEERRNNAATTEEMMEEAANNSSMMUUSSTTBBEEUUSSEEDDTTOOSSEECCUURREELLYYHHOOLLDDTTHHEEDDRRIILLLLIINNPPLLAACCEE..
FFAAIILLUURREETTOODDOOSSOOCCAANNRREESSUULLTTIINNSSEERRIIOOUUSSIINNJJUURRIIEESS!!
9. To start a cut, apply pressure until the cutter has established an external grove. Continue with steady
pressure through the remainder of the cut (Note: Do not peck drill when using annular cutters). The tools
are designed to evacuate chips when drilling.

920 Watt
120 Volt / 60 Hz
350
Serial Number
Power Supply
RPM Motor Power
TM
TM
WARNING !WARNING !
Keep your hands away from rotating machine’s parts.
Always use the safety strap and chip guard.
Do not use altered, dull or broken cutters.
Protect the power cord from fire, oil and sharp edges.
Use only authorized service centers for repairs.
Beware of ejected slug at end of cut.
Always stop machine completely and disconnect
from power source before changing cutters,
clearing chips, refilling lubricant and servicing
electrical components.
Do not remove chips with bare hands. Use special
hook or hand brushes.
Always use personal protection dress, protection
glasses, protection gloves and ear protectors.
Read the Operation Manual before starting.
TM
TM
OO
II
MOTOR
MAGNET
www.steelmax.com
TM
TM
01.09
03.03 03.06
04.02
SteelMax®d1 Portable Magnetic Drilling Machine Labels
The figure below shows all labels included on the d1 drilling machine. As a required item for
machine safety, contact the factory for replacement labels if they become damaged.
11

12
EXPLODED VIEWS

01.01 MAIN BODY ASSEMBLY C31272-010-10-01 1
01.02 PINION SHAFT ASSEMBLY C31271-010-20-01 1
01.03 D-RING STRAP C31272-010-30-00 1
01.04 ELECTROMAGNETIC BASE C31271-010-40-01 1
01.05 STRAIN RELIEF PG7 H01131-133-01-04 1
01.06 HEX SOCKET BOLT M6X25 N18230-206-20-02 3
01.07 SPRING WASHER 6,1 N18200-806-01-01 3
01.08 EXTERNAL RETAINING RING 28z N18511-110-28-00 1
02.00*) GEARBOX ASSEMBLY C31272-020-00-03 1
02.01 GEARBOX HOUSING ASSY. W/SPINDLE C31272-020-10-01 1
02.01.02 GEAR RACK C31271-020-10-21 1
02.01.05 BEARING 608 2Z H00636-448-01-00 1
02.01.09 HEX SOCKET BOLT M6X20 N18230-206-20-00 1
02.02.02 PLUNGER C03381-390-00-21 1
02.02.03 SPRING C31271-020-20-30 1
02.02.04 SEAL C31279-020-10-60 1
02.02.05 INTERNAL RETAINING RING 19W N18511-120-19-00 1
02.02.06 HEX SET SCREW M8X10 N60091-308-10-00 2
02.03 PINION SHAFT ASSEMBLY C31271-020-30-01 1
02.04 COOLANT VALVE C31272-020-40-00 1
02.07 GUIDE C31271-060-00-01 2
02.08 BRAKE C31271-090-10-01 2
02.09 BRAKE SPRING C31271-110-00-01 1
03.00 MOTOR ASSY. 115V (W/ ARMATURE) C31272-030-00-03 1
03.02.03*) ARMATURE 115V (ASSY. W/BEARINGS H01111-200-01-02 1
03.04 SELF TAPPING SCREW 3.9X19 N18310-630-91-91 6
03.08 PROTECTIVE SPRING C32257-020-30-00 1
03.09 FIELD FRAME COVER C31272-030-10-30 1
03.10 BRUSH HOLDER C31271-030-60-00 2
03.11 MOTOR BRUSH H01111-200-01-08 2
03.12 MOTOR BRUSH PLATE C31271-030-70-00 2
03.13 SELF TAPPING SCREW 2.9X5 N18310-620-90-90 2
04.00 CONTROL PANEL ASSY. 115V C31272-040-00-04 1
04.01 PANEL PLATE C32257-040-10-00 1
04.03 ELECTRONIC CONTROLLER SW-31 /115V C31257-041-00-00 1
04.04 MOTOR ON/OFF SWITCH 115V WLC-000005 1
04.05 MAGNET SWITCH H01115-168-01-01 1
04.06 LOCKING PILLAR H01262-003-01-01 3
05 SPOKE HANDLE INCL. KNOB ASSY. C31249-010-50-00 3
07 PLUG C31271-070-00-00 2
08 PLUG WITH THREAD C31271-080-00-00 2
10 BOTTLE ASSY. C31272-100-00-00 1
11 CROSS RECESSED SCREW M4X16 N18221-204-16-00 1
12 CHIP GUARD C31272-120-00-00 1
13 POWER CORD / 115V C02180-750-05-10 1
14 STRAIN RELIEF PG11 H01131-133-02-02 1
15 CROSS RECESSED SCREW M4X10 N18220-204-10-01 4
16 WASHER, EXT. METRIC 4.3DIN 6798 N18202-404-03-00 1
17 HEX NUT M4 N18214-404-00-01 2
18 SPRING WASHER 4,1 N18200-804-01-01 1
19 HEX SOCKET BOLT M-6X35 N18230-206-35-01 4
20 SELF TAPPING SCREW 4.8X32 N18310-640-83-21 3
21 SELF TAPPING SCREW 4.8X50 N18310-640-85-01 1
22 METAL BOX C31272-220-00-00 1
24* HEX WRENCH 4 H00643-504-01-00 1
Item Description Part Number Qty
SteelMax®d1 Parts List
13

SteelMax d1 Drilling Machine wiring diagram
SteelMax®d1 Wiring Diagram
14

15
1. Motor will not stay running.
• Magnet circuitry is designed to prevent run cycle in the event material “Hold” by magnet is insufficient.
Clamp additional material beneath magnet to increase hold. “Run” switch may be manually held in to bypass
this safety circuit. If operator chooses to use this “bypass” circuit, extreme caution must be used.
• Models manufactured after 11-2006 have an electronic overload feature. If the drill experiences over-current
due to excessive cutter penetration speeds, the circuit will stop the drill motor. If this should occur, simply
reset the motor switch to the off position and then turn back on. Proceed with a slower feed rate without
forcing the cutter.
2. Magnetic base not holding securely.
• Material is too thin to engage magnet. The minimum necessary thickness is 3/16” (5 mm).
• Surface of material being drilled must be free of chips, debris, rust and mill scale.
• Cutter exceeds machine’s rated capacity.
• Check magnet face for unevenness, nicks and burrs.
• Welding equipment connected to material being drilled.
3. Motor slows when drilling.
• Extension cord is too long or too thin.
• Excessive downforce during drilling cycle will cause motor to slow and overheat.
• Cutter dull.
4. Coolant not flowing.
• Coolant system is gravity dependent, machine must be in an upright position to operate properly.
• Dirt or debris in coolant tank.
• Incorrect pilot pin.
• Vent hole in coolant tank cap blocked.
5. Slugs not ejecting from cutter.
• Lack of coolant causing slugs to expand in cutter bore.
• Incorrect coolant type.
• Incorrect pilot pin.
• Broken pilot pin.
•Dull cutter.
6. Breaking cutters
•Coolant flow must be supplied to interior of cutter.
•Excessive feed pressure being applied.
• Excessive material hardness.
•Drilling stacked materials with incorrect cutter.
•Dull cutters; dull or chipped cutting edges require excessive feed pressure.
7. Oversized or rough holes
•Insufficient coolant flow.
• Excessive feed pressure.
•Dull cutter.
BASIC TROUBLESHOOTING

d1 Dimensions
16

17
Dimensions and specifications
Type SteelMax d1
Machine speeds (under load): 350 rpm
Supply voltage: 110-120V/ 60 Hz
Tolerance of supply voltage +/- 5%
Motor power 920 W
Total power 1010 W
Arbor 3/4" Weldon ( 19 mm)
Capacities: max. milling cutter diameter 1.5” (35 mm)
max. milling/drilling depth 2” (50 mm)
Magnet Dead Lift (on 1” plate) 2135 lbs (9500 N)
Dimensions:
electromagnetic base 3.15”x 6.3”x 1.6”
(80x160x42 mm)
heights: - slide up 14.8” (376 mm)
- slide down 12” (306 mm)
Slide stroke 2 3/4” (70 mm)
Width 6.6” (167 mm)
Length 9.4” (240 mm)
Length of the power cord 3.28 yd (3 m)
Total weight 23 lbs (10.5 kg)
Noise level 85 dBA
Surrounding temperature 32°F-104°F (0°C-40°C)
SteelMax d1

AVAILABLE STEELMAX®CUTTERS
SteelMax®m2AL
ANNULAR CUTTERS
7/16 SM4375 SM437L
1/2 SM5000 SM500L
9/16 SM5625 SM562L
5/8 SM6250 SM625L
11/16 SM6875 SM687L
3/4 SM7500 SM750L
13/16 SM8125 SM812L
7/8 SM8750 SM875L
15/16 SM9375 SM937
1 SM1000 SM100L
1-1/16 SM1062 SM106L
1-1/8 SM1125 SM112L
1-3/16 SM1187 SM118L
1-1/4 SM1250 SM125L
1-5/16 SM1312 SM131L
1-3/8 SM1375 SM137L
1-7/16 SM1437 SM143L
1-1/2 SM1500 SM150L
1-9/16 SM1562 SM156L
1-5/8 SM1625 SM162L
1-11/16 SM1687 SM168L
1-3/4 SM1750 SM175L
1-13/16 SM1812 SM181L
1-7/8 SM1875 SM187L
1-15/16 SM1937 SM193L
2SM2000 SM200L
2-1/16 SM2062 SM206L
2-1/8 SM2125 SM212L
2-3/16 SM2187 SM218L
2-1/4 SM2250 SM225L
2-5/16 SM2312 SM231L
2-3/8 SM2375 SM237L
Cutter Dia. (inch) 1" D.O.C. 2" D.O.C.
YOUR STEELMAX®DISTRIBUTOR
LIT015
© 12/06
18
