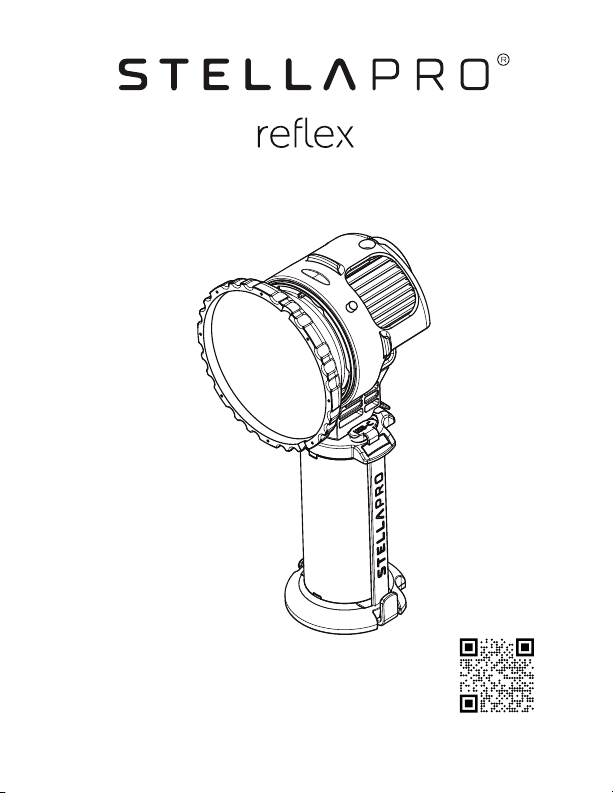

STELLAPRO reflex User manual

User Manual
stellaprolights.com

Table of Contents
Section 1
Reex Light
Section 2
Battery Handle
Section 3
Connecting the light to battery
handle and powering on
Section4
Operation basics
Section 5
OLED display
Section 6
Menu overview
Section 7
Light settings for operation with
wireless transmitters
Section 8
Firmware Updates
Section 9
Notes on use
Section 10
Additional Information

Umbrella Mount
Speedring Mount

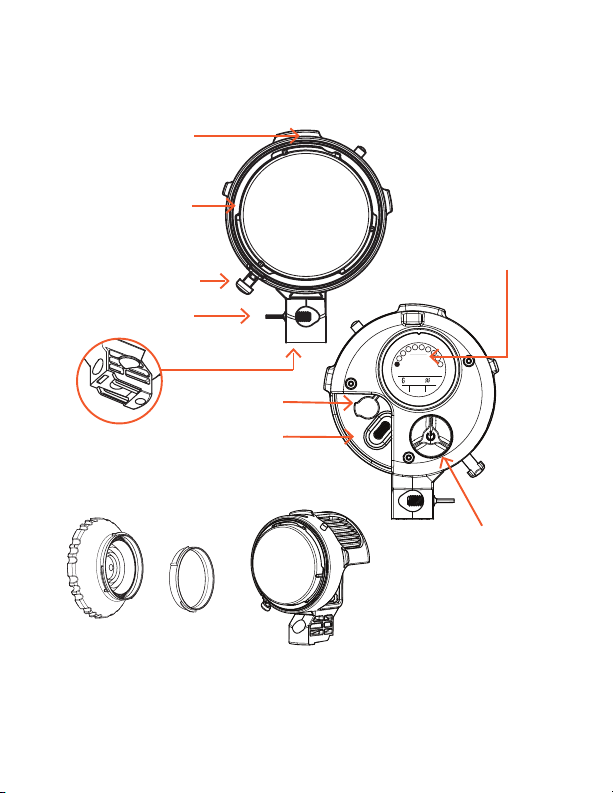

REFLEX LIGHT
Direct mount
Section 1
DIRECT MOUNT
Medium
Spot Optic
Flat Port
Cover*
1/4”-20
Mounting Point
*Always install a cover or optic over the exposed LED to
protect against dust or moisture
USB-C Port
3.5 mm port
External Trigger
Control Dial
OLED Display
Mounting Point
100
Pwr

USB-C Port Cover
Section 2
Professional Light Stand Sold
Separately

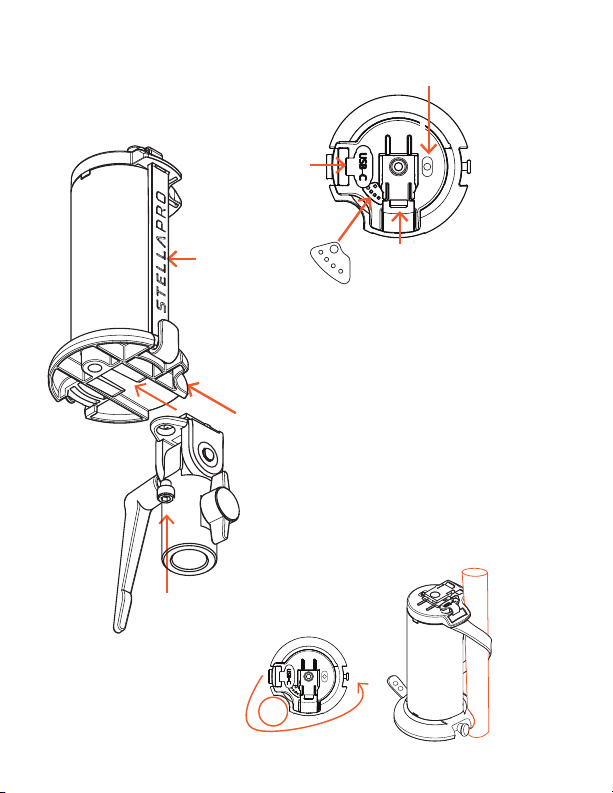

BATTERY HANDLE
MOUNTING BATTERY
HANDLE TO LIGHT STAND
Handstrap /
Pole Strap
Pole Mounting Feature
MOUNTING ON POLE
Power Button
Mounting Latch
State of Charge (SOC) LEDs
(25%, 50%, 75%, 100%)
BATTERY INDICATOR LED
to indicate battery state
Charging (Green)
Discharging (Red)
Allen bolt
secures
connection

Section 3
Connect USB-C cord to
Reex light and battery
USB-C ports

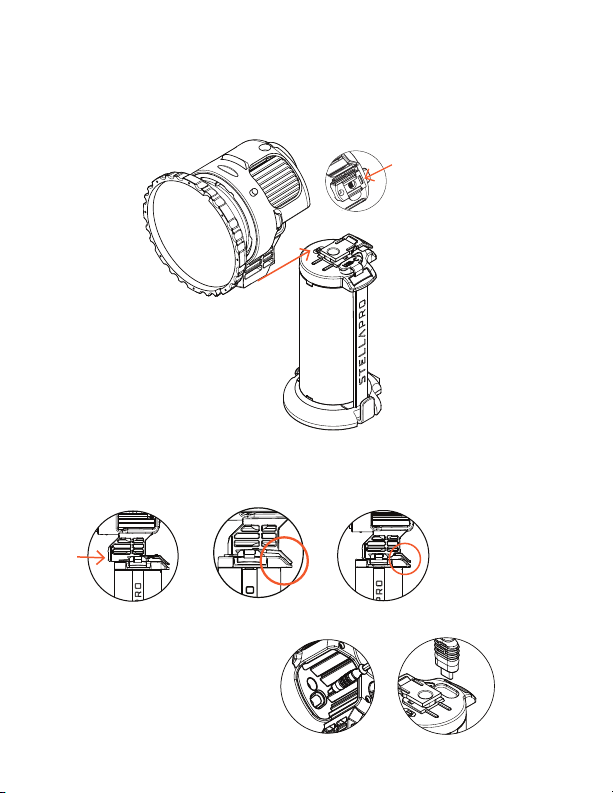

CONNECTING LIGHT TO BATTERY
Push light onto battery until it
“clicks” Tip: Push from the
front top of the optic
Connector tab
should no longer
be compressed
Unlatched Secured

Section 4

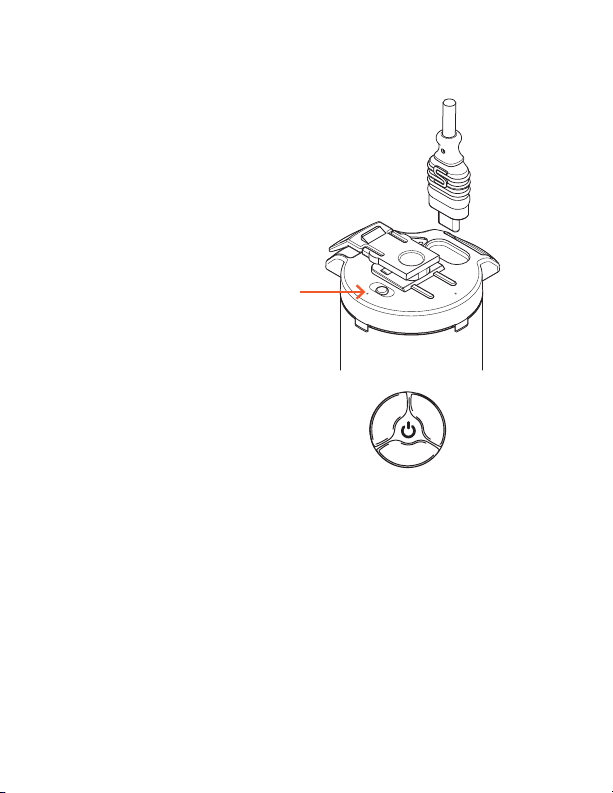

OPERATION BASICS
Connect short USB-C to the light and
battery. Press the white power button on
the battery. Battery Indicator will turn red.
Check connection and charge if indicator
light does not turn red. The OLED display
will turn on if connections are ok.
•
•
•
•
•
A Short press (1 sec switches between
Continuous and Digital Burst*(Or advance
through menu)
A Medium press (2 sec enters and exits the the
Reflex menu
Long press (4 sec to enter power o (Unplug
when putting in storage or traveling)
Rotate Clockwise to increase output (Or change
menu setting)
Rotate Counter-clockwise to decrease output
(Or change menu setting)
USING THE CONTROL DIAL
*ransmitter is required for burst operation
Power Button

Section 5

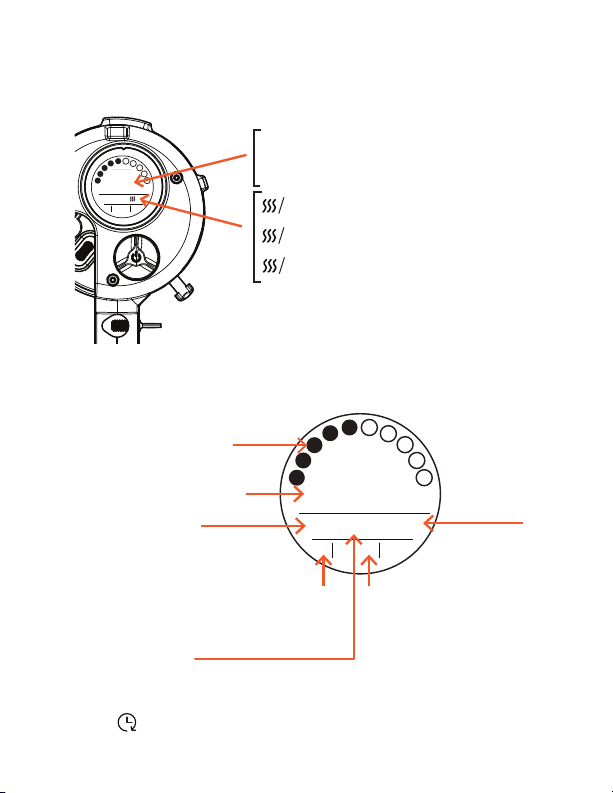

OLED DISPLAY
Section 6
MENU OVERVIEW
L
B
Lm
Stops
S
LED Overheating
(Turn o to cool down)
Battery Overheating
(Turn o to cool down)
Sensor Fault
(Return for service)
100-6000 Lumens
1.0-4.4 Stops*
1/160-1/2500 Second
!
4000
Group Channel
Burst Modes
Wireless Modes
Godox,
Elinchrom,
Bluetooth,
Profoto,
-Radio O
Continuous/Burst Power
To navigate the menu short press
dial to advance the sub-menu.
Rotate dial to change the setting.
POWER
DURATION
3.0Stops
EPwr
∝2
E
Control the lumen output with a set
burst duration of 5 milliseconds
Control the burst duration with a set
lumen output of 12000 lumens
Power Level Indicators
*With 100W Power Supply lumens to 9000 and Digital Burst to 5-stops
Pwr
Pwr
GR CH4 20

Burst Modes
5ms Burst
Adjustable Power
Adjustable Duration (0.4ms - 6ms)
12000 Lumens***
POWER
DURATION **
Use this mode to:
• Shoot at any shutter speed (including HSS)
• Freeze action with the shutter
• Maximize the amount of light on subject
**Duration Mode only available on the Reflex S
***18000 Lumens when using 100W USB-C PD
Use this mode to:
• Shoot at the camera’s X-Sync shutter
speed or longer (not HSS)
• Freeze action with light
• Best used in low light situations
∝1Burst power matches continuous power
Optimize your settings in constant mode and, with
Link set to ∝1, Digital Burst will duplicate Continuous
Power level.
∝Link Mode
Only exact at shutter speeds faster than 1/200
Pwr
Burst power delivers one stop more light
than set continuous power setting
∝2

Section 7
CHANGING LIGHT SETTINGS
Enter and exit the menu by pressing the
control dial for 2 seconds
Menu selection: Short press to advance
through sub-menus
mode
Group & Channel -
Rotate dial to select
group and channel
Burst Mode - Rotate
dial to select burst
mode: Power or
Duration
E(1-4)(1-20)
G(A-F) (1-32)
P(A-C) (1-8)
rotation
group Rotation - Rotate dial
to change display
orientation (4 directions)
for mounting Reex
horizontal or upside down.
Proportional (∝)Link
-Rotate dial to cycle
through link modes.
When active Reex
will strobe n times
brighter than current
continuous light.
∝link
∝2
∝2
∝1
Pwr
Pwr
Wireless - Rotate dial to select transmitter type
(Elinchrom, Godox, Profoto, Bluetooth, Wireless OFF)
Set Wireless mode to Bluetooth to perform rmware
updates. Make sure you have exited the menu.
Elinchrom
Godox
Bluetooth
Profoto
- wireless off
wireless
G

Section 8
UPDATING REFLEX FIRMWARE
1. Download the StellaPro Imaging Control Application
2. Set Reex Wireless Mode to Bluetooth
3. Exit Reex Menu
4. In the app scan for Devices
5. Select a Device to connect
6. Enter Serial Number
7. Select a Device to start update
Section 9
HOW TO USE REFLEX
There are 3 distinct mode; Continuous, Burst, and Continuous
interrupted by Burst upon triggering.
1. Continuous
• Rotate dial to desired power output in lumens.
• Your trigger may also allow remote adjustment of continuous power.
• Maximum power from the battery handle is 6000 lumens.
• Maximum power from a 100W USB-C source is 9000 lumens.
2. Digital Burst
• When set to Pwr, rotate the dial to set burst power. Maximum
burst power is 1 stop more light than maximum continuous mode.
• In Duration mode , rotate the dial to set duration from 0.4ms
(1/2500 sec) to 6ms (1/160th sec).
3. Continuous light that Bursts upon triggering
• Sync Reex with trigger (same as Digital Burst Mode)
• Set Constant light (using dial or trigger)
• Set Burst power with trigger. Trigger signal will cause the
light to deliver Burst power.
• Set your exposure to -1 when link is set to ∝2. When shutter
opens Reex will deliver extra stop of light.

Battery Runtime
Continuous
Full Power: 30 minutes Low Power: 600 minutes
Digital Burst
15,000 full power Digital Bursts
Charge Time: 2 hours*
*With a minimum 45W USB-C Charger
(Chargers with lower wattage will charge with variable charge times)
Fully charge battery before rst use
Charge your battery for 6 hours before rst use. Periodically,
check the charge of the battery during storage. Fully charge
your battery before use. The battery has internal protections
that ensure the battery is safely maintained regardless of
charge state.
Temperature Warning:
While in full power continuous mode use the battery may get
noticeably warm. This is normal. Should the temperature
increase beyond safe levels the overheat symbol will appear
and operation will pause until battery cools down.
Reex Battery Handle 60W
Continuous: 100-6000 lumens
Digital Burst: 1125-12000 lumens
External USB-C PD 100W**
Continuous: 100-9000 lumens
Digital Burst: 1125-18000 lumens
** Not Included
For Travel
Unplug battery from light.
Have at least 30% charge when putting
Battery in storage.

Direct Mount Accessories
Spot Optic 12º 800-0372
Medium Optic 24º 800-0373
Medium Wide Optic 36º 800-0406
Wide Optic 56º 800-0408
Flat Port Cover 800-0340
Dome Diffuser 800-0335
50º Optic 800-0337
Speedring Adapters
Chimera Speedring 800-0382
Profoto 800-0400
Bowens 800-0371
Mounts
Pro Light Stand Mount 800-0381
Bar Mount 800-0401
Other Accessories
Barn Door/Gel holder 800-0383
3 CTO Set (Full, 1/2, 1/4) 800-0385
-82mm Glass
RGB Color Set 800-0410
-82mm Glass
Remote Control 800-0325
1/4-20 Mount Base Reciever 800-0402
Cold Shoe Mount Kit 800-0403
Power Supplies
100W USB-C AC Power Supply 552-9614

USB-C Power Supply
<= 15W 25W 45W 65W 100W
Reex Lighthead Not Recom-
mended Not Recom-
mended 4,000 Lu-
mens, Burst 8000 Lumens
6,000 Lu- mens, Burst 12,000 Lu- mens
9,000 Lumens, Burst 18,000 Lumens
Reex 38Wh Bat- tery
6-10Hr charge time
4Hr charge time
2Hr charge time
2Hr charge time
2Hr charge time
General Performance with given
USB-C Supply Power Rating
Find our Recommended Power Supplies at
lightandmotion.com/pages/reex-recommended-power-supplies

3.0Stops
3.0Stops
3.0 Stops

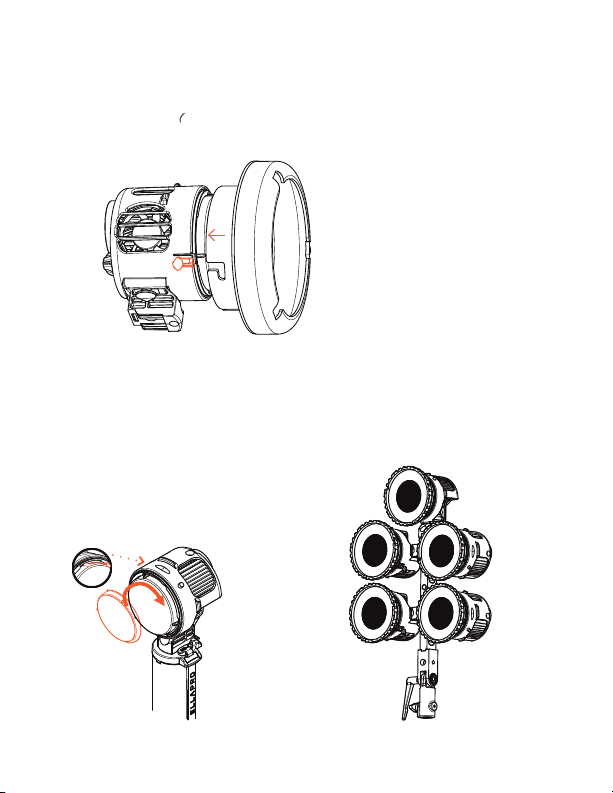

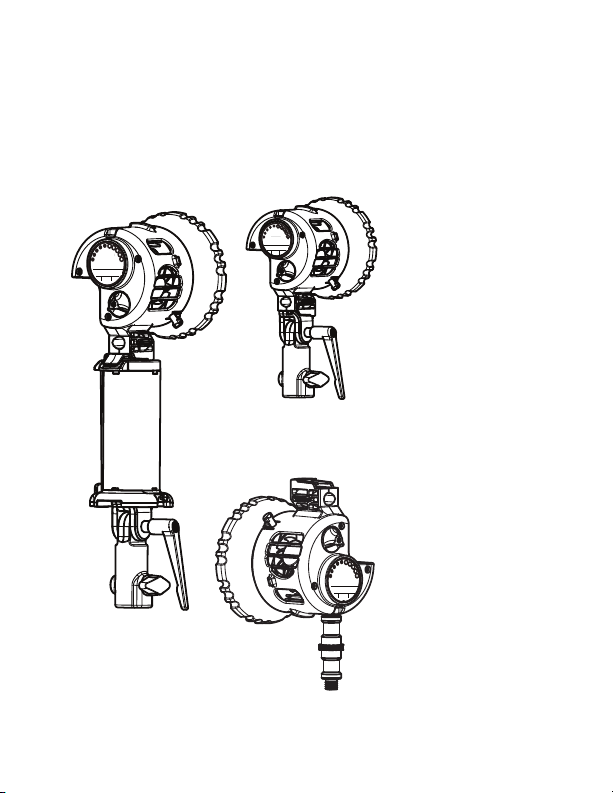

Reex Mounting Options
Professional Light Stand
(800-0381)
1/4”-20 Mounting
(Screen Rotated)

Speedring Mount
Mount softboxes for Chimera, Profoto,
Bowens using a StellaPro Speedring.
Direct Mount modiers
require a press-in and
clockwise turn to lock.
Always operate the Reex
with a Direct Mount
modier installed.
Direct Mount Reex Bar
(Mount 1 to 5 lights)
800-0401

#FlexYourReex
@stellaprolights
905-0487-A-07
Contact [email protected] for support.
