stellar labs 13500 User manual

Model 13500
Articulating Crane
Owner’s Manual
Stellar Industries, Inc.
190 State Street
PO Box 169
Garner, IA 50438
800-321-3741
Fax: [phone]
www.stellarindustries.com
Subject to Change without Notication.
© 2016 Stellar Industries, Inc. Last Revision: 05/12/16
Installation • Assembly Drawings • Parts
Notice: A copy of this manual must remain with the equipment at all times.
For a printable download copy, please visit: www.stellarindustries.com

Page ii | Stellar®13500 Articulating Crane Owner’s Manual
Model 13500 Manual Revisions
Date of Revsion Section Revised Description of Revision
MODELNO.SERIAL NO.
DATE
MADE IN THE U.S.A. BY STELLAR INDUSTRIES, INC.
PNC5942
®
PATENTINFORMATION
http://www.stellarindustries.com/ip
MODEL NO.SERIAL NO.
DATE
MADE IN THE U.S.A. BY STELLAR INDUSTRIES, INC.
PN C5942
®
PATENT INFORMATION
http://www.stellarindustries.com/ip
Serial Tag
Location

Stellar®13500 Articulating Crane Owner’s Manual | Page iii
Table of Contents
Introduction ........................................................................................ iv
Chapter 1 - Specications.....................................................................1
Model 13500 Specications ...............................................................1
Capacity Chart - Decal PN 72245 ....................................................2
Chapter 2 - Installation ..........................................................................3
General Installation .............................................................................3
Installer Notice ...................................................................................3
Torque Data Chart ............................................................................4
Installation Overview ........................................................................5
Mounting Kit Drawing .......................................................................5
Hydraulic Installation...........................................................................6
Hydraulic Pressure Settings .................................................................7
Face Seal/O-Ring Size Chart .............................................................7
Hydraulic Kit - PN 73095 ......................................................................8
Control Kit - PN 61546 .......................................................................11
Control Kit - PN 64702 .......................................................................12

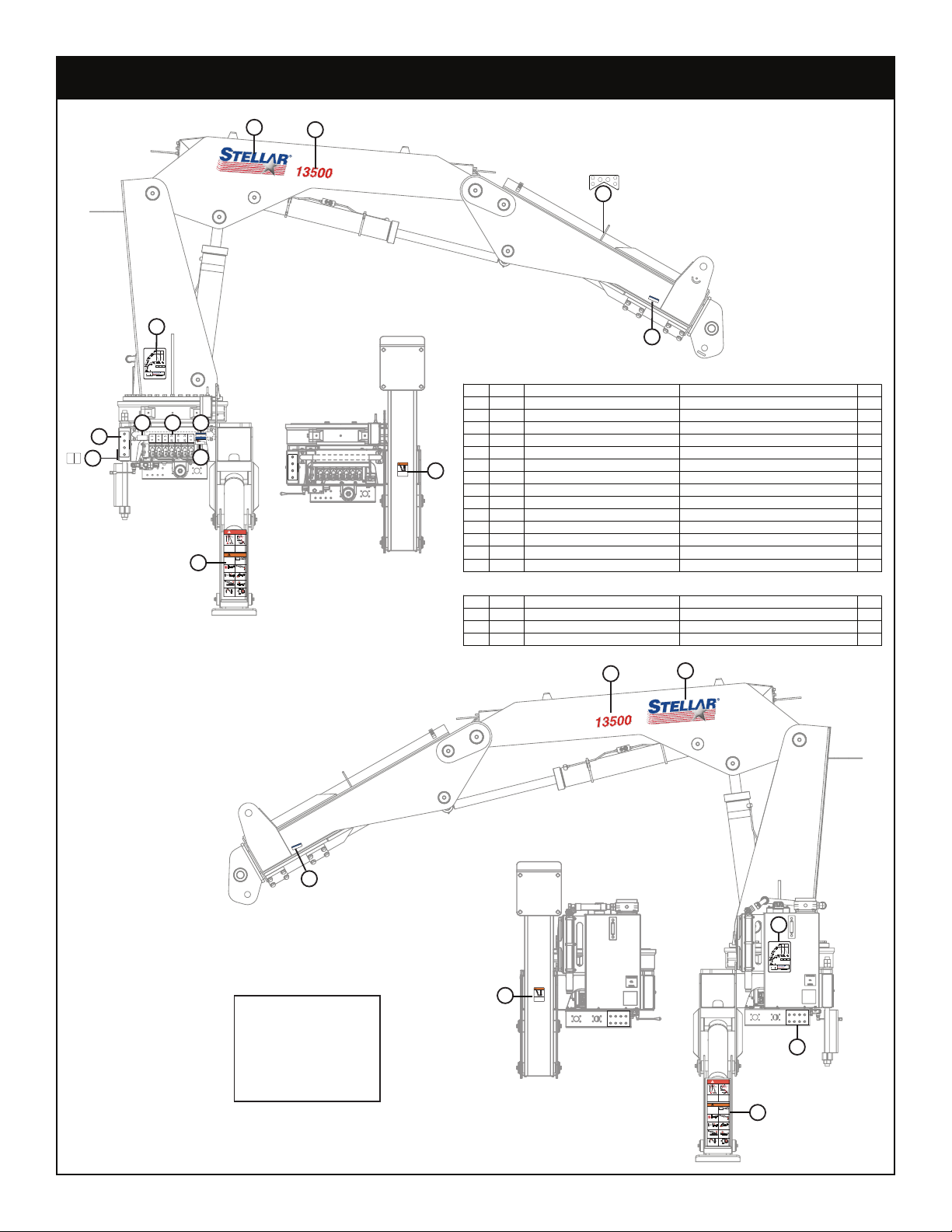

Decal Placement - PN 73092 ...........................................................13
Chapter 3 - Assembly Drawings .........................................................14
Base Assembly - PN 72144 ................................................................14
Gear Bearing - PN 72187 ..................................................................15
Valve Bank - PN 76181 ......................................................................16
Valve Assembly - PN 66286 ..............................................................17
Mast Assembly - PN 72149 ................................................................18
Mast Cylinder Assembly - PN 73497 ................................................19
Main Boom Assembly - PN 72190 ....................................................20
Main Boom Cylinder Assembly - PN 73498 .....................................21
Extension Boom Assembly - PN 72199 .............................................22
Extension Cylinder Assembly - PN 73499 .........................................23
Stabilizer Assembly - PN 75925 .........................................................24
Stabilizer Valve Bank - PN 61642 ......................................................25
Reservoir Assembly - PN 72403 .........................................................26
Optional 15 Ton Hook Kit - PN 54768 ...............................................27
Radio Transmitter - PN 41922 ............................................................28

Page iv | Stellar®13500 Articulating Crane Owner’s Manual
Introduction
A copy of this manual is provided with every crane and can be found in the hard plastic
manual case that is installed on the chassis. A copy of this manual shall remain with the
crane at all times.
Throughout the manual, three signal words will be used to bring attention to important
items:
A NOTICE signal word indicates a practice not related to physical injury.
A WARNING signal word indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
A DANGER signal word indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
Information contained within this manual does not cover operation, maintenance, or
troubleshooting. Please refer to the Large OTR Crane Manual for details on these items.
This manual is not binding. Stellar Industries, Inc. reserves the right to change, at any
time, any or all of the items, components, and parts deemed necessary for product
improvement or commercial/production purposes. This right is kept with no requirement or
obligation for immediate mandatory updating of this manual.
In closing:
If more information is required or technical assistance is needed, or if you feel that any
part of this manual is unclear or incorrect, please contact the Stellar Customer Service
Department by phone at 800-321-3741 or email at [email protected].
WARNING
NOTICE
DANGER
For Technical Questions, Information, Parts, or Warranty, Call Toll-Free at
800-321-3741
Hours: Monday - Friday, 8:00 a.m. - 5:00 p.m. CST
Or email at the following addresses:
Technical Questions, and Information [email protected]
Order Parts [email protected]
Warranty Information [email protected]

Stellar®13500 Articulating Crane Owner’s Manual | Page 1
Crane Rating: 135,000 ft-lbs ( 18.6 ton meters)
Standard Boom Length: 13’3” (4.04 m) from CL of Crane
Boom Extension: Hydraulic 41.5” (105.4 cm)
Maximum Horizontal Reach: 16’8” (5.08 m) from CL of Crane
Maximum Vertical Lift: 24’7” (7.49 m)
(From Truck Frame)
Cylinder Specications: Inner Lift Cylinder: 6” (15.24 cm) bore with integral
pilot operated counterbalance valves
Outer Lift Cylinder: 5” (12.7 cm) bore with integral
pilot operated counterbalance valves
Extension Cylinder: 3.5” (8.89 cm) bore with integral
pilot operated counterbalance valves
Rotation: 315 degree power
(planetary gear with pinion)
Lifting Capacities: 13,500 lbs @ 10’ (6123 kg @ 3.05 m)
(From CL of Truck) 8,100 lbs @ 16’ 8” (3674 kg @ 5.08 m)
Power Supply Required: PTO & Pump - 16 gpm @ 4,400 psi
(60 lpm @ 304 bar)
Controls: Fully Proportional Paddle Controls for all functions.
Stowed Height: 97” (246.4 cm)
(Above Truck Frame)
Mounting Space Required: 47” (119.4 cm)
Chassis RBM (Recommended): 1,620,000 in-lb
Approximate Shipping Weight: 6,400 lbs (2,903 kg)
Chapter 1 - Specications
Model 13500 Specications

Page 2 | Stellar®13500 Articulating Crane Owner’s Manual
10’
3.05m
58.94”
149.7 cm
(based on 41”
truck frame)
16’8”
5.08 m
13’3”
4.04m
10’
3.05m
16’8”
5.08 m
13’3”
4.04m
13’2”
4.01m
24’7”
7.49m
22’1”
6.73m
CAPACITY
CHART
0’
0m
CRANE
GROUND 0’
0m
72245
190 STATE STREET GARNER, IA 50438
PHONE: [phone] FAX: [phone]
13500
10,188 lb
4620 kg6120 kg
13,500 lb 8,100 lb
3675 kg
Capacity Chart - Decal PN 72245

Stellar®13500 Articulating Crane Owner’s Manual | Page 3
Installer Notice
According to Federal Law (49 cfr part 571), each nal-stage manufacturer shall complete
the vehicle in such a manner that it conforms to the standards in effect on the date of
manufacture of the incomplete vehicle, the date of nal completion, or a date between
those two dates. This requirement shall, however, be superseded by any conicting
provisions of a standard that applies by its terms to vehicles manufactured in two or more
stages.
Therefore, the installer of Stellar®Cranes and Bodies is considered one of the manufacturers
of the vehicle. As such a manufacturer, the installer is responsible for compliance with all
applicable federal and state regulations. They are required to certify that the vehicle is in
compliance with the Federal Motor Vehicle Safety Standards and other regulations issued
under the National Trafc and Motor Vehicle Safety Act.
Please reference the Code of Federal Regulations, title 49 - Transportation, Volume 5 (400-
999), for further information, or visit http://www.gpoaccess.gov/nara/index.html for the full
text of Code of Federal Regulations.
Chapter 2 - Installation
General Installation
This chapter is designed to serve as a general guide for the installation of a Stellar 13500
Crane on a Stellar Service Body. Each installation is considered unique so certain portions
of this chapter may or may not apply to your direct application. If a question should arise
during the installation process, please contact Stellar Customer Service at [phone].
This crane is designed for use with a Stellar Service Body installed on a vehicle that meets
the minimum chassis requirements of the crane. It is the installer’s responsibility to assure
that the crane is mounted on a platform that will support the maximum crane rating of this
crane.
Do not install this crane on a body not capable of handling the loads
imposed on it. Failure to do so may result in serious injury or death.
When installing welder units to the service bodies, it is highly
recommended that a surge protector is installed on the chassis batteries to protect the
crane radio receiver, wiring and other electronic devices from an unexpected electrical
spike or surge. Failure to do so could result in extensive damage to the service body and
crane electrical circuit.
WARNING
NOTICE

Page 4 | Stellar®13500 Articulating Crane Owner’s Manual
When using the torque data in the
chart, the following rules should be
observed:
• Bolt manufacturer’s particular
specications should be consulted
when provided.
• Flat washers of equal strength
must be used.
• All torque measurements are
given in foot-pounds. To convert
to inch-pounds, multiply by 12.
• Torque values specied are for
bolts with residual oils or no special
lubricants applied.
• Torque values for socket-head
capscrews are the same as for
Grade 8 capscrews.
• Do not use these values if a different torque value or tightening
procedure is given for a specic application. Torque values listed are for general use
only. Check tightness of fasteners periodically.
• Shear bolts are designed to fail under predetermined loads. Always replace shear bolts
with identical grade.
• Fasteners should be replaced with the same or higher grade. If higher grade fasteners
are used, these should only be tightened to the strength of the original.
• Tighten plastic insert or crimped steel-type lock nuts to approximately 110 percent of the
dry torque values shown in the chart below, applied to the nut, not to the bolt head.
Tighten toothed or serrated-type lock nuts to the full torque value. Note: “Lubricated”
means coated with a lubricant such as engine oil, or fasteners with phosphate and oil
coatings. “Dry” means plain or zinc plated without lubrication. Tighten lubricated bolts
to approximately 80% of dry bolts.
Size Bolt DIA Plain Plated Plain Plated Plated
(DIA-TPI) (Inches) (Ft-Lb) (Ft-Lb) (Ft-Lb) (Ft-Lb) (Ft-Lb)
5/16-18 0.3125 17 13 25 18 22
3/8-16 0.3750 31 23 44 33 39
7/16-14 0.4375 49 37 70 52 63
1/2-13 0.5000 75 57 105 80 96
9/16-12 0.5625 110 82 155 115 139
5/8-11 0.6250 150 115 220 160 192
3/4-10 0.7500 265 200 375 280 340
7/8-9 0.8750 395 295 605 455 549
1-8 1.000 590 445 910 680 823
1 1/8-7 1.1250 795 595 1290 965 1167
1 1/4-7 1.2500 1120 840 1815 1360 1646
1 3/8-6 1.3750 1470 1100 2380 1780 2158
1 1/2-6 1.500 1950 1460 3160 2370 2865
GRADE 5 GRADE 8 GRADE 9
Torque Data Chart
NOTICE

Stellar®13500 Articulating Crane Owner’s Manual | Page 5
1. Relocate any obstructions on the frame that will be in the way of mounting the crane.
2. Measure the inside of the frame rails and cut the frame support to this length. Ensure that the frame
supports have a tight t between the frame rails.
3. Set the crane on the chassis and allow a minimum of 3” from the cab.
4. Make certain that the frame supports are installed square, cut to length in such a way as to support the
frame anges with the tie down rods are torqued.
5. Install the crane tie downs. Start at one corner and tighten both tie downs to 200 ft-lbs. Move to the
diagonal set and tighten to 200 ft-lbs. Tighten the remaining 2 corners. Continue this pattern at 200 ft-lb
increments until 500-550 ft-lbs is achieved. Be sure the mounting block stays perpendicular to the frame rail
as they are tightened down.
6. Connect the pressure and return lines per the hydraulic kit.
7. Connect the electrical power and ground wires. Ground preferrably connected to battery.
8. With the crane and outriggers in the stored position, check the reservoir for oil and ll if necessary.
9. Operate the crane for several cycles. Fully cycle the cylinder in both directions (blow past relief) to
remove any air from the system.
Installation Overview
Mounting Kit Drawing
PN 54420
7
5
5
4
1
2
3
6
7
ITEM PART DESCRIPTION QTY.
18900TIE DOWN ROD 15000 8
28202PC FRAME SUPPORT 15000 CRANE4
38054PCMTG BLOCK 150004
411677PCPLATE MOUNTING 23000 4
58978 NUT 1.25-7 HHGR8 16
68834NUT 1.25-7 HHGR8 TOP LOCKING8
79180WASHER 1.25 SAE FLAT YELLOW GR816

Page 6 | Stellar®13500 Articulating Crane Owner’s Manual
Hydraulic Installation
Never modify or alter any of the equipment, whether mechanical, electrical, or hydraulic,
without Stellar Industries’ approval.
Do not touch or grab any hoses that could be under pressure. Release
system pressure before attempting to make adjustments or repairs.
Do not attempt service or repair when PTO is engaged.
Disassemble and assemble hydraulic components on a clean surface.
Clean all metal parts in a nonammable cleaning uid. Then lubricate all components to
aid in assembly.
Hydraulic uid expands when heated. This raises the pressure in an
unventilated tank. Release the tank pressure before removing the cap completely. Failure
to do so may cause the oil to shoot out of the tank very rapidly and cause severe burns.
Do not rely on the hydraulic uid to support the boom or crane. If
hydraulic uid escapes, the boom or crane can fall immediately. Make sure the ground or
blocking is supporting the boom before performing any maintenance or repair.
Contaminants in a hydraulic system affect operation and will result in
serious damage to the system components. Dirty hydraulic systems are a major cause of
component failures.
If evidence of foreign particles is found in the hydraulic system, ush the system.
When installing metal hydraulic tubes, tighten all ttings nger tight. Then , in order, tighten
the ttings at the rigid end, the adjustable end, and the mounting brackets. After tubes
are mounted, install the hoses. Connect both ends of the hose with all ttings nger tight.
Position the hose so it does not rub the machine or another hose and has a minimum of
bending and twisting. Tighten ttings in both couplings.
Due to manufacturing methods, there is a natural curvature to a hydralic hose. The hose
should be installed so any bend is with this curvature.
WARNING
WARNING
WARNING
NOTICE

Stellar®13500 Articulating Crane Owner’s Manual | Page 7
Hydraulic Pressure Settings
Main Relief 4600 psi
Pressure (psi)
Function Flow (gpm) Extend Retract
Inner 10.6 4400 2200
Outer 10.6 4400 2200
Extension 10.6 4400 4400
Rotation 10.6 2200 2200
TM Rot 6.6 2200 2200
TM Pad Rot 6.6 3000 3000
TM Clamp 6.6 3000 3000
Face Seal (A)
Stellar®PN
Hose
Size
Fitting
Size Stellar®PN
O-ring Boss (B)
#4 C2027 D1245
#6 C2028 D1246
#8 C2029 D1247
#10 32223 D1248
#12 D1244 D1249
#161”
3/4”
5/8”
1/2”
3/8”
1/4”
D1250
B
A
Face Seal/O-Ring Size Chart

Page 8 | Stellar®13500 Articulating Crane Owner’s Manual
Hydraulic Kit - PN 73095
PN 73095
32
21,22
26,24,
34
19 19
3 2
2
216 22
19 19 19 19 19
216 2 22
28
28
21,2221,22 21,2221,2221,22 21,22
03
03
06
06
12
12
13
13
10
10
10
10
11
11
05
05
16
16
47
36,38
16
16
16
16

Stellar®13500 Articulating Crane Owner’s Manual | Page 9
Hydraulic Kit - PN 73095 Continued...
PN 73095

Page 10 | Stellar®13500 Articulating Crane Owner’s Manual
Hydraulic Kit - PN 73095 - Continued...
ABCD
HGFE
IJ
A-TM PAD ROT CCW-(04-BULKHEAD-10)
B-EXT EXTEND-(04-BULKHEAD-11)
C-EXT RETRACT-(04-BULKHEAD-11)
D-TM ROT CCW-(04-BULKHEAD-10)
E-TM PAD ROT CW-(04-BULKHEAD-10)
F-TM CLAMP CLOSE-(04-BULKHEAD-13)
G-TM CLAMP OPEN-(04-BULKHEAD-13)
H-TM ROT CW-(04-BULKHEAD-10)
I-OUTER RETRACT-(04-BULKHEAD-12)
J-OUTER EXTEND-(04-BULKHEAD-12)
(LOCATION)-(FUNCTION)-(HOSE FROM MAST PORT TUBE-BULKHEAD-HOSE TO FUNCTION)
DHCGJ IFBE A
DHCGJ IFBE A
35
2
35
2
35
2
35
2
35
2
35
2
35
2
35
2
35
2
35
2
4 4 44 4 4 4 4 4 4

Stellar®13500 Articulating Crane Owner’s Manual | Page 11
PN 61546
Control Kit - PN 61546

Page 12 | Stellar®13500 Articulating Crane Owner’s Manual
PN 67402
Control Kit - PN 64702

Stellar®13500 Articulating Crane Owner’s Manual | Page 13
Decal Placement - PN 73092
Rev Level: A
Date: 11/25/14
Change: Replaced
16620 with 65108
Last Revision
PN 73092
INNERCYL
BASE
INNERCYL
ROD
INNER/MAST
PIN
OUTERCYL
BASE
OUTERCYL
ROD
INNER/OUTER
PIN EXTCYL GEAR BEARING
41918
INNERCYL
BASE
INNERCYL
ROD
INNER/MAST
PIN
OUTERCYL
BASE
OUTERCYL
ROD
INNER/OUTER
PIN EXTCYL GEAR BEARING
41918
FORSERVICEON THIS EQUIPMENT
CONTACT:
STELLARINDUSTRIES,INC.
190STATESTREET,GARNER,IA 50438
641-923-3741
800-321-3741
4214
Up Up
13036
Outrigger
CS
Outrigger
SS
Down Down
NOTICE
15172
Thiscranehas been designed and
manufacturedtoASME/ANSI B30.22
and/orB30.5specifications.
01
02
04
05
06
03
OFF
ON
Flood
MANUAL
REMOTE
OFF
Light
Speed Control
CIRCUIT
OFF
ON
ON
OFF
TOOL
TOOLCIRCUITMUST BE OFF
TOOPERATEAUXOUTRIGGERS
PN16620
OFF
ON
Flood
MANUAL
REMOTE
OFF
Light
Speed Control
CIRCUIT
OFF
ON
ON
OFF
TOOL
TOOLCIRCUITMUST BE OFF
TOOPERATEAUXOUTRIGGERS
PN16620
NOTICE
16973
UseonlyStellar
®
approvedlifting
devicesand/orattachements.
07
09
10
11
13
14
12
TMCLAMPOPEN
TMROTCCW
TMROTCW
TMCLAMPCLOSE
TMPADROT CW
TMPADROT CCW
PN47404
08
08
Up
Down
INNER
Out
Up
In
Down
EXTENSION ROTATION Tireman
Rotation
Tireman
PadSpin
OUTER
Close
Open
Tireman
Clamp
USEMANUALCONTROLS ONLY IN CASE OF RADIO CONTROL FAILURE. ACTIVATEWITHMANUAL OVERRIDE SWITCH.
PN54771
WARNING
CrushHazard
Keepclearof stabilizer legs during
operation.
Failuretokeep clear of moving
stabilizerlegscan result in death or
seriousinjury. C4795
WARNING
CrushHazard
Keepclearof stabilizer legs during
operation.
Failuretokeep clear of moving
stabilizerlegscan result in death or
seriousinjury. C4795
Donothandle tires filled with ballast.
Donotdrag the tire. the unit is designed
toliftand position.
Donotclamp an uninflated tire and then inflate.
DoNotuse the outer cylinder to push objects.
Donotuse the unit for any jacking, pulling, or
dragginginvolvingan object or another vehicle.
Donotuse one arm of the to break beads.
Donotuse one arm to sling a load.
54781-RevA
Readandunderstand all manuals and safety
signsbeforeoperating or servicing this
equipment.
Failureto follow
theseinstructions
canresult in death
orserious injury:
UntrainedOperator Hazard
MisuseHazard
MisuseHazardMisuseHazard
MisuseHazardMisuseHazard
MisuseHazardMisuseHazard
Keepnon-essentialpersons clear of crane
duringoperation.
CrushHazard
DANGER
Deathorserious injury will result from
touchingtetheredremote if crane, load, or
vehiclebecomeselectrically charged.
Maintainsafeclearance from high voltage
powersources.
ElectrocutionHazardElectrocutionHazard
WARNING
Deathorserious injury will result from
inadequateclearanceif crane, load, or vehicle
becomeselectricallycharged.
•Maintainsafe clearance from high voltage
power sources.
•Neverapproach vehicle or load if equipment
is near a high voltage power source.
NOTICE
05
NOTICE
16973
UseonlyStellar
®
approvedlifting
devicesand/orattachements.
11
10
Donothandle tires filled with ballast.
Donotdrag the tire. the unit is designed
toliftand position.
Donotclamp an uninflated tire and then inflate.
DoNotuse the outer cylinder to push objects.
Donotuse the unit for any jacking, pulling, or
dragginginvolvingan object or another vehicle.
Donotuse one arm of the to break beads.
Donotuse one arm to sling a load.
54781-RevA
Readandunderstand all manuals and safety
signsbeforeoperating or servicing this
equipment.
Failureto follow
theseinstructions
canresult in death
orserious injury:
UntrainedOperator Hazard
MisuseHazard
MisuseHazardMisuseHazard
MisuseHazardMisuseHazard
MisuseHazardMisuseHazard
Keepnon-essentialpersons clear of crane
duringoperation.
CrushHazard
DANGER
Deathorserious injury will result from
touchingtetheredremote if crane, load, or
vehiclebecomeselectrically charged.
Maintainsafeclearance from high voltage
powersources.
ElectrocutionHazardElectrocutionHazard
WARNING
Deathorserious injury will result from
inadequateclearanceif crane, load, or vehicle
becomeselectricallycharged.
•Maintainsafe clearance from high voltage
power sources.
•Neverapproach vehicle or load if equipment
is near a high voltage power source.
10’
3.05m
58.94”
149.7cm
(basedon41”
truckframe)
16’8”
5.08m
13’3”
4.04m
10’
3.05m
16’8”
5.08m
13’3”
4.04m
13’2”
4.01m
24’7”
7.49m
22’1”
6.73m
CAPACITY
CHART
0’
0m
CRANE
GROUND 0’
0m
72245
190STATESTREET GARNER, IA 50438
PHONE:[phone] FAX: [phone]
13500
10,188lb
4620kg6120kg
13,500lb 8,100lb
3675kg
12
10’
3.05m
58.94”
149.7cm
(basedon41”
truckframe)
16’8”
5.08m
13’3”
4.04m
10’
3.05m
16’8”
5.08m
13’3”
4.04m
13’2”
4.01m
24’7”
7.49m
22’1”
6.73m
CAPACITY
CHART
0’
0m
CRANE
GROUND 0’
0m
72245
190STATESTREET GARNER, IA 50438
PHONE:[phone] FAX: [phone]
13500
10,188lb
4620kg6120kg
13,500lb 8,100lb
3675kg
14
ITEM PN DESCRIPTION Location QTY
01 4214 DECAL CONTACT STELLAR 1
02 13036 DECAL CRANE STABILIZER 1
03 15172 DECAL ASME/ANSI B30.22/B30.5 1
04 65108 DECAL SWITCH PLATE 9000 V2 Crane Base
Crane Base
Crane Base
Crane Base
Crane Base
Crane Base
Crane Mast/Reservoir
1
05 16973 DECAL STELLAR ATTACHMENTS Main Boom - Both Sides 2
06 41918 DECAL 9000 GREASE KIT Crane Base 1
07 47404 DECAL SWITCH PANEL 23000 Main Boom Hose Panel 1
08 54589 DECAL STELLAR 8.00 X 22.25 Main Boom - Both Sides 2
09 54771 DECAL VB CONTROL 17000 1
10 54781 DECAL WARNING PLACARD Stabilizer Leg - Both Sides 2
11 72240 DECAL 13500 ID Main Boom - Both Sides 2
12 72245 DECAL CAPACITY 13500 2
13 73929 DECAL PRESSURE WASH 1
14 C4795 DECAL WARNING STABILIZER Underside of Stabilizer Leg - Both Sides 2
ITEM PN DESCRIPTION QTY
16 C4545 DECAL DANGER ELECTROCUTION Four corners of the body. 4
17 C5910 DECAL STELLAR LOGO 3.75X9.00 Optional 1
18 C5911 DECAL STELLAR LOGO 1.65X4.50 Optional 3
For use with Crane Package
Not Shown - Use with Body Package

Page 14 | Stellar®13500 Articulating Crane Owner’s Manual
Base Assembly - PN 72144
PN 72144
TORQUE 30-35 FT-LBS
4
2
3
1
TORQUE 13 FT-LBS
LOCK TITE
PN 79698
.YTQNOITPIRCSEDTRAPMETI
179696 MOTOR 7.3 CUI 1”KEYED 2 BOLT W/
MANIFOLD MOUNT1
279697 MANIFOLD MOTOR MOUNT CBAL T11A 1
39803Valve C- SUN CBBD-LJN-3500 2
40489CAP SCR 0.31-18X2.50 HHGR54
.YTQNOITPIRCSEDTRAPMETI
100531ESAB541271
261642VB 2 SECT W/PB VDM6-4-4-YE-HP PB REMOVE 1
100082RABCINAPPOTS-E129223
35RGHH52.1X81-13.0RCSPAC58404
02TALFSSU13.0REHSAW34305
7COLYN5RGHH81-13.0TUN24306
25RGHH00.3X81-13.0RCSPAC0390C7
25RGHH52.1X02-52.0RCSPAC73408
32TALFSSU52.0REHSAW04309
6COLYN5RGHH02-52.0TUN333001
45RGHH57.0X02-52.0RCSPAC974011
928RGHH05.4X01-57.0RCSPAC148521
13 C6219 WASHER 0.75 SAE FLAT YELLOW GR
82
9
1EBUT52.0/TPN21.0NSRPCGTF5431D41
131.0EPIPRLPCGTF6522C51
1THGIARTSTPN8/1KREZ2951c61
17 59075CAP SCR #10-24X0.63 BTNHD ZC 2
2TALFEAS01#REHSAW8710D81
2SSCOLYNHH42-01#TUN6594C91
20 66286 SOLENOID VALVE ASM 3 WAY 2 POS W/ RELIEF 1
25RGHH52.2X02-52.0RCSPAC834012
85RGHH57.0X81-13.0RCSPAC024022
45RGHH00.1X02-52.0RCSPAC084032
24 47425CAP SCR 6MMX20MM HH 8.8(GR5) 4
25RGHH52.2X81-13.0RCSPAC7290C52
100531ESABREVOCETALP4492762
100032CINAPRAB2801472
28 76181VB 7 SECT DANFOSS PVG32 1350
01
109PM-NSRPC2-4GTF0420D92
30 D1810 TBE AIR SAEJ844 TYPE A .25X4.8F
T1
31 72187BEARING SWING DRIVE 25 IN DOUBLE WORM
ENCLOSED KINEMATICS 1
183.1PMALC6855C23
1LABICED79.MRALAPUKCAB5400D33
35 78432FILTER HIGH PRESSURE 1.06-12SAE 5000PSI 10
MICRON 1
36 78433CLAMP HIGH PRESSURE FILTER 3.00 1
100082POTS-ETEKCARB8192273
100051GTMHCTIWSETALP7239483
100032BVDRAUG4801493
40 61640BRACKET GREASE LINE/TANK HEATER 900
01
41 79698MOTOR ASM GEAR BEARING 13500 2
4HSMM04XMM21RCSPAC4842624
28
6
41
4
17 35
36
7
2
5
6
9
11
38
37
5
8
10
19
18
20
21 9
33 9
11
16
15
1430
29
1
26
22
5
22
5
39
9
27
24
9
625
40
5
10
23
42
3
12
13
23
32
31
10 9
A SECOND CONTACT BLOCK(P/N 61562) IS ADDED
TO THE E-STOP. SEE ELECTRICAL FOR WIRING
NOTES:
FILTER ELEMENT 47860
BACK UP ALARM SHOWN
FOR REFERENCE
Chapter 3 - Assembly Drawings

Stellar®13500 Articulating Crane Owner’s Manual | Page 15
Gear Bearing - PN 72187
PN 72187
ITEM PART DESCRIPTION QTY.
177741 BEARING AND SEAL KIT 14IN, 17IN, 25IN
ENCLOSED KNMTS2
277894 WORM 25IN ENCLOSED KNMTS 2
3 67864 END CAP 9IN/14IN/17/IN/25IN KNMTS AFTER
2006 2
467863 SHIM KIT 6000 KINEMATICS W17B022
3
2
1
4

Page 16 | Stellar®13500 Articulating Crane Owner’s Manual
Valve Bank - PN 76181
ACTUATOR ASSEMLY-50233: INCLUDES MANIFOLD AND TWO
DUMP VALVE COIL 55126
BASE HANDLE WASHER 48698
ACTUATOR COILS
DUMP VALVE 50234
ACTUATOR COIL 50231
BASE HANDLE 48696 BASE HANDLE SCREW 48697
HANDLE/LEVER 4786
6
PN 76181
