stellar labs NXT18 User manual

NXT18 Hooklift
Installation Manual
Stellar Industries, Inc.
190 State Street
PO Box 169
Garner, IA 50438
800-321-3741
Fax: [phone]
www.stellarindustries.com
Subject to Change without Notication.
© 2023 Stellar Industries, Inc.
REV1
PN: 127722
Installation & Assembly Instructions

Page ii | Stellar®NXT18 Installation 127722
WARNING
Operating, maintaining, and servicing a Stellar
product may expose you to chemicals including, but
not limited to, engine exhaust, carbon monoxide,
phthalates, and lead. These chemicals are known
to the State of California to cause cancer and birth
defects (or other reproductive harm). To keep your
exposure to a minimum, be sure to avoid breathing
exhaust and service your Stellar product in a well-
ventilated area while wearing gloves or washing
your hands frequently. For more information, go to
www.P65Warnings.ca.gov/passenger-vehicle. www.p65/warning.ca.gov
P65 Warning & Cold Weather Notice
NOTICE
Cold Weather Performance
Although clear data on cold weather performance from every steel
manufacturer is not available for all types and thicknesses of steel, Stellar
Industries is confident that the weldments on our products will operate to
100% of their intended purpose to temperatures down to -40° F / C.
It is recommended it Stellar manufactured equipment needs to be used in
temperatures below -40° F / C, the operator should pull the unit into a
climate-controlled area and allow the weldments to warm up to and then
maintain a temperature above this level.

Stellar®NXT18 Installation Manual 127722 | Page iii
Table of Contents
Introduction ............................................................................................................................................. iv
Chapter 1 - Specications ...........................................................................................................................1
Serial Tag Location ...................................................................................................................................2
NXT18 Specications ...............................................................................................................................3
Chapter 2 - Installation Instructions ...........................................................................................................5
General Installation...................................................................................................................................6
Installer Notice.......................................................................................................................................6
Torque Data Chart ....................................................................................................................................7
Torquing Information & Warnings ..........................................................................................................7
Step 1: Set The Hooklift Onto The Truck Frame.......................................................................................8
Installation Notice ..................................................................................................................................8
Mounting Kit - PN 123250 ........................................................................................................................9
Step 2: Bolt Tie-Down Castings To Mounting Plates ..............................................................................10
Step 3: Drill Mounting Holes Into Frame Rail .........................................................................................11
Step 4: Bolt Tie-Down Castings To Truck Frame....................................................................................12
Step 5: Install Bumper ............................................................................................................................13
Step 5A: Bumper Electrical Schematic...................................................................................................14
Step 6: Install Tie-Downs........................................................................................................................16
Installing Tie-Downs - Parts List .............................................................................................................17
Step 7: Installation - Reservoir Assembly ..............................................................................................18
Installation - Valve Bank - PN 124855 ....................................................................................................19
Valve Relief D03-3000 - PN 124855 - Continued ...................................................................................20
Step 8: Install PTO and Pump ................................................................................................................21
Step 9: Route Hydraulic Hoses ..............................................................................................................22
Hose Kit - PN 122633 (Manual Adjustable Hook Height Models).......................................................23
NXT18 Controller Assembly PN - 127158 ..............................................................................................24
NXT18 Controller Assembly PN - 127158 Parts List ..............................................................................25
Ext Hrns for Crew Cab & Cab Over Chassis PN - 39386.......................................................................26
Speed Control Kit - Ford - PN 127561....................................................................................................27
Speed Control Kit - RAM - PN 127562 ...................................................................................................28
Speed Control Kit - GM - PN 127563 .....................................................................................................29
Step 10: Install Hoist Up Light Sensor - PN 127153...............................................................................30
Hoist Up Light Sensor - PN 127153 Parts ..............................................................................................31
Step 11: Install Mud Flaps And Fenders.................................................................................................32
Fender Dimensions ................................................................................................................................33
Step 12: Apply Chassis Decals - PN 125669 .........................................................................................34
Step 13: Fill Reservoir And Activate Hydraulic Flow...............................................................................35
Step 14: Operate Hooklift .......................................................................................................................36

Page iv | Stellar®NXT18 Installation 127722
Introduction
A copy of this manual is provided with every hooklift and can be found in the hard plastic manual case that is
installed on the chassis. A copy of this manual shall remain with the hooklift at all times.
Throughout the manual, three signal words will be used to bring attention to important items:
NOTICE indicates a practice not related to physical injury.
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
Information contained within this manual does not cover operation, maintenance, or troubleshooting. Please
refer to the General Hooklift Manual for details on these items.
This manual is not binding. Stellar Industries, Inc. reserves the right to change, at any time, any or all of the
items, components, and parts deemed necessary for product improvement or commercial/production purposes.
This right is kept with no requirement or obligation for immediate mandatory updating of this manual.
If more information is required or technical assistance is needed, or if you feel that any part of this manual is
unclear or incorrect, please contact the Stellar Customer Service Department by phone at 800-321-3741 or
email at [email protected].
WARNING
NOTICE
DANGER
For Technical Questions, Information, Parts, or Warranty, Call Toll-Free at
800-321-3741
Hours: Monday - Friday, 8:00 a.m. - 5:00 p.m. CST
Or email at the following addresses:
Technical Questions, and Information [email protected]
Order Parts [email protected]
Warranty Information [email protected]
www.stellarindustries.com

Stellar®NXT18 Installation Manual 127722 | Page 1
Chapter 1 - Specications
CHAPTER CONTENTS
Serial Tag Location ...................................................................................................................................2
NXT18 Specications ...............................................................................................................................3

Page 2 | Stellar®NXT18 Installation 127722
The serial tag should be located on the right side (passenger side) of the base assembly:
Serial Tag Location
MODEL NO. SERIAL NO.
DATE
MADE IN THE U.S.A. BY STELLAR INDUSTRIES, INC.
PN C5942
®
PATENT INFORMATION
http://www.stellarindustries.com/ip
FORSERVICE ON THIS EQUIPMENT
CONTACT:
STELLARINDUSTRIES, INC.
190STATE STREET,GARNER, IA 50438
641-923-3741
800-321-3741
4214
®
35234
ProudlyDesigned
andManufactured
inthe USA by
MODELNO. SERIALNO.
DATE
MADEIN THE U.S.A. BY STELLAR INDUSTRIES, INC. PNC5942
THEFOLLOWINGU.S. OR FOREIGN PATENTSMAY APPLY:
U.S.PATENTS
6,749,389 6,558,104 5,427,495
5,108,247 6,065,942 5,082,417
CANADIANPATENTS
6,749,389
5,108,247
WARNING
25627- Rev B
Moving parts can crush
and cut.
Keep hands and arms
clear when operating
equipment.
Crush Hazard
DANGER
Electrocution Hazard
Death or serious injury will result from
inadequate clearance if hooklift, load,
or vehicle becomes electrically
charged.
• Maintain safe clearance from high
voltage power sources.
• Never approach vehicle or load if
equipment is near a high voltage
power source.
55832 - RevA

Stellar®NXT18 Installation Manual 127722 | Page 3
NXT18 Specications
NXT18S - 36” OR 54” NXT18L - 36” OR 54”
AOVERALL LENGTH 126.19”
(3205.2 mm)
150.19”
(3,815 mm)
BCAB-TO-AXLE RANGE 84” TO 96”
(2,133 to 2,438 mm)
108” TO 120”
(2,743 to 3,048 mm)
CAFTER FRAME RANGE 47”
(1,194 mm)
DLOADER HEIGHT 7.50”
(190.5 mm)
EFRONT OF JIB TO CENTERLINE OF
ROLLER
123.69”
(3142 mm)
147.69”
(3,751 mm)
FDUMP ANGLE 60°
GMAX TILT HEIGHT
36” HH: 82.94”
(2107 mm)
54” HH: 95.13”
(2416 mm)
36” HH: 82.75”
(2,102 mm)
54” HH: 99.37”
(2,524 mm)
HJIB TRAVEL 24”
(610 mm)
30”
(762 mm)
IFRONT OF JIB TO CENTERLINE OF HOOK 5.63”
(143 mm)
JHOOK BELOW FRAME 36” HH: 10” (254 mm)
54” HH: 27.88” (708 mm)
36” HH: 10” (254 mm)
54” HH: 27.88” (708 mm)
KLOWEST POINT OF DUMP* 16.38” (W/11.5’ BODY)
(416 mm)
21.63”
(549 mm)
LCENTERLINE TO BACK OF ROLLER 2”
(51 mm)
2”
(51 mm)
*Assumes 3’ overhang from center of rear roller pin. (Bumper typically 12” from center of roller pin)
H
I
A
B C
F
E
K
G
J
D
L

Page 4 | Stellar®NXT18 Installation 127722
This page left intentionally blank.

Stellar®NXT18 Installation Manual 127722 | Page 5
Chapter 2 - Installation Instructions
CHAPTER CONTENTS
General Installation...................................................................................................................................6
Installer Notice..........................................................................................................................................6
Torque Data Chart ....................................................................................................................................7
Torquing Information & Warnings .............................................................................................................7
Step 1: Set The Hooklift Onto The Truck Frame ......................................................................................8
Installation Notice .....................................................................................................................................8
Mounting Kit - PN 123250 ........................................................................................................................9
Step 2: Bolt Tie-Down Castings To Mounting Plates..............................................................................10
Step 3: Drill Mounting Holes Into Frame Rail .........................................................................................11
Step 4: Bolt Tie-Down Castings To Truck Frame ...................................................................................12
Step 5: Install Bumper............................................................................................................................13
Step 5A: Bumper Electrical Schematic ..................................................................................................14
Step 6: Install Tie-Downs .......................................................................................................................16
Installing Tie-Downs - Parts List .............................................................................................................17
Step 7: Installation - Reservoir Assembly .............................................................................................18
Installation - Valve Bank - PN 124855 ....................................................................................................19
Valve Relief D03-3000 - PN 124855 - Continued ...................................................................................20
Step 8: Install PTO and Pump ...............................................................................................................21
Step 9: Route Hydraulic Hoses..............................................................................................................22
Hose Kit - PN 122633 (Manual Adjustable Hook Height Models)..........................................................23
NXT18 Controller Assembly PN - 127158 ..............................................................................................24
NXT18 Controller Assembly PN - 127158 Parts List ..............................................................................25
Ext Hrns for Crew Cab & Cab Over Chassis PN - 39386.......................................................................26
Speed Control Kit - Ford - PN 127561....................................................................................................27
Speed Control Kit - RAM - PN 127562 ...................................................................................................28
Speed Control Kit - GM - PN 127563 .....................................................................................................29
Step 10: Install Hoist Up Light Sensor - PN 127153 ..............................................................................30
Hoist Up Light Sensor - PN 127153 Parts ..............................................................................................31
Step 11: Install Mud Flaps And Fenders ................................................................................................32
Fender Dimensions ................................................................................................................................33
Step 12: Apply Chassis Decals - PN 125669.........................................................................................34
Step 13: Fill Reservoir And Activate Hydraulic Flow ..............................................................................35
Step 14: Operate Hooklift.......................................................................................................................36

Page 6 | Stellar®NXT18 Installation 127722
General Installation
This chapter is designed to serve as a general guide for the installation of a Stellar®hooklift. Each installation
is considered unique so certain portions of this chapter may or may not apply to your direct application. If a
question should arise during the installation process, please contact Stellar Customer Service at (800) 321
3741.
PTO and Pump installation instructions are provided by the corresponding manufacturers. For more information
on which PTO and Pump t your application, please contact your local Stellar Distributor or Stellar Customer
Service.
Do not install this hooklift on a chassis not capable of handling the loads imposed on it.
Failure to do so may result in serious injury or death.
Do not weld or drill holes into the side wall of the base tubes.
Hooklift Mounting and Assembly
Study names and locations of the parts and familiarize yourself with the hooklift before starting the assembly.
Reading the step-by-step instructions that follow will be helpful.
Assembly
Select an area for assembly that will be large enough to accommodate the completed unit. The surface of the
work area should be as level as possible. Use the proper hand tools to ensure proper bolt tightness. Refer to
the torque data chart in this chapter for the recommended torque values for di󰀨erent sizes of bolts.
Model Number
Know the model number of the Stellar®Hooklift being mounted. Use this model number whenever referring to
the assembly or parts listing pages. The number is stamped on the name plate which is located on the front
frame member.
According to Federal Law (49 cfr part 571), each nal-stage manufacturer shall complete the vehicle in such
a manner that it conforms to the standards in e󰀨ect on the date of manufacture of the incomplete vehicle, the
date of nal completion, or a date between those two dates. This requirement shall, however, be superseded
by any conicting provisions of a standard that applies by its terms to vehicles manufactured in two or more
stages.
Therefore, the installer of Stellar®Hooklifts is considered one of the manufacturers of the vehicle. As such a
manufacturer, the installer is responsible for compliance with all applicable federal and state regulations. They
are required to certify that the vehicle is in compliance with the Federal Motor Vehicle Safety Standards and
other regulations issued under the National Tra󰀩c and Motor Vehicle Safety Act.
Please reference the Code of Federal Regulations, title 49 - Transportation, Volume 5 (400-999), for further
information, or visit http://www.gpoaccess.gov/nara/index.html for the full text of Code of Federal Regulations.
WARNING
NOTICE
Installer Notice
www.nhtsa.gov www.ecf.gov/current/title-49

Stellar®NXT18 Installation Manual 127722 | Page 7
GRADE 5 GRADE 7 GRADE 9
SIZE
(DIA - TPI)
BOLT DIA
(INCHES)
PLAIN
( FT-LB)
PLATED
(FT-LB)
PLAIN
(FT-LB)
PLATED
(FT-LB)
PLATED
(FT-LB)
5/16-18 0.3125 17 13 25 18 22
3/8-16 0.3750 31 23 44 33 39
7/16-14 0.4375 49 37 70 52 63
1/2-13 0.5000 75 57 105 80 96
9/16-12 0.5625 110 82 155 115 139
5/8-11 0.6250 150 115 220 160 192
3/4-10 0.7500 265 200 375 280 340
7/8-9 0.8750 395 295 605 455 549
1-8 1.000 590 445 910 680 823
1 1/8-7 1.1250 795 595 1290 965 1167
1 1/4-7 1.2500 1120 840 1815 1360 1646
1 3/8-6 1.3750 1470 1100 2380 1780 2158
1 1/2-6 1.500 1950 1460 3160 2370 2865
WARNING
When using the torque data in the chart, the following rules should be observed:
• Bolt manufacturer’s particular specications should be consulted when provided.
• Flat washers of equal strength must be used.
• All torque measurements are given in foot-pounds. To convert to inch-pounds, multiply by 12.
• Torque values specied are for bolts with residual oils or no special lubricants*applied. If special lubricants of
high stress ability, such as Never-Seez compound graphite and oil, molybdenum disulphite, colloidal copper
or white lead are applied, multiply the torque values in the charts by the factor .90. The use of Loctite does
not a󰀨ect the torque values listed above.
• Torque values for socket-head capscrews are the same as for Grade 8 capscrews.
• Do not use these values if a di󰀨erent torque value or tightening procedure is given for a specic application.
Torque values listed are for general use only. Check tightness of fasteners periodically.
• Sheer bolts are designed to fail under predetermined loads. Always replace shear bolts with identical grade.
• Fasteners should be replaced with the same or higher grade. If higher grade fasteners are used, these
should only be tightened to the strength of the original.
• Tighten plastic insert or crimped steel-type lock nuts to approximately 110 percent of the dry torque values
shown in the chart on page 8, applied to the nut, not to the bolt head. Tighten toothed or serrated-type lock
nuts to the full torque value.
NOTICE
*Lubricated means coated with a lubricant such as engine oil, or fasteners with phosphate
and oil coatings.“Dry” means plain or zinc plated without lubrication.Tighten lubricated
bolts to approximately 80% of dry bolts.
Torquing Information & Warnings
Torque Data Chart

Page 8 | Stellar®NXT18 Installation 127722
• Visually inspect the truck and look for any potential issues. For example: Clearance problems, cross members
extending too high, insu󰀩cient room in front of the hooklift for tarpers, exhaust manifolds, etc., or insu󰀩cient
room in the rear to allow for bumper selection.
NOTICE
Stellar Industries recommends allowing 12” behind the start of clear truck frame for
installation of a tarping system.
• Be sure to square the hooklift on the truck frame to allow for proper measurement. The front of the hooklift
needs to be at least 2.50” behind the cab or any equipment mounted behind the cab.
NOTICE
On some hooklift models, the jib may extend beyond the front of the base.
Step 1: Set The Hooklift Onto The Truck Frame
NOTICE
Every hooklift installation is unique. However, certain guidelines exist that apply to
every model. Listed below is a general set of chronological steps that may be followed
when installing a Stellar Hooklift. If any questions arise during the installation process, feel free to contact your
local dealer or Stellar Customer Service at 800-321-3741.
Installation Notice
www.stellarindustries.com/support
4.19

Stellar®NXT18 Installation Manual 127722 | Page 9
Mounting Kit - PN 123250
7
7
1
1
6
8
8
2
2
1
1
3
1
1
53
4
1
8
2
1
1
PN 123250
ITEM PART DESCRIPTION QTY
1 114129 PLATE 0.50X5.50X4.00 HOLES 6
2 122791 ANGLE FORMED NXT18 BASE MNT 2
3 C5902 WASHER 0.63 SAE FLAT YELLOW GR8 68
4 24868 NUT 0.63-11 HHGR8 NYLOC 34
5 84053 CAP SCR 0.63-11X2.25 HHGR8 34
6 123768 PLATE 0.31X2.00X4.00 HOLES 2
7 123769 PLATE 14GAX2.00X4.00 HOLES 4
8 122710 ANGLE FORMED NXT18 BASE MNT FRONT 2

Page 10 | Stellar®NXT18 Installation 127722

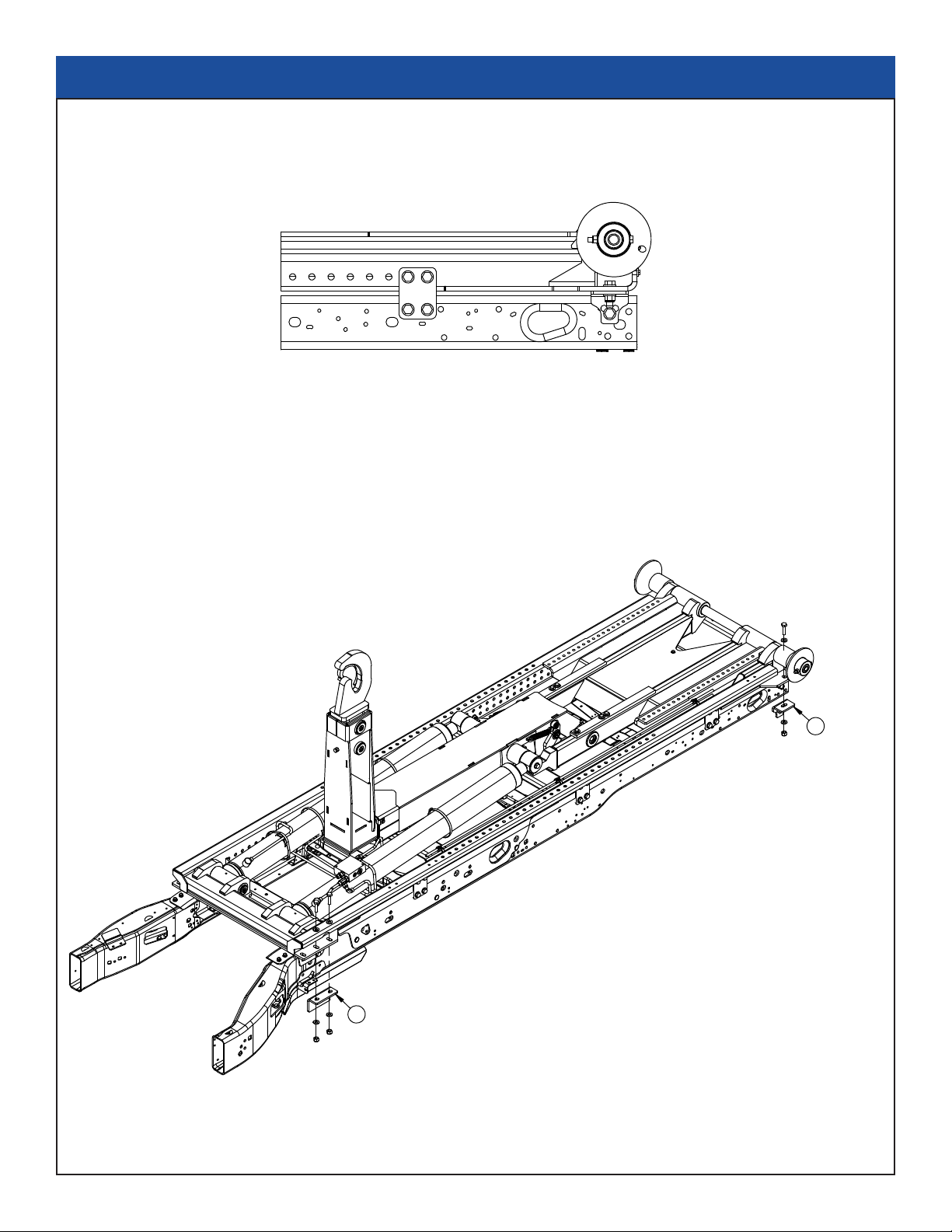

Step 2: Bolt Tie-Down Castings To Mounting Plates
8
2
NOTE: BOLT FRONT AND REAR TIE-DOWN ANGLES TO THE UNDERSIDE OF EACH MOUNTING
PLATE LOCATED ON THE OUTSIDE OF THE MAIN RAILS OF THE BASE. (BOTH SIDES)
NOTE: MODIFY THE TRUCK FRAME AS
NECESSARY SO THAT IT ENDS FLUSH
WITH THE REAR TO MOUNT BUMPER.

Stellar®NXT18 Installation Manual 127722 | Page 11
Step 3: Drill Mounting Holes Into Frame Rail
NOTE: LOCATE MIDDLE PLATES
NEAR BASE CROSSMEMBERS AS SHOWN.
LOCATE REAR PLATE AS FAR BACK AS POSSIBLE
NOTE: USING THE BOTTOM HOLES IN THE TIE-DOWN ANGLES AND PLATES AS GUIDES,
DRILL 11 / 16” MOUNTING HOLES THROUGH THE TRUCK FRAME AS SHOWN (BOTH SIDES).

Page 12 | Stellar®NXT18 Installation 127722
Step 4: Bolt Tie-Down Castings To Truck Frame
A
.69
1.19
FOR F350, F450, F550, & F600 CHASSIS
NOTE: DRILL 11 / 16” HOLE THROUGH
FRAME HERE FOR FRONT MOUNTING
ANGLE.

Stellar®NXT18 Installation Manual 127722 | Page 13
NOTES: See NHTSA (National Highway Truck Safety Administration) Regulations for acceptable placement.
This bumper will mount ush with the rear of the hooklift.
Step 5: Install Bumper
9
.25
TYP 2
.25
.25
TYP 2
.25
TYP 2
WELD AS MUCH
AS PROPER GUN
ANGLE WILL ALLOW
NOTE: TRUCK FRAME RAILS SHOWN AS REFERENCE ONLY
SET TOP OF THE BUMPER TO
INSIDE EDGE OF THE FRAME
.25
TYP 2
9
.25
TYP 2
.25
TYP 2
.25
.25
TYP 2
NOTE: TRUCK FRAME RAILS SHOWN AS REFERENCE ONLY
SET TOP OF BUMPER TO
INSIDE EDGE OF THE FRAME
.25
TYP 2

Page 14 | Stellar®NXT18 Installation 127722
Step 5A: Bumper Electrical Schematic
CIRCUIT NO. CIRCUIT
01 GROUND
15 RH MARKER / TAIL
20 RH TURN SIGNAL
21 LH TURN SIGNAL
23 RH BACKUP LIGHT
61 LH MARKER / TAIL
62 BACKUP ALARM
63 LH BACKUP LIGHT

Stellar®NXT18 Installation Manual 127722 | Page 15
THIS PAGE LEFT INTENTIONALLY BLANK

Page 16 | Stellar®NXT18 Installation 127722
4
33
5
8
1
1
1
2
NOTE: BOLT EACH TIE-DOWN ANGLE AND PLATE TO THE
TRUCK FRAME (BOTH SIDES).
Step 6: Install Tie-Downs
