CONTENTS
1. INTENDED USE
2. SAFETY INSTRUCTIONS
3. DESCRIPTION OF SYMBOLS
4. PRODUCT GRAPHIC
5. OPERATION
6.TECHNICAL DATA
7. DISPOSAL AND RECYCLING
8. MAINTENANCE AND STORAGE
9.TROUBLE-SHOOTING
10. EXPLODED VIEW
11.WARRANTY
12. EC DECLARATION OF CONFORMITY
146
EN EN

1. INTENDED USE
2. SAFETY INSTRUCTIONS
The machine is intended for cleaning the walls of buildings, facades, terraces, footpaths,
garden equipment, machinery, vehicles, tools, etc. with a pressure water nozzle. If required,
you can also use the machine with added household cleaning agents.
The machine is not intended for industrial use, only for household use.
The machine must be operated in accordance with the details provided in these instructions.
Any use of the machine that deviates from its intended use and is not included in these
instructions is considered unauthorized use and relieves the manufacturer from his or her legal
liability.
Attention! Do not operate the appliance at temperature below 0°C
• Machines shall not be used by children. Children should be supervised to
ensure that they do not play with the machine.
• This machine can be used by people with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the machine in a safe
way and understand the hazards involved.
• If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in order to avoid a hazard.
• The electric supply connection shall be made by a qualied electrician
and comply with IEC 60364-1. It is recommended that the electric supply
to this machine should include either a residual current device that will
interrupt the supply if the leakage current to earth exceeds 30 mA for
30ms or a device that will prove the earth circuit.
• WARNING: This machine has been designed for use with the cleaning
agent supplied or recommended by the manufacturer. The use of other
cleaning agents or chemicals may adversely aect the safety of the
machine.
• WARNING: High pressure jets can be dangerous if subject to misuse.
The jet must not be directed at persons, live electrical equipment or the
machine itself.
147
EN EN

• WARNING: Do not use the machine within range of persons unless they
wear protective clothing.
•WARNING: Do not direct the jet against yourself or others in order to clean
clothes or foot-wear.
•WARNING: Risk of explosion - Do not spray ammable liquids.
• WARNING: High pressure cleaners shall not be used by children or
untrained personnel.
• WARNING: High pressure hoses, ttings and couplings are important
for the safety of the machine. Use only hoses, ttings and couplings
recommended by the manufacturer.
• WARNING: To ensure machine safety, use only original spare parts from
the manufacturer or approved by the manufacturer.
• WARNING: Water that has owed through backow preventers is
considered to be non-potable.
• WARNING: The machine shall be disconnected from its power source
during cleaning or maintenance and when replacing parts or converting
the machine to another function by removing the plug from the socket-
outlet.
• WARNING: Do not use the machine if a supply cord or important parts of
the machine are damaged, e.g. safety devices, high pressure hoses, trigger
gun.
•WARNING: Inadequate extension cords can be dangerous. If an extension
cord is used, it shall be suitable for outdoor use, and the connection has to
bekeptdryandotheground.Itisrecommendedthatthisis accomplished
by means of a cord reel which keeps the socket at least 60 mm above the
ground.
• WARNING: Always switch o the mains disconnecting switch when
leaving the machine unattended.
• WARNING: Highpressure may cause parts to rebound .Always wear
appropriate personnel protection equipment (PPE) in operation, e.g.
safety boots, safety gloves, safety helmets with visors, hearing protection
etc., to ensure operator’s safety.
2. SAFETY INSTRUCTIONS
148
EN EN

2. SAFETY INSTRUCTIONS
• WARNING: For safety reasons, high pressure hoses, valves and couplings
must be used with unit.The new hose-sets supplied with the appliance are
to be used.Oldhose-sets should not be reused.
• WARNING: In the event of contact with or spillage of detergents, ush
with water. If liquid contacts eyes,additionally seek medical help.
• WARNING: In the event of an equipment breakdown (such as nozzle or
component failure),have you high pressure washer serviced by a qualied
repair person using only identical replacement parts.
• Vehicle tyres/tyre valves are susceptible to damage from the high-
pressurejet and may burst .The rst indicationfor thisis a discolouration of
the tyre. Damaged vehicle tyres/tyre valves are perilous. Keep a minimum
jet distance of 30cm during cleaning.
• WARNING: There is a risk of kickback and sudden torque load against
the jet spray when the spray gun is opened. Ensure that you are standing
rmly and that you are holding the gun securely, otherwise you could
injure yourself or other people.
Warning: The appliance is not designed for connecting to tap water. Use a
backow preventer in accordance with EN12729 type BA or EN 61770 with
a one-way valve .Water that has own through the backow preventer is
classied as undrinkable.
NOTE: Regarding the information pertaining to the connection to the
potable water mains, length and quality of the water supply hose, thanks
to refer to the assembly manual enclosed in the package.
149
EN EN

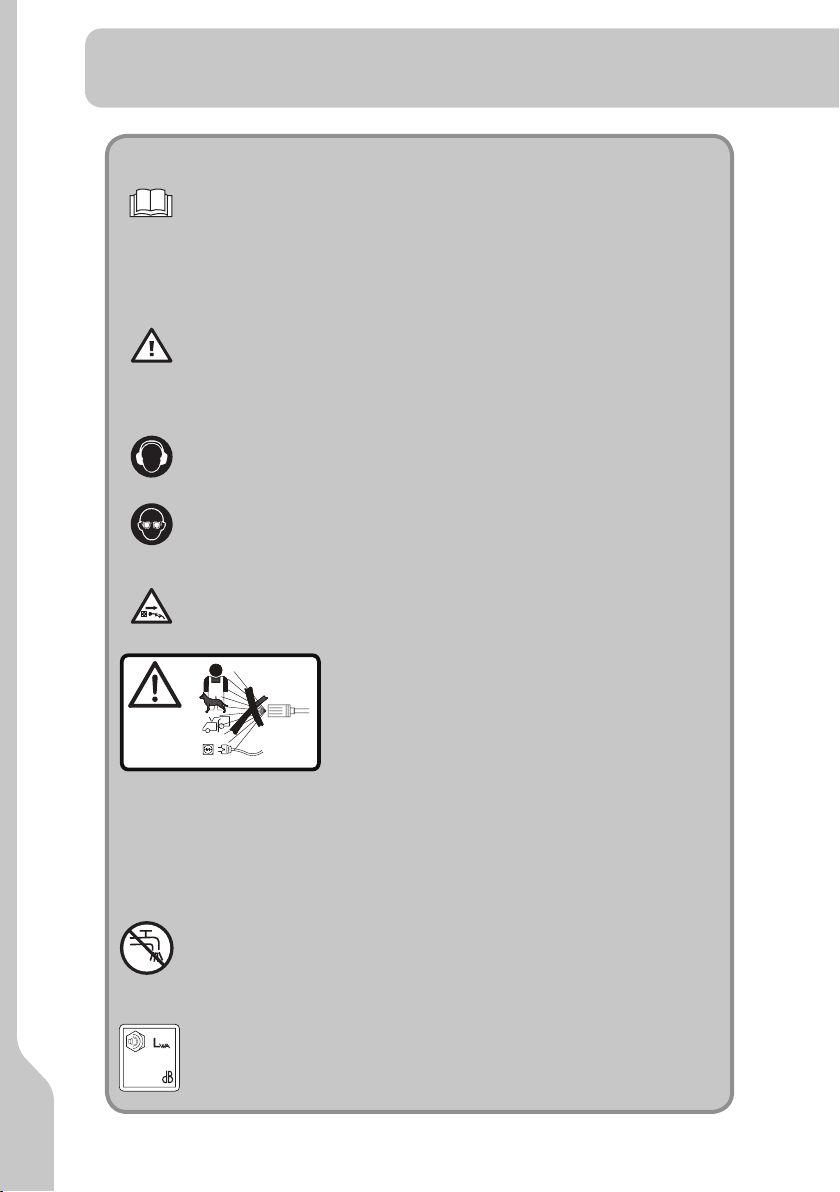

3. DESCRIPTION OF SYMBOLS
IMPORTANT!
Please read all of the safety and operating instructions
carefully before using this tool. Please pay particular
attention to all sections of this user guide that carry warning
symbols and notices.
Warning!
This is a warning symbol.This symbol is used throughout the
user guide whenever there is a risk of personal injury. Ensure
that these warnings are read and understood at all times.
Wear ear protection.
Remove plug from the mains immediately if the cable is
damaged or cut.
Warning!
High pressure jets can be dangerous if subject to misuse.The
jet must not be directed at persons, live electrical equipment
or the machine itself.
Wear eye protection.
Warning!
This machine must not be directly connected to the potable
water mains.
Guaranteed sound power level
95
150
EN EN

Attention!
Through poor conditions of the electrical MAINS, shortly voltage drops can appear
when starting the EQUIPMENT.This can inuence other equipment (eg. Blinking
of a lamp). If the MAINS-IMPEDANCE Zmax<0.171 OHM, such disturbances are
not expected. (In case of need, you may contact your local supply authority for
further information).
3. DESCRIPTION OF SYMBOLS
Conforms to relevant safety standards.
Conformity marking that product comply with applicable
Ukraine technical regulations.
Green point : Packaging recycling.
Single mark of circulation of products on the market of the
Member States of the Customs.
IPX5
Protection index against intrusion of liquids and solids.
151
EN EN

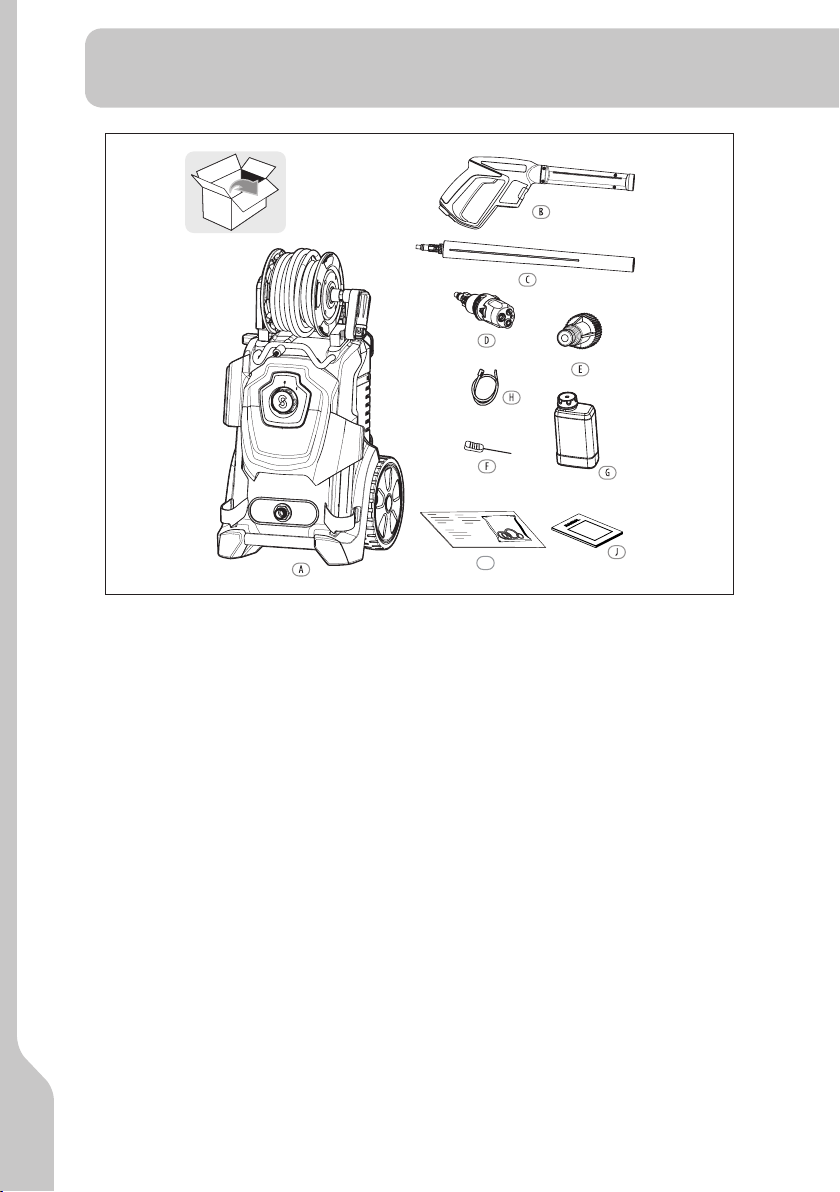

A. High-pressure washer x1
B. Spray gun x1
C. Spear x1
D. 3-in-1 nozzle x1
E. Water inlet adapterx1
F. Nozzle pinx1
G. Detergent bottlex1
H. Soap tubex1
J. Manual x2
K. O-ring kit x 4
* The following accessories are not covered in delivery package. The users can buy these
accessories from the local representatives.
• 1 pcs water supply hose NOTE: Use a fabric reinforced water hose with
a commercially available coupling. Minimum diameter 13mm (1/2
inch); minimum length 1.5m.
• 1 pcs water backow preventer (if the machine will be connected
to the portable water mains, the water backow preventer must be
used .Use a backow preventer in accordance with EN12729 type BA
or EN 61770 with a one-way valve .)
K
4. PRODUCT GRAPHIC
152
EN EN

Assembly
WARNING!
All assembly operations must be performed with the appliance disconnected
from the mains power supply.
The assembly sequence is illustrated in the characteristics manual. Pls refer to
the content to do the assembly job.
WARNING!
Wear suitable clothing, ears and eyes protecting when working with the
equipment. Ensure that the equipment is functional before each use. Ensure
that the mains voltage value matches the label on the equipment.The appliance
should only be connected to a mains power supply equipped with an adequate
earth connection and a dierential security breaker (30mA) to cut o the
electricity supply in the instance of a short circuit.
Check the safe condition of the machine:
– Check it for visual defects.
– Check that all parts of the machine have been securely tted.
– Check if the water connector and the high-pressure pipes are tight.
Starting and stopping
Note: put the high pressure washer on a smooth ground. Stand in a secure and stable position.
Starting:
i. Open the water inlet valve
ii. Press the safety button on the spray gun, and press the trigger until there is a steady
stream of water.
iii. To switch the machine on, set the On(1)/O(0) switch to ON(1)
Stopping:
iv. Release the trigger
v. To switch the machine o, set the On(1)/O(0) switch to OFF(0).
vi. Close the water inlet valve
Attention!
Risk of machine damage!
Never operate the machine without water inlet as dry running may damage the pump. Use a
water lter if the inlet water is contaminated.
5. OPERATION
153
EN EN

Working with the Electric High pressure washer
Risk of fatal injury!
Use special care when cleaning tyres.Vehicle tyres/tyre valves may become damaged or
burst when handled improperly. First signs of damage included discolorations on the tyre.
Damaged vehicle tyres/tyre valves pose a life-threatening risk. Keep the jet at a distance of at
least 30 cm!
WARNING!
The high-pressure jet may be dangerous when handled improperly.The jet may
not be directed towards living beings (persons, animals), live equipment or the
machine itself.
Clogging of the spray tips causes the pump pressure to be too high and cleaning is immediately
required.You canclean the spray tips bycarefullyinserting a needle, or a thin, sharp instrument
(e.g. paperclip) into the tip to rid it of deposits.
Hold with both hands.
The trigger gun safety lock prevents the trigger from being engaged accidentally.
The safety feature DOES NOT lock trigger in the ON position.
5. OPERATION
154
EN EN

Model 150HR EPW.4
Input voltage rating 230V~ 50 Hz
Input power 2800W
Rated pressure P max=12.5MPa
Allowable pressure P limit=15MPa
Rated ow Q =7.5 l/min
Max. ow rate Q max=8.3 l/min
IP number IPX5
Safety class class I
Max. water Inlet pressure: P in max. =0.6MPa
Max. water intake temperature : T in max.=40oC
Net weight (kg) 23.5
Gross weight (kg) 26.78
Measured sound pressure level 74.7 dB(A),K=3 dB(A)
Measured sound power level 88.5 dB(A),K= 3 dB(A)
Guaranteed sound power level 95 dB(A)
Vibration <2.5 m/s2,k=1.5 m/s2
The sound values have been determined according to the noise test code given in EN 60335-
2-79, using the basic standards EN ISO 11203 and EN ISO 3744.
The sound intensity level for the operator may exceed 80dB(A) and ear protection measures
are necessary.
The declared vibration value has been measured in accordance with a standard test method
(according to EN 60335-2-79) and may be used for comparing one product with another. The
declared vibration value may also be used in a preliminary assessment of exposure.
WARNING! Depending on how the product is actually used, the vibration values
can dier from the declared total! Adopt proper measures to protect yourself
against vibration exposures.Take the whole work process, including times the
product is running under no load or switched o, into consideration. Proper
measures include, among others, regular maintenance and care of the product
and its attachments, keeping hands warm, regular breaks and proper planning of
work processes.
6. TECHNICAL DATA
155
EN EN

Waste Disposal and Environmental Protection!
Be environmentally friendly. Return the tool, accessories and packaging to a
recycling center when you have nished with them.
Electrical machines do not belong in domestic waste.
Take the equipment to a waste disposal site.The plastic and metal parts that are
used can be separated out into pure grade, which allows recycling.
7. DISPOSAL AND RECYCLING
156
EN EN

Anymaintenanceoperationsnotcoveredby this chaptershouldbecarriedoutbyanAuthorized
Sales and Service Centre.
Caution!
Always disconnect the plug from the power sources before carrying out any work
on the appliance.
• Cleaning the nozzle
--Disconnect the nozzle from the lance.
--Remove any dirt deposits from the nozzle hole using the cleaning pin.
• Cleaning the lter
Inspect the intake lter and detergent (if tted) before each use, and clean in accordance with
the instructions.
Inspect the seal status of inlet nozzle, spear and 3 in 1 nozzle , remove dirt and debris from the
seals, if there have any crack/damage marks on it ,which will lead the water leakage ,please
replace with the new one accordingly .We additionally oer some spare seals in the machine
for the free replacement. Put the 3in1 nozzle, spear, inlet nozzle in a clean place, protected
from damage.
STORAGE AND TRANSPORT
Storage
Store the machine in a dry and well-ventilated place.
When placing the machine out of service for an extended period of time, remove the cleaning
agent and drain all of the water left in the hoses.
Transport
If shipping, use the original packaging wherever possible.
High pressure cleaner and its accessories in an area with a room temperature of at least 5oC.The
pump in the unit can be permanently damaged if it freezes.
DISPOSAL
Disposing of the machine
Machines which are labeled with the adjacent symbol must not be disposed of with household
rubbish.You must dispose of such old electrical and electronic appliances separately.
Please check the disposal options with your local authority. Old equipment that is disposed
of separately is sent for recycling or for other forms of re-use. This helps to prevent damaging
materials from being released into the environment.
Disposing of the packaging
The packaging consists of cardboard and labeled sheets that can be recycled. Please recycle
these materials.
8. MAINTENANCE AND STORAGE
157
EN EN

1) No power.
• Check the plug socket, cable, line and plug, where appropriate, have repaired
through electrical specialist.
• Any of the parts are defective, such as On/O switch /motor etc. (please contact
service agent).
• Motor overloaded, the motor circuit breaker has tripper.
• Turn o the appliance“0/OFF”.
• Allow the device to cool down for 5 minutes.
• Switch on the device and put it into operation again. If the malfunction occurs
repeatedly, have the device checked by the customer service.
2) The high pressure washer operates intermittently.
• Power cable is damaged.
• Internal loose electrical connection.
• On/O switch defective(please contact service agent).
• Nozzle is clogged. Clean dirty from the nozzle opening using the nozzle cleaner
provided .
3) No or only little pressure is built up.
• Check if there is any air in the system, if so, please ventilate the machine! Run the
machine without the high-pressure hose connected until water starts leaking
without bubbles. Re-attach the high-pressure hose.
• Check all inlet pipes leading to the pump for leaks or clogs.
• Check the setting on the hand-held spray gun.
4) Great pressure varieties.
• Clean the high pressure jet nozzle
• Check the water inlet pressure.
5) Machine pulsating
• Check if there is any air in the hose or pump,allow machine to run with open
trigger until regular working pressure resumes.
• Check if there isinadequate supply of mains water,avoid using long, thin hoses(min
1/2’’).
• Check if nozzle partially blocked or water lter blocked,clean the nozzle or lter.
• Check if the hose kinked,straighten out hose.
6) Machine is leaking.
• Please contact the authorized agent.
• Seals worn of spear ,3in1 nozzle or inlet nozzle
We additionally oer the seals of 3in1 nozzle, spear and inlet nozzle, replace with
the new seals.
• Seals worn of other parts.
Please contact the authorized agent.
9. TROUBLESHOOTING
158
EN EN

10. EXPLODED VIEW
159
EN EN

STERWINS products are designed according to the highest quality standards for products
intended for the consumer market.This sale warranty covers a period of 5 years as of the date
of purchase of the product.
This warranty covers all defects in materials and workmanship: missing parts and elements,
and damage occurring under normal use circumstances. Repair and replacement of parts do
not lead to an extension of the initial warranty period.You must be able to provide proof of the
date of purchase for this product.
Warranty exclusions
Thiswarrantydoesnot coverproblemsnorincidentsresultingfromincorrect use oftheproduct.
Warranty coverage is limited to the value of this product. The following cases are particularly
excluded:
- Damage occurring upon transporting or setting up this product.
- Repairs and/or change of parts carried out by a third party.
- If this tool is used incorrectly (overloading the machine or installing unauthorized
accessories).
- Damage caused by external factors or foreign objects such as sand or stones.
- Damage resulting from non-compliance with the safety and usage instructions.
-The tool have been disassembled or opened.
-The tool have been in a wet environment (dew, rain, submerged in water...)
The product must be used under normal usage circumstances, and for non-professional
purposes.Therefore, excluded from this warranty are products used by landscaping companies,
local authorities, as well as companies oering paid rentals or free loaning of equipment.
In case of problems with your product, please contact the manager of the Garden department
of your store. Keep your invoice or your receipt: these documents will be requested upon
processing any claims.
We thank you for your business and hope that you will be completely satised using our
product. It is important for us to know your opinion regarding this product, in order to keep
improving it to better.
11. WARRANTY
160
EN EN

We: ADEO Services
135 rue Sadi Carnot
CS 00001
59790 Ronchin - France
Declares that the product detailed below:
High Pressure Washer 150HR EPW.4
Serial no.: Please refer to the back cover page.
Satises the requirement of the Council Directives:
Machinery Directive 2006/42/EC
EMC Directive 2014/30/EU
EU NOISE Directive 2000/14/EC amended by 2005/88/EC
ROHS Directive(EU)2015/863 amending Directive 2011/65/EU
Measured sound power level: 88.5 dB(A)
Guaranteed sound power level: 95dB(A)
Conformity assessment method to Annex V / Directive 2000/14/EC
Annexe III, Part B, item 27
EN ISO 3744: 2009
And conforms with the standards:
EN 60335-2-79:2012
EN 60335-1:2012/A11:2014
EN 62233:2008
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2 :2014
EN 61000-3-11:2000
IEC62321-1:2013
IEC62321-2:2013
IEC62321-3-1:2013
IEC62321-4:2013
IEC62321-5:2013
IEC62321-6:2015
IEC62321-7-1:2015
IEC62321-7-2:2017 & ISO17075-1:2017
IEC62321-8:2017
Signed in RONCHIN 05/07/2019
Eric LEMOINE
International Project Quality Leader
Authorized representative of Julien Ledin, ADEO Quality Leader
ADEO Services 135 Rue Sadi Carnot - CS 00001 59790 RONCHIN – France
12. CE DECLARATION OF CONFORMITY
161
EN EN

* Garantie 5 ans / 5 años de garantía / Garantia de 5 anos / Garanzia 5 Anni /
Εγγύηση 5 ετών / Gwarancja 5-letnia / Гарантия 5 года / 5 жылдықкепілдік
/ Гарантія 5 років / Garanţie 5 ani / 5-year guarantee
N° de série/N.º de serie/N.º de série/N. di serie/Αρ. σειράς/
Nr seryjny/Серийный номер/Сериялық№/Серійний №/
Nr. de serie/Serial NO 103492 00 DDMMYY 01 PPPPPP
Made In P. R.C. 2019
ADEO Services
135 Rue Sadi Carnot
CS 00001
59790 RONCHIN - France
ТОВ «Леруа Мерлен Україна»,
вул. Полярна 17а, м. Київ
04201, Україна
ООО ЛЕРУА МЕРЛЕН ВОСТОК,
141031, Московская область,
Мытищинский район, г. Мытищи,
Осташковское шоссе, д.1, РОССИЯ
