PR-M8809 Crosstrainer
COMMERCIAL ELLIPTICAL
M-8809EL
USER MANUAL

PR-M8809 Crosstrainer
CONTENTS
1.DESCRIPTION..............................................................................................................................1
2.STRUCTURE.................................................................................................................................1
3.SAFETY INSTRUCTION..............................................................................................................2
4. SPECIFICATION...........................................................................................................................2
5. TOOLS LIST..................................................................................................................................2
6. ASSEMBLY (Step 1-Frame)..........................................................................................................3
6. ASSEMBLY (Step 2-Handrail)......................................................................................................4
6. ASSEMBLY (Step 2-Link pole)....................................................................................................5
7. EXPLODED VIEW........................................................................................................................6
8. DISPLAY.......................................................................................................................................7
9. OPERATION.................................................................................................................................7
10. DRAWINGS OF TOOLS..........................................................................................................8,9
11. DEBUGGING..............................................................................................................................9
12. MAINTENANCE........................................................................................................................9
13. PACKING LIST.........................................................................................................................10

PR-M8809 Crosstrainer
1. DESCRIPTION
Thank you for choosing this unit.
Integrating electromagnets with microelectronics, automatic control theory, exercise
physiology, ergonomic, the unit is well-designed with better safety, comfort and
durability.
It helps greatly to improve functions of human body, especially cardiopulmonary
function.
The unit applies advanced self-electromagnetic resistance system with smooth shift,
not affected by speed and works without external power supply producing ultra-low
noise.
High-quality material, high-strength welding, luxury design and decoration and
perfect motion path make the unit excellent for use in fitness centers.
2. STRUCTURE ③②①
⑥⑤④
①．Display ②.Handrail ③.Bottle Holder
④．Foot Pedal ⑤.Base ⑥.Cover

PR-M8809 Crosstrainer
3. SAFETY INSTRUCTION
(1)Only one person is allowed to use the unit at once.
(2)Cardiacs, old and disable people, children under 12 are not allowed to use the unit.
(3)The juveniles must use the unit under professional guidance.
(4)The maximum load for the unit is 150kg (330pounds). No overload!
(5)For any discomfort such as dizziness, nausea, please stop the sports and get off the
unit immediately and consult the doctor.
(6)The unit must be put on flat floor with 50cm’s distance away from the periphery.
(7)Gym suits are recommended while long hairs must be kept away from the drive
components.
(8)Please drink some water after having sports for over 20 minutes.
(9)Harm to your health may be caused by incorrect or excessive exercise.
(10)Each movable part must be inspected before using, if it’s loosen, please tighten it
or get new one to replace it. The machine must be used in a place with supervision.
(11)This machine completely coincides with EN957-9 SC grade (S mean commercial)
4. SPECIFICATION
ITEM
SPECIFICATION
Dimension
L2000 * W865 * H1775
N.W.
135KG
User Weight
<150KG
Stride length
500mm
Power Supply
Self generator
Motion Mode
Elliptical
Resistance System
Program Control
5. TOOLS LIST
No.
Name
Description
Qty
1
Screwdriver
Cross
1
2
Open end Wrench
17-19
1
3
Hex wrench
M10
1
4
Hex wrench
M8
1
5
Hex wrench
M6
1
6
Hex wrench
M4
1
6. ASSEMBLY

PR-M8809 Crosstrainer
Step1--Frame
Tools:Take one piece of M6,M8 inner hexagon spanner
Take one inner hexagon spanner,as shown in the figure,connect AC1with
AC2;connectAC2 with AC3; ConnectAF1 with AC3. Please connect the cable before
connect the frame. 2 .Notice: the cover and pedal have no scratch.
No. Name Qty. Spec.
AC1 Rear main frame 1
AC2 Fore post 1 AC3 Upper post 1
AF1 Small handrail group 1
C60 Cheese head hexaqon screw M10*20 8 C62 Cheese head hexaqon screw M12*20 4 C76 Washer M10 8 C77 Washer M12 4
Step2-- Handrail
Tools:M8、M6、M4 inner hexagon spanner
(1)Take one M8 internal Hexagonal Screw, connect AF2 with AD4 and AD1

PR-M8809 Crosstrainer
(2)Take one M6 internal Hexagonal Screw,connect AD3 with AD1.
(3)Take one M4 internal Hexagonal Screw, fixed M258、M259 and M103.
No. Name Qty. Spec.
AD1 Right moving arm 1
AD4 Left moving arm 1
AF2 Upper handrail group 2
C43 Rotating axle 2 ¦ µ25*80 2 C59 Cheese head hexaqon screw M8*25 2 C64 Semiround hexagon screw M10*20 4 C83 Semiround hexagon screw M6*15 4
D23 6005 bearing ¦ µ25*¦ µ47*12 4 D26 25 bearing clip ¦ µ28.2*¦ µ23.2*1.2T 2
P005 60 aluminum cover ¦ µ60*19 2
M103 Bottle holder 1
M258 Rear cover for handle 1 M259 Fore cover for handle 1
Step3--Link Pole
(1)Connect bend side of AD3 with moving arm.
(2)Fix the front end of AD3 with the bottom of handrail.
(3)Check all the screws for the joint whether it is tighten or not, and then clean the

PR-M8809 Crosstrainer
machine.
Right cover-inner
Right cover-outer
Left cover-inner
1
M113 1
M112 1
M109 1
Left cover-outer
M108 2
¦ µ35*108
Rotating axle 2
D15 2
¦ µ28.2*¦ µ23.2*1.2T
25 bearing clip
D26 4
¦ µ25*¦ µ52*15
6205 bearing
D28
Spec.
Qty.
Name
No.
7. EXPLODED VIEW

PR-M8809 Crosstrainer
向
向
8. DISPLAY
resistance directly
chosen keys

PR-M8809 Crosstrainer
9. OPERATION
1. Routine operation
When the user rotating the pedal, the motor was started to work. Display window
shows the user’s movement power, calories, distance and other numerical simulation.
Press the key START, the TIME in display window start timing, According to the size
of resistance adjusting key and regulate the resistance size according to the
individual movement ability or regulating resistance through direct key of resistance.
During exercise, the program will automatically record the motion of the user's time,
calories burned, the distance of the movement data parameters. When the exercise
stop. Display window will put the movement data recorded during 20 seconds
automatically return to zero.
2. Program operation
Every time when press the SWITCH key, the display window will show the order
TIME,DISTANCE,CALORIES,P1,P2,P3,P4,P5,P6,P7,P8,P9,P10. The parameter
will be twinkle, According to the regulation of resistance key, adjust the parameters,
program directly
chosen keys
resistance increase and decrease
key (press up to increase
level, press down decrease level)

PR-M8809 Crosstrainer
after confirm the parameter then press the START key, The program will
automatically countdown until the movement to stop.

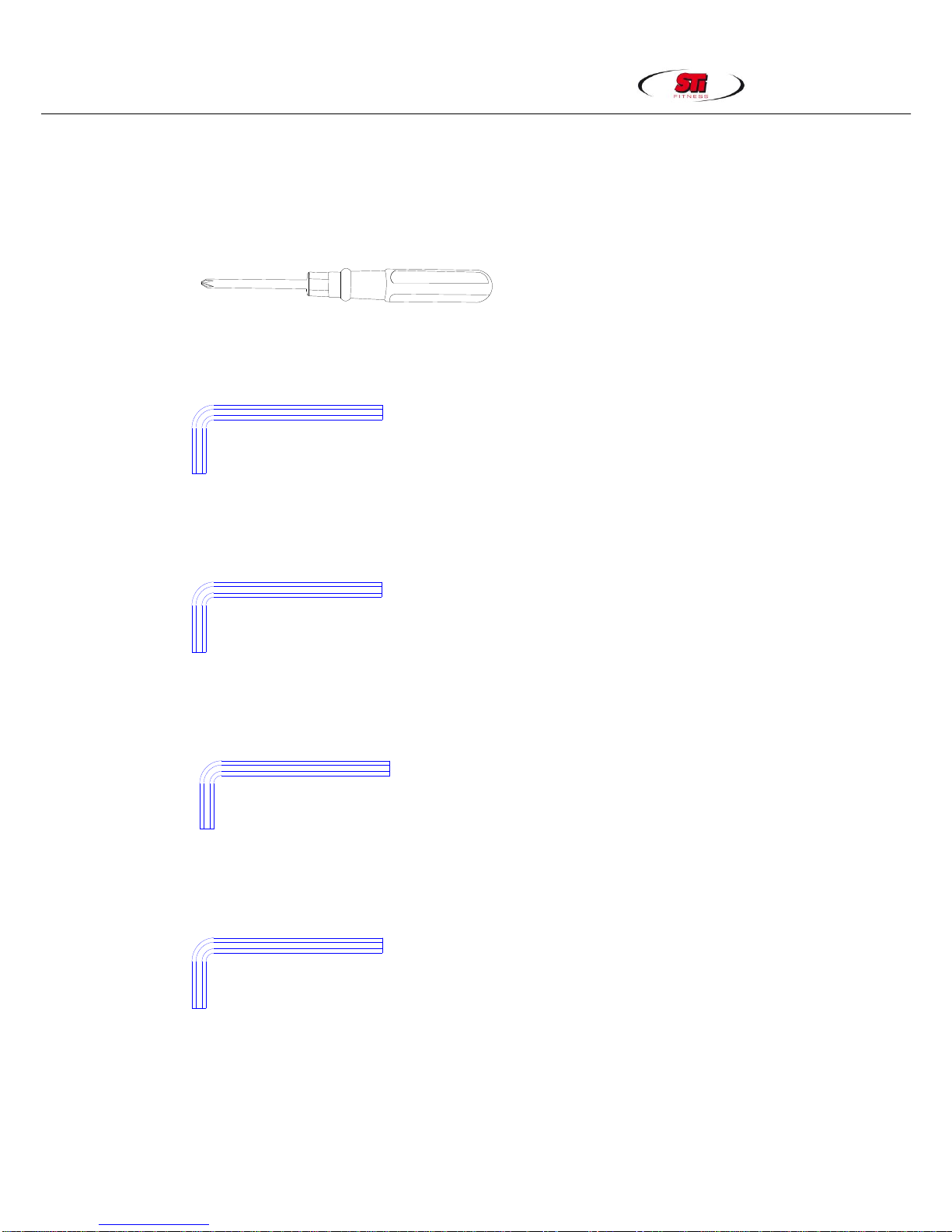

10. DRAWINGS OFTOOLS
Screwdriver, Used for remove and install cover
M10 inner hexagon spanner,Used for fasten the screws of the bottom of main frame(C62)
M8 inner hexagon spanner,Used for fasten the screws of the upper of main frame（C60）
M6 inner hexagon spanner,Used for fasten the screws of the handrail（C59）
M4 inner hexagon spanner,Used for fasten the screws of plastic part（C83）

PR-M8809 Crosstrainer
Open end spanner 17-19,Used for fasten the screw connected link pole and pedal moving
arm(C75)
11. DEBUGGING
Fault 1: Machine showing nothing
(1)Take off the Cover of elliptical,change the electronic board
(2)Change the display
(3)Change the cable
Fault 2: The resistance level does not work
Change the electronic board
Fault 3: Normal display+No resistance
(1)Change the electronic board
(2)Change the cable
(3)Change motor
Fault 4: No display
Change display PCB
Fault 5: Noise
(1)Moving Noise:it must have friction some where
(2)Disturb Noise: Machine maybe sensitive by the some environment.
12. MAINTENANCE
1. Keep machine clean everyday,Especially the place that easy drop sweet
2..Check the whole machine when using every half month.:
A. Start the machine,Make sure the machine don’t have noise
B.Check the Paddle is fastened or not.,
C. Check the screw is fastened or not.
3. Please use the original factory parts when need to replace parts..
4. When using the machine ,it must follow the instruction of professional Coach.
5. If any problem,Please contact factory on time.
13. PACKING LIST
No.
Name
Qty.
Spec.
1
Rear main frame
1

PR-M8809 Crosstrainer
2
Fore post
1
3
Upper post
1
4
Right moving arm
1
5
Left moving arm
1
6
Small handrail group
1
7
Upper handrail group
2
8
Rotating axle 2
2
Φ25*80
9
Cheese head hexagon
screw
2
M8*25
10
Cheese head hexagon
screw
8
M10*20
11
Cheese head hexagon
screw
4
M12*20
12
Semiround hexagon screw
4
M10*20
13
Blind nut
2
M12
14
Washer
8
M10
15
Washer
4
M12
16
Semiround hexagon screw
4
M6*15
17
Fixed axle for universal joint
2
Φ12*50
18
Bearing sleeve tube
4
Φ25*Φ12*16
19
6005 bearing
4
Φ25*Φ47*12
20
25 bearing clip
6
Φ28.2*Φ23.2*1.
2T
21
60 aluminum cover
2
Φ60*19
22
Semiround hexagon screw
4
M8*15
23
Bottle holder
1
24
Rear cover for handle
1
25
Fore cover for handle
1
