STI STI-7700 User manual

2306 Airport Road
Waterford • Michigan • 48327-1209
Phone: [phone] • Fax: [phone]
E-mail: [email protected] • Web: www.sti-usa.com
Taylor House • 34 Sherwood Road • Bromsgrove
Worcestershire • B60 3DR • England
Tel: [phone] • Fax: [phone]
E-mail: [email protected] • Web: www.sti-emea.com
STI-7700

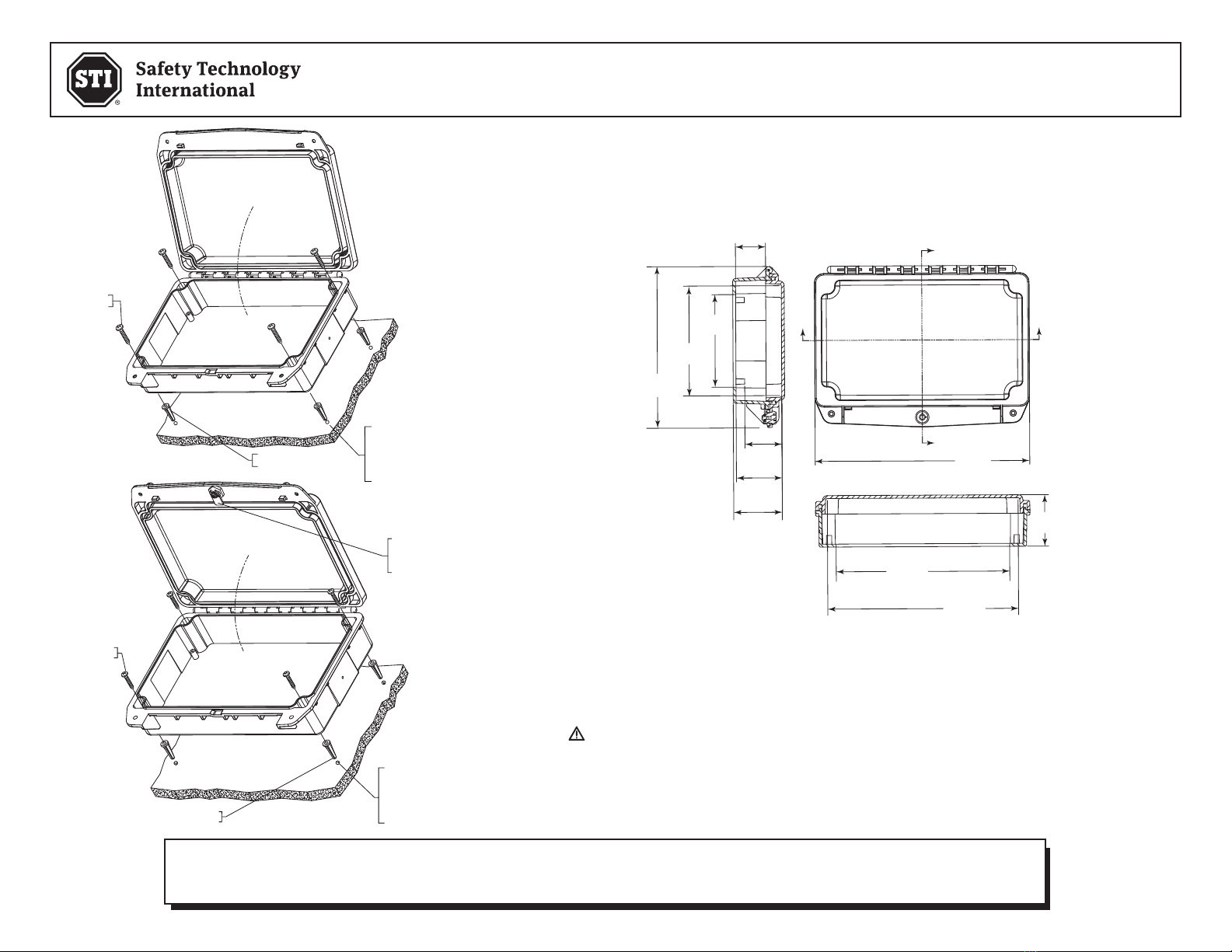

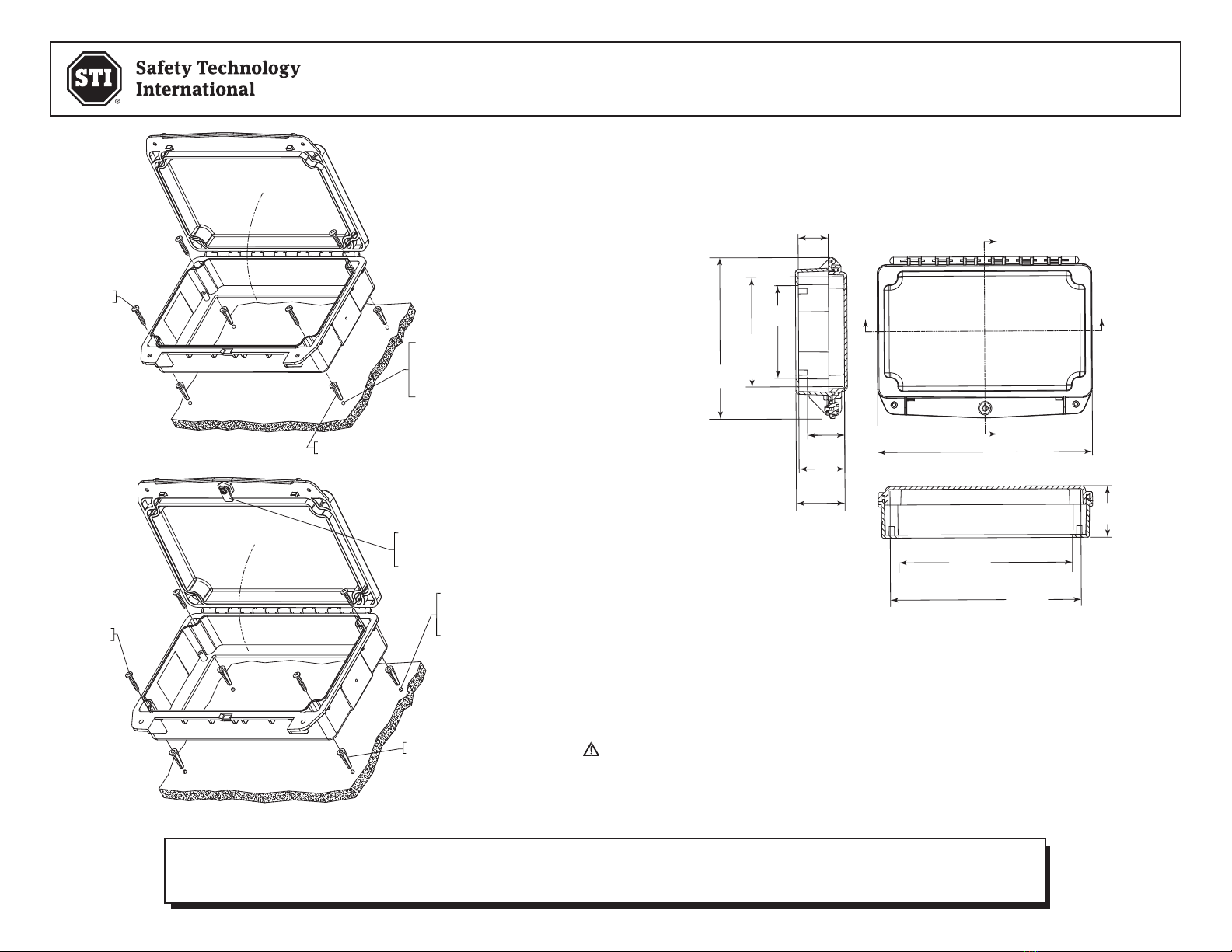

INSTALLATION OF STI-7700 & STI-7710 POLYCARBONATE COVER WITH OPEN BACK BOX
All specifications and information shown were current as of publication and are subject to change without notice.
STI-7710
STI-7700_10IS MARCH2016
9.27 in.
(236mm)
A
B
B
A
1.30 in.
(33mm)
4.00 in.
(101mm)
7.00 in.
(177mm)
4.75 in.
(120mm)
1.60 in.
(41mm)
1.975 in.
(50mm)
2.10 in.
(53mm)
2.23 in.
(57mm)
8.25 in.
(209mm)
7.50 in.
(190mm)
#8x1 in. SCREW
(4) PROVIDED
DRILL 3/16 DIA. HOLES
1-1/4 in. DEEP WHEN USING ANCHORS
DRILL 7/64 DIA. HOLES
1-1/4 in. DEEP WHEN ANCHORS
ARE NOT USED
WALL ANCHOR
(4) PROVIDED
KEY IS REMOVABLE IN
LOCK POSITION ONLY
REPLACEMENT KEYS
KIT-H18090 (SET OF 2)
A-A
B-B
WARNING: This product can expose you to chemicals including Dichloromethane, which is known to the State of
California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects
or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Three year warranty or a one year limited warranty (from date of purchase) on most products. See website for
details. Electronic warranty form at www.sti-usa.com/wc14.
#8x1 in. SCREW
(4) PROVIDED
#6-32 x 3/8 in. MACHINE SCREW
(2) PROVIDED
WALL ANCHOR
(4) PROVIDED
DRILL 3/16 DIA. HOLES
1-1/4 in. DEEP WHEN USING
ANCHORS
DRILL 7/64 DIA. HOLES
1-1/4 in. DEEP WHEN
ANCHORS ARE NOT USED

2306 Airport Road
Waterford • Michigan • 48327-1209
Phone: [phone] • Fax: [phone]
E-mail: [email protected] • Web: www.sti-usa.com
Taylor House • 34 Sherwood Road • Bromsgrove
Worcestershire • B60 3DR • England
Tel: [phone] • Fax: [phone]
E-mail: [email protected] • Web: www.sti-emea.com
STI-7720
INSTALLATION OF STI-7720 & STI-7730 POLYCARBONATE COVER WITH ENCLOSED BACK BOX
All specifications and information shown were current as of publication and are subject to change without notice.
STI-7730
STI-7720_30IS MARCH2016
9.27 in.
(236mm)
A
B
B
A
1.30 in.
(33mm)
4.00 in.
(101mm)
7.00 in.
(177mm)
4.75 in.
(120mm)
1.60 in.
(41mm)
1.975 in.
(50mm)
2.10 in.
(53mm)
2.23 in.
(57mm)
8.25 in.
(209mm)
7.50 in.
(190mm)
#6-32 x 3/8 in. MACHINE SCREW
(2) PROVIDED
#8x1 in. SCREW
(4) PROVIDED
DRILL 3/16 DIA. HOLES
1-1/4 in. DEEP WHEN USING
ANCHORS
DRILL 7/64 DIA. HOLES
1-1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
WALL ANCHOR
(4) PROVIDED
#8x1 in. SCREW
(4) PROVIDED
WALL ANCHOR
(4) PROVIDED
DRILL 3/16 DIA. HOLES
1-1/4 in. DEEP WHEN USING
ANCHORS
DRILL 7/64 DIA. HOLES
1-1/4 in. DEEP WHEN
ANCHORS ARE NOT USED
KEY IS REMOVABLE IN
LOCK POSITION ONLY
REPLACEMENT KEYS
KIT-H18090 (SET OF 2)
A-A
B-B
WARNING: This product can expose you to chemicals including Dichloromethane, which
is known to the State of California to cause cancer, and Bisphenol A (BPA), which is
known to the State of California to cause birth defects or other reproductive harm. For
more information go to www.P65Warnings.ca.gov.
Three year warranty or a one year limited warranty (from date of purchase) on most
products. See website for details. Electronic warranty form at www.sti-usa.com/wc14.
