STIEBEL ELTRON EBK 5 G Instruction Manual

BEDIENUNG UND INSTALLATION
OPERATION AND INSTALLATION
UTILISATION ET INSTALLATION
BEDIENING EN INSTALLATIE
Kochendwassergerät | Water boiler | Bouilloire électrique | Kokendwatertoestel
»EBK 5 G
»EBK 5 GA
5
4
3
2
1
5
4
3
2
1

14 | EBK G | EBK GA www.stiebel-eltron.com
CONTENTS | SPECIAL INFORMATION
SPECIAL INFORMATION
OPERATION
1. General information ��������������������������������������� 15
1.1 Safety instructions���������������������������������������������� 15
1.2 Other symbols in this documentation ���������������������� 15
1.3 Units of measurement ����������������������������������������� 15
2. Safety�������������������������������������������������������� 15
2.1 Intended use����������������������������������������������������� 15
2.2 Safety instructions���������������������������������������������� 16
2.3 Test symbols ����������������������������������������������������� 16
3. Appliance description ������������������������������������� 16
4. Settings ����������������������������������������������������� 16
5. Cleaning, care and maintenance ������������������������� 17
5.1 Descaling ��������������������������������������������������������� 17
5.2 Cleaning ���������������������������������������������������������� 17
6. Troubleshooting �������������������������������������������� 18
INSTALLATION
7. Safety�������������������������������������������������������� 18
7.1 General safety instructions ����������������������������������� 18
7.2 Instructions, standards and regulations ������������������� 18
8. Appliance description ������������������������������������� 18
8.1 Standard delivery����������������������������������������������� 18
8.2 Accessories������������������������������������������������������� 18
9. Preparations������������������������������������������������ 18
9.1 Installation site�������������������������������������������������� 18
10. Installation�������������������������������������������������� 18
10.1 Appliance installation������������������������������������������ 18
10.2 Alternative installation methods����������������������������� 20
10.3 Power supply ���������������������������������������������������� 21
11. Initial start-up���������������������������������������������� 21
11.1 Appliance handover �������������������������������������������� 22
12. Troubleshooting �������������������������������������������� 22
13. Maintenance ������������������������������������������������ 22
13.1 Servicing the taps����������������������������������������������� 22
13.2 Checking the earth conductor�������������������������������� 22
13.3 Replacing the power cable ����������������������������������� 22
14. Specification ������������������������������������������������ 22
14.1 Dimensions and connections ��������������������������������� 22

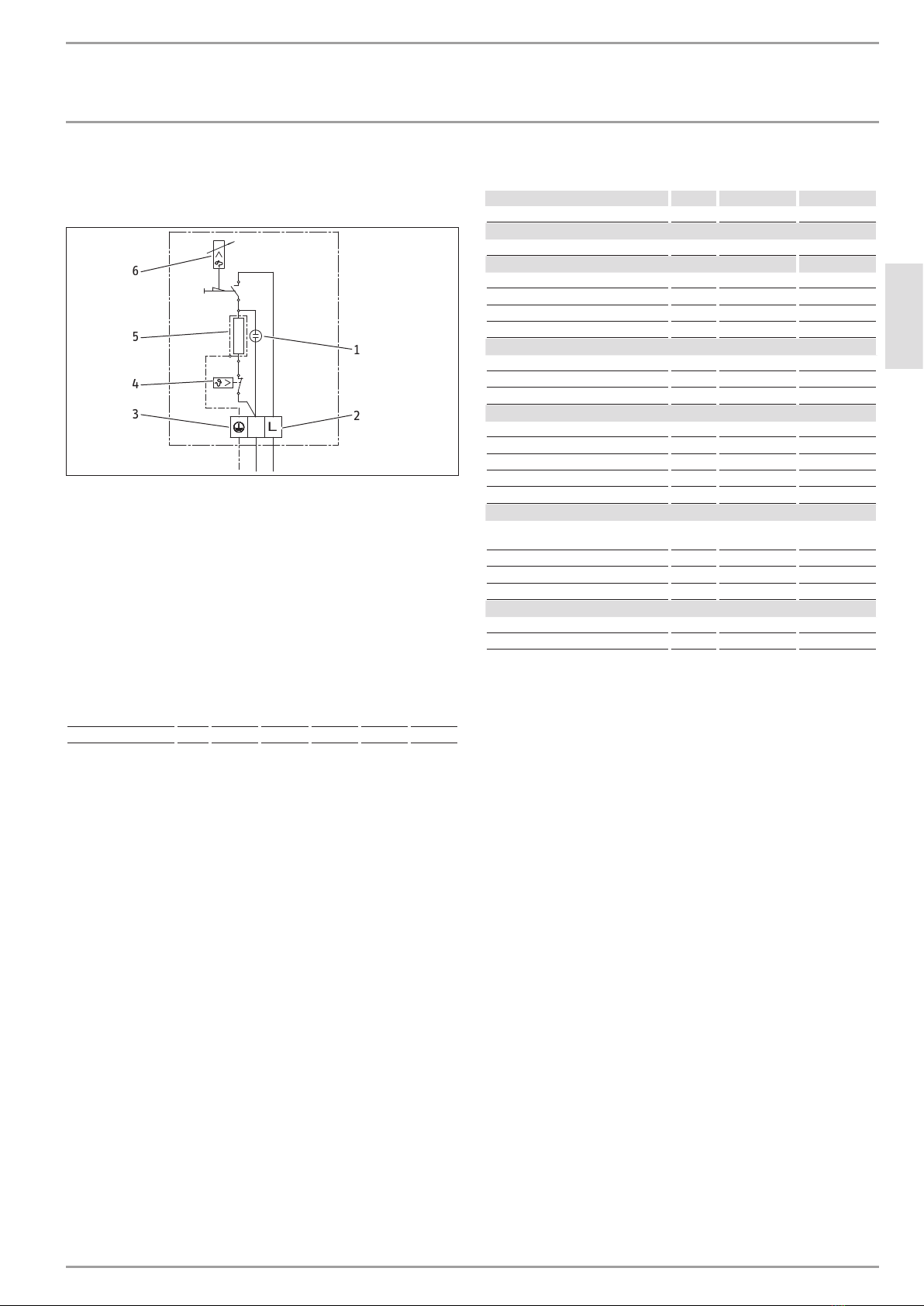

14.2 Wiring diagram ������������������������������������������������� 23
14.3 Heat-up table���������������������������������������������������� 23
14.4 Data table �������������������������������������������������������� 23
GUARANTEE
ENVIRONMENT AND RECYCLING
SPECIAL INFORMATION
- The appliance may be used by children aged3
and up and persons with reduced physical, sen-
sory or mental capabilities or a lack of experience
and know-how, provided that they are supervised
or they have been instructed on how to use the
appliance safely and have understood the result-
ing risks. Children must never play with the ap-
pliance. Children must never clean the appliance
or perform user maintenance unless they are
supervised.
- Installation with a permanent power cable is not
permitted.
- When permanently connected to the power sup-
ply using an appliance wall socket, the appliance
must be able to be separated from the mains
power supply by an isolator that disconnects all
poles with at least 3mm contact separation.
- The power cable must only be replaced (for
example if damaged) with the original spare
part by a qualified contractor authorised by the
manufacturer.
- Secure the appliance as described in chapter "In-
stallation/ Installation".

OPERATION
General information
ENGLISH
www.stiebel-eltron.com EBK G | EBK GA | 15
OPERATION
1. General information
The chapters "Special Information" and "Operation" are intended
for both the user and qualified contractors.
The chapter "Installation" is intended for qualified contractors.
Note
Read these instructions carefully before using the appli-
ance and retain them for future reference.
Pass on the instructions to a new user if required.
1.1 Safety instructions
1.1.1 Structure of safety instructions
!
KEYWORD Type of risk
Here, possible consequences are listed that may result
from failure to observe the safety instructions.
 Steps to prevent the risk are listed.
1.1.2 Symbols, type of risk
Symbol Type of risk
Injury
Electrocution
Burns
(burns, scalding)
1.1.3 Keywords
KEYWORD Meaning
DANGER Failure to observe this information will result in serious
injury or death.
WARNING Failure to observe this information may result in serious
injury or death.
CAUTION Failure to observe this information may result in non-seri-
ous or minor injury.
1.2 Other symbols in this documentation
Note
General information is identified by the symbol shown
on the left.
 Read these texts carefully.
Symbol Meaning
Material losses
(appliance damage, consequential losses and environmen-
tal pollution)
Appliance disposal
 This symbol indicates that you have to do something. The ac-
tion you need to take is described step by step.
1.3 Units of measurement
Note
All measurements are given in mm unless stated oth-
erwise.
2. Safety
2.1 Intended use
This is an open (non-pressurised) appliance for heating hot and
boiling domestic hot water. The appliance is intended for domestic
or similar usage conditions, such as in kitchens for employees
in shops, offices and other commercial settings, in agricultural
premises, or for customers in hotels, motels, B&Bs and other types
of accommodation.
This appliance is intended for domestic use. It can be used safely
by untrained persons. The appliance can also be used in a non-do-
mestic environment, e.g. in a small business, as long as it is used
in the same way.
Any other use beyond that described shall be deemed inappropri-
ate. Observation of these instructions is also part of the correct use
of this appliance. Any changes or modifications to this appliance
void all warranty rights.
!
!

OPERATION
Appliance description
16 | EBK G | EBK GA www.stiebel-eltron.com
2.2 Safety instructions
WARNING Burns
Steam escapes from the overflow/steam pipe during
the boiling process. The pipe must not be enclosed or
extended.
WARNING Burns
If the appliance is overfilled, boiling water may spurt out.
WARNING Burns
Never open the cover during the heating process.
WARNING Burns
EBK 5 GA: The taps can reach temperatures above 60°C.
!
WARNING Injury
The appliance may be used by children aged3 and up and
persons with reduced physical, sensory or mental capa-
bilities or a lack of experience and know-how, provided
that they are supervised or they have been instructed on
how to use the appliance safely and have understood
the resulting risks. Children must never play with the
appliance. Children must never clean the appliance or
perform user maintenance unless they are supervised.
!
Material losses
Never operate this appliance if it is not filled with water.
If you want to draw off hot water during the heating
process, leave approximately 0.5l (see cup symbol) in
the appliance until it switches off, or set the temperature
selector to OFF.
2.3 Test symbols
See type plate on the appliance.
3. Appliance description
The appliance electrically heats up domestic hot water and is filled
via the relevant tap. The appliance switches off automatically when
it reaches the temperature selected with the temperature selector.
You can draw off the hot water via the tap.
4. Settings
EBK 5 G
5
4
3
2
1
3
1
2
4
6
5
7
26�02�04�0126
EBK 5 GA
5
4
3
2
1
7
6
1
2
4
3
5
26�02�04�0125
1 Temperature selector with one-touch button for switching
the appliance on
2 Drawing off cold water
3 Filling the appliance
4 Tap outlet pipe
5 Overflow/steam pipe
6 Drawing hot water
7 ON/OFF indicator
 Using the relevant tap, fill the appliance at least as far as the
cup symbol but with no more than 5l of water.

OPERATION
Cleaning, care and maintenance
ENGLISH
www.stiebel-eltron.com EBK G | EBK GA | 17
26�02�04�0075
1
4
3
5
2
6
1 Temperature setting OFF
2 Temperature setting warm
3 Descaling setting
4 Temperature setting warm to hot (steaming)
5 Temperature setting hot (steaming) to boiling
6 Boiling end stop
 Turn the temperature selector straight to the boiling end
stop.
 Switch the appliance on by pressing the temperature
selector.
The ON/OFF indicator illuminates while the water is heated.
Once the selected temperature has been reached, the appliance
switches itself off automatically following a system-dependent
delay. The ON/OFF indicator goes out.
The temperature at which the appliance turns off can vary depend-
ing on the fill level, the degree of scaling and the residual heat.
 If necessary, you can bring the water straight back to boiling
point by keeping the temperature selector pressed.
 You can stop the heating process at any time by turning the
temperature selector to OFF.
 Draw the water off via the tap.
5. Cleaning, care and maintenance
5.1 Descaling
Almost every type of water will deposit lime at high temperatures.
Therefore, it is necessary to descale the appliance every so often.
WARNING Burns
Descalers that generate a lot of foam can result in the
appliance overflowing, which would put users at risk.
 Use environmentally compatible formic acid-based descaling
agents.
 Do not the boil water during descaling.
26�02�04�0061
 When the appliance has cooled down, open the cover.
 Fill the appliance with the recommended amount of water
and descaling agent and close the cover.
 Turn the temperature selector to the descale setting (see
diagram).
 Switch the appliance on by pressing the temperature
selector.
 Leave the descaling agent to take effect and repeat the heat-
ing process if necessary.
 Draw off all the water and rinse the appliance out several
times with cold water.
 Boil the maximum possible volume of water and draw this
water off once again.
5.2 Cleaning
 Never use abrasive or corrosive cleaning agents. A damp
cloth is sufficient for cleaning the appliance.
The inside of the appliance’s glass container can be cleaned if
necessary:
 Isolate the appliance from the power supply.
 When the appliance has cooled down, open the lid.
 Clean the container and heating element without using any
objects with sharp edges.
 Close the lid and plug in the mains plug again.
 If necessary, rinse out the appliance in order to remove any
cleaning agent residue.

OPERATION
Troubleshooting
18 | EBK G | EBK GA www.stiebel-eltron.com
OPERATION | INSTALLATION
Troubleshooting
6. Troubleshooting
Problem Cause Remedy
The appliance does not
heat up.
The appliance is not
plugged into the mains.
Insert the plug into the
mains socket.
The appliance is not
switched on.
Switch the appliance on.
The fuse/MCB has blown/
responded.
Check the fuse/MCB in
your fuse box/distribu-
tion panel.
There is no water in the
appliance.
Fill the appliance with
water.
The appliance switches
off before it reaches boil-
ing point.
The appliance is scaled
up.
Descale the appliance.
The hot water flow is
significantly reduced, de-
spite the draw-off valve
being fully open.
The appliance is scaled
or dirty.
Clean and descale the
appliance.
If you cannot remedy the fault, notify your qualified contractor.
To facilitate and speed up your request, provide the number from
the type plate (000000-0000-000000).
5
4
3
2
1
Typ: Nr.:
--
EBK 5 G 000000 0000
5l Glas/verre/glass 0 MPa 10l/min
2kW 230V 50Hz 8,7A
Made in Germany
000000
26�02�04�0143
INSTALLATION
7. Safety
Only a qualified contractor should carry out installation, commis-
sioning, maintenance and repair of the appliance.
7.1 General safety instructions
We guarantee trouble-free function and operational reliability only
if original accessories and spare parts intended for the appliance
are used.
7.2 Instructions, standards and regulations
Note
Observe all applicable national and regional regulations
and instructions.
8. Appliance description
The appliance heats DHW electrically. Once the selected temper-
ature has been reached, the temperature limiter switches the
appliance off.
8.1 Standard delivery
The following are delivered with the appliance:
- Fill/drain tap
- Wall mounting bracket
- Two screws, two rawl plugs, two washers
- Installation template
8.2 Accessories
Replacement drain taps, replacement pivoting spouts and drain
outlets with stench traps are available as accessories.
9. Preparations
9.1 Installation site
Always install the appliance vertically (oversink) in a frost-proof
room.
10. Installation
10.1 Appliance installation
See also chapter "Alternative installation methods".

ENGLISH
www.stiebel-eltron.com EBK G | EBK GA | 19
INSTALLATION
Installation
45
143
154
180
26�02�04�0144
 Using the installation template, transfer the dimensions of
the wall mounting to the wall. To do so, loosely screw the in-
stallation template with tap connection to the wall.
 Drill the holes.
EBK 5 G
26�02�04�0127
26�02�04�0127
1 2 3
1 Twin connector with throttle screw
2 Plastic sleeve
3 White-coated two-handled lever tap
 Screw in the twin connector.
 Slide the plastic sleeve onto the twin connector.
105 +15
1
2
26�02�04�0131
1 Screw depth specification
2 White-coated two-handled lever tap with throttle screw
 Screw in the tap, taking care to observe the screw depth
specification.
EBK 5 GA
105 +15
1
2
26�02�04�0132
3
1 Screw depth specification
2 Chrome-coated three-handled tap with throttle screw
3 Extensions
 Screw in the tap with the extensions, taking care to observe
the screw depth specification.
EBK 5 G
64
26�02�04�0129
2
3
1
4
1 Compression fitting, spanner size 19
2 Wall mounting, view from below
3 Height specification
4 Overflow/steam pipe
EBK 5 GA
64
2
3
1
4
26�02�04�0130
1 Compression fitting, spanner size 19
2 Wall mounting, view from below
3 Height specification
4 Overflow/steam pipe

20 | EBK G | EBK GA www.stiebel-eltron.com
INSTALLATION
Installation
EBK 5 G and EBK 5 GA
 Attach the tap outlet.
 Attach the wall mounting using the washers and screws
supplied.
 Align the wall mounting using a spirit level. Take care to ob-
serve the height specification. In the event of unevenness on
the wall, the wall mounting can be attached using additional
screws at the bottom.
 Slide the appliance from above down onto the wall mounting
bracket and the tap fitting so it is properly aligned.
 Tighten the fixing screws and the compression fitting.
 Attach the overflow/steam pipe.
10.2 Alternative installation methods
10.2.1 Water connection on finished walls with washing
machine and dishwasher connection (WAS valve)
EBK 5 G
115 +15
64
1
3
2
26�02�04�0133
1 Twin connector
2 Plastic sleeve
3 WAS valve
 Trim the twin connector and the plastic sleeve to the right
lengths.
EBK 5 GA
115 +15
64
1
26�02�04�0135
1 WAS valve
10.2.2 Attaching the overflow/steam pipe to finished walls
Note
With these connections, the overflow/steam pipe must
be fixed to the wall.
EBK 5 G
180 - 250
140
≥ 20
163
1
26�02�04�0137
1 Outlet pipe to the sink
EBK 5 GA
180 - 250
140
≥ 20
163
1
26�02�04�0139
1 Outlet pipe to the sink

ENGLISH
www.stiebel-eltron.com EBK G | EBK GA | 21
INSTALLATION
Initial start-up
10.2.3 Attaching the overflow/steam pipe to unfinished walls
Note
With these connections, the overflow/steam pipe must
be fixed to the wall.
EBK 5 G
180 - 250
140
≥ 20
163
1
26�02�04�0138
1 Drain outlet with stench trap
EBK 5 GA
180 - 250
140
163
1
26�02�04�0140
1 Drain outlet with stench trap
10.3 Power supply
WARNING Electrocution
Carry out all electrical connection and installation work
in accordance with relevant regulations.
WARNING Electrocution
Installation with a permanent power cable is not per-
mitted.
When permanently connected to the power supply using
an appliance wall socket, the appliance must be able to
be separated from the mains power supply by an isolator
that disconnects all poles with at least 3mm contact
separation.
!
Material losses
Observe the type plate. The specified voltage must match
the mains voltage.
Note
Ensure that the appliance is earthed.
When connecting the appliance via a standard socket, ensure that
this is easily accessible once the appliance has been installed.
11. Initial start-up
26�02�04�0142
4 3
1 2
1 White-coated two-handled lever tap with throttle screw
2 Chrome-coated three-handled tap with throttle screw
3 Throttle screw for flow rate: maximum throttle
4 Throttle screw for flow rate: no throttle
 Adjust the flow rate. For this, observe the maximum permis-
sible flow rate with a fully opened tap (see chapter "Specifi-
cation/ Data table"). If necessary, reduce the flow rate using
the throttle screw.
 Fill the appliance via the tap fitting. Observe the maximum
nominal capacity (see chapter "Specification/ Data table").
 Turn the temperature selector to the required temperature.
 Press the temperature selector.
 Check the function of the appliance.
 Draw off hot water via the tap.
 Remove the protective foil from the user interface.

22 | EBK G | EBK GA www.stiebel-eltron.com
INSTALLATION
Troubleshooting
11.1 Appliance handover
 Explain the appliance function to users and familiarise them
with its operation.
 Make users aware of potential dangers, especially the risk of
scalding.
 Hand over these instructions.
12. Troubleshooting
Fault Cause Remedy
The appliance does not
heat up.
The heating element/
temperature selector is
faulty.
Check the heating el-
ement/temperature
selector and replace the
relevant component if
necessary.
The ON/OFF indicator
does not illuminate al-
though the appliance is
switched on.
The ON/OFF indicator is
faulty.
Replace the ON/OFF in-
dicator.
The flow rate is reduced
when filling the appli-
ance or drawing cold
water.
The throttle screw is con-
taminated.
Clean the throttle screw.
The tap leaks. A sealing element is
faulty.
Check the sealing sys-
tems and replace the
relevant sealing element
if necessary.
13. Maintenance
WARNING Electrocution
Before any work on the appliance, disconnect all poles
of the appliance from the power supply.
13.1 Servicing the taps
 When carrying out maintenance work on the taps, reduce
the water supply by using the throttle screw. Be aware that
the throttle screw is not permanently watertight (see chapter
"Commissioning").
13.2 Checking the earth conductor
 In accordance with DGUVV3, check the earth conductor on
the heating element and the earth conductor contact on the
power cable.
13.3 Replacing the power cable
The power cable must be replaced by an authorised contractor
with the original spare part (part no. 020671).
14. Specification
14.1 Dimensions and connections
EBK 5 G
5
4
3
2
1
245 242
325100
≥ 345
146105 +15
i13
c01
D0000018361
EBK 5 GA
245 242
325
120
≥ 345
175105 +15
5
4
3
2
1
i13
c01
D0000018364
EBK 5 G EBK 5 GA
c01 Cold water inlet Male thread G 1/2 A G 1/2 A
i13 Wall mounting bracket
