ENGLISH
www.stiebel-eltron.com SBB WP Trend | 13
CONTENTS | OPERATION
General information
OPERATION
1. General information ��������������������������������������� 13
1.1 Safety instructions����������������������������������������������13
1.2 Other symbols in this documentation ����������������������13
1.3 Units of measurement ����������������������������������������� 14
2. Safety�������������������������������������������������������� 14
2.1 Intended use����������������������������������������������������� 14
2.2 Safety instructions���������������������������������������������� 14
2.3 Test symbols ����������������������������������������������������� 14
3. Appliance description ������������������������������������� 14
4. Cleaning, care and maintenance ������������������������� 14
4.1 Scaling ������������������������������������������������������������ 14
5. Troubleshooting �������������������������������������������� 14
INSTALLATION
6. Safety�������������������������������������������������������� 15
6.1 General safety instructions ����������������������������������� 15
6.2 Instructions, standards and regulations ������������������� 15
7. Appliance description ������������������������������������� 15
7.1 Required accessories ������������������������������������������ 15
7.2 Further accessories��������������������������������������������� 15
8. Preparations������������������������������������������������ 15
8.1 Installation site�������������������������������������������������� 15
8.2 Transport ��������������������������������������������������������� 15
9. Installation�������������������������������������������������� 16
9.1 Removing / fitting the cylinder casing ��������������������� 16
9.2 Indirect coil connection���������������������������������������� 16
9.3 Water connection and safety assembly �������������������� 16
9.4 Temperature sensors������������������������������������������� 16
10. Commissioning ��������������������������������������������� 17
10.1 Initial start-up��������������������������������������������������� 17
10.2 Recommissioning����������������������������������������������� 17
11. Shutting down the system �������������������������������� 17
12. Troubleshooting �������������������������������������������� 17
13. Maintenance ������������������������������������������������ 17
13.1 Checking the safety valve ������������������������������������� 17
13.2 Checking / replacing the protective anode ���������������� 17
13.3 Draining the appliance ���������������������������������������� 17
13.4 Cleaning and descaling the appliance���������������������� 17
14. Specification ������������������������������������������������ 18
14.1 Dimensions and connections��������������������������������� 18
14.2 Details on energy consumption������������������������������ 21
14.3 Data table �������������������������������������������������������� 21
GUARANTEE
ENVIRONMENT AND RECYCLING
OPERATION
1. General information
The chapter "Operation" is intended for appliance users and qual-
ified contractors.
The chapter "Installation" is intended for qualified contractors.
Note Read these instructions carefully before using the appli-
ance and retain them for future reference.
Pass on the instructions to a new user if required.
1.1 Safety instructions
1.1.1 Structure of safety instructions
!KEYWORD Type of risk
Here, possible consequences are listed that may result
from failure to observe the safety instructions.
 Steps to prevent the risk are listed.
1.1.2 Symbols, type of risk
Symbol Type of risk
Injury
Electrocution
Burns
(burns, scalding)
1.1.3 Keywords
KEYWORD Meaning
DANGER Failure to observe this information will result in serious
injury or death.
WARNING Failure to observe this information may result in serious
injury or death.
CAUTION Failure to observe this information may result in non-seri-
ous or minor injury.
1.2 Other symbols in this documentation
Note General information is identified by the symbol shown
on the left.
 Read these texts carefully.
!

OPERATION
Safety
14 | SBB WP Trend www.stiebel-eltron.com
Symbol Meaning
Material losses
(appliance damage, consequential losses and environmen-
tal pollution)
Appliance disposal
 This symbol indicates that you have to do something. The ac-
tion you need to take is described step by step.
1.3 Units of measurement
Note All measurements are given in mm unless stated oth-
erwise.
2. Safety
2.1 Intended use
The appliance is intended for domestic use. It can be used safely
by untrained persons. The appliance can also be used in a non-do-
mestic environment, e.g. in a small business, as long as it is used
in the same way.
This appliance is designed to heat DHW with heat pumps.
Any other use beyond that described shall be deemed inappropri-
ate. Observation of these instructions and of instructions for any
accessories used is also part of the correct use of this appliance.
2.2 Safety instructions
WARNING Burns There is a risk of scalding at outlet temperatures in ex-
cess of 43 °C.
!WARNING Injury
The appliance may be used by children aged 8 and up and
persons with reduced physical, sensory or mental capa-
bilities or a lack of experience and know-how, provided
that they are supervised or they have been instructed on
how to use the appliance safely and have understood
the resulting risks. Children must never play with the
appliance. Children must never clean the appliance or
perform user maintenance unless they are supervised.
!Material losses
The appliance is pressurised.
During the heat-up process, expansion water will drip
from the safety valve. If water continues to drip when
heating is completed, please inform your qualified con-
tractor.
2.3 Test symbols
See type plate on the appliance.
3. Appliance description
The DHW is heated via a smooth tube internal indirect coil. In
addition, a threaded immersion heater can be connected. You
can use the appliance to supply one or several draw-off points.
The appliance is equipped with an inspection flange and ther-
mometer.
The steel cylinder is coated on the inside with special directly ap-
plied “anticor®” enamel and is equipped with a protective anode.
This anode protects the inside of the cylinder from corrosion. The
cylinder is surrounded by foam insulation and a plastic jacket.
4. Cleaning, care and maintenance
 Have the function of the safety assembly and electrical safe-
ty of the fitted accessories regularly checked by a qualified
contractor.
 Have the protective anode checked by a qualified contractor
after the first two years of use. The qualified contractor will
then determine the intervals at which it must be checked
thereafter.
 Never use abrasive or corrosive cleaning agents. A damp
cloth is sufficient for cleaning the appliance.
4.1 Scaling
Almost every type of water will deposit lime at high temperatures.
This settles inside the appliance and affects both the performance
and service life. If a threaded immersion heater is installed, the
heating elements must be descaled from time to time. A qualified
contractor who knows the local water quality will tell you when
the next service is due.
 Check the taps regularly. Limescale deposits at the spouts
can be removed using commercially available descaling
agents.
5. Troubleshooting
Problem Cause Remedy
The flow rate is low. The aerator in the tap or
the shower head is scaled
up or contaminated.
Clean and/or descale the
aerator or shower head.

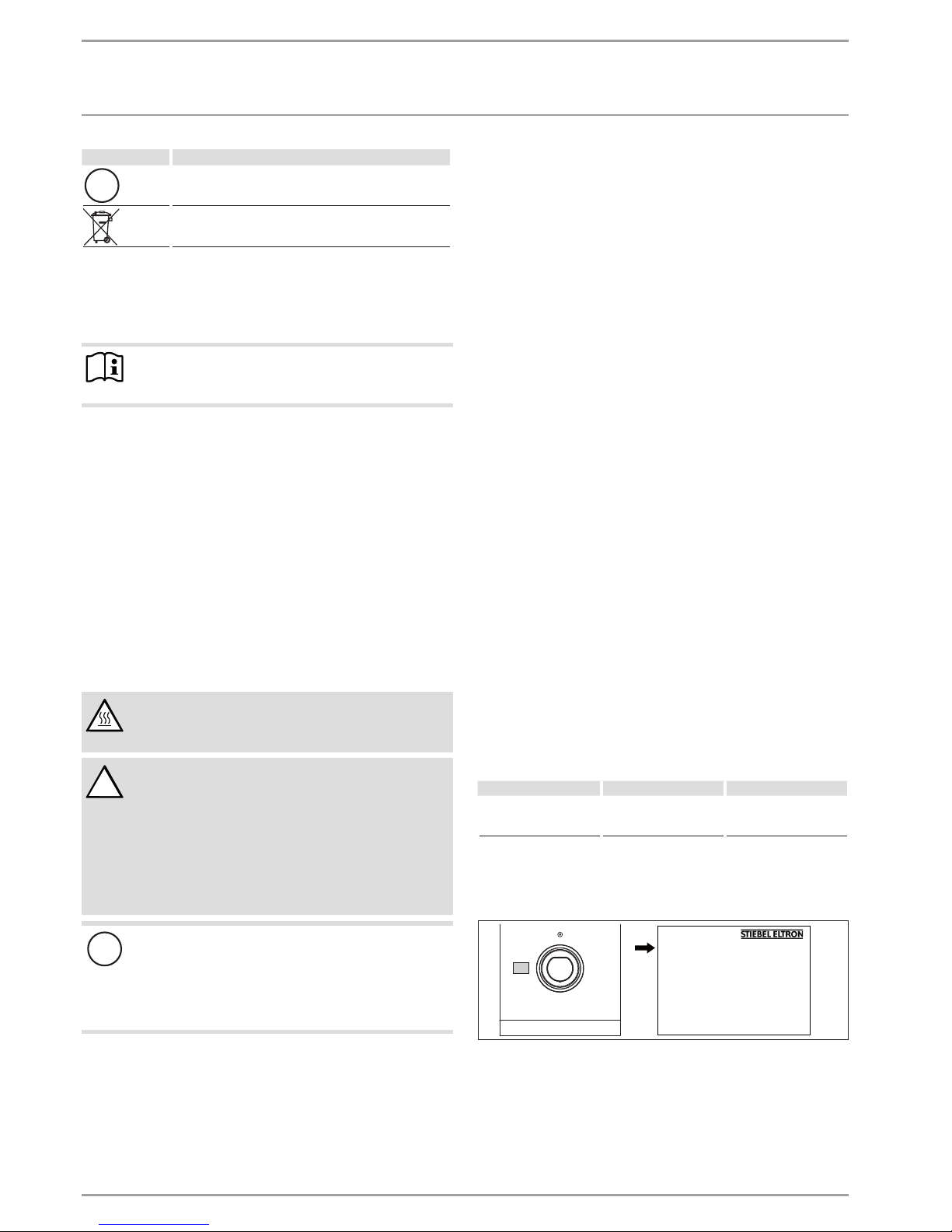

If you cannot remedy the fault, notify your qualified contractor.
To facilitate and speed up your enquiry, please provide the serial
number from the type plate (no. 000000-0000-000000):
Nr. 000000-0000-000000
D0000063493
!

ENGLISH
www.stiebel-eltron.com SBB WP Trend | 15
INSTALLATION
Safety
INSTALLATION
6. Safety
Only a qualified contractor should carry out installation, commis-
sioning, maintenance and repair of the appliance.
6.1 General safety instructions
We can only guarantee trouble-free function and operational reli-
ability if original spare parts intended for the appliance are used.
6.2 Instructions, standards and regulations
Note Observe all applicable national and regional regulations
and instructions.
7. Appliance description
7.1 Required accessories
Depending on the static pressure, safety assemblies and pressure
reducing valves are available. These type-tested safety assemblies
protect the appliance against unacceptable excess pressure.
7.2 Further accessories
Threaded immersion heaters are available as accessories.
If it is not possible to insert a rod anode from above, install a
segmented anode.
8. Preparations
8.1 Installation site
 Always install the appliance in a room free from the risk of
frost and near the draw-off point.
26�05�20�0004
 Ensure the floor is level. Use the adjustable feet to compen-
sate for any unevenness in the floor.
 Ensure the floor has a sufficient load bearing capacity (see
chapter "Specification / Data table").
 Observe the room height and height when tilted (see chapter
"Specification / Data table").
Minimum clearances
The minimum side clearances can be swapped to left or right.
≥300
≥300≥800
≥500
≥100
≥100
≥500
D0000059973
 Maintain the minimum clearances.
8.2 Transport
!Material losses
We recommend removing the cylinder casing for trans-
portation to the installation location to prevent it from
becoming dirty or damaged.
For transportation, the appliance is secured to the pallet with
metal brackets.
 Remove the screws from the pallet.
 Turn the metal brackets to the inside of the adjustable feet
under the appliance.

16 | SBB WP Trend www.stiebel-eltron.com
INSTALLATION
Installation
9. Installation
9.1 Removing / fitting the cylinder casing
Note Open or remove the cylinder casing before fitting the DHW
circulation and indirect coil lines.
The plinth trim should be fitted after the tightness check.
9.2 Indirect coil connection
 Flush the indirect coil with water before connection.
9.2.1 Oxygen diffusion
!Material losses
Avoid open heating systems and plastic pipes in under-
floor heating systems which are permeable to oxygen.
In underfloor heating systems with plastic pipes that are per-
meable to oxygen and in open vented heating systems, oxygen
diffusion may lead to corrosion on the steel components of the
heating system (e.g. on the indirect coil of the DHW cylinder, on
buffer cylinders, steel heating elements or steel pipes).
!Material losses
The products of corrosion (e.g. rusty sludge) can settle in
the heating system components and can result in a lower
output or fault shutdowns due to reduced cross-sections.
9.3 Water connection and safety assembly
9.3.1 Safety instructions
Note Carry out all water connection and installation work in
accordance with regulations.
Note Connect the hydraulic connections with flat gaskets.
Cold water line
Steel or copper pipes, or plastic pipework, are approved materials.
!Material losses
A safety valve is required.
DHW line
Copper or plastic are approved materials for pipework.
!Material losses
If a threaded immersion heater is fitted and plastic pipe-
work systems are used at the same time, observe the
maximum permissible temperature and the maximum
permissible pressure in chapter “Specification/ Data
table”.
!Material losses
Operate the appliance only with pressure-tested taps.
9.3.2 Connection
 Flush the pipework thoroughly.
 Observe the information in the installation instructions of the
safety assembly.
 Connect the DHW outlet and the cold water inlet lines with
the safety assembly. Please note that, depending on the stat-
ic pressure, you may also need a pressure reducing valve.
 Size the drain so that water can drain off unimpeded when
the safety valve is fully opened. The safety valve discharge
aperture must remain open to the atmosphere.
 Install the discharge pipe of the safety assembly with a con-
stant slope.

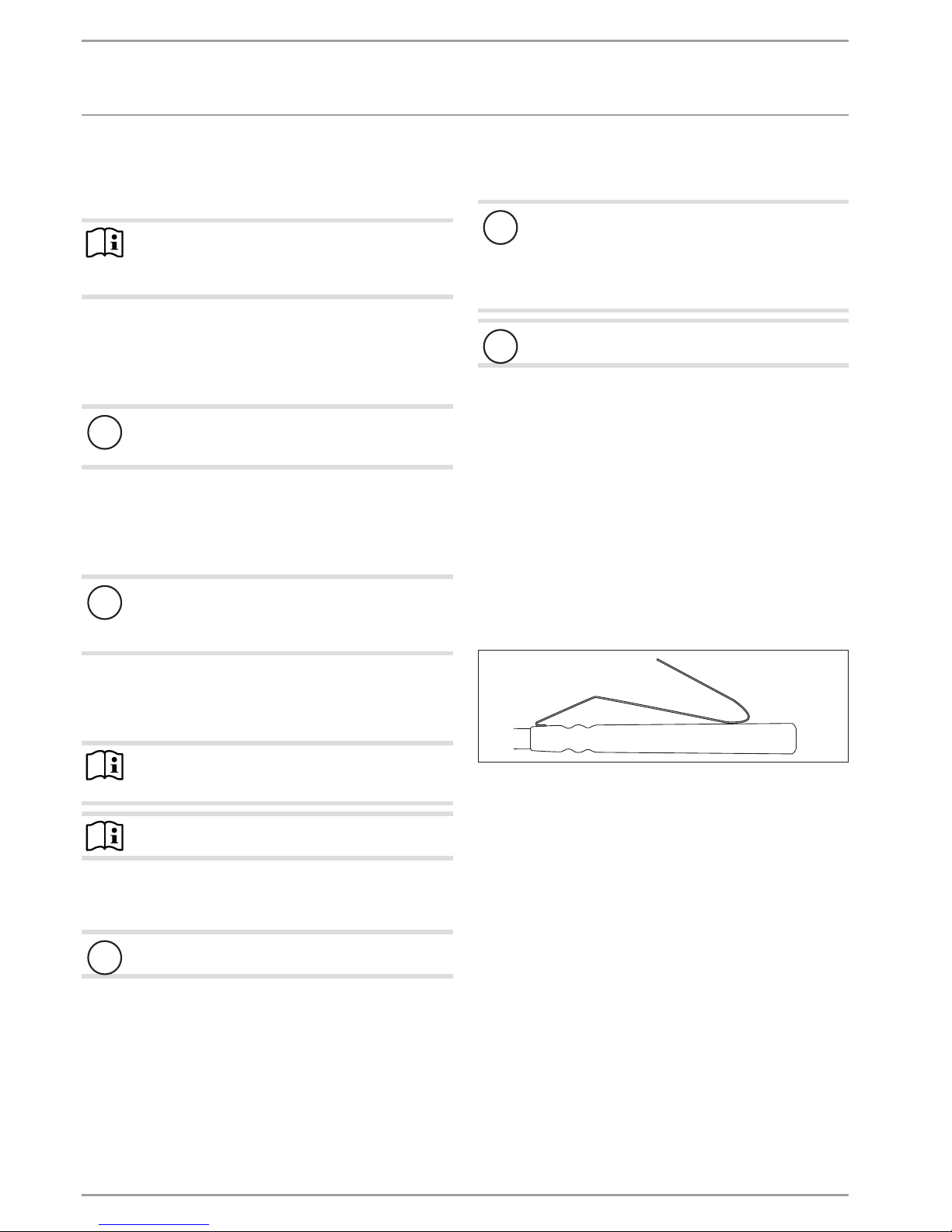

9.4 Temperature sensors
D0000046061
 Bend the springs of the DHW sensor.
 Insert the DHW sensor as far as it will go into the well for the
heat pump flow sensor (recommended energy saving posi-
tion) or heat pump return sensor (high DHW convenience).
 Fit the sensors for the control units used according to the rel-
evant installation instructions (for sensor wells, see chapter
"Specification / Dimensions and connections").
 Route the connecting cable/lead to the heat pump control
unit.

ENGLISH
www.stiebel-eltron.com SBB WP Trend | 17
INSTALLATION
Commissioning
10. Commissioning
10.1 Initial start-up
 Open a downstream draw-off point until the appliance has
filled up and the pipes are free of air.
 Vent the internal indirect coil.
 Fit the accessories and check them if necessary.
 Check the function of the safety valve.
 Check that the DHW temperature on the heat pump control
unit is displayed correctly.
10.1.1 Appliance handover
 Explain the appliance function to users and familiarise them
with its operation.
 Make users aware of potential dangers, especially the risk of
scalding.
 Hand over these instructions.
10.2 Recommissioning
See chapter "Initial start-up".
11. Shutting down the system
 If necessary, disconnect any accessories installed from the
mains at the MCB/fuse in the fuse box.
 Drain the appliance. See chapter "Maintenance/ Draining the
appliance".
12. Troubleshooting
Fault Cause Remedy
The safety valve drips when
heating is switched off.
The valve seat is con-
taminated.
Clean the valve seat.
13. Maintenance
WARNING Electrocution Carry out all electrical connection and installation work
in accordance with relevant regulations.
If you need to drain the appliance, observe chapter "Draining the
appliance".
13.1 Checking the safety valve
 Regularly vent the safety valve on the safety assembly until a
full water jet is discharged.
13.2 Checking / replacing the protective anode
 Check the protective anode after the first 2 years of use and
replace if necessary. For this, observe the maximum tran-
sient resistance 0.3 Ω between the protective anode and the
cylinder.
 Afterwards determine the time intervals at which further
checks should be carried out.
13.3 Draining the appliance
WARNING Burns Hot water may escape during the draining process.
 Close the shut-off valve in the cold water supply line.
 Open the hot water taps on all draw-off points.
 Drain the appliance via the drain valve.
13.4 Cleaning and descaling the appliance
For the torque of the flange screws, see chapter "Specification /
Dimensions and connections".
 Never use descaling pumps.
 Never treat the cylinder surface or the protective anode with
descaling agents.

18 | SBB WP Trend www.stiebel-eltron.com
INSTALLATION
Maintenance
14. Specification
14.1 Dimensions and connections

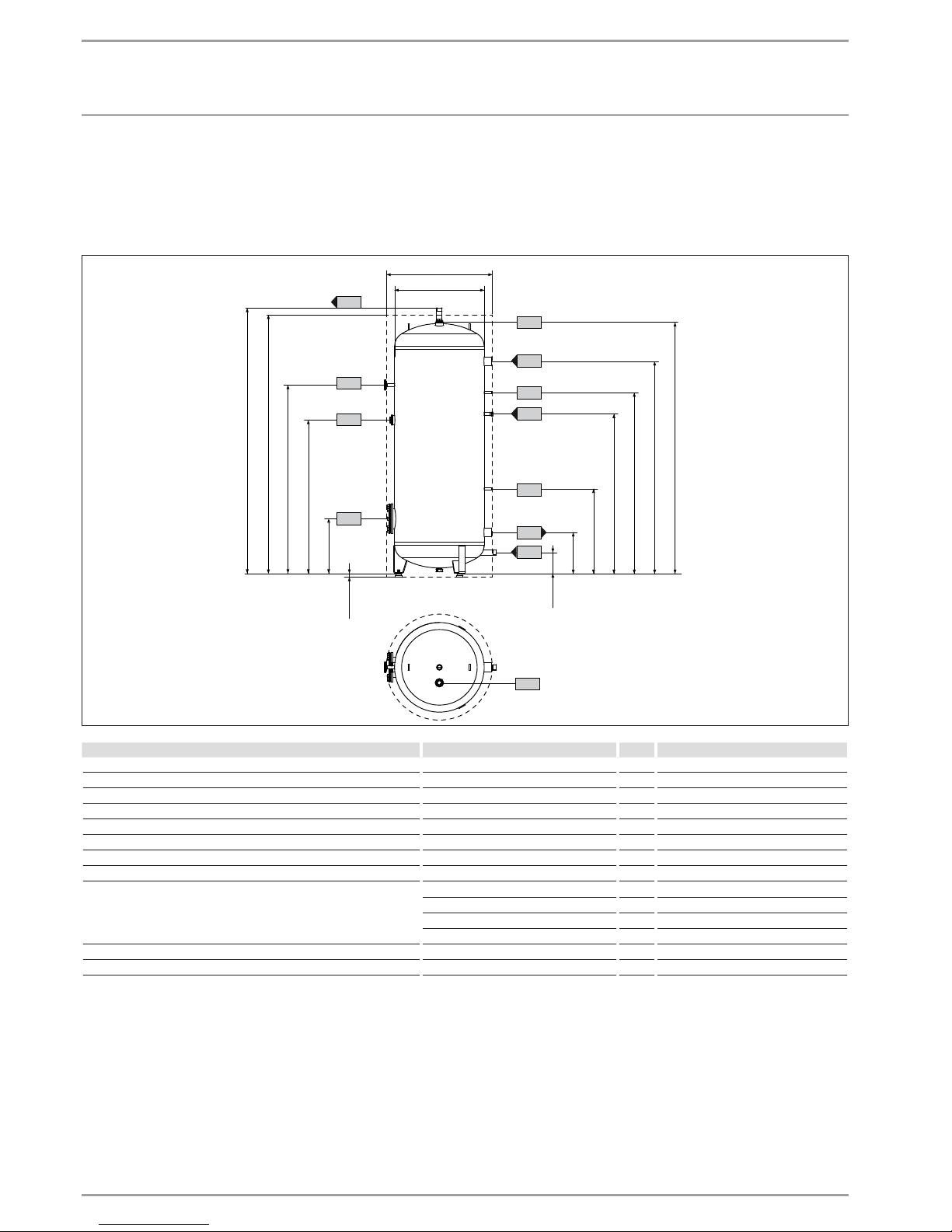

SBB 300 WP Trend
1630
1157
942
337
550
650
1302
1110
979
520
252
129
1541
h43
h05
i07
h06
i01
d01
c01
c06
d02
c10
1590
22-34
i18
i18
D0000042976
SBB 300 WP Trend
c01 Cold water inlet Male thread G 1 A
c06 DHW outlet Male thread G 1 A
c10 DHW circulation Male thread G 1/2 A
d01 Heat pump flow Female thread G 1 1/2
d02 Heat pump return Female thread G 1 1/2
h05 Sensor heat pump DHW Diameter mm 9.5
h06 Sensor heat pump DHW optional Diameter mm 9.5
h43 Thermometer Diameter mm 9.5
i01 Flange Diameter mm 180
Pitch circle diameter mm 150
Screws M 12
Torque Nm 25
i07 Electric emergency/booster heater Female thread G 1 1/2
i18 Protective anode Female thread G 1 1/4

ENGLISH
www.stiebel-eltron.com SBB WP Trend | 19
INSTALLATION
Maintenance

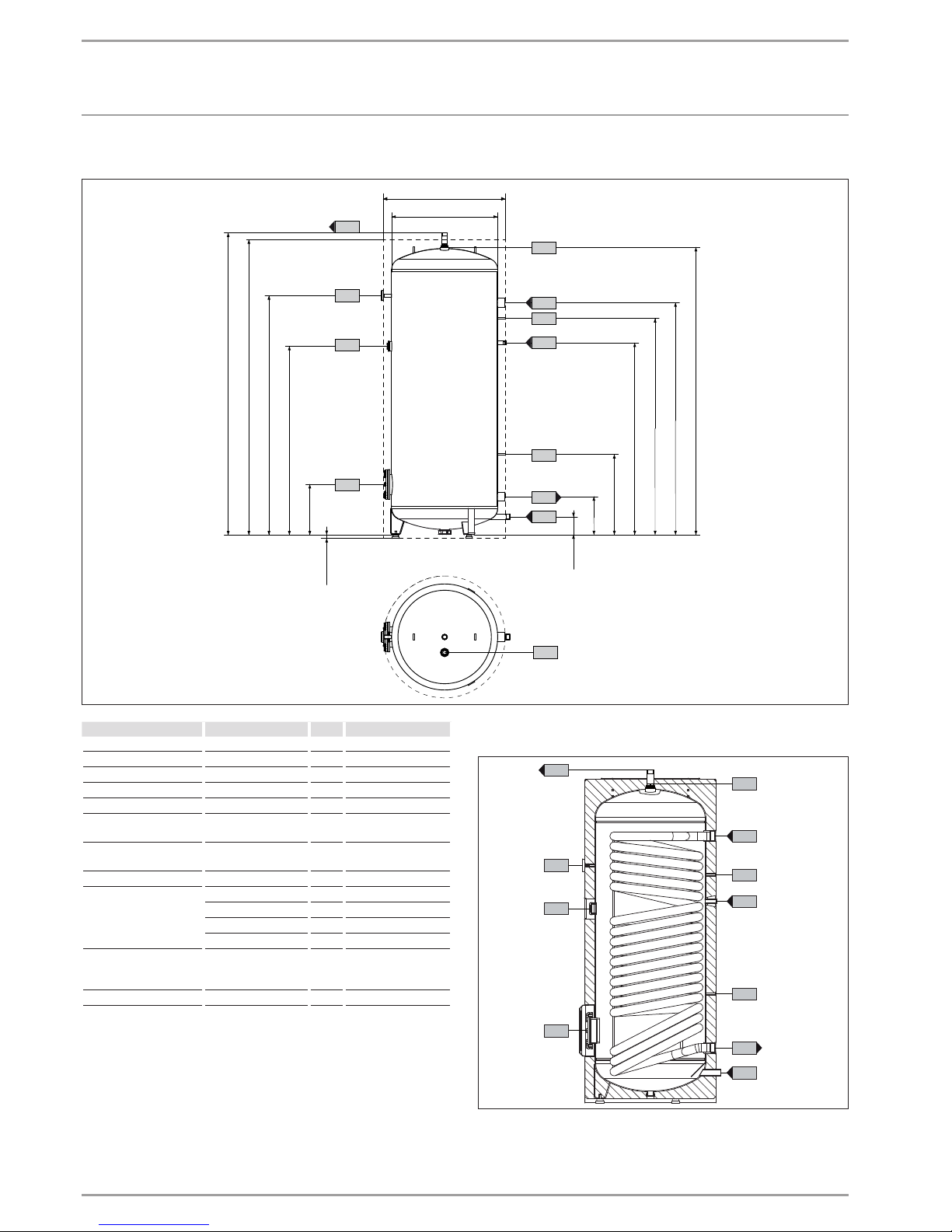

SBB 400 WP Trend
1504 1544
750
650
22-34
308
875
1098
110
233
492
995
1075
1246
h43
h05
i07
h06
i01
d01
c01
c06
d02
c10
1456
i18
i18
D0000042977
SBB 400 WP Trend
c01 Cold water inlet Male thread G 1 A
c06 DHW outlet Male thread G 1 A
c10 DHW circulation Male thread G 1/2 A
d01 Heat pump flow Female thread G 1 1/2
d02 Heat pump return Female thread G 1 1/2
h05 Sensor heat pump DHW Diameter mm 9.5
h06 Sensor heat pump DHW optional Diameter mm 9.5
h43 Thermometer Diameter mm 9.5
i01 Flange Diameter mm 180
Pitch circle diameter mm 150
Screws M 12
Torque Nm 25
i07 Electric emergency/booster heater Female thread G 1 1/2
i18 Protective anode Female thread G 1 1/4

20 | SBB WP Trend www.stiebel-eltron.com
INSTALLATION
Maintenance
GUARANTEE
ENVIRONMENT AND RECYCLING
SBB 500 WP Trend
1761
1421
1325
1175
492
233
110
1849
1465
1155
308
22-34
650
1809
750
h05
c10
d02
c01
d01
c06
h43
i07
i01
h06
i18
i18
D0000042978
SBB 500 WP Trend
c01 Cold water inlet Male thread G 1 A
c06 DHW outlet Male thread G 1 A
c10 DHW circulation Male thread G 1/2 A
d01 Heat pump flow Female thread G 1 1/2
d02 Heat pump return Female thread G 1 1/2
h05 Sensor heat pump
DHW
Diameter mm 9.5
h06 Sensor heat pump
DHW optional
Diameter mm 9.5
h43 Thermometer Diameter mm 9.5
i01 Flange Diameter mm 180
Pitch circle diameter mm 150
Screws M 12
Torque Nm 25
i07 Electric
emergency/
booster heater
Female thread G 1 1/2
i18 Protective anode Female thread G 1 1/4
Sectional view
h05
h06
c01
d02
c10
d01
i18
h43
i07
c06
i01
D0000043056

ENGLISH
www.stiebel-eltron.com SBB WP Trend | 21
INSTALLATION | GUARANTEE | ENVIRONMENT AND RECYCLING
Maintenance
Guarantee
The guarantee conditions of our German companies do not
apply to appliances acquired outside of Germany. In countries
where our subsidiaries sell our products a guarantee can only
be issued by those subsidiaries. Such guarantee is only grant-
ed if the subsidiary has issued its own terms of guarantee. No
other guarantee will be granted.
We shall not provide any guarantee for appliances acquired in
countries where we have no subsidiary to sell our products.
This will not aect warranties issued by any importers.
Environment and recycling
We would ask you to help protect the environment. After use,
dispose of the various materials in accordance with national
regulations.
GUARANTEE
ENVIRONMENT AND RECYCLING
14.2 Details on energy consumption
The product data complies with EU regulations relating to the Directive on the ecological design of energy related products (ErP).
SBB 300 WP Trend SBB 400 WP Trend SBB 500 WP Trend
233487 233488 233489
Manufacturer STIEBEL ELTRON STIEBEL ELTRON STIEBEL ELTRON
Energy efficiency class C C
Standby losses W99 108 117
Cylinder capacity l313 415 512
14.3 Data table
SBB 300 WP Trend SBB 400 WP Trend SBB 500 WP Trend
233487 233488 233489
Hydraulic data
Nominal capacity l287 390 481
Capacity, upper indirect coil l25.5 25.0 31.0
Surface area, upper indirect coil m² 3.2 5.1 6.1
Pressure drop at 1.0 m³/h, upper indirect coil hPa 39 60 72
Amount of mixed water at 40°C (15°C/60°C) l 519 669 818
Application limits
Max. permissible pressure MPa 111
Test pressure MPa 1.5 1.5 1.5
Max. permissible temperature °C 95 95 95
Max. flow rate l/min 38 45 50
Energy data
Standby energy consumption/24 h at 65°C kWh 2.4 2.6 2.8
Energy efficiency class C C
Dimensions
Height mm 1652 1565 1871
Diameter mm 650 750 750
Height when tilted mm 1730 1700 1970
Weights
Weight, full kg 435 581 706
Weight, empty kg 146 195 230



Deutschland
STIEBEL ELTRON GmbH & Co. KG
Dr.-Stiebel-Straße 33 | 37603 Holzminden
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.de
Verkauf Tel. [phone] | Fax [phone] | [email protected]
Kundendienst Tel. [phone] | Fax [phone] | [email protected]
Ersatzteilverkauf Tel. [phone] | Fax [phone] | [email protected]
Irrtum und technische Änderungen vorbehalten! | Subject to errors and technical changes! | Sous réserve
d‘erreurs et de modifications techniques! | Onder voorbehoud van ver
g
issin
g
en en technische wi
j
zi
g
in
g
en! |
Salvo error o modificación técnica! | Excepto erro ou alteração técnica | Zastrzeżone zmian
y
techniczne i
ewentualne błędy | Omyly a technické změny jsou vyhrazeny! | A muszaki változtatások és tévedések
j
o
g
át
fenntartjuk! | Отсутствие ошибок не гарантируется. Возможны технические изменения. | Ch
y
b
y
a
technické zmeny sú vyhradené! Stand 9147
Australia
STIEBEL ELTRON Australia Pty. Ltd.
6 Prohasky Street | Port Melbourne VIC 3207
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel.com.au
Austria
STIEBEL ELTRON Ges.m.b.H.
Gewerbegebiet Neubau-Nord
Margaritenstraße 4 A | 4063 Hörsching
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.at
Belgium
STIEBEL ELTRON bvba/sprl
't Hofveld 6 - D1 | 1702 Groot-Bijgaarden
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.be
China
STIEBEL ELTRON (Guangzhou) Electric
Appliance Co., Ltd.
Rm 102, F1, Yingbin-Yihao Mansion, No. 1
Yingbin Road
Panyu District | 511431 Guangzhou
Tel. [phone] | Fax [phone]
[e-mail]
www.stiebeleltron.cn
Czech Republic
STIEBEL ELTRON spol. s r.o.
K Hájům 946 | 155 00 Praha 5 - Stodůlky
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.cz
Finland
STIEBEL ELTRON OY
Kapinakuja 1 | 04600 Mäntsälä
Tel. [phone]
[email protected]
www.stiebel-eltron.fi
France
STIEBEL ELTRON SAS
7-9, rue des Selliers
B.P 85107 | 57073 Metz-Cédex 3
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.fr
Hungary
STIEBEL ELTRON Kft.
Gyár u. 2 | 2040 Budaörs
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.hu
Japan
NIHON STIEBEL Co. Ltd.
Kowa Kawasaki Nishiguchi Building 8F
66-2 Horikawa-Cho
Saiwai-Ku | 212-0013 Kawasaki
Tel. [phone] | Fax [phone]
[email protected]
www.nihonstiebel.co.jp
Netherlands
STIEBEL ELTRON Nederland B.V.
Daviottenweg 36 | 5222 BH 's-Hertogenbosch
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.nl
Poland
STIEBEL ELTRON Polska Sp. z O.O.
ul. Działkowa 2 | 02-234 Warszawa
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.pl
Russia
STIEBEL ELTRON LLC RUSSIA
Urzhumskaya street 4,
building 2 | 129343 Moscow
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.ru
Slovakia
TATRAMAT - ohrievače vody s.r.o.
Hlavná 1 | 058 01 Poprad
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.sk
Switzerland
STIEBEL ELTRON AG
Industrie West
Gass 8 | 5242 Lupfig
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.ch
Thailand
STIEBEL ELTRON Asia Ltd.
469 Moo 2 Tambol Klong-Jik
Amphur Bangpa-In | 13160 Ayutthaya
Tel. [phone] | Fax [phone]
[e-mail]
www.stiebeleltronasia.com
United Kingdom and Ireland
STIEBEL ELTRON UK Ltd.
Unit 12 Stadium Court
Stadium Road | CH62 3RP Bromborough
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.co.uk
United States of America
STIEBEL ELTRON, Inc.
17 West Street | 01088 West Hatfield MA
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron-usa.com
A 314452-40382-9272
4<AMHCMO=beefcg>
