CONTENTS | OPERATION
General information
OPERATION
1. General information ��������������������������������������� 14
1.1 Safety instructions���������������������������������������������� 14
1.2 Other symbols in this documentation ���������������������� 15
1.3 Units of measurement ����������������������������������������� 15
2. Safety�������������������������������������������������������� 15
2.1 Intended use����������������������������������������������������� 15
2.2 Safety instructions���������������������������������������������� 15
2.3 Prüfzeichen ������������������������������������������������������ 15
3. Appliance description ������������������������������������� 15
4. Cleaning, care and maintenance ������������������������� 16
4.1 Signal anode consumption indicator ����������������������� 16
4.2 Scaling ������������������������������������������������������������ 16
5. Troubleshooting �������������������������������������������� 16
INSTALLATION
6. Safety�������������������������������������������������������� 17
6.1 General safety instructions ����������������������������������� 17
6.2 Regulations, standards and instructions������������������� 17
6.3 Water installation����������������������������������������������� 17
7. Appliance description ������������������������������������� 17
7.1 Standard delivery����������������������������������������������� 17
7.2 Accessories������������������������������������������������������� 17
8. Preparations������������������������������������������������ 17
8.1 Installation site�������������������������������������������������� 17
8.2 Transport ��������������������������������������������������������� 18
9. Preparing for installation ��������������������������������� 18
9.1 Removing / fitting the cylinder casing ��������������������� 18
9.2 Checking the signal anode������������������������������������ 18
9.3 Heating installation �������������������������������������������� 18
9.4 Fitting the water connection and the safety assembly�� 19
9.5 Fitting the thermometer and DHW sensor����������������� 19
10. Commissioning ��������������������������������������������� 19
10.1 Appliance handover �������������������������������������������� 19
11. Shutting down���������������������������������������������� 19
12. Troubleshooting �������������������������������������������� 19
12.1 Fault table�������������������������������������������������������� 19
13. Maintenance ������������������������������������������������ 20
13.1 Checking the safety valve ������������������������������������� 20
13.2 Draining the appliance ���������������������������������������� 20
13.3 Replacing the signal anode����������������������������������� 20
13.4 Cleaning and descaling the appliance����������������������20
14. Specification ������������������������������������������������ 20
14.1 Dimensions and connections��������������������������������� 20
14.2 Details on energy consumption������������������������������ 24
14.3 Specification ����������������������������������������������������� 24
GUARANTEE
ENVIRONMENT AND RECYCLING
OPERATION
1. General information
The chapter “Operation” is intended for appliance users and heat-
ing contractors.
The chapter “Installation” is intended for heating contractors.
Note Read these instructions carefully before using the appli-
ance and retain them for future reference.
Pass on the instructions to a new user if required.
1.1 Safety instructions
1.1.1 Structure of safety instructions
!KEYWORD Type of risk
Here, possible consequences are listed that may result
from failure to observe the safety instructions.
 Steps to prevent the risk are listed.
1.1.2 Symbols, type of risk
Symbol Type of risk
Injury
Electrocution
Burns
(burns, scalding)
1.1.3 Keywords
KEYWORD Meaning
DANGER Failure to observe this information will result in serious
injury or death.
WARNING Failure to observe this information may result in serious
injury or death.
CAUTION Failure to observe this information may result in non-
serious or minor injury.
!

OPERATION
Safety
ENGLISH
www.stiebel-eltron.com SBB 301-501 WP SOL | 15
1.2 Other symbols in this documentation
Note General information is identified by the symbol shown
on the left.
 Read these texts carefully.
Symbol Meaning
Material losses
(appliance, consequential, environment)
Appliance disposal
 This symbol indicates that you have to do something. The ac-
tion you need to take is described step by step.
1.3 Units of measurement
Note All measurements are given in mm unless stated oth-
erwise.
2. Safety
2.1 Intended use
The appliance is specifically designed for heating DHW with heat
pumps.
Any other use beyond that described shall be deemed inappropri-
ate. Observation of these instructions is also part of the correct
use of this appliance. Any modifications or conversions to the
appliance void all warranty rights.
2.2 Safety instructions
WARNING Burns There is a risk of scalding at outlet temperatures in ex-
cess of 43 °C.
!WARNING Injury
The appliance may be used by children aged 8 and up
and persons with reduced physical, sensory or mental
capabilities or a lack of experience provided that they
are supervised or they have been instructed on how to
use the appliance safely and have understood the result-
ing risks. Children must never play with the appliance.
Children must never clean the appliance or perform user
maintenance unless they are supervised.
Note The appliance is under pressure.
During the heating process, expansion water will drip
from the safety valve. If water continues to drip when
heating is completed, please inform your heating con-
tractor.
2.3 Prüfzeichen
See type plate on the appliance.
3. Appliance description
The heat from the heat pump‘s heating water is transferred to the
DHW by smooth-tube indirect coil.
The internal steel cylinder is coated in “anticor®” enamel and
is equipped with a thermometer and a signal anode. The anode
with consumption indicator protects the internal cylinder from
corrosion.
SBB 401 WP SOL | SBB 501 WP SOL
These appliances are also equipped with a second indirect coil for
DHW heating with solar energy.
!

OPERATION
Cleaning, care and maintenance
16 | SBB 301-501 WP SOL www.stiebel-eltron.com
4. Cleaning, care and maintenance
 Have the function of the safety assembly and electrical safety
of the fitted accessories regularly checked by a qualified
contractor.
 Never use abrasive or corrosive cleaning agents. A damp
cloth is sufficient for cleaning the appliance.
4.1 Signal anode consumption indicator
!Material losses
If the consumption indicator changes colour from white to
red, have the signal anode checked by a heating contrac-
tor and if necessary replaced.

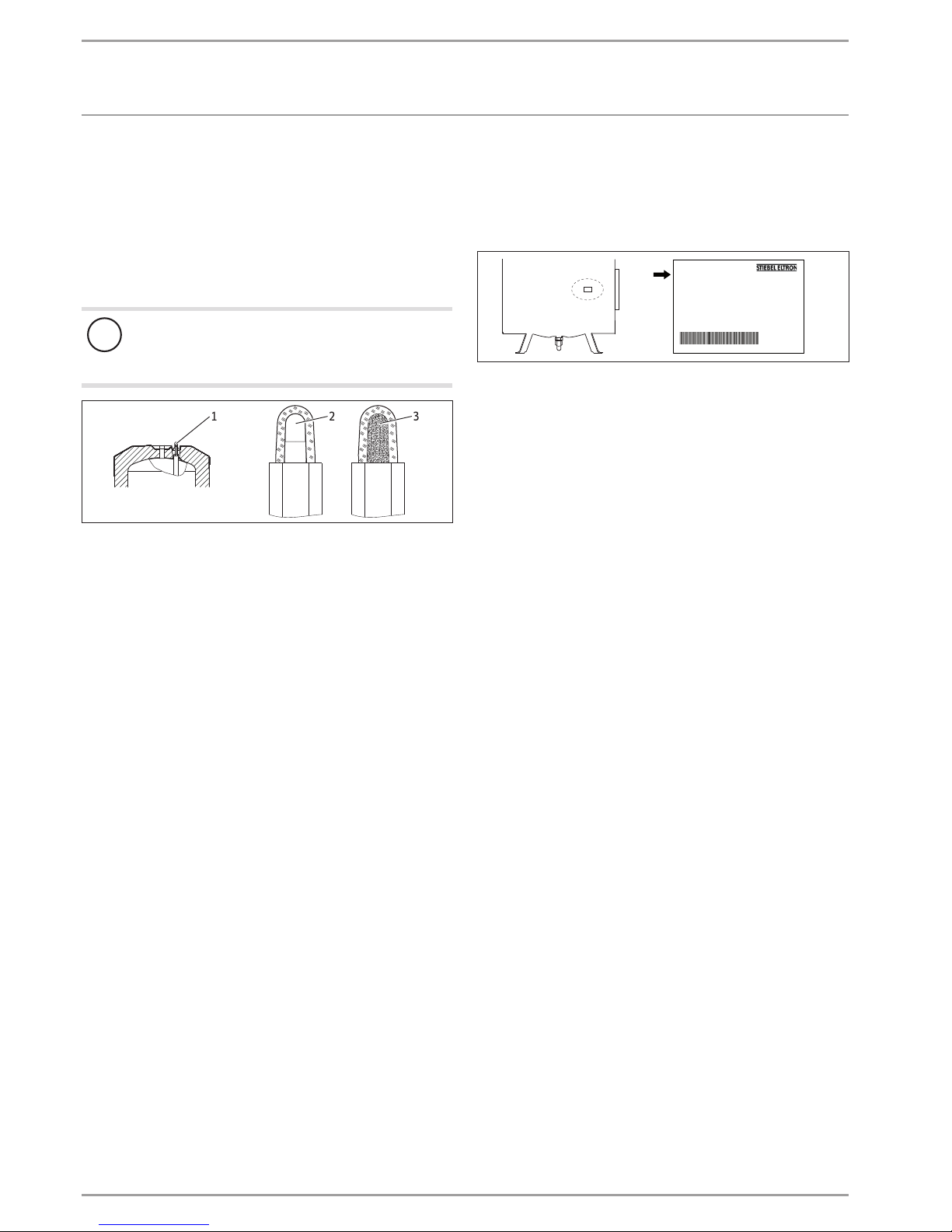

26�03�20�0001
23 1
1 Signal anode consumption indicator
2 white = anode OK
3 Red = check by heating contractor required
4.2 Scaling
 Almost every type of water deposits limescale at high tem-
peratures. This settles inside the appliance and affects both
the performance and service life. If a flanged immersion
heater is installed, the heating elements must be descaled
from time to time. A heating contractor who knows the local
water quality will tell you when the next service is due.
 Check the taps/valves regularly. You can remove limescale
deposits at the tap outlets using commercially available des-
caling agents.
5. Troubleshooting
Telephone your contractor.
To facilitate and speed up your enquiry, please provide the serial
number from the type plate (000000-0000-000000):
Nr.: 000000 - 0000 - 000000
Made in Germany
26�03�20�0002

ENGLISH
www.stiebel-eltron.com SBB 301-501 WP SOL | 17
INSTALLATION
Safety
INSTALLATION
6. Safety
Only a qualified contractor should carry out installation, commis-
sioning, maintenance and repair of the appliance.
6.1 General safety instructions
We guarantee trouble-free operation and operational reliability
only if the original accessories and spare parts intended for the
appliance are used.
6.2 Regulations, standards and instructions
Note Observe all applicable national and regional regulations
and instructions.
6.3 Water installation
6.3.1 Cold water line
Steel or copper pipes or plastic pipework are approved materials.
A safety valve is required.
6.3.2 DHW line
Copper, stainless steel or plastic pipework are approved materials.
!Material losses
If a flanged immersion heater is fitted and plastic pipe-
work systems are used at the same time, observe the
maximum permissible temperature/ the maximum per-
missible pressure in chapter “Specification/ Data table”.
Operate the appliance only with pressure-tested taps and valves.
7. Appliance description
7.1 Standard delivery
Delivered with the appliance:
- Cold water inlet pipe with flat gasket
- Adhesive rosettes for connecting lines
- DHW sensor
- Adjustable feet
- Fixing straps with closure element
- Thermometer (in its delivered condition located in the DHW
outlet)
- Adaptor with flat gasket for connecting a DHW circulation line
7.2 Accessories
Depending on the static pressure, safety assemblies and pressure
reducing valves are available. These type-tested safety assemblies
protect the appliance against unacceptable excess pressure.
If it is not possible to fit an anode rod from above, install a seg-
mented signal anode.
Flanged immersion heaters are available as accessories.
8. Preparations
8.1 Installation site
Always install the appliance in a room free from the risk of frost
and near the draw-off point.

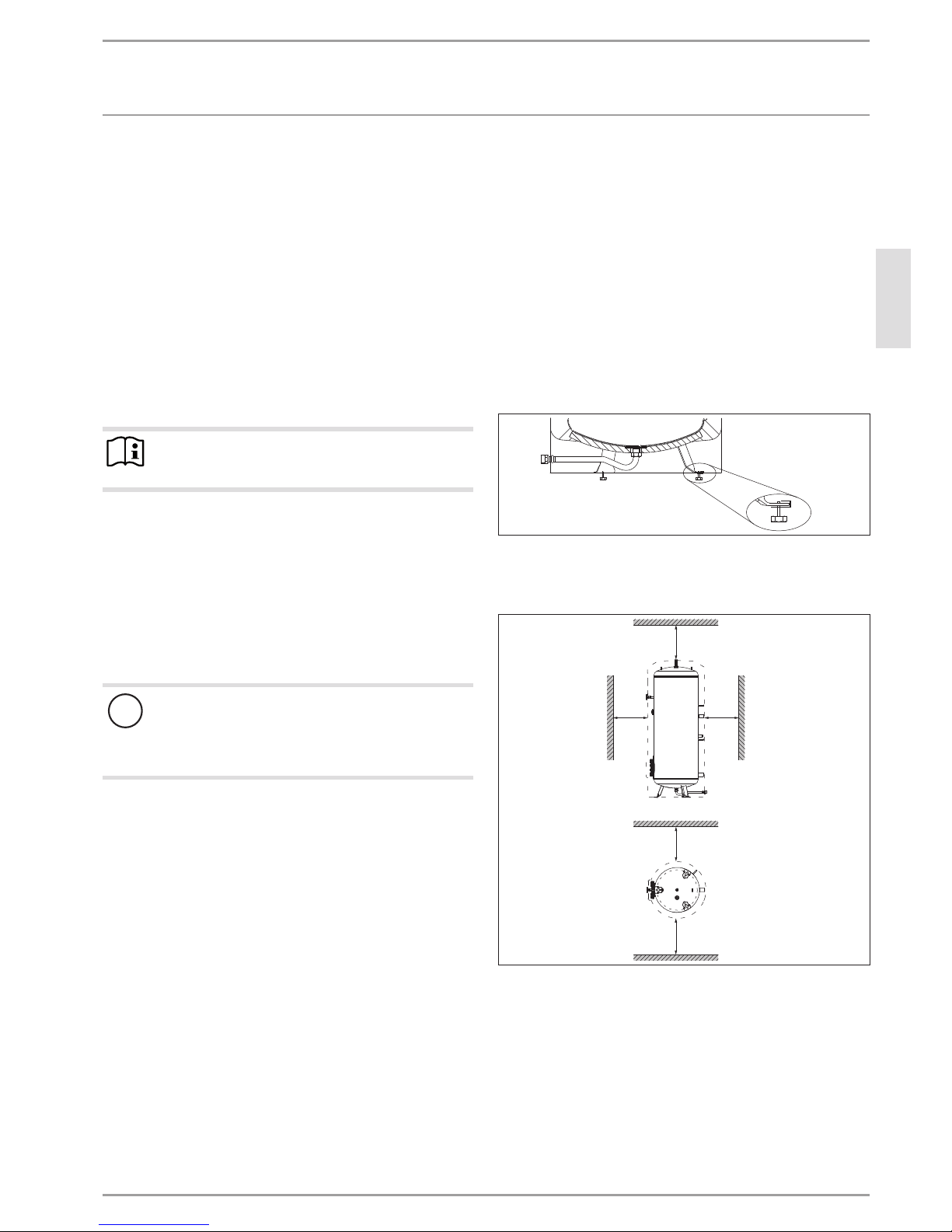

26�03�20�0008
 Use the adjustable feet to compensate for any unevenness in
the floor.
Minimum clearances
≥500 ≥300
≥300≥800
≥100
D0000061251
 Maintain the minimum clearances.

18 | SBB 301-501 WP SOL www.stiebel-eltron.com
INSTALLATION
Preparing for installation
8.2 Transport
!Material losses
We recommend removing the cylinder casing for trans-
portation to the installation location to prevent it from
becoming dirty or damaged.
SBB 501 WP SOL
 Both side insulation sections can be removed for transporta-
tion in tight spaces. To do this, remove the cylinder casing.

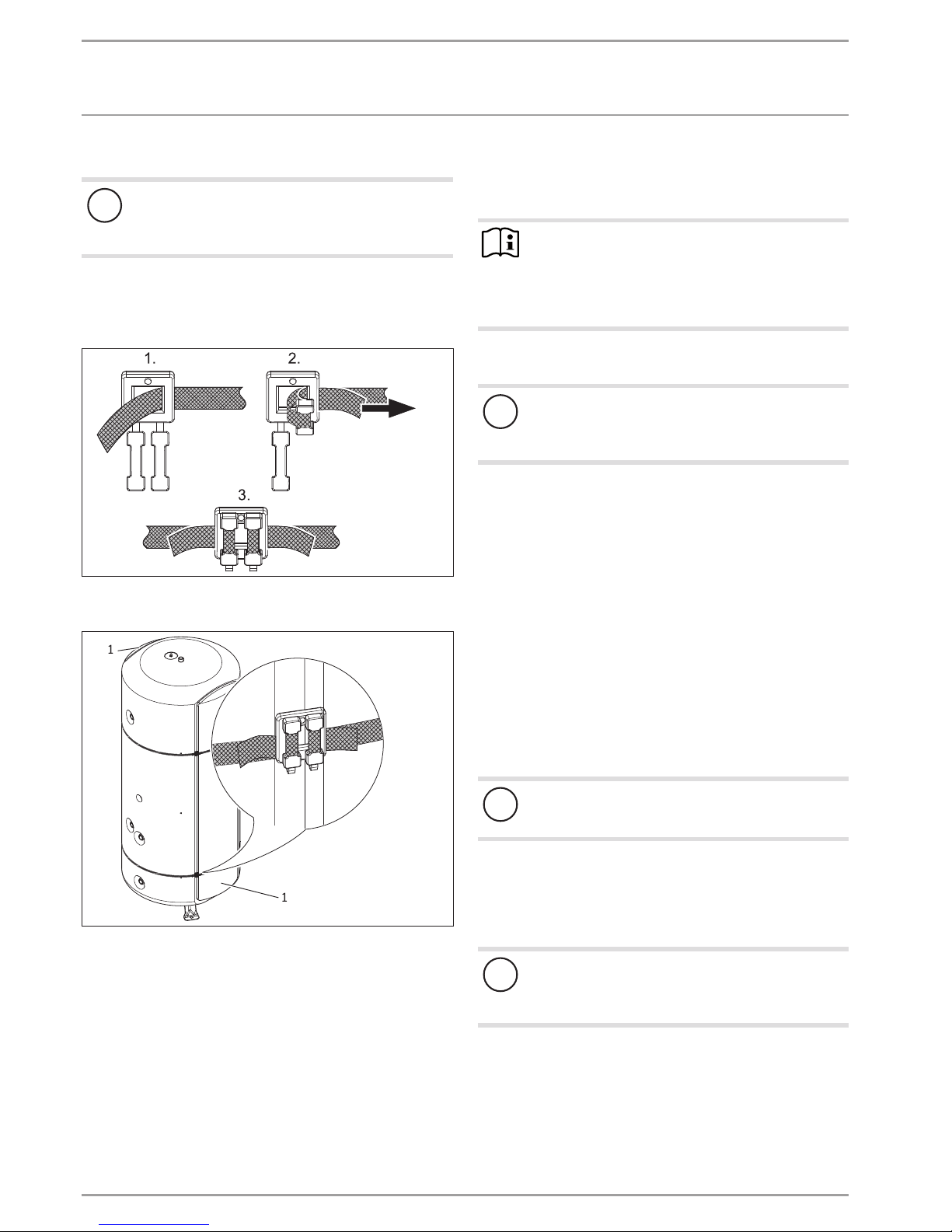

26�03�20�0003
 Use the fixing straps to refit the thermal insulation sections
after transportation.
26�03�20�0004
1
1
1 Side thermal insulation section
 Ensure that the closures are in the joint between a side
thermal insulation section and the thermal insulation of the
cylinder.
9. Preparing for installation
9.1 Removing / fitting the cylinder casing
Note Open or remove the cylinder casing before fitting the DHW
circulation and indirect coil lines.
Fit the cylinder casing before fitting a flanged immersion
heater.
The plinth trim should be fitted after the tightness check.
9.2 Checking the signal anode
!Material losses
The appliance must not be operated without a consump-
tion indicator or with a damaged one, otherwise water
will leak out once the anode is depleted.
9.3 Heating installation
 Flush the indirect coils with water before connecting the
heating water pipes.
SBB401WPSOL | SBB 501 WP SOL without solar installation
 You may connect both indirect coils to the “heat pump heat-
ing return” and “solar flow” (see chapter “Specification /
Dimensions and connections”).
9.3.1 Water quality, solar circuit
A glycol/water mixture of up to 60% is permitted for the indirect
coil in the solar circuit if only dezincification-resistant metals,
glycol-resistant gaskets and diaphragm expansion vessels suitable
for glycol are used throughout the installation.
9.3.2 Oxygen diffusion
!Material losses
Avoid open heating systems and plastic pipes in under-
floor heating systems which are permeable to oxygen.
In underfloor heating systems with plastic pipes that are per-
meable to oxygen and in open vented heating systems, oxygen
diffusion may lead to corrosion on the steel components of the
heating system (e.g. on the indirect coil of the DHW cylinder, on
buffer cylinders, steel heating elements or steel pipes).
!Material losses
The products of corrosion (e.g. rusty sludge) can settle in
the heating system components and can result in a lower
output or fault shutdowns due to reduced cross-sections.

ENGLISH
www.stiebel-eltron.com SBB 301-501 WP SOL | 19
INSTALLATION
Commissioning
9.4 Fitting the water connection and the safety
assembly
Note Carry out all water connection and installation work in
accordance with regulations.
 Flush the line thoroughly.
 A DHW circulation line can be fitted to the “DHW circulation”
connection (see chapter “Specification/ Dimensions and con-
nections”). Insert the adaptor supplied with flat gasket and
an extension.
 Connect the DHW outlet and the cold water inlet lines with
the safety assembly. Bear in mind that, depending on the
static pressure, you may also need a pressure reducing valve.
26�02�09�0035
1 2
1 Cold water connection
2 Cold water inlet pipe
 Connect the cold water supply directly to the cylinder or with
the connecting pipe routed between the cylinder feet.
 During fitting, counterhold the fitting with an open-ended
spanner (size 36).
 Check the rigidity of the connecting pipe and secure it further
if required.
 Size the drain so that water can drain off unimpeded when
the safety valve is fully opened. The blow-off aperture of the
safety valve must remain open to the atmosphere.
 Fit the blow-off line of the safety assembly with a constant
slope.
 Observe the information in the installation instructions of the
safety assembly.
9.5 Fitting the thermometer and DHW sensor
26�03�20�0005
1
1 Thermometer
 Insert the thermometer as far as it will go and align it.
 Insert the DHW sensor as far as it will go into the well for the
heat pump flow sensor (recommended energy saving posi-
tion) or heat pump return sensor (high DHW convenience).
10. Commissioning
 Open a downstream draw-off point until the appliance has
filled up and the pipes are free of air.
 Vent the indirect coils after filling the heat pump system.
 Fit the accessories and check them if necessary.
 Check the function of the safety valve.
 Check that the DHW temperature on the heat pump control
unit is displayed correctly.
10.1 Appliance handover
 Explain the appliance function to users and familiarise them
with its operation.
 Make users aware of potential dangers, especially the risk of
scalding.
 Hand over these instructions.
11. Shutting down
 Disconnect the appliance from the mains at the MCB/fuse in
the fuse box.
 Drain the appliance. See chapter “Maintenance / Draining the
appliance”.
12. Troubleshooting
12.1 Fault table
Fault Cause Remedy
The safety valve drips
when the heating is
switched off.
The valve seat is con-
taminated.
Clean the valve seat.

20 | SBB 301-501 WP SOL www.stiebel-eltron.com
INSTALLATION
Maintenance
13. Maintenance
WARNING Electrocution Carry out all electrical connection and installation work
in accordance with relevant regulations.
If you need to drain the appliance, observe chapter “Draining the
appliance”.
13.1 Checking the safety valve
 Regularly vent the safety valve on the safety assembly until a
full water jet is discharged.
13.2 Draining the appliance
WARNING Burns Hot water may escape during the draining process.
If the cylinder needs to be drained for maintenance or to protect
the whole installation when there is a risk of frost, proceed as
follows:
 Close the shut-off valve in the cold water line.
 Open the hot water taps on all draw-off points.
 Drain the appliance via the drain valve of the safety
assembly.
13.3 Replacing the signal anode
 Replace the signal anode if it becomes depleted. Ensure
there is a good connection between the anode and the cylin-
der (maximum permissible transition resistance 0.3Ω).
13.4 Cleaning and descaling the appliance
26�03�01�0847
1
1
1 Threaded extraction holes
 Use the threaded lift-off holes to release the flange plate
from the flange connector.
For the torque of the flange screws, see chapter “Specification /
Dimensions and connections”.
 Never use descaling pumps.
 Never treat the cylinder surface or the signal anode with des-
caling agents.
14. Specification
14.1 Dimensions and connections
SBB 301 WP
i18
c06
d08
c01 c03
d07
c10
i01
i07
h43
h05
h06
D0000017377
c06
d08
c03
d07
c10
h05
h06
c01
i01
i07
h43
D0000039811

ENGLISH
www.stiebel-eltron.com SBB 301-501 WP SOL | 21
INSTALLATION
Specication
SBB 302 WP
i18
c06
c01 c03
c10
i01
i07
h43
h05
h06
d08
d07
D0000017379
SBB 301 WP SBB 302 WP
c01 Cold water inlet Male thread G 1 A G 1 A
c03 Cold water inlet pipe Male thread G 1 A G 1 A
Torque Nm 100 100
c06 DHW outlet Male thread G 1 A G 1 A
c10 DHW circulation Male thread G 1/2 A G 1/2 A
d07 Heat pump heating flow Female thread G 1 1/2 G 1 1/2
d08 Heat pump heating return Female thread G 1 1/2 G 1 1/2
h05 Sensor heat pump DHW Diameter mm 9.5 9.5
h06 Sensor heat pump DHW optional Diameter mm 9.5 9.5
h43 Thermometer Diameter mm 9.5 9.5
i01 Flange Diameter mm 210 210
Pitch circle diameter mm 180 180
Screws M 12 M 12
Torque Nm 55 55
i07 Electric emergency/booster heater Female thread G 1 1/2 G 1 1/2
i18 Protective anode Female thread G 1 1/4 G 1 1/4
c03
c10
h05
h06
c01
i01
i07
h43
c06
d08
d07
D0000039810

22 | SBB 301-501 WP SOL www.stiebel-eltron.com
INSTALLATION
Specication

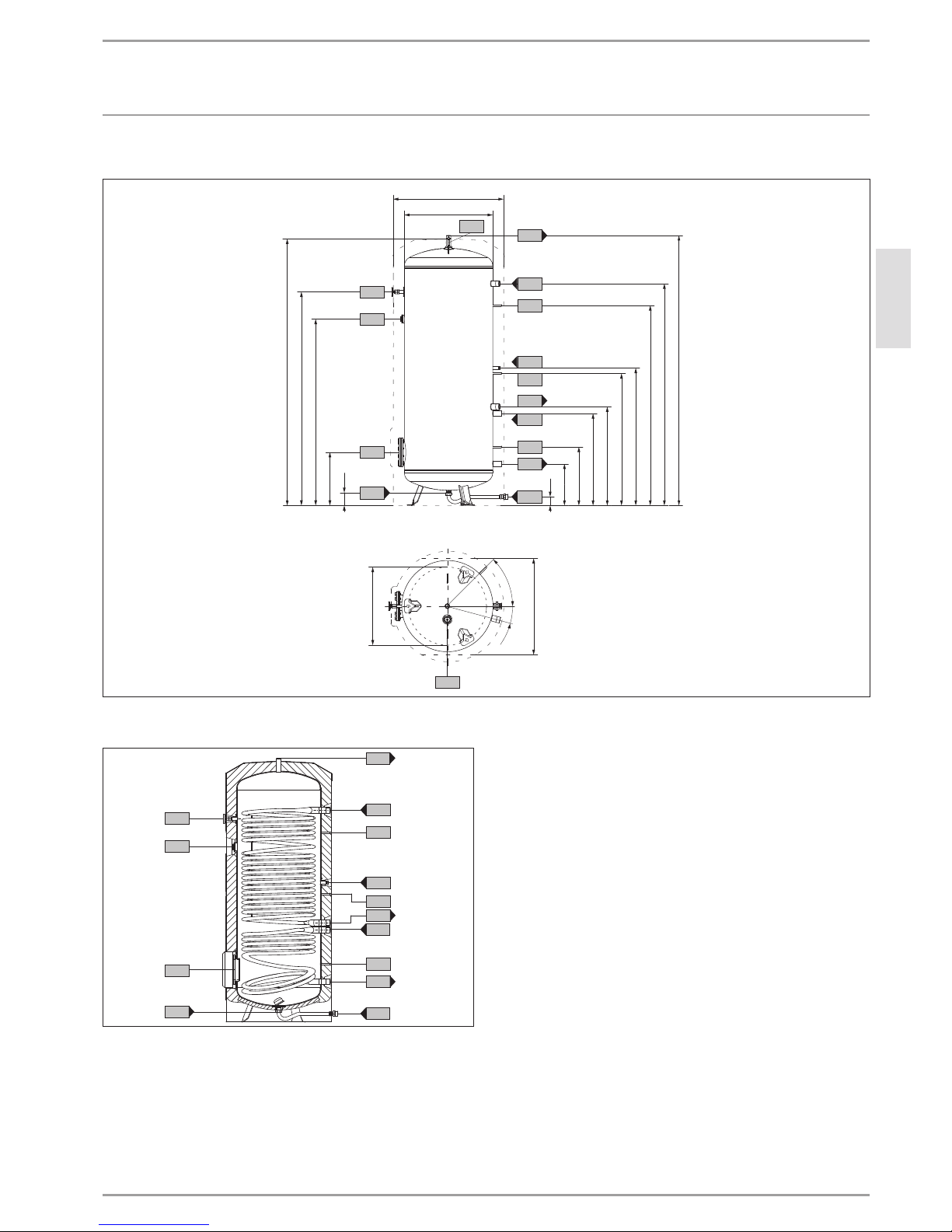

SBB 401 WP SOL
i18
750
c06
d08
d26
c03
d07
c10
d25
c01
i01
i07
h43
h05
h06
h28
D0000017381
SBB 401 WP SOL SBB 501 WP SOL
a23 Appliance Width excl. side insulation sections mm 690
c01 Cold water inlet Male thread G 1 A G 1 A
c03 Cold water inlet pipe Male thread G 1 A G 1 A
Torque Nm 100 100
c06 DHW outlet Male thread G 1 A G 1 A
c10 DHW circulation Male thread G 1/2 A G 1/2 A
d07 Heat pump heating flow Female thread G 1 1/2 G 1 1/2
d08 Heat pump heating return Female thread G 1 1/2 G 1 1/2
d25 Solar flow Female thread G 1 1/2 G 1 1/2
d26 Solar return Female thread G 1 1/2 G 1 1/2
h05 Sensor heat pump DHW Diameter mm 9.5 9.5
h06 Sensor heat pump DHW optional Diameter mm 9.5 9.5
h28 Sensor solar cylinder Diameter mm 9.5 9.5
h43 Thermometer Diameter mm 9.5 9.5
i01 Flange Diameter mm 210 210
Pitch circle diameter mm 180 180
Screws M 12 M 12
Torque Nm 55 55
i07 Electric emergency/booster heater Female thread G 1 1/2 G 1 1/2
i18 Protective anode Female thread G 1 1/4 G 1 1/4

ENGLISH
www.stiebel-eltron.com SBB 301-501 WP SOL | 23
INSTALLATION
Specication
SBB 501 WP SOL
i18
810
650
1570
1372
1860
389
80
50
307
432
677
727
927
1012
1472
1632
1988
690
560
45°
15°
c06
d26
c03
d25
c01
i01
i07
h43
h05
h06
h28
i18
c10
d08
d07
D0000017386
SBB 401 WP SOL | SBB 501 WP SOL
d08
d26
c03
d07
c10
d25
h05
h06
h28
c01
i01
i07
h43
c06
D0000039812

24 | SBB 301-501 WP SOL www.stiebel-eltron.com
INSTALLATION | GUARANTEE | ENVIRONMENT AND RECYCLING
Technische Daten
14.2 Details on energy consumption
Product data complies with EU regulations relating to the Directive on the ecodesign of energy related products (ErP).
SBB 301 WP SBB 302 WP SBB 401 WP SOL SBB 501 WP SOL
221360 221361 221362 227534
Manufacturer STIEBEL ELTRON STIEBEL ELTRON STIEBEL ELTRON STIEBEL ELTRON
Energy efficiency class C C C
Standby losses W88 88 100 100
Cylinder capacity l 321 319 429 536
14.3 Specification
SBB 301 WP SBB 302 WP SBB 401 WP SOL SBB 501 WP SOL
221360 221361 221362 227534
Hydraulic data
Nominal capacity l301 290 395 495
Capacity, upper indirect coil l20 28.4 25.2 31.7
Capacity, lower indirect coil l 9.2 9.2
Surface area, upper indirect coil m² 3.2 4.8 4.0 5.0
Surface area, lower indirect coil m² 1.4 1.4
Pressure drop at 1.0 m³/h, upper indirect coil hPa 37 56 47 58
Pressure drop at 1.0 m³/h, lower indirect coil hPa 17 17
Mixed water volume 40 °C (15 °C/60 °C) l 529 514 681 857
Application limits
Max. permissible pressure MPa 1111
Test pressure MPa 1.5 1.5 1.5 1.5
Max. permissible temperature °C 95 95 95 95
Max. flow rate l/min 38 38 45 50
Max. recommended collector aperture area m² 8 10
Energy data
Energy efficiency category C C C
Standby energy consumption/24h at 65°C kWh 2.1 2.1 2.4 2.4
Dimensions
Height mm 1710 1710 1880 1988
Diameter mm 700 700 750 810
Height when tilted mm 1750 1750 1930 2035
Weights
Weight, full kg 445 457 595 730
Weight, empty kg 142 184 189 222
GUARANTEE
ENVIRONMENT AND RECYCLING
Guarantee
The guarantee conditions of our German companies do not
apply to appliances acquired outside of Germany. In countries
where our subsidiaries sell our products a guarantee can only
be issued by those subsidiaries. Such guarantee is only grant-
ed if the subsidiary has issued its own terms of guarantee. No
other guarantee will be granted.
We shall not provide any guarantee for appliances acquired in
countries where we have no subsidiary to sell our products.
This will not aect warranties issued by any importers.
Environment and recycling
We would ask you to help protect the environment. After use,
dispose of the various materials in accordance with national
regulations.



Deutschland
STIEBEL ELTRON GmbH & Co. KG
Dr.-Stiebel-Straße 33 | 37603 Holzminden
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.de
Verkauf Tel. [phone] | Fax [phone] | [email protected]
Kundendienst Tel. [phone] | Fax [phone] | [email protected]
Ersatzteilverkauf Tel. [phone] | Fax [phone] | [email protected]
Irrtum und technische Änderungen vorbehalten! | Subject to errors and technical changes! | Sous réserve
d‘erreurs et de modifications techniques! | Onder voorbehoud van ver
g
issin
g
en en technische wi
j
zi
g
in
g
en! |
Salvo error o modificación técnica! | Excepto erro ou alteração técnica | Zastrzeżone zmian
y
techniczne i
ewentualne błędy | Omyly a technické změny jsou vyhrazeny! | A muszaki változtatások és tévedések
j
o
g
át
fenntartjuk! | Отсутствие ошибок не гарантируется. Возможны технические изменения. | Ch
y
b
y
a
technické zmeny sú vyhradené! Stand 9046
Australia
STIEBEL ELTRON Australia Pty. Ltd.
6 Prohasky Street | Port Melbourne VIC 3207
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel.com.au
Austria
STIEBEL ELTRON Ges.m.b.H.
Eferdinger Str. 73 | 4600 Wels
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.at
Belgium
STIEBEL ELTRON bvba/sprl
't Hofveld 6 - D1 | 1702 Groot-Bijgaarden
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.be
China
STIEBEL ELTRON (Guangzhou) Electric
Appliance Co., Ltd.
Rm 102, F1, Yingbin-Yihao Mansion, No. 1
Yingbin Road
Panyu District | 511431 Guangzhou
Tel. [phone] | Fax [phone]
[e-mail]
www.stiebeleltron.cn
Czech Republic
STIEBEL ELTRON spol. s r.o.
K Hájům 946 | 155 00 Praha 5 - Stodůlky
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.cz
Finland
STIEBEL ELTRON OY
Kapinakuja 1 | 04600 Mäntsälä
Tel. [phone]
[email protected]
www.stiebel-eltron.fi
France
STIEBEL ELTRON SAS
7-9, rue des Selliers
B.P 85107 | 57073 Metz-Cédex 3
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.fr
Hungary
STIEBEL ELTRON Kft.
Gyár u. 2 | 2040 Budaörs
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.hu
Japan
NIHON STIEBEL Co. Ltd.
Kowa Kawasaki Nishiguchi Building 8F
66-2 Horikawa-Cho
Saiwai-Ku | 212-0013 Kawasaki
Tel. [phone] | Fax [phone]
[email protected]
www.nihonstiebel.co.jp
Netherlands
STIEBEL ELTRON Nederland B.V.
Daviottenweg 36 | 5222 BH 's-Hertogenbosch
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.nl
Poland
STIEBEL ELTRON Polska Sp. z O.O.
ul. Działkowa 2 | 02-234 Warszawa
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.pl
Russia
STIEBEL ELTRON LLC RUSSIA
Urzhumskaya street 4,
building 2 | 129343 Moscow
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.ru
Slovakia
TATRAMAT - ohrievače vody s.r.o.
Hlavná 1 | 058 01 Poprad
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.sk
Switzerland
STIEBEL ELTRON AG
Industrie West
Gass 8 | 5242 Lupfig
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.ch
Thailand
STIEBEL ELTRON Asia Ltd.
469 Moo 2 Tambol Klong-Jik
Amphur Bangpa-In | 13160 Ayutthaya
Tel. [phone] | Fax [phone]
[e-mail]
www.stiebeleltronasia.com
United Kingdom and Ireland
STIEBEL ELTRON UK Ltd.
Unit 12 Stadium Court
Stadium Road | CH62 3RP Bromborough
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.co.uk
United States of America
STIEBEL ELTRON, Inc.
17 West Street | 01088 West Hatfield MA
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron-usa.com
A 273251-39321-9139
4<AMHCMN=hdcfbj>
