STIEBEL ELTRON HydroShark 7 Quick start guide

OPERATION AND INSTALLATION
UTILISATION ET INSTALLATION
Electric Modulating Micro-Boiler
»HydroShark7
»HydroShark10
»HydroShark12
»HydroShark14
»HydroShark19
»HydroShark24
»HydroShark29
»HydroShark36
Conforms to ANSI/UL Std. 499
Certified to CAN/CSA Std. E335-1 & E335-2-35
Conforme à la norme ANSI/UL Std. 499
Certifié à la norme CAN/CSA Std. E335-1 & E335-2-35
Conforms to ANSI/UL Std. 834
Certified to CAN/CSA C22.2 No 64
Conforme à la norme ANSI/UL Std. 834
Certifié à la norme CAN/CSA C22.2 No 64
HydroShark 7 - HydroShark 10:
HydroShark 12 - HydroShark 36:

2| HYDROSHARK WWW.HYDRO-SHARK.COM
HydroShark Electric Boiler (7-36 KW)
Installation Manual and Owner’s Guide
If you have any questions,
please call or write to:
17 West St.
West Hatfield, MA 01088
Models:
HydroShark 7
HydroShark 10
HydroShark 12
HydroShark 14
HydroShark 19
HydroShark 24
HydroShark 29
HydroShark 36
Featuring
• Efficiency: 100 %
• Wall Hung
• Flow Activated: .5 GPM
• Copper Heating Vessel
• Temperature Range: 86°-140° F*
• No Venting Required
• Modulation Status LED
The HydroShark Electric Boiler features advanced
technology, impressive energy-saving performance,
and a compact design. Exclusively manufactured by
Stiebel Eltron, a leader in heating technologies for the
past 80 years.
Do not return to stores. Dam-
ages or repairs call
Stiebel Eltron 800.805.5384
HydroShark 12 - HydroShark 36
HydroShark 7 - HydroShark 10
UL 834
UL 499

WWW.HYDRO-SHARK.COM HYDROSHARK| 3
CONTENTS
Installation Manual
SPECIFICATIONS..........................................................................................................4
INTRODUCTION............................................................................................................5
MOUNTING THE UNIT...................................................................................................6
INSTALLATION...............................................................................................................7
Electrical Connections.........................................................................................7
Fluid connections.................................................................................................10
Technical Data.....................................................................................................10
Wiring Diagrams...................................................................................................11
APPLICATIONS..............................................................................................................12
OWNER’S GUIDE
TROUBLESHOOTING..................................................................................................15
General...............................................................................................................15
Components Diagram.........................................................................................16
PARTS LIST...................................................................................................................17
PRESSURE DROP TABLE............................................................................................18
IMPORTANT!
BOILERS ARE TO BE USED FOR RADIANT FLOOR HEATING ONLY!**
THIS MANUAL MUST BE READ CAREFULLY BEFORE ATTEMPTING TO INSTALL THE HydroShark
BOILERS. IF YOU DO NOT FOLLOW THE SAFETY RULES OR THE INSTRUCTIONS OUTLINED
IN THIS MANUAL, THE UNIT MAY NOT OPERATE PROPERLY AND IT COULD CAUSE PROPERTY
DAMAGE, SERIOUS BODILY INJURYAND/OR DEATH.
MANUFACTURER WILL NOT BE LIABLE FORANY DAMAGES BECAUSE OF FAILURE TO COMPLY
WITH INSTALLATION AND OPERATING INSTRUCTIONS OUTLINED IN THIS MANUAL OR BE-
CAUSE OF IMPROPER USE. IMPROPER USE INCLUDES THE USE FOR THISAPPLIANCE TO HEAT
ANY LIQUID OTHER THAN WATER OR PROPYLENE GLYCOL. FAILURE TO COMPLY WITH THE
INSTALLATION AND OPERATING INSTRUCTIONS OR IMPROPER USE VOIDS THE WARRANTY.
NEVER REMOVE THE UNITS FRONT COVER UNLESS POWER IS TURNED OFF.
IF YOU HAVEANY QUESTIONS REGARDING THE INSTALLATION OR OPERATION OF THESE BOILER,
PLEASE CALL OUR TECHNICAL SERVICE LINE AT 800.805.5384.
**Unless when used with Stiebel Eltron DHW Integrator Panels (Use HydroShark 29 or HydroShark 36 KW Boilers only with
Combi Panel Systems, Size boilers accordingly)

4| HYDROSHARK WWW.HYDRO-SHARK.COM
Installation Manual
CONGRATULATIONS
Congratulations and thank you for choosing our micro boiler. Before use, we
recommend that you read through this installation manual carefully. Keep
this manual for future reference.
If you need an additional manual, contact the manufacturer or your local
distributor. When you call, please tell us the product name and the serial
number of your unit written on the rating plate of the boiler.

WWW.HYDRO-SHARK.COM HYDROSHARK| 5
SPECIFICATIONS
HYDROSHARK
MODEL KW VOLTS WIRE SIZE
AMP
DRAW
(MAX)
DBL POLE
BREAKER
SIZE
BTU
WATER
TEMP
RANGE
HydroShark 7 7
240
8 30 (1) 40 24,573
86° - 140° F
HydroShark 10 10 6 40 (1) 50 32,765
HydroShark 12 12 4 50 (1) 70 40,956
HydroShark 14 14 2 x 8 60 (2) 40 49,147
HydroShark 19 19 2 x 6 80 (2) 50 65,526
HydroShark 24 24 2 x 4 100 (2) 70 81,912
HydroShark 29 29 3 x 6 120 (3) 50 98,977
HydroShark 36 36 3 x 4 150 (3) 70 122,868
0
2
4
6
7
8
Boiler Flow-GPM
90 100 110 120 130
HydroShark Boiler Temp vs Flow Rate
with 70 Deg F Return Fluid
DEG F
1
3
5
140
HydroShark 7
HydroShark 10
HydroShark 12
HydroShark 14
HydroShark 19
HydroShark 24
HydroShark 29
HydroShark 36
____
____
____
____
____
____
____
____

6| HYDROSHARK WWW.HYDRO-SHARK.COM
INTRODUCTION
IMPORTANT!
GENERAL
Read this entire manual. Failure to follow all the guides, instructions and rules could cause personal
injury or property damage. Improper installation, adjustment, alteration, service and use of this unit
can result in serious injury.
This unit must be installed by a licensed electrician and plumber. The installation must comply with
all national, state and local plumbing and electric codes. Proper installation is the responsibility of the
installer. Failure to comply with the installation and operating instructions or improper use voids the
warranty.
Save these instructions for future reference. Installer should leave these instructions with the consum-
er.
If you have any questions regarding the installation, use or operation of this micro boiler, or if you
need any additional installation manuals call Stiebel Eltron at 800.805.5384 or visit us online at www.
hydro-shark.com
• The output of heat from the boiler is electronically controlled. The boiler will deliver any water tem-
perature between 86° F - 140° F. Set the desired water delivery temperature using the knob on the
front cover. (Do not exceed temperatures above 130° when using this product with tubing in
concrete)
• When the power light is flashing, full element power is being applied. When the power light is not
flashing, the element power is being modulated to the water delivery temperature.
• Recommend setting for radiant floor heating (Tubing in Concrete) is 105° F - 125° F.
• Recommended setting for Staple Up (Floor Warming Only) is 130° - 140° F.
• Temperature setting and water delivery temperatures may vary depending on flow rates. Size boil-
er accordingly. See flow rate chart for more information.

WWW.HYDRO-SHARK.COM HYDROSHARK| 7
MOUNTING THE UNIT
UNIT MUST BE INSTALLED IN A VERTICAL POSITION WITH THE WA-
TER FITTINGS POINTING DOWNWARD. DO NOT INSTALL UNIT WHERE
IT WOULD ROUTINELY BE SPLASHED WITH WATER OR ELECTRICAL
SHOCK MAY RESULT.
1. Leave a minimum of 5” clearance on all sides for servicing.
2. Make sure the power is off.
3. Remove the cover.
4. Mount securely to wall by putting screws through mounting holes.
5. Screws and plastic wall anchors for mounting are provided.
EDF
G
A
B
C
2
1
3
A
Dimensions
B
C
D
E
F
G3/
16

8| HYDROSHARK WWW.HYDRO-SHARK.COM

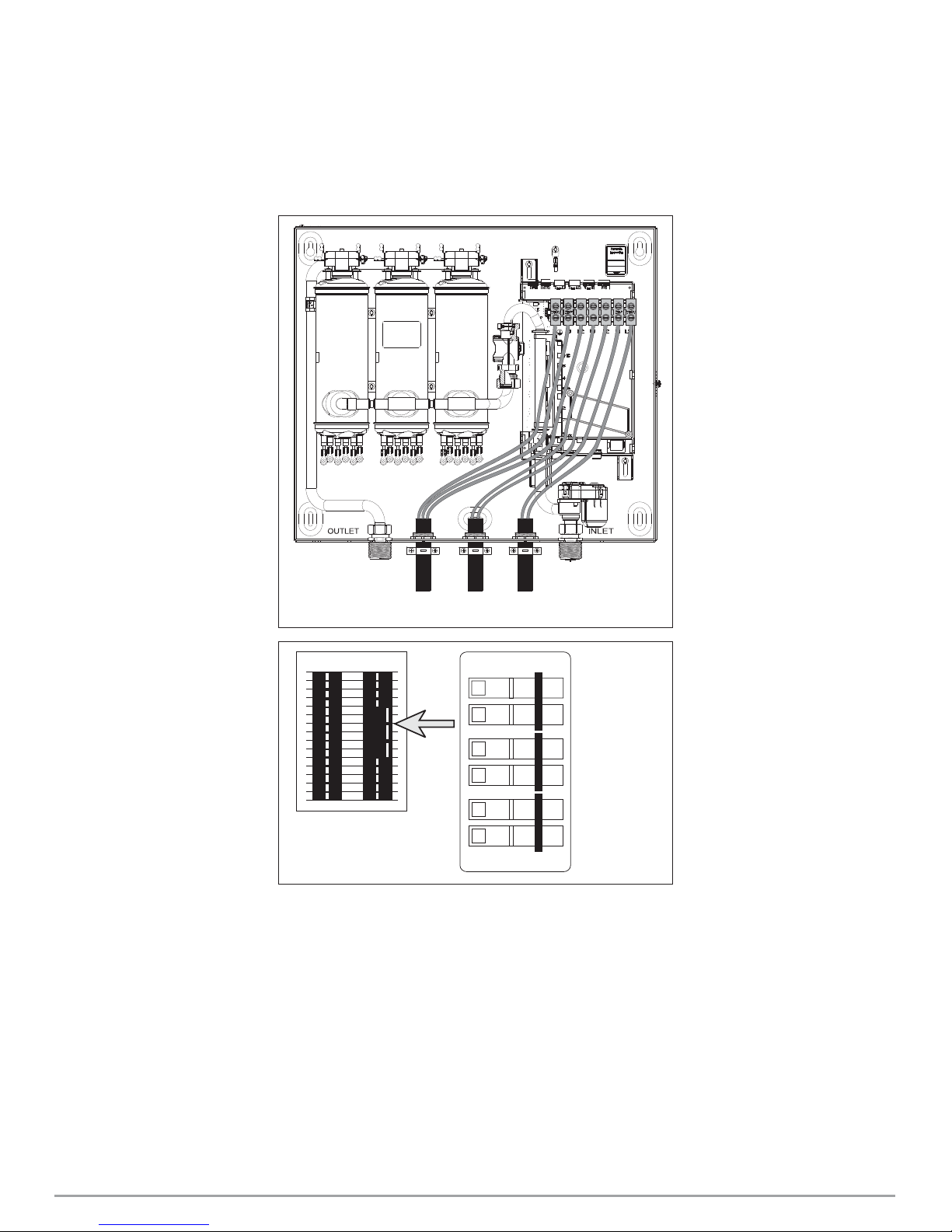

ELECTRICAL CONNECTIONS
1. All electrical work must comply with the national, state, local & any other applicable codes.
2. The boiler should be connected to properly grounded dedicated branch circuits of proper
voltage rating. Ground must be brought to the ‘Ground’ at the circuit breaker panel.
3. HydroShark 12 can be connected to ONE independent circuit.
4. AHydroShark 14, HydroShark 19 & HydroShark 24 can be connected to TWO independent
circuits Use supply table. Protected by TWO double pole breakers sized for the load.
5. AHydroShark 29 and HydroShark 36, can be connected to THREE independent circuits.
Use supply cable protected by THREE double pole breakers sized for the load.
6. Cut the electrical connection cable to length and strip.
7. The wire must be fed through the knockouts located between the Supply and Return fluid con-
nections. The “Live” wires must be connected to the slots on the terminal block marked “L” and
“L”. The ground wire must be connected to slot marked with the ground symbol.
8. Reinstall the cover screws.
WARNING! As with any electrical appliance, failure to electrically ground may result in serious injury or Death.
WARNING: BEFORE BEGINNINGANY WORK ON THE ELECTRIC INSTAL-
LATION, BE SURE THAT THE MAIN BREAKER PANEL SWITCHES ARE
“OFF” TO AVOID ANY DANGER OF ELECTRIC SHOCK. ALL MOUNTING
AND PLUMBING MUST BE COMPLETED BEFORE PROCEEDING WITH
ELECTRICAL HOOK-UP. WHERE REQUIRED BY LOCAL,STATE OR NA-
TIONAL ELECTRICAL CODES THE CIRCUITS SHOULD BE EQUIPPED
WITH A “ GROUND FAULT INTERRUPTER”.
INSTALLATION

WWW.HYDRO-SHARK.COM HYDROSHARK| 9
ELECTRICAL CONNECTIONS CONT’D
HydroShark 12 HydroShark 14, 19, 24
FFO
NO
F
FO
NO
CKT 1
FFO
NO
FF
O
NO
FF
O
NO
FF
O
NO
CKT 1 CKT 2

10 | HYDROSHARK WWW.HYDRO-SHARK.COM
HydroShark 29, 36
ELECTRICAL CONNECTIONS CONT’D
FFO
N
O
FFO
N
O
FFO
NO
FFO
N
O
FFO
NO
FFO
NO
CKT 1 CKT 2 CKT 3
Please refer to specification table for wiring and circuit breaker size. See technical data section for
wiring diagrams.
CIRCUIT CONNECTION

WWW.HYDRO-SHARK.COM HYDROSHARK| 11
FLUID CONNECTIONS
NOTE: EXCESSIVE HEAT FROM SOLDERING COPPER PIPES NEAR THE BOILER MAY CAUSE DAMAGE.
1. All plumbing work must comply with the national, state, local & any other applicable codes.
2. Make sure the radiant floor system has been purged & is free of floating debris.
3. The return side (inlet) is on the right side of the unit, the supply side (outlet) is on the left of
the unit.
4. A pressure & temperature relief valve should be installed on the hot water supply side (out-
let) of the unit. (Stiebel Eltron Pre-Plumbed Panels include pressure relief valve)
5. The boiler is designed for a connection to copper tubing and/or PEX tubing. If soldering the unit
is necessary, please direct the flame away from the housing of the unit to avoid damage.
6. When all plumbing work is completed, check for leaks & take corrective action before pro-
ceeding.
TECHNICAL DATA
WIRING DIAGRAMS
CKT 1
642
531
6
5
4
9/10
11/12
3
2
7/8
1
13
6
4
2
5
3
1
14 15
SH-12
HydroShark 12 HydroShark 14,19
24
51
42
CKT 1 CKT 2
51
6
5
4
11/12
9/10
3
2
7/8
1
13
4
2
5
1
14 15
SH-14, SH-19

12 | HYDROSHARK WWW.HYDRO-SHARK.COM
Note:
1. Boilers are considered a continuous load.
2. Copper conductors only.
WIRING DIAGRAMS
HydroShark 24
642
53 CKT 1 CKT 2
1
642
531
6
5
4
11/12
9/10
3
2
7/8
1
13
6
4
2
5
3
1
14 15
SH-24
HydroShark 29
HydroShark 36
42
51
42
15
42
CKT 1 CKT 2 CKT 3
15
6
5
4
11/12
9/10
3
2
7/8
1
13
4
2
5
1
14 15
SH-29
462
351
46
CKT 1 CKT 2 CKT 3
2
531
642
531
6
4
2
5
3
1
6
5
4
11/12
9/10
3
2
7/8
1
13 14 15
SH-36
>
L
L
1
2
3
4
56
21 3
456
HydroShark 7, 10

WWW.HYDRO-SHARK.COM HYDROSHARK| 13

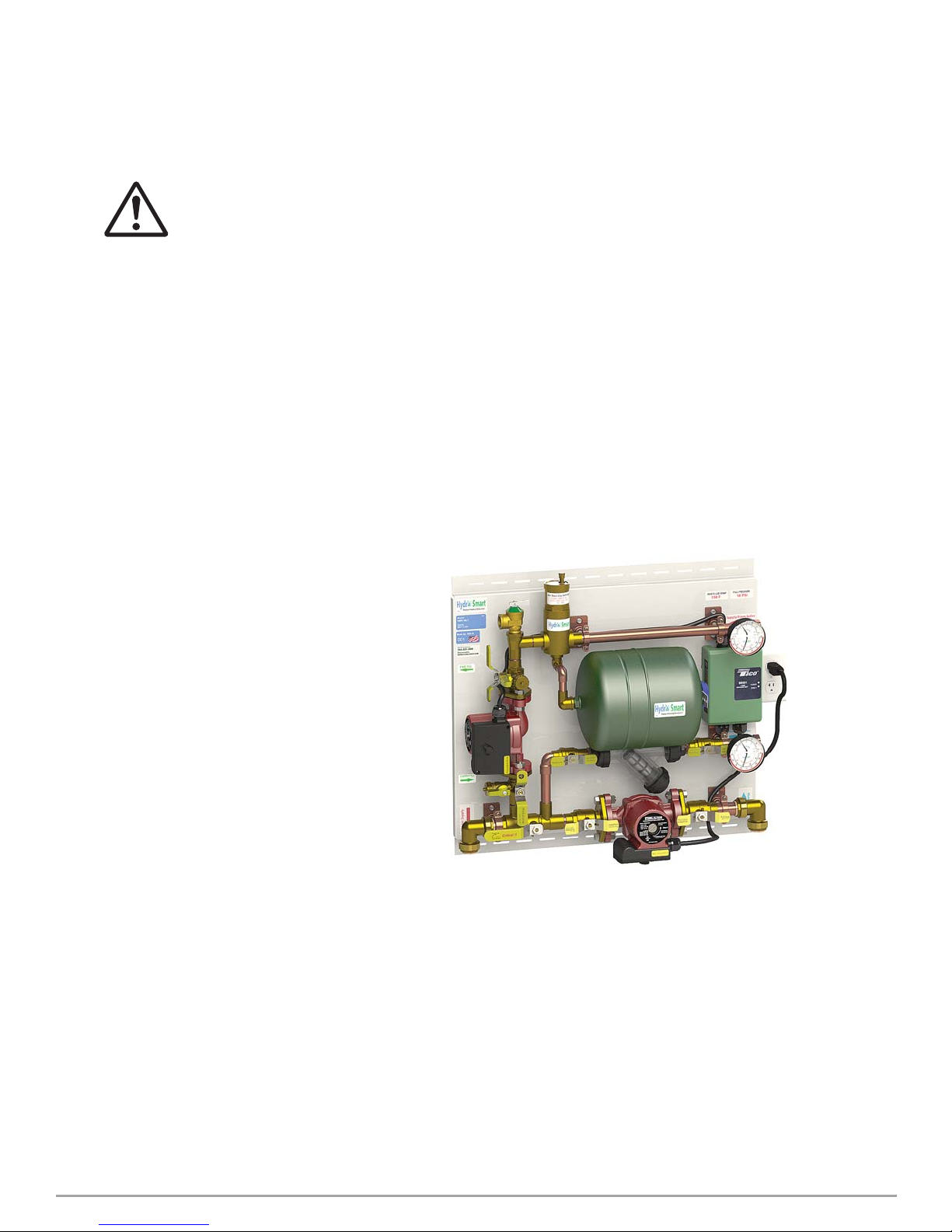

APPLICATIONSSpace Heating Applications
• In order to purge air in water pipes within a closed loop system, an air vent,
air separator, and expansion tank should be installed in the system. (Stiebel
Eltron pre-built space heating panels incorporate all of these features).
• Water temperature over 125° F (52° C) can cause sever burns instantly of
death from scalding.
• Chemicals such as diluted Glycol can be used for radiant floor, Hydro/fan
coil air or Baseboard heating only. The diluted solution of glycol must contain
between 25% and 55% of Glycol. Be aware that in a closed loop system, low
pressure in the heat exchanger can cause low-temperature boiling, resulting
in excessive noise and damage to the micro boiler. Consult with the glycol
maker for specifications prior to use.
Stiebel Eltron Pre-Built Space Heating Panels
Stiebel Eltron pre-plumbed panels help make space heating easy and reliable. These panels are
professionally engineered and use proven Primary/Secondary hydronic practices. Call Tech Support
(1-800.805.5384) for assistance.
HSPS120LT 1 Zone Panel:
For more information on Stiebel Eltron pre-plumbed panels and zoning options for this boiler please
visit www.hydro-shark.com or call 800.805.5384.
Sample:
WARNING

14 | HYDROSHARK WWW.HYDRO-SHARK.COM
Dual-purpose hot water heating
(Domestic and Space Heating)
Insert a Stiebel Eltron DHW integrator Panel to provide potable heated water and Hydronic Heating
(with space heating panel(s)) with one heat source.
The Stiebel Eltron DHW Integrator Panel integrates with a wide variety of boilers and delivers “Priori-
ty” potable heated water with no storage tank and hydronic space heating in a small reliable package.
Follow all local codes, or in the absence of local codes, follow the most recent
edition of the National Standard Code, ANSI Z21.10.3.
For more information on Stiebel Eltron DHW Integrator panels and integrating space heating and do-
mestic water for this boiler please visit www.hydro-shark.com or call 800.805.5384.
NOTICE
Use Combi Panel with HydroShark 29 or HydroShark 36 Boilers Only. Size boiler
for domestic and radiant applications accordingly.
NOTICE

WWW.HYDRO-SHARK.COM HYDROSHARK| 15
Owner’s Guide
CONGRATULATIONS
Congratulations and thank you for choosing our micro boiler. Before
use, we recommend that you read through this owner’s guide carefully.
Keep this manual for future reference.
If you need an additional manual, contact the manufacturer or your local
distributor. When you call, please tell us the product name and the serial
number of your unit written on the rating plate of the boiler.

16 | HYDROSHARK WWW.HYDRO-SHARK.COM
TROUBLESHOOTING
General
Symptom Possible Cause Solution
No Hot Water •No Power
•Safety ermal Cut O Tripped
•Not Enough Flow Rate To Activate
•Plugged Flow Sensor
•Utility Controlling Load
•Reset ermal Cut O
•Wrong Size Pump
•Activate ermostat/
Clean Flow Sensor
Water Not Hot Enough •Water Flow Too High
•Voltage To Low
•Glycol/Water Ratio Too High
•Manifold or Ball Valve Closed
•Reduce Water Flow Rate
•Supply Correct Voltage to Unit
•More than 20%, less than 50%
•Open Loops/Ball Valves
LEDs Do Not Light •Problem With Electronic Controls Call Tech Support at 800.805.5384

WWW.HYDRO-SHARK.COM HYDROSHARK| 17
A
A- Fluid Temp.Controller
B- High Limit Safety
C- Flow Meter
D- Wiring Terminal
E- Control Board
F- Cold Fluid Return - 3/4” MPT
G- Electrical Circuit Knock-Outs
H- Hot Fluid Supply - 3/4” MPT
I- Hinged Cover on 12- 36 KW Units
F
HG
ED
IC
B
COMPONENTS DIAGRAM

18 | HYDROSHARK WWW.HYDRO-SHARK.COM
PARTS LIST
Part Number Description
286356 Housing, HydroShark 12 to HydroShark 36
245307 Temperature Control Knob, HydroShark 12 to HydroShark 36
279998 Wiring Block, HydroShark 7 to HydroShark 12
279997 Wiring Block, HydroShark 14 to HydroShark 24
279996 Wiring Block, HydroShark 29 to HydroShark 36
286360 Heating System, HydroShark 12
286361 Heating System, HydroShark 14
286362 Heating System, HydroShark 19
286364 Heating System, HydroShark 24
286373 Heating System, HydroShark 29
286374 Heating System, HydroShark 36
286369 High Limit, HydroShark 7 to HydroShark 36
286366 Electronic Control Device Board, HydroShark 12
286844 Electronic Control Device Board, HydroShark 14 to HydroShark 19
286367 Electronic Control Device Board, HydroShark 24
296888 Electronic Control Device Board, HydroShark 29
296889 Electronic Control Device Board, HydroShark 36
286461 Flow Sensor, HydroShark 7 to HydroShark 36
278698 Plumbing Connection, S-R 3/4” NPT
286359 Electronic Temp Control, HydroShark 7 to HydroShark 36
280677 Outlet Temperature Sensor, HydroShark 7 to HydroShark 36
280730 Set Point Knob Board, HydroShark 12 to HydroShark 36
292575 Housing, HydroShark 7 to HydroShark 10
291851 Electronic Control Device Board, HydroShark 7 to HydroShark 10
283455 Code Plug, HydroShark 7 to HydroShark 10
292578 Back Panel, HydroShark 7 to HydroShark 10
291699 Return Fluid Connection, HydroShark 7 to HydroShark 10
278634 Supply Fluid Connection, HydroShark 7 to HydroShark 10
292577 Cover, HydroShark 7 to HydroShark 10
254312 Axis Connection Plug, HydroShark 7 to HydroShark 10

WWW.HYDRO-SHARK.COM HYDROSHARK| 19
Boiler Pressure Drops Table
(Boilers HydroShark 7 to HydroShark 36)
This table is used for sizing Primary (Boiler) Circulator
69
All boilers must use Primary/Secondary circuitry. This is used to create Hydraulic
seperation between the Boiler and Emitter circulators allowing you to create
Flow Pressure
(PSI)
FLOW GPM
0 .5 1 1.5 2 2.5 3 3.5 4 4.5 5
11.5
23
34.5
46
57.5
0
0
5
10
15
20
25
30
Flow Pressure
(HD Feet)
HydroShark 7, 10
HydroShark 29, 36
HydroShark 12
HydroShark 14, 19, 24

Subject to errors and technical changes!
STIEBEL ELTRON, Inc.
17 West Street | West Hatfield MA 01088
Tel. [phone]
[email protected]
www.hydro-shark.com
331125-40419-9328
4<AMHCMO=bgibea> Subject to errors and technical changes! |
Sous réserve d‘erreurs et de modifications techniques!
