STIEBEL ELTRON DEL 18 Plus Instruction Manual

BEDIENUNG UND INSTALLATION
OPERATION AND INSTALLATION
UTILISATION ET INSTALLATION
BEDIENING EN INSTALLATIE
OBSŁUGA I INSTALACJA
Elektronisch geregelter Komfort-Durchlauferhitzer | Electronically controlled
comfort instantaneous water heater | Chauffe-eau instantané confort à régulation
électronique | Elektronisch geregelde comfort-doorstromer | Elektronicznie
regulowany komfortowy przepływowy ogrzewacz wody
» DEL 18/21/24 Plus
» DEL 27 Plus
Tmax
T

22 | DEL Plus www.stiebel-eltron.com
CONTENTS
SPECIAL INFORMATION
OPERATION
1. General information ��������������������������������������� 23
1.1 Safety instructions���������������������������������������������� 23
1.2 Other symbols in this documentation ���������������������� 24
1.3 Units of measurement ����������������������������������������� 24
2. Safety�������������������������������������������������������� 24
2.1 Intended use����������������������������������������������������� 24
2.2 General safety instructions ����������������������������������� 24
3. Appliance description ������������������������������������� 24
4. Settings and displays �������������������������������������� 25
4.1 User interface ��������������������������������������������������� 25
4.2 Display symbols������������������������������������������������� 25
4.3 Setting the temperature��������������������������������������� 25
4.4 Internal anti-scalding protection (qualified contractors)25
4.5 Setting the Tmax temperature limit������������������������� 25
4.6 Allocating temperature memory buttons������������������ 26
4.7 Settings menu��������������������������������������������������� 26
4.8 Selecting ECO level ��������������������������������������������� 26
4.9 Inlet temperature information ������������������������������� 26
4.10 Recommended settings ��������������������������������������� 26
5. Cleaning, care and maintenance ������������������������� 26
6. Troubleshooting �������������������������������������������� 27
INSTALLATION
7. Safety�������������������������������������������������������� 28
7.1 General safety instructions ����������������������������������� 28
7.2 Shower operation����������������������������������������������� 28
7.3 Instructions, standards and regulations ������������������� 28
8. Appliance description ������������������������������������� 28
8.1 Standard delivery����������������������������������������������� 28
8.2 Accessories������������������������������������������������������� 28
9. Preparation ������������������������������������������������� 29
9.1 Installation location �������������������������������������������� 29
9.2 Minimum clearances������������������������������������������� 29
9.3 Water installation����������������������������������������������� 29
10. Installation�������������������������������������������������� 29
10.1 Standard installation�������������������������������������������30
11. Commissioning ��������������������������������������������� 31
11.1 Preparation ������������������������������������������������������ 31
11.2 Initial start-up��������������������������������������������������� 32
11.3 Recommissioning����������������������������������������������� 32
12. Appliance shutdown ��������������������������������������� 32
13. Alternative installation methods ������������������������� 32
13.1 Electrical connection from above on unfinished walls�� 33
13.2 Electrical connection on unfinished walls with short
power cable������������������������������������������������������ 33
13.3 Electrical connection on finished walls �������������������� 33
13.4 Connecting a load shedding relay��������������������������� 33
13.5 Water installation on finished walls ������������������������ 34
13.6 Water installation on finished walls with solder/
press-fit fittings �������������������������������������������������34
13.7 Fitting appliance cover over water installation on
finished walls����������������������������������������������������34
13.8 Lower back panel section installation with threaded
fittings on finished walls ��������������������������������������34
13.9 Wall mounting bracket when replacing appliance������� 35
13.10 Installation with offset tiles����������������������������������� 35
13.11 Pivoting appliance cover �������������������������������������� 35
13.12 Operation with preheated water ���������������������������� 35
14. Service information���������������������������������������� 35
15. Troubleshooting �������������������������������������������� 36
16. Maintenance ������������������������������������������������ 36
17. Specification ������������������������������������������������ 37

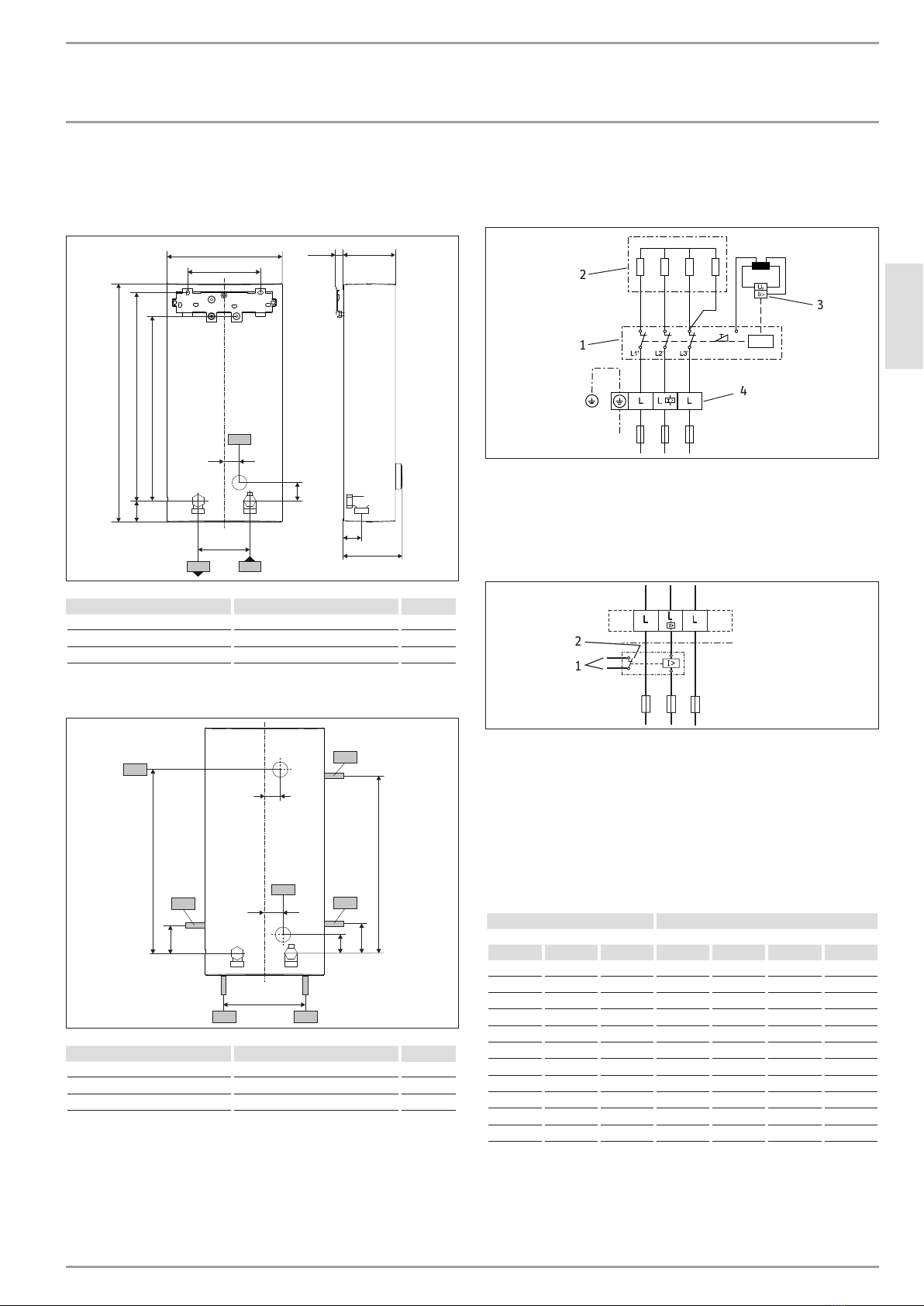

17.1 Dimensions and connections��������������������������������� 37
17.2 Wiring diagram ������������������������������������������������� 37
17.3 Domestic hot water output ����������������������������������� 37
17.4 Application areas/ Conversion table ����������������������� 38
17.5 Pressure drop ���������������������������������������������������38
17.6 Fault conditions �������������������������������������������������38
17.7 Test symbols �����������������������������������������������������38
17.8 Energy consumption data�������������������������������������38
17.9 Data table �������������������������������������������������������� 39
GUARANTEE
ENVIRONMENT AND RECYCLING

ENGLISH
www.stiebel-eltron.com DEL Plus | 23
SPECIAL INFORMATION | OPERATION
General information
SPECIAL INFORMATION
- The appliance may be used by children aged3
and older and persons with reduced physical,
sensory or mental capabilities or a lack of ex-
perience and know-how, provided that they are
supervised or they have been instructed on how
to use the appliance safely and have understood
the potential risks. Children must never play with
the appliance. Children must never clean the ap-
pliance or perform user maintenance unless they
are supervised.
- The tap can reach temperatures up to 70°C.
There is a risk of scalding at outlet temperatures
in excess of 43°C.
- The appliance is suitable for supplying a show-
er (shower operation). If the appliance is also
or exclusively used for shower operation, the
qualified contractor must adjust the temperature
setting range to 55°C or less using the internal
anti-scalding protection on the appliance. When
using preheated water, it must be ensured that
the inlet temperature does not exceed 55°C.
- Ensure the appliance can be separated from the
power supply by an isolator that disconnects all
poles with at least 3mm contact separation.
- The specified voltage must match the power
supply.
- The appliance must be connected to the earth
conductor.
- The appliance must be permanently connected to
fixed wiring.
- Secure the appliance as described in chapter "In-
stallation/ Installation".
- Observe the maximum permissible pressure (see
chapter "Installation/ Specification/ Data table").
- The specific water resistivity of the mains water
supply must not be undershot (see chapter "In-
stallation/ Specification/ Data table").
- Drain the appliance as described in chapter "In-
stallation/ Maintenance/ Draining the appliance".
OPERATION
1. General information
The chapters "Special information" and "Operation" are intended
for both users and qualified contractors.
The chapter "Installation" is intended for qualified contractors.
Note
Read these instructions carefully before using the appli-
ance and retain them for future reference.
Pass on the instructions to a new user if required.
1.1 Safety instructions
1.1.1 Structure of safety instructions
!
KEYWORD Type of risk
Here, possible consequences are listed that may result
from failure to observe the safety instructions.
 Steps to prevent the risk are listed.
1.1.2 Symbols, type of risk
Symbol Type of risk
Injury
Electrocution
Burns
(burns, scalding)
1.1.3 Keywords
KEYWORD Meaning
DANGER Failure to observe this information will result in serious
injury or death.
WARNING Failure to observe this information may result in serious
injury or death.
CAUTION Failure to observe this information may result in non-seri-
ous or minor injury.
!

OPERATION
Safety
24 | DEL Plus www.stiebel-eltron.com
1.2 Other symbols in this documentation
Note
General information is identified by the adjacent symbol.
 Read these texts carefully.
Symbol Meaning
Material losses
(appliance damage, consequential losses and environmen-
tal pollution)
Appliance disposal
 This symbol indicates that you have to do something. The ac-
tion you need to take is described step by step.
1.3 Units of measurement
Note
All measurements are given in mm unless stated oth-
erwise.
2. Safety
2.1 Intended use
This appliance is suitable for heating domestic hot water or for
reheating preheated water. The appliance can supply one or more
draw-off points.
Water will not be reheated if the maximum inlet temperature for
reheating is exceeded.
The appliance is intended for domestic use. It can be used safely
by untrained persons. The appliance can also be used in non-do-
mestic environments, e.g.in small businesses, as long as it is
used in the same way.
Any other use beyond that described shall be deemed inappro-
priate. Observation of these instructions and of the instructions
for any accessories used is also part of the correct use of this
appliance.
2.2 General safety instructions
CAUTION Burns
During operation, the tap can reach temperatures up
to 70°C.
There is a risk of scalding at outlet temperatures in ex-
cess of 43°C.
CAUTION Burns
If operating with preheated water, e.g.from a solar ther-
mal system, the DHW temperature may vary from the
selected set temperature.
!
WARNING Injury
The appliance may be used by children aged3 and older
and persons with reduced physical, sensory or mental
capabilities or a lack of experience and know-how, pro-
vided that they are supervised or they have been in-
structed on how to use the appliance safely and have
understood the potential risks. Children must never play
with the appliance. Children must never clean the ap-
pliance or perform user maintenance unless they are
supervised.
Where children or persons with limited physical, sensory or men-
tal abilities are allowed to use this appliance, we recommend a
permanent temperature limit. The following limitation options
are available:
- User adjustable: Temperature limit (e.g.for childproofing)
- Qualified contractor adjustable: Internal anti-scalding
protection
!
Material losses
The user should protect the appliance and its tap against
frost.
3. Appliance description
The appliance switches on automatically as soon as you open the
hot water valve on the tap. When you close the tap, the appliance
switches off again automatically.
The appliance heats water as it flows through it. The DHW outlet
temperature can be variably adjusted. From a certain flow rate,
the control unit regulates the correct heating output, subject to
the temperature selected and the current cold water temperature.
The electronically controlled instantaneous water heater with au-
tomatic output matching maintains a consistent outlet tempera-
ture. It is irrespective of the inlet temperature, up to the maximum
output of the appliance.
If the appliance is operated with preheated water and the inlet
temperature exceeds the selected set temperature, the word "hot"
and the inlet temperature are displayed alternately, and the "hot"
LED flashes. The water is not heated further.
You can save and quickly call up different temperatures. With
the ECO function, the flow rate is limited to 3 preset levels. The
appliance is equipped with functions to permanently limit the
temperature (e.g.for childproofing). The backlight switches on
automatically as soon as water starts to flow through the appli-
ance or you make a change on the user interface. The backlight
switches off automatically 5seconds after water stops flowing or
if no operation has been performed for 30seconds.
You can set the temperature unit and operating lock individually.
Heating system
The bare wire heating system is enclosed within a pressure-tested
plastic jacket. The heating system with its stainless steel internal
indirect coil is suitable for hard and soft water areas and is largely
insusceptible to scale build-up. The heating system ensures rapid
and efficient DHW provision.
!

OPERATION
Settings and displays
ENGLISH
www.stiebel-eltron.com DEL Plus | 25
Note
The appliance is equipped with an air detector that large-
ly prevents damage to the heating system. If, during op-
eration, air is drawn into the appliance, the appliance
shuts down for one minute, thereby protecting the heat-
ing system.
4. Settings and displays
4.1 User interface
Tmax
T
D0000073010
2
3
1
5
4
1 Temperature selector
2 "hot" scald warning LED, at temperatures higher than 43°C
3 Temperature memory buttons 1 and 2
4 Display
5 ECO button with ECO level selection/ Menu call-up
4.2 Display symbols
Tmax
T
D0000073009
4
3
1
2
5
6
1 ECO indicator [rolling, levels 1 - 3, OFF]
2 Output bar [10 - 100%]
3 Segment display [°C/°F]
4 In the event of an appliance fault, a spanner appears
5 Operating lock [ON/OFF]
6 Tmax, displayed when temperature limit is enabled
4.3 Setting the temperature
Tmax
T
D0000073010
2
1
1 Set temperature selector (no end-stop):
"OFF", 20 - 60°C (factory setting)
2 Call up/assign preferred temperatures
Setting steps
Temperature range Step Temperature range Step
20°C ... 35°C 1°C 68°F ... 140°F 1°F
35°C ... 43°C 0.5°C
43°C ... 60°C 1°C
!
Note
If the outlet temperature is not high enough when the
draw-off valve is fully open and the temperature selector
is set to maximum, then more water is flowing through
the appliance than can be heated by the heating system
(appliance working at maximum output).
 Use the ECO button to reduce the water volume until
the required temperature is achieved.
4.4 Internal anti-scalding protection (qualified
contractors)
The appliance has an anti-scalding protection function. The qual-
ified contractor can set an anti-scalding protection level for you
on request.
If the anti-scalding protection function (43°C) is enabled, "Tmax"
flashes continually once the set temperature has been reached.
4.5 Setting the Tmax temperature limit
Enabling the high limit safety cut-out
You can activate and adjust the temperature limit individually
(e.g.for childproofing).
 Press and hold buttons "1" and "2" for longer than 5seconds,
until "Tmax" and the temperature display flash.
 Select a temperature limit.
10seconds after completing the setting, the menu item will dis-
appear automatically.
If the high limit safety cut-out is enabled, "Tmax" is continuously
displayed.
Disabling the high limit safety cut-out
 Disable the high limit safety cut-out by pressing and holding
buttons "1" and "2" for longer than 5seconds.

OPERATION
Cleaning, care and maintenance
26 | DEL Plus www.stiebel-eltron.com
4.6 Allocating temperature memory buttons
Memory buttons "1" and "2" can each be assigned a required
temperature.
 Select the required temperature.
 To store the required temperature, press and hold button
"1" or "2" for longer than 3seconds. The temperature flashes
once to confirm.
4.7 Settings menu
Menu Description
Temperature display Select °C or °F
Operating lock Select ON or OFF. Symbol displayed
Fault code display Displays E1...E3 if there is a fault on the appli-
ance. Call qualified contractor.
 To call up the menu, press and hold the ECO button for
longer than 5seconds.
 To select, turn the temperature selector.
 Press the ECO button once more.
 To quit the menu, press and hold the ECO button for longer
than 5seconds.
The menu switches off automatically if no operation has been
performed for 30seconds.
Note
To call up the menu when the operating lock is enabled,
press and hold the ECO button for longer than 10seconds.
4.8 Selecting ECO level
ECO level Display Flow rate limitation
Level 1 8l/min (factory setting)
Level 2 7l/min
Level 3 6l/min
No symbol No flow rate limit
 Briefly press the ECO button. Rolling selection, "Level1 - 3/
OFF".
4.9 Inlet temperature information
If the appliance is operated with preheated water and the inlet
temperature exceeds the selected set temperature, the word "hot"
and the inlet temperature are displayed alternately, and the "hot"
LED flashes.
4.10 Recommended settings
Your instantaneous water heater offers maximum precision and
maximum convenience in DHW provision. Should you nonetheless
be operating the appliance with a thermostatic valve, we recom-
mend that you:
 Adjust the set temperature on the appliance to over 50°C.
Then set the required set temperature on the thermostatic
valve.
Saving energy
The following recommended settings will result in the lowest en-
ergy consumption:
- 38°C for hand washbasins, showers, bath
- 55°C for kitchen sinks
Internal anti-scalding protection (qualified contractors)
If required, the qualified contractor can set a permanent temper-
ature limit, forexample in nurseries, hospitals etc.
When supplying a shower, the temperature setting range must be
adjusted by the qualified contractor to 55°C or less.
Limiting it in this way prevents water from flowing out of the
appliance at temperatures which could cause injury.
Recommended setting for operation with a thermostatic valve
and water preheated by solar energy
 Set the temperature at the appliance to the maximum
temperature.
Following an interruption to the water supply
!
Material losses
To ensure that the bare wire heating system is not dam-
aged following an interruption to the water supply, the
appliance must be restarted taking the following steps.
 Disconnect the appliance from the power supply by
removing the fuses/tripping the MCBs.
 Open the tap for one minute until the appliance and
its upstream cold water inlet line are free of air.
 Switch the power back ON.
5. Cleaning, care and maintenance
 Never use abrasive or corrosive cleaning agents. A damp
cloth is sufficient for cleaning the appliance.
 Check the taps regularly. Limescale deposits at the tap out-
lets can be removed using commercially available descaling
agents.

OPERATION
Troubleshooting
ENGLISH
www.stiebel-eltron.com DEL Plus | 27

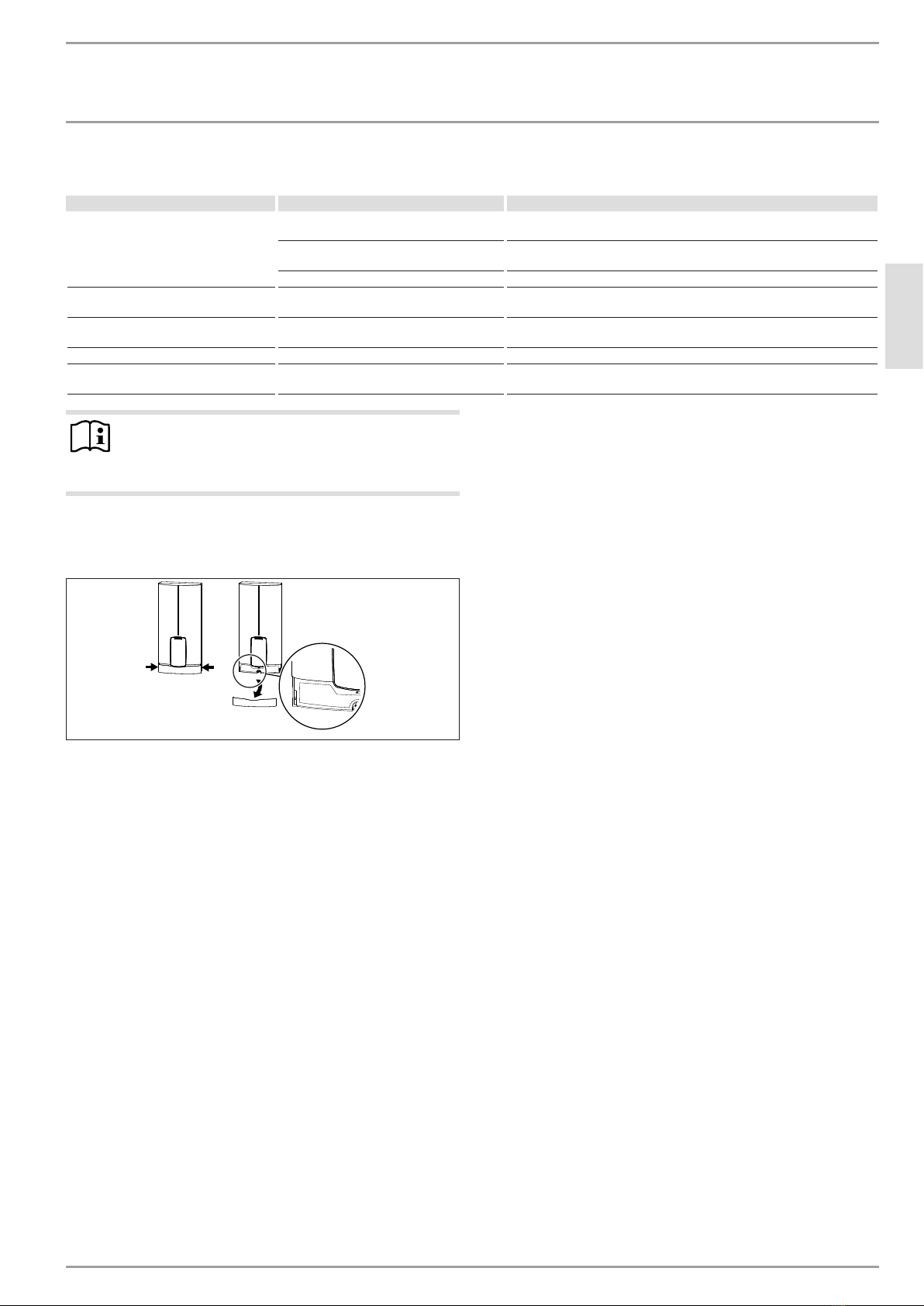

6. Troubleshooting
Problem Cause Remedy
The appliance will not start despite the
DHW valve being fully open.
There is no power. Check the fuses/MCBs in your distribution board.
The aerator in the tap or the shower head is
scaled up or soiled.
Clean and/or descale the aerator or shower head.
The water supply has been interrupted. Vent the appliance and the cold water inlet line.
When hot water is being drawn off, cold
water flows for a short period.
The air detector detects air in the water. It
switches off the heating output briefly.
The appliance restarts automatically after 1minute.
The required temperature cannot be set. The high limit safety cut-out and/or internal
anti-scalding protection are enabled.
Disable temperature limiting. The internal anti-scalding protection can be
adjusted only by the qualified contractor.
The flow rate is too low. ECO function is enabled. Select a different ECO level or disable the ECO function.
No settings can be made on the program-
ming unit.
The operating lock is enabled. Press and hold the ECO button for more than 10seconds to disable the
operating lock.
Note
After a power failure
The programming unit displays and selected settings are
retained following a power failure.
If you cannot remedy the fault, contact your qualified contractor.
To facilitate and speed up your request, provide the number from
the type plate (000000-0000-000000).
Nr.000000-0000-00000
Nr. 000000-0000-00000
D0000053312

INSTALLATION
Safety
28 | DEL Plus www.stiebel-eltron.com
INSTALLATION
7. Safety
Only a qualified contractor should carry out installation, commis-
sioning, maintenance and repair of the appliance.
7.1 General safety instructions
We guarantee trouble-free function and operational reliability only
if original accessories and spare parts intended for the appliance
are used.
!
Material losses
Observe the maximum inlet temperature. Higher tem-
peratures may damage the appliance. You can limit
the maximum inlet temperature by installing a central
thermostatic valve (see chapter "Appliance description/
Accessories").
WARNING Electrocution
This appliance contains capacitors which are discharged
when disconnected from the power supply. The capacitor
discharge voltage may briefly reach > 60 V DC.
7.2 Shower operation
CAUTION Burns
 When supplying a shower, set the internal an-
ti-scalding protection to 55°C or less; see chapter
"Commissioning/ Preparations".
CAUTION Burns
If the water supplied to the appliance is preheated,
please note the following points:
-The internally adjustable anti-scalding protection
and the temperature limit that is adjustable by the
user may be exceeded.
-The dynamic anti-scalding protection between the
appliance and the wireless remote control may not
be effective.
 In both cases, limit the temperature with an up-
stream central thermostatic valve (ZTA 3/4).
7.3 Instructions, standards and regulations
Note
Observe all applicable national and regional regulations
and instructions.
- The IP25 (hoseproof) rating can only be ensured with a cor-
rectly fitted cable grommet.
- The specific electrical resistance of the water must not fall
below that stated on the type plate. In a linked water net-
work, factor in the lowest electrical resistance of the water.
Your water supply utility will advise you of the specific elec-
trical water resistance or conductivity.
8. Appliance description
8.1 Standard delivery
The following are delivered with the appliance:
- Wall mounting bracket
- Installation template
- 2 twin connectors
- 3-way ball shut-off valve for cold water
- Tee for domestic hot water
- Flat gaskets
- Strainer
- Plastic profile washer
- Plastic connection pieces/ Installation aid
- Cap and back panel guides
- Jumper for internal anti-scalding protection
- Jumper for output changeover (only on DEL18/21/24Plus)
8.2 Accessories
Wireless remote control
- FFB4SetEU
Taps/valves
- MEKD mono lever kitchen pressure tap
- MEBD mono lever bath pressure tap
Plug G½A
If you use other than the recommended pressure taps on finished
walls, please use the plugs.
Installation set for finished walls
- Solder fitting - copper pipe for soldered connection Ø 12mm
- Press-fit fitting - copper pipe
- Press-fit fitting - plastic pipe (suitable for Viega: Sanfix-Plus
or Sanfix-Fosta)
Universal mounting frame
- Mounting frame with electrical connections
Pipe assembly for undersink appliances
You will need the undersink installation set if you make the water
connections (G⅜A) at the top of the appliance.
Pipe assembly for offset installation
Use this pipe assembly if you intend to offset the appliance by up
to 90mm downwards from the water connection.
Pipe assembly for replacing a gas water heater
You will need this pipe assembly set if the existing installation
has gas water heater connections (cold water connection on the
left-hand side, DHW connection on the right-hand side).
Pipe assembly for DHB water plug-in couplings
Use the water plug-in couplings if the existing installation contains
water plug-in connections from a DHB water heater.

INSTALLATION
Preparation
ENGLISH
www.stiebel-eltron.com DEL Plus | 29
Load shedding relay (LR 1-A)
The load shedding relay for installation in the distribution board
provides priority control for the instantaneous water heater when
other appliances, suchas electric storage heaters, are being op-
erated simultaneously.
Central thermostatic valve (ZTA 3/4)
Use the thermostatic valve for central premixing when, forex-
ample, operating an instantaneous water heater with preheated
water. For use in shower operation, the valve must be set to a
maximum of 55°C.

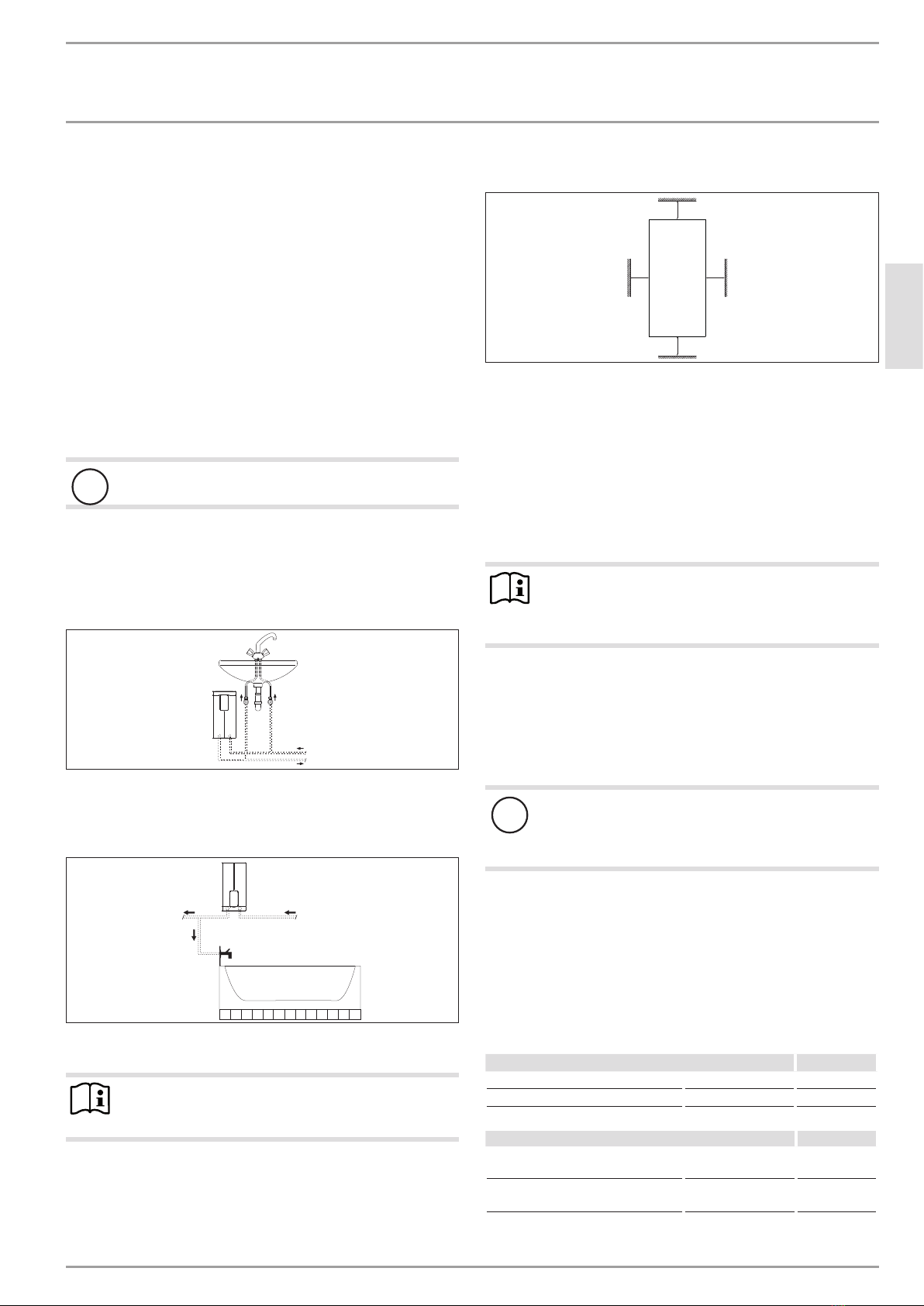

9. Preparation
9.1 Installation location
!
Material losses
Install the appliance in a room free from the risk of frost.
 Always install the appliance vertically and near the draw-off
point.
The appliance is suitable for undersink and oversink installation.
Undersink installation
D0000056242
1
2
1 Cold water inlet
2 DHW outlet
Oversink installation
D0000057030
12
1 Cold water inlet
2 DHW outlet
Note
 Mount the appliance on the wall. The wall must have
sufficient load bearing capacity.
9.2 Minimum clearances
≥50≥50
≥90
≥90
D0000060809
 Maintain the minimum clearances to ensure trouble-free op-
eration of the appliance and facilitate maintenance work.
9.3 Water installation
 Flush the water line thoroughly.
Taps/valves
Use appropriate pressure taps. Open vented taps are not per-
mitted.
Note
Never use the 3-way ball shut-off valve in the cold water
inlet to reduce the flow rate. The 3-way ball shut-off valve
is intended only to shut off the cold waterinlet.
Permissible water line materials
- Cold water inlet line:
Pipes made from galvanised steel, stainless steel, copper or
plastic
- DHW outlet line:
Stainless steel pipe, copper pipe or plastic pipe
!
Material losses
If plastic pipework systems are used, take into account
the maximum inlet temperature and the maximum per-
missible pressure.
Flow rate
 Ensure that the flow rate for switching on the appliance is
achieved.
 Increase the water line pressure if the required flow rate is
not achieved when the draw-off valve is fully open.
10. Installation
Factory settings DEL 18/21/24 Plus DEL 27 Plus
Int. anti-scald protection in °C 60 60
Connected load in kW 21 27
Standard installation DEL 18/21/24 Plus DEL 27 Plus
Electrical connection from below
on unfinished walls
x x
Water connection on unfinished
walls
x x
For further installation options, see chapter "Alternative instal-
lation methods".

INSTALLATION
Installation
30 | DEL Plus www.stiebel-eltron.com

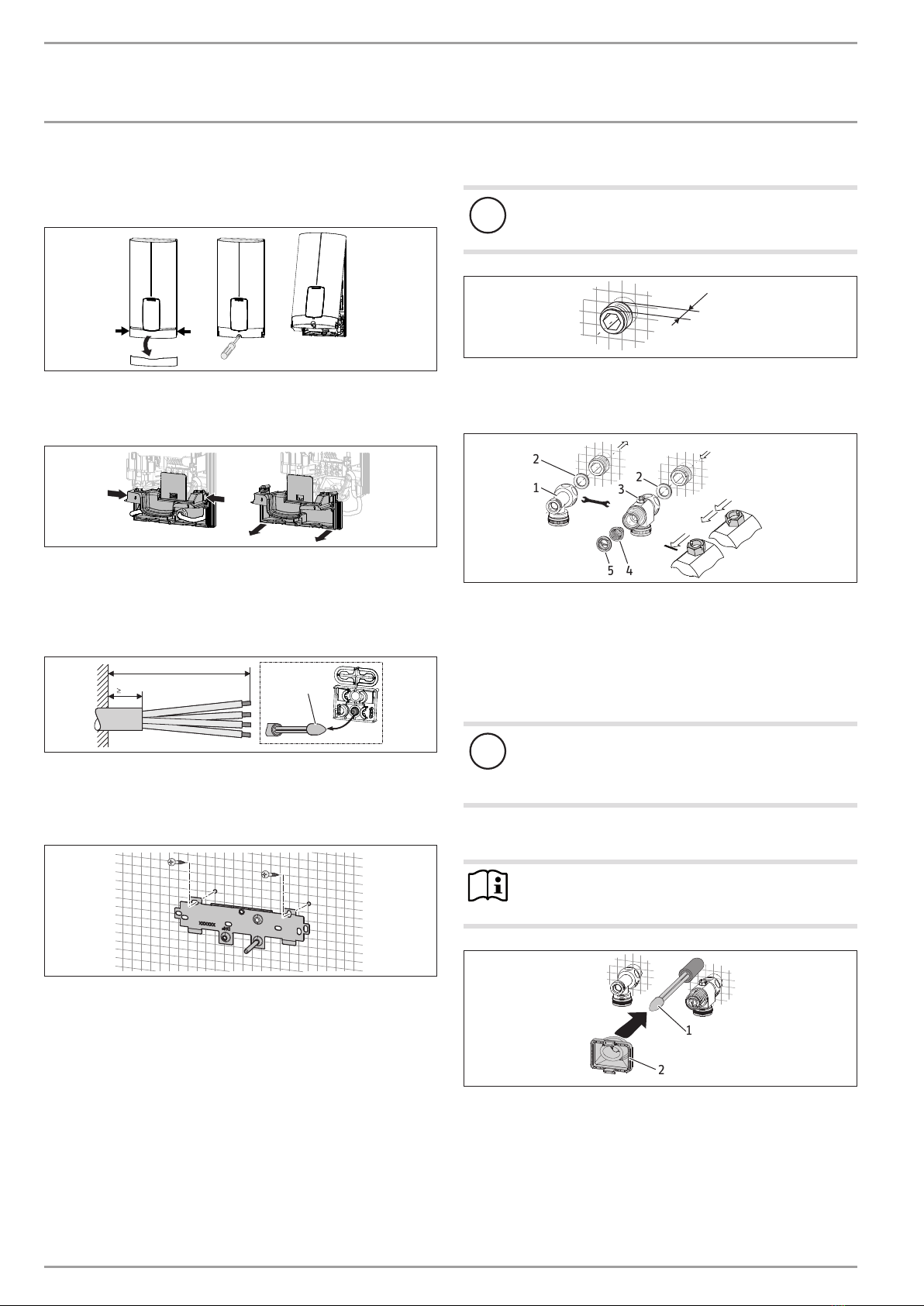

10.1 Standard installation
Opening the appliance
D0000053271
 Open the appliance by holding the fascia at the side and pull-
ing forwards away from the appliance cover. Undo the screw.
Pivot open the appliance cover.
D0000053272
 Remove the back panel by pressing the two locking tabs and
pulling the lower section of the back panel forwards.
Preparing the power cable on unfinished walls, for connection
from below
160
30
D0000053273
1
1 Cable entry installation aid
 Prepare the power cable.
Fitting the wall mounting bracket
D0000059694
 Mark out the holes for drilling using the installation tem-
plate. If the appliance is to be installed on finished walls, also
mark out the fixing hole in the lower section of the template.
 Drill the holes and secure the wall mounting bracket at 2
points using suitable fixing materials (screws and rawl plugs
are not part of the standard delivery).
 Fit the wall mounting bracket.
Installing the twin connector
!
Material losses
Carry out all water connection and installation work in
accordance with regulations.
12
D0000053319
 Seal and insert the twin connectors.
Making the water connection
5 Nm
24
D0000059695
1
45
2
32
1 DHW with tee
2 Gasket
3 Cold water with 3-way ball shut-off valve
4 Strainer
5 Plastic profile washer
 Secure the tee and 3-way ball shut-off valve, each with a flat
gasket, to the twin connector.
!
Material losses
The strainer must be fitted for the appliance to function.
 When replacing an appliance, check whether the
strainer is installed.

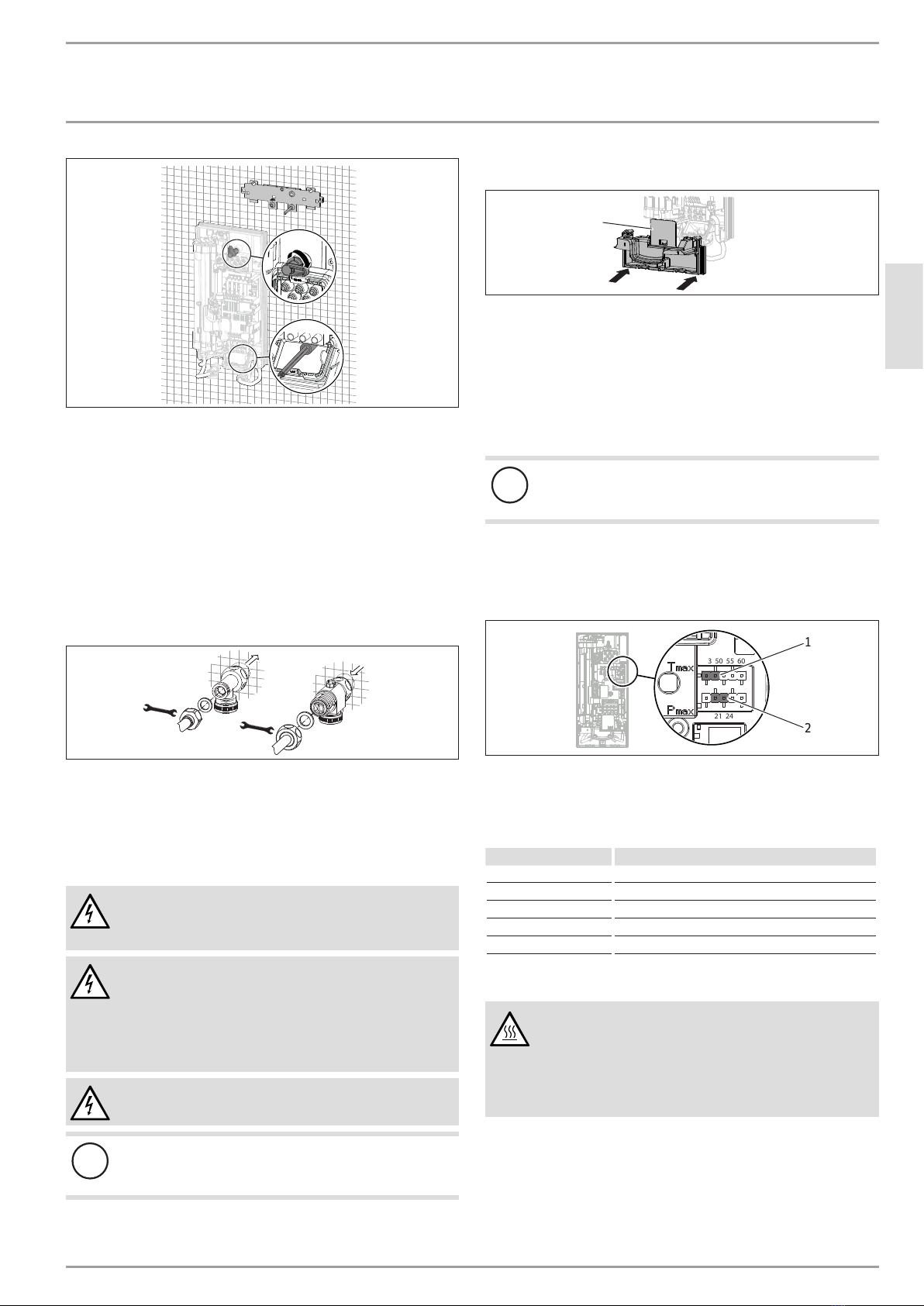

Installing the appliance
Note
If you are installing the appliance with flexible pipe con-
nections, also secure the back panel with a screw.
D0000053291
1
2
1 Cable entry installation aid
2 Cable grommet
Use the installation aid for easier wiring access through the cable
grommet (see plastic parts set supplied).
 Remove the cable grommet from the back panel.
 Pull the cable grommet over the cable sheath of the power
cable. For large cable cross-sections, enlarge the hole in the
cable grommet if necessary.

INSTALLATION
Commissioning
ENGLISH
www.stiebel-eltron.com DEL Plus | 31
D0000053274
 Remove the transport protection plugs from the appliance
pipe connections.
 Bend the power cable 45° upwards.
 Route the power cable and cable grommet through the back
panel from the rear.
 Install the appliance on the threaded studs of the wall
mounting bracket.
 Press the back panel firmly into place, aligning it correctly.
 Lock the fixing toggle by turning it 90° clockwise.
 Pull the cable grommets into the back panel, until both lock-
ing tabs engage.
24
19
3 Nm
5 Nm
D0000056244
 Fit the pipe connections with flat gaskets onto the water
connections.
 Open the 3-way ball shut-off valve or the shut-off valve in the
cold water supply line.
Making the electrical connection
WARNING Electrocution
Carry out all electrical connection and installation work
in accordance with relevant regulations.
WARNING Electrocution
The connection to the power supply must be in the form
of a permanent connection in conjunction with the re-
movable cable grommet. Ensure the appliance can be
separated from the power supply by an isolator that dis-
connects all poles with at least 3mm contact separation.
WARNING Electrocution
Ensure that the appliance is earthed.
!
Material losses
Observe the type plate. The specified rated voltage must
match the mains voltage.
 Connect the power cable to the mains terminal.
Fitting the lower back panel section
D0000053275
1
1 Diffuser on lower back panel
 Fit the lower back panel section into the back panel. Check
that both locking tabs are engaged.
 Align the mounted appliance by undoing the fixing toggle,
aligning the power supply and back panel, and then re-tight-
ening the fixing toggle. If the back panel does not sit flush
against the wall, you can secure the appliance at the bottom
with an additional screw.
!
Material losses
Do not bend the diffuser on the lower back panel when
installing.
11. Commissioning
11.1 Preparation
18 21 24
43 50 55 60
D0000073188
1
2
1 Jumper for anti-scalding protection setting
2 Jumper for connected load
Internal anti-scalding protection via jumper slot
Jumper position Description
43 Forexample, nurseries, hospitals etc.
50
55 Max. for shower operation
60 Factory setting
No jumper Limited to 43°C
 Install the anti-scalding protection setting jumper in the re-
quired position (= temperature in °C) on the pin strip.
CAUTION Burns
If the water supplied to the appliance is preheated, the
internal anti-scalding protection and the temperature
limit that is adjustable by the user may be exceeded.
In such cases, limit the temperature with an upstream
central thermostatic valve (ZTA 3/4).

INSTALLATION
Appliance shutdown
32 | DEL Plus www.stiebel-eltron.com

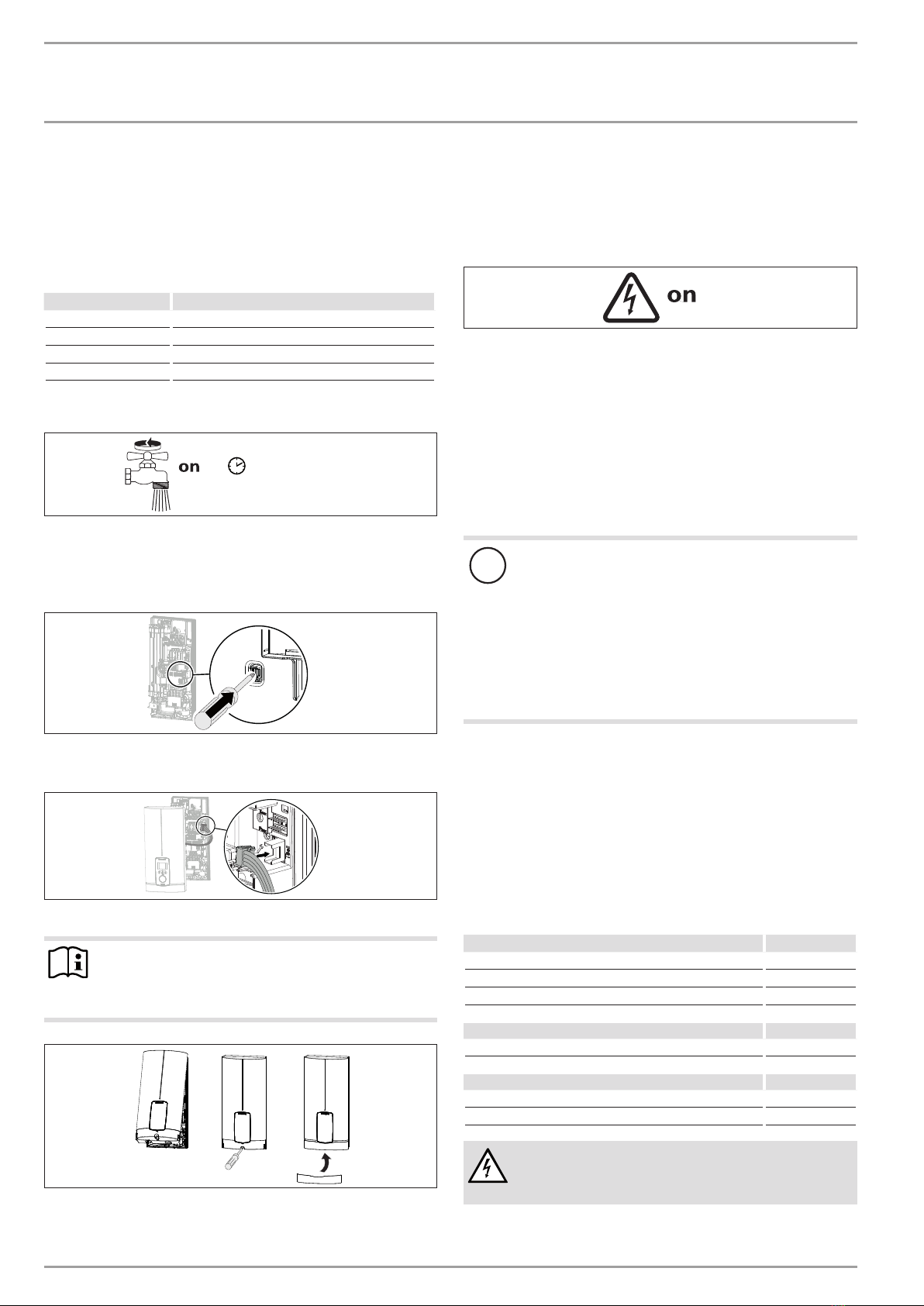

Changing connected load via jumper slot, DEL18/21/24Plus
only
If you select a connected load other than the 21kW factory setting
for appliances with selectable connected load, you will need to
reposition the jumper.
 Install the jumper in the required position on the pin strip.
Jumper position Connected load
18 18kW
21 21kW
24 24kW
No jumper 18kW
11.2 Initial start-up
≥ 60 s
D0000053277
 Open and close all connected draw-off valves several times,
until all air has been purged from the pipework and the
appliance.
 Carry out a tightness check.
D0000053278
 Activate the safety switch by firmly pressing the reset button
(the appliance is delivered with the safety switch disabled).
D0000073198
 Connect the programming unit connecting cable to the PCB.
Note
For undersink installation, the appliance cover should
be turned round for easier operation; see chapter "Alter-
native installation methods/ Pivoting appliance cover".
D0000053280
 Hook the appliance cover at the top rear into the back panel.
Pivot the appliance cover downwards. Check that the appli-
ance cover is securely fitted at both top and bottom.
 Tick the selected connected load and rated voltage on the ap-
pliance cover type plate (on both sides). Use a ballpoint pen
to do this.
 Secure the appliance cover with the screw.
 Fit the fascia to the appliance cover.
D0000053281
 Switch on the power supply.
11.2.1 Appliance handover
 Explain the appliance function to users and familiarise them
with its operation.
 Make the user aware of potential dangers, especially the risk
of scalding.
 Hand over the instructions.
11.3 Recommissioning
!
Material losses
To ensure that the bare wire heating system is not dam-
aged following an interruption to the water supply, the
appliance must be restarted taking the following steps.
 Disconnect the appliance from the power supply by
removing the fuses/tripping the MCBs.
 Open the tap for a minimum of one minute until the
appliance and its upstream cold water inlet line are
free of air.
 Switch the power back ON.
12. Appliance shutdown
 Isolate all poles of the appliance from the power supply.
 Drain the appliance (see chapter "Installation/ Maintenance/
Draining the appliance").
13. Alternative installation methods
Overview of the alternative types of installation
Electrical connection IP rating
On unfinished walls, connected from above IP 25
Unfinished walls, from below, short power cable IP 25
Installation on finished walls IP 24
Water connection IP rating
Installation on finished walls IP 24
Other IP rating
Installation with offset tiles IP 25
Pivoting appliance cover IP 25
WARNING Electrocution
Before any work on the appliance, ensure omnipolar
disconnection from the power supply.

INSTALLATION
Alternative installation methods
ENGLISH
www.stiebel-eltron.com DEL Plus | 33

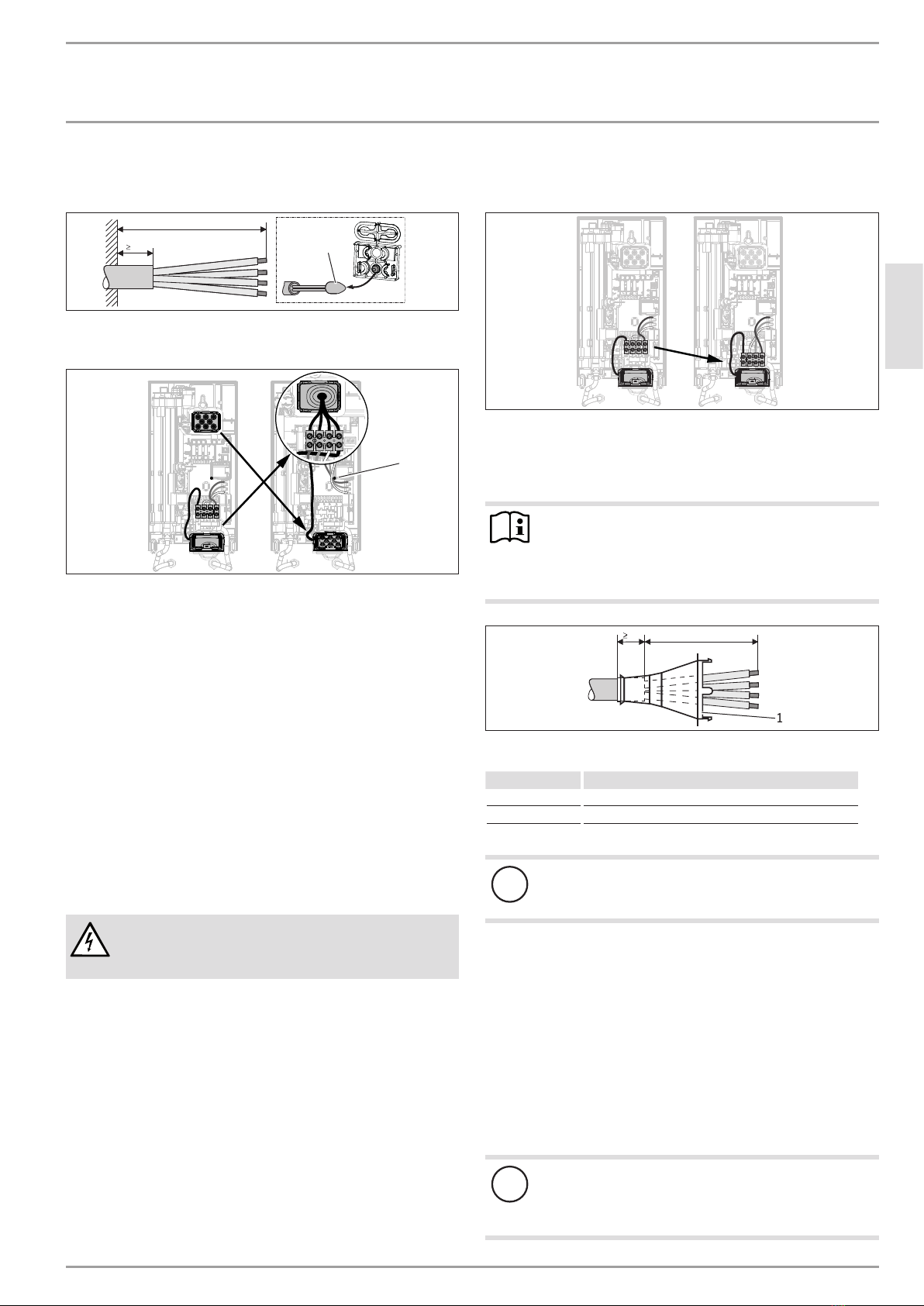

13.1 Electrical connection from above on unfinished
walls
140
30
D0000076507
1
1 Cable entry installation aid
 Prepare the power cable.
D0000053282
1
1 Cable routing
 Reposition the mains terminal from the bottom to the top. To
do this, undo the fixing screw. Turn the mains terminal with
connecting cables 180° clockwise. Route the cable around
the cable guide when doing so. Secure the mains terminal in
place.
 Replace the cable grommets.
 Install the cable grommet downwards from above.
 Pull the cable grommet over the cable sheath of the power
cable.
 Install the appliance on the threaded studs of the wall
mounting bracket.
 Push the back panel firmly against the wall. Lock the fixing
toggle by turning it 90° clockwise.
 Pull the cable grommets into the back panel, until both lock-
ing tabs engage.
 Connect the power cable to the mains terminal.
WARNING Electrocution
The connecting wires must not protrude beyond the level
of the mains terminal.
13.2 Electrical connection on unfinished walls with
short power cable
D0000060387
 Reposition the mains terminal further downwards. To do this,
undo the fixing screw. Secure the mains terminal in place.
13.3 Electrical connection on finished walls
Note
This type of connection changes the IP rating of the ap-
pliance.
 Change the type plate. Cross out "IP25" and mark
the box "IP24". Use a ballpoint pen to do this.
A
30
D0000076506
1
1 Cable grommet
Dimension A Electrical connection on finished walls
160 Positioned in lower section of appliance
110 Positioned in upper section of appliance
 Prepare the power cable. Fit the cable grommet.
!
Material losses
Use a new back panel/appliance cover if you break out the
wrong hole in the back panel/appliance cover by mistake.
 Cleanly cut and break out the required cable entries from the
back panel and appliance cover (for the positions, see chap-
ter "Specification/ Dimensions and connections"). Deburr any
sharp edges with a file.
 Route the power cable through the cable grommet.
 Connect the power cable to the mains terminal.
13.4 Connecting a load shedding relay
Install a load shedding relay in the distribution board in conjunc-
tion with other electric appliances, e.g.electric storage heaters.
The relay responds when the instantaneous water heater starts.
!
Material losses
Connect the phase that switches the load shedding relay
to the indicated terminal of the mains terminal in the
appliance (see chapter "Specification/ Wiring diagram").

INSTALLATION
Alternative installation methods
34 | DEL Plus www.stiebel-eltron.com
13.5 Water installation on finished walls
Note
This type of connection changes the IP rating of the ap-
pliance.
 Change the type plate. Cross out "IP25" and mark
the box "IP24". Use a ballpoint pen to do this.
19
24
5 Nm
18 Nm
D0000033104
 Fit water plugs with gaskets to seal the concealed connec-
tions. All taps obtained as accessories are supplied with
plugs and gaskets as standard. For pressure taps other than
those recommended by us, plugs and gaskets can be ordered
as accessories.
 Fit a suitable pressure tap.
 Push the lower back panel section under the connecting
pipes of the tap and push it into the back panel.
 Secure the connection pipes to the tee and the 3-way ball
shut-off valve.
Note
You can break off the pipe fitting tabs on the lower back
panel section if required.
D0000056194
1
1 Tab
13.6 Water installation on finished walls with
solder/press-fit fittings
You can connect copper or plastic pipes using the accessories
"solder fitting" or "press-fit fitting".
With "solder fitting" with threaded fitting for 12mm copper pipes,
proceed as follows:
 Push the union nuts over the connection pipes.
 Solder the inserts to the copper pipes.
 Push the lower back panel section under the connecting
pipes of the tap and push it into the back panel.
 Secure the connection pipes to the tee and the 3-way ball
shut-off valve.
Note
Observe the tap manufacturer's instructions.
13.7 Fitting appliance cover over water installation
on finished walls
D0000073170
4
3
2
1
1 Back panel guides
2 Screw
3 Cover guides with sealing lips on the pipe side
4 Pipe knock-out
 Cleanly saw and break out the pipe knock-outs in the appli-
ance cover. If necessary, use a file.
 When installing the connection pipes without offset, break
off the sealing lips on the cover guides.
 Click the cover guides into place in the knock-outs.
 Position the back panel guides on the pipes. Push them to-
gether. Then push the guide pieces against the back panel as
far they will go.
 Secure the lower back panel section with a screw.
Note
Use the cover guides with sealing lips if the connection
pipes are slightly offset. In this case, the back panel
guides are not fitted.
13.8 Lower back panel section installation with
threaded fittings on finished walls
D0000053286
2
3
1
1 Lower back panel section
2 Connection piece as delivered
3 Screw
If using threaded fittings on finished walls, the lower back panel
section can also be installed after fitting the taps/valves. To do
this, carry out the following steps:
 Cut open the lower section of the back panel.
 Fit the lower section of the back panel by bending it out at
the sides and guiding it over the pipes.
 Insert the connection pieces into the lower section of the
back panel from behind.
 Click the lower section of the back panel into place.
 Secure the lower back panel section with a screw.

INSTALLATION
Service information
ENGLISH
www.stiebel-eltron.com DEL Plus | 35

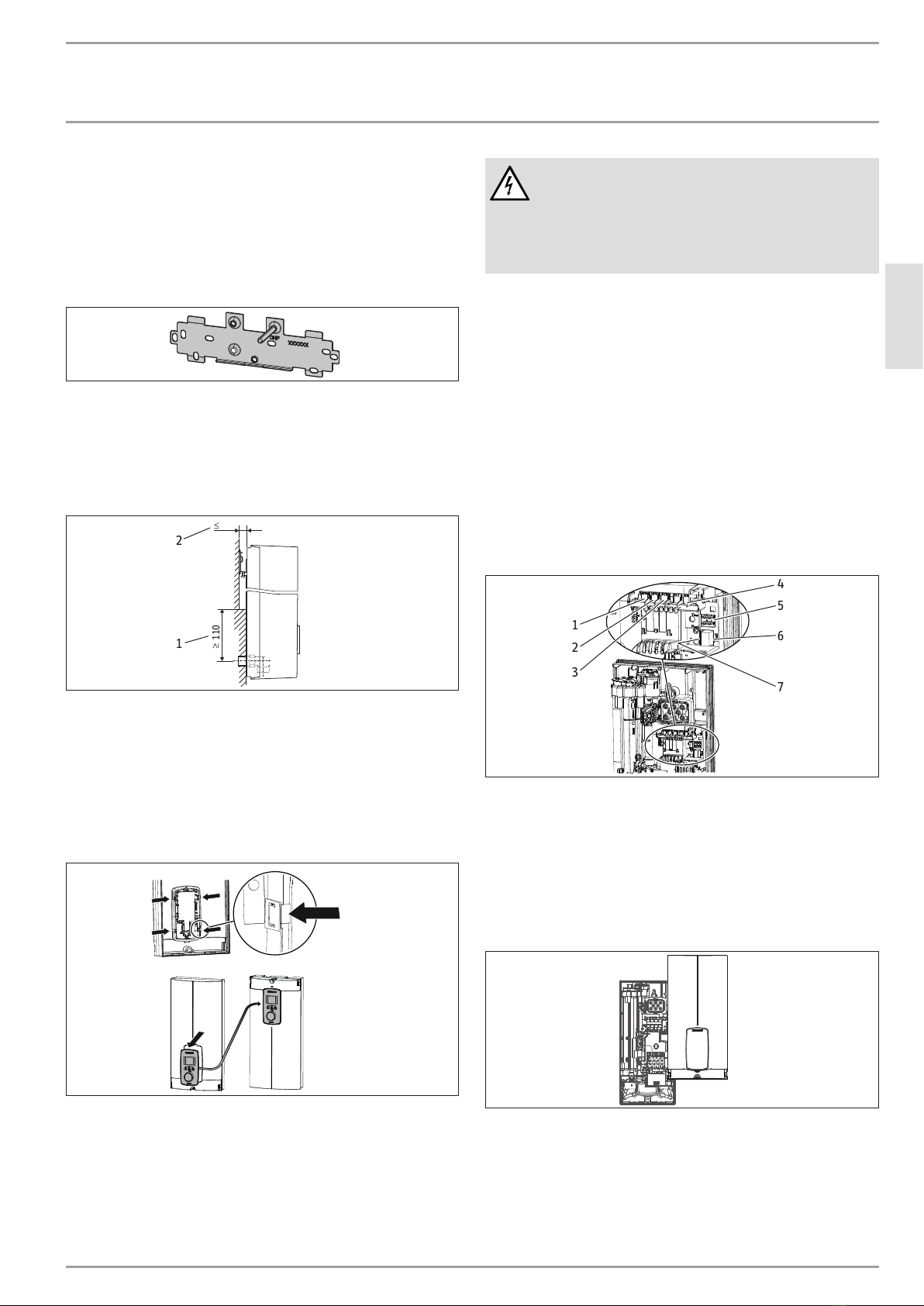

13.9 Wall mounting bracket when replacing
appliance
An existing STIEBELELTRON wall mounting bracket may be used
when replacing appliances (except for DHF instantaneous water
heater), as long as the fixing screw is in the lower right position.
Replacing a DHF instantaneous water heater
26�02�02�0815�
 Reposition the fixing screw on the wall mounting bracket (the
securing screw has a self-tapping thread).
 Rotate the wall mounting bracket 180° and mount it on the
wall (the DHF logo is then turned towards the reader).
13.10 Installation with offset tiles
110
20
26�02�02�1066�
2
1
1 Minimum contact area of the appliance
2 Maximum tile offset
 Adjust the wall clearance. Lock the back panel in place using
the fixing toggle (turn 90° clockwise).
13.11 Pivoting appliance cover
The appliance cover should be turned round for undersink in-
stallation.
D0000073012
 Remove the programming unit from the appliance cover by
pressing the locking hooks and removing the programming
unit.
 Turn the appliance cover (not the appliance) and refit the
programming unit. Push the programming unit home in par-
allel until all locking tabs engage. When engaging the locking
tabs, apply counter pressure by pushing against the appli-
ance cover from the inside.
WARNING Electrocution
All 4locking tabs on the programming unit must click into
place. The locking tabs must be complete and undam-
aged. If the programming unit is not inserted correctly,
protection of users against contact with live components
cannot be ensured.
 Insert the connecting cable plug of the programming unit
into the PCB (see chapter "Commissioning/ Initial start-up").
 Hook the appliance cover in at the bottom. Pivot the appli-
ance cover up to the back panel.
 Secure the appliance cover.
 Fit the cover on to the appliance cover.
13.12 Operation with preheated water
You can restrict the maximum inlet temperature by installing a
central thermostatic valve.
14. Service information
Overview of connections
D0000073174
1
2
3
4
5
6
7
1 Flow limiter
2 Flow sensor
3 High limit safety cut-out, automatic reset
4 NTC sensor
5 Pin strips for connected load and anti-scalding protection
6 Programming unit plug-in position
7 Diagnostic traffic light
Appliance cover retainer
D0000056216

INSTALLATION
Troubleshooting
36 | DEL Plus www.stiebel-eltron.com
15. Troubleshooting
WARNING Electrocution
To test the appliance, it must be connected to the power
supply.
Display indication Cause
E1 | Spanner Fault in electronic safety circuit.
E2 flashing Break or short circuit in inlet sensor.
E3 flashing Short circuit in outlet sensor.
Note
The diagnostic traffic light is displayed when water flows.
Indicator options for diagnostic traffic light (LED)
Red Illuminates in the event of a fault
Yellow Illuminates in heating mode/flashes when output restric-
tion reached
Green Flashing: Appliance connected to power supply
Diagnostic traffic
light
Fault Cause Remedy
No LED illuminates. The appliance does not heat
up.
There is no power supply. Check the fuse/MCB in your fuse box/distribution
board.
The PCB is faulty. Replace the test assembly.
Green flashes, yellow
off, red off
No DHW The shower head/ aerator are scaled up. Descale or replace the shower head/ aerator if nec-
essary.
The strainer in the cold water inlet is dirty. Clean the strainer.
The flow meter is not plugged in. Reconnect the connecting cable on the PCB.
The flow meter is faulty. Replace the flow meter.
The PCB is faulty. Replace the test assembly.
Green flashes, yellow
on, red off
The display is completely off. Loose set value transducer cable between PCB and
display.
Check the set value transducer cable and plug the
cable into the programming unit and/or PCB.
The programming unit connecting cable is faulty. Check the connecting cable and replace if required.
The programming unit PCB is faulty. Check the programming unit and replace if required.
Green flashes, yellow
on, red off
No DHW, the outlet temper-
ature does not match the set
value.
The downstream tap is faulty. Replace the faulty tap.
Internal anti-scalding protection is activated. Deactivate the internal anti-scalding protection.
The heating system is faulty. Replace the test assembly.
The outlet detector is faulty. Replace the outlet sensor.
The PCB is faulty. Replace the test assembly.
Green flashes, yellow
off, red on, E1 displayed
No DHW, the outlet temper-
ature does not match the set
value.
The high limit safety cut-out is not enabled. Enable the safety switch.
The high limit safety cut-out is not connected. Reconnect the connecting cable on the PCB.
The high limit safety cut-out has tripped. Remedy the cause and activate the safety switch.
The high limit safety cut-out is faulty. Replace the high limit safety cut-out.
16. Maintenance
WARNING Electrocution
Before any work on the appliance, ensure omnipolar
disconnection from the power supply.
Draining the appliance
The appliance can be drained for maintenance work.
WARNING Burns
Hot water may escape when you drain the appliance.
 Close the 3-way ball shut-off valve or the shut-off valve in the
cold water supply line.
 Open all draw-off valves.
 Undo the pipe connections from the appliance.
 Store the dismantled appliance in a room free from the risk
of frost, as water residues remaining inside the appliance can
freeze and cause damage.
Cleaning the strainer
If dirty, clean the strainer in the threaded cold water fitting. Close
the 3-way ball shut-off valve or the shut-off valve in the cold water
supply line before removing, cleaning and refitting the strainer.

INSTALLATION
Specication
ENGLISH
www.stiebel-eltron.com DEL Plus | 37
17. Specification
17.1 Dimensions and connections
466
225
35
35
414
38
105≤ 20
140
30
b02
100
c01c06
368
116
D0000073253
DEL Plus
b02 Entry electrical cables I Installation on unfinished walls
c01 Cold water inlet Male thread G 1/2 A
c06 DHW outlet Male thread G 1/2 A
Alternative connection options
165
b04 b04
69
330
b04
69
325
b04
b04
b03
20
35
30
b02
D0000053293
DEL Plus
b02 Entry electrical cables I Installation on unfinished walls
b03 Entry electrical cables II Installation on unfinished walls
b04 Entry electrical cables III Installation on finished walls
17.2 Wiring diagram
3/PE ~ 380-415 V
D0000053424
1
3
4
2
1 Power PCB with integral safety switch
2 Bare wire heating system
3 High limit safety cut-out
4 Mains terminal
Priority control with LR 1-A
85�02�02�0003�
2
1
1 Control cable to the contactor of the second appliance (elec-
tric storage heater, forexample)
2 Control contact drops out when switching the instantaneous
water heater on.
17.3 Domestic hot water output
The DHW output is subject to the connected power supply, the
appliance's connected load and the cold water inlet temperature.
The rated voltage and rated output can be found on the type plate.
Connected load in kW 38°C DHW output in l/min.
Rated voltage Cold water inlet temperature
380V 400V 415V 5°C 10°C 15°C 20°C
16.2 7.0 8.3 10.1 12.9
19 8.2 9.7 11.8 15.1
21.7 9.4 11.1 13.5 17.2
18 7.8 9.2 11.2 14.3
21 9.1 10.7 13.0 16.7
24 10.4 12.2 14.9 19.0
19.4 8.4 9.9 12.0 15.4
22.6 9.8 11.5 14.0 17.9
25.8 11.2 13.2 16.0 20.5
24.4 10.6 12.4 15.2 19.4
27 11.7 13.8 16.8 21.4

INSTALLATION
Specication
38 | DEL Plus www.stiebel-eltron.com
Connected load in kW 50°C DHW output in l/min.
Rated voltage Cold water inlet temperature
380V 400V 415V 5°C 10°C 15°C 20°C
16.2 5.1 5.8 6.6 7.7
19 6.0 6.8 7.8 9.0
21.7 6.9 7.8 8.9 10.3
18 5.7 6.4 7.3 8.6
21 6.7 7.5 8.6 10.0
24 7.6 8.6 9.8 11.4
19.4 6.2 6.9 7.9 9.2
22.6 7.2 8.1 9.2 10.8
25.8 8.2 9.2 10.5 12.3
24.4 7.7 8.7 10.0 11.6
27 8.6 9.6 11.0 12.9
17.4 Application areas/ Conversion table
Specific electrical resistance and specific electrical conductivity
Standard specifica-
tion at 15°C 20°C 25°C
Resist-
ance
ρ≥
Conductivity σ≤ Resist-
ance
ρ≥
Conductivity σ≤ Resist-
ance
ρ≥
Conductivity σ≤
Ωcm mS/m μS/cm Ωcm mS/m μS/cm Ωcm mS/m μS/cm
900 111 1111 800 125 1250 735 136 1361
17.5 Pressure drop
Taps/valves
Tap pressure drop at a flow rate of 10 l/min
Mono lever mixer tap, approx. MPa 0.04 - 0.08
Thermostatic valve, approx. MPa 0.03 - 0.05
Shower head, approx. MPa 0.03 - 0.15
Sizing the pipework
When calculating the size of the pipework, an appliance pressure
drop of 0.1MPa is recommended.
17.6 Fault conditions
In the event of a fault, loads up to 80°C at a pressure of 1.0 MPa
can occur briefly in the installation.
17.7 Test symbols
See type plate on the appliance.
17.8 Energy consumption data
The product data complies with EU regulations relating to the
directive on the ecodesign of energy related products (ErP).
DEL 18/21/24 Plus DEL 27 Plus
236739 236740
Manufacturer STIEBEL ELTRON STIEBEL ELTRON
Load profile S S
Energy efficiency class A A
Energy conversion efficiency %39 39
Daily power consumption kWh 2.211 2.217
Annual power consumption kWh 480 481
Default temperature setting °C 60 60
Sound power level dB(A) 15 15
Special information on measuring efficiency Measured at ECO level with greatest flow, maximum
output and maximum set value.
Measured at ECO level with greatest flow and maxi-
mum set value.

ENGLISH
www.stiebel-eltron.com DEL Plus | 39
INSTALLATION | GUARANTEE | ENVIRONMENT AND RECYCLING
Specication
17.9 Data table
DEL 18/21/24 Plus DEL 27 Plus
236739 236740
Electrical data
Rated voltage V380 400 415 380 400
Rated output kW 16.2/19/21.7 18/21/24 19.4/22.6/25.8 24.4 27
Rated current A27.6/29.5/33.3 29/31/35 30.1/32.2/36.3 37.1 39
Fuses A32/32/35 32/32/35 32/32/40 40 40
Frequency Hz 50/60 50/60 50/- 50/- 50/-
Phases 3/PE 3/PE
Specific resistance ρ15 ≥ Ω cm 900 900
Specific conductivity σ15 ≤ μS/cm 1111 1111
Max. mains impedance Ω 0.248 0.236 0.227 0.221 0.21
Versions
Heating system heat generator Bare wire Bare wire
Adjustable connected load X -
Temperature setting range °C Off, 20-60 Off, 20-60
Protection class 1 1
Insulating block Plastic Plastic
Cover and back panel Plastic Plastic
IP rating IP25 IP25
Colour White White
Connections
Water connection G 1/2 A G 1/2 A
Application limits
Max. permissible pressure MPa 1 1
Max. inlet temperature for reheating °C 55 55
Values
Max. inlet temperature (e.g. pasteurisation) °C 70 70
ON l/min >2.5 >2.5
Flow rate at 28 K l/min 9.2/10.7/12.3 at 400V 13.8 at 400V
Flow rate at 50 K l/min 5.2/6.0/6.9 at 400V 7.7 at 400V
Pressure drop for flow rate at 50 K (without flow limiter) MPa 0.06/0.08/0.1 0.13
Hydraulic data
Nominal capacity l0.4 0.4
Dimensions
Height mm 466 466
Width mm 225 225
Depth mm 116 116
Weights
Weight kg 3.2 3.2
Note
The appliance conforms to IEC61000-3-12.
Guarantee
The guarantee conditions of our German companies do not
apply to appliances acquired outside of Germany. In countries
where our subsidiaries sell our products a guarantee can only
be issued by those subsidiaries. Such guarantee is only grant
-
ed if the subsidiary has issued its own terms of guarantee. No
other guarantee will be granted.
We shall not provide any guarantee for appliances acquired in
countries where we have no subsidiary to sell our products.
This will not aect warranties issued by any importers.
Environment and recycling
We would ask you to help protect the environment.
After use,
dispose of the various materials in accordance with national
regulations.
GUARANTEE
ENVIRONMENT AND RECYCLING



Deutschland
STIEBEL ELTRON GmbH & Co. KG
Dr.-Stiebel-Straße 33 | 37603 Holzminden
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.de
Verkauf Tel. [phone] | Fax [phone] | [email protected]
Kundendienst Tel. [phone] | Fax [phone] | [email protected]
Ersatzteilverkauf Tel. [phone] | Fax [phone] | [email protected]
Irrtum und technische Änderungen vorbehalten! | Subject to errors and technical changes! | Sous réserve
d‘erreurs et de modifications techniques! | Onder voorbehoud van ver
g
issin
g
en en technische wi
j
zi
g
in
g
en! |
Salvo error o modificación técnica! | Excepto erro ou alteração técnica | Zastrzeżone zmian
y
techniczne i
ewentualne błędy | Omyly a technické změny jsou vyhrazeny! | A muszaki változtatások és tévedések
j
o
g
át
fenntartjuk! | Отсутствие ошибок не гарантируется. Возможны технические изменения. | Ch
y
b
y
a
technické zmeny sú vyhradené! Stand 9147
Australia
STIEBEL ELTRON Australia Pty. Ltd.
6 Prohasky Street | Port Melbourne VIC 3207
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel.com.au
Austria
STIEBEL ELTRON Ges.m.b.H.
Gewerbegebiet Neubau-Nord
Margaritenstraße 4 A | 4063 Hörsching
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.at
Belgium
STIEBEL ELTRON bvba/sprl
't Hofveld 6 - D1 | 1702 Groot-Bijgaarden
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.be
China
STIEBEL ELTRON (Guangzhou) Electric
Appliance Co., Ltd.
Rm 102, F1, Yingbin-Yihao Mansion, No. 1
Yingbin Road
Panyu District | 511431 Guangzhou
Tel. [phone] | Fax [phone]
[e-mail]
www.stiebeleltron.cn
Czech Republic
STIEBEL ELTRON spol. s r.o.
K Hájům 946 | 155 00 Praha 5 - Stodůlky
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.cz
Finland
STIEBEL ELTRON OY
Kapinakuja 1 | 04600 Mäntsälä
Tel. [phone]
[email protected]
www.stiebel-eltron.fi
France
STIEBEL ELTRON SAS
7-9, rue des Selliers
B.P 85107 | 57073 Metz-Cédex 3
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.fr
Hungary
STIEBEL ELTRON Kft.
Gyár u. 2 | 2040 Budaörs
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.hu
Japan
NIHON STIEBEL Co. Ltd.
Kowa Kawasaki Nishiguchi Building 8F
66-2 Horikawa-Cho
Saiwai-Ku | 212-0013 Kawasaki
Tel. [phone] | Fax [phone]
[email protected]
www.nihonstiebel.co.jp
Netherlands
STIEBEL ELTRON Nederland B.V.
Daviottenweg 36 | 5222 BH 's-Hertogenbosch
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.nl
Poland
STIEBEL ELTRON Polska Sp. z O.O.
ul. Działkowa 2 | 02-234 Warszawa
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.pl
Russia
STIEBEL ELTRON LLC RUSSIA
Urzhumskaya street 4,
building 2 | 129343 Moscow
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.ru
Slovakia
TATRAMAT - ohrievače vody s.r.o.
Hlavná 1 | 058 01 Poprad
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.sk
Switzerland
STIEBEL ELTRON AG
Industrie West
Gass 8 | 5242 Lupfig
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.ch
Thailand
STIEBEL ELTRON Asia Ltd.
469 Moo 2 Tambol Klong-Jik
Amphur Bangpa-In | 13160 Ayutthaya
Tel. [phone] | Fax [phone]
[e-mail]
www.stiebeleltronasia.com
United Kingdom and Ireland
STIEBEL ELTRON UK Ltd.
Unit 12 Stadium Court
Stadium Road | CH62 3RP Bromborough
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.co.uk
United States of America
STIEBEL ELTRON, Inc.
17 West Street | 01088 West Hatfield MA
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron-usa.com
A 328222-40416-9335
4<AMHCMO=ciccci>
