STIEBEL ELTRON DHE Connect 18 Specification sheet

Vollelektronisch geregelter Durchlauferhitzer mit Mini-Funk-Fernbedienung | Fully
electronically controlled instantaneous water heater with mini wireless remote control|
Chauffe-eau instantané à régulation entièrement électronique avec télécommande radio|
Geheel elektronisch geregelde doorstromer met draadloze miniafstandsbediening |
Całkowicie elektronicznie regulowany przepływowy ogrzewacz wody, z miniaturowym
radiowym pilotem zdalnego sterowania| Plně elektronicky regulovaný průtokový ohřívač
s rádiovým dálkovým miniovladačem| Plne elektronicky regulovaný prietokový ohrievač s
mini rádiovým diaľkovým ovládaním
» DHE Connect18/21/24
» DHE Connect27
» DHE Touch18/21/24
» DHE Touch27
BEDIENUNG UND INSTALLATION
OPERATION AND INSTALLATION
UTILISATION ET INSTALLATION
BEDIENING EN INSTALLATIE
OBSŁUGA I INSTALACJA
OBSLUHA A INSTALACE
OBSLUHA A INŠTALÁCIA

58 |DHEConnect | DHETouch www.stiebel-eltron.com
CONTENTS
SPECIAL INFORMATION
OPERATION
1. General information ��������������������������������������� 60
2. Safety�������������������������������������������������������� 61
3. Appliance description ������������������������������������� 62
4. Settings ����������������������������������������������������� 65
5. Cleaning, care and maintenance ������������������������� 74
6. Troubleshooting �������������������������������������������� 75
INSTALLATION
7. Safety�������������������������������������������������������� 79
8. Appliance description ������������������������������������� 79
9. Preparation ������������������������������������������������� 81
10. Installation�������������������������������������������������� 83
11. Commissioning ��������������������������������������������� 87
12. Appliance shutdown ��������������������������������������� 89
13. Installation options ���������������������������������������� 89
14. Service information���������������������������������������� 97
15. Troubleshooting �������������������������������������������� 99
16. Maintenance ����������������������������������������������� 101
17. Specification ����������������������������������������������� 102
GUARANTEE
ENVIRONMENT AND RECYCLING

ENGLISH
www.stiebel-eltron.com DHEConnect | DHETouch |59
SPECIAL INFORMATION
SPECIAL INFORMATION
- The appliance may be used by children aged3
and older and persons with reduced physical,
sensory or mental capabilities or a lack of ex-
perience and know-how, provided that they
are supervised or they have been instructed
on how to use the appliance safely and have
understood the potential risks. Children must
never play with the appliance. Children must
never clean the appliance or perform user
maintenance unless they are supervised.
- The tap can reach temperatures in excess of
60°C. There is a risk of scalding at outlet tem-
peratures in excess of 43 °C.
- Ensure the appliance can be separated from
the power supply by an isolator that discon-
nects all poles with at least 3mm contact
separation.
- The specified voltage must match the mains
voltage.
- The appliance must be connected to earth.
- The appliance must be permanently connect-
ed to fixed wiring.
- Secure the appliance as described in chapter
"Installation/ Installation".
- Observe the maximum permissible pressure
(see chapter "Installation/ Specification/ Data
table").
- The specific water resistivity of the mains
water supply must not be undershot (see
chapter “Installation / Specification / Data
table”).
- Drain the appliance as described in chapter
"Installation/ Maintenance/ Draining the
appliance".

OPERATION
General information
60 |DHEConnect | DHETouch www.stiebel-eltron.com
OPERATION
1. General information
The chapters "Special information" and "Operation" are intended
for both users and qualified contractors.
The chapter "Installation" is intended for qualified contractors.
Note Read these instructions carefully before using the appli-
ance and retain them for future reference.
Pass on the instructions to a new user if required.
1.1 Safety instructions
1.1.1 Structure of safety instructions
!KEYWORD Type of risk
Here, possible consequences are listed that may result
from failure to observe the safety instructions.
 Steps to prevent the risk are listed.
1.1.2 Symbols, type of risk
Symbol Type of risk
Injury
Electrocution
Burns
(burns, scalding)
1.1.3 Keywords
KEYWORD Meaning
DANGER Failure to observe this information will result in serious
injury or death.
WARNING Failure to observe this information may result in serious
injury or death.
CAUTION Failure to observe this information may result in non-seri-
ous or minor injury.
!

ENGLISH
www.stiebel-eltron.com DHEConnect | DHETouch |61
OPERATION
Safety
1.2 Other symbols in this documentation
Note General information is identified by the adjacent symbol.
 Read these texts carefully.
Symbol Meaning
Material losses
(appliance damage, consequential losses and environmen-
tal pollution)
Appliance disposal
 This symbol indicates that you have to do something. The ac-
tion you need to take is described step by step.
These symbols show you the software menu level (in
this example level3).
1.3 Units of measurement
Note All measurements are given in mm unless stated oth-
erwise.
2. Safety
2.1 Intended use
This appliance is suitable for heating domestic hot water or for
reheating preheated water. The appliance can supply one or more
draw-off points.
Water will not be reheated if the maximum inlet temperature for
reheating is exceeded.
The appliance is intended for domestic use. It can be used safely
by untrained persons. The appliance can also be used in non-do-
mestic environments, e.g. in small businesses, as long as it is
used in the same way.
Any other use beyond that described shall be deemed inappro-
priate. Observation of these instructions and of the instructions
for any accessories used is also part of the correct use of this
appliance.
!

OPERATION
Appliance description
62 |DHEConnect | DHETouch www.stiebel-eltron.com
2.2 General safety instructions
CAUTION Burns During operation, the tap can reach temperatures in ex-
cess of 60 °C.
There is a risk of scalding at outlet temperatures in ex-
cess of 43 °C.
CAUTION Burns If operating with preheated water, e.g.from a solar ther-
mal system, the DHW temperature may vary from the
selected set temperature.
!WARNING Injury
The appliance may be used by children aged3 and older
and persons with reduced physical, sensory or mental
capabilities or a lack of experience and know-how, pro-
vided that they are supervised or they have been in-
structed on how to use the appliance safely and have
understood the potential risks. Children must never play
with the appliance. Children must never clean the ap-
pliance or perform user maintenance unless they are
supervised.
Where children or persons with limited physical, sensory or men-
tal abilities are allowed to use this appliance, we recommend a
permanent temperature limit. The following limitation options
are available:
- user adjustable: "MAX" temperature limiting/ childproofing,
- qualified contractor adjustable: "Internal anti-scalding
protection".
!Material losses
The user should protect the appliance and its tap against
frost.
Note The mini wireless remote control has a lithium button
cell as battery for the power supply.
Remove spent batteries. Leaking batteries cause dam-
age which is excluded from any warranty. Never use re-
chargeable batteries.
3. Appliance description
The appliance switches on automatically as soon as you open the
hot water valve on the tap. When you close the tap, the appliance
switches off again automatically.
The appliance heats water as it flows through it. You can adjust the
DHW outlet temperature via the touchscreen, via the Touch wheel
or via the mini wireless remote control. From a certain flow rate,
the control unit regulates the correct heating output, subject to
the temperature selected and the current cold water temperature.

ENGLISH
www.stiebel-eltron.com DHEConnect | DHETouch |63
OPERATION
Appliance description
This appliance with full electronic control and output matching
keeps the outlet temperature constant. The water is heated by
the electronic control unit with motorised valve to precisely the
selected temperature. This occurs regardless of the inlet tem-
perature.
If the appliance is operated with preheated water and the inlet
temperature exceeds the chosen set temperature, a warning mes-
sage appears on the display. The water is not heated further.
You can save and quickly call up different temperatures. The ECO
function limits the flow rate. The appliance has childproofing
functions, a wellness shower program, automatic water volume
control, dynamic anti-scalding protection, and permanent tem-
perature limiting. The backlight switches off automatically with
no intervention (user adjustable switch off time). As soon as water
flows through the appliance, or you make a change on the dis-
play or mini wireless remote control, the backlight switches on
automatically.
Prerequisites for use of extended functions (weather data, in-
ternet radio, app-based operation) with “DHEConnect”: WLAN
802.11, broadband internet connection, registration with email
address, terms of use and data protection consent agreement
(www.stiebel-eltron.com/terms-of-use/dhe).
The "DHE Connect" appliance has an integrated loudspeaker.
Alternatively, an external Bluetooth®loudspeaker can also be
used. In addition, it is also possible to output music from a mobile
terminal device to the integrated loudspeaker in the DHEConnect.
Heating system
The bare wire heating system is enclosed within a pressure-tested
plastic jacket. The heating system with its stainless steel internal
indirect coil is suitable for hard and soft water areas and is largely
insusceptible to scale build-up. The heating system ensures rapid
and efficient DHW provision.
Note
The appliance is equipped with an air detector that
largely prevents damage to the heating system. If, dur-
ing operation, air is drawn into the appliance, the ap-
pliance shuts down for one minute, thereby protecting
the heating system.

OPERATION
Appliance description
64 |DHEConnect | DHETouch www.stiebel-eltron.com
DHEConnect | DHETouch functions
Function DHEConnect DHETouch
with internet connection no internet connection
WLAN function
Radio/ Bluetooth®
Weather forecast
App for smartphone or
tablet
Touch-Display
Individual programming
via the display
Precise DHW convenience
3.1 Programming unit layout
D0000054571
1
3
2
1 Touchscreen
2 Touch wheel, selectable functions: "Temperature", "Volume"
(DHEConnect only) and "No function"
3 Loudspeaker (DHEConnect only)
The touchscreen responds to tap contact (not "swiping"). Tap on
the desired function with your finger.
The Touch wheel has a touch-sensitive sensor. You can change the
setting with rotary touch.

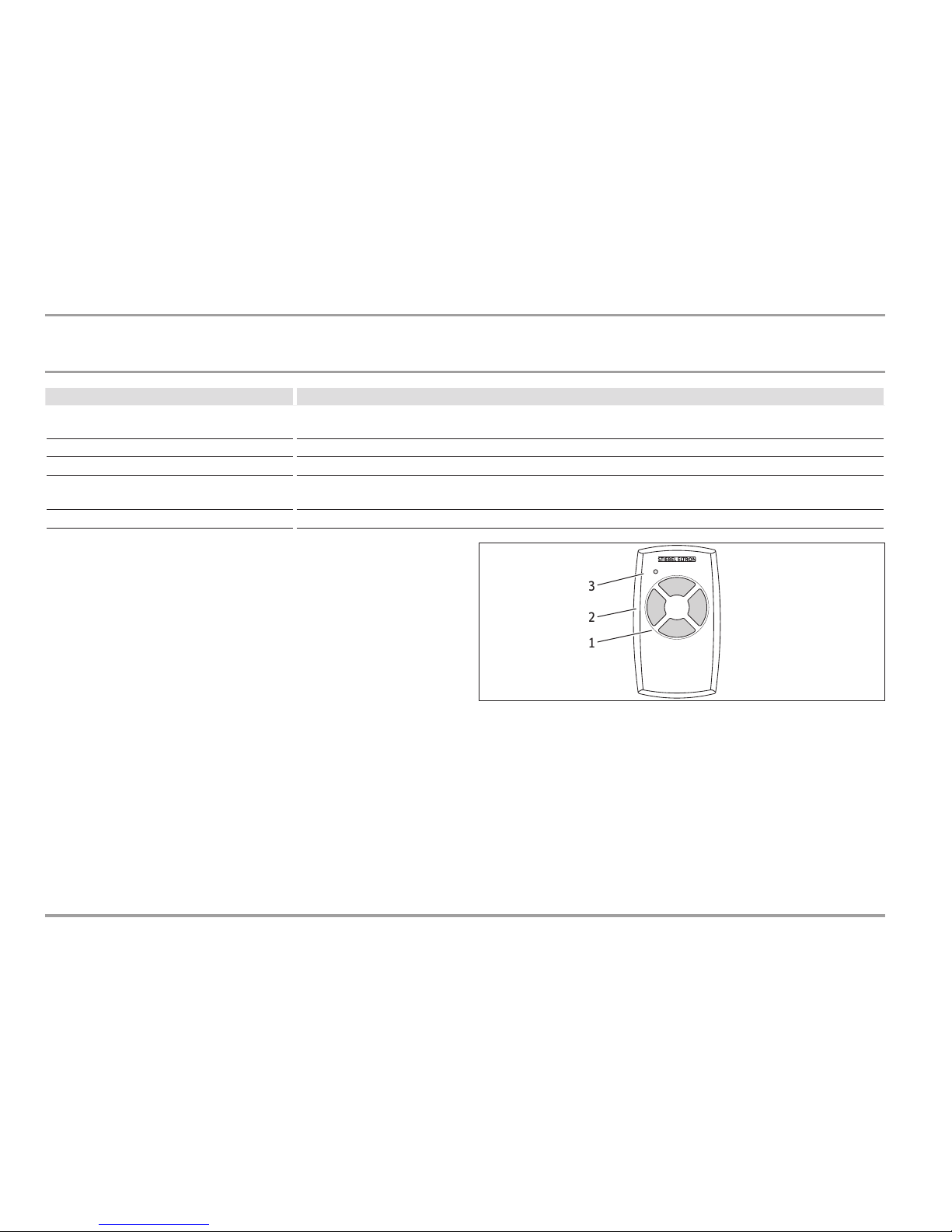

Using the enclosed mini wireless remote control you can adjust
the temperature setting wirelessly.
°C
°C

ENGLISH
www.stiebel-eltron.com DHEConnect | DHETouch |65
OPERATION
Settings
4. Settings
4.1 Temperature settings
OFF 3s
38 60
+
_
D0000054549
1
2
3
4
Memor y 1 Memory 2 Maximum
Weather Radio ECO
1 Buttons "-" and "+", press continuously for rapid update
2 Rapid selection of temperature with the memory keys
3 Touch-Wheel
4 Mini wireless remote control buttons
- Temperature selection 20 - 60°C in 0.5°C increments. From
43°C (risk of scalding) the temperature on the touchscreen
turns red
- "OFF" = heating system switched off
Dynamic anti-scalding protection
With the dynamic anti-scalding protection, after selecting a tem-
perature on the appliance or wireless remote control, the user has
automatic priority for maximum temperature setting. The priority
is active for 2minutes or until 2 minutes after the current draw-off
ends. After this, the priority is automatically disabled.
During the priority period, you can reduce the temperature or
increase it to a maximum of 43°C using other wireless controls.
Internal anti-scalding protection
If desired, your qualified contractor can set a permanent tem-
perature limit; forexample in nurseries, hospitals, and so on.
This prevents the flow of water at scalding temperatures from
the appliance.
4.2 Start screen
The start screen is divided into four areas where you can operate
DHE.
D0000059464
1
2
34
5
Memory 1
Weather
Memory 2
Radio
Maximum
ECO
1 Status display with active functions
2 Temperature, display and adjustment

OPERATION
Settings
66 |DHEConnect | DHETouch www.stiebel-eltron.com
3 Functions
4 Active symbols on black background: "Maximum", "ECO",
"Bath filling" and "Wellness"
5 Navigation (to scroll through pages)
Symbol Meaning
back to start screen
navigate
4.3 Function descriptions
38,0°C Temperature memory
Rapid stored temperature selection
You can specify a new temperature for the rapid selection as fol-
lows:
 Set the required temperature. Press and hold the button for
3seconds; the symbol is highlighted in black. The symbol
lightens again and the temperature is stored. You can also
change the temperature in the "Settings" menu.
36,0°C Maximum
This symbol has a black background when the maximum tem-
perature is activated (see "Settings" menu). "MAX" appears in
the status display.
Weather
DHEConnect with WLAN connection and prior registration only
D0000059466
3
1
2
5
4
9/12/15
Th.
Holzminden
Fr. Sa.
We.
1 Latest weather information
2 3-day weather forecast
3 Add location (worldwide, weather data originates from
Q.met "qmet.de")
4 Add/ Remove favourite
5 Get favourites list
