STIEBEL ELTRON PSH 30 Universal EL Quick start guide

BEDIENUNG UND INSTALLATION
OPERATION AND INSTALLATION
UTILISATION ET INSTALLATION
BEDIENING EN INSTALLATIE
OBSLUHA A INSTALACE
OBSLUHA A INŠTALÁCIA
ЭКСПЛУАТАЦИЯ И МОНТАЖ
OBSŁUGA I INSTALACJA
Warmwasser-Wandspeicher mit Elektronik | Wall mounted water heater with PCB | Ballon d’ECS
mural électronique | Warmwater-wandboiler met elektronica | Nástěnný zásobník teplé vody
s elektronikou | Nástenný akumulačný ohrievač vody s elektronikou | Настенный накопительный
водонагреватель с электронным модулем | Zasobnik ścienny ciepłej wody z układem elektronicznym
» PSH 30 Universal EL
» PSH 50 Universal EL
» PSH 80 Universal EL
» PSH 100 Universal EL
» PSH 120 Universal EL
» PSH 150 Universal EL

22 | PSH Universal EL www.stiebel-eltron.com
Contents
SPECIAL INFORMATION
OPERATION
1. General information ��������������������������������������� 23
1.1 Safety instructions����������������������������������������������23
1.2 Other symbols in this documentation ���������������������� 24
1.3 Units of measurement ����������������������������������������� 24
2. Safety�������������������������������������������������������� 24
2.1 Intended use����������������������������������������������������� 24
2.2 Safety instructions���������������������������������������������� 24
2.3 Test symbols ����������������������������������������������������� 24
3. Appliance description ������������������������������������� 25
4. Settings ����������������������������������������������������� 25
4.1 Controls, display and symbols ������������������������������� 25
4.2 Factory settings ������������������������������������������������� 26
4.3 Button functions ������������������������������������������������ 26
4.4 Menu functions�������������������������������������������������� 27
5. Cleaning, care and maintenance ������������������������� 29
6. Troubleshooting �������������������������������������������� 29
INSTALLATION
7. Safety�������������������������������������������������������� 30
7.1 General safety instructions �����������������������������������30
7.2 Instructions, standards and regulations �������������������30
8. Appliance description ������������������������������������� 30
8.1 Standard delivery����������������������������������������������� 30
9. Preparations������������������������������������������������ 30
9.1 Installation site�������������������������������������������������� 30
10. Preparing for installation ��������������������������������� 30
10.1 Preparing to install the appliance��������������������������� 30
10.2 Water connection ����������������������������������������������� 30
10.3 Electrical connection������������������������������������������� 31
11. Commissioning ��������������������������������������������� 32
11.1 Commissioning�������������������������������������������������� 32
11.2 Returning into use���������������������������������������������� 32
12. Settings ����������������������������������������������������� 32
12.1 Switching on commercial mode ����������������������������� 32
12.2 Switching on reverse control��������������������������������� 32
13. Taking the appliance out of use �������������������������� 32
14. Maintenance ������������������������������������������������ 33
14.1 Checking the safety assembly and safety valve����������� 33
14.2 Draining the appliance ���������������������������������������� 33
14.3 Checking the protective anode������������������������������� 33
14.4 Descaling ��������������������������������������������������������� 33
14.5 Installing the temperature limiter��������������������������� 33
14.6 Replacing the heating element ������������������������������ 33
15. Troubleshooting �������������������������������������������� 34
16. Specification ������������������������������������������������ 35
16.1 Dimensions and connections��������������������������������� 35
16.2 Wiring diagrams and connections ��������������������������36
16.3 Fault conditions ������������������������������������������������� 37
16.4 Details on energy consumption������������������������������38
16.5 Data table �������������������������������������������������������� 39
GUARANTEE
ENVIRONMENT AND RECYCLING

ENGLISH
www.stiebel-eltron.com PSH Universal EL| 23
Special information
General information
SPECIAL INFORMATION
- The appliance may be used by children aged8
and older and persons with reduced physical,
sensory or mental capabilities or a lack of ex-
perience and know-how, provided that they are
supervised or they have been instructed on how
to use the appliance safely and have understood
the resulting risks. Children must never play with
the appliance. Children must never clean the ap-
pliance or perform user maintenance unless they
are supervised.
- Only use a permanent connection to the power
supply. Ensure the appliance can be separated
from the power supply by an isolator that dis-
connects all poles with at least 3mm contact
separation.
- Observe the maximum permissible pressure (see
chapter Installation/ Specification/ Data table).
- The appliance is pressurised. During the heat-up
process, expansion water will drip from the safety
valve.
- Regularly activate the safety valve to prevent
it from becoming blocked, e.g. by limescale
deposits.
- Drain the appliance as described in chap-
ter “Installation/ Maintenance/ Draining the
appliance”.
- Install a type-tested safety valve in the cold water
supply line. Please note that, depending on the
static pressure, you may also need a pressure re-
ducing valve.
- Size the drain so that water can drain off unim-
peded when the safety valve is fully opened.
- Fit the discharge pipe of the safety valve with
a constant downward slope and in a room free
from the risk of frost.
- The safety valve discharge aperture must remain
open to atmosphere.
OPERATION
1. General information
The chapters “Special Information” and “Operation” are intended
for both the user and qualified contractors.
The chapter “Installation” is intended for qualified contractors.
Note Read these instructions carefully before using the appli-
ance and retain them for future reference.
Pass on the instructions to a new user if required.
1.1 Safety instructions
1.1.1 Structure of safety instructions
!KEYWORD Type of risk
Here, possible consequences are listed that may result
from failure to observe the safety instructions.
 Steps to prevent the risk are listed.
1.1.2 Symbols, type of risk
Symbol Type of risk
Injury
Electrocution
Burns
(burns, scalding)
1.1.3 Keywords
KEYWORD Meaning
DANGER Failure to observe this information will result in serious
injury or death.
WARNING Failure to observe this information may result in serious
injury or death.
CAUTION Failure to observe this information may result in non-
serious or minor injury.
!

Operation
Safety
24 | PSH Universal EL www.stiebel-eltron.com
1.2 Other symbols in this documentation
Note General information is identified by the symbol shown
on the left.
 Read these texts carefully.
Symbol Meaning
Material damage
(Appliance and consequential losses, environmental pol-
lution)
Appliance disposal
 This symbol indicates that you have to do something. The ac-
tion you need to take is described step by step.
1.3 Units of measurement
Note All measurements are given in mm unless stated oth-
erwise.
2. Safety
2.1 Intended use
The appliance is intended for heating domestic hot water and can
supply one or more draw-off points.
This appliance is designed for domestic use. It can be used safely
by untrained persons. The appliance can also be used in a non-
domestic environment, e.g. in a small business, as long as it is
used in the same way.
Any other use beyond that described shall be deemed inappropri-
ate. It is not permissible to heat other liquids or materials. Obser-
vation of these instructions and of instructions for any accessories
used is also part of the correct use of this appliance.
2.2 Safety instructions
WARNING Burns During operation, the tap and safety assembly can reach
temperatures in excess of 60°C.
There is a risk of scalding at outlet temperatures in ex-
cess of 43°C.
!WARNING Injury
The appliance may be used by children aged 8 and up
and persons with reduced physical, sensory or mental
capabilities or a lack of experience provided that they
are supervised or they have been instructed on how to
use the appliance safely and have understood the result-
ing risks. Children must never play with the appliance.
Children must never clean the appliance or perform user
maintenance unless they are supervised.
!Material damage
Protect the water lines and the safety assembly against
frost.
Note The appliance is under pressure. During the heat-up
process, expansion water will drip from the safety valve.
If water continues to drip when the heat-up process is
completed, and if the water pressure is lower than 0.6
MPa, please inform your heating contractor.
2.3 Test symbols
See type plate on the appliance.
!

Operation
Appliance description
ENGLISH
www.stiebel-eltron.com PSH Universal EL| 25
3. Appliance description
The appliance electrically heats up domestic hot water with the
standard heating output or with rapid heating. The electronic
control unit makes energy saving adjustments easier. Subject to
the power supply and draw-off behaviour, the water is heated
automatically to the set temperature.
The digital display provides you with information about the se-
lected set temperature and the enabled functions.
The inner cylinder is protected against corrosion by an enamel
coating in conjunction with the integral protective magnesium
anode.
The expansion water that collects as the water is heated up is
drained off via the safety valve.
The thermal insulation is made of environmentally friendly and
recyclable polyurethane foam.
The water heater is protected against frost, but the safety valve
and water lines in the apartment or house are not. If the appliance
is disconnected from the power supply, the water heater is not
protected against frost. In such cases, if there is a risk of frost, the
water heater must be drained.
The appliance can be operated in three ways: as a single circuit,
dual circuit or manually.
Single circuit operation
In this operating mode, the appliance heats up the water automati-
cally with the standard heating output at any temperature setting.
You can also start rapid heating.
Dual circuit operation
During off-peak tariff periods (cheap rate periods of power supply
utilities), the appliance automatically heats up the water heater
content with the standard heating output at any temperature set-
ting. You can also start rapid heating.
Manual operation
The appliance only heats the water when the rapid heating button
is pressed. Once the maximum possible temperature has been
reached, the appliance switches off and does not restart auto-
matically.
4. Settings

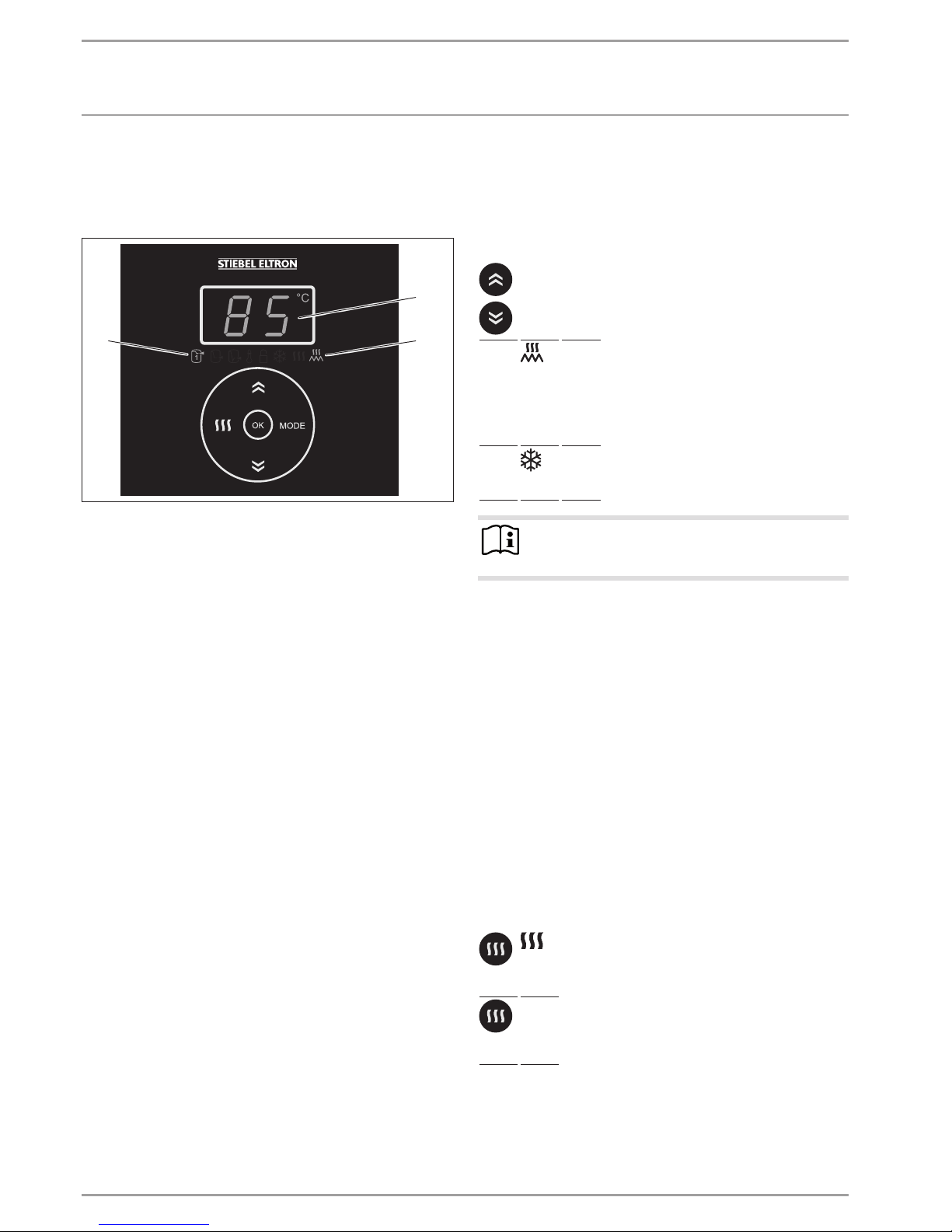

4.1 Controls, display and symbols
12
3
26�02�07�0289
1
2
45 3
1 Plus button (increase of the displayed value)
2 Mode button (selection of the menu function)
3 OK button (confirmation of the displayed value)
4 Minus button (reduction of the displayed value)
5 Rapid heating button (switch on/off)
The set temperature is displayed.
If there is a fault, the display flashes.
Symbol Description Symbol Description
ECOComfort energy
saving mode
Key lock
ECOPlus energy saving
mode
Frost protection
ECODynamic energy
saving mode
Rapid heating
Temperature limit Heat-up
During operation, the symbols for all enabled functions are il-
luminated.
When setting the menu functions, only the symbol for the current
function and, if required, the heat-up symbol are displayed. The
current setting of the function is displayed.
To save energy, the luminous intensity is reduced if you do not
make any settings for approx.5minutes. As soon as you press a
button, the display and symbols are illuminated again.
1
2
3

Operation
Settings
26 | PSH Universal EL www.stiebel-eltron.com
4.2 Factory settings
After commissioning, the set temperature is set to the maximum
value of 85°C. Symbols indicate that the appliance has heated
up the water and ECO Comfort energy saving mode is selected.
12
3
1
23
26�02�07�0290
1 Set temperature display (factory setting 85°C)
2 Heat-up symbol
3 ECO Comfort energy saving mode symbol (factory setting)
4.3 Button functions
4.3.1 Set temperature and frost protection settings
The current set temperature is displayed.
Factory setting: 85°C
 Use the plus and minus buttons to
adjust the set temperature from 20 to
85°C or select the frost protection set-
ting at 7°C.
As soon as the water temperature drops
below the selected value, the heating ele-
ment automatically switches on. The heat-
up symbol is displayed until the tempera-
ture reaches the selected set temperature
again.
7
When 7°C is selected, frost protection is
switched on automatically and the frost
protection symbol appears.
Note If you change the set temperature, the appliance switches
automatically to ECOComfort energy saving mode.
For low water consumption or very hard water, we recommend
a low set temperature, as water above approx. 55°C deposits
limescale.
Holiday and absence
 If the appliance is not in use for long periods, select 7°C as
the set temperature (frost protection) or disconnect the appli-
ance from the power supply in order to save energy.
 For reasons of hygiene, heat up the content of the water
heater once to above 60°C before initial use.
4.3.2 Switching rapid heating on/off
With rapid heating, the appliance heats the water content up to
maximum temperature. If you have switched on a temperature
limit, the selected temperature limit is also the maximum value
for the set temperature. Once the maximum temperature has been
reached, the rapid heating function is switched off automatically.
In standard mode, the previously selected set temperature is ena-
bled again.
 To switch on, press the rapid heating
button.
The rapid heating symbol appears.
 To switch off, press the rapid heating
button again.
The rapid heating symbol goes out.

Operation
Settings
ENGLISH
www.stiebel-eltron.com PSH Universal EL| 27
4.4 Menu functions
4.4.1 General menu settings principle
Note Your settings are retained even after disconnection from
the power supply.
When carrying out menu settings, if you do not make any
entry for 15 seconds, the set temperature is displayed
again. You setting is not saved.
 Call up all menu functions one after
the other using the mode button.
The symbol for the current menu function
appears. The heat-up symbol may light up,
but no other symbols are illuminated.
The current setting is displayed:
0
Function off
1
Function on
40-60
[°C] for menu function temperature limit
To change the setting, proceed as follows for all menu functions:
 Switch on the menu function using the
plus button or adjust the value.
 Switch off the menu function using the
minus button or adjust the value.
 Confirm your setting using the OK
button.
The current setting for the menu function
is saved. The set temperature is displayed.
4.4.2 Displaying the fault code
This menu function only appears when there is a fault and the
display flashes.
E...
 Press the mode button.
If there is a fault and the display flashes, the
fault code (see chapter "Troubleshooting")
is displayed.
4.4.3 Selecting energy saving mode
ECO Comfort (factory setting)
This energy saving mode always offers you the maximum amount
of hot water and therefore maximum comfort.
In ECOComfort energy saving mode, the set temperature is auto-
matically reduced after a week from 85°C to 60°C.
In ECOComfort energy saving mode, you can also adjust the set
temperature manually at any time between 61°C and 70°C. This
is also possible immediately after commissioning and after au-
tomatic reduction of the set temperature. If you select a set tem-
perature higher than 70°C, the set temperature is automatically
reduced again after a week to 60°C.
ECO Plus (with single circuit operation)
This energy saving mode offers you the advantage of energy sav-
ings, as heating is only carried out after considerable draw-off.
In ECO Plus mode, the appliance heats up automatically to the set
temperature of 60°C once you have drawn off 40% of the water
heater content.
ECO Dynamic (with single circuit operation)
This energy saving mode offers you maximum energy efficiency
through intelligent dynamic matching to your draw-off behaviour.
When you select ECO Dynamic mode, the appliance evaluates your
draw-off times and quantities for a week. The next week, you have
the required mixed water volume available at the draw-off time.
The appliance monitors your user behaviour and automatically
adjusts the heat-up times as required.
This energy saving mode is optimal if you require hot water at
the same time during a week. If your draw-off times change, hot
water is available the next week at the new times.
The set temperature is set immediately to 60°C.
Note In commercial mode (see chapter "Commercial mode")
and in manual operating mode (see chapter "Appliance
description"), the ECO menu functions are skipped.
1
 Select the ECOComfort menu function
with the mode button.
The ECOComfort symbol appears.
Note You cannot select ECOPlus or ECODynamic energy sav-
ing mode if a temperature limit is switched on or reverse
control is enabled in dual circuit operation.
These menu functions are then skipped.
0
 Press the mode button again to select
the ECOPlus menu function.
The ECOPlus symbol appears.
1
2

Operation
Settings
28 | PSH Universal EL www.stiebel-eltron.com
0
 Press the button again to select the
ECODynamic menu function.
The ECODynamic symbol appears.
Note  Switch the menu function on using the plus button
or off using the minus button and confirm with the
OK button.
If you switch off all energy saving modes, ECOComfort is switched
on automatically.
4.4.4 Commercial mode
The heating contractor can adjust the appliance for commercial
applications, e.g. in doctors’ practices or butchers (see chapter
"Installation/settings"). The set temperature is then adjusted
manually. The energy saving mode button is not enabled in com-
mercial mode.
4.4.5 Adjusted use of off-peak tariff periods
(reverse control with dual circuit operation)
This function is not enabled in the factory settings. The heating
contractor can enable reverse control of the appliance.
This means that the appliance evaluates the cheap rate periods of
your power supply utility for 7 days to make the most of off-peak
times. The aim is to start heat-up at the right time so that the
full water heater content heated to the set temperature is only
available to you at the end of the off-peak time (optimum standby
energy consumption).
4.4.6 Setting the temperature limit
Note If you switch on the temperature limit in ECOPlus or
ECODynamic energy saving mode, the appliance switches
automatically to the ECOComfort energy saving mode.
You can limit the set temperature to between 40 and 60°C or
switch off the temperature limit.
Starting and setting
0
 Keep pressing the mode button until
the key lock symbol appears.
 Adjust the value for the temperature
limit from 40 to 60°C using the plus
and minus buttons.
Note  Confirm with the OK button.
Stopping
1
 Keep pressing the mode button until
the temperature limit appears.
0
 Switch the temperature limit off by
selecting the setting 0with the minus
button.
Note  Confirm with the OK button.
4.4.7 Enabling/disabling key lock
If key lock is switched on and you try to press a button or start a
function, the key lock symbol flashes.
Starting
0
 Keep pressing the mode button until
the key lock symbol appears.
1
 Enable key lock using the plus button.
If a button is pressed, the symbol flashes.
Note  Confirm with the OK button.
Stopping
3 s
0
 To disable key lock, press the plus and
minus buttons simultaneously for 3
seconds.
The key lock symbol then flashes and goes
out once the function has been disabled.
3

Operation
Cleaning, care and maintenance
ENGLISH
www.stiebel-eltron.com PSH Universal EL| 29

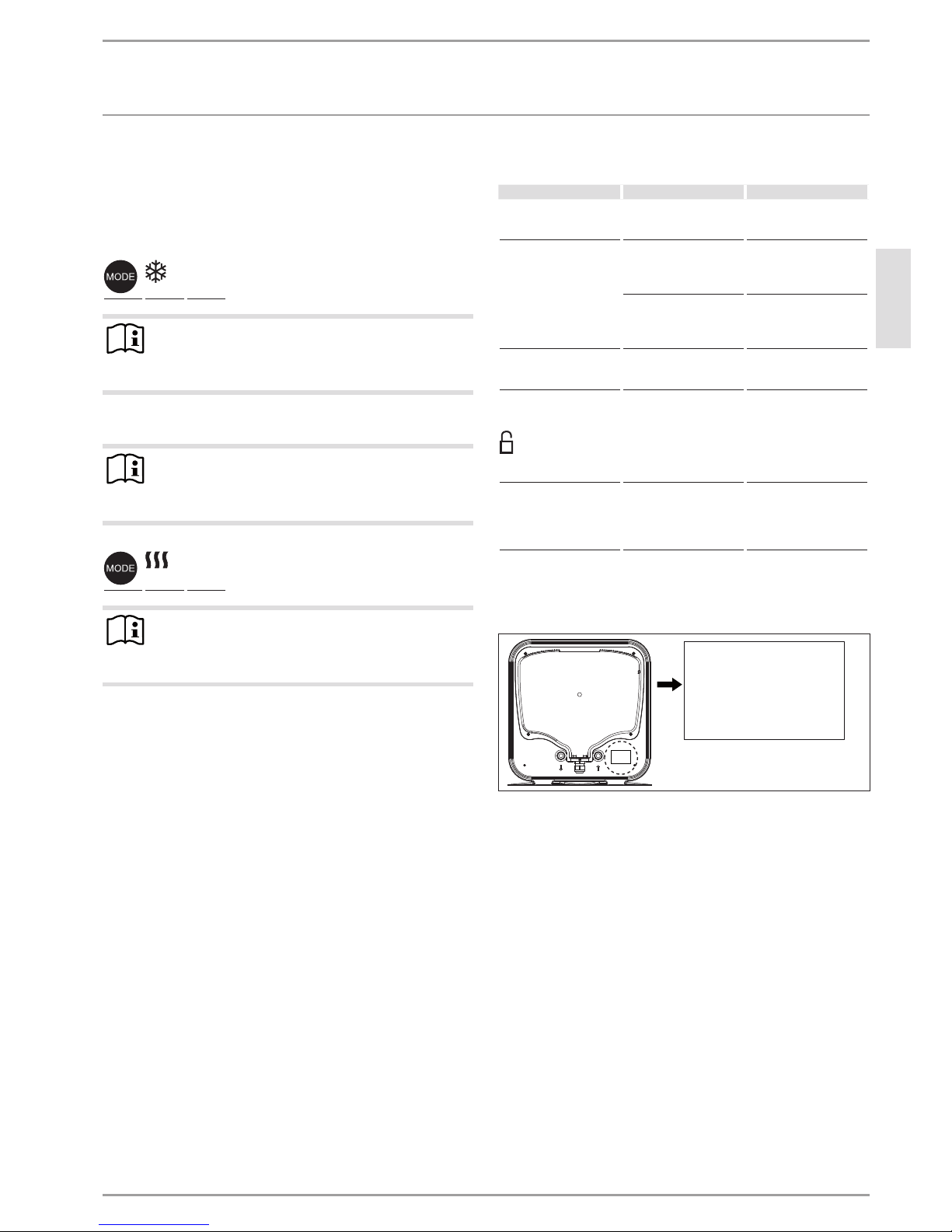

4.4.8 Switching frost protection on/off
If you switch on frost protection, the set temperature is automati-
cally set to 7°C.
If you switch off frost protection, the set temperature is automati-
cally set to 20°C.
0
 Keep pressing the mode button until
the frost protection symbol appears.
Note  Switch the menu function on using the plus button
or off using the minus button and confirm with the
OK button.
4.4.9 Switching rapid heating on/off
Note You can also switch the function on and off with the rapid
heating button (see chapter "Button functions / Switching
rapid heating on").
0
 Keep pressing the mode button until
the rapid heating symbol appears.
Note  Switch the menu function on using the plus button
or off using the minus button and confirm with the
OK button.
5. Cleaning, care and maintenance
 Never use abrasive or corrosive cleaning agents. A damp
cloth is sufficient for cleaning the appliance.
 Check the taps regularly. You can remove limescale deposits
at the tap outlets using commercially available descaling
agents.
 Have the electrical safety of the appliance and the func-
tion of the safety assembly regularly checked by a heating
contractor.
 Have the protective magnesium anode checked by a heating
contractor after the first year. The heating contractor will
then determine the intervals at which it must be checked
thereafter.
 Regularly activate the safety valve to prevent it from becom-
ing blocked by limescale deposits.
6. Troubleshooting
Problem Cause Remedy
The water does not heat
up and the display does
not light up.
There is no power. Check the fuse/MCB in
your fuse box/distribu-
tion panel.
The water does not heat
up sufficiently and the
heat-up symbol lights up.
The set temperature is
set too low.
Select a higher set tem-
perature.
The appliance heats,
for example, after large
amounts of DHW have
been drawn.
Wait until the heat-up
symbol goes out again.
The outlet flow rate is
low.
The aerator in the tap or
shower head is scaled up
or contaminated.
Clean and/or descale the
aerator or shower head.
The appliance does not
respond when a button is
pressed.
The key lock symbol is
flashing.
Key lock is enabled. Disable key lock (see
chapter "Settings / Menu
functions / Enabling/
disabling key lock").
The display flashes. Notify your local contrac-
tor. Display the fault code
(see chapter "Settings /
Menu functions / Display-
ing the fault code").
If you cannot remedy the fault, notify your heating contractor. To
facilitate and speed up your enquiry, please provide the serial
number from the type plate (000000 and 0000-000000):
E-NO.: 000000
F-NO.: 0000-000000
26�02�07�0301

30 | PSH Universal EL www.stiebel-eltron.com
Installation
Safety
INSTALLATION
7. Safety
Only a qualified contractor should carry out installation, commis-
sioning, maintenance and repair of the appliance.
7.1 General safety instructions
We guarantee trouble-free operation and operational reliability
only if the original accessories and spare parts intended for the
appliance are used.
7.2 Instructions, standards and regulations
Note Observe all applicable national and regional regulations
and instructions.
8. Appliance description
8.1 Standard delivery
Delivered with the appliance:
- 2 fitted wall mounting brackets
- Safety valve with non-return valve
9. Preparations
9.1 Installation site

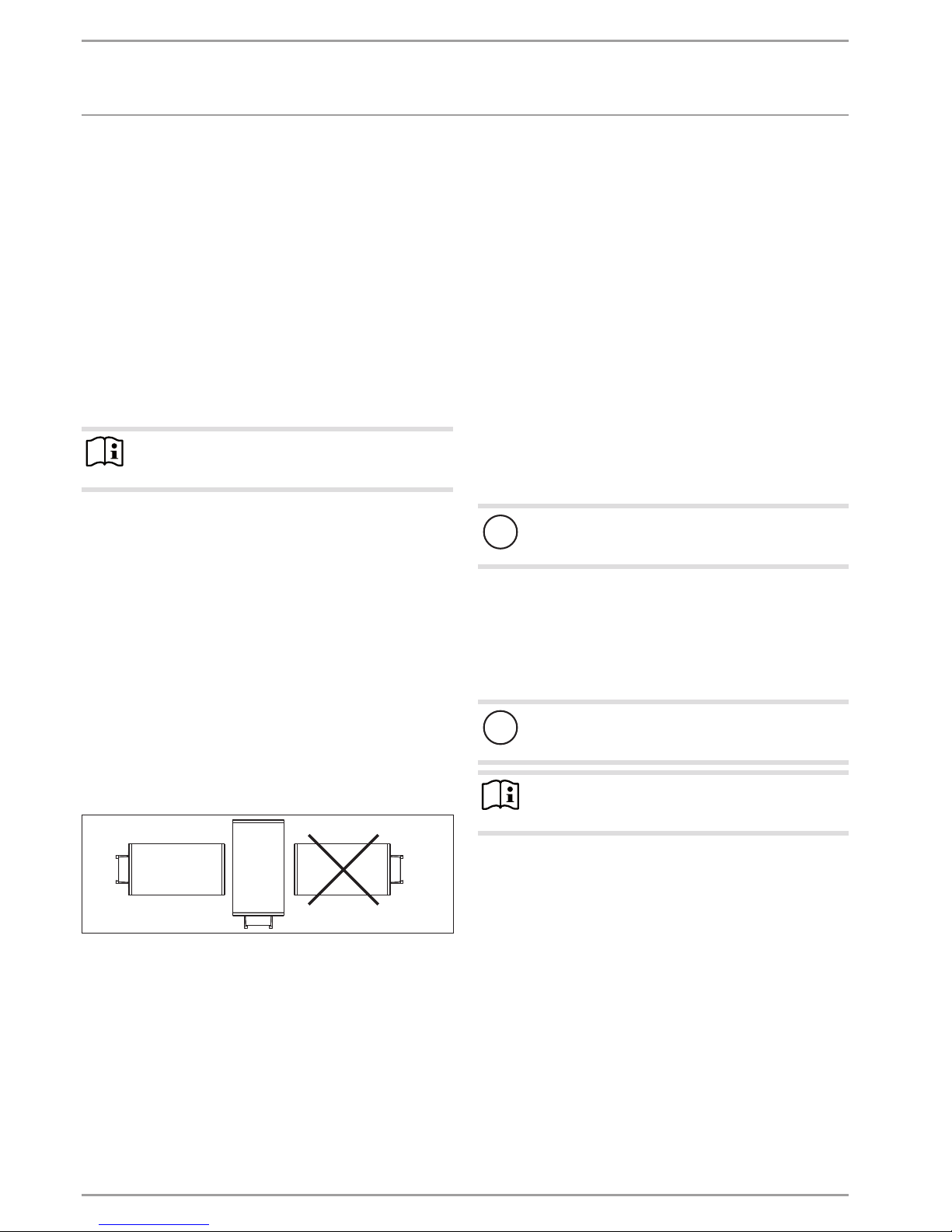

The appliance is designed for installation on a solid wall. Ensure
the wall offers adequate load bearing capacity.
There should be a suitable drain near the appliance to drain off
the expansion water.
 
26�02�09�0135
 Install the appliance vertically or horizontally as shown in a
room free from the risk of frost and near the draw-off point.
10. Preparing for installation
10.1 Preparing to install the appliance
The wall mounting brackets attached to the appliance have hook-
in slots, which in most cases enable installation on the bolts that
are already in place from previous appliances.
 Otherwise, transfer the dimensions for the holes to be drilled
on the wall (see chapter "Specification / Dimensions and
connections").
 Drill the holes, if required, and secure the wall mounting
brackets with screws and rawl plugs. Select fixing materials
in accordance with the wall construction/condition.
 Hook the appliance with wall mounting brackets on to the
screws or bolts. Observe the weight of the appliance when
empty (see chapter "Specification / Data table") and, if neces-
sary, ask another person to help.
 Align the appliance vertically or horizontally.
10.2 Water connection
!Material damage
Make all water connection and installation work in ac-
cordance with regulations.
Cold water line
Steel or copper pipes or plastic pipework are approved materials.
DHW line
Copper or plastic pipework are approved materials.
!Material damage
When using plastic pipework, observe chapter "Specifica-
tion / Fault conditions".
Note If the water pressure is higher than 0.6MPa, install a
pressure reducer in the "cold water inlet".
Operate the appliance only with pressure-tested taps.
 Thoroughly flush out the cold water line before connecting
the appliance, so that no foreign matter gets into the water
heater or safety valve.
 Connect the hydraulic connections with flat gaskets.
 Route the safety valve drain line to a drain free from the risk
of frost, with a continuous downward slope to ensure the un-
restricted flow of the water to the drain. The discharge aper-
ture of the safety valve must remain open to the atmosphere.

ENGLISH
www.stiebel-eltron.com PSH Universal EL| 31
Installation
Preparing for installation
10.3 Electrical connection

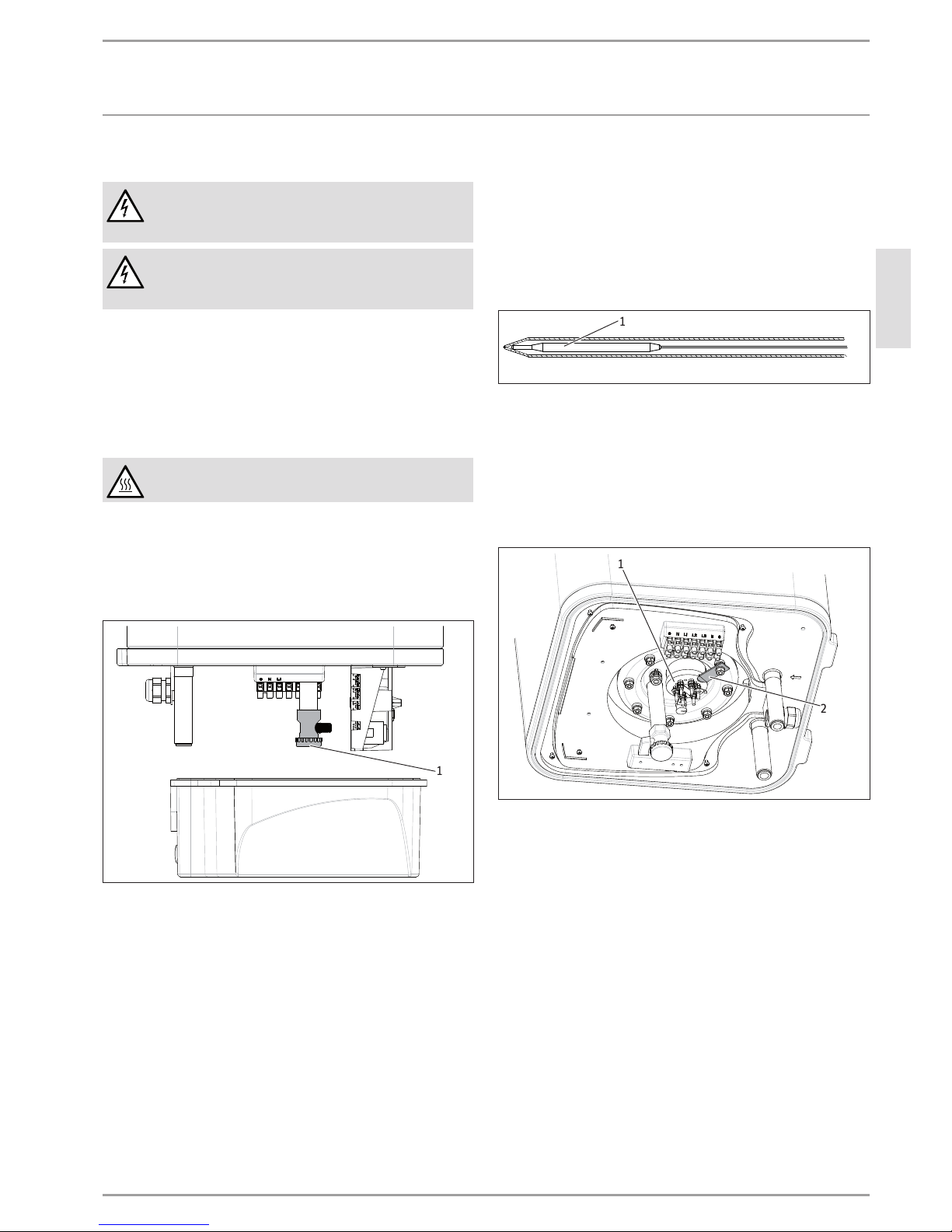

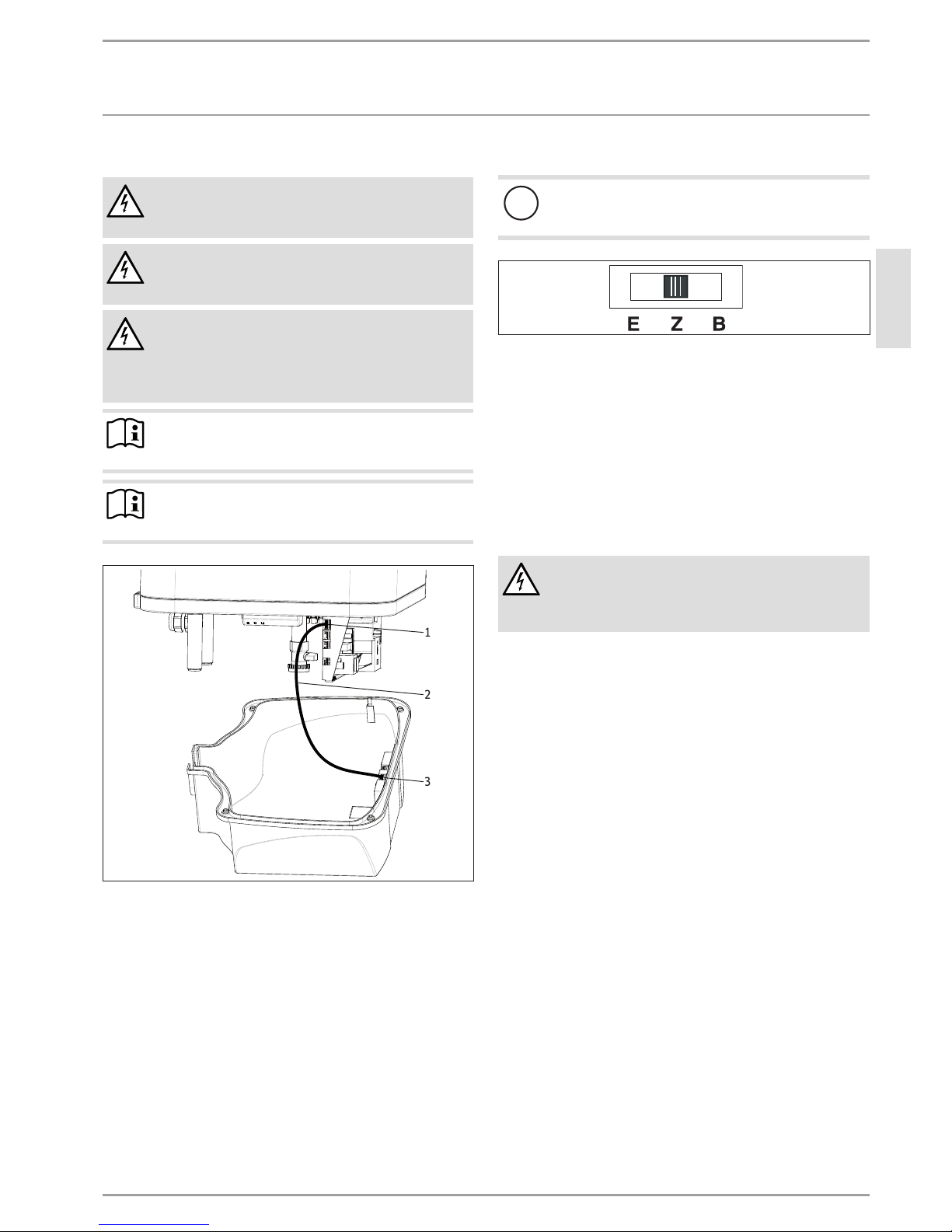

WARNING Electrocution Before any work on the appliance, disconnect all poles
of the appliance from the power supply.
WARNING Electrocution Carry out all electrical connection and installation work
in accordance with relevant regulations.
WARNING Electrocution Only use a permanent connection to the power supply.
The appliance must be able to be separated from the
power supply by an isolator that disconnects all poles
with at least 3mm contact separation.
Note Observe the type plate. The specified voltage must match
the mains voltage.
Note Please note that the appliance must be connected to the
earth conductor.
1
2
3
26�02�07�0286
1 Electronic assembly, control unit, position X2
2 Connecting cable, electronic assemblies
3 Electronic assembly, operation
Removing the lower cover
 Undo the 4 screws.
 Remove the bottom cap.
 Disconnect the connecting cable from the electronic assem-
bly for operation, position X2.
Also in dual circuit operation:
 Pull out the cable grommet at the base while pressing the
snap-in tabs.
 Push the cable grommet over the power cable and snap the
cable grommet back in place.
Selecting the operating mode
!Material damage
Only change the operating mode when isolated from the
power supply.
26�02�07�0285
E Single circuit operation
Z Dual circuit operation
B Manual operation
 Select the operating mode with the switch on the control unit
electronic assembly and select the required connection (see
chapter "Specification / Wiring diagrams and connections").
 Plug the connecting cable into the electronic assembly, posi-
tion X2 (see chapter "Specification / Wiring diagrams and
connections").
 Secure the bottom cap with the 4 screws.
Power cable
WARNING Electrocution The power cable must only be replaced (for example if
damaged) by contractors authorised by the manufac-
turer.
The appliance is supplied with a flexible power cable with wire
ferrules and without plug, ready to connect.
 If the cable is of insufficient length, unclamp it from the ap-
pliance. Use a suitable installation cable.
 When routing the new power cable, ensure that it is water-
proof as it passes through the existing cable grommet, and is
correctly routed and connected inside the appliance.

32 | PSH Universal EL www.stiebel-eltron.com
Installation
Commissioning
11. Commissioning
11.1 Commissioning
 Open the shut-off valve in the cold water line.
 Open a draw-off point until the appliance has filled up and
the pipework is free of air.
 Observe the maximum permissible flow rate with a fully
opened tap (see chapter "Specification / Data table").
 Switch the mains power ON. The appliance carries out a
self-test.
 Check the function of the appliance.
 Check the function of the safety valve.
11.1.1 Appliance handover
 Explain the appliance function to users and familiarise them
with its operation.
 Show the user the safety valve and its operating instructions,
and explain its significance.
 Make the user aware of potential dangers, especially the risk
of scalding.
 Hand over these instructions.
11.2 Returning into use
See chapter "Commissioning".
12. Settings
12.1 Switching on commercial mode
26�02�07�0296
S Jumper ECO (energy saving mode)
E ECO ON (factory setting)
A ECO OFF (commercial mode)
 To switch on commercial mode, replug the jumper.
12.2 Switching on reverse control
26�02�07�0296
R Reverse control jumper
E Reverse control ON
A Reverse control OFF (factory setting)
 To switch on reverse control, replug the jumper.
13. Taking the appliance out of use
 Disconnect the appliance from the mains at the MCB/fuse in
the fuse box.
 Drain the appliance. See chapter "Maintenance / Draining the
appliance".

ENGLISH
www.stiebel-eltron.com PSH Universal EL| 33
Installation
Maintenance
14. Maintenance
WARNING Electrocution Before any work on the appliance, disconnect all poles
of the appliance from the power supply.
WARNING Electrocution Carry out all electrical connection and installation work
in accordance with relevant regulations.
If you additionally need to drain the appliance, observe chapter
"Draining the appliance".
14.1 Checking the safety assembly and safety valve
 Check the safety assembly and safety valve regularly.
14.2 Draining the appliance
WARNING Burns Hot water may escape during the draining process.
If the appliance needs to be drained for maintenance or to protect
the whole installation when there is a risk of frost, proceed as
follows:
 Close the shut-off valve in the cold water line.
 Open the hot water taps on all draw-off points.
26�02�07�0288
1
1 Drain valve cap
 Undo the cap of the drain valve.
14.3 Checking the protective anode
 Check the protective anode after the first year of use and re-
place if necessary.
 Afterwards determine the time intervals at which further
checks should be carried out.
14.4 Descaling
 Remove loose scale deposits from the water heater.
 If necessary, descale the inner cylinder with commercially
available descaling agents.
 Only descale the flange after disassembly and never treat the
cylinder surface and protective anode with descaling agents.
14.5 Installing the temperature limiter
26�02�07�0305
1
1 Limiter sensor
 Insert the limiter sensor into the sensor well as far as it will
go.
14.6 Replacing the heating element
The heating element is located inside a protective pipe. This ena-
bles a "dry" replacement of the heating element. The appliance
does not need to be drained when replacing the heating elements.
2
1
26�02�07�0306
1 Ceramic heating element in protective enamelled pipe
2 Heating element fixture

34 | PSH Universal EL www.stiebel-eltron.com
Installation
Troubleshooting
15. Troubleshooting
Note The high limit safety cut-out can respond at temperatures
below –15°C. The appliance may be subjected to these
temperatures during storage or transport.
 Display the fault code (see chapter "Settings / Displaying the
fault code").
 The plugs are described in chapter "Specification / Wiring
diagrams and connections".
Fault Code Cause Remedy
The heat-up time is very long and the
heat-up symbol lights up.
The flanged immersion heater is scaled up. Descale the flanged immersion heater.
The safety valve is dripping and the
heat-up symbol does not light up.
The valve seat is contaminated. Clean the valve seat.
The display flashes. E2 The temperature sensor is faulty. Check whether plug X10 is properly inserted.
E4 Check the temperature sensor.
E12 8 Communication between the electronic assemblies for
control unit and operation is faulty.
Check whether plugs X2 are inserted properly in both
assemblies. Check the assemblies and the connecting
cable.
The water does not heat up.
The heat-up symbol does not appear.
The display flashes.
E8 The high limit safety cut-out has responded.
Check the appliance and eliminate the cause. Press the
reset button (see diagram).
The high limit safety cut-out has responded because the
thermostat is faulty.
Remedy the cause of the fault. Replace the high limit
safety cut-out.
The high limit safety cut-out has responded because the
temperature has dropped below -15°C.
Press the reset button (see diagram).
The booster heater does not switch on. Check the button.
The flanged immersion heater is faulty. Replace the flanged immersion heater.
The water does not heat up.
The display flashes.
E6 The temperature sensor is faulty. Check whether plug X10 is properly inserted.
Check the temperature sensor.
Reset button, high limit safety cut-out
 Isolate the appliance from the power supply.
 Undo the screws and remove the bottom cap.
 Disconnect the connecting cable from the electronic assem-
bly for operation, position X2.
1
26�02�07�0287
1 High limit safety cut-out reset button

ENGLISH
www.stiebel-eltron.com PSH Universal EL|35
Installation
Specication
16. Specification
16.1 Dimensions and connections
100
a20
a30
a10
c01
c06
c01
c06
b01
i14
i15
D0000018705
PSH 30
Universal EL
PSH 50
Universal EL
PSH 80
Universal EL
PSH 100
Universal EL
PSH 120
Universal EL
PSH 150
Universal EL
a10 Appliance Height mm 696 951 893 1045 1200 1435
a20 Appliance Width mm 380 380 475 475 475 475
a30 Appliance Depth mm 392 392 492 492 492 492
b01 Entry electrical cables Height mm 98.5 98.5 78.5 78.5 78.5 78.5
c01 Cold water inlet Male thread G ½ A G ½ A G ½ A G ½ A G ½ A G ½ A
Top clearance mm 20 20 0000
Rear clearance mm 80 80 85 85 85 85
c06 DHW outlet Male thread G ½ A G ½ A G ½ A G ½ A G ½ A G ½ A
Top clearance mm 20 20 0 0 0 0
Rear clearance mm 80 80 85 85 85 85
i14 Wall mounting bracket I Height mm 435 696 591 731 866 1085
i15 Wall mounting bracket II Height mm 200 261 269 296 296 297
Wall mounting bracket
30 - 50 l
184
265
300
360
80�02�07�0005
80 - 150 l
450
415
360
350
300
265
80�02�07�0006

36 | PSH Universal EL www.stiebel-eltron.com
Installation
Specication
16.2 Wiring diagrams and connections
FB
L1
CB
L3
N
L2
L1
L3
N
L2
PE
5
6
LF
X6
ws
vi
S
E Z B
X2X12
X10
X7
A
E
A
E
X2 X1
5
5
3
3
X9
R3
1
12 13
2
5
67
910 11
8
85�02�07�0023
4
1 Anode
2 Water heater
3 Mains terminal
4 Ceramic heating element in protective enamelled pipe
5 Heating output
PSH 30 Universal EL: 1.6kW ~ 230 V
PSH 50-150 Universal EL: 2kW ~ 230 V
6 Additional heating output, 1 kW ~ 230 V
7 High limit safety cut-out
8 Operating mode switch
9 Jumper ECO
10 Reverse control jumper
11 Electronic assembly, control unit
12 Electronic assembly, operation
13 Temperature sensor

ENGLISH
www.stiebel-eltron.com PSH Universal EL| 37
Installation
Specication
16.2.1 Dual circuit operation
The output from rapid heating is shown after the forward slash.
Single meter measurement with EVU contact
PSH 30 Universal EL PSH 50-150 Universal EL
kW 1.6 / 2.6 2 / 3
L1L3 NL2 PE56
85�02�07�0020
1
PSH 30 Universal EL PSH 50-150 Universal EL
kW 2.6 / 2.6 3 / 3
L1
L3 N L2 PE 5
6
85�02�07�0021
1
1 Power-OFF contact
16.2.2 Single circuit operation
The output from rapid heating is shown after the forward slash.
PSH 30 Universal EL PSH 50-150 Universal EL
kW 1.6 / 2.6 2 / 3
L1
L3 N L2 PE 5
6
85�02�07�0018
PSH 30 Universal EL PSH 50-150 Universal EL
kW 2.6 / 2.6 3 / 3
L1
L3 N L2 PE 5
6
85�02�07�0019
16.2.3 Manual operation
PSH 30 Universal EL PSH 50-150 Universal EL
kW 2.6 3
L1
L3 N L2 PE 5
6
85�02�07�0024
16.3 Fault conditions
In the event of a fault, temperatures of up to 95°C at 0.6MPa
can occur.

38 | PSH Universal EL www.stiebel-eltron.com
Installation
Specication
16.4 Details on energy consumption
Product data complies with EU regulations relating to the Directive on the ecodesign of energy related products (ErP).
PSH 30 Univer-
sal EL
PSH 50 Univer-
sal EL
PSH 80 Univer-
sal EL
PSH 100 Univer-
sal EL
PSH 120 Univer-
sal EL
PSH 150 Univer-
sal EL
231150 231151 231152 231153 231649 231154
Manufacturer STIEBEL ELTRON STIEBEL ELTRON STIEBEL ELTRON STIEBEL ELTRON STIEBEL ELTRON STIEBEL ELTRON
Load profile S M M L XL XL
Energy efficiency category B B B C C C
Energy conversion efficiency %35 40 40 40 40 40
Daily power consumption kWh 2.911 6.683 7.009 12.650 19.898 20.082
Annual power consumption kWh 525 1287 1298 2518 4092 4099
Default temperature setting °C 85 85 85 85 85 85
Sound power level dB(A) 15 15 15 15 15 15
Off-peak periods possible Yes Yes Yes Yes Yes Yes
The information on energy conversion efficiency and annual power consumption applies only when intelligent control is switched on
(Smart function).
PSH 30 Uni-
versal EL
PSH 50 Uni-
versal EL
PSH 80 Uni-
versal EL
PSH 100 Uni-
versal EL
PSH 120 Uni-
versal EL
PSH 150 Uni-
versal EL
231150 231151 231152 231153 231649 231154
Smart function XXXXXX
Weekly power consumption with Smart kWh 12.989 25.194 24.517 49.684 83.854 85.514
Weekly power consumption without Smart kWh 15.260 28.692 28.967 55.058 90.177 92.530
Cylinder capacity l30 50 80 100 120 150
Mixed water volume 40 °C l 53 92 136 183 217 273

ENGLISH
www.stiebel-eltron.com PSH Universal EL| 39
16.5 Data table
PSH 30
Universal EL
PSH 50
Universal EL
PSH 80
Universal EL
PSH 100
Universal EL
PSH 120
Universal EL
PSH 150
Universal EL
231150 231151 231152 231153 231649 231154
Hydraulic data
Nominal capacity l30 50 80 100 120 150
Mixed water volume 40 °C (15 °C/60 °C), vertical l 53 92 136 183 217 273
Mixed water volume 40 °C (15 °C/60 °C), horizontal l 42 76 111 153 173 194
Electrical data
Connected load ~ 230 V kW 2.6 33333
Rated voltage V230 230 230 230 230 230
Phases 1/N/PE 1/N/PE 1/N/PE 1/N/PE 1/N/PE 1/N/PE
Frequency Hz 50/60 50/60 50/60 50/60 50/60 50/60
Single circuit operating mode X X X X X X
Dual circuit operating mode X X X X X X
Manual operating mode XXXXXX
Heat-up time 2.6 kW (15 °C/60 °C) h 0.61
Heat-up time 3.0 kW (15 °C/60 °C) h 0.88 1.42 1.77 2.13 2.66
Application limits
Temperature setting range °C 7-85 7-85 7-85 7-85 7-85 7-85
Max. permissible pressure MPa 0.6 0.6 0.6 0.6 0.6 0.6
Max. flow rate l/min 23.5 23.5 23.5 23.5 23.5 23.5
Energy data
Standby energy consumption/24 h at 65 °C, vertical kWh 0.52 0.76 0.79 0.91 1.05 1.19
Standby energy consumption/24 h at 65 °C, horizontal kWh 0.75 1.05 1.07 1.36 1.31 1.55
Energy efficiency category B B B C C C
Versions
IP rating vertical IP25 IP25 IP25 IP25 IP25 IP25
IP rating horizontal IP24 IP24 IP24 IP24 IP24 IP24
Sealed unvented type X X X X X X
Power cable XXXXXX
Power cable length mm 1000 1000 1000 1000 1000 1000
Frost protection setting °C 777777
Colour white white white white white white
Dimensions
Height mm 696 951 893 1045 1200 1435
Width mm 380 380 475 475 475 475
Depth mm 392 392 492 492 492 492
Weight
Weight (full) kg 52 78 114 138 163 202
Weight (empty) kg 22 28 34 38 43 52
Installation | Guarantee | Environment and recycling
Specication
GUARANTEE
ENVIRONMENT AND RECYCLING
Guarantee
The guarantee conditions of our German companies do not
apply to appliances acquired outside of Germany. In countries
where our subsidiaries sell our products a guarantee can only
be issued by those subsidiaries. Such guarantee is only grant-
ed if the subsidiary has issued its own terms of guarantee. No
other guarantee will be granted.
We shall not provide any guarantee for appliances acquired in
countries where we have no subsidiary to sell our products.
This will not aect warranties issued by any importers.
Environment and recycling
We would ask you to help protect the environment. After use,
dispose of the various materials in accordance with national
regulations.



Deutschland
STIEBEL ELTRON GmbH & Co. KG
Dr.-Stiebel-Straße 33 | 37603 Holzminden
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.de
Verkauf Tel. [phone] | Fax [phone] | [email protected]
Kundendienst Tel. [phone] | Fax [phone] | [email protected]
Ersatzteilverkauf Tel. [phone] | Fax [phone] | [email protected]
Irrtum und technische Änderungen vorbehalten! | Subject to errors and technical changes! | Sous réserve
d‘erreurs et de modifications techniques! | Onder voorbehoud van ver
g
issin
g
en en technische wi
j
zi
g
in
g
en! |
Salvo error o modificación técnica! | Excepto erro ou alteração técnica | Zastrzeżone zmian
y
techniczne i
ewentualne błędy | Omyly a technické změny jsou vyhrazeny! | A muszaki változtatások és tévedések
j
o
g
át
fenntartjuk! | Отсутствие ошибок не гарантируется. Возможны технические изменения. | Ch
y
b
y
a
technické zmeny sú vyhradené! Stand 9147
Australia
STIEBEL ELTRON Australia Pty. Ltd.
6 Prohasky Street | Port Melbourne VIC 3207
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel.com.au
Austria
STIEBEL ELTRON Ges.m.b.H.
Gewerbegebiet Neubau-Nord
Margaritenstraße 4 A | 4063 Hörsching
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.at
Belgium
STIEBEL ELTRON bvba/sprl
't Hofveld 6 - D1 | 1702 Groot-Bijgaarden
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.be
China
STIEBEL ELTRON (Guangzhou) Electric
Appliance Co., Ltd.
Rm 102, F1, Yingbin-Yihao Mansion, No. 1
Yingbin Road
Panyu District | 511431 Guangzhou
Tel. [phone] | Fax [phone]
[e-mail]
www.stiebeleltron.cn
Czech Republic
STIEBEL ELTRON spol. s r.o.
K Hájům 946 | 155 00 Praha 5 - Stodůlky
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.cz
Finland
STIEBEL ELTRON OY
Kapinakuja 1 | 04600 Mäntsälä
Tel. [phone]
[email protected]
www.stiebel-eltron.fi
France
STIEBEL ELTRON SAS
7-9, rue des Selliers
B.P 85107 | 57073 Metz-Cédex 3
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.fr
Hungary
STIEBEL ELTRON Kft.
Gyár u. 2 | 2040 Budaörs
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.hu
Japan
NIHON STIEBEL Co. Ltd.
Kowa Kawasaki Nishiguchi Building 8F
66-2 Horikawa-Cho
Saiwai-Ku | 212-0013 Kawasaki
Tel. [phone] | Fax [phone]
[email protected]
www.nihonstiebel.co.jp
Netherlands
STIEBEL ELTRON Nederland B.V.
Daviottenweg 36 | 5222 BH 's-Hertogenbosch
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.nl
Poland
STIEBEL ELTRON Polska Sp. z O.O.
ul. Działkowa 2 | 02-234 Warszawa
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.pl
Russia
STIEBEL ELTRON LLC RUSSIA
Urzhumskaya street 4,
building 2 | 129343 Moscow
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.ru
Slovakia
TATRAMAT - ohrievače vody s.r.o.
Hlavná 1 | 058 01 Poprad
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.sk
Switzerland
STIEBEL ELTRON AG
Industrie West
Gass 8 | 5242 Lupfig
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.ch
Thailand
STIEBEL ELTRON Asia Ltd.
469 Moo 2 Tambol Klong-Jik
Amphur Bangpa-In | 13160 Ayutthaya
Tel. [phone] | Fax [phone]
[e-mail]
www.stiebeleltronasia.com
United Kingdom and Ireland
STIEBEL ELTRON UK Ltd.
Unit 12 Stadium Court
Stadium Road | CH62 3RP Bromborough
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.co.uk
United States of America
STIEBEL ELTRON, Inc.
17 West Street | 01088 West Hatfield MA
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron-usa.com
A 295702-40107-9252
4<AMHCMN=jfhaci>
