STIEBEL ELTRON SBB 600 WP SOL Instruction Manual

BEDIENUNG UND INSTALLATION
OPERATION AND INSTALLATION
UTILISATION ET INSTALLATION
BEDIENING EN INSTALLATIE
USO E INSTALLAZIONE
OB SLUHA A INSTALACE
Warmwasser-Standspeicher | Floorstanding DH W cylinder | Ballon ECS sur pied |
Staande warmwaterboiler | Acqua calda - Caldaia verticale | Stacionární zásobník
teplé vody
» SBB 600 WP SOL
» SBB 800 WP SOL
» SBB 1000 WP SOL

14 | SBB 600-1000 WP SOL WWW.STIEBEL-ELTRON.COM
CONTENTS | OPERATION
GENERAL INFORMATION
OPERATION
1. General information ��������������������������������������� 14
1.1 Safety instructions���������������������������������������������� 14
1.2 Other symbols in this documentation ���������������������� 15
1.3 Units of measurement ����������������������������������������� 15
2. Safety�������������������������������������������������������� 15
2.1 Intended use����������������������������������������������������� 15
2.2 General safety instructions ����������������������������������� 15
3. Appliance description ������������������������������������� 15
4. Cleaning, care and maintenance ������������������������� 16
5. Troubleshooting �������������������������������������������� 16
INSTALLATION
6. Safety�������������������������������������������������������� 16
6.1 General safety instructions ����������������������������������� 16
6.2 Regulations, standards and instructions������������������� 16
7. Appliance description ������������������������������������� 16
7.1 Standard delivery����������������������������������������������� 16
7.2 Accessories������������������������������������������������������� 16
8. Preparations������������������������������������������������ 17
8.1 Installation site�������������������������������������������������� 17
8.2 Transport ��������������������������������������������������������� 17
9. Installation�������������������������������������������������� 17
9.1 Heating or solar installation���������������������������������� 18
9.2 Water connection and safety assembly �������������������� 18
10. Commissioning ��������������������������������������������� 19
10.1 Initial commissioning ������������������������������������������ 19
10.2 Recommissioning����������������������������������������������� 19
11. Shutting down���������������������������������������������� 19
12. Troubleshooting �������������������������������������������� 19
13. Maintenance ������������������������������������������������ 19
13.1 Checking the safety valve ������������������������������������� 19
13.2 Draining the appliance ���������������������������������������� 19
13.3 Replacing the signal anode����������������������������������� 19
13.4 Cleaning and descaling the appliance���������������������� 19
14. Specification ������������������������������������������������ 20
14.1 Dimensions and connections ��������������������������������� 20
14.2 Fault conditions ������������������������������������������������� 23
14.3 Data table �������������������������������������������������������� 23
GUARANTEE
ENVIRONMENT AND RECYCLING
OPERATION
1. General information
The chapter "Operation" is intended for appliance users and heat-
ing contractors.
The chapter "Installation" is intended for heating contractors.
Note Read these instructions carefully before using the appli-
ance and retain them for future reference.
Pass on the instructions to a new user if required.
1.1 Safety instructions
1.1.1 Structure of safety instructions
!KEYWORD Type of risk
Listed here are the possible consequences that may re-
sult from failure to observe the safety instructions.
 Steps to prevent the risk are listed.
1.1.2 Symbols, type of risk
Symbol Type of risk
Injury
Electrocution
Burns
(burns, scalding)
1.1.3 Keywords
KEYWORD Meaning
DANGER Failure to observe this information will result in serious
injury or death.
WARNING Failure to observe this information may result in serious
injury or death.
CAUTION Failure to observe this information may result in moderate
or minor injury.
!

OPERATION
SAFETY
ENGLISH
WWW.STIEBEL-ELTRON.COM SBB 600-1000 WP SOL | 15
1.2 Other symbols in this documentation
Note General information is identified by the symbol shown
on the left.
 Read these texts carefully.
Symbol Meaning
Material losses
(appliance, consequential, environment)
Appliance disposal
 This symbol indicates that you have to do something. The ac-
tion you need to take is described step by step.
1.3 Units of measurement
Note All measurements are given in mm unless stated oth-
erwise.
2. Safety
2.1 Intended use
The appliance is intended for heating and storing domestic hot
water when operating a heat pump with a higher or a high out-
put. May be combined with heat provided by solar collectors.
Both indirect coils can be linked in series for the highest possible
transfer rate.
Suitable flanged and threaded immersion heaters can be fitted
by contractors.
Any other use beyond that described shall be deemed inappropri-
ate. Observation of these instructions and of instructions for any
accessories used is also part of the correct use of this appliance.
2.2 General safety instructions
WARNING Burns There is a risk of scalding at outlet temperatures in ex-
cess of 43°C.
!WARNING Injury
Where children or persons with limited physical, sensory
or mental abilities are allowed to operate this appliance,
ensure that this will only happen under supervision or
after appropriate instruction by a person responsible
for their safety.
Children should be supervised to ensure that they never
play with the appliance!
Note The appliance is under pressure.
During the heat-up process, expansion water will drip
from the safety valve. If water continues to drip when
the heat-up process is completed, please inform your
qualified contractor.
3. Appliance description
The thermal energy in the heating water from the heat pump or
the solar collectors is transferred to the domestic hot water by two
twin pipe indirect coils.
The internal steel cylinder is coated in special directly applied
"anticor®" enamel and is equipped with a thermometer and a
signal anode. The anode with consumption indicator protects the
internal cylinder from corrosion.
!

16 | SBB 600-1000 WP SOL WWW.STIEBEL-ELTRON.COM
OPERATION | INSTALLATION
CLEANING, CARE AND MAINTENANCE
4. Cleaning, care and maintenance
 Have a contractor regularly check the appliance, the safety
assembly and all fitted accessories.
 Never use abrasive or corrosive cleaning agents. A damp
cloth is sufficient for cleaning all plastic parts.
Signal anode consumption indicator
!Material losses
If the consumption indicator changes colour from white to
red, have the signal anode checked by a heating contrac-
tor and if necessary replaced.
12
26�03�01�1345
Signal anode consumption indicator
1 white = anode OK
2 red = check by heating contractor required
Scaling
 Almost every type of water deposits limescale at high tem-
peratures. This settles inside the appliance and affects both
the performance and service life. The indirect coils and fitted
accessories should therefore be descaled from time to time.
A heating contractor who knows the local water quality will
tell you when the next service is due.
 Check the taps/valves regularly. You can remove limescale
deposits at the tap outlets using commercially available des-
caling agents.
5. Troubleshooting
Telephone your contractor.
To facilitate and speed up your enquiry, please provide the serial
number from the type plate (000000-0000-000000):
Made in Germany
000000-0000-000000
26�03�20�0132
INSTALLATION
6. Safety
Only a qualified contractor should carry out installation, commis-
sioning, maintenance and repair of the appliance.
6.1 General safety instructions
We can only guarantee trouble-free function and operational reli-
ability if original spare parts intended for the appliance are used.
6.2 Regulations, standards and instructions
Note Observe all applicable national and regional regulations
and instructions.
7. Appliance description
7.1 Standard delivery
Delivered with the appliance:
- Signal anode
- Temperature sensors
- Heat conducting paste
- Thermometer
- Additional type plate
- Label "Signal anode information"
7.2 Accessories
7.2.1 Required accessories
Depending on the static pressure, safety assemblies and pressure
reducing valves are available. These type-tested safety assemblies
protect the appliance against inadmissible excess pressure.
7.2.2 Further accessories
In addition, flanged as well as threaded immersion heaters and
thermal insulation are available as accessories.
If it is not possible to insert a rod anode from above, install a
segmented anode.

ENGLISH
WWW.STIEBEL-ELTRON.COM SBB 600-1000 WP SOL | 17
INSTALLATION
PREPARATIONS
8. Preparations
8.1 Installation site
 Always install the appliance in a room free from the risk of
frost and near the draw-off point.
 Ensure the floor has sufficient load bearing capacity and
evenness (see chapter "Specification / Data table").
 Observe the room height and height when tilted (see chapter
"Specification / Data table").

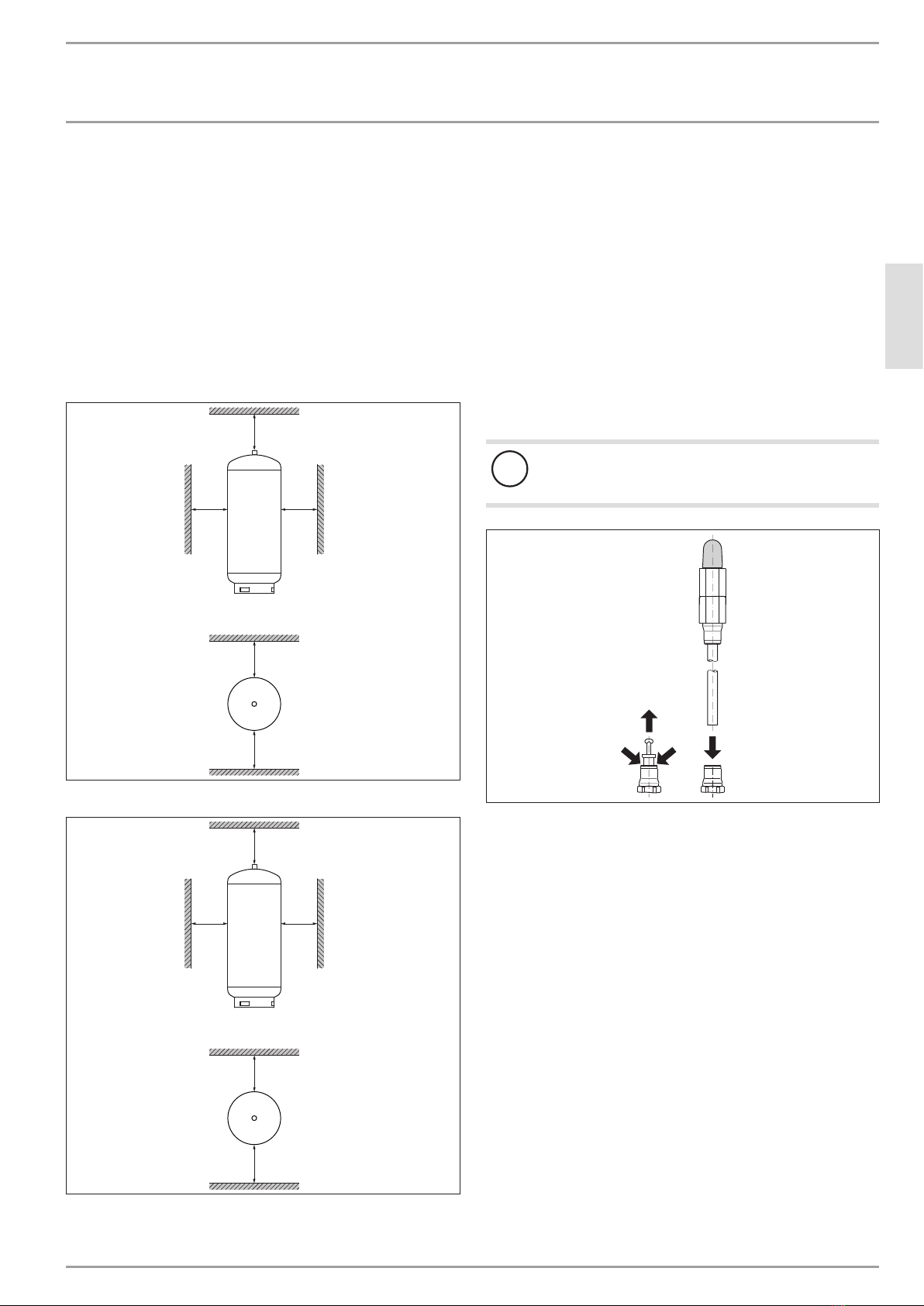

Minimum clearances
SBB 600 WP SOL:
≥400 ≥130
≥200≥200
≥800
D0000057342
SBB 800-1000 WP SOL:
≥400 ≥220
≥200≥200
≥800
D0000057343
 Maintain the minimum clearances.
8.2 Transport
For handling/lifting, use the lifting eyes provided, but never the
"Optional DHW outlet" connection at the top of the appliance.
9. Installation
9.2.1 Fitting the thermal insulation, if appropriate.
 Position the appliance in its intended site.
 Fit the thermal insulation according to the instructions sup-
plied. For this, ensure that there is enough space for the
installation task. You can then link the appliance into the
heating and DHW system.
9.2.2 Fitting the signal anode
!Material losses
When operating the cylinder without consumption indica-
tor, leave the plug in the fitting.
26�02�09�0031
 Pull the plug out by simultaneously pushing the pressure
ring down.
 Push the open pipe end of the consumption indicator into the
aperture for the anode.
9.2.3 Fitting the thermometer and temperature sensor
 Insert the thermometer as far as it will go and align it.
 Insert the temperature sensor as far as it will go into the
sensor well for the HP return sensor. Apply heat conducting
paste.
9.2.4 Where appropriate, fit the flanged or threaded
immersion heater.
 Remove the dummy flanges and plugs in order to mount the
flanged or threaded immersion heater. Maintain the DC sepa-
ration towards the cylinder.

18 | SBB 600-1000 WP SOL WWW.STIEBEL-ELTRON.COM
INSTALLATION
INSTALLATION
9.1 Heating or solar installation
 Prior to connecting the heating water lines or the solar ther-
mal system, flush the indirect coils with water.
 You may connect both indirect coils to the "heat pump return"
and "solar flow" (see chapter "Specification / Dimensions and
connections").
 Fit the sensors for the control units used according to the
relevant installation instructions (for sensor well, see chapter
"Specification / Dimensions and connections").
 Route the connecting lead to the solar or heating circuit con-
trol unit.
9.1.1 Water quality, solar circuit
A glycol/water mixture of up to 60% is permitted for the indirect
coil in the solar circuit if only dezincification-resistant metals,
glycol-resistant gaskets and diaphragm expansion vessels suitable
for glycol are used throughout the installation.
9.1.2 Oxygen diffusion
!Material losses
Avoid open heating systems and plastic pipes in under-
floor heating systems which are permeable to oxygen.
In underfloor heating systems with plastic pipes that are per-
meable to oxygen and in open vented heating systems, oxygen
diffusion may lead to corrosion on the steel components of the
heating system (e.g. on the indirect coil of the DHW cylinder, on
buffer cylinders, steel heating elements or steel pipes).
!Material losses
The products of corrosion (e.g. rusty sludge) can settle in
the heating system components and can result in a lower
output or fault shutdowns due to reduced cross-sections.
!Material losses
Avoid open vented solar thermal systems and plastic
pipes which are permeable to oxygen.
With plastic pipes that are permeable to oxygen, oxygen diffusion
may lead to corrosion on the steel components of the solar thermal
system (e.g. on the indirect coil of the DHW cylinder).
9.2 Water connection and safety assembly
9.2.1 Safety instructions
Note Carry out all water connection and installation work in
accordance with regulations.
!Material losses
If a flanged immersion heater is fitted and plastic pipe-
work is used at the same time, observe chapter "Specifi-
cation/ Fault conditions".
!Material losses
Operate the appliance only with pressure-tested taps and
valves.
Cold water line
Copper, steel or plastic pipework are approved materials.
!Material losses
A safety valve is required.
DHW line
Copper or plastic pipework are approved materials.
9.2.2 Water connection
 Flush the line thoroughly.
 Install the DHW and the cold water lines with the safety as-
sembly. Bear in mind that, depending on the static pressure,
you may also need a pressure reducing valve.
 Size the drain so that water can drain off unimpeded when
the safety valve is fully opened. The blow-off aperture of the
safety valve must remain open to the atmosphere.
 Fit the blow-off line of the safety assembly with a constant
fall.

ENGLISH
WWW.STIEBEL-ELTRON.COM SBB 600-1000 WP SOL | 19
INSTALLATION
COMMISSIONING
10. Commissioning
10.1 Initial commissioning
 Open a draw-off point until the appliance has filled up and
the pipework is free of air.
 Adjust the flow rate. For this, observe the maximum permis-
sible flow rate with a fully opened tap (see chapter "Specifi-
cation / Data table"). If necessary reduce the flow rate at the
butterfly valve of the safety assembly.
 Carry out a tightness check.
 Vent the internal indirect coils.
 Switch the mains power ON if required.
 Check the function of the safety assembly.
 Check the function of fitted accessories.
 Then check the function of the solar thermal system, if
appropriate.
 If relevant, check that the DHW temperature displayed on the
heat pump control unit is correct.
10.1.1 Appliance handover
 Explain the function of the appliance to users and familiarise
them with its operation.
 Make users aware of potential dangers, especially the risk of
scalding.
 Hand over these instructions.
10.2 Recommissioning
See chapter "Initial commissioning".
11. Shutting down
 If necessary, disconnect any accessories installed from the
mains at the MCB/fuse in the fuse box.
 Drain the appliance. See chapter "Maintenance / Draining the
appliance".
12. Troubleshooting
Fault Cause Remedy
The safety valve drips
when the heating is
switched off.
The valve seat is con-
taminated.
Clean the valve seat.
13. Maintenance
WARNING Electrocution Carry out all electrical connection and installation work
in accordance with relevant regulations.
WARNING Electrocution Before any work on the appliance, disconnect all poles
of the appliance from the power supply.
If you need to drain the appliance, observe chapter "Draining the
appliance".
13.1 Checking the safety valve
 Regularly vent the safety valve on the safety assembly until a
full water jet is discharged.
13.2 Draining the appliance
WARNING Burns Hot water may escape during the draining process.
If the appliance needs to be drained for maintenance or to protect
the whole installation when there is a risk of frost, proceed as
follows:
 Close the shut-off valve in the cold water inlet pipe.
 Open the hot water taps on all draw-off points.
 Drain the appliance via the "Cold water inlet" (see chapter
"Specification / Dimensions and connections"). Please note
that residual water remains in the appliance.
13.3 Replacing the signal anode
 Replace the signal anode if it becomes depleted. For this, ob-
serve the maximum transition resistance between the anode
and the cylinder of 0.3Ω.

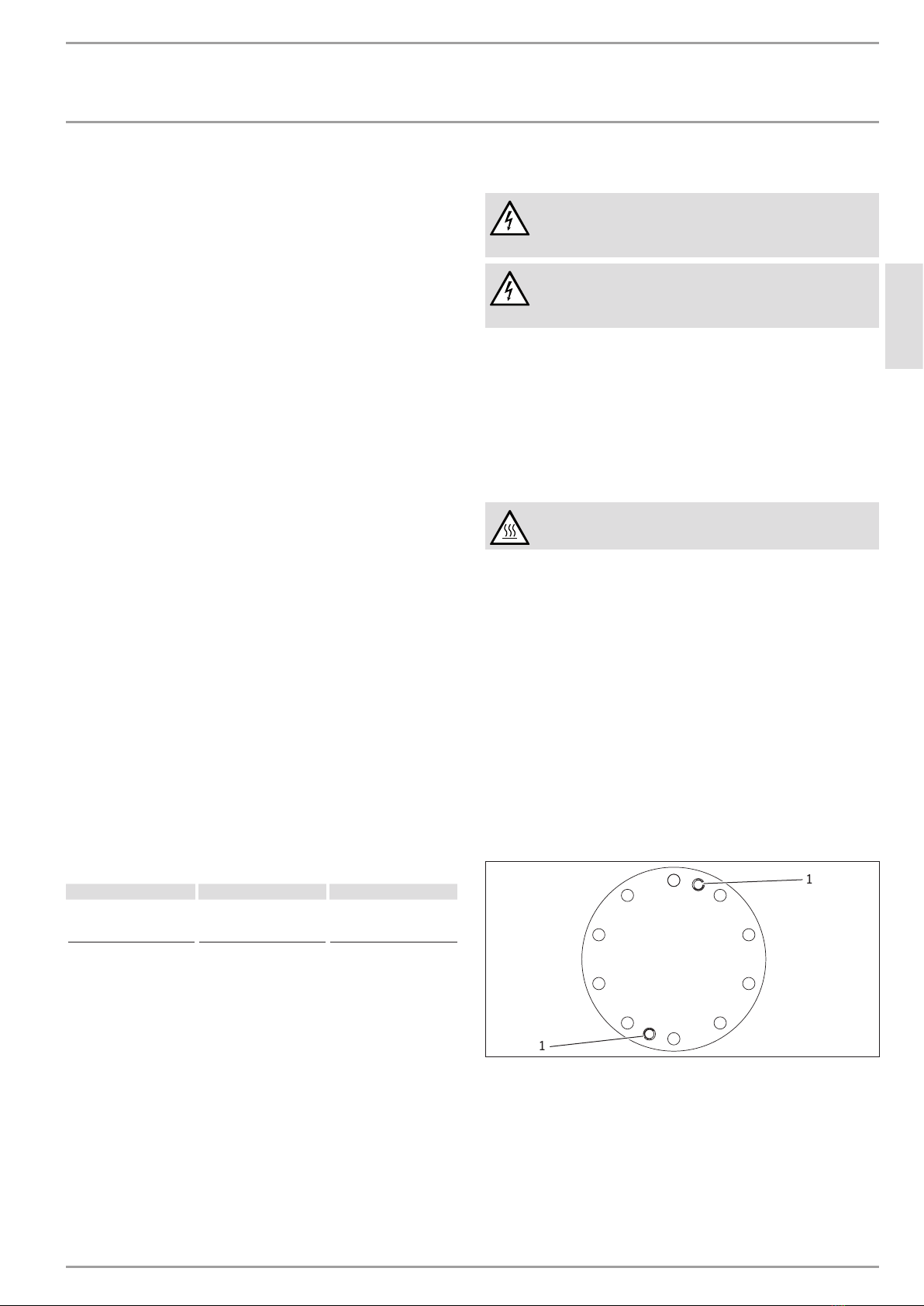

13.4 Cleaning and descaling the appliance
26�03�01�0847
1
1
1 Threaded extraction holes
 Use the threaded extraction holes to release the flange plate
from the flange connector.
For the torque of the flange screws, see chapter "Specification /
Dimensions and connections".
 Never use descaling pumps.
 Never treat the cylinder surface or the signal anode with des-
caling agents.

20 | SBB 600-1000 WP SOL WWW.STIEBEL-ELTRON.COM
INSTALLATION
SPECIFICATION
14. Specification

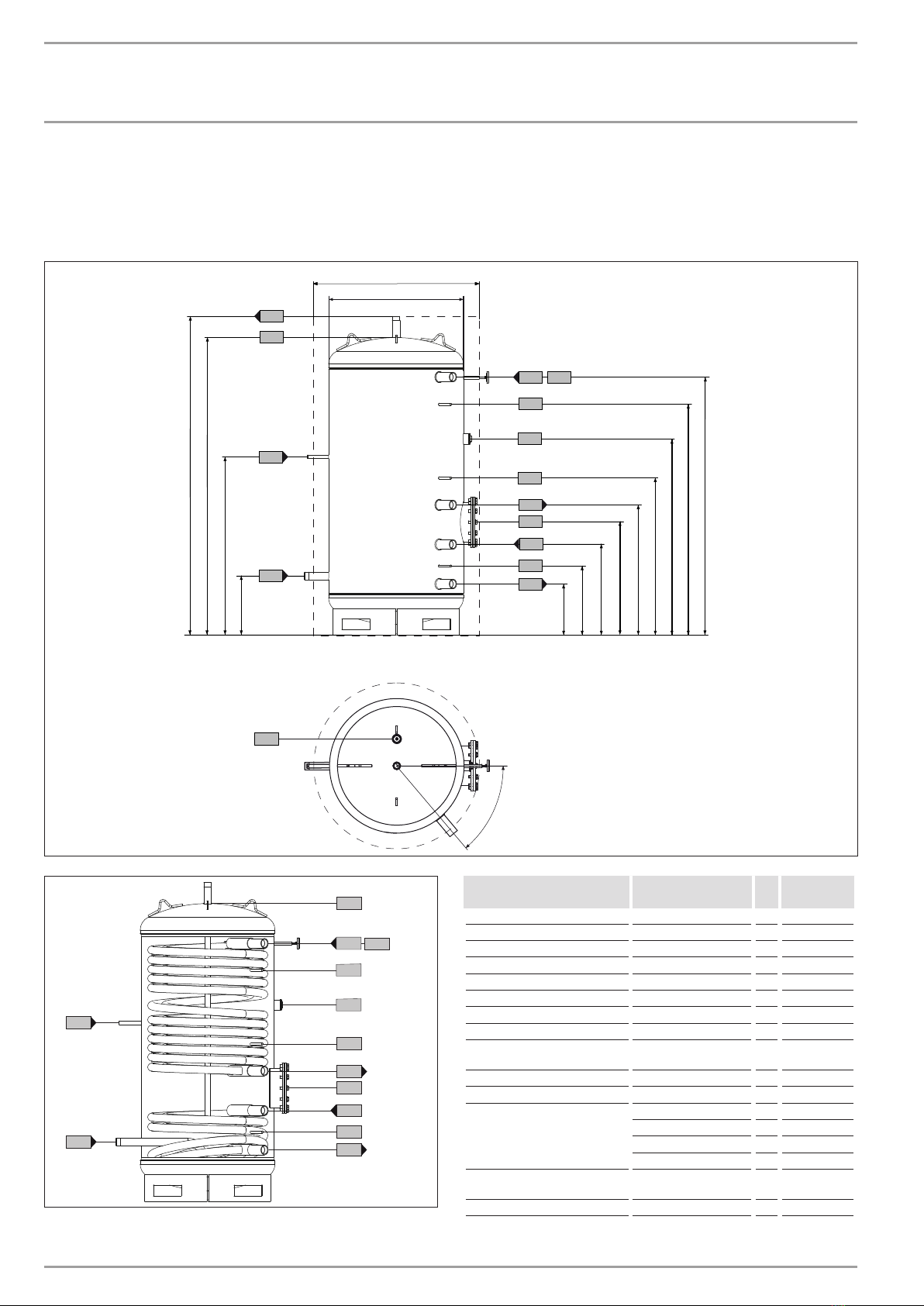

14.1 Dimensions and connections
SBB 600 WP SOL
50°
750
970
285
385
505
725
875
1285
330
630
1093
1435
1775
1674
i18
h43
i01
c06
c01
c10
d01
d25
h06
h05
h28
d02
d26
i18
1093
i07
D0000020807
d01
h05
i07
d26
d02
h06
d25
h28
i18
h43
i01
c10
c01
D0000052943
SBB 600 WP
SOL
c01 Cold water inlet Male thread G 1 ¼ A
c06 DHW outlet Male thread G 1 ¼ A
c10 DHW circulation Male thread G ½ A
d01 Heat pump flow Female thread G 1 ½
d02 Heat pump return Female thread G 1 ½
d25 Solar flow Female thread G 1 ½
d26 Solar return Female thread G 1 ½
h05 Sensor heat pump DHW Diameter mm 9.5
h06 Sensor heat pump DHW
optional
Diameter mm 9.5
h28 Sensor solar cylinder Diameter mm 9.5
h43 Thermometer Diameter mm 14.5
i01 Flange Diameter mm 280
Pitch circle diameter mm 245
Screws M 14
Torque Nm 80
i07 Electric emergency/
booster heater
Female thread G 1 ½
i18 Protective anode Female thread G 1 1/4

ENGLISH
WWW.STIEBEL-ELTRON.COM SBB 600-1000 WP SOL | 21
INSTALLATION
SPECIFICATION
SBB 800 WP SOL
285
385
560
780
930
1320
1440
1943
330
680
1200
1300
1560
1675
1919
2065
50°
i18
i18
i03
i02
h43
c06
c01
c10
d01
d25
h06
h05
h28
d02
d26
790
1010
D0000020808
SBB 800 WP SOL
c01 Cold water inlet Male thread G 2 A
c06 DHW outlet Male thread G 2 A
c10 DHW circulation Male thread G 1 A
d01 Heat pump flow Female thread G 1 ½
d02 Heat pump return Female thread G 1 ½
d25 Solar flow Female thread G 1 ½
d26 Solar return Female thread G 1 ½
h05 Sensor heat pump DHW Diameter mm 9.5
h06 Sensor heat pump DHW optional Diameter mm 9.5
h28 Sensor solar cylinder Diameter mm 9.5
h43 Thermometer Diameter mm 14.5
i02 Flange 1 Diameter mm 280
Pitch circle diameter mm 245
Screws M 14
Torque Nm 80
i03 Flange2 Diameter mm 280
Pitch circle diameter mm 245
Screws M 14
Torque Nm 80
i18 Protective anode Female thread G 1 1/4

22 | SBB 600-1000 WP SOL WWW.STIEBEL-ELTRON.COM
INSTALLATION
SPECIFICATION
SBB 1000 WP SOL
285
385
670
890
1040
1450
1550
2153
330
790
1365
1410
1670
1885
2129
2275
50°
i18
i18
i03
i02
h43
c06
c01
c10
d01
d25
h06
h05
h28
d02
d26
790
1010
D0000020811
SBB 1000 WP SOL
c01 Cold water inlet Male thread G 2 A
c06 DHW outlet Male thread G 2 A
c10 DHW circulation Male thread G 1 A
d01 Heat pump flow Female thread G 1 ½
d02 Heat pump return Female thread G 1 ½
d25 Solar flow Female thread G 1 ½
d26 Solar return Female thread G 1 ½
h05 Sensor heat pump DHW Diameter mm 9.5
h06 Sensor heat pump DHW optional Diameter mm 9.5
h28 Sensor solar cylinder Diameter mm 9.5
h43 Thermometer Diameter mm 14.5
i02 Flange 1 Diameter mm 280
Pitch circle diameter mm 245
Screws M 14
Torque Nm 80
i03 Flange2 Diameter mm 280
Pitch circle diameter mm 245
Screws M 14
Torque Nm 80
i18 Protective anode Female thread G 1 1/4

ENGLISH
WWW.STIEBEL-ELTRON.COM SBB 600-1000 WP SOL | 23
INSTALLATION
SPECIFICATION
Appliance cross-section SBB 800 WP SOL | SBB 1000 WP SOL
d01
h05
d26
i03
d02
h06
d25
h28
c10
i18
h43
i02
c01
c06
D0000052946
14.2 Fault conditions
In the event of a fault, temperatures of up to 95°C at 1.0 MPa can
occur depending on the type of heat sources used.
14.3 Data table
SBB 600 WP SOL SBB 800 WP SOL SBB 1000 WP SOL
235906 235907 235908
Hydraulic data
Nominal capacity l565 741 836
Capacity, upper indirect coil l48 51.5 51.5
Capacity, lower indirect coil l 16 21.5 30.0
Surface area, upper indirect coil m² 5.7 6.2 6.2
Surface area, lower indirect coil m² 2.0 2.6 3.6
Pressure drop at 1.0 m³/h, upper indirect coil hPa 3.6 3.9 3.9
Pressure drop at 1.0 m³/h, lower indirect coil hPa 2.4 3.2 3.4
Application limits
Max. permissible pressure MPa 1 1 1
Test pressure MPa 1.5 1.5 1.5
Max. permissible temperature °C 95 95 95
Max. flow rate l/min 70 90 90
Max. recommended collector aperture area m² 12 14 17
Dimensions
Height mm 1775 1943 2153
Diameter mm 750 790 790
Diameter incl. thermal insulation mm 970 1010 1010
Height when tilted mm 1813 1990 2185
Weights
Weight, empty kg 244 296 321
Weight, full kg 883 1139 1238
INSTALLATION | GUARANTEE | ENVIRONMENT AND RECYCLING
SPECIFICATION
Guarantee
The guarantee conditions of our German companies do not
apply to appliances acquired outside of Germany. In countries
where our subsidiaries sell our products a guarantee can only
be issued by those subsidiaries. Such guarantee is only grant-
ed if the subsidiary has issued its own terms of guarantee. No
other guarantee will be granted.
We shall not provide any guarantee for appliances acquired in
countries where we have no subsidiary to sell our products.
This will not aect warranties issued by any importers.
Environment and recycling
We would ask you to help protect the environment. After use,
dispose of the various materials in accordance with national
regulations.
GUARANTEE
ENVIRONMENT AND RECYCLING



Deutschland
STIEBEL ELTRON GmbH & Co. KG
Dr.-Stiebel-Straße 33 | 37603 Holzminden
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.de
Verkauf Tel. [phone] | Fax [phone] | [email protected]
Kundendienst Tel. [phone] | Fax [phone] | [email protected]
Ersatzteilverkauf Tel. [phone] | Fax [phone] | [email protected]
Irrtum und technische Änderungen vorbehalten! | Subject to errors and technical changes! | Sous réserve
d‘erreurs et de modifications techniques! | Onder voorbehoud van ver
g
issin
g
en en technische wi
j
zi
g
in
g
en! |
Salvo error o modificación técnica! | Excepto erro ou alteração técnica | Zastrzeżone zmian
y
techniczne i
ewentualne błędy | Omyly a technické změny jsou vyhrazeny! | A muszaki változtatások és tévedések
j
o
g
át
fenntartjuk! | Отсутствие ошибок не гарантируется. Возможны технические изменения. | Ch
y
b
y
a
technické zmeny sú vyhradené! Stand 9046
Australia
STIEBEL ELTRON Australia Pty. Ltd.
6 Prohasky Street | Port Melbourne VIC 3207
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel.com.au
Austria
STIEBEL ELTRON Ges.m.b.H.
Eferdinger Str. 73 | 4600 Wels
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.at
Belgium
STIEBEL ELTRON bvba/sprl
't Hofveld 6 - D1 | 1702 Groot-Bijgaarden
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.be
China
STIEBEL ELTRON (Guangzhou) Electric
Appliance Co., Ltd.
Rm 102, F1, Yingbin-Yihao Mansion, No. 1
Yingbin Road
Panyu District | 511431 Guangzhou
Tel. [phone] | Fax [phone]
[e-mail]
www.stiebeleltron.cn
Czech Republic
STIEBEL ELTRON spol. s r.o.
K Hájům 946 | 155 00 Praha 5 - Stodůlky
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.cz
Finland
STIEBEL ELTRON OY
Kapinakuja 1 | 04600 Mäntsälä
Tel. [phone]
[email protected]
www.stiebel-eltron.fi
France
STIEBEL ELTRON SAS
7-9, rue des Selliers
B.P 85107 | 57073 Metz-Cédex 3
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.fr
Hungary
STIEBEL ELTRON Kft.
Gyár u. 2 | 2040 Budaörs
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.hu
Japan
NIHON STIEBEL Co. Ltd.
Kowa Kawasaki Nishiguchi Building 8F
66-2 Horikawa-Cho
Saiwai-Ku | 212-0013 Kawasaki
Tel. [phone] | Fax [phone]
[email protected]
www.nihonstiebel.co.jp
Netherlands
STIEBEL ELTRON Nederland B.V.
Daviottenweg 36 | 5222 BH 's-Hertogenbosch
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.nl
Poland
STIEBEL ELTRON Polska Sp. z O.O.
ul. Działkowa 2 | 02-234 Warszawa
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.pl
Russia
STIEBEL ELTRON LLC RUSSIA
Urzhumskaya street 4,
building 2 | 129343 Moscow
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.ru
Slovakia
TATRAMAT - ohrievače vody s.r.o.
Hlavná 1 | 058 01 Poprad
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.sk
Switzerland
STIEBEL ELTRON AG
Industrie West
Gass 8 | 5242 Lupfig
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.ch
Thailand
STIEBEL ELTRON Asia Ltd.
469 Moo 2 Tambol Klong-Jik
Amphur Bangpa-In | 13160 Ayutthaya
Tel. [phone] | Fax [phone]
[e-mail]
www.stiebeleltronasia.com
United Kingdom and Ireland
STIEBEL ELTRON UK Ltd.
Unit 12 Stadium Court
Stadium Road | CH62 3RP Bromborough
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron.co.uk
United States of America
STIEBEL ELTRON, Inc.
17 West Street | 01088 West Hatfield MA
Tel. [phone] | Fax [phone]
[email protected]
www.stiebel-eltron-usa.com
A 321107-39024-9073
4<AMHCMO=cbbahf>
