SBB 300 plus, SBB 400 plus, SBB 600 plus
Operation & Installation
Instruction Manual
1Operation and Service
1.1 Start-Up
2 Maintenance and Cleaning
2.1 Membrane Safety Valve
2.2 Decalcification
2.3 Exchange of the Safety Anode
3 Failures – Cause – Correction
4 Technical Specifications
4.1 Technical Data
4.2 Dimensions
Installation Instructions
5 General
5.1 Description
5.2 Delivery Form
5.3 Regulations and standards
5.4 Set-up and operation
6 Set-up and installation
6.1 Set-up
6.2 Connection
6.3 Heater Installation
6.4 Hot water Installation
6.5 Hot Water Temperature Probe
6.6 Solar Temperature Probe
6.7 Connection to the Solar Unit
6.8 Signal Anode
7 Tips for the User
Index

Important Tip
Stiebel Eltron hot water heaters should only be installed or serviced by licensed installers.
These are not do-it-yourself appliances.
Please hand this Operation and Installation Manual and hand over to the home or building owner when the
installation is complete.
Operating Instructions for the User and the Technician
1. Operation and Service
1.1 Start-up
The boiler (39) and solar storage tank (30) after installation, constitute a functional unit (refer Diag. 4 and 5).
Hot water is generated throughout the year by the solar collectors.
The entire heater and hot water system must be filled with water and have good air ventilation. Please, refer to the solar
collector’s and the boiler’s installation instructions.
2. Maintenance and Cleaning
Routine care and maintenance extends the life expectancy and operating safety of the hot water storage unit.
The outer casing should be cleaned with a slightly damp cloth and commercially available neutral cleaning agent, this
should be done on a regular basis
2.1 Membrane Safety Valve
The proper function of the safety group (28), especially of the membrane safety valve (21) is very important to prevent
damage to the hot water storage unit. The membrane safety valve needs to be monitored for functionality during cold-
water addition (27). The water has to flow from the drip line at full stream.
The discharging water can be hot!
2.2 Decalcification
With hard tap water, a deposit of scale will form on the inside of the storage unit. Based on professional experience, it is
necessary to decalcify with commercially available solvents at timely intervals. Follow the manufacturers instructions for
solvent use. The hot water storage unit needs to be emptied. The revisions flange at the storage bin must be dismantled
and sediments on the tank bottom must be removed.

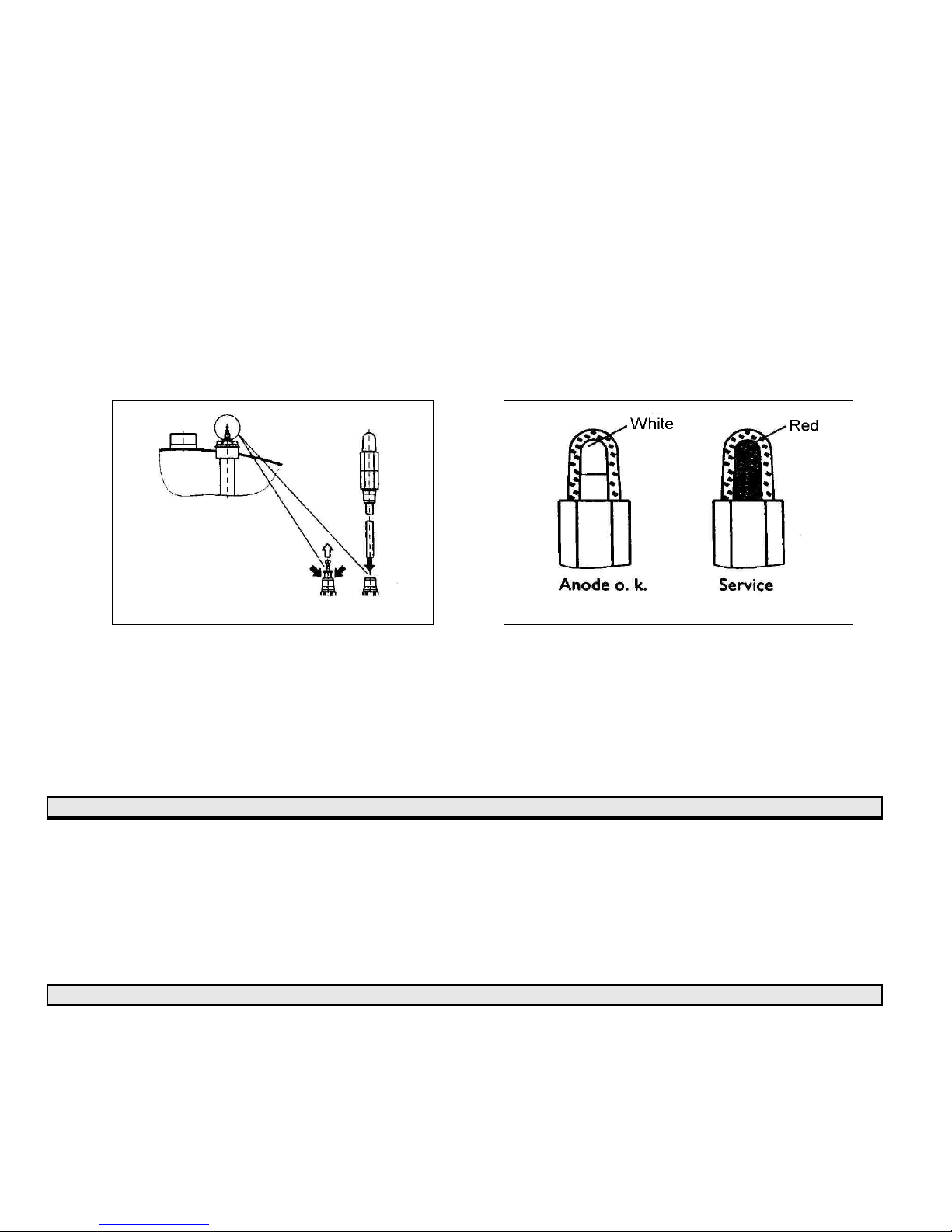

2.3 Exchange of the Safety Anode
Depending on the composition of the tap water, an inspection of the safety anode (Pos. 1, Diag. 1) at more or less timely
intervals is recommended. With heavy wear, an original equipment replacement anode (refer Ch.6.8 and Ch.7 ) must be
installed to protect the inner container from corrosion. An inspection should be performed at least once a year.
3. Failures – Causes – Correction
Failures
Causes
Correction
Inadequate water pressure
Shut-off valve is not completely open. Cold
or hot water line is obstructed.
Open Shut-off valve. Clean or exchange
pipes.
Hot water flow inadequate
Boiler temperature gauge is set too low.
Recommended 80-85°C.
Heat exchanger is calcified.
Set boiler temperature gage to recommended
temperature. Clean heat exchanger.
Hot water storage tank not
being heated
Program selection at the heater gage is not
properly selected.
Select and set program per instructions.
Outlet quantity inadequate
Perlator at the extraction point blocked.
Unscrew perlator and clean.
Hot water supply too fast
exhausted
Flow rate too high. Recommended 2.6-3.9
gal./min.
Restrict Spigot valve rate.

4. Technical Specifications

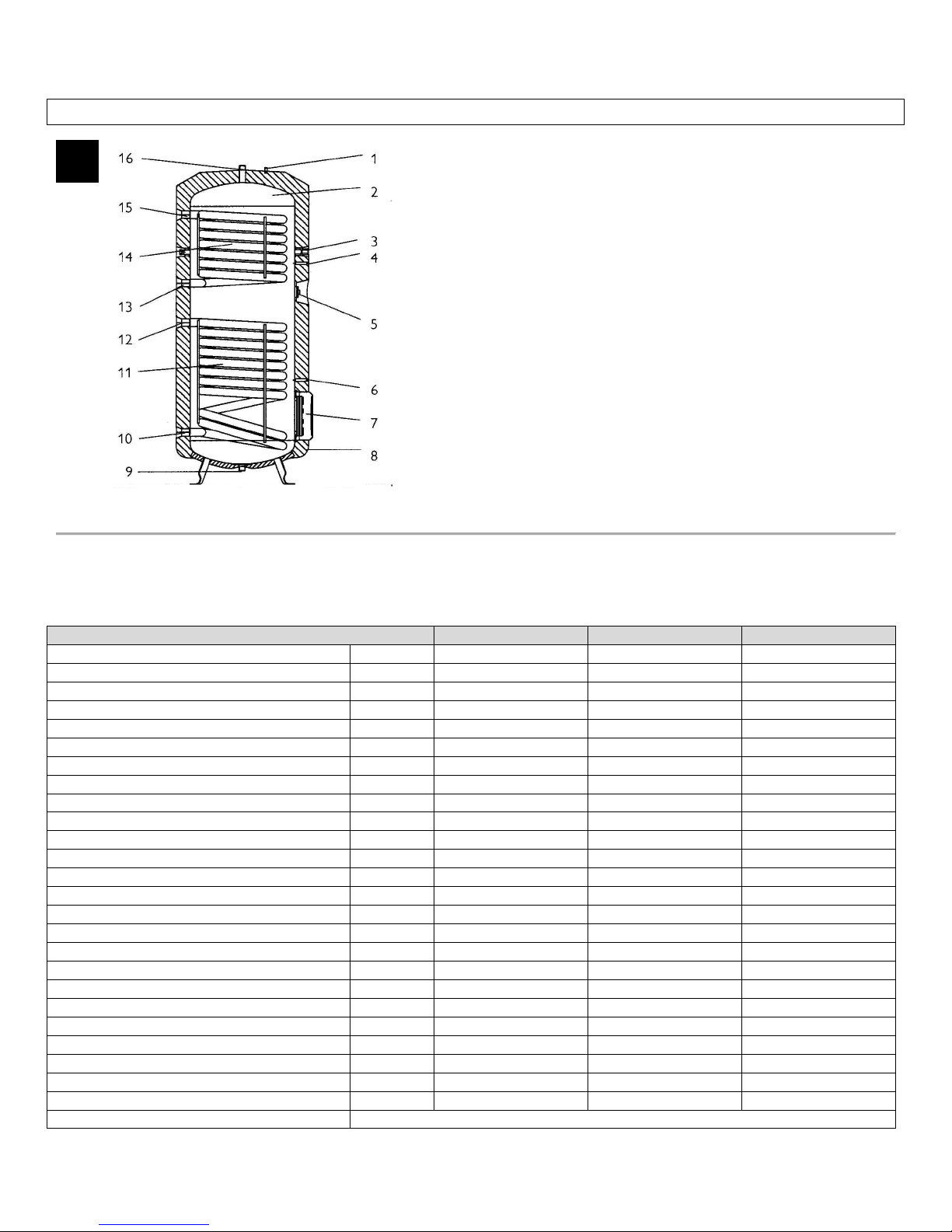

Components of the SBB…K Sol
1 Signal Anode
2 Memory Container
3 Immersion Sleeve for temperature probe-boiler
4 Link for thermometer or circulation
5 Port for heating element
6 Immersion Sleeve for temperature probe-solar
7 Revisions flange, outside
8 Expanded polystrene-thermal insulation
9 Cold water inlet
10 Solar return
11 Solar heat exchanger
12 Solar inlet
13 Heater return
14 Upper heat exchanger
15 Heater inlet
16 Warm water outlet
Diag. 1.
4.1 Technical Data
Type
SBB 300 plus
SBB 400 plus
SBB 600 plus
Contents
Storage capacity
Gal / ltr
80.6 / 305
108.6 / 411
162.9 / 617
Volume of heat exchanger, top
Gal / ltr
1.9 / 7.3
2.2 / 8.2
2.5 / 9.6
Volume of heat exchanger, bottom
Gal / ltr
2.7 / 10.1
2.9 / 11.3
3.5 / 13.2
Pressure
Working pressure
PSI / bar
150 / 10
150 / 10
150 / 10
Tested to pressure
PSI / bar
(15) / 217
(15) / 217
(15) / 217
Max. pressure of boiler loop
PSI / bar
150 / 10
150 / 10
150 /10
Temperature
Max. temperature solar loop
°F / °C
203 / 95
203 / 95
203 / 95
Max temperature boiler loop
°F / °C
203 / 95
203 / 95
203 / 95
Heat exchanger
Surface area heat exchanger top
sq. in. /m2
1705 / 1.1
2015 / 1.3
2325 / 1.5
Surface area heat exchanger bottom
sq. in. /m2
2325 / 1.5
2635 / 1.7
3100 / 2.0
Weights
Tank weight empty
lb. / kg
339 / 154
412 / 187
544 / 247
Tank weight full
lb. / kg
1,051 / 477
1,362 / 618
1,955 / 887
Other
Standby losses in 24 hours
kWh
1.9
2.2
2.9
Cold/hot water connection
for 1” copper pipe w/adapters, provided w/ unit
1

Dimensions
Diag. 2.
4.2 Dimensions
Type
SBB 300 plus
SBB 400 plus
SBB 600 plus
A
Height of unit w/insulation
in./mm
66.1/1679
72.7/1848
68.3/1735
B
Height of unit without insulation
in./mm
63.3/1609
70.1/1781
65.7/1670
C
Height of well for temp. sensor
in./mm
46.4/1179
48.7/1238
46.9/1192
D
Height link thermometer/circulation
in./mm
41.1/1045
43.0/1093
41.5/1055
E
Height link screwing in heating element
in./mm
40.3/1025
42.4/1078
40.9/1040
F
Height of dipping case for temp. sensor
in./mm
21.9/557
22.0/560
23.4/595
G
Height revision flange
in./mm
14.4/365
14.4/367
15.9/405
H
Height cold water link
in./mm
2.9/73
2.6/65
2.0/50
I
Height solar return
in./mm
11.0/280
11.1/282
10.9/277
J
Height solar advance
in./mm
34.0/865
34.1/867
33.9/862
K
Height heater return
in./mm
38.4/975
44.5/1130
42.9/1089
L
Height heater advance
in./mm
52.7/1339
63.0/1600
57.2/1453
M
Overall height
in./mm
67.1/1704
73.7/1873
69.3/1760
N
Memory without thermal insulation
in./mm
21.6/550
23.6/600
29.5/750
O
Memory with thermal insulation
in./mm
27.5/700
29.5/750
36.2/920
2

Installation instructions for the Installer
5. General
The illustration on page 5 is referenced for explanation of the following text.
5.1 Brief Description of the Appliance
5.1.1 Application
The Stiebel Eltron Vertical Solar Storage tank SBB … K SOL is, in combination with Stiebel Eltron’s Solar Collector is an
economical hot water generator.
5.1.2 Connectors
All connectors (cold and hot water connectors) are readily accessible and allow for easy installation.
5.2 Delivery Form
The hot water storage tank SBB … K SOL, wrapped in plastic wrap, is delivered on a one-way pallet. The storage tank
has foam insulation, a KU outer casing and KU cover.
Equipment
•Storage unit with two welded steel plain-ended pipe heat exchangers
•Hot water corrosion protection with special enamel coating
•Maximum operation pressure
Hot water 145 PSI (10 bar)
Heated water 145 PSI (10 bar)
•Three immersion sleeves for housing of temperature probe/thermometer
•Magnesium Safety Anode
•Circulation Socket G_A
•Plug for bushing G1_
•Attached Flange
•PU Foam insulation 2.95 in. (70 mm.) thick
•KU outer casing with zipper in protective pouch
•KU Cover and Flange cover
Only for 600:
•Removable PU-side panels with fastening strap and locking parts
5.3 Tasks to be performed by the Technician
An approved technician should perform the setup, installation and initial start-up following these instructions.
5.4 Regulations and Standards
Refer to: Local Construction regulations, fire-code and trade control regulations.
Solar Tank SBB 600 plus
with insulation
1 Solar tank
2 PU side panel
3 Fastening strap
4 Locking part
Diag. 3
3

6. Set-up and Installation
6.1 Set-up
Inspect the packaging for damage and remove packaging preferable only at the installation site.
For the selection of the installation site, the tare weight of the storage unit (unit and insulator) including the fill-water
weight must be considered. The room has to be above freezing. For drainage, the water drainage pipe must be freeze
proof.
6.2 Connection
Refer to Diag.1 and Diag. 2.
6.3 Heater Installation
The installation of the heating circuitry is shown in Diag. 4. The heater installation can be according to the installation
diagram. This, however, varies according to operation. In addition, it must be assured that no air can collect in the
system. Therefore, an exhaust unit has to be built into the heating circuitry (31).
6.4 Hot Water Installation
6.4.1 Prior to installation check that the local conditions are compatible with the appliance design, especially that the
maximum working excess pressure of 145 PSI (10 bar.) can be maintained.
6.4.2 A steel or a copper pipe with insulation can be used for the hot water connectors. Copper pipe with insulation is
especially suitable because of its low friction and heat loss.
Required combination
Cold water pipeline Hot water pipeline
Copper pipe copper pipe
Steel pipe steel or copper pipe
Plastic steel or copper pipe
6.4.3 A safety group (28) must be installed into the cold water supply (27, Diag. 4). The order of the individual fittings
must be in accordance to local regulations.
6.4.4 The membrane safety valve (21) has to be set to 145 PSI (10 bar.) excess pressure and sealed. It can only be
installed into the cold water supply (27). The supply has to be thoroughly inspected prior to installation. Installation of dirt
filters or any other narrowing of the supply line to the membrane safety valve is forbidden.
The membrane safety valve (21) has to be easily accessible. Expansion water generated during the heating has to flow
visibly into a funnel and be drained.
Funnel and drainage pipe must be large enough to accommodate water drainage with a fully opened membrane safety
valve. The drainage pipe must be protected from freezing and must not lead outdoors.
The membrane safety valve (21) has to be set such that there are no water drips with the resting heater (storage water
being reheated).
Heavy dripping of the membrane safety valve on the outside of the warming operation can be caused by dirt in the valve
seat of water pressure that is too high. At excessive water pressure a pressure reducer (25) needs to be installed.
6.4.5 During installation all necessary screws outside of the flange area must be in order. This assures that the revision
flange can be maintained.
6.4.6 Drainage of the hot water tank (30) is via the drainage faucet (29) at the drainage connector.
6.4.7 The circulator can be attached to a separate socket across the thermometer. Drill the outer casing with a hole saw
∅50 where marked and remove insulation from the socket in that area.
For energy conservation, use of a circulator is not recommended.

Installation Diagram Solar storage tank SBB plus
Diag. 4

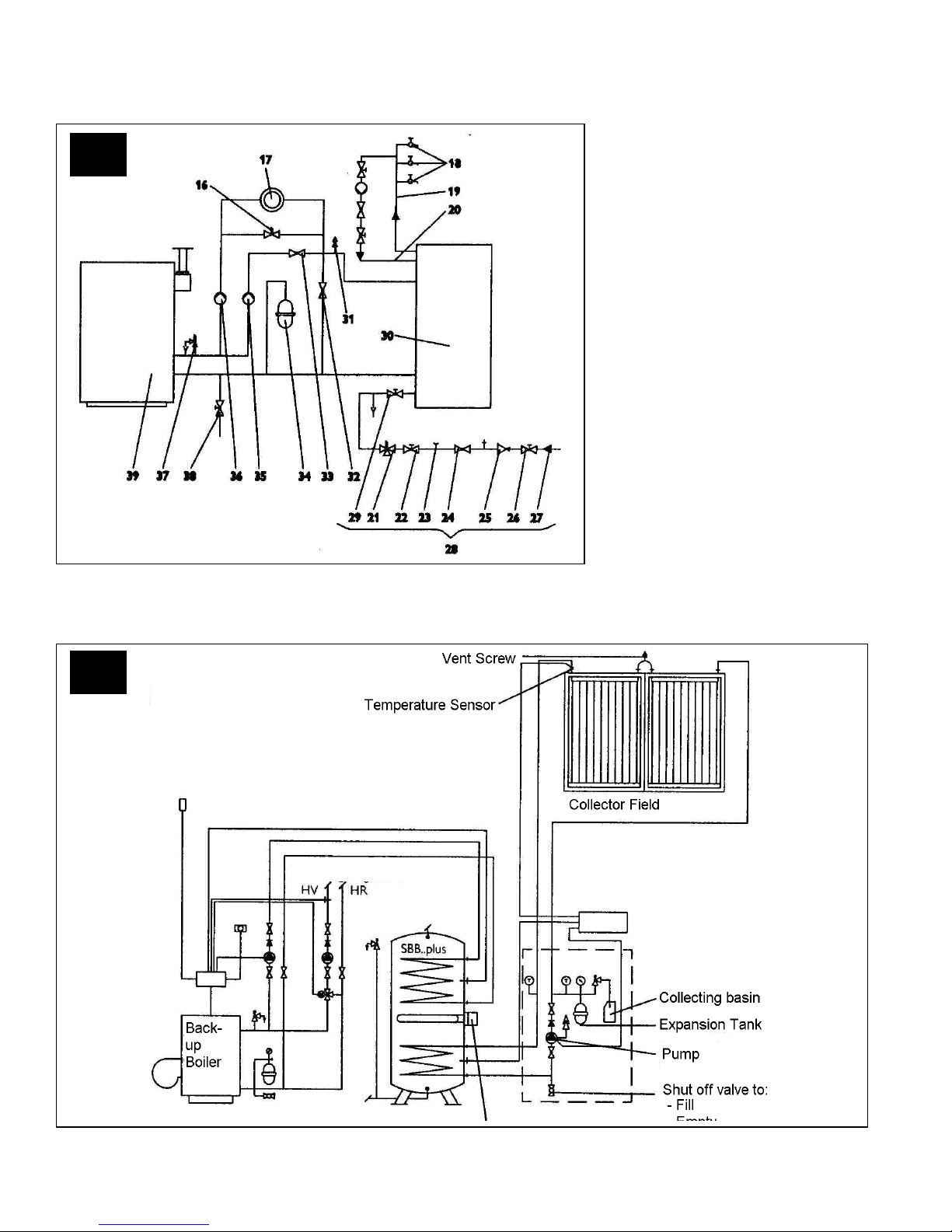

System Diagram
16 overflow valve
17 heater unit
18 hot water processor
19 hot water heater
20 circulation pipe (only if needed)
21 membrane safety valve
22 shut-off valve
23 Manometer connector socket
24 check valve
25 pressure reducer
26 shut-off valve
27 cold water pipe
28 safety group
29 drainage faucet for the tank
30 SBB plus storage tank
31 exhaust valve
32 check valve
33 check valve
34 pressure expansion vessel
35 storage cycle pump
36 heating cycle pump
37 membrane safety valve
38 boiler filler and drainage faucet
39 boiler
4
5

Diag. 5
6.5 Hot water temperature probe
6.5.1 The hot water temperature probe is to be installed into the immersions sleeve (Pos. 3 Diag.1) of the hot water
storage tank.
Then the connector pipe for heater regulation has to be installed and attached to the clamps of the low voltage plug as
described in separate operation and installation instructions for the regulator.
6.6 Solar Storage Tank – Temperature Probe
The solar storage tank temperature probe must be attached to the immersion sleeve of the hot water storage tank (Pos. 6
Diag. 1).
The temperature probe must be inserted into the probe sleeve until its dead stop (Ill.6). The compressed flat rod has to
be inserted until set with the spring struts in the front.
Then the connector pipe has to be laid according to solar regulator SOM 6K, SOM 6/3D or SOM 7/2 and attached to the
clamps of the low voltage plug as described in separate operation and installation instructions of the regulator.
Diag. 6 Diag. 7
6.7 Connection to the Solar Unit
The installation of the solar circuitry is shown in Diag. 5, page 12. The solar circuitry installation can follow the installation
diagram. This differs depending on the application.
Refer to the separate operation and installation instructions for the solar collector SOL 25 S.
Test operation after installation. Start up must follow the approval of the installer (refer operation and use).
6.8 Signal anode (spare part)
If a signal anode is installed into the SBB … K SOL storage tank, the following installation of the signal anode must be
observed:
Installation – signal anode
•Pull out the red shut-off plug while simultaneously depressing the pressure ring, Diag. 6a. on page 13.
•Push in the open pipe end of the indicator element until dead-stop, Diag. 6b.
•Attach the sticker “Note Signal Anode” to a highly visible spot on the insulation.
When the storage tank is not operated with a signal display, the red plug must remain in the anode!
Function – Signal Anode
(Safety Anode with usage display)
•After consumption of the anode, humidity escapes through the hollow anode core to the signal cartridge and causes a
color change there (refer Diag. 7)
•When the cartridge turns red contact the installer so he can check the anode and if needed replace it.

6.9 Screw-in unit BGC
BGC is screwed into a 1 “ bushing into the front side of the storage tank. This is then locked with a 4-corner plug SW22.
As an alternative the bushing can be dismantled with a 12-corner nut SW26.
The installation instructions of the screw-in heater must be observed.
7. Tips for the User
Routine maintenance improves operating safety and life expectancy of the solar hot water storage tank SBB … K SOL.
Solar Collector/Solar Storage Tank Warranty Statement
Residential and Commercial Warranty: Stiebel Eltron warrants to the original owner that the SOL 25 S - Flat
Plate Solar Collector will be free from defects in workmanship and materials for a period of ten (10) years from
the date of purchase. In addition, the SBB 300, SBB 400 and SBB 600 plus storage tanks are warranted to the
original or subsequent user for a period of (7) years.
Should the part(s) prove to be defective under normal use during this period, Stiebel Eltron, Inc. will be
responsible for replacement of the defective part(s) only. Stiebel Eltron, Inc. will not be liable for any costs of
transportation, removal, reinstallation, or any other labor or freight charges that may arise in connection with a
warranty claim or any incidental or consequential expenses.
This warranty does not apply to conditions resulting from a failed component or part that is not part of the solar
collector, absorber plate or storage tank; to freeze damage; to conditions resulting from misuse, abuse,
neglect, accident, or alteration; to minor discoloration of the collector framewall, absorber plate or storage tank
skin over time; to glass breakage; to conditions resulting from the introduction of harmful chemicals, caustic
fluids, or liquids deleterious to copper tubing, including improperly applied or maintained heat transfer fluids; to
propylene glycol pH levels above 10 or below 8; to periods of stagnation in excess of 60 days; to excessive
pressure; to clouding or similar occurrence resulting from the normal intrusion of moisture into the collector
box; to conditions resulting from floods, earthquakes, winds, fire, lightning, or circumstances beyond the
manufacturer's control; to installation methods which do not conform to relevant national, state or local codes
and ordinances, good industry practices or applicable manuals, diagrams, technical bulletins or written
installation instructions; and, to applications other than medium temperature.
To obtain service under this warranty, the owner must first secure written authorization from Stiebel Eltron, Inc.
The owner shall be required to show proof of purchase date, and to pay all transportation costs to return the
defective part(s) for repair or replacement.
242 Suffolk Street
Holyoke, MA 01040
Phone: [phone] or [phone]
Fax: [phone]
E-Mail: [email protected]
Web: www.stiebel-eltron-usa.com
