STIEBEL ELTRON PSH 50 Trend Instruction Manual

BEDIENUNG UND INSTALLATION
OPERATION AND INSTALLATION
UTILISATION ET INSTALLATION
BEDIENING EN INSTALLATIE
OBSLUHA A INSTALACE
OBSLUHA A INŠTALÁCIA
  

Geschlossener Warmwasser-Wandspeicher | Sealed, unvented wall mounted DHW
cylinder | Chauffe-eau mural ECS sous pression | Gesloten warmwaterboiler voor

     |

» PSH 30 Trend
» PSH 50 Trend
» PSH 80 Trend
» PSH 100 Trend
» PSH 120 Trend
» PSH 150 Trend
» PSH 200 Trend

ENGLISH
www.stiebel-eltron.com PSH Trend | 15
CONTENTS
SPECIAL INFORMATION
OPERATION
1. General information _______________________________________ 16
1.1 Safety instructions______________________________________________ 16
1.2 Other symbols in this documentation ______________________ 17
1.3 Units of measurement _________________________________________ 17
2. Safety________________________________________________________ 17
2.1 Intended use_____________________________________________________ 17
2.2 General safety instructions ___________________________________ 17
2.3 CE designation __________________________________________________ 17
2.4 Test symbols _____________________________________________________ 17
3. Appliance description _____________________________________ 17
4. Settings _____________________________________________________ 18
4.1 Holiday and absence ___________________________________________ 18
5. Cleaning, care and maintenance _________________________ 18
6. Troubleshooting ____________________________________________ 18

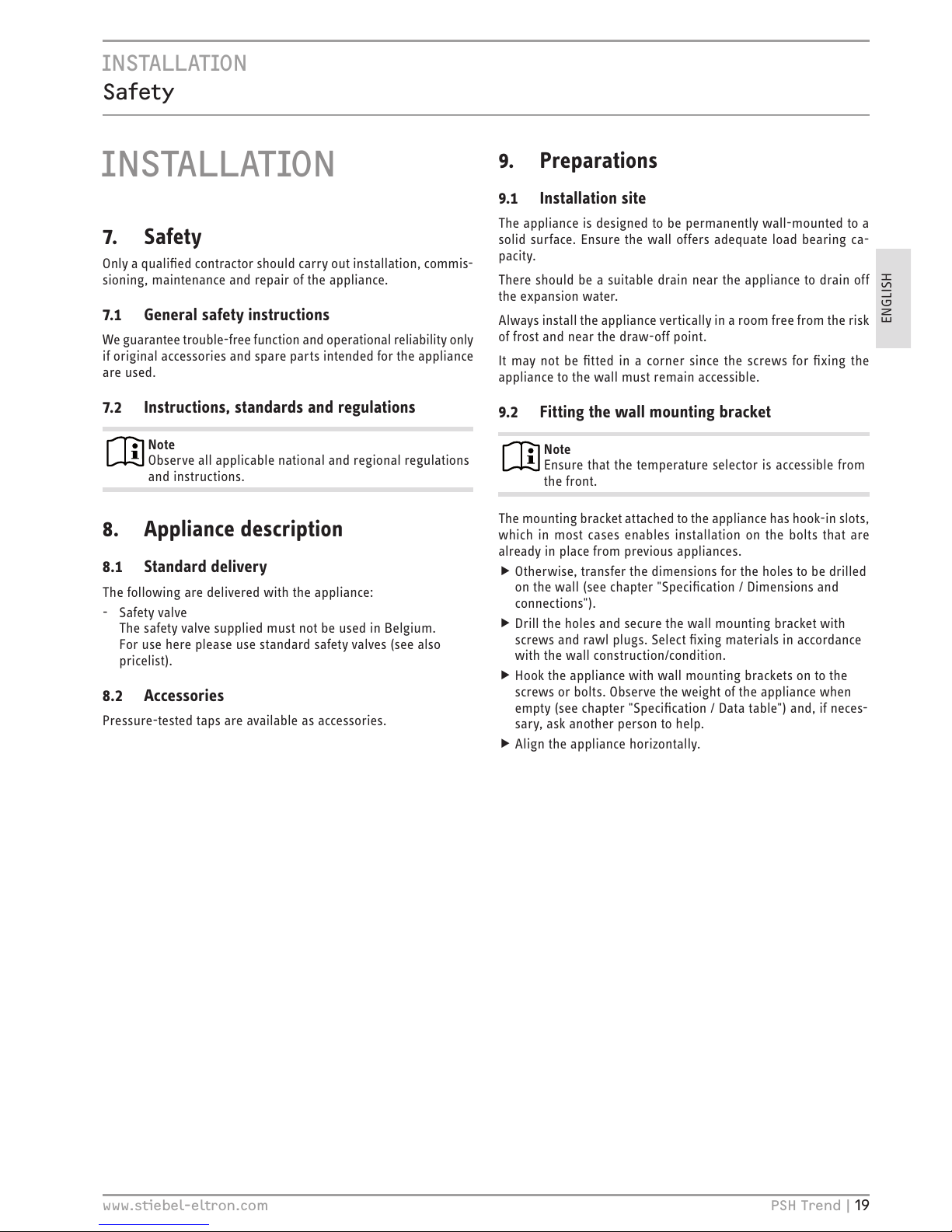

INSTALLATION
7. Safety________________________________________________________ 19
7.1 General safety instructions ___________________________________ 19
7.2 Instructions, standards and regulations ___________________ 19
8. Appliance description _____________________________________ 19
8.1 Standard delivery _______________________________________________ 19
8.2 Accessories_______________________________________________________ 19
9. Preparations ________________________________________________ 19
9.1 Installation site__________________________________________________ 19
9.2 Fitting the wall mounting bracket___________________________ 19

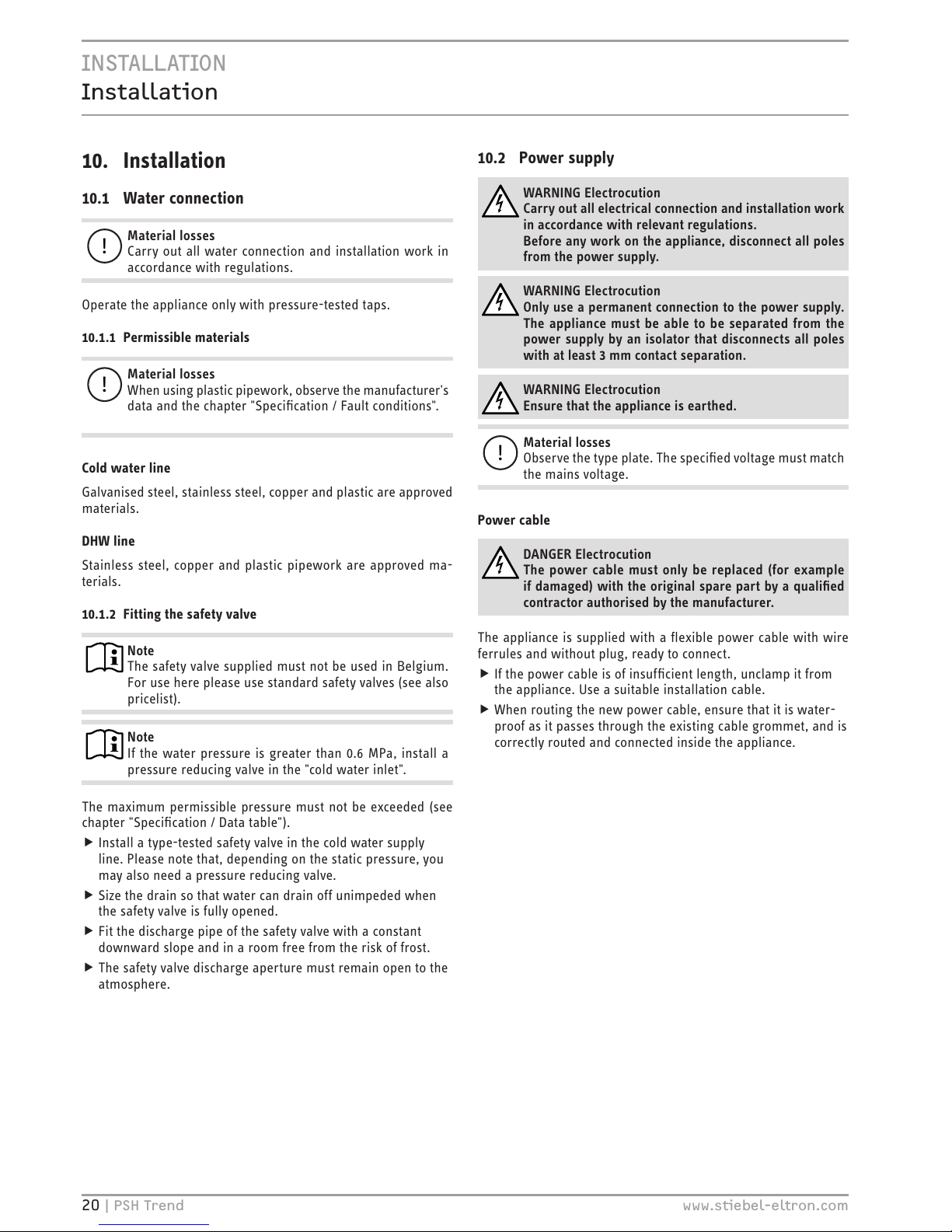

10. Installation__________________________________________________ 20
10.1 Water connection _______________________________________________ 20
10.2 Power supply ____________________________________________________ 20
11. Commissioning _____________________________________________ 21
11.1 Commissioning__________________________________________________ 21
11.2 Recommissioning_______________________________________________ 21
12. Shutting down______________________________________________ 21
13. Troubleshooting ____________________________________________ 21
14. Maintenance ________________________________________________ 22
14.1 Checking the safety valve _____________________________________ 22
14.2 Draining the appliance ________________________________________ 22
14.3 Checking / replacing the protective anode ________________ 22
14.4 Descaling _________________________________________________________ 22
14.5 Anti-corrosion protection _____________________________________ 22
14.6 Replacing the power cable ___________________________________ 22
14.7 Replacing the combined controller/limiter ________________ 22
15. Specification ________________________________________________ 23

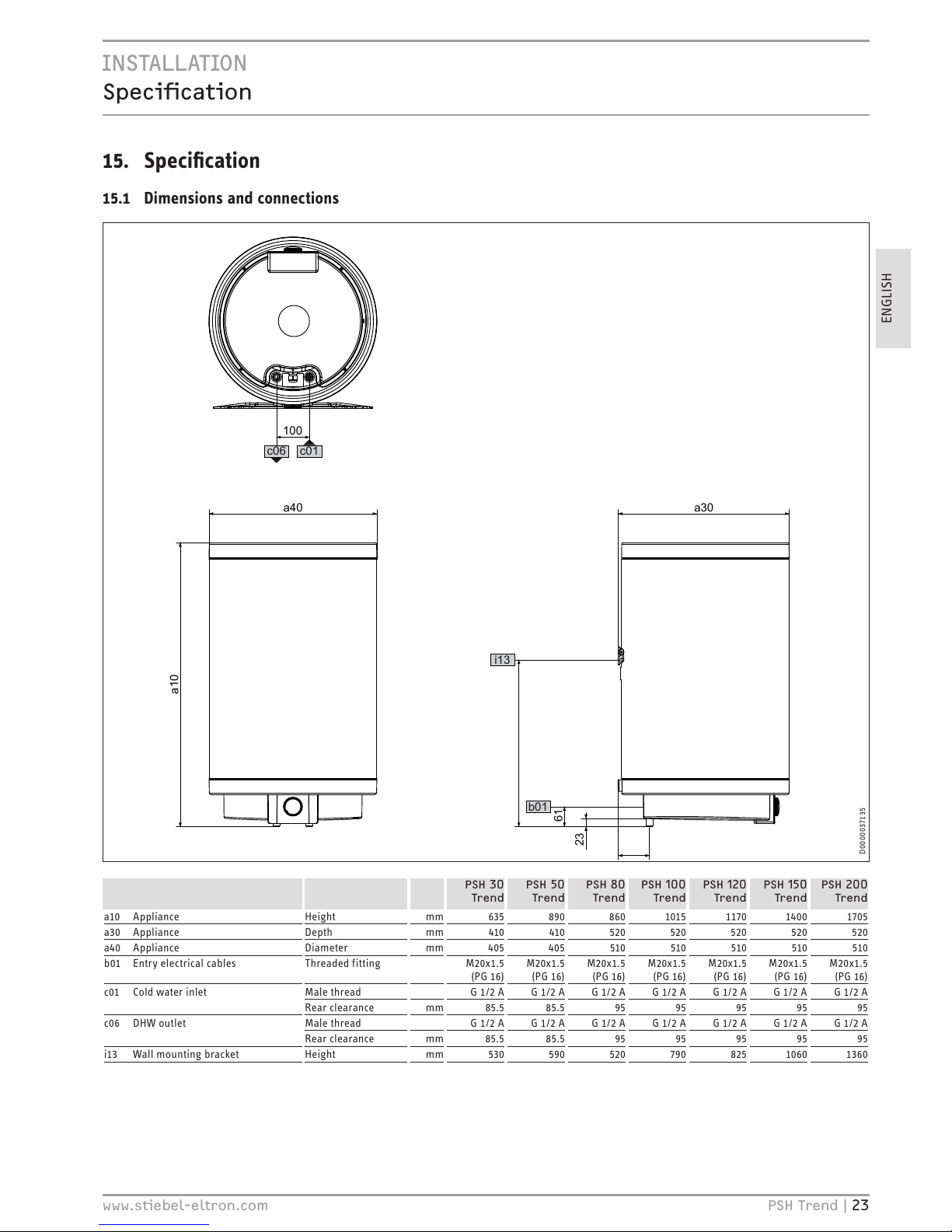

15.1 Dimensions and connections_________________________________ 23
15.2 Wiring diagram _________________________________________________ 24
15.3 Heat-up diagrams ______________________________________________ 24
15.4 Fault conditions _________________________________________________ 24

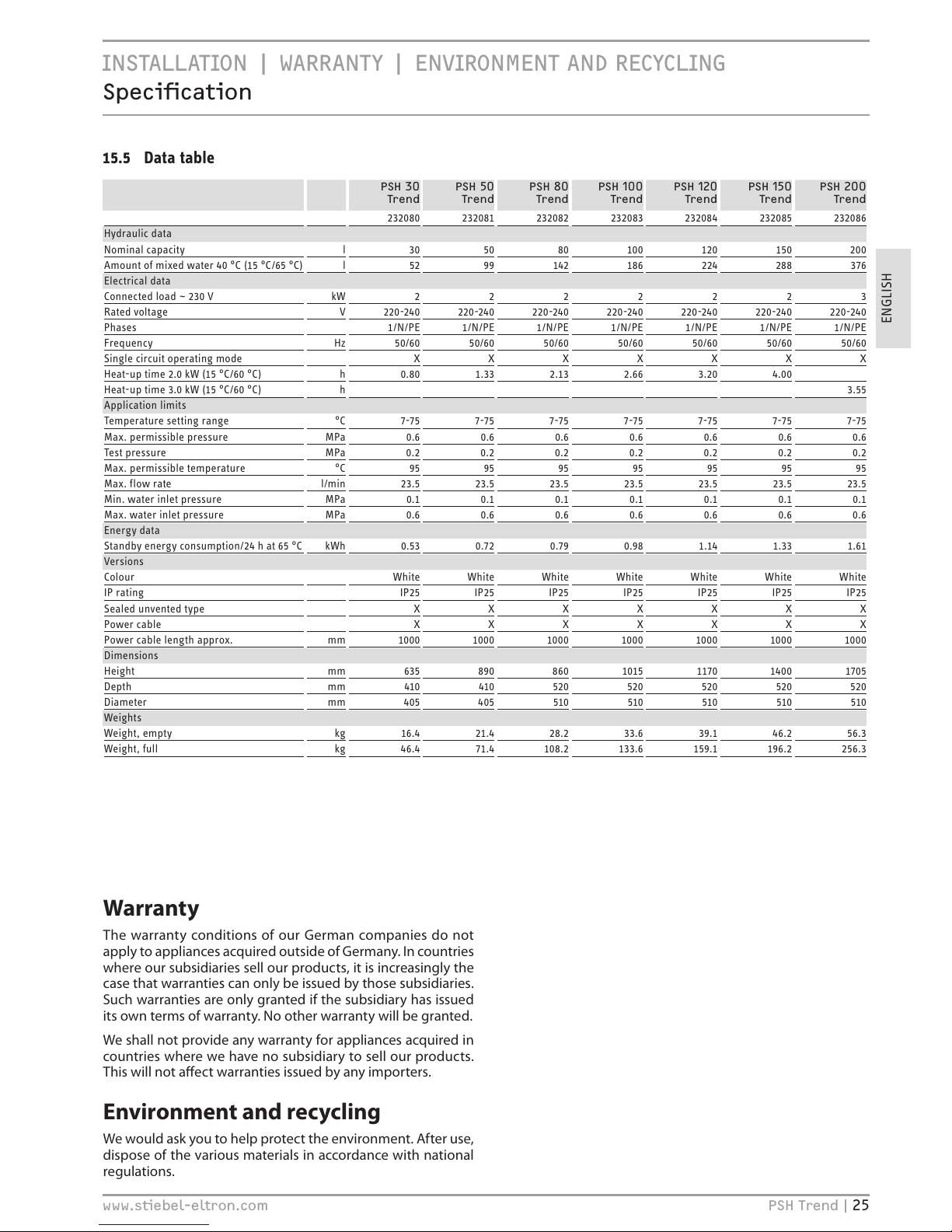

15.5 Data table ________________________________________________________ 25
WARRANTY
ENVIRONMENT AND RECYCLING
SPECIAL INFORMATION
- The appliance may be used by children aged8
and up and persons with reduced physical, sen-
sory or mental capabilities or a lack of experience
and know-how provided that they are supervised
or they have been instructed on how to use the
appliance safely and have understood the result-
ing risks. Children must never play with the ap-
pliance. Children must never clean the appliance
or perform user maintenance unless they are
supervised.
- Only use a permanent connection to the power
supply. The appliance must be able to be sepa-
rated from the power supply by an isolator that
disconnects all poles with at least 3mm contact
separation.
- The power cable must only be replaced (for
example if damaged) with the original spare
part by a qualified contractor authorised by the
manufacturer.
- Fix the appliance in position as described in the
chapter "Installation/ Preparations".
- Observe the minimum and maximum water inlet
pressure (see chapter "Specification/ Data table").
- The appliance is under pressure. During the heat-
up process, expansion water will drip from the
safety valve.
- Regularly activate the safety valve to prevent
it from becoming blocked e.g. by limescale
deposits.
- Drain the appliance as described in the chap-
ter "Installation/ Maintenance/ Emptying the
appliance".

16 | PSH Trend www.stiebel-eltron.com
SPECIAL INFORMATION
- Install a type-tested safety valve in the cold water
supply line. For this bear in mind that, depending
on the static pressure, you may also need a pres-
sure reducing valve.
- Size the drain so that water can drain off unim-
peded when the safety valve is fully opened.
- Fit the discharge pipe of the safety valve with
a constant downward slope and in a room free
from the risk of frost.
- The safety valve discharge aperture must remain
open to the atmosphere.
OPERATION
1. General information
The chapters "Operation" and "Special Information" are intended
for both the user and qualified contractors.
The chapter "Installation" is intended for qualified contractors.
Note
Read these instructions carefully before using the appli-
ance and retain them for future reference.
Pass on the instructions to a new user if required.
1.1 Safety instructions
1.1.1 Structure of safety instructions
!
KEYWORD Type of risk
Here, possible consequences are listed that may result
from failure to observe the safety instructions.
 Steps to prevent the risk are listed.
1.1.2 Symbols, type of risk
Symbol Type of risk
Injury
Electrocution
Burns
(burns, scalding)
1.1.3 Keywords
KEYWORD Meaning
DANGER Failure to observe this information will result in serious
injury or death.
WARNING Failure to observe this information may result in serious
injury or death.
CAUTION Failure to observe this information may result in non-seri-
ous or minor injury.
!

OPERATION
Safety
ENGLISH
www.stiebel-eltron.com PSH Trend | 17
1.2 Other symbols in this documentation
Note
General information is identified by the symbol shown
on the left.
 Read these texts carefully.
Symbol Meaning
Material losses
(appliance and consequential losses, environmental pol-
lution)
Appliance disposal
 This symbol indicates that you have to do something. The ac-
tion you need to take is described step by step.
1.3 Units of measurement
Note
All measurements are given in mm unless stated oth-
erwise.
2. Safety
2.1 Intended use
The appliance is intended for heating domestic hot water and can
supply one or more draw-off points.
This appliance is intended for domestic use. It can be used safely
by untrained persons. The appliance can also be used in a non-do-
mestic environment, e.g. in a small business, as long as it is used
in the same way.
Any other use beyond that described shall be deemed inappro-
priate. Using the appliance for heating fluids other than water or
water supplemented with chemicals, such as brine, is also deemed
inappropriate.
Observation of these instructions and of instructions for any ac-
cessories used is also part of the correct use of this appliance.
2.2 General safety instructions
WARNING Burns
During operation, the tap and safety valve can reach
temperatures in excess of 60°C.
There is a risk of scalding at outlet temperatures in ex-
cess of 43°C.
!
WARNING Injury
The appliance may be used by children aged 8 and up and
persons with reduced physical, sensory or mental capa-
bilities or a lack of experience and know-how provided
that they are supervised or they have been instructed
on how to use the appliance safely and have understood
the resulting risks. Children must never play with the
appliance. Children must never clean the appliance or
perform user maintenance unless they are supervised.
!
Material losses
The user should protect the water lines and the safety
valve from frost.
Note
The appliance is under pressure. During the heat-up
process, expansion water will drip from the safety valve.
 If water continues to drip when heating is complet-
ed, please inform your qualified contractor.
2.3 CE designation
The CE designation shows that the appliance meets all essential
requirements according to the:
- Electromagnetic Compatibility Directive
- Low Voltage Directive
2.4 Test symbols
See type plate on the appliance.
3. Appliance description
The closed (pressure-tested) appliance heats DHW electrically.
You can adjust the temperature using the temperature selector.
Subject to the power supply, the water is heated automatically to
the required temperature.
The internal steel cylinder is coated with special "Co Pro" enamel
and is equipped with a protective anode. The anode protects the
internal cylinder from corrosion.
Frost protection
The appliance is also protected against frost by the temperature
setting "*", provided that the power supply is guaranteed. The
appliance switches on in good time and heats the water. The ap-
pliance does not protect the water supply lines and the safety
valve from frost.
!

OPERATION
Settings
18 | PSH Trend www.stiebel-eltron.com
4. Settings
The temperature can be freely adjusted.
max
D0000037146
2
1
1 ON/OFF indicator
2 Temperature selector
* Frost protection
E Recommended energy saving position, low scaling, 60°C
Max Maximum temperature setting, 75°C
Depending upon the system, the actual temperatures may vary
from the set value.
ON/OFF indicator
The ON/OFF indicator illuminates when water is being heated.
4.1 Holiday and absence
 If the appliance is not to be used for a few days, set the tem-
perature selector to a position between the frost protection
and energy saving settings.
 If the appliance is not to be used for a longer period, set it to
frost protection to conserve energy. If there is no risk of frost
you may disconnect the appliance from the power supply.
 For reasons of hygiene, heat up the content of the water
heater once to above 60°C before initial use.
5. Cleaning, care and maintenance
 Have the electrical safety of the appliance and the function of
the safety valve regularly checked by a qualified contractor.
 Have the protective anode initially checked by a qualified
contractor after the first year. The qualified contractor will
then determine the intervals at which it must be checked
thereafter.
 Never use abrasive or corrosive cleaning agents. A damp
cloth is sufficient for cleaning the appliance.
Scaling
 Almost every type of water will deposit lime at high temper-
atures. This settles inside the appliance and affects both the
performance and service life. The heating elements must
therefore be descaled from time to time. A qualified contrac-
tor who knows the local water quality will tell you when the
next service is due.
 Check the taps/valves regularly. You can remove limescale
deposits at the spouts using commercially available descaling
agents.
 Regularly activate the safety valve to prevent it from becom-
ing blocked e.g. by limescale deposits.
6. Troubleshooting
Problem Cause Remedy
The water does not heat
up and the ON/OFF indi-
cator does not illuminate.
There is no power. Check the fuses/MCBs in
your fuse box.
The water does not heat
up sufficiently and the
ON/OFF indicator illumi-
nates.
The temperature is set
too low.
Select a higher temper-
ature.
The appliance heats,
for example, after large
amounts of DHW have
been drawn.
Wait until the ON/OFF
indicator goes out.
The flow rate is low. The aerator in the tap or
shower head is scaled up
or contaminated.
Clean and/or descale the
aerator or shower head.
If you cannot remedy the fault, notify your qualified contractor. To
facilitate and speed up your enquiry, please provide the numbers
from the type plate (000000 and 0000-000000):
E-NO.: 000000
F-NO.: 0000-000000
    

ENGLISH
www.stiebel-eltron.com PSH Trend | 19
INSTALLATION
Safety
INSTALLATION
7. Safety
Only a qualified contractor should carry out installation, commis-
sioning, maintenance and repair of the appliance.
7.1 General safety instructions
We guarantee trouble-free function and operational reliability only
if original accessories and spare parts intended for the appliance
are used.
7.2 Instructions, standards and regulations
Note
Observe all applicable national and regional regulations
and instructions.
8. Appliance description
8.1 Standard delivery
The following are delivered with the appliance:
- Safety valve
The safety valve supplied must not be used in Belgium.
For use here please use standard safety valves (see also
pricelist).
8.2 Accessories
Pressure-tested taps are available as accessories.
9. Preparations
9.1 Installation site
The appliance is designed to be permanently wall-mounted to a
solid surface. Ensure the wall offers adequate load bearing ca-
pacity.
There should be a suitable drain near the appliance to drain off
the expansion water.
Always install the appliance vertically in a room free from the risk
of frost and near the draw-off point.
It may not be fitted in a corner since the screws for fixing the
appliance to the wall must remain accessible.
9.2 Fitting the wall mounting bracket
Note
Ensure that the temperature selector is accessible from
the front.
The mounting bracket attached to the appliance has hook-in slots,
which in most cases enables installation on the bolts that are
already in place from previous appliances.
 Otherwise, transfer the dimensions for the holes to be drilled
on the wall (see chapter "Specification/ Dimensions and
connections").
 Drill the holes and secure the wall mounting bracket with
screws and rawl plugs. Select fixing materials in accordance
with the wall construction/condition.
 Hook the appliance with wall mounting brackets on to the
screws or bolts. Observe the weight of the appliance when
empty (see chapter "Specification/ Data table") and, if neces-
sary, ask another person to help.
 Align the appliance horizontally.

20 | PSH Trend www.stiebel-eltron.com
INSTALLATION
Installation
10. Installation
10.1 Water connection
!
Material losses
Carry out all water connection and installation work in
accordance with regulations.
Operate the appliance only with pressure-tested taps.
10.1.1 Permissible materials
!
Material losses
When using plastic pipework, observe the manufacturer's
data and the chapter "Specification/ Fault conditions".
Cold water line
Galvanised steel, stainless steel, copper and plastic are approved
materials.
DHW line
Stainless steel, copper and plastic pipework are approved ma-
terials.
10.1.2 Fitting the safety valve
Note
The safety valve supplied must not be used in Belgium.
For use here please use standard safety valves (see also
pricelist).
Note
If the water pressure is greater than 0.6MPa, install a
pressure reducing valve in the "cold water inlet".
The maximum permissible pressure must not be exceeded (see
chapter "Specification/ Data table").
 Install a type-tested safety valve in the cold water supply
line. Please note that, depending on the static pressure, you
may also need a pressure reducing valve.
 Size the drain so that water can drain off unimpeded when
the safety valve is fully opened.
 Fit the discharge pipe of the safety valve with a constant
downward slope and in a room free from the risk of frost.
 The safety valve discharge aperture must remain open to the
atmosphere.
10.2 Power supply
WARNING Electrocution
Carry out all electrical connection and installation work
in accordance with relevant regulations.
Before any work on the appliance, disconnect all poles
from the power supply.
WARNING Electrocution
Only use a permanent connection to the power supply.
The appliance must be able to be separated from the
power supply by an isolator that disconnects all poles
with at least 3mm contact separation.
WARNING Electrocution
Ensure that the appliance is earthed.
!
Material losses
Observe the type plate. The specified voltage must match
the mains voltage.
Power cable
DANGER Electrocution
The power cable must only be replaced (for example
if damaged) with the original spare part by a qualified
contractor authorised by the manufacturer.
The appliance is supplied with a flexible power cable with wire
ferrules and without plug, ready to connect.
 If the power cable is of insufficient length, unclamp it from
the appliance. Use a suitable installation cable.
 When routing the new power cable, ensure that it is water-
proof as it passes through the existing cable grommet, and is
correctly routed and connected inside the appliance.

ENGLISH
www.stiebel-eltron.com PSH Trend | 21
INSTALLATION
Commissioning
11. Commissioning
11.1 Commissioning
Note
Fill the appliance with water prior to electrical connec-
tion. If you switch on the appliance while empty, the high
limit safety cut-out will switch it off.
 Thoroughly flush out the cold water line before connecting
the appliance, so that no foreign matter gets into the water
heater or safety valve.
 Open the shut-off valve in the cold water feed line.
 Open a draw-off point until the appliance has filled up and
the pipework is free of air.
 Adjust the flow rate. For this, observe the maximum permis-
sible flow rate with a fully opened tap (see chapter "Specifi-
cation/ Data table").
 If necessary reduce the flow rate at the butterfly valve of the
safety valve.
 Turn the temperature selector to maximum.
 Switch the mains power ON.
 Check the function of the appliance. Ensure that the thermo-
stat switches off.
 Check that the safety valve is working correctly.
11.1.1 Appliance handover
 Explain the function of the appliance and safety valve to
users and familiarise them with their operation.
 Make users aware of potential dangers, especially the risk of
scalding.
 Hand over these instructions.
11.2 Recommissioning
See chapter "Commissioning".
12. Shutting down
 Disconnect the appliance from the mains at the MCB/fuse in
the fuse box.
 Drain the appliance. See chapter "Maintenance / Draining the
appliance".
13. Troubleshooting
Note
The high limit safety cut-out can respond at temperatures
below –15°C. The appliance may be subjected to these
temperatures during storage or transport.
Fault Cause Remedy
The water does not heat
up and the ON/OFF indi-
cator does not illuminate.
The high limit safety
cut-out has responded
because the controller is
faulty.
Remedy the cause of the
fault. Replace the con-
troller.
The high limit safety
cut-out has responded
because the temperature
has fallen below -15°C.
Press the reset button
(see diagram).
The water does not heat
up and the ON/OFF indi-
cator illuminates.
The heating element is
faulty.
Replace the heating el-
ement.
The water does not heat
up sufficiently and the
ON/OFF indicator illumi-
nates.
The temperature control-
ler is faulty.
Replace the temperature
controller.
The heat-up time is very
long and the ON/OFF in-
dicator illuminates.
The heating element is
scaled up.
Descale the heating el-
ement.
The safety valve drips
when heating is switched
off.
The valve seat is contam-
inated.
Clean the valve seat.
Water pressure is too
high.
Install a pressure reduc-
ing valve.
Reset key, high limit safety cut-out
D0000037143

22 | PSH Trend www.stiebel-eltron.com
INSTALLATION
Maintenance
14. Maintenance
WARNING Electrocution
Carry out all electrical connection and installation work
in accordance with relevant regulations.
Before any work on the appliance, disconnect all poles
of the appliance from the power supply.
If you need to drain the appliance, observe chapter "Draining the
appliance".
14.1 Checking the safety valve
 Test the safety valve regularly.
14.2 Draining the appliance
WARNING Burns
Hot water may escape during the draining process.
If is necessary to drain the cylinder for maintenance or to protect
the whole installation from frost, proceed as follows:
 Close the shut-off valve in the cold water feed line.
 Open the DHW valves of all draw-off points until the appli-
ance is fully drained.
 Drain any residual water from the safety valve.
14.3 Checking / replacing the protective anode
 Check the protective anode after the first year of use and re-
place if necessary.
 Next, decide the time intervals at which further checks
should be carried out.
14.4 Descaling
 Remove loose scale deposits from the water heater.
 If necessary, descale the inner cylinder with commercially
available descaling agents.
 Only descale the flange after disassembly and never treat the
cylinder surface and protective anode with descaling agents.
14.5 Anti-corrosion protection
Ensure that while carrying out maintenance work the anti-corro-
sion protection (560 Ω) is not damaged or removed. Reinsert the
anti-corrosion protection correctly after replacement.
D0000037141
14.6 Replacing the power cable
DANGER Electrocution
The power cable must only be replaced (for example
if damaged) with the original spare part by a qualified
contractor authorised by the manufacturer.
14.7 Replacing the combined controller/limiter
D0000037142
21
1 Controller sensor
2 Limiter sensor
 Insert the controller sensor and the limiter sensor into the
sensor well as far as they will go.

ENGLISH
www.stiebel-eltron.com PSH Trend | 23
INSTALLATION

15. Specification
15.1 Dimensions and connections
c01
c06
i13
b01
a10
100
a40 a30
61
23
D0000037135
PSH 30
Trend
PSH 50
Trend
PSH 80
Trend
PSH 100
Trend
PSH 120
Trend
PSH 150
Trend
PSH 200
Trend
a10 Appliance Height mm 635 890 860 1015 1170 1400 1705
a30 Appliance Depth mm 410 410 520 520 520 520 520
a40 Appliance Diameter mm 405 405 510 510 510 510 510
b01 Entry electrical cables Threaded fitting M20x1.5
(PG 16)
M20x1.5
(PG 16)
M20x1.5
(PG 16)
M20x1.5
(PG 16)
M20x1.5
(PG 16)
M20x1.5
(PG 16)
M20x1.5
(PG 16)
c01 Cold water inlet Male thread G 1/2 A G 1/2 A G 1/2 A G 1/2 A G 1/2 A G 1/2 A G 1/2 A
Rear clearance mm 85.5 85.5 95 95 95 95 95
c06 DHW outlet Male thread G 1/2 A G 1/2 A G 1/2 A G 1/2 A G 1/2 A G 1/2 A G 1/2 A
Rear clearance mm 85.5 85.5 95 95 95 95 95
i13 Wall mounting bracket Height mm 530 590 520 790 825 1060 1360

24 | PSH Trend www.stiebel-eltron.com
INSTALLATION

Wall mounting bracket
30 - 50 l
184
265
300
360
80�02�07�0005
80 - 200 l
450
415
360
350
300
265
80�02�07�0006
15.2 Wiring diagram
N
L
21 3 4
5
678
85�02�07�0010
1 Terminal
2 High limit safety cut-out
3 Temperature controller
4 ON/OFF indicator
5 Heating element
6 Electrical resistance 560 ohm
7 Anode
8 Cylinder
15.3 Heat-up diagrams
The heat-up time depends on the cylinder capacity, cold water
inlet temperature and heating output.
Graph assumes 15°C cold water inlet temperature:
0
1
2
3
4
5
6
35 45 55 65 75
1
2
7
6
5
4
3
D0000037214
X Temperature setting [°C]
Y Heat-up time [h]
1 150l
2 200 l
3 120l
4 100l
5 80l
6 50l
7 30l
15.4 Fault conditions
In the event of a fault, temperatures of up to 95°C at 0.6MPa
can occur.

ENGLISH
www.stiebel-eltron.com PSH Trend | 25
15.5 Data table
PSH 30
Trend
PSH 50
Trend
PSH 80
Trend
PSH 100
Trend
PSH 120
Trend
PSH 150
Trend
PSH 200
Trend
232080 232081 232082 232083 232084 232085 232086
Hydraulic data
Nominal capacity l30 50 80 100 120 150 200
Amount of mixed water 40 °C (15 °C/65 °C) l 52 99 142 186 224 288 376
Electrical data
Connected load ~ 230 V kW 2222223
Rated voltage V220-240 220-240 220-240 220-240 220-240 220-240 220-240
Phases 1/N/PE 1/N/PE 1/N/PE 1/N/PE 1/N/PE 1/N/PE 1/N/PE
Frequency Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Single circuit operating mode X X X X X X X
Heat-up time 2.0kW (15 °C/60 °C) h 0.80 1.33 2.13 2.66 3.20 4.00
Heat-up time 3.0kW (15 °C/60 °C) h 3.55
Application limits
Temperature setting range °C 7-75 7-75 7-75 7-75 7-75 7-75 7-75
Max. permissible pressure MPa 0.6 0.6 0.6 0.6 0.6 0.6 0.6
Test pressure MPa 0.2 0.2 0.2 0.2 0.2 0.2 0.2
Max. permissible temperature °C 95 95 95 95 95 95 95
Max. flow rate l/min 23.5 23.5 23.5 23.5 23.5 23.5 23.5
Min. water inlet pressure MPa 0.1 0.1 0.1 0.1 0.1 0.1 0.1
Max. water inlet pressure MPa 0.6 0.6 0.6 0.6 0.6 0.6 0.6
Energy data
Standby energy consumption/24h at 65°C kWh 0.53 0.72 0.79 0.98 1.14 1.33 1.61
Versions
Colour White White White White White White White
IP rating IP25 IP25 IP25 IP25 IP25 IP25 IP25
Sealed unvented type X X X X X X X
Power cable XXXXXXX
Power cable length approx. mm 1000 1000 1000 1000 1000 1000 1000
Dimensions
Height mm 635 890 860 1015 1170 1400 1705
Depth mm 410 410 520 520 520 520 520
Diameter mm 405 405 510 510 510 510 510
Weights
Weight, empty kg 16.4 21.4 28.2 33.6 39.1 46.2 56.3
Weight, full kg 46.4 71.4 108.2 133.6 159.1 196.2 256.3
Warranty
The warranty conditions of our German companies do not
apply to appliances acquired outside of Germany. In countries
where our subsidiaries sell our products, it is increasingly the
case that warranties can only be issued by those subsidiaries.
Such warranties are only granted if the subsidiary has issued
its own terms of warranty. No other warranty will be granted.
We shall not provide any warranty for appliances acquired in
countries where we have no subsidiary to sell our products.
This will not aect warranties issued by any importers.
Environment and recycling
We would ask you to help protect the environment. After use,
dispose of the various materials in accordance with national
regulations.
INSTALLATION | WARRANTY | ENVIRONMENT AND RECYCLING

