STIEBEL ELTRON SN 5 SLI comfort Instruction Manual

SPECIAL INFORMATION
OPERATION
1. General information
_______________________________________ 15
1.1 Safety instructions
______________________________________________
15
1.2 Other symbols in this documentation
______________________15 1.3 Units of measurement
_________________________________________15
2. Safety
______________________________________________
__________ 15
2.1 Intended use
______________________________________________
_______15
2.2 General safety instructions
___________________________________15
2.3 CE designation
______________________________________________
____16 2.4 Test symbols
______________________________________________
_______16
3. Appliance description
_____________________________________ 16
3.1 Operation
______________________________________________
___________16
4. Cleaning, care and maintenance
_________________________ 16
5. Troubleshooting
____________________________________________ 16
INSTALLATION
6. Safety
______________________________________________
__________ 17
6.1 General safety instructions
___________________________________17
6.2 Instructions, standards and regulations
___________________17
7. Appliance description
_____________________________________ 17
7.1 Standard delivery
______________________________________________
_17 7.2 Accessories
______________________________________________
_________17
8. Preparations
______________________________________________
__ 17
8.1 Installation site
______________________________________________
____17
9. Installation
______________________________________________
____ 18
9.1 Appliance installation
__________________________________________18
9.2 Water connection
______________________________________________
_18 9.3 Power supply
______________________________________________
______18
10. Commissioning
_____________________________________________
19
10.1 Initial start-up
______________________________________________
_____19
10.2 Recommissioning
______________________________________________
_19
11. Settings
______________________________________________
_______ 19
11.1 Setting the temperature limit
________________________________19
12. Shutdown
______________________________________________
_____ 19
13. Troubleshooting
____________________________________________ 19
14. Maintenance
______________________________________________
__ 20
14.1 Draining the appliance
________________________________________20
14.2 Opening the appliance
_________________________________________20
14.3 Descaling the appliance
_______________________________________20
14.4 Checking the earth conductor
________________________________20
14.5 Replacing the power cable
___________________________________20
14.6 Positioning the temperature sensor in its protective
pipe
____________________________________________________
____________20
15. Specification
______________________________________________
__ 21

ŷŷŷĪńŒê¼¼ùé¼ùŒļĒĉĪĒă ZCŨÑ ZCŨĜƃ

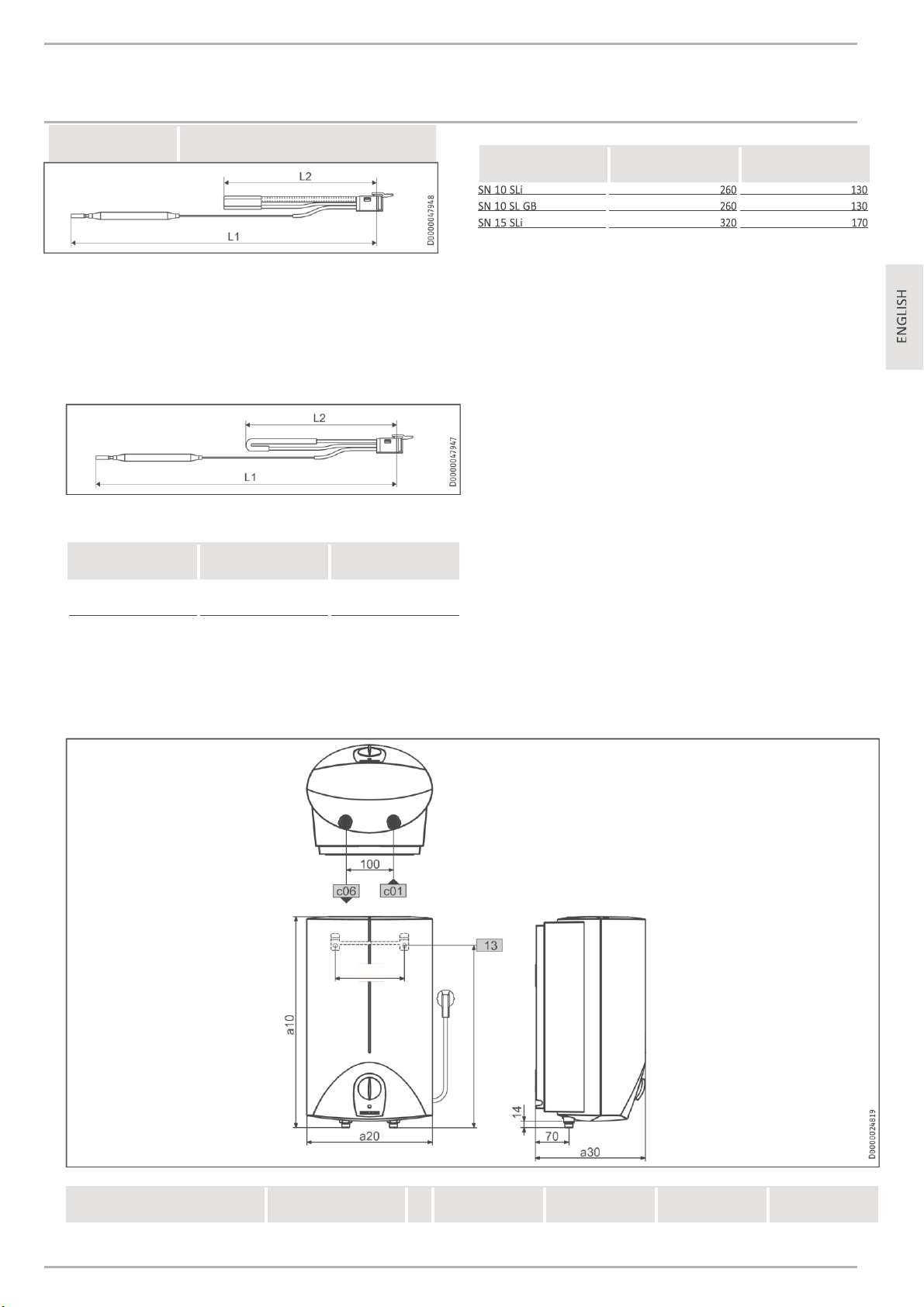

15.1 Dimensions and connections
_________________________________21

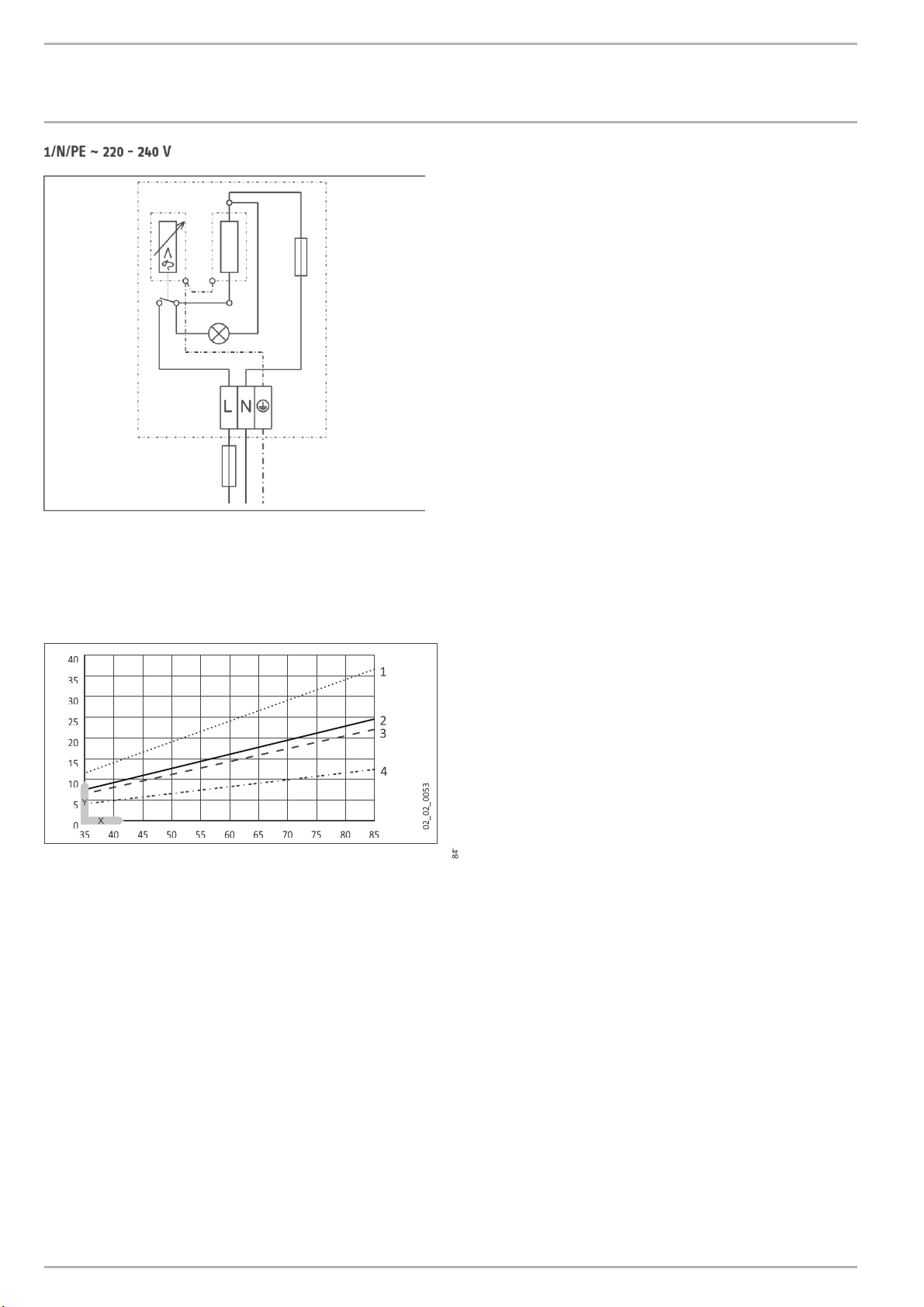

15.2 Wiring diagram
______________________________________________
___22 15.3 Heat-up diagram
______________________________________________
__22 15.4 Country-specific approvals and certifications
_____________22 15.5 Extreme operating and fault
conditions ___________________22
15.6 Details on energy consumption
______________________________23
ĜÔ’ZCŨÑ
15.7 Data table
______________________________________________
__________23
GUARANTEE
ENVIRONMENT AND RECYCLING
INSTALLATION TEMPLATE FOR SN 5 SLI | SN 5 SL GB (INSIDE
THESE INSTRUCTIONS)
-The appliance may be used by children aged 8
and older and persons with reduced physical,
sensory or mental capabilities or a lack of
experience and know-how, provided that they
are supervised or they have been instructed
on how to use the appliance safely and have
understood the resulting risks. Children must
never play with the appliance. Children must
never clean the appliance or perform user
maintenance unless they are supervised.
-When permanently connected to the power
supply using a dedicated junction box, the
appliance must be able to be isolated from
the mains power supply by an isolator that
disconnects all poles with at least 3 mm
contact separation.
-The power cable may only be replaced (for
example if damaged) by a qualified contractor
authorised by the manufacturer, using an
original spare part.
-Never connect the 2 kW appliance via a time
switch.
-Secure the appliance as described in chapter
"Installation / Installation".
-The appliance must only be installed with an
open (non-pressurised) tap.
-Never subject the appliance to water
pressure.
-The tap outlet has a vent function. Scale build-
up can block the outlet and subject the
appliance to pressure.
-Never seal the tap outlet.
-Only use special aerators for non-pressurised
water heaters.
-Never use a hose with aerator to extend the
tap outlet.
-Drain the appliance as described in chapter
"Installation / Maintenance / Draining the
appliance".
&¼ĉ¼ļ|ùêĉÏĒļă|ŒêĒĉ
(


ZCŨĜƃ ZCŨĜÑ ŷŷŷĪńŒê¼¼ùé¼ùŒļĒĉĪĒă
1.1 Safety instructions
1.1.1 Layout of safety instructions
Here, possible consequences are listed that may
result KEYWORD Type of risk from failure to observe
the safety instructions. Steps to prevent the risk
are listed.
1.1.2 Symbols, type of risk
1.1.3 Keywords
B¼|ĉêĉÖ
DANGER Failure to observe this information will result in serious
injury or death.
WARNING Failure to observe this information may result in serious
injury or death.
CAUTION Failure to observe this information may result in non-
serious or minor injury.
1.2 Other symbols in this documentation General
information is identified by the adjacent symbol. Note
Read these texts carefully.
2. Safety
2.1 Intended use
This open vented (non-pressurised) appliance is designed for
heating domestic hot water. The appliance can supply one draw-
off point.
This appliance is intended for domestic use. It can be used safely
by untrained persons. The appliance can also be used in a non-
domestic environment, e.g. in a small business, as long as it is
used in the same way.
Any other use beyond that described shall be deemed
inappropriate. Observation of these instructions and of
instructions for any accessories used is also part of the correct
use of this appliance.
2.2 General safety instructions
During operation, the tap can reach temperatures
in exWARNING Burns
cess of 60 °C.
There is a risk of scalding at outlet temperatures in
excess of 43 °C.
The temperature selector should only be removed by
a WARNING Injury
qualified contractor.
The appliance may be used by children aged 8 and
older WARNING Injury
and persons with reduced physical, sensory or mental
capabilities or a lack of experience and know-how,
provided that they are supervised or they have been
instructed on how to use the appliance safely and
have understood the resulting risks. Children must
never play with the appliance. Children must never
clean the appliance or perform user maintenance
unless they are supervised.
Where children or persons with limited physical, sensory or
mental abilities are allowed to use this appliance, we
recommend a permanent temperature limit. A qualified
contractor can set this limit.
ZCŨĜÑ’ĜÑ
ĤĤùê|ĉ¼®¼ńļêĤŒêĒĉ
!The user should protect the appliance and its tap against
Material losses frost.
!Never subject the appliance to water pressure. The tap
Material losses
outlet has a vent function. Scale build-up can block the
outlet and subject the appliance to pressure. Never
seal the tap outlet.
Only use special aerators for non-pressurised water
heaters.
Never use a hose with aerator to extend the tap
outlet.
!Connecting the 2 kW appliance via a time switch will
Material losses
cause an unintentional reset of the high limit safety
cutout. Never connect the appliance to the power
supply via
a time switch.
2.3 CE designation
The CE designation shows that the appliance meets all essential
requirements according to the:
-Low Voltage Directive
-Electromagnetic Compatibility Directive
2.4 Test symbols
See type plate on the appliance.
Burns
burns, scalding)
(

ŷŷŷĪńŒê¼¼ùé¼ùŒļĒĉĪĒă ZCŨÑ ZCŨĜƃ
3. Appliance description
The open vented (non-pressurised) appliance constantly
maintains the water content at the pre-selected temperature.
During heating, expansion water drips from the tap. The
appliance may only be installed with taps for open vented (non-
pressurised) water heaters (see chapter "Installation / Appliance
description / Accessories").
3.1 Operation
The required DHW outlet temperature can be set at the
temperature selector. The heat-up indicator illuminates during
the heat-up process.
Ĝō’ZCŨÑ
°C = Cold. On this setting, the appliance is protected from
frost. The tap and the water line are not protected.
Eco = Recommended energy saving setting (approx. 60 °C), minor
scaling
85 = Highest selectable temperature
A qualified contractor can set a temperature limit on the
Note
appliance (see chapter "Installation / Settings / Setting
the temperature limit").
4. Cleaning, care and maintenance
Never use abrasive or corrosive cleaning agents. A damp
cloth is sufficient for cleaning the appliance. Check the
tap regularly. You can remove limescale deposits at the
outlet using commercially available descaling agents.
When you are using a shower, the shower head must be
de-
calcified at regular intervals.
5. Troubleshooting
TļĒù¼ă
|şń¼
V¼ă¼®ź
The appliance does not
supply hot water.
The temperature selector Switch the appliance
ON is set to “°C”. by turning the tempera-
ture selector.
No power at the appli- Check the plug / fuses in
ance. the fuse box.
Water can only be drawn The aerator in the tap is Descale / replace
the at a reduced rate. scaled up. aerator.
Loud boiling noises in- The appliance is scaled Have the appliance
side the appliance. up. descaled by a qualified
contractor.
If you cannot remedy the fault, notify your qualified
contractor. To facilitate and speed up your request, provide
the number from the type plate (000000-0000-000000).
Z|ϼŒź
6. Safety
Only a qualified contractor should carry out installation,
commissioning, maintenance and repair of the appliance.
6.1 General safety instructions
We guarantee trouble-free function and operational
reliability only if original accessories and spare parts intended
for the appliance are used.
6.2 Instructions, standards and regulations
7. Appliance description
The open vented (non-pressurised) appliance is suitable only
for oversink installation. The appliance is intended to heat
cold potable water and supply it to a single draw-off point.
The appliance must only be installed with an open (non-
pressurised) tap (see chapter "Installation / Appliance
description / Accessories").
7.1 Standard delivery
Delivered with the appliance are the
following: - Wall mounting bracket
SN 10 SLi | SN 10 SL GB | SN 15 SLi | SN 15 SL 3.3 kW
- Mounting template (located for SN 5 SLi | SN 5 SL GB inside
these instructions)

ZCŨĜƃ ZCŨĜÑ ŷŷŷĪńŒê¼¼ùé¼ùŒļĒĉĪĒă
7.2 Accessories
7.2.1 Required accessories
The following taps are available as accessories for open
vented operation:
Twin-lever taps
-WKM (Kitchen)
-WDM (Shower)
Mono lever mixer taps
-MEK (Kitchen)
-MED (Shower)
7.2.2 Further accessories
-U/schwer (set for mounting on unfinished walls)
-Permanent connection set for 15 l appliances
8. Preparations
Flush the water line thoroughly.
For connecting hoses > 1 m: Install a tube
aerator attachment in the overflow line.

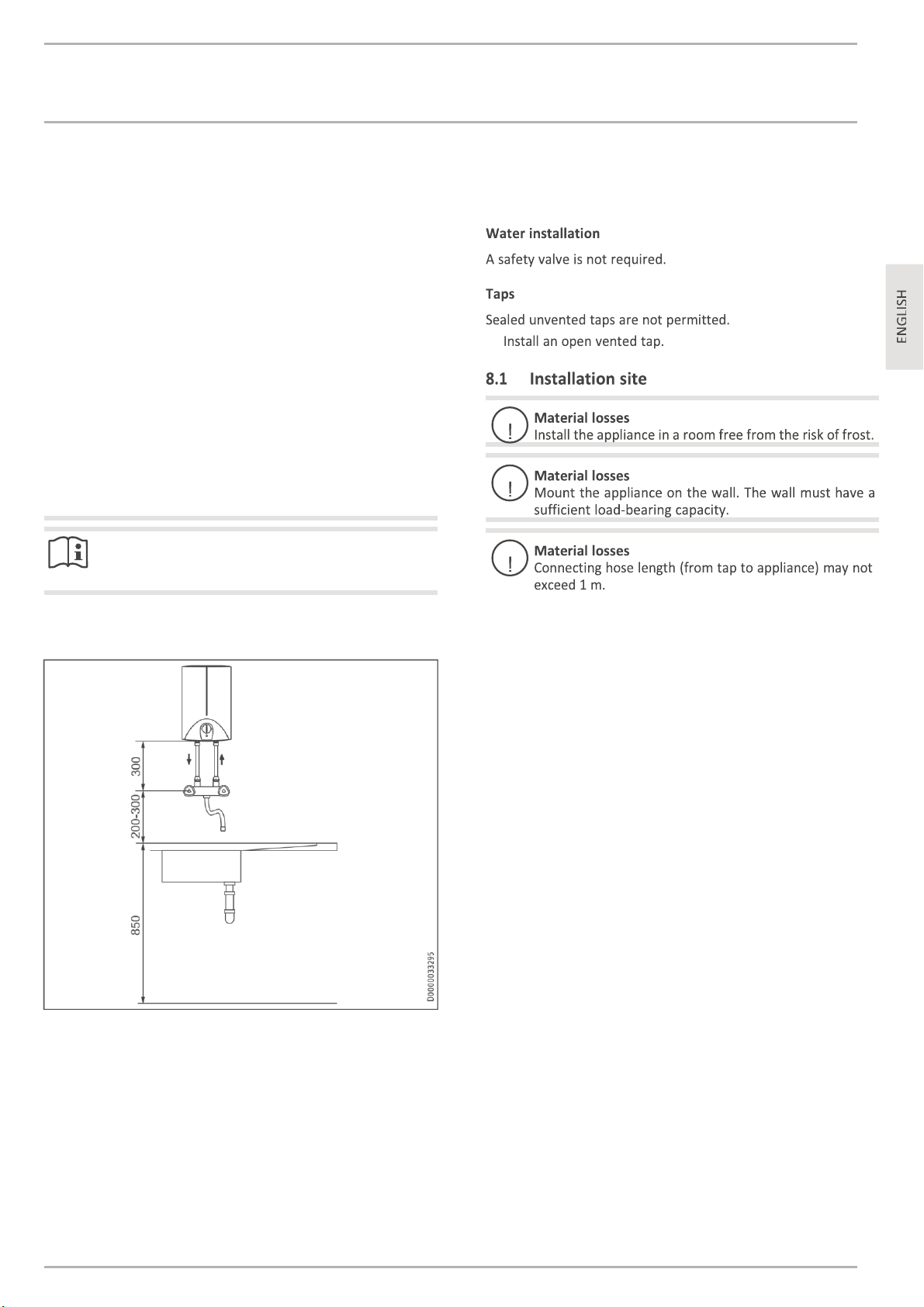

The appliance is only suitable for oversink installation.
Note
The water connections of the appliance point downwards.
Always install the appliance vertically and near the draw-off
point.
ZCŨĜÑ’ĜŌ
.ĉńŒ|ùù|ŒêĒĉ
9. Installation
9.1 Appliance installation
Use the template to mark the drill holes (SN 10 SLi | SN 10 SL
GB | SN 15 SLi | SN 15 SL 3.3 kW supplied separately
or SN 5 SLi | SN 5 SL GB inside these instructions). Drill
the holes and insert suitable rawl plugs.


ŷŷŷĪńŒê¼¼ùé¼ùŒļĒĉĪĒă ZCŨÑ ZCŨĜƃ

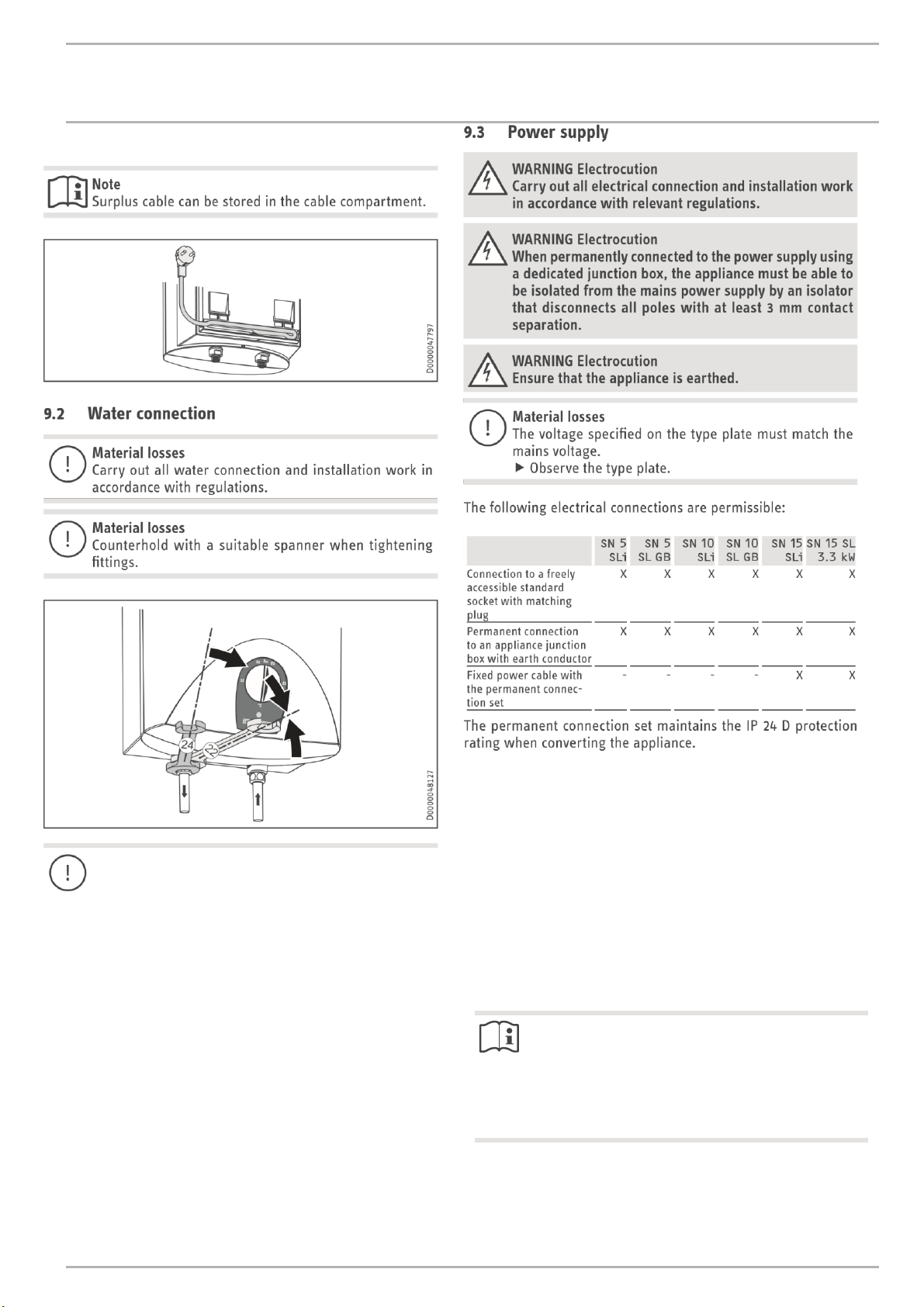

Secure the wall mounting bracket using suitable screws.
Hang the appliance on the wall mounting bracket.
The appliance may develop a leak and cease functioning.
Material losses
Never subject the appliance to water pressure.
Never interchange the water connections.
Set the flow rate (see tap instructions). Observe the
maximum permissible flow rate with a fully opened
tap (see chapter "Installation / Specification / Data
table").
The levers for the twin-lever mixer tap for oversink
inNote
stallation are delivered DIN 44897-compliant:
- Cold water on the left (blue)
- Hot water on the right (red)
Secure the water connections from the tap to the appliance.

ZCŨĜƃ ZCŨĜÑ ŷŷŷĪńŒê¼¼ùé¼ùŒļĒĉĪĒă
ĒăăêńńêĒĉêĉÖ
10. Commissioning
Commissioning may only be carried out by a
qualified WARNING Electrocution contractor in
accordance with safety regulations.
The high limit safety cut-out will trip if you fail to
follow the correct sequence (first water, then power)
with the 2 kW appliance. Proceed as follows:
Fill the appliance with water.
Briefly disconnect the appliance from the power
supply.
Either open the DHW valve of the tap or set the mono
lever mixer tap to "hot" until the water that flows out is
free of bubbles.
Insert the plug into the standard socket or set the
fuse/MCB in the fuse box. Select a temperature.
10.1.1 Appliance handover
Explain the functions of the appliance to the user. Show
the user how to operate the appliance. Make the user
aware of potential dangers, especially the risk of scalding.
Hand over these instructions and, if applicable, the
instruc-
tions for any accessories.
10.2 Recommissioning
See chapter "Installation / Commissioning / Initial start-up".
11. Settings

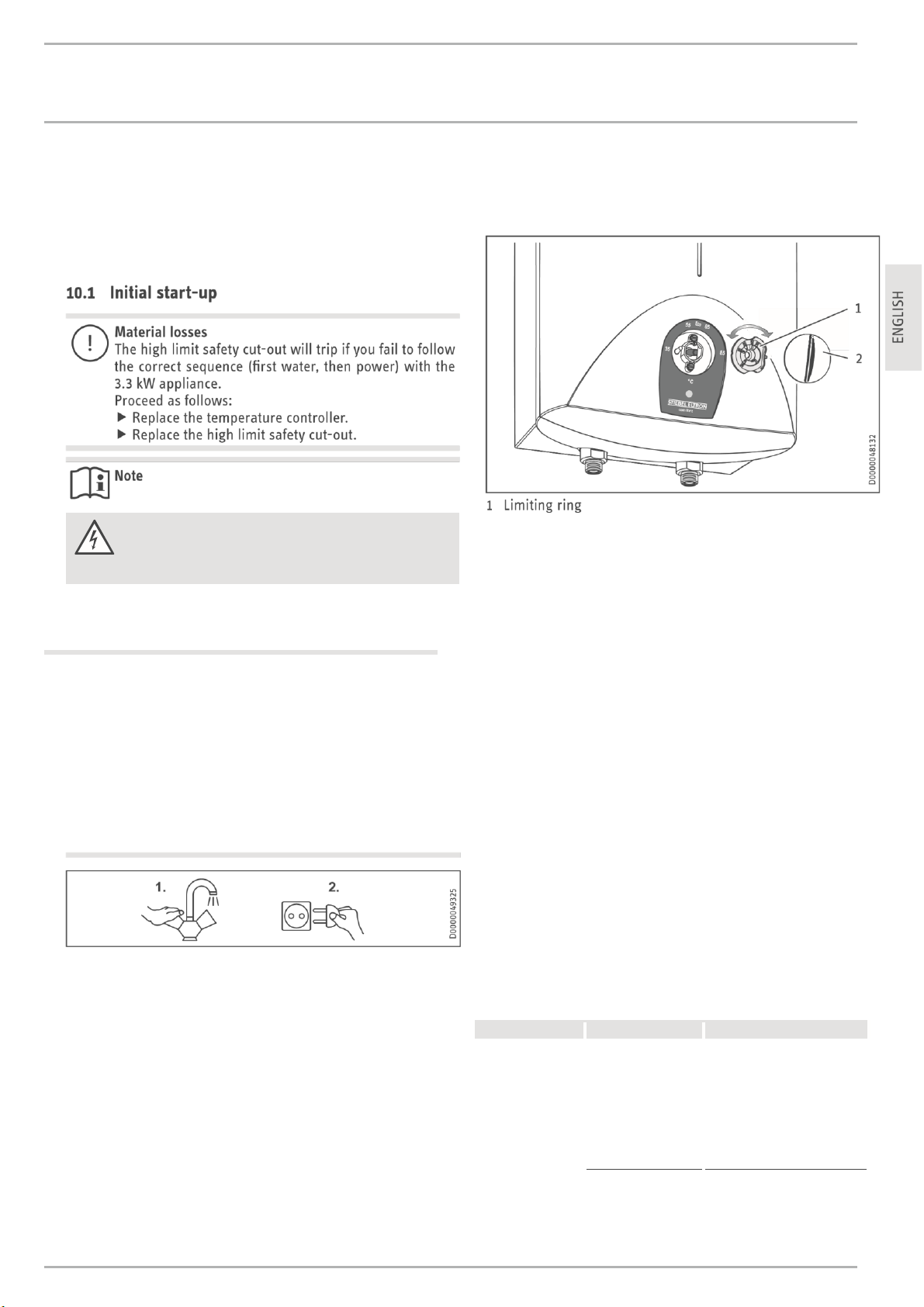

11.1 Setting the temperature limit
2 Temperature selector
Placing the limiting ring behind the temperature selector allows
you to limit the setting range of the temperature selector to a
specific maximum temperature. Turn the temperature
selector to zero (fully anti-clockwise to "°C"). Pull off the
temperature selector and the limiting ring. Push the limiting
ring with the required maximum setting onto the controller
shaft. Install the temperature selector set to zero (°C).
12. Shutdown
Isolate the appliance from the power supply by removing the
plug or by tripping the fuse/MCB in the fuse box. Drain the
appliance (see chapter "Installation / Maintenance / Draining
the appliance").
13. Troubleshooting
TļĒù¼ă
|şń¼
V¼ă¼®ź
The appliance does The high limit safety Remedy the cause of the fault. not
supply hot water. cut-out has responded If necessary, replace the tem in
the 2 kW appliance. perature controller. Allow the appliance to
cool down. If you have isolated the appliance from
the power supply, the high limit
safety cut-out will be reset au-
tomatically.
The high limit safety Remedy the cause of the fault. If
cut-out has responded necessary, replace the tempera in the 3.3 kW
appli- ture controller. Replace the high ance. limit safety cut-out.
ĜÄ’ZCŨÑ

ŷŷŷĪńŒê¼¼ùé¼ùŒļĒĉĪĒă ZCŨÑ ZCŨĜƃ
Loud boiling noises The appliance is scaled Descale the appliance. inside
the appliance. up.
ZCŨĜÑ’ĜĎ
B|êĉŒ¼ĉ|ĉ› ¼ 14.
Maintenance
Before any work on the appliance, disconnect all
poles WARNING Electrocution of the appliance
from the power supply.
Dismantle the appliance for maintenance work.
14.1 Draining the appliance
Pull off the temperature selector and the limiting ring.
Remove the screws from underneath the temperature
selector. Open the appliance cover by lowering the bolt
screws in-
wards and pivot the cover upwards, then remove it.
SN 10 SLi | SN 10 SL GB | SN 15 SLi | SN 15 SL 3.3 kW
Undo the tie (anti-tip protection).
Remove the flanged immersion heater. Carefully tap the
heating element to remove large limescale deposits.
Immerse the heating element up to the flange plate in desca-
ling agent.
14.4 Checking the earth conductor
Pull off the temperature selector and the limiting ring.
Check the earth conductor (in Germany BGV A3 for example)
across a temperature controller fixing screw and the earth
conductor contact of the power cable.
ŝƃ’ZCŨÑ
14.5 Replacing the power cable
The power cable must only be replaced by a qualified
contractor with an original spare part. As an option, you can
also use the following cables:
2 kW appliance
- H05VV-F3x1.0
3.3 kW appliance


ZCŨĜƃ ZCŨĜÑ ŷŷŷĪńŒê¼¼ùé¼ùŒļĒĉĪĒă
L1 Temperature controller
<Ĝ
L1 Temperature controller
L2 High limit safety cut-out
<Ĝ
ZĤ¼êÐ|ŒêĒĉ
SN 15 SL 3.3 kW
When replacing the temperature controller and the high limit
safety cut-out, guide the temperature sensors into the
protective pipe.
L1 Temperature controller
L2 High limit safety cut-out
<Ĝ
SN 15 SL 3.3 kW 320 170
15. Specification
15.1 Dimensions and connections
SN 5 SLi | SN 10 SLi | SN 15 SLi | SN 15 SL 3.3 kW
ZCÑZ<ê
ZCĜƃZ<ê
ZCĜÑZ<ê
ZCĜÑZ<ŗĪŗ÷q

ŷŷŷĪńŒê¼¼ùé¼ùŒļĒĉĪĒă ZCŨÑ ZCŨĜƃ
ZCŨĜÑ’ŝĜ
ZĤ¼êÐ|ŒêĒĉ
SN 5 SL GB | SN 10 SL GB
ZCÑZ<&
ZCĜƃZ<&
15.2 Wiring diagram
SN 5 SLi | SN 5 SL GB | SN 10 SLi | SN 10 SL GB | SN 15 SLi
1/N/PE ~ 220 - 240 V
’ZCŨÑ

ZCŨĜƃ ZCŨĜÑ ŷŷŷĪńŒê¼¼ùé¼ùŒļĒĉĪĒă
SN 15 SL 3.3 kW
15.3 Heat-up diagram
The heat-up period depends on the degree of scaling
and residual heat. For the heat-up time for a cold water
supply at 10 °C and a maximum temperature setting,
see the diagram.
x
Temperature
in °C y
Duration in
min 1 15 l
appliance, 2
kW 2 10 l
appliance, 2
kW
315 l appliance, 3.3 kW
45 l appliance, 2 kW
15.4 Country-specific approvals and
certifications The test symbols can be seen on the
type plate.
15.5 Extreme operating and fault conditions
In the case of faults, a peak temperature of up to 100 °C may
briefly occur in the system.

ŷŷŷĪńŒê¼¼ùé¼ùŒļĒĉĪĒă ZCŨÑ ZCŨĜƃ
ZĤ¼êÐ|ŒêĒĉ
15.6 Details on energy consumption
Product data complies with EU regulations relating to the
Directive on the ecodesign of energy related products (ErP).
ZCÑZ<ê
ZCÑZ<&
ZCĜƃZ<ê
ZCĜƃZ<&
ZCĜÑZ<ê
ZCĜÑZ<ŗĪŗ÷q
221127 221125 222193 222192 222204 222203
Energy conversion efficiency
%
kWh
kWh
°C
38
38
37
37
38
38
Daily power consumption
2.28
2.28
2.32
2.32
2.29
2.29
Annual power consumption
491
491
498
498
493
493
Default temperature setting
60
60
60
60
60
60
Sound power level
dB(A)
15
15
15
15
15
15
Off-peak periods possible
No
No
No
No
No
No
15.7 Data table
ZCÑZ<ê
ZCÑZ<&
ZCĜƃZ<ê
ZCĜƃZ<&
ZCĜÑZ<ê
ZCĜÑZ<ŗĪŗ÷q
221127
221125
222193
222192
222204
222203
Hydraulic data
Nominal capacity
l
5
5
10
10
15
15
Mixed water volume at
40 °C
l
10
10
19
19
28
28
Electrical data

ZCŨĜƃ ZCŨĜÑ ŷŷŷĪńŒê¼¼ùé¼ùŒļĒĉĪĒă
Phases
1/N/PE
1/N/PE
1/N/PE
1/N/PE
1/N/PE
1/N/PE
Frequency
Hz
50/60
50/60
50/60
50/60
50/60
50/60
Application limits
Temperature setting
range
°C
approx. 35 –85
approx. 35 –
85
approx. 35 –
85
approx. 35 –
85
ap
prox. 35 –85
approx. 35 –
85
Max. permissible pres- MPa 0 0 0 0 0 0
sure
Max. flow rate
l/min
5
5
10
10
12
12
Energy data
Standby energy con- kWh 0.2 0.2 0.31 0.31 0.37 0.37 sumption/24 h at 65 °C
Energy efficiency
category
A
A
A
A
A
A
Versions
IP rating IP24 IP24 IP24 IP24 IP24 IP24
Colour
White
White
White
White
White
White
Connections
Water connection
G 1/2
G 1/2
G 1/2
G 1/2
G 1/2
G 1/2
Dimensions
Depth
mm
230
230
275
275
295
295
Height
mm
421
421
503
503
601
601
Width
mm
263
263
295
295
316
316
Weights
Weight kg 3.0 3.0 4.6 4.6 5.8 6.1
PP
PP
PP
PP
PP
PP

ZCŨĜÑ’
Guarantee
The warranty conditions of our German companies do not
apply to appliances acquired outside of Germany. In countries
where our subsidiaries sell our products, it is increasingly the
case that warranties can only be issued by those subsidiaries.
Such warranties are only granted if the subsidiary has issued its
own terms of warranty. No other warranty will be granted.
We shall not provide any warranty for appliances acquired in
countries where we have no subsidiary to sell our products.
This will not affect warranties issued by any importers.
Environment and recycling
We would ask you to help protect the environment. After use,
dispose of the various materials in accordance with national
regulations.

ZCŨĜƃ ZCŨĜÑ ŷŷŷĪńŒê¼¼ùé¼ùŒļĒĉĪĒă
’ZCŨÑ
