Keep it short!
It is easier than you may think to help nature on its way. Let us reveal a few secrets! If you love gardening
but lack time, using Stiga’s unique mulching technology means a minimum of effort, nurturing the grass
and retaining water along the way so as to lessen the need for articial fertilizers and excessive watering.
Good for the body, environment, and wallet alike!
Beyond that, the innovative year 2008 brings a number of new features and products from the Stiga
brand. For the environmentally concerned, our new, genuine Stiga engine running on ethanol is a giant
leap forward. The enhanced front-mounted cutting deck, tailored to fit the entire Front mower range,
wins applause from professional and amateur gardeners alike. Also worth attention is the new urban
lawn mower, Primo, a ride-on with a distinct attitude, fit for a design-conscious market.
In other words, things are just as you would expect. Stiga keeps taking responsibility for
making your front garden the pride of the neighbourhood. Enjoy the 76-page ride!
To achieve a dense, even green carpet, cut the top 1/3 of the grass each time you mow. Just as pinching a garden plant improes its appearance,
the grass blades grow strong, healthy and dense.
NEW!

3
Contents
Choose the right rider! 6
FRONT MOWERS 8
Primo 10
Villa 12
Park 14
Park Pro 18
e Combi deck 20
IMPLEMENTS 22
LAWN TRACTORS 28
Garden 28
Estate 29
LAWN MOWERS 32
Silent 34
Inox 36
Multiclip 38
Turbo 40
Collector 42
HANDHELDS 44
Trimmers & brushcutters 45
Chainsaws 50
Hedgecutters 56
RECYCLING 57
Rotary cultivators 58
Shredders, blowers 60
Scariers 61
TECHNICAL SPECIFICATIONS 64

4
NEW!
Stiga innovations lead the way.
Innovation is one of Stiga’s characteristics. The thought that drives us is that you and your surroundings should
get the most out of your garden. Therefore, we combine innovative technology and excellent power with minimal
impact on the individual and the environment. The primary aim is to make everything in the garden easier. In the
long-term it is about leaving the earth in good condition.
THE YEAR’S BIGGEST LITTLE NEWS! Nowadays people value
comfort and want to stay “on top of things”. The year’s biggest little
news, Primo, is a ride-on lawn mower with attitude, developed for the
design-conscious urban market.
FIRST WITH ARTICULATED STEERING. Our genuine
articulated steering, which means that the rear wheels follow
precisely in the front wheel tracks, has still not yet been success-
fully copied.
FIRST WITH MULTICLIP. The Multiclip
technology that we developed in the 1980s was
a world first that saved both human energy and
fossil fuels. Today, the method, which means
that you cut and fertilize in one process (and even
retain water at the grass roots), is a natural part
of the cycle.
FIRST WITH 4WD ON RIDE-
ON LAWN MOWERS. Four-wheel
drive on a ride-on lawn mower was
a world first when it was introduced
in 2005!

5
NOW ETHANOL POWERED. Here is the follow-
up, the big environmental news of the year: The Stiga
engine that runs on ethanol!
OUR OWN ENGINE ESPECIALLY DEVELOPED FOR
GRASS. Easier to start, better fuel consumption, longer service
life and maintains speed when cutting long grass. That is what the
wish list looked like, which led us to develop our own engine, made
especially for lawn mowers.. In the first year, we sold nearly one
million of them.
FIRST WITH A FRONT-MOUNTED DECK. Being able to see
what you are doing and cutting along fences, around bushes and up to
house walls makes gardening work liberatingly simple. Now we have
launched the Combi deck, which takes the technology a step further
and enables you to choose between Multiclip and rear discharge.
NEW!
CLEANER AIR AND UP TO 30% SAVINGS ON FUEL WITH STRATO
CLEAN. Thanks to Strato Clean Technology, our new generation chain saws
burn fuel much more efficiently than conventional engines. The patented
method, which involves the admission of fresh air during combusion, also
increases the service life and performance of the engine.

6
Choose the right rider!
Flat or hilly terrain? Large open areas or areas with plants or trees? Lots of, or little energy for gardening? Many
factors other than plot size affect your decision when you choose a ride-on lawn mower. Let us help make your
choice easier.
Hilly terrain?
Choose a ride-on mower with four-wheel drive and you will neither slip nor leave
tracks. You can drive, stop and start again on wet grass without losing control or
damaging the grass. The more powerful the engine the better!
Large areas?
The wider the cutting width, the faster cutting will go. The tractors range from
63 to 122 cm. The Combi deck for Villa and Park is available from 85 to 105 cm.
The professional cutting deck for Park has three blades and a cutting width from
110 to 125 cm.
Are there many obstacles?
Choose a front-mounted cutting deck so that you can see where you are cutting
and cut close to rockeries and under bushes. Villa or Park for larger areas, Primo
for smaller areas.
Short of time?
The new Combi deck supplied with Villa and Park means that you can choose
between Multiclip and rear discharge. Multiclip means that you can mow and fer-
tilize at the same time. The grass cuttings are returned to the lawn as nourishment.
The work is faster, quieter and requires less fuel.

7
Stay on top!
Front mower or garden tractor? It is a question of manoeuvrability. In open spaces
a tractor is an excellent choice. If there are lots of trees and bushes it is easier with
a front-mounted cutting deck. You can see the difference.
Front mowers
MANOEUVRABILITY. The articulated steering means that
the rear wheels follow exactly in the front wheel tracks. You
have full control and can easily navigate around bushes and
trees without running into them.
LESS WORK AFTERWARDS. Because the cutting deck
is at the front, nothing is missed. You avoid having to trim
afterwards.
TWO-IN-ONE. The new Combi cutting deck combines two
cutting technologies: The Multiclip mows and fertilizes at the
same time. If the grass gets too long you can change to rear
discharge.
ALL-TERRAIN. The four-wheel drive which is fitted to sev-
eral lawn mowers means that you get good grip and can stop
and start on a slope without the wheels spinning and damaging
the lawn. Recommended in hilly terrain.
VERSATILITY. Park and Villa are year-round machines with
large implement ranges (see pages 22–27). From brush units
and trailers to snow blades and snow blowers.
Tractors
CAPACITY. A lot of engine and cutting capacity for the money,
particularly effective on open spaces. Garden is recommended for
up to 1000 m2. For larger areas, Estate is better.
COMPACT. If the choice is between a walk-behind and a ride-on
lawn mower, then Garden Compact is an excellent alternative.
Thanks to the compact format, it can operate in tight spaces and
requires minimal storage area.
COLLECTION AND MULTICLIP. Both cutting technologies
are included on Estate as standard. If the grass gets too long between
cuts, add a deflector and run with rear discharge.
NOW EVEN SMOOTHER. With straighter chutes and an even
more spacious collector, you can suck up every last blade of grass.
You can empty the collector from the seat. Certain models have an
electric lift, so it is enough just to press the button.
LONG SEASON. The implement range (see pages 22 and 31)
means that Estate tractors can also earn their keep as leaf and snow
clearers and also as implement carriers – depending on the season.

8

9
Front mowers

10
Rider of the year!
Primo represents a new generation of compact Front mowers from Stiga aimed at design-conscious
homeowners. Featuring rear-wheel steering and easy-to-use single hand controls, it reduces the time and
effort spent in the garden.
The idea was to create a vehicle, which is manoeuvred and mows as well as the big Front mowers, and
which you can be proud to park on your driveway. Material and construction, comfort and convenience,
road grip and performance – the thinking is the same as in a modern car. Primo is the name, since it is
one of a kind.
PRIMO
Primo is built on a self-supporting frame in the
same material as the hardtop in cabriolets and
cast in a single piece, which imparts strength to
the construction. Integrated design is the key
word. Excellent maneouvrability and high cutting
capacity come with the factory-mounted 78 cm
Combi cutting deck. Stiga 12.5 hp engine.
NEW!
FRONT MOWERS – PRIMO

11
STIGA PRIMO
Streetsmart!
Good roadholding, high cutting capacity and a good measure of driving enjoyment. Congratulations!
Now those of you with a typical urban plot can see how it feels to be “on top of things”. Call in at your
Stiga retailer for a test drive!
www.stiga.com

12
FRONT MOWERS – VILLA

13
13
Versatility for home owners.
Excellent manoeuvrability. Good cutting results. Impressive range of implements. The home owner’s faith-
ful companion, Villa, combines the Front mower’s cutting performance with the small rider’s agility. Engines
in the Villa series range from 12.5 to 15.5 hp, with either with manual gearbox or hydrostatic transmission.
All models are equipped with the new Combi deck, which lets you switch between Multiclip and rear
discharge.
VILLA 12
The engine is a Briggs & Stratton producing 12.5 hp.
The manual gearbox has five forward gears and one
reverse. A new high-performance Combi cutting deck
with a 85 cm cutting width gives a choice of Multiclip
and rear discharge. High driver comfort is assured
with an adjustable ergonomic seat.
VILLA 16 HST
HST means that the machine has a hydrostatic drive, i.e. the speed is
infinitely variably controlled, both forwards and reverse. It’s unbelievably
smooth and ideal if you have a garden with trees, bushes and plants to mow
around. The engine is a powerful Briggs & Stratton producing 15.5 hp,
featuring electric continuous cutting height adjustment controlled from
the front panel for easy selection of the right cutting height. The 105 cm
working width, high-performance Combi cutting deck provides both
Multiclip and rear discharge.
VILLA 14 HST
As above, but with a 13.5 hp B&S engine, 95 cm Combi deck and foot-controlled deck lift.
Featuring hydrostatic transmission (HST) for easy manoeuverability.
FRONT MOWERS – VILLA

14
FRONT MOWERS – PARK
Think like a pro!

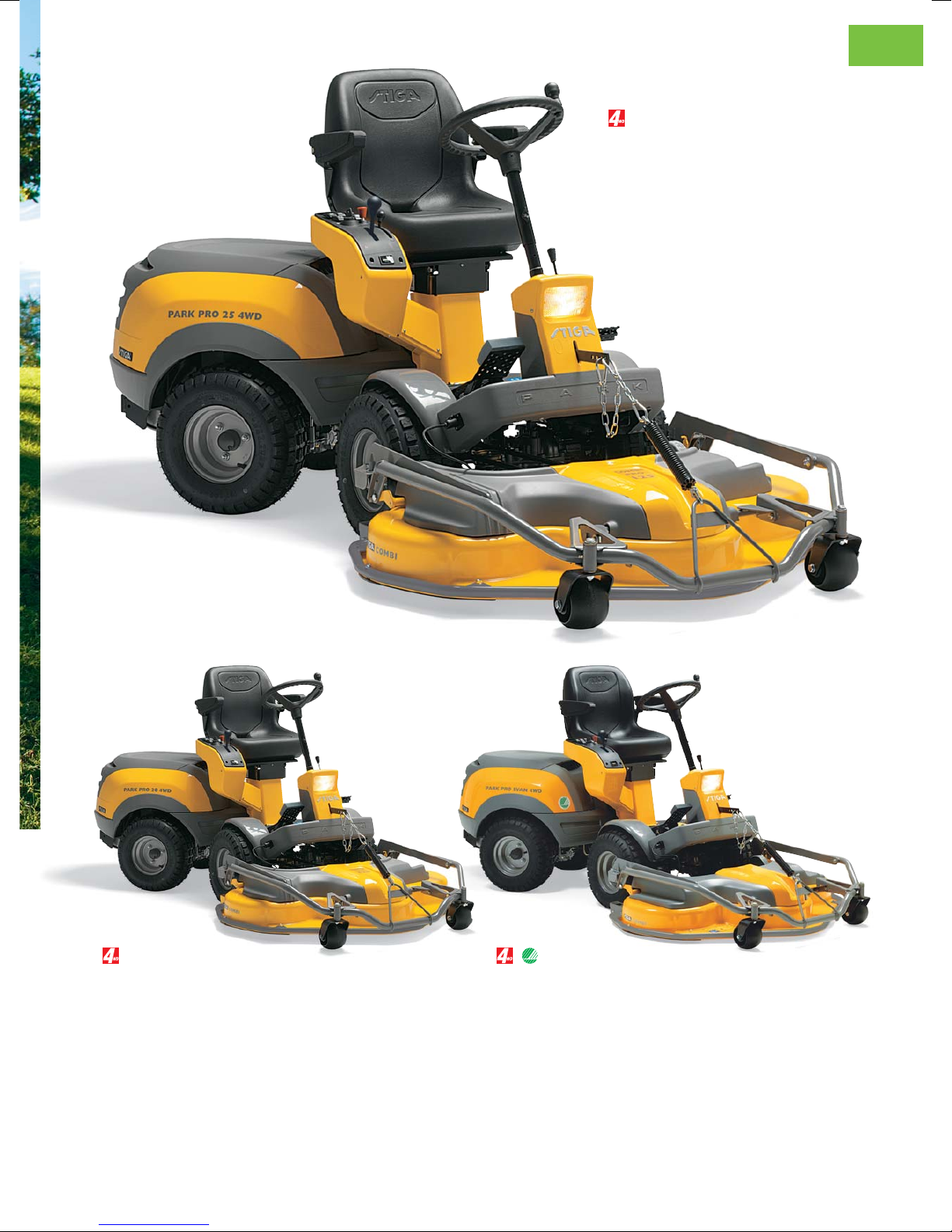

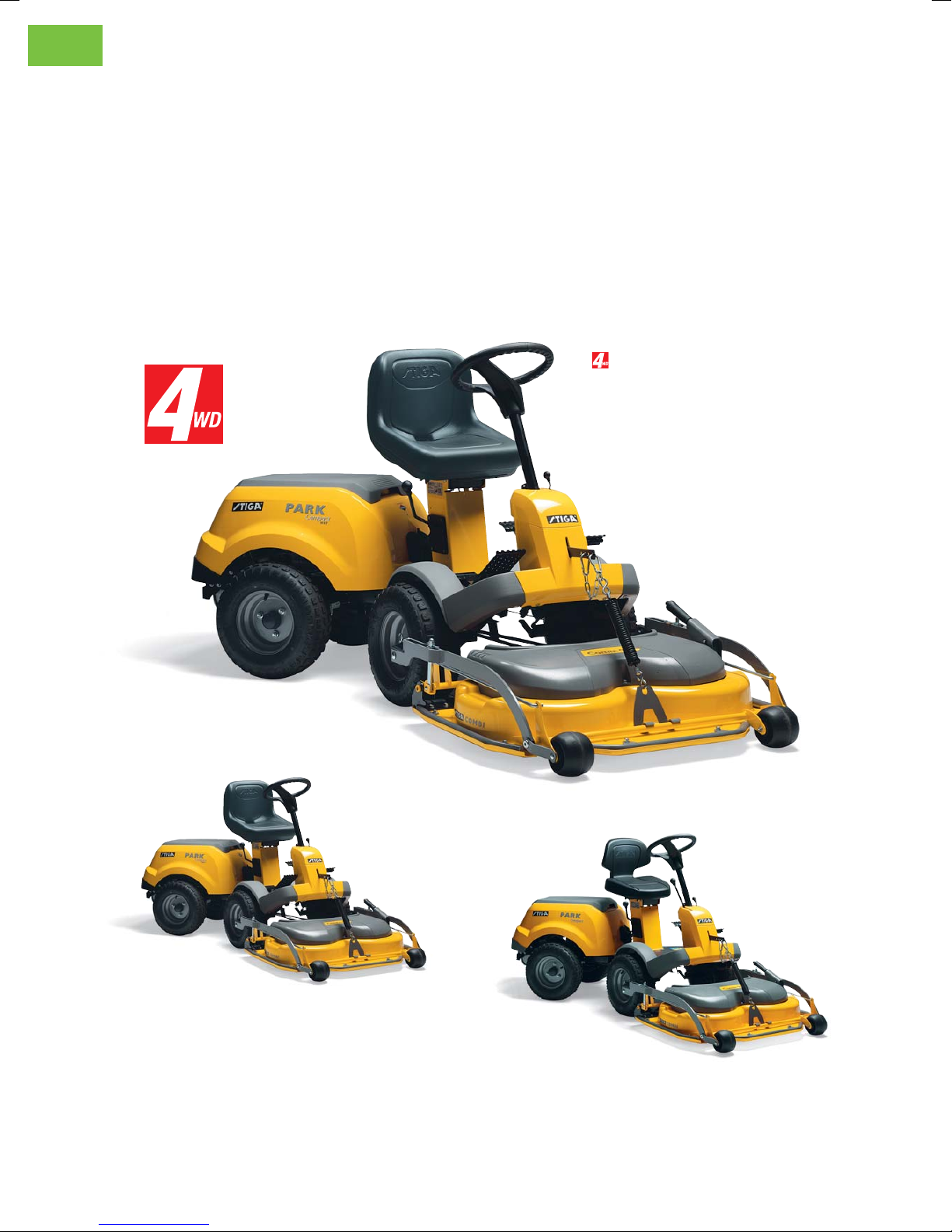

With the Stiga Park 4WD almost anything is possible. You can climb wet slopes unhindered, stop and
start again, without slipping and causing damage. In addition, the front-mounted deck gives you full
mowing control and can get really, really close-in to trees and under bushes. With genuine articulated
steering the rear wheels follow the tracks of the front wheels. Precisely and every time, whether you are
cutting grass in the summer or clearing snow in the winter.
Tubular steel
A robust impact guard protects the deck.
e space between the deck and the
machine is adapted so that you can
ride directly up a slope, e.g. onto a
trailer.
Pivot wheels make
the machine easier to
steer.
Hydraulic
transmission
both front and rear axles.
Combi deck
Shi between Multiclip and rear
discharge without having to use
tools.
Li for washing position
Approx. 30 degrees, without removing the
belt.
Front-mounted deck
e cutting deck can be adjusted up and
down independently of the tubular fra-
me. You always have the correct cutting
height for the best mowing results.
Service position
Deck can be folded through
90 degrees.
Li chain for securing
the deck in the washing posi-
tion.
Adjustable
steering wheel
With power steering.
Hydrostatic drive
Increases the speed steplessly.
Hydraulic
implement li
Four-position lever. Li,
neutral, down press and
down oating.
Hydraulic power steering
Hydraulic implement lier with
stronger cylinder.

15
FRONT MOWERS – PARK
Ergonomically
designed seat
Comfortable sprung seat and
seat adjustment with a single
control lever.
Genuine articulated steering
With genuine articulated steering the rear of
the vehicle follows the tracks of the front
wheels. Look ahead, the rear of the vehicle
will not bump into anything.
Hydraulic pump that powers
the steering, transmission and deck
li.
Engine with pressure
lubrication
Lubricates even if the machine is til-
ting. In addition, the engine is loca-
ted behind the rear axle, which pro-
vides better weight distribution and
balance.
Powerful engines provide
quieter operation and longer service
intervals.
Transparent tank
You can easily see how much fuel is
le.
Easy to raise bonnet
Facilitates daily maintenance,
checking the oil level and
cleaning the air lter.
Large 17 inch wheels
With Stiga’s own tread pat-
tern that ensures good grip
and a comfortable ride.
Chain steering gives a
longer service life.
Newly developed silencer reduces
the engine noise output level by 3 dB (A),
which halves the perceived noise level.
Hour meter
For charging and service
intervals.

16
PARK COMPACT 16 4WD
Our smallest 4WD is the perfect choice for those
of you who wish to enter the wonderful world of
four-wheel drive. It is a flexible Front mower with
hydrostatic drive that you can easily manoeuvre
around your garden, without leaving skid marks
in the event of hill stops and starts. The engine is
a Briggs & Stratton producing 15.5 hp.
PARK COMPACT 13
The engine is a Briggs & Stratton producing 12.5 hp. The gear-
box is manual with 5 forward gears and one reverse gear. The
seat can be folded and sprung for comfort.
PARK COMPACT 16
A powerful machine with a Briggs & Stratton engine producing
15.5 hp. Hydrostatic drive, i.e. speed is infinitely variably controlled,
both forward and reverse. Tipping comfort seat with drainage and
high backrest.
PARK COMPACT 14
As above, but with a 13.5 hp Briggs & Stratton engine.
Four-wheel drive
available on all Park
models.
Efficiency defined.
Front-mounted cutting deck and genuine articulated steering are signatures of the Park range, and the four-
wheel drive – now available on all models – is an extra impressive feature. If you need more reasons to choose
Park, we suggest that you take a closer look at the cutting width, engine power, instrument panel and con-
trols. Everything, including the cutting height setting on the top models, is controlled from the driver’s seat,
with a lever or by pushing a button. Diesel or petrol power is a matter of taste, manual or stepless hydrostatic
gearbox a question of comfort. In addition, there is a vast range of implements (see page 23), which means
that you can use it all year round. To plough, sand, sweep, collect leaves... you name it!
FRONT MOWERS – PARK
All models except diesel on this page are available with
Combi decks from 95 to 105 cm (see page 20).

17
PARK DIESEL
A two-wheel drive machine featuring electric cutting height
adjustment and hinged engine cover, with mechanical servo
assisted steering, manual implement lift and pivot sprung seat.
Equipped with a Hatz diesel engine for economical and demand-
ing work. Available with Combi Pro deck with 125 cm cutting
width.
PARK DIESEL 4WD
Same engine as above combined with 4WD to produce even
higher torque. Also featuring hydraulic deck lift, cruise control,
hydraulic power steering as well as parallel comfort seat springs
and arm rest for extra comfort.
PARK COMFORT
Briggs & Stratton engine producing 15.5 hp and infinitely variable
hydrostatic drive, forward and reverse. New high-performance
Combi deck. Extremely comfortable with a single-lever control
for adjusting the pivot comfort sprung seat, electric cutting height
adjustment and hinged engine cover for easy access to the engine
and re-fuelling.
PARK ROYAL
Has a 2-cylinder Honda engine producing 16 hp with hydrostatic drive.
Extremely comfortable with a single lever to adjust the pivot sprung
seat. Electric cutting height adjustment and hinged engine cover for easy
access to the engine and re-fuelling. Swan marked.
PARK PR ESTIGE 4WD
Prestige has a powerful Kohler engine producing 18 hp. Electric
cutting height adjustment and hinged engine cover. Extremely
comfortable with, pivot suspension, adjustable steering wheel
and single-lever control for adjusting the tipping of the comfort
seat with its high back rest.
FRONT MOWERS – PARK

18
So easy to manoeuvre.
It almost drives itself.
Articulated steering is the secret. You sit above the pivot point and look ahead over the cutting deck. It is easy to turn and easy to
navigate around bushes, trees and fences, because the back wheels follow the track of those at the front. It is an incredible feeling,
almost as if it drives itself. Test drive and experience the feeling of freedom! Combined with 4WD you can stop and go almost
anyhwere without slipping, including slippery slopes and snow-covered driveways.

19
FRONT MOWERS – PARK PRO
PARK PRO 20 4WD
Has the same equipment, features and fantastic comfort as the Pro 25 4WD. The
difference being that it has a Vanguard engine from Briggs & Stratton producing
20 hp.
PARK PRO 16 4WD
Has mechanical power steering, foot-controlled lift and electric deck engagement.
Fantastic driver comfort. Vanguard engine from Briggs & Stratton producing 16 hp.
PARK PRO SWAN 4WD
Swan for the professional market. Specification as for Pro 25 4WD, but with a
twin-cylinder Honda GXV 530 engine producing 16 hp. The engine is quiet
with low emissions and is therefore one of the reasons why the model is
Swan marked.
PARK PRO 25 4WD
Our ”top-of-the-range” machine with
hydraulic four-wheel drive, power steering,
hydrostatic gearbox and hydraulic implement
lift. It has electric cutting height adjustment,
electric cutter deck engagement and cruise
control. Fantastic driver comfort. Kohler
Command Pro engine producing 25 hp.
Cutting width 95-125 cm.
All models on this page are available with
Combi decks from 95 to 125 cm.

20
Two cutting techniques in one.
Stiga has developed a range of high-performance cutting decks, which let you choose between Multiclip and rear
discharge. The Multiclip system recycles grass clippings, and the grass becomes fertilizer for your lawn. Rear dis-
charge deposits the grass behind the machine, a method which is suitable when the grass is long.
To get the perfect cutting result, it is necessary to adjust the cutting height in small steps. These decks have
continuous electric cutting height adjustment or manual adjustment in 6 mm steps.
WASHING TIPS
Lawn mowers rarely fail due to use or age. If you suddenly notice that
the functions of your mower have deteriorated, poor maintenance
and corrosion are much more often the explanation. In order to
reduce the risk of such problems arising, our mowers with front decks
are designed in a way that makes the machines very easy to service
and wash.
85 COMBI
Neat and smooth deck for Stiga Villa. Cutting
width 85 cm. Two synchronised blades with
replaceable blade tips. Manual cutting height
adjustment controlled from the driver’s seat.
95 COMBI
Deck for Park and Villa. Cutting width 95 cm.
Two synchronised blades with replaceable blade
tips. Manual or continuous electric cutting height
adjustment.
105 COMBI
Deck for Park and Villa. Cutting width 105 cm.
Two synchronised blades with replaceable blade
tips. Central cutting height adjustment electri-
cally or manually controlled.
125 COMBI PRO
A wide and powerful deck for Park Pro models.
Cutting width 125 cm. Three freely rotating
blades. Suitable for cutting long grass quickly
with rear discharge. Switch between Multiclip
and rear discharge without having to use tools.
Pivot wheels make it easier to turn. Powerful
manual or infinitely variable electric cutting
height adjustment.
110 COMBI PRO
Cutting deck in Pro version for Park and Park Pro.
Cutting width 110 cm. Suitable for those want-
ing to cut long grass quickly with rear discharge.
Switch between Multiclip and rear discharge with-
out having to use tools. Pivot wheels make it easier
to turn. Powerful manual or infinitely variable elec-
tric cutting height adjustment.
COMBI DECK
ROLLER 85C/95C/105C
Levels the grass to a perfect finished result.
