Stiga Play The Best T8576W/F User manual

1. Read this manual carefully before starting assembly. Read each stepcompletely before beginning
each step.
2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons before
assembling or ordering parts.
3. If hardware is tightenedtoo soon, mounting holes may not align and partsmay not easily fit together.
Leave bolts slightly loose until you are instructedto tighten them.
4. Tools required for assembly: Wrenchesor adjustable wrenches (not provided) are helpful.
5. To make assembly as easy as possible, place all partsof the table tennis in acleared area and
remove the packaging material. Organize all parts as per parts identifier in the assembly manual.
Do not dispose of the packing material until assembly is completed.
6. Avoid scratching table tennis top and metal tube parts during the assembly process.
7. Assemble product on clean, level and flat surface.
8. Take timeto correctly orientate parts exactly as per each assembly diagram.
9. Save this instruction inthe event that the manufacturer has to be contacted for replacement parts.
O W NER’S MANUA L
Please visit our website at: www.escaladesports.com
ON-LINETROUBLE SHOOTING TECHNICAL ASSISTANCE
ON-LINE PARTS REQUESTS FREQUENTLYASKED QUESTIONS
ADDITIONAL ESCALADE SPORTS PRODUCT INFORMANTION
R
Escalade Sport productsmay be manufactured and/or licensed under the following patents.
6120397 , 5816957 , 5769744 , 5119741 , 4911085 , 4717157 , D460140 , D420563
Additional patentsmay be pending. One or more of the listed patents and/or pending patentsmay cover specific product.2019 Escalade Sports
R
C
R
Please Do Not Return This Product To The Store!
Contact Escalade Sports customer service department at:
Phone: [phone] Toll-Free!
Fax: [phone] Toll-Free!
E-mail: [e-mail]
R
READ ASSEMBLY, OPERATING AND SAFETY INSTRUCTIONS
CAREFULLY! AT LEAST TWO ADULTS ARE NEEDED TO PUT
THIS TABLE TOGETHER!
Thank you for buying our product. We try hard to ensure that our products are of high quality and free of problems, such as
Manufacturing defects or missing parts. However, if you have any problems with your new product, please DO NOT RETURN IT
TO THE STORE!
Mailing Address (correspondence only):
Escalade Sports
PO Box 889
Evansville, IN 47706
Be sure to write your model number and serial number here
for future reference. You can find these numbers printed on
the bottom of the table.
MODEL NO.: T8576W/F
DATE CODE : CPSIA#2-T8576W/F-_______-SY
PURCHASE DATE : _______________________
Please provide model number and/or part number of the product and/or part when you call or write. These numbers can be found on the
product, packaging, and/or in this Owner’s Manual.
CAUTION:

- 2 -
CARE AND MAINTENANCE
You have purchased a quality product that will give you years of enjoyment. By following these simple maintenance steps you will addto thelifeof yournewtable.
The top(playingsurface)ofyourtableisof aluminumconstruction. Itcanbe affectedby atmospheric conditions, meaning both temperature and humidity. This
may cause a slight sag or distortion as top expands or contracts. This is normal and should not cause concern as it does not detract from the play or utility value
of the table.
STORAGE OF YOUR TABLE
Wind gusts can blow over or unexpectedly open the table; Store in protected area. When your table is not in use, it should be folded up in a dry area.
CLEANINGYOURTABLE
To clean your table use a soft damp NOT WET cloth only. To prevent damage to your table's playing surface DO NOT use any chemicals, abrasive, or cleaning
products on your table's playing surface.
IMPORTANT: Periodically, lubricate all moving parts, including pivot points, to assure smooth opening and closing.A light lubricant such as WD-40 is recomm-
ended.
CAUTION
THIS IS A TABLE TENNIS TABLE. DO NOT SIT, STAND, LEAN, WALK OR JUMP ON TABLE!
FAILURE TO COMPLY WITH THIS CAUTION COULD RESULT IN PERSONAL INJURY AND/OR
PROPERTY DAMAGE!
UNLEVEL FLOORS
If table does not seem level, it is probably because floor is not level. Move table several inches (set table in
playing position) in different directions to find the best location for the table. If the floor is extremely
unlevel, table may not play or operate properly. If table is high in the center, shim up under the outer legs.
ONE YEAR LIMITED WARRANTY
This consumer warranty extends to the original consumer purchase of any ESCALADE®SPORTS Product
(hereinafter referred as the "Product").
WARRANTY DURATION: This Product is warranted to the original consumer purchase of a period of one(1) years from the original
purchase.
WARRANTY COVERAGE: ESCALADE SPORTS warrants to the original Consumer Purchaser that any Product of its manufacture is free
from defects in material and workmanship when used for the intended purpose under normal use and conditions. THIS WARRANTY IS
VOID IF THE PRODUCT HAS BEEN DAMAGED BY ACCIDENT, UNREASONABLE USE, NEGLIGENCE, IMPROPER SERVICE, FAILURE TO
FOLLOW INSTRUCTIONS PROVIDED WITH THE PRODUCT OR OTHER CAUSES NOT ARISING OUT OF DEFECTS IN MATERIAL
AND WORKMANSHIP.
WARRANTY PERFORMANCE: During the above ONE (1) year warranty period, ESCALADE SPORTS shall repair or replace with a
comparable model, and/or Product, or component thereof, for any product which may prove defective under normal use and proper care, and
which our examination shall disclose to our satisfaction to be thus defective, please contact our Warranty Dept.
1-866-873-3528 / Warranty Dept.
Or Write us at:
Escalade Sports, Inc. - P.O. Box 889, Evansville, IN 47706 - Attn: Warranty Dept.
Or E-mail us at:
[email protected]
Other than shipping requirements no charge will be made for such repair or replacement of in-warranty Products. ESCALADE
SPORTS strongly recommends that the Product is insured for value prior to mailing.
WARRANTY DISCLAIMERS: ANY IMPLIED WARRANTIES ARISING OUT OF THIS SALE, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE
OR OTHER CONSEQUENTIAL OR INCIDENTAL COSTS, EXPENSES OR DAMAGES INCURRED BY THE CONSUMER OF ANY
OTHER USE.
Some states do not allow the exclusion or limitation of implied warranties or consequential or incidental damages, so the above
limitations or exclusions may not apply to you.
LEGAL REMEDIES: This warranty gives you specific legal rights and you may also have other rights which may vary from state to
state.
ABOVE ONE(1) YEAR WARRANTY PERIOD. ESCALADE SPORTS SHALL NOT BE LIABLE FOR LOSS OF USE OF THE PRODUCT
®
®
®

- 3 -

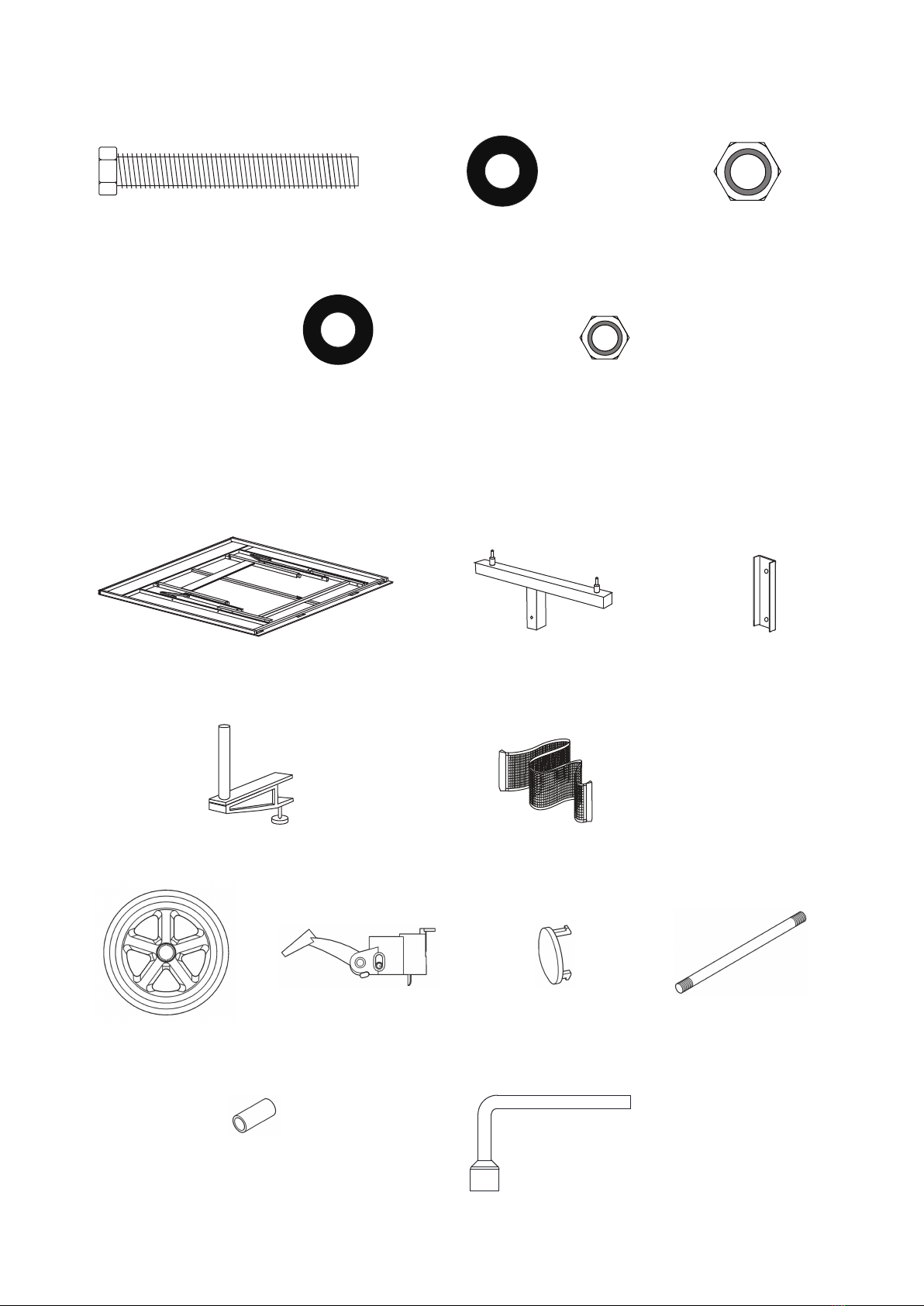

HARDWARE IDENTIFIER (To Scale)
H1 - 8 mm x 55 mm
Hex Head Bolt
(8 pcs)
H2 - 8 mm x 16 mm
Plastic Flat Washer
(16 pcs)
H3 - 8 mm Nylon
Lock Nut
(8 pcs)
PARTS IDENTIFIER (Not to Scale)
P1 - Table Tennis Table Top
Frame Assembly
(2 pcs)
P2 - Leg with Caster Bracket
(4 pcs)
P3 - Connector
(8 pcs)
P4 - Net Post
(2 pcs)
P5 - Net (1 pc)
P6 - Wheel
(16 pcs)
P7 - Brake Unit
(8 pcs)
P8 - Wheel Cap
(16 pcs)
P9 - Wheel Rod
(8 pcs)
P10 - Plastic Bushing
(16 pcs)
T1 - Allen Wrench
(2 pcs)
H5 - 6 mm Nylon
Lock Nut
(16 pcs)
H4 - 8 mm x 16 mm
Thick Plastic Flat Washer
(32 pcs)

- 4 -
PARTS REQUIRED
1 pc P1 Table Tennis Table Top Frame Assembly 4 pcs - H1 Hex Head Bolt
2 pcs - P2 Leg with Caster Bracket 8 pcs - H2 Flat Washer
4 pcs - P3 Connector 4 pcs - H3 Lock Nut
STEP 1:
IMPORTANT NOTE: Place table half top with playing surface face down on a CLEAN flat surface
for ease of correct assembly and to prevent any scratches or blemishes to the playing surface.
-
P1
Push down on LOCK TAB
to release lock and pull up
on FRONT LEGS only.
Do not pull up middle legs
as this could cause damage
to the table.
DETAIL A
This end is the front
of the table.
This end is the middle of the table
and does not have white screen
lines and close to Safety Latch.
Front Leg.
Front Leg.
PUSH UP
Hinge Locked
Safety Lock.
FIGURE 1B
FIGURE 1A
DETAIL B
Lay one piece P1 Table Tennis Table Top Frame Assembly flat with playing surface
facing down as shown in FIGURE 1A.
Unlock the SAFETY LOCK as shown in DETAIL A and raise FRONT LEGS to a
vertical position and lock both hinges as shown in FIGURE 1B & DETAIL B.
Install P2 Leg with Caster Bracket with P3 Connectors using
H1 Hex Head Bolts, H2 Flat Washers and H3 Lock Nuts
as shown in FIGURE 2 &DETAIL C. Tighten this hardware.
Repeat procedure for other table top.
STEP 2:
P2
P3
H1
H2
H2
H3
FIGURE 2
DETAIL C
Middle Leg.

- 5 -
PARTS REQUIRED
16 pcs - P6 Wheel 8 pcs - P9 Wheel Rod 16 pcs - H5 Nylon Lock Nut
8 pcs - P7 Brake Unit 16 pcs - P10 Plastic Bushing 2 pcs - T1 Allen Wrench
16 pcs - P8 Wheel Cap 32 pcs - H4 Thick Plastic Flat Washer
STEP 3:
IMPORTANT NOTE: Place table half top with playing surface face down on a CLEAN flat surface
for ease of correct assembly and to prevent any scratches or blemishes to the playing surface.
FIGURE 3
Install 4 sets caster as shown in FIGURE 3 using 2 pcs T1 Allen Wrench.
Install caster sets from Step 3 to the P2 Legs as shown on DETAIL D Step 1.
Repeat procedure for other table top.
OPTIONAL STEP: Push down the tab on P7 Brake Unit to lock
casters direction as shown on DETAIL D Step 2.
STEP 4:
FIGURE 4
DETAIL D
P7
P9
H4
P10
P6
H4
H5
P8
P8
H5
H4
H4
P10
OPTIONAL:
Push here to
lock casters
direction.
P2
12
P6

STEP 4:
Slide P5 Net inside
the tube.
STEP 3:
Remove Net Post
Cap from the tube.
STEP 2:
Rotate bottom thread
to release Net Post
Cap.
- 6 -
Attach P4 Net Posts and P5 Net to the middle of the table halves as shown in FIGURE 5 and NET ASSEMBLY STEP.
STEP 3:
PARTS REQUIRED
2 pcs - P4 Net Post
1 pc
WARNING:
THIS STEP REQUIRES TWO OR MORE ADULTS.
VERY CAREFULLY TURN THE TABLE OVER AND SET IT ON
ITS LEGS. BE CAREFUL, THE TABLE IS VERY HEAVY.
- P5 Net
NET ASSEMBLY STEP
STEP 1:
Attach P4 Net Posts
on the middle edge
of table halves.
STEP 5:
Close the tube using
Net Post Cap again.
STEP 6:
Secure Net Post Cap
by rotating bottom
thread again.
STEP 7:
Secure cord on Net
Post hook with knot.
FIGURE 5
P4
Table Tennis Top
SIDE VIEW FRONT
VIEW
Table
Tennis
Top
Table Tennis
Top Bottom
Frame
NOTE:
Level table using
Leg Levelers.
IMPORTANT NOTE:
Be sure to break all four(4) hinges, using the palm
of your hand before folding table upright.
Lock hinges when table is in playing positions.

- 7 -
CAUTION:
READ OPERATING INSTRUCTIONS CAREFULLY BEFORE OPERATING TABLE! DO
NOT ALLOW CHILDREN TO OPEN TABLE! DO NOT CLIMB, STAND OR JUMP ON
TABLE! SERIOUS OR FATAL INJURY MAY RESULT! THIS IS NOT A TOY! TABLE IS
TO BE OPENED OR CLOSED BY ADULTS ONLY! FAILURE TO COMPLY WITH
OPENING AND CLOSING INSTRUCTIONS COULD RESULT IN PERSONAL INJURY OR
PROPERTY DAMAGE.
FOLD THE TABLE:
1. Remove the Net Set and push hinges up as shown in FIGURE 6.
2. Fold each halves table as shown FIGURE 7.
3. Secure table fold position using Safety Lock as shown in FIGURE 8.
REMOVE NET SET
FIGURE 6
FIGURE 7 FIGURE 8
UNFOLD THE TABLE:
1. Push down on Lock Tab to release lock as shown in FIGURE 9.
2. Fold each halves table as shown FIGURE 10.
3. Push down hinges as shown in FIGURE 11.
PUSH UP
PUSH UP
ATTACH NET SET
FIGURE 11
FIGURE 10
PUSH DOWN
PUSH DOWN
Unfold the table
Push down
on Lock Tab
FIGURE 9
WARNING:
IN FOLD CONDITION, DO NOT PUSH OR LEAN ON TABLE TOP! SERIOUS AND
FATAL INJURY MAY RESULT!

- 8 -
C1
Leg Leveler
C3L
Left Hinge
C3R Right Hinge
P1
P2
P3
H1
H2
H3
H2
DETAIL - C DETAIL - D
DETAIL - E
C22
C5
C13
C5
C6C19
C5
C5
C8
C6
C20
C5
C5
C8
C6
P4
P5
C15
Front Leg with Panel
C17
Linkage
C16
Middle Leg
DETAIL - F H4 P8
H5
P8
P6
P10
H4
H4
H4
H5
P6
P10
P7
P9
C2
Caster set with lock
DETAIL - G
C24
C25
C25
C26
C23
DETAIL - B
C21
C18
C18
C8
DETAIL - A
C18
C6
C6
C6
C8

- 9 -
T8576 TABLE TENNIS TABLE SPARE PARTS
Key# Part No. Description Qty
H1 T8576SY-H1 8 mm x 55 mm Hex Head Bolt 8
H2 T8576SY-H2 8 mm x 16 mm Plastic Flat Washer 16
H3 T8576SY-H3 8 mm Nylon Lock Nut 8
P1 T8576SY-P1 Table Tennis Table Top Frame Assembly 2
P2 T8576SY-P2 Leg with Casters Bracket 4
P3 T8576SY-P3 Connector 8
P4 T8576SY-P4 Net Post 2
P5 T8576SY-P5 Net 1
C1 T8576SY-C1 Leg Leveler 4
C2 T8576SY-C2 Caster set with Lock 8
C3R T8576SY-C3R Right Hinge 2
C3L T8576SY-C3L Left Hinge 2
DETAIL A
C18 T8576SY-C18 8 mm x 100 mm Hex Head Bolt 4
C5 T8576SY-C5 8 mm x16 mm Plastic Flat Washer 4
C6 T8576SY-C6 8.5 mm x 19 mm x 15 mm Long Spacer 8
C8 T8576SY-C8 8 mm Nylon Lock Nut 4
DETAIL B
C21 T8576SY-C21 8 mm x 70 mm Hex Head Bolt 4
T8576SY-C18 8.5 mm x 19 mm x 7 mm Plastic Bushing 8
C8 T8576SY-C8 8mm Nylon Lock Nut 4
DETAIL C
C22 T8576SY-C22 6 mm x 40 mm Hex Head Bolt 4
C5 T8576SY-C5 8 mm x 16 mm Plastic Flat Washer 8
C6 T8576SY-C6 8.5 mm x 19 mm x 15 mm Long Spacer 4
C13 T8576SY-C13 6 mm Nylon Lock Nut 4
DETAIL D
C19 T8576SY-C19 8 mm x 80 mm Hex Head Bolt 4
C5T8576SY-C58mm x16 mm Plastic Flat Washer 8
C6T8576SY-C68.5 mm x 19 mm x 15 mm Long Spacer 4
C8 T8576SY-C8 8 mm Nylon Lock Nut 4
DETAIL E
C20 T8576SY-C20 8 mm x 85 mm Hex Head Bolt 4
C5 T8576SY-C5 8 mm x 16 mm Plastic Flat Washer 8
C6T8576SY-C6 8.5 mm x 19 mm x 15 mm Long Spacer 4
C8 T8576SY-C8 8 mm Nylon Lock Nut 4
C18
DETAIL F
P6 T8576SY-P6 Wheel 16
P7 T8576SY-P7 Brake Unit 8
P8 T8576SY-P8 Wheel Cap 16
P9
P10
H4
H5
T8576SY-P9
T8576SY-P10
T8576SY-H4
T8576SY-H5
Wheel Rod
Plastic Bushing
8 mm x 16 mm Thick Plastic Flat Washer
6 mm Nylon Lock Nut
8
16
32
16
DETAIL G
C23 T8576SY-C23 Caster Vertical Bracket & Pin 8
C24 T8576SY-C24 M4 Round Headed Screw 8
C25 T8576SY-C25 M4 Flat Washer 16
C26 T8576SY-C26 M4 Hex Nut 8

- 10 -
T8576 TABLE TENNIS TABLE SPARE PARTS
Key# Part No. Description Qty
C15 T8576SY-C15 Front Leg with Panel 2
C16 T8576SY-C16 Middle Leg 4
C17
C2S
T1
T8576SY-C17
T8576SY-C2S
T8576SY-T1
Linkage
Caster Full Set (Caster Set with Lock & Caster Bracket)
Allen Wrench
4
8
2
K1 T8576SY-K1 Hardware Kit 1
M1 T8576SY-M1 Owner’s Manual 1
