Stihl BGA 85 User manual

{
STIHL BGA 85 Instruction Manual
Notice d’emploi
All manuals and user guides at all-guides.com
all-guides.com

GInstruction Manual
1 - 21
FNotice d’emploi
23 - 44
All manuals and user guides at all-guides.com

Original Instruction ManualPrinted on chlorine-free paper
Printing inks contain vegetable oils, paper can be recycled.
© ANDREAS STIHL AG & Co. KG, 2011 0458-286-8221-A. M1.D11.FST. 0000004881_001_GB
BGA 85
English
1
{
Contents
Dear Customer,
Thank you for choosing a quality
engineered STIHL product.
This machine has been built using
modern production techniques and
comprehensive quality assurance.
Every effort has been made to ensure
your satisfaction and troublefree use
of the machine.
Please contact your dealer or our
sales company if you have any
queries concerning your machine.
Your
Hans Peter Stihl
Guide to Using this Manual 2
Safety Precautions and Working
Techniques 2

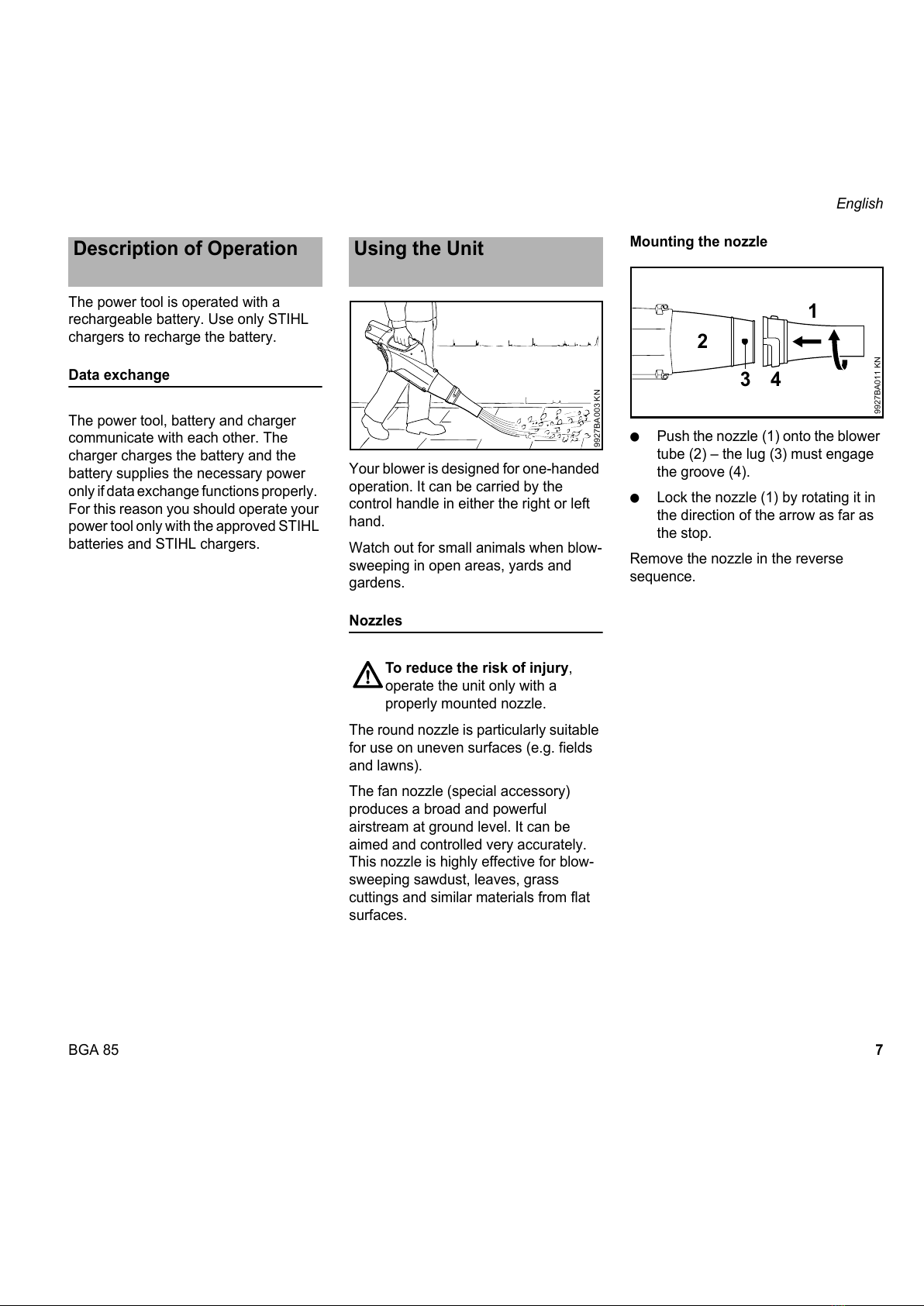

Description of Operation 7
Using the Unit 7

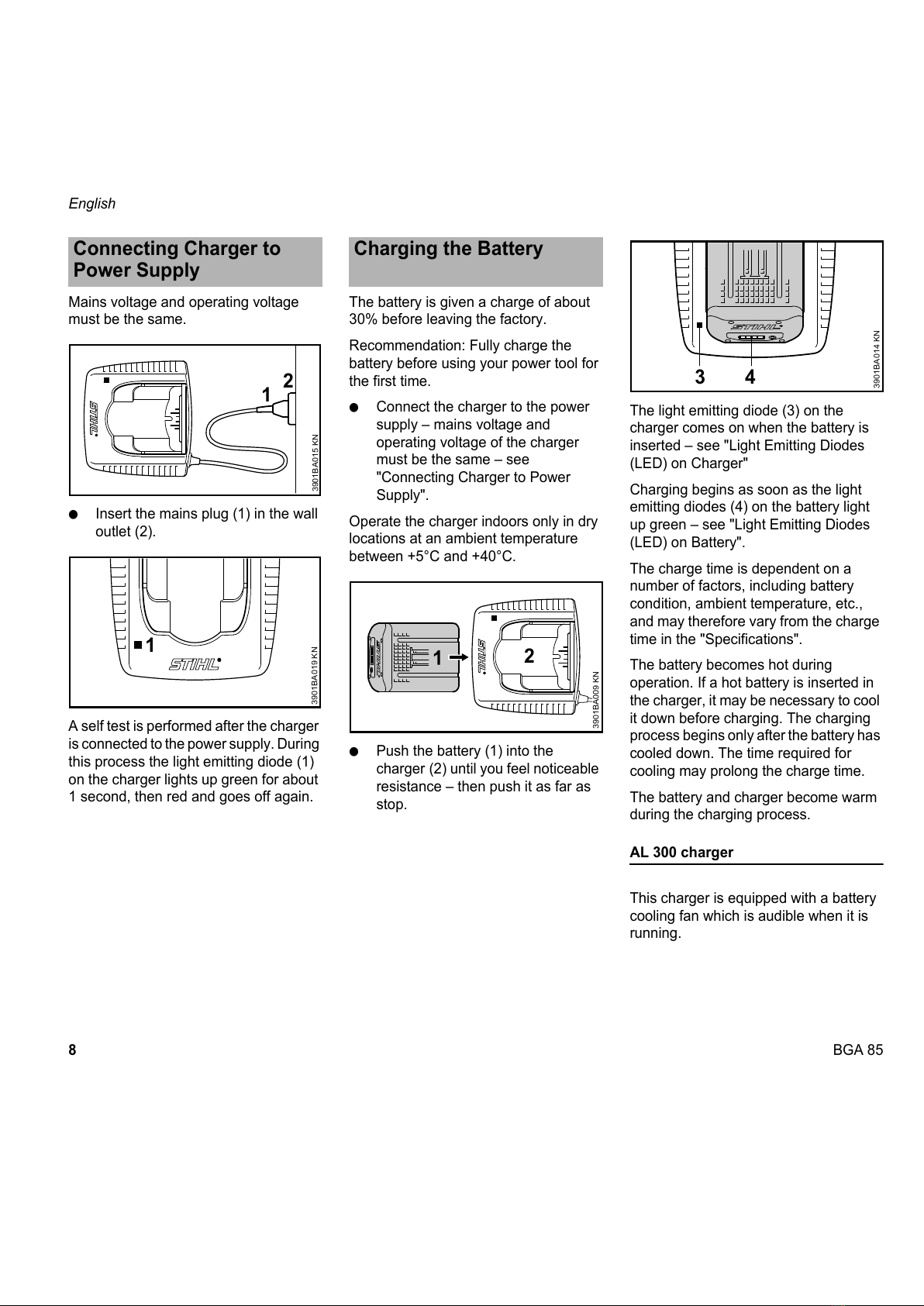

Connecting Charger to Power
Supply 8
Charging the Battery 8
Light Emitting Diodes (LED) on
Battery 9

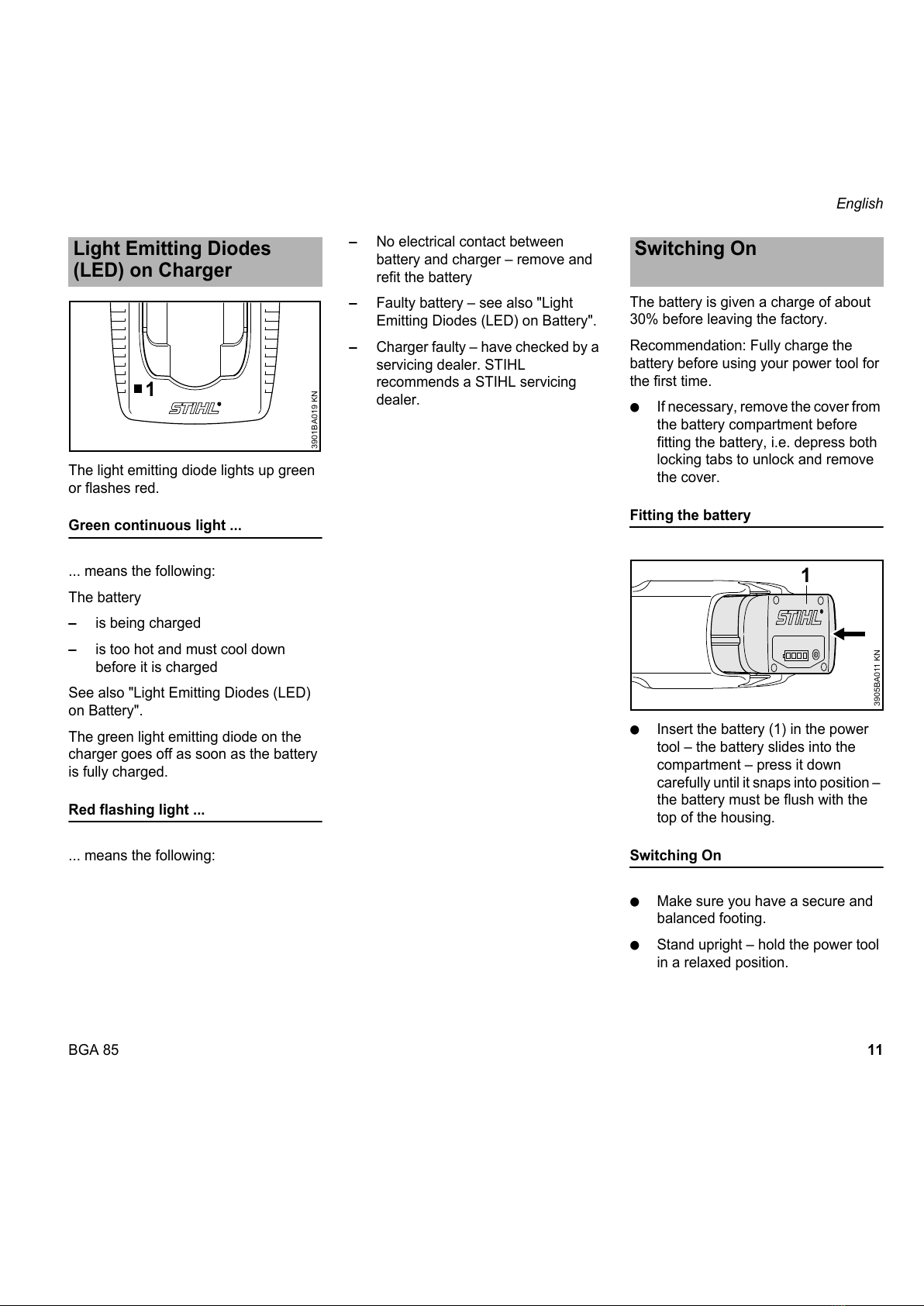

Light Emitting Diodes (LED) on
Charger 11
Switching On 11
Switching Off 12

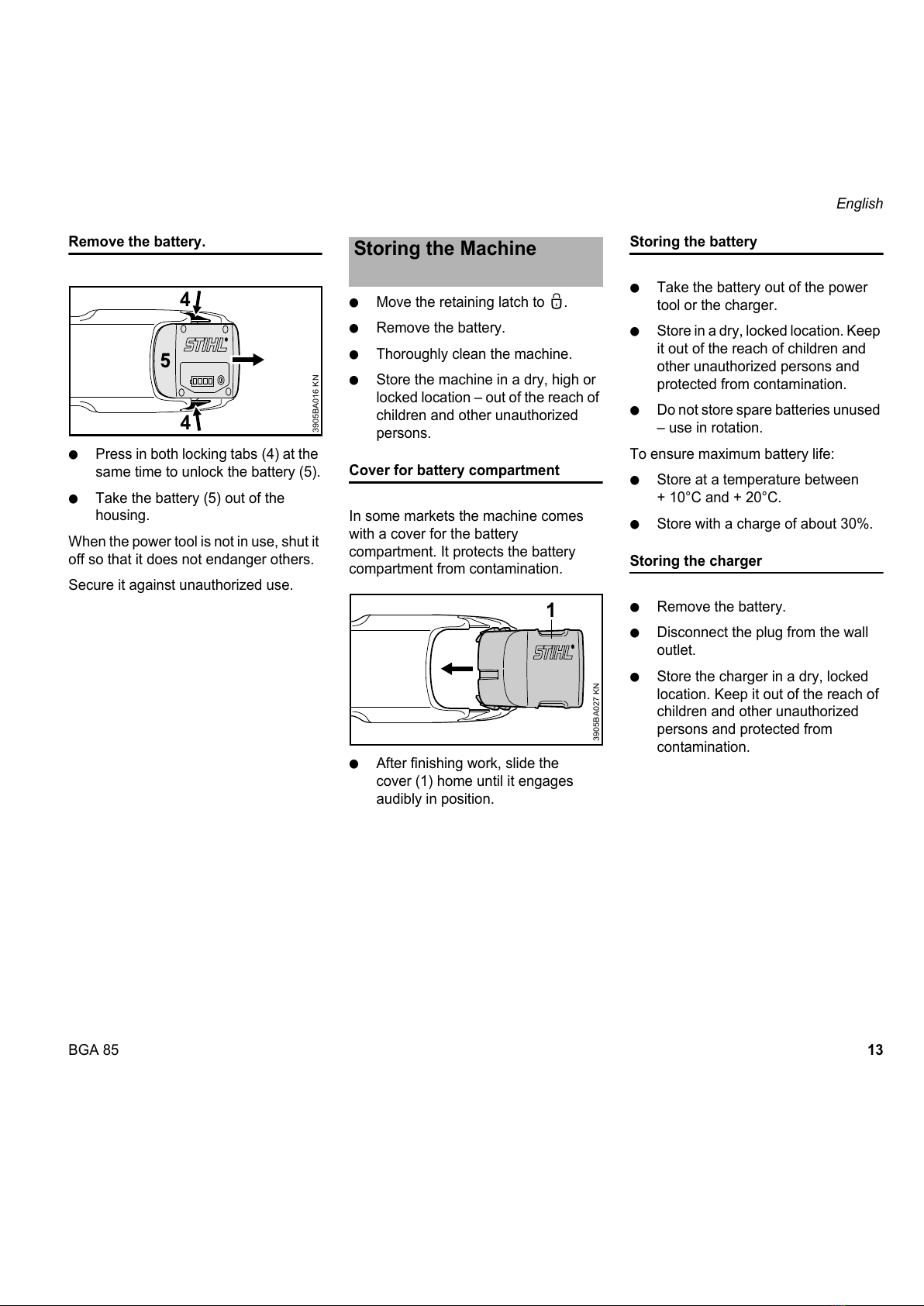

Storing the Machine 13

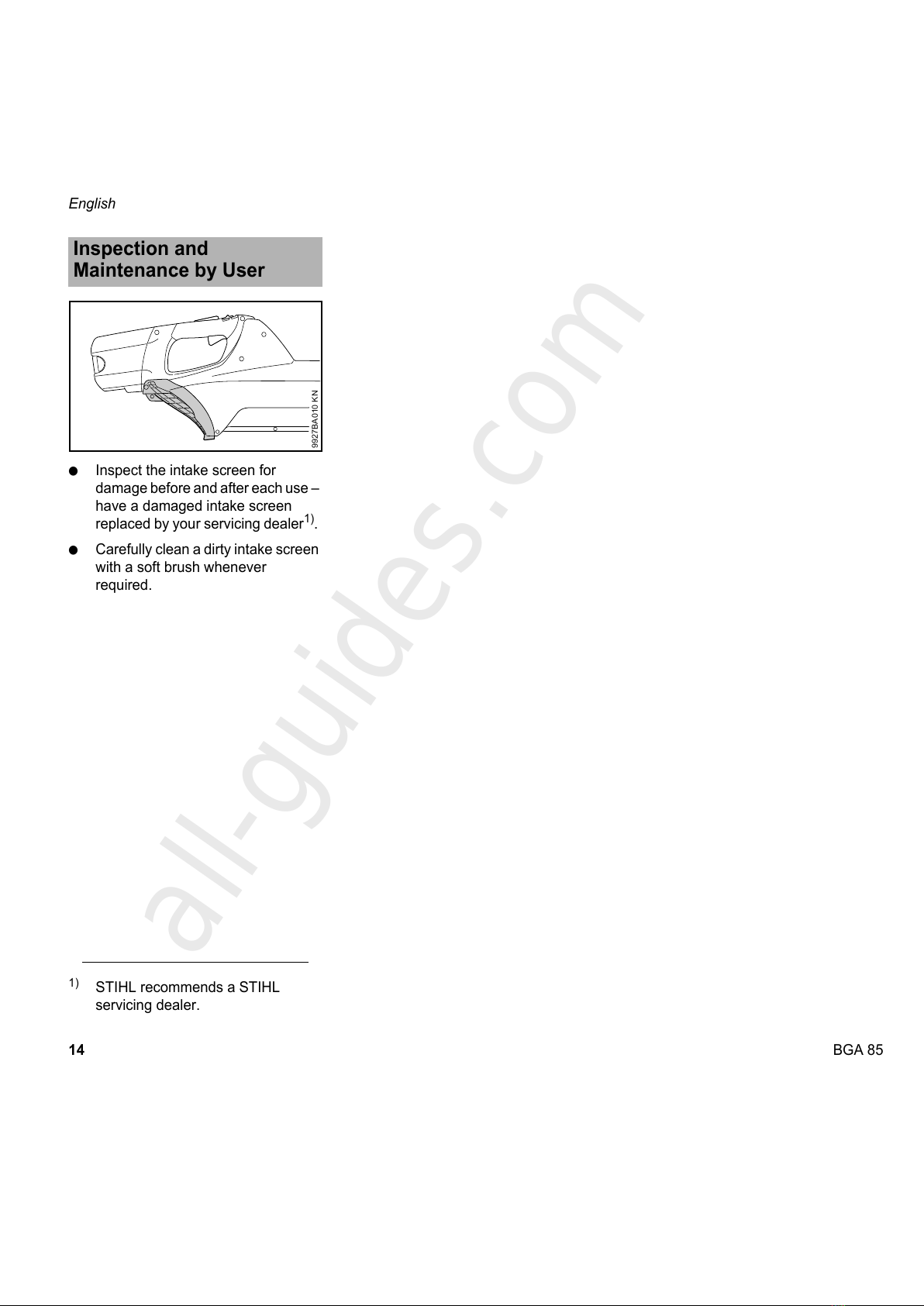

Inspection and Maintenance by
User 14

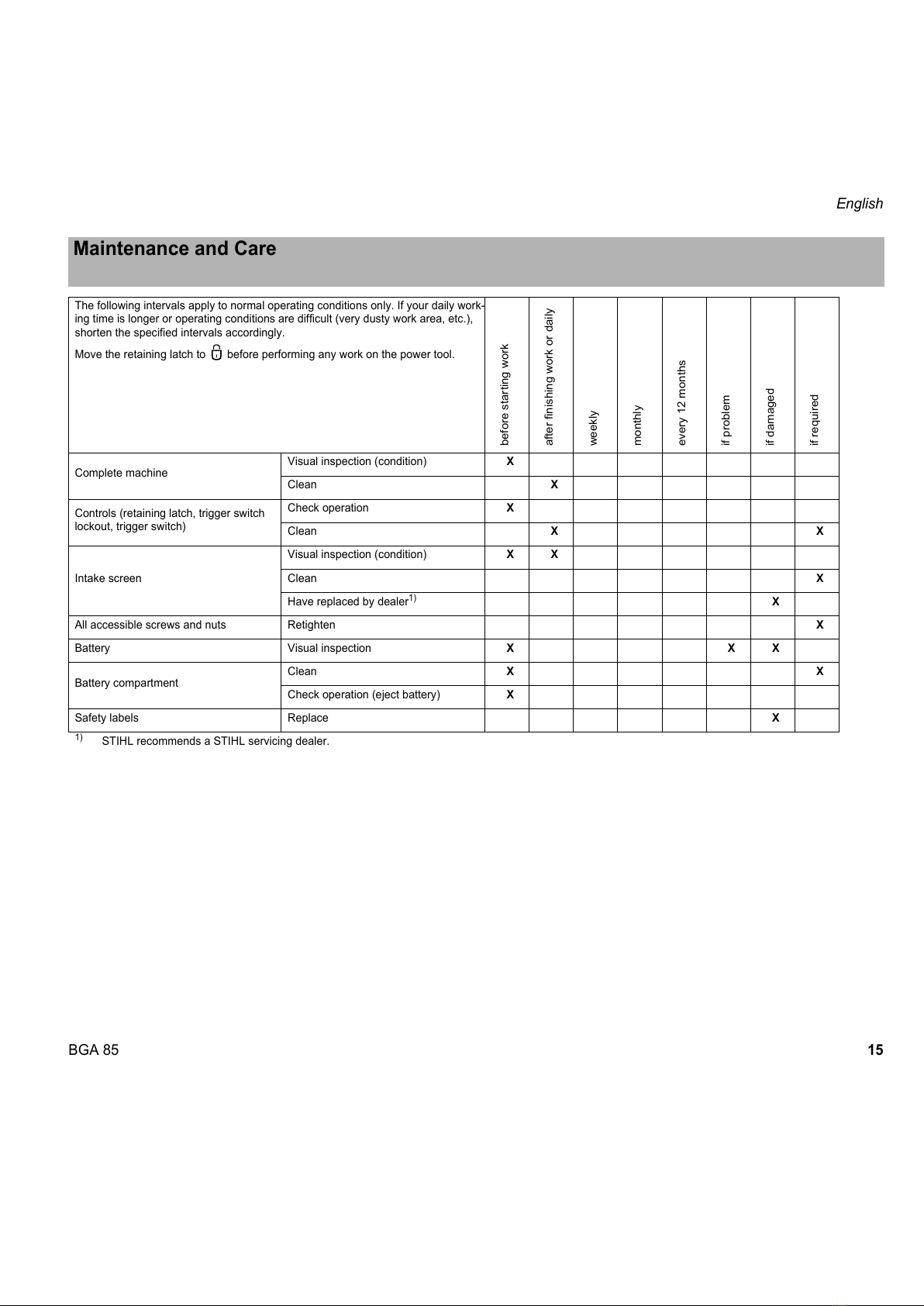

Maintenance and Care 15
Main Parts 16

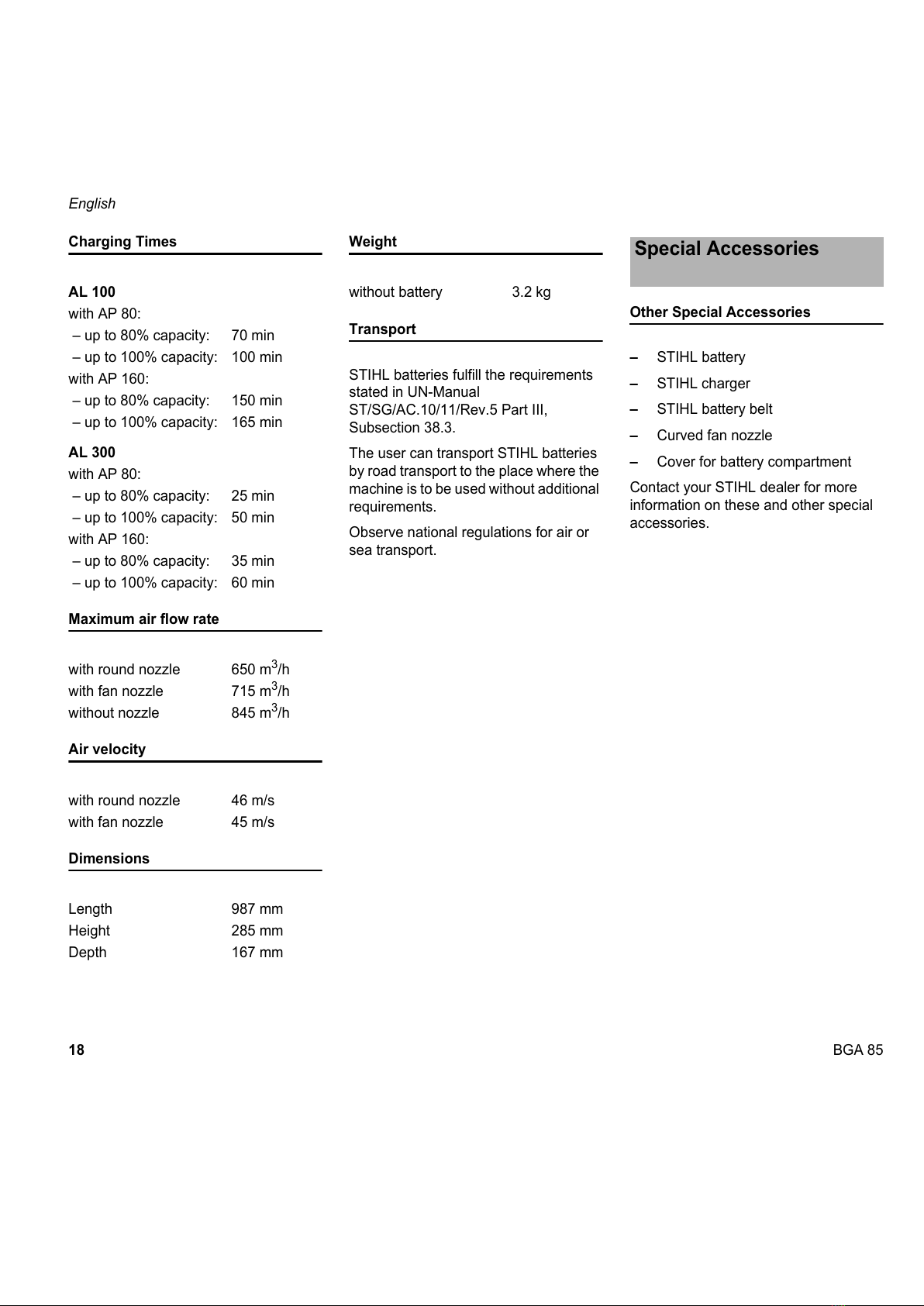

Specifications 17
Special Accessories 18
Troubleshooting 19
Maintenance and Repairs 21
Battery Recycling 21
Disposal 21
All manuals and user guides at all-guides.com

BGA 85
English
2
Pictograms
All the pictograms attached to the
machine are shown and explained in this
manual.
Symbols in text
Engineering improvements
STIHL's philosophy is to continually
improve all of its products. For this
reason we may modify the design,
engineering and appearance of our
products periodically.
Therefore, some changes, modifications
and improvements may not be covered
in this manual.
Observe all applicable local safety
regulations, standards and ordinances.
If you have not used this power tool
model before: Have your dealer or other
experienced user show you how to
operate your power tool or attend a
special course in its operation.
Minors should never be allowed to use
the power tool.
Keep bystanders, especially children,
and animals away from the work area.
When the power tool is not in use, shut it
off so that it does not endanger others.
Secure it against unauthorized use.
The user is responsible for avoiding
injury to third parties or damage to their
property.
Do not lend or rent your power tool
without the instruction manual. Be sure
that anyone using it understands the
information contained in this manual.
The use of noise emitting power tools
may be restricted to certain times by
national or local regulations.
Do not operate your power tool if any of
its components are damaged.
–cleaning the machine
–leaving the machine unattended
–transporting the machine
–storing the machine
–performing repairs and
maintenance work
–in the event of danger or in an
emergency
This avoids the risk of the motor starting
unintentionally.
Do not use a pressure washer to clean
the power tool. The solid jet of water
may damage parts of the power tool.
Do not spray the power tool with water.
Accessories and Spare Parts
Only use parts and accessories that are
explicity approved for this power tool by
STIHL or are technically identical. If you
have any questions in this respect,
consult a servicing dealer. Use only high
Guide to Using this Manual
Warning where there is a risk of
an accident or personal injury or
serious damage to property.
Caution where there is a risk of
damaging the machine or its
individual components.
Safety Precautions and
Working Techniques
Special safety precau-
tions must be observed
when working with a
power tool.
It is important you read
and understand the
instruction manual before
first use and keep the
manual in a safe place for
future reference. Non-
observance of the safety
precautions may result in
serious or even fatal
injury.
Remove the battery from
the power tool before:
All manuals and user guides at all-guides.com

BGA 85
English
3
quality parts and accessories in order to
avoid the risk of accidents and damage
to the power tool.
STIHL recommends the use of genuine
STIHL replacement parts. They are
specifically designed to match your
model and meet your performance
requirements.
Never attempt to modify your power tool
in any way since this may increase the
risk of personal injury. STIHL excludes
all liability for personal injury and
damage to property caused while using
unauthorized attachments.
Physical Condition
To operate the power tool you must be
rested, in good physical condition and
mental health.
If you have any condition that might be
aggravated by strenuous work, check
with your doctor before operating a
power tool.
Do not operate the power tool if you are
under the influence of any substance
(drugs, alcohol) which might impair
vision, dexterity or judgment.
Applications
The blower is designed for blow-
sweeping leaves, grass, paper and
similar materials, e.g. in gardens, sports
stadiums, car parks and driveways.
Do not blow-sweep hazardous
materials.
Do not operate your power tool indoors.
Do not use the power tool for any other
purpose because of the increased risk of
accidents and damage to the power tool
itself. Never attempt to modify the power
tool in any way since this may result in
accidents or damage to the power tool.
Battery
–Use only original STIHL
rechargeable batteries.
–Use STIHL batteries only with
STIHL power tools and recharge
them only with STIHL chargers.
–Charge the battery before using it.
–Do not charge or use a defective,
damaged or deformed battery. Do
not open, damage or drop the
battery.
–Store the battery out of the reach of
children.
–Never expose the battery to
microwaves or high pressures.
–Never insert objects in the battery's
cooling slots.
–Never bridge the battery terminals
with metallic objects (short circuit).
The battery may be damaged by a
short circuit. Keep a battery that is
not in use away from metal objects
(e.g. nails, coins, jewelry). Do not
use metallic transport boxes.
–Fluid may leak from the battery if it is
not used properly – avoid contact
with the skin! Leaking battery fluid
can cause skin irritation and
chemical burns. In case of
accidental contact, wash affected
areas of skin with plenty of water
and soap. If fluid gets in the eyes, do
not rub – rinse the eyes with plenty
of water for at least 15 minutes. Also
seek medical assistance.
Charger
–Use only original STIHL chargers.
–Only use for charging matching
STIHL batteries of type AP with a
maximum capacity of 10 Ah and a
maximum voltage of 42 V.
–Never charge defective, damaged
or deformed batteries.
–Connect the charger only to an
easily accessible wall outlet with the
voltage and frequency specified on
the rating plate.
–Do not use a defective or damaged
charger.
Protect from rain – do not
immerse in fluids.
Protect from direct sun-
light, heat and fire –
never throw into a fire –
risk of explosion.
Operate and store the
battery only in a tempera-
ture range from - 10°C to
max. + 50°C.
All manuals and user guides at all-guides.com

BGA 85
English
4
–Do not open the charger.
–Store the charger out of the reach of
children.
–Operate the charger at ambient
temperatures between + 5°C and
+40°C.
–Allow the charger to cool down
normally – do not cover it.
–Never bridge (short circuit) the
contacts of the charger with metallic
objects (e.g. nails, coins, jewelry).
The charger may be damaged by a
short circuit.
–In the event of smoke or fire in the
charger, disconnect it from the wall
outlet immediately.
– To reduce the risk of electric
shock or short circuit, do not
insert any objects in the charger's
cooling slots.
–Do not operate on an easily
combustible surface (e.g. paper,
texiles) or in an easily combustible
environment – risk of fire.
–Do not operate in a hazardous
location, i.e. in a location where
there are combustible liquids
(fumes), vapors or dusts. Chargers
can produce sparks, which may
ignite the dust or vapors – risk of
explosion.
–Never jerk the power cord to
disconnect it from the wall outlet. To
unplug, grasp the plug, not the cord.
Have a damaged connecting cord
repaired by an experienced
electrician.
–Do not use the connecting cord for
any other purpose, e.g. for carrying
or hanging up the charger.
–Never use connecting cords that do
not comply with regulations.
–To reduce the risk of stumbling,
position and mark the connecting
cord so that it cannot be damaged
or endanger others.
To reduce the risk of electric shock:
–Always connect the cord to a
properly installed wall outlet.
–Make sure the insulation of the
power cord and plug is in good
condition.
After using the charger, unplug it from
the wall socket.
Clothing and Equipment
Wear proper protective clothing and
equipment.
Wear sturdy shoes with non-slip soles.
Hearing protection is recommended,
e.g. earplugs or ear muffs.
STIHL offers a comprehensive range of
personal protective clothing and
equipment.
Protect from rain and
dampness.
Use and store only
indoors in dry rooms.
Check the charger's con-
necting cord regularly for
damage. If the power
cord is damaged, imme-
diately disconnect the
plug from the wall outlet
to avoid the risk of elec-
tric shock.
Clothing must be sturdy
but allow complete free-
dom of movement. Wear
snug-fitting clothing, an
overall and jacket combi-
nation, do not wear a
work coat.
Avoid clothing that could
get into the air intake. Do
not wear a scarf, necktie
or jewelry. Tie up and
confine long hair (e.g.
with a hair net, cap, hard
hat, etc.).
Wear safety glasses.
All manuals and user guides at all-guides.com
all-guides.com

BGA 85
English
5

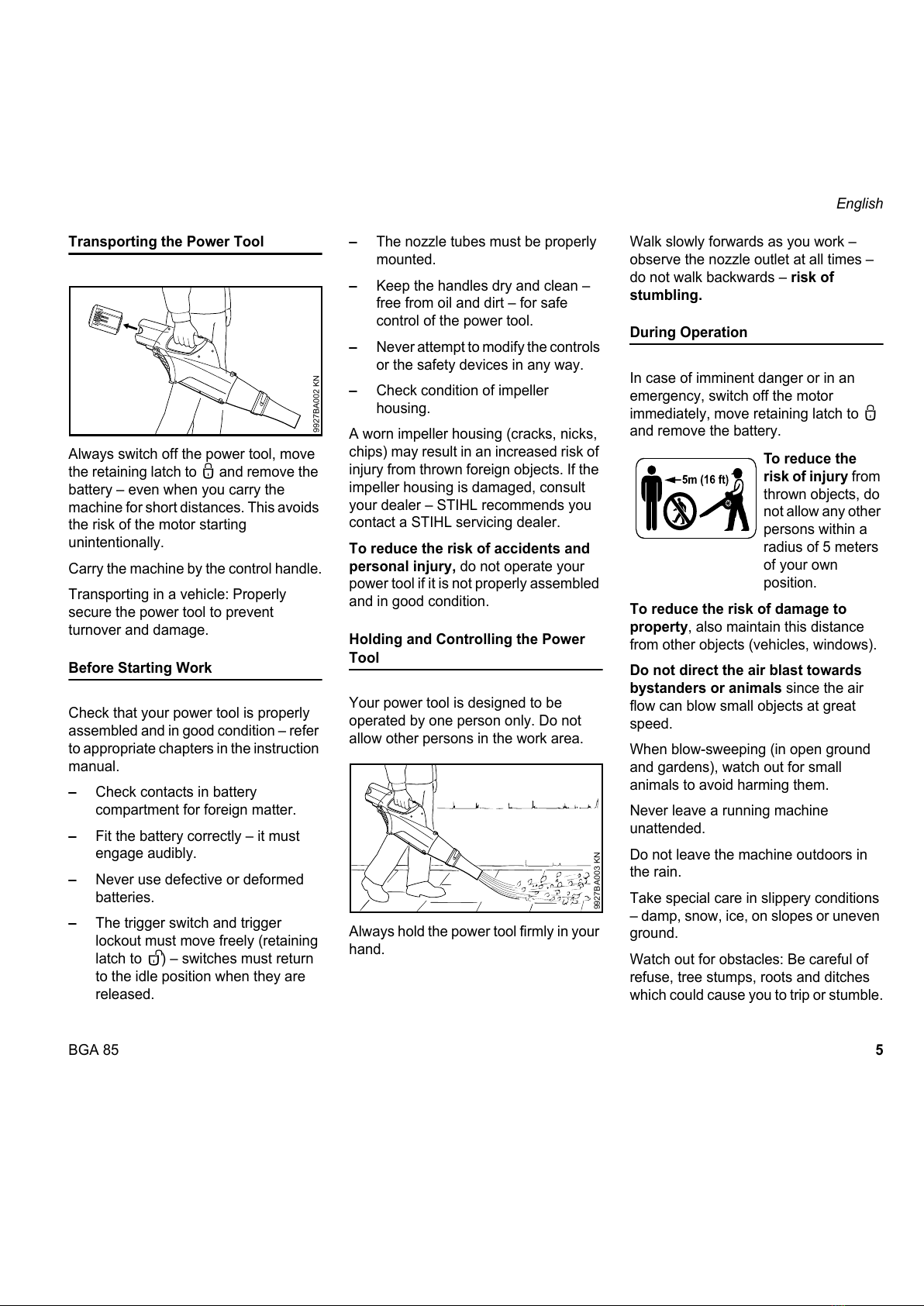

Transporting the Power Tool
Always switch off the power tool, move
the retaining latch to ƒand remove the
battery – even when you carry the
machine for short distances. This avoids
the risk of the motor starting
unintentionally.
Carry the machine by the control handle.
Transporting in a vehicle: Properly
secure the power tool to prevent
turnover and damage.
Before Starting Work
Check that your power tool is properly
assembled and in good condition – refer
to appropriate chapters in the instruction
manual.
–Check contacts in battery
compartment for foreign matter.
–Fit the battery correctly – it must
engage audibly.
–Never use defective or deformed
batteries.
–The trigger switch and trigger
lockout must move freely (retaining
latch to ‚) – switches must return
to the idle position when they are
released.
–The nozzle tubes must be properly
mounted.
–Keep the handles dry and clean –
free from oil and dirt – for safe
control of the power tool.
–Never attempt to modify the controls
or the safety devices in any way.
–Check condition of impeller
housing.
A worn impeller housing (cracks, nicks,
chips) may result in an increased risk of
injury from thrown foreign objects. If the
impeller housing is damaged, consult
your dealer – STIHL recommends you
contact a STIHL servicing dealer.
To reduce the risk of accidents and
personal injury, do not operate your
power tool if it is not properly assembled
and in good condition.
Holding and Controlling the Power
Tool
Your power tool is designed to be
operated by one person only. Do not
allow other persons in the work area.
Always hold the power tool firmly in your
hand.
Walk slowly forwards as you work –
observe the nozzle outlet at all times –
do not walk backwards – risk of
stumbling.
During Operation
In case of imminent danger or in an
emergency, switch off the motor
immediately, move retaining latch to ƒ
and remove the battery.
To reduce the risk of damage to
property, also maintain this distance
from other objects (vehicles, windows).
Do not direct the air blast towards
bystanders or animals since the air
flow can blow small objects at great
speed.
When blow-sweeping (in open ground
and gardens), watch out for small
animals to avoid harming them.
Never leave a running machine
unattended.
Do not leave the machine outdoors in
the rain.
Take special care in slippery conditions
– damp, snow, ice, on slopes or uneven
ground.
Watch out for obstacles: Be careful of
refuse, tree stumps, roots and ditches
which could cause you to trip or stumble.
9927BA002 KN
9927BA003 KN
To reduce the
risk of injury from
thrown objects, do
not allow any other
persons within a
radius of 5 meters
of your own
position.
All manuals and user guides at all-guides.com

BGA 85
English
6

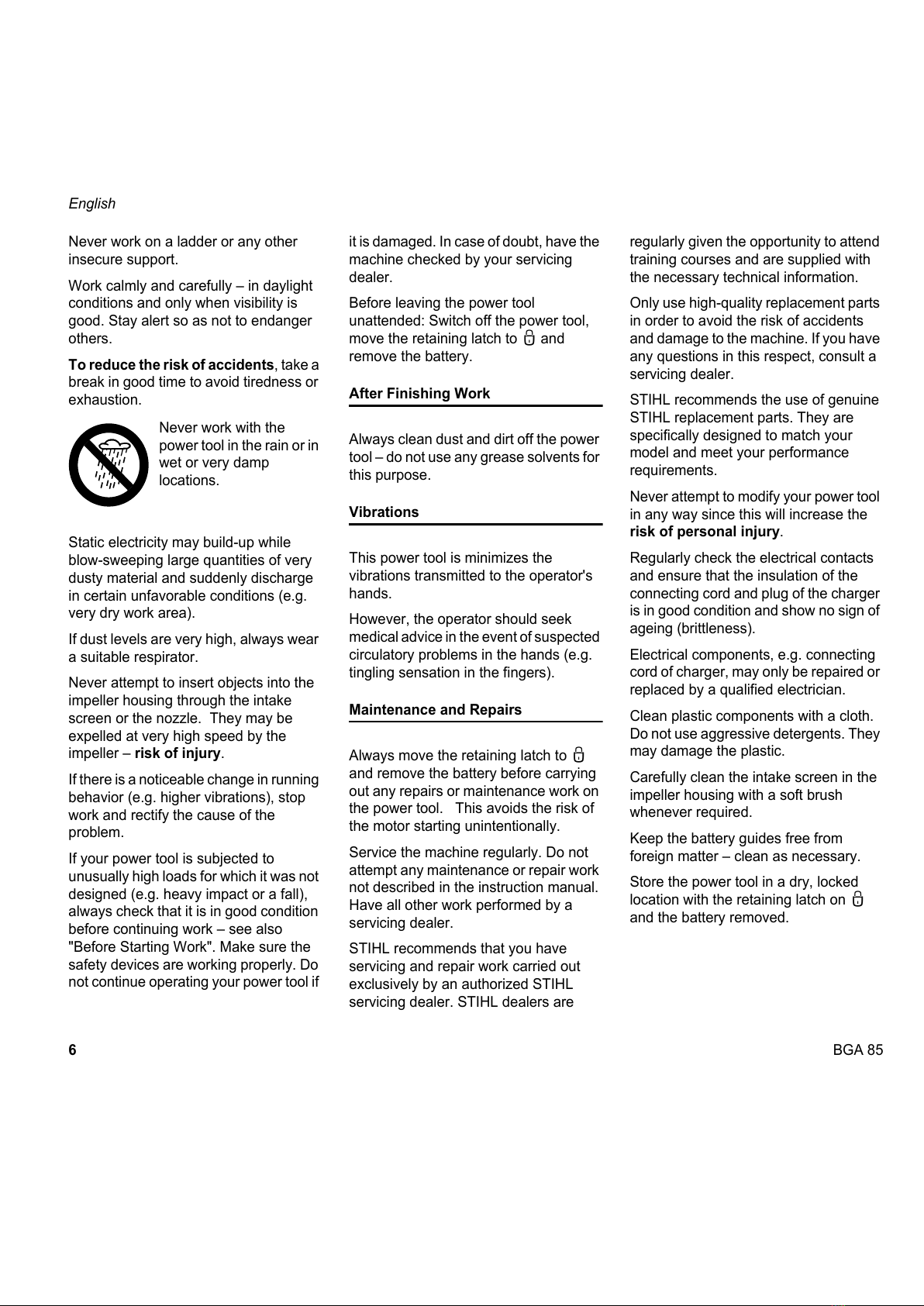

Never work on a ladder or any other
insecure support.
Work calmly and carefully – in daylight
conditions and only when visibility is
good. Stay alert so as not to endanger
others.
To reduce the risk of accidents, take a
break in good time to avoid tiredness or
exhaustion.
Static electricity may build-up while
blow-sweeping large quantities of very
dusty material and suddenly discharge
in certain unfavorable conditions (e.g.
very dry work area).
If dust levels are very high, always wear
a suitable respirator.
Never attempt to insert objects into the
impeller housing through the intake
screen or the nozzle. They may be
expelled at very high speed by the
impeller – risk of injury.
If there is a noticeable change in running
behavior (e.g. higher vibrations), stop
work and rectify the cause of the
problem.
If your power tool is subjected to
unusually high loads for which it was not
designed (e.g. heavy impact or a fall),
always check that it is in good condition
before continuing work – see also
"Before Starting Work". Make sure the
safety devices are working properly. Do
not continue operating your power tool if
it is damaged. In case of doubt, have the
machine checked by your servicing
dealer.
Before leaving the power tool
unattended: Switch off the power tool,
move the retaining latch to ƒand
remove the battery.
After Finishing Work
Always clean dust and dirt off the power
tool – do not use any grease solvents for
this purpose.
Vibrations
This power tool is minimizes the
vibrations transmitted to the operator's
hands.
However, the operator should seek
medical advice in the event of suspected
circulatory problems in the hands (e.g.
tingling sensation in the fingers).
Maintenance and Repairs
Always move the retaining latch to ƒ
and remove the battery before carrying
out any repairs or maintenance work on
the power tool. This avoids the risk of
the motor starting unintentionally.
Service the machine regularly. Do not
attempt any maintenance or repair work
not described in the instruction manual.
Have all other work performed by a
servicing dealer.
STIHL recommends that you have
servicing and repair work carried out
exclusively by an authorized STIHL
servicing dealer. STIHL dealers are
regularly given the opportunity to attend
training courses and are supplied with
the necessary technical information.
Only use high-quality replacement parts
in order to avoid the risk of accidents
and damage to the machine. If you have
any questions in this respect, consult a
servicing dealer.
STIHL recommends the use of genuine
STIHL replacement parts. They are
specifically designed to match your
model and meet your performance
requirements.
Never attempt to modify your power tool
in any way since this will increase the
risk of personal injury.
Regularly check the electrical contacts
and ensure that the insulation of the
connecting cord and plug of the charger
is in good condition and show no sign of
ageing (brittleness).
Electrical components, e.g. connecting
cord of charger, may only be repaired or
replaced by a qualified electrician.
Clean plastic components with a cloth.
Do not use aggressive detergents. They
may damage the plastic.
Carefully clean the intake screen in the
impeller housing with a soft brush
whenever required.
Keep the battery guides free from
foreign matter – clean as necessary.
Store the power tool in a dry, locked
location with the retaining latch on ƒ
and the battery removed.
Never work with the
power tool in the rain or in
wet or very damp
locations.
All manuals and user guides at all-guides.com

BGA 85
English
7
The power tool is operated with a
rechargeable battery. Use only STIHL
chargers to recharge the battery.
Data exchange
The power tool, battery and charger
communicate with each other. The
charger charges the battery and the
battery supplies the necessary power
only if data exchange functions properly.
For this reason you should operate your
power tool only with the approved STIHL
batteries and STIHL chargers.
Your blower is designed for one-handed
operation. It can be carried by the
control handle in either the right or left
hand.
Watch out for small animals when blow-
sweeping in open areas, yards and
gardens.
Nozzles
The round nozzle is particularly suitable
for use on uneven surfaces (e.g. fields
and lawns).
The fan nozzle (special accessory)
produces a broad and powerful
airstream at ground level. It can be
aimed and controlled very accurately.
This nozzle is highly effective for blow-
sweeping sawdust, leaves, grass
cuttings and similar materials from flat
surfaces.
Mounting the nozzle
NPush the nozzle (1) onto the blower
tube (2) – the lug (3) must engage
the groove (4).
NLock the nozzle (1) by rotating it in
the direction of the arrow as far as
the stop.
Remove the nozzle in the reverse
sequence.
Description of Operation Using the Unit
To reduce the risk of injury,
operate the unit only with a
properly mounted nozzle.
9927BA003 KN
4
9927BA011 KN
1
2
3
All manuals and user guides at all-guides.com

BGA 85
English
8
Mains voltage and operating voltage
must be the same.
NInsert the mains plug (1) in the wall
outlet (2).
A self test is performed after the charger
is connected to the power supply. During
this process the light emitting diode (1)
on the charger lights up green for about
1 second, then red and goes off again.
The battery is given a charge of about
30% before leaving the factory.
Recommendation: Fully charge the
battery before using your power tool for
the first time.
NConnect the charger to the power
supply – mains voltage and
operating voltage of the charger
must be the same – see
"Connecting Charger to Power
Supply".
Operate the charger indoors only in dry
locations at an ambient temperature
between +5°C and +40°C.
NPush the battery (1) into the
charger (2) until you feel noticeable
resistance – then push it as far as
stop.
The light emitting diode (3) on the
charger comes on when the battery is
inserted – see "Light Emitting Diodes
(LED) on Charger"
Charging begins as soon as the light
emitting diodes (4) on the battery light
up green – see "Light Emitting Diodes
(LED) on Battery".
The charge time is dependent on a
number of factors, including battery
condition, ambient temperature, etc.,
and may therefore vary from the charge
time in the "Specifications".
The battery becomes hot during
operation. If a hot battery is inserted in
the charger, it may be necessary to cool
it down before charging. The charging
process begins only after the battery has
cooled down. The time required for
cooling may prolong the charge time.
The battery and charger become warm
during the charging process.
AL 300 charger
This charger is equipped with a battery
cooling fan which is audible when it is
running.
Connecting Charger to
Power Supply
3901BA015 KN
2
1
1
3901BA019 KN
Charging the Battery
2
3901BA009 KN
4
3901BA014 KN
3
All manuals and user guides at all-guides.com

BGA 85
English
9
AL 100 charger
This charger waits for the battery to cool
down before starting the charging
process. The battery is cooled normally
by heat transfer to the ambient air.
End of charge
The charger switches itself off
automatically when the battery is fully
charged:
–Light emitting diodes on the battery
go off
–The light emitting diode on the
charger goes off
–The charger's fan is switched off (if
charger is so equipped)
Remove the charged battery from the
charger.
Four LEDs indicate the charge state of
the battery as well as any problems that
occur with the battery or the machine.
NPress button (1) to activate the
display – display switches off
automatically after 5 seconds
The LEDs can be green, red or flashing.
During charging
The LEDs indicate the progress of
charging by lighting up continuously or
flashing.
During charging, the current charging
capacity is indicated by a flashing green
LED.
When the charging process is
completed, the LEDs on the battery
switch off automatically.
If the LEDs on the battery are
continuously red or flash red – see "If the
red LEDs are continuously red / flash".
Light Emitting Diodes
(LED) on Battery
LED is continuously green.
LED flashes green.
LED is continuously red.
LED flashes red.
1
3901BA010 KN
3901BA016 KN
80 - 100 %
60 - 80 %
40 - 60 %
20 - 40 %
0 - 20 %
All manuals and user guides at all-guides.com
all-guides.com

BGA 85
English
10
During work
The green LEDs indicate the charge
state by lighting up continuously or
flashing.
If the LEDs on the battery are
continuously red or flash red – see "If the
red LEDs are continuously red / flash".
If the red LEDs are continuously red /
flash
3901BA016 KN
80 - 100 %
60 - 80 %
40 - 60 %
20 - 40 %
0 - 20 %
1 LED is continu-
ously red:
Battery is too hot
1) 2)/cold 1)
1) During charging: The charging
process starts automatically after
the battery has cooled down /
warmed up.
2) During work: Machine switches off
automatically – let the battery cool
off for a while, it may help to remove
the battery from the machine for
this.
4 LEDs flash red: Fault in battery 3)
3 LEDs are contin-
uously red:
Machine is too hot
– allow it to cool off
3 LEDs flash red: Fault in machine 4)
3901BA017 KN
3) Remove battery from the machine
and reinsert it. Turn on the machine
– if the LEDs still flash, the battery is
faulty and must be replaced.
4) Remove battery from the machine
and reinsert it. Turn on the machine
– if the LEDs still flash, the machine
is faulty and must be checked by a
servicing dealer – STIHL
recommends STIHL servicing
dealers.
All manuals and user guides at all-guides.com

BGA 85
English
11
The light emitting diode lights up green
or flashes red.
Green continuous light ...
... means the following:
The battery
–is being charged
–is too hot and must cool down
before it is charged
See also "Light Emitting Diodes (LED)
on Battery".
The green light emitting diode on the
charger goes off as soon as the battery
is fully charged.
Red flashing light ...
... means the following:
–No electrical contact between
battery and charger – remove and
refit the battery
–Faulty battery – see also "Light
Emitting Diodes (LED) on Battery".
–Charger faulty – have checked by a
servicing dealer. STIHL
recommends a STIHL servicing
dealer.
The battery is given a charge of about
30% before leaving the factory.
Recommendation: Fully charge the
battery before using your power tool for
the first time.
NIf necessary, remove the cover from
the battery compartment before
fitting the battery, i.e. depress both
locking tabs to unlock and remove
the cover.
Fitting the battery
NInsert the battery (1) in the power
tool – the battery slides into the
compartment – press it down
carefully until it snaps into position –
the battery must be flush with the
top of the housing.
Switching On
NMake sure you have a secure and
balanced footing.
NStand upright – hold the power tool
in a relaxed position.
Light Emitting Diodes
(LED) on Charger
1
3901BA019 KN
Switching On
1
3905BA011 KN
All manuals and user guides at all-guides.com

BGA 85
English
12
NUnlock the power tool by moving the
retaining latch (2) to ‚.
NPush down the trigger switch
lockout (3) and depress the trigger
switch (4) and hold them in that
position.
The motor runs only if the retaining
latch (2) is on
‚and the trigger switch
lockout (3) and trigger switch (4) are
operated simultaneously.
Trigger switch
Motor speed can be controlled with the
trigger switch. Depress the trigger switch
to accelerate the motor.
NRelease the trigger switch
lockout (1) and the trigger
switch (2).
NMove the retaining latch (3) to ƒ–
the trigger switch (2) cannot be
operated – the power tool is locked
to prevent start-up.
Always remove the battery from the
power tool during work breaks and after
finishing work.
2
9927BA004 KN
4
3
2
9927BA005 KN
9927BA012 KN
Switching Off
2
1
9927BA006 KN
3
9927BA007 KN
2
All manuals and user guides at all-guides.com

BGA 85
English
13
Remove the battery.
NPress in both locking tabs (4) at the
same time to unlock the battery (5).
NTake the battery (5) out of the
housing.
When the power tool is not in use, shut it
off so that it does not endanger others.
Secure it against unauthorized use.
NMove the retaining latch to ƒ.
NRemove the battery.
NThoroughly clean the machine.
NStore the machine in a dry, high or
locked location – out of the reach of
children and other unauthorized
persons.
Cover for battery compartment
In some markets the machine comes
with a cover for the battery
compartment. It protects the battery
compartment from contamination.
NAfter finishing work, slide the
cover (1) home until it engages
audibly in position.
Storing the battery
NTake the battery out of the power
tool or the charger.
NStore in a dry, locked location. Keep
it out of the reach of children and
other unauthorized persons and
protected from contamination.
NDo not store spare batteries unused
– use in rotation.
To ensure maximum battery life:
NStore at a temperature between
+ 10°C and + 20°C.
NStore with a charge of about 30%.
Storing the charger
NRemove the battery.
NDisconnect the plug from the wall
outlet.
NStore the charger in a dry, locked
location. Keep it out of the reach of
children and other unauthorized
persons and protected from
contamination.
4
4
3905BA016 KN
Storing the Machine
3905BA027 KN
1
All manuals and user guides at all-guides.com

BGA 85
English
14
NInspect the intake screen for
damage before and after each use –
have a damaged intake screen
replaced by your servicing dealer1).
NCarefully clean a dirty intake screen
with a soft brush whenever
required.
Inspection and
Maintenance by User
1) STIHL recommends a STIHL
servicing dealer.
9927BA010 KN
All manuals and user guides at all-guides.com
all-guides.com

BGA 85
English
15
Maintenance and Care
The following intervals apply to normal operating conditions only. If your daily work-
ing time is longer or operating conditions are difficult (very dusty work area, etc.),
shorten the specified intervals accordingly.
Move the retaining latch to ƒbefore performing any work on the power tool.
before starting work after finishing work or daily weekly monthly every 12 months if problem if damaged if required
Complete machine Visual inspection (condition) X
Clean X
Controls (retaining latch, trigger switch
lockout, trigger switch)
Check operation X
Clean XX
Intake screen
Visual inspection (condition) XX
Clean X
Have replaced by dealer1) X
All accessible screws and nuts Retighten X
Battery Visual inspection XXX
Battery compartment Clean XX
Check operation (eject battery) X
Safety labels Replace X
1) STIHL recommends a STIHL servicing dealer.
All manuals and user guides at all-guides.com

BGA 85
English
16
1Battery Compartment
2Control Handle
3Trigger Switch Lockout
4Trigger Switch
5Retaining Latch
6Blower Tube
7Nozzle
8Intake Screen
9Battery Locking Tabs
10 Battery
11 Light Emitting Diodes (LEDs) on
Battery
12 Push Button
13 Charger
14 Light Emiting Diode (LED) on
Charger
15 Power Supply Cord
#Serial Number
Main Parts
8
4
2
35
15
14
13
9927BA008 KN
1
6
10
11
12 9
9
7
#
All manuals and user guides at all-guides.com

BGA 85
English
17
Definitions
1. Battery Compartment
Accommodates the battery in the
unit.
2. Control Handle
The handle of the blower held by the
operator´s hand.
3. Trigger Switch Lockout
Must be depressed before the
trigger switch can be activated.
4. Trigger Switch
Switches the motor on and off and
controls the speed of the motor.
5. Retaining Latch
Locks or unlocks the trigger switch.
6. Blower Tube
Directs airstream.
7. Nozzle
Mounted on blower tube, directs
airstream.
8. Intake Screen
Fits over the intake opening and
reduces the risk of direct contact
with the axial fan, which is located
under the screen.
9. Battery Locking Tabs
Secure the battery in the unit.
10. Battery
Supplies the motor with electrical
power.
11. Light Emitting Diodes (LEDs) on
Battery
Indicate the state of charge and
operating condition of the battery.
12. Push Button
For activating light emitting diodes
(LED) on battery.
13. Charger
Charges the battery.
14. Light Emitting Diode (LED) on
Charger
Indicates charger operating mode
and certain problems.
15. Power Supply Cord
Supplies electric current to charger.
Battery
The power tool can be operated with
STIHL type AP batteries.
Power tool running time depends on the
stored energy of the battery (e.g. 80 Wh
with AP 80 or 160 Wh with AP 160).
Charger
Specifications
Type: Lithium-ion
AL 100
Mains voltage: 120 V
Rated current: 1.3 A
Frequency: 60 Hz
Power consumption: 75 W
Charging current: 1.6 A
Insulation: II, E(double
insulated)
AL 300
Mains voltage: 120 V
Rated current: 4.7 A
Frequency: 60 Hz
Power consumption: 330 W
Charging current: 6.5 A
Insulation: II, E(double
insulated)
All manuals and user guides at all-guides.com

BGA 85
English
18
Charging Times
Maximum air flow rate
Air velocity
Dimensions
Weight
Transport
STIHL batteries fulfill the requirements
stated in UN-Manual
ST/SG/AC.10/11/Rev.5 Part III,
Subsection 38.3.
The user can transport STIHL batteries
by road transport to the place where the
machine is to be used without additional
requirements.
Observe national regulations for air or
sea transport.
Other Special Accessories
–STIHL battery
–STIHL charger
–STIHL battery belt
–Curved fan nozzle
–Cover for battery compartment
Contact your STIHL dealer for more
information on these and other special
accessories.
AL 100
with AP 80:
– up to 80% capacity: 70 min
– up to 100% capacity: 100 min
with AP 160:
– up to 80% capacity: 150 min
– up to 100% capacity: 165 min
AL 300
with AP 80:
– up to 80% capacity: 25 min
– up to 100% capacity: 50 min
with AP 160:
– up to 80% capacity: 35 min
– up to 100% capacity: 60 min
with round nozzle 650 m3/h
with fan nozzle 715 m3/h
without nozzle 845 m3/h
with round nozzle 46 m/s
with fan nozzle 45 m/s
Length 987 mm
Height 285 mm
Depth 167 mm
without battery 3.2 kg
Special Accessories
All manuals and user guides at all-guides.com
