STILLA S3071 User manual

STILLA
ASSEMBLY INSTRUCTIONS
‘Chatswood’8x16
S3071
Every part needed to construct your shed is included inside the pack; cedar
panels, doors, windows, hardware kits & roof sheeting. Please ensure you fully
unpack all the parts & check against the parts checklist before contacting
customer service about anything you believe may be missing. Thank-you!

1 | P a g e
Caution
Please be careful when handling all components, some parts have sharp metal edges.
Always wear work gloves, eye protection and long sleeves when assembling or maintaining
your shed.
Tools required for assembly
•Level
•Drill
•Hammer
•Ladder
•Power saw (circular)
•Phillips head drive
•Hex Head Drive (5/16’)
•Safety glasses
•Gloves
•Tape Measure
Before assembly
•Before proceeding with installation, we recommend viewing the Cedar Shed video at
www.stilla.com.au/installation/ or search Stilla Classic Cedar Sheds on Youtube. This doesn’t
show the installation in detail however it could give you some handy tips. Please note we
haven’t videoed the assembly of each shed however the video online is the Maple 12x6 and
will give you an overall idea on how the installation process is completed.
•Remove all parts from packages and place in a safe place close to assembly area.
•Check all parts on assembly parts list are included, prior to commencing assembly.
•Review all instructions; continue to refer to instructions throughout assembly –step
by step.
Preparing your site
•If you are installing your shed on the Stilla rebated floor we recommend finding a
place in your yard that is very close to level. Pavers or a solid material that will not be
affected by weather can be used to perfectly level the shed by placing under the
floor frame where required, make sure all members are supported.
•If you are installing your shed on the Stilla heavy duty floor, this can be placed on
unlevelled surfaces and levelled up by using the 100x100 stumps provided.

2 | P a g e
CHATSWOOD 8x16 PARTS CHECKLIST
Part Code
Checked
Part Description
Qty
12P
Cedar Clad Panel 1200x1895mm
3
WP
Cedar Clad Window Panel 1200x1895mm
1
9P
Cedar Clad Panel 900x1895mm
8
FP
Cedar Clad Panel 780x1895mm (480x1895 if Double Doors)
2
CD
Colonial Door 830x1875mm (714x1875 if double doors)
1
G
8ft Gable (2 x LHS, 2 x RHS)
4
CP
Corner Post 1890x60x18mm
4
CS
Cover Strip 1890x40x7mm
9
F
8ft Fascia Pack (4)
1
CT
Collar Tie
2
R
Roof Rafter 1195x70x45mm
8
DH
Door Head 840x35x42mm (1440mm if Double Doors)
1
DS
Door Stop 840x42x18mm (1440mm if Double Doors)
1
E
Roof End Piece 203x70x30mm
12
FGS
Front Gable Cover Strip –460mm
1
BGS
Back Gable Cover Strip –490mm
1
SCS
Stilla Cover Strip 2400x47x7mm (1@1800mm, 1@ 600mm)
1 & 1
RS
1450mm Roof Sheeting
14
RC
1800mm Ridge Cap
3
C
1707mm Channel
6
HK
8x16 Hardware Kit
1
IM
8x16 Instruction Manual
1
REP
Roof End Plate 2357x70x45mm
8
JP
Joining Plate 1512x70x45mm
4
Floor Kit –Option
Floor Frame –140x38
Part Code
Checked
Part Description
Qty
EP
Floor End Plate 1242x140x38mm
12
SJ
Floor Single Joist 1524x140x38mm
18
DJ
Floor Double Joist 1524x140x38mm
6
FN
Floor Nog 376mm
12
L
Logs 750mm
12
FB
Floorboard 1797mm x 800mm
5
FB
Floorboard 597mm x 800mm
5
FB
Floorboard 1797mm x 711mm
1
FB
Floorboard 597mm x 711mm
1

3 | P a g e
Double Doors –Option
Part Code
Checked
Part Description
Qty
CD
Colonial Door 714x1875mm
2
FP
Cedar Clad Panel 480x1895mm
2
DP
Door Leaver Packer 100x100x18mm
1
DS
Door stop 1440x42x19mm
1
DH
Door head 1440x42x35mm
1
Annex Kit –Option (add screws)
5120mm x 1450mm
Part Code
Checked
Part Description
Qty
VBJ
Veranda Beam Joiner 700x70x45mm
1
VOBJ
Veranda Outer Beam Joiner 700x140x35mm
1
VB
Veranda Beam 2560x70x45mm
2
VOB
Veranda Outer Beam 2560x140x35mm
2
VR
Veranda Rafter 1320x70x45mm
6
VF
Veranda fascia 1350x75x20 block cedar
2
VRS
1450mm Veranda Roof Sheet
7
VP
Veranda Posts 2400x90x90mm
4

4 | P a g e
If no floor option was purchased, go to step 2.0 (Wall Assembly)
SKIP TO BACK FOR IMAGES TO HELP WITH FLOOR INSTALL
STEP 1.0
FLOOR KIT
1.0 –FLOOR KIT (1 of 6 floor frames)
PART CODE
QTY
DESCRIPTION
EP
2
Floor End Plate 1242mm
SJ
3
Floor Single Joist 1524mm
DJ
1
Double Joist 1524mm
100BS
18
100mm Batten screw
1.0 –FLOOR FRAME (1 of 6 floor frames)
Fasten floor frame together as indicated in diagram below, using lines and predrilled
holes. Screw through EP into DJ using 3x 100BS.
Screw through EP into SJ using 2 x 100BS per join.
Ensure frame is square by measuring from corner to corner diagonally, frame will be
square when both diagonal measurements equal the same.
REPEAT THIS PROCESS FOR FASTENING 5 MORE FLOOR FRAMES.
ENSURE 42x35 side of the DJ sits at top.

5 | P a g e
STEP 1.1
FLOOR FRAME INSTALLATION
The 8x16 floor frame comes in six parts. Install first floor frame in desired position at desired
height and fasten to logs once level and square, then join and fasten next frame until all six
are joined and secured to logs.
1.1 –FLOOR FRAME INSTALLATION
PART CODE
QTY
DESCRIPTION
L
12
Logs 750x100x100mm
100BS
48
100mm batten screws
65BS
42
65mm Batten Screws
200PB
12
200mm M12 Post Bolt
W
24
M12 Washers

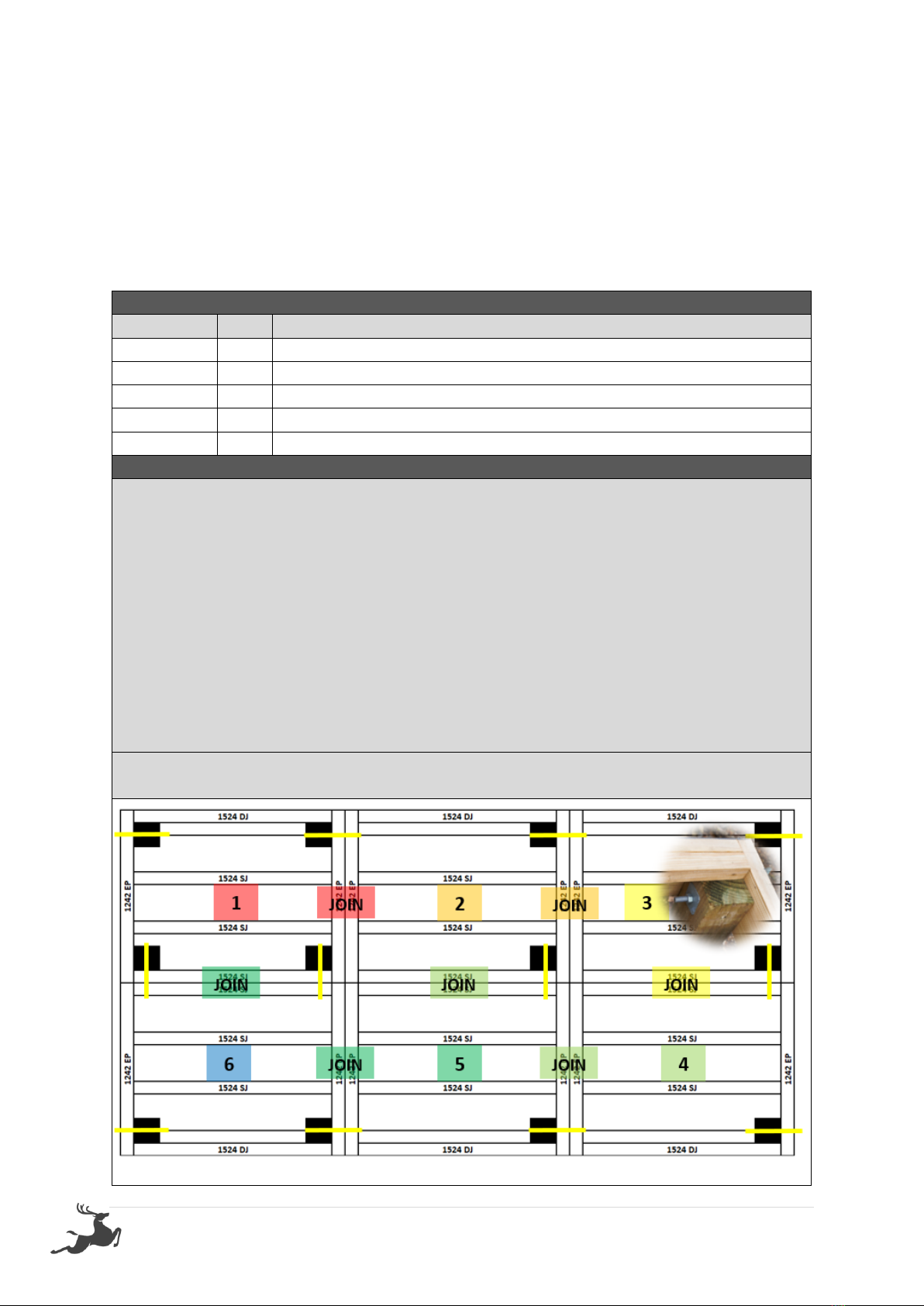

1.1 –FLOOR FRAME INSTALLATION
Repeat the steps below for each floor frame, joining the floor frames together as you go
in order displayed in diagram below.
1. Lay out frame in desired position and mark holes to dig, as indicated on diagram
below (use shovel or marking paint).
2. Dig and place logs in holes (using concrete if you wish).
3. Fasten floor frame to logs at desired height, using 4x 100BS per log, ensuring
frame is level*.
4. Butt next floor frame into last installed frame and join using 6x 65BS evenly spaced
along EP or SJ.
5. Repeat process until all frames are joined.
* Fasten frame to logs when roughly level and then critique by hammering in or adding
dirt (or concrete) to corners until perfectly level at every post.
Once all frames are joined, predrill holes (using a 13mm drill bit) and bolt each log to the
floor frame in spots indicated with 200PB, using washers on both sides.

6 | P a g e
STEP 1.2
FLOOR NOG INSTALLATION
1.2 –FLOOR NOG INSTALLATION
PART CODE
QTY
DESCRIPTION
FN
12
Floor Nog 376x42x35mm
65HHS
24
65mm Hex Head Screws
1.2 –FLOOR NOG INSTALLATION
Mark out measurements shown below (centre of nog). Fasten Floor Nogs (FN) in positions
shown in diagram below using 1x 65HHS per join.

7 | P a g e
STEP 1.3
FLOOR INSTALLATION
1.3 –FLOORING INSTALLATION
PART CODE
QTY
DESCRIPTION
FB
5
Floor Board 1798x800mm
FB
5
Floor Board 598x800mm
FB
1
Floor Board 1798x711mm
FB
1
Floor Board 598x711mm
50PS
150
50mm Philips Screw
1.3 –FLOORING INSTALLATION
Fasten floor sheets to floor frame as shown in diagram below using 50PS.
Bring Floor sheets in 43mm on all 4 sides from the outside of the floor frame.
Note- The x marked on the floor sheets do not line up with out joists.

8 | P a g e
STEP 2.0
WALL ASSEMBLY-
WALL PANEL (WP) (1200MM WINDOW PANEL) CAN BE POSITIONED ANYWHERE ON THE
SHED WHERE WE HAVE USED A (P) (1200MM WALL PANEL).
2.0 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
FP
1
Front wall panel
9P
1
900mm Wall panel
65HHS
3
65mm Hex head screw
2.0 - ASSEMBLY –WALL ASSEMBLY

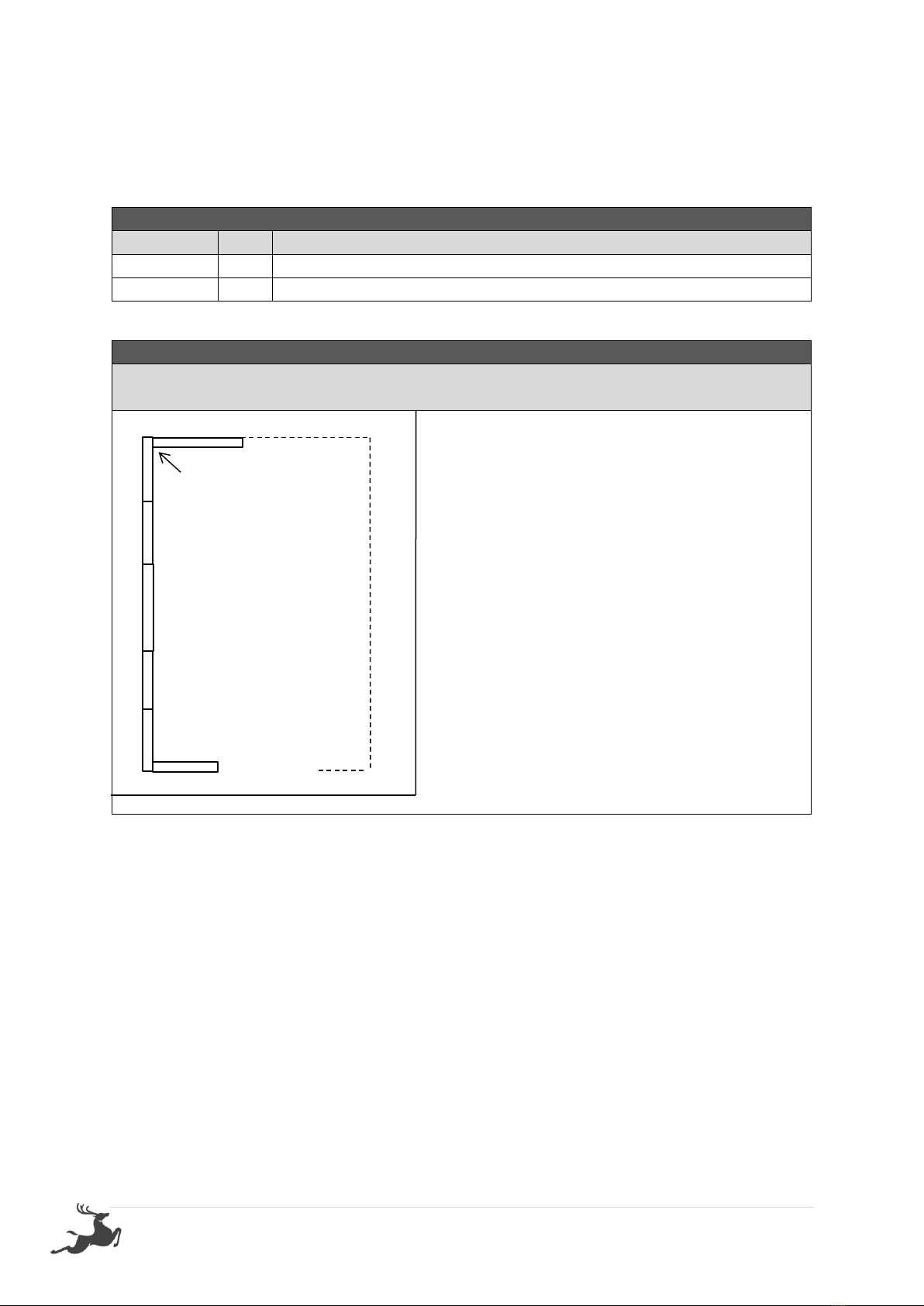

Screw through FP into 9P (top, centre & bottom) using 3 x 65HHS. (Holding studs flush on
the outside). Ensure Cedar Strip is on door side. Note: Ensure tongue on cedar cladding is
at top.
P
FP
Cedar Strip
Screw 3 x 65HHS (Top,
centre & bottom)

9 | P a g e
STEP 2.1
WALL ASSEMBLY
2.1 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
9P
1
900mm Wall panel
65HHS
3
65mm Hex head screw
2.1 - ASSEMBLY PARTS –WALL ASSEMBLY

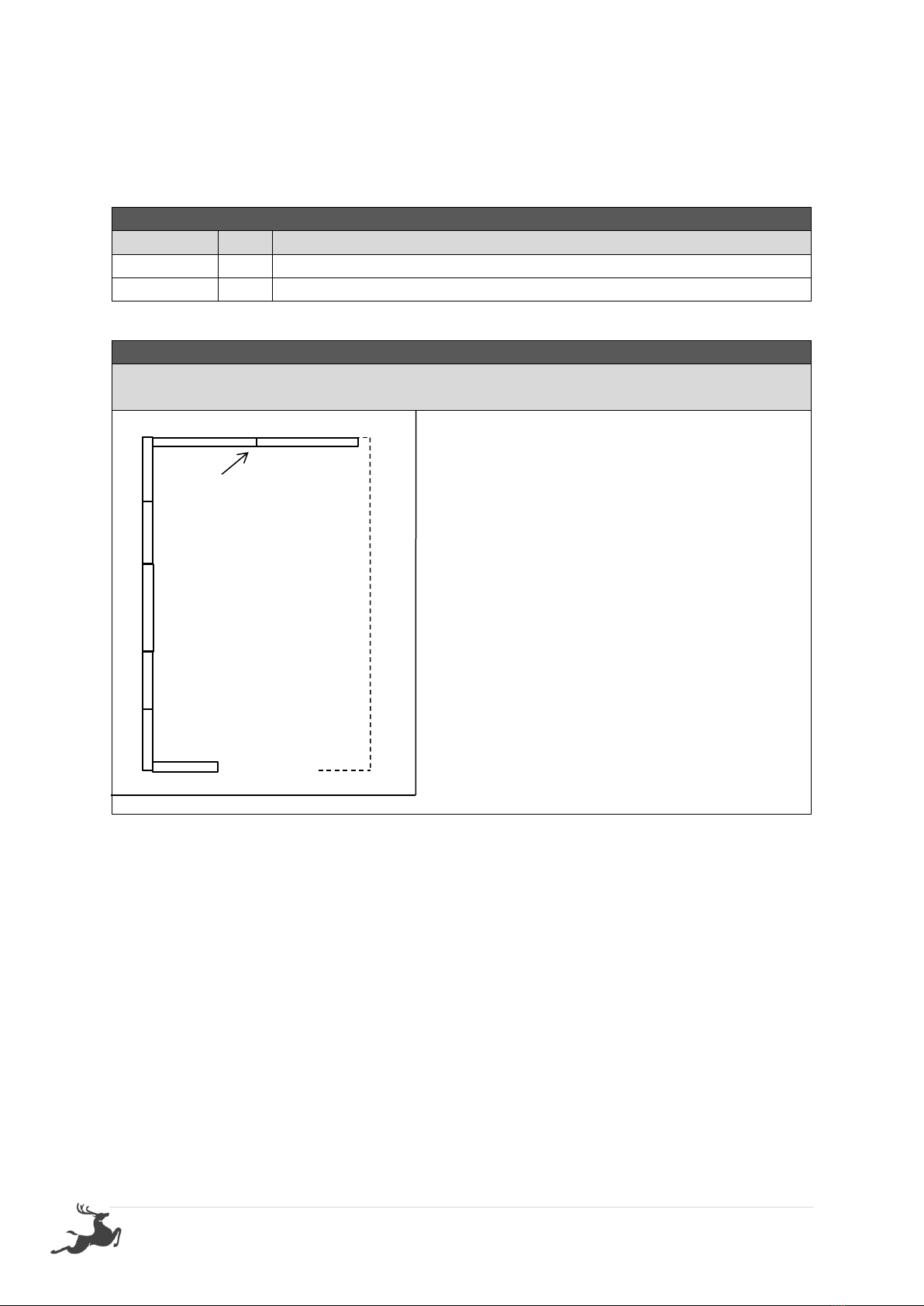

Screw through 9P into 9P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on
the inside.
P
Screw 3 x 65HHS (Top,
centre & bottom)
P

10 | P a g e
STEP 2.2
WALL ASSEMBLY
2.2 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
12P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw
2.2 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through 9P into 12P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on
the inside.
P
Screw 3 x 65HHS (Top,
centre & bottom)
P

11 | P a g e
STEP 2.3
WALL ASSEMBLY
2.3 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
9P
2
900mm Wall panel
65HHS
6
65mm Hex head screw
2.3 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through 12P into 9P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on
the inside –Repeat again for final panel on side wall
P
Screw 3 x 65HHS (Top,
centre & bottom)
P

12 | P a g e
STEP 2.4
WALL ASSEMBLY
2.4 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
12P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw
2.4 - ASSEMBLY PARTS –WALL ASSEMBLY

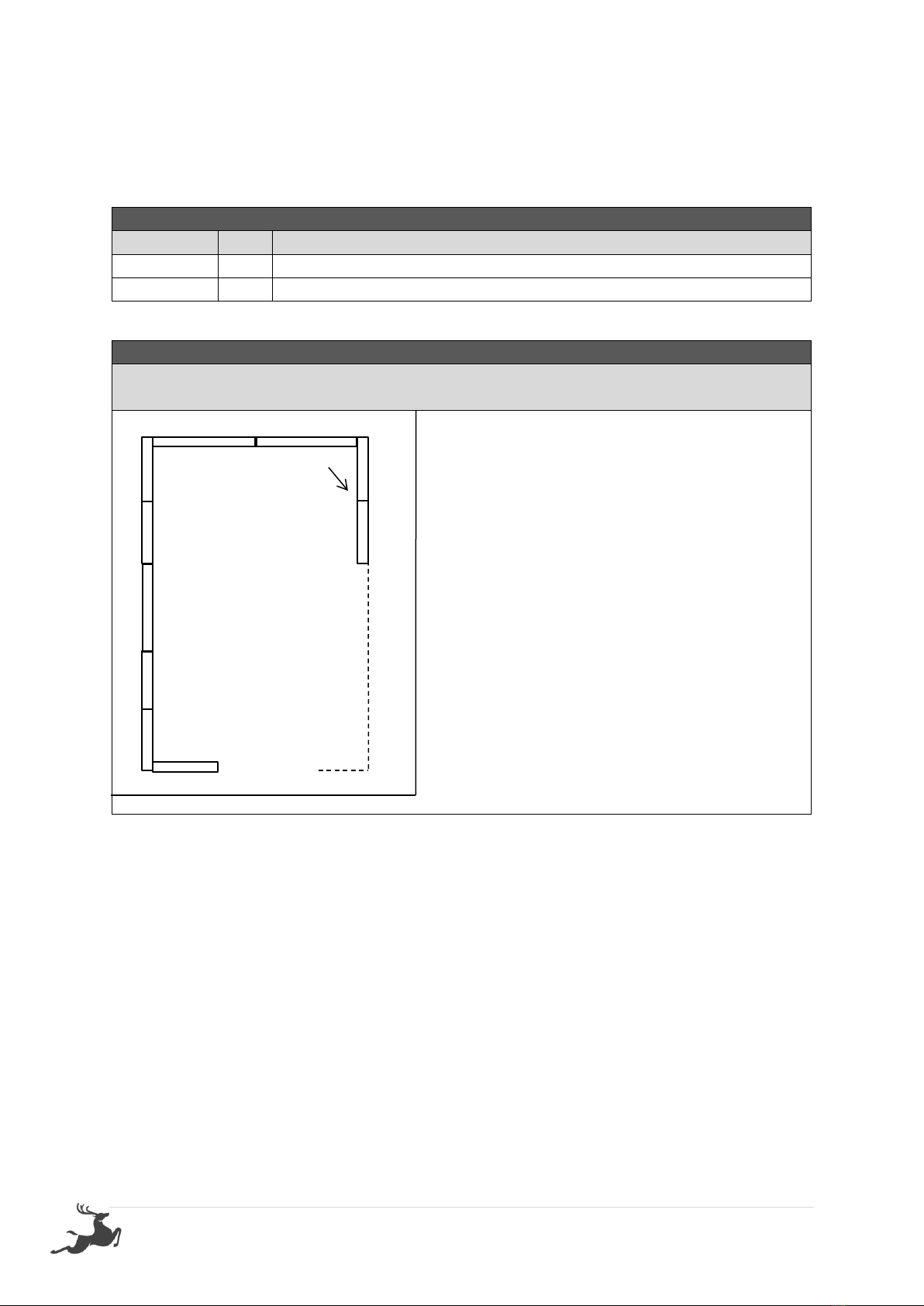

Screw through 12P into 9P (top, centre & bottom) using 3 x 65HHS holding studs flush on
the outside.
P
Screw 3 x 65HHS (Top,
centre & bottom)
P

13 | P a g e
STEP 2.5
WALL ASSEMBLY
2.5 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
12P
1
1200mm Wall panel
65HHS
3
65mm Hex head screw
2.5 - ASSEMBLY PARTS –WALL ASSEMBLY

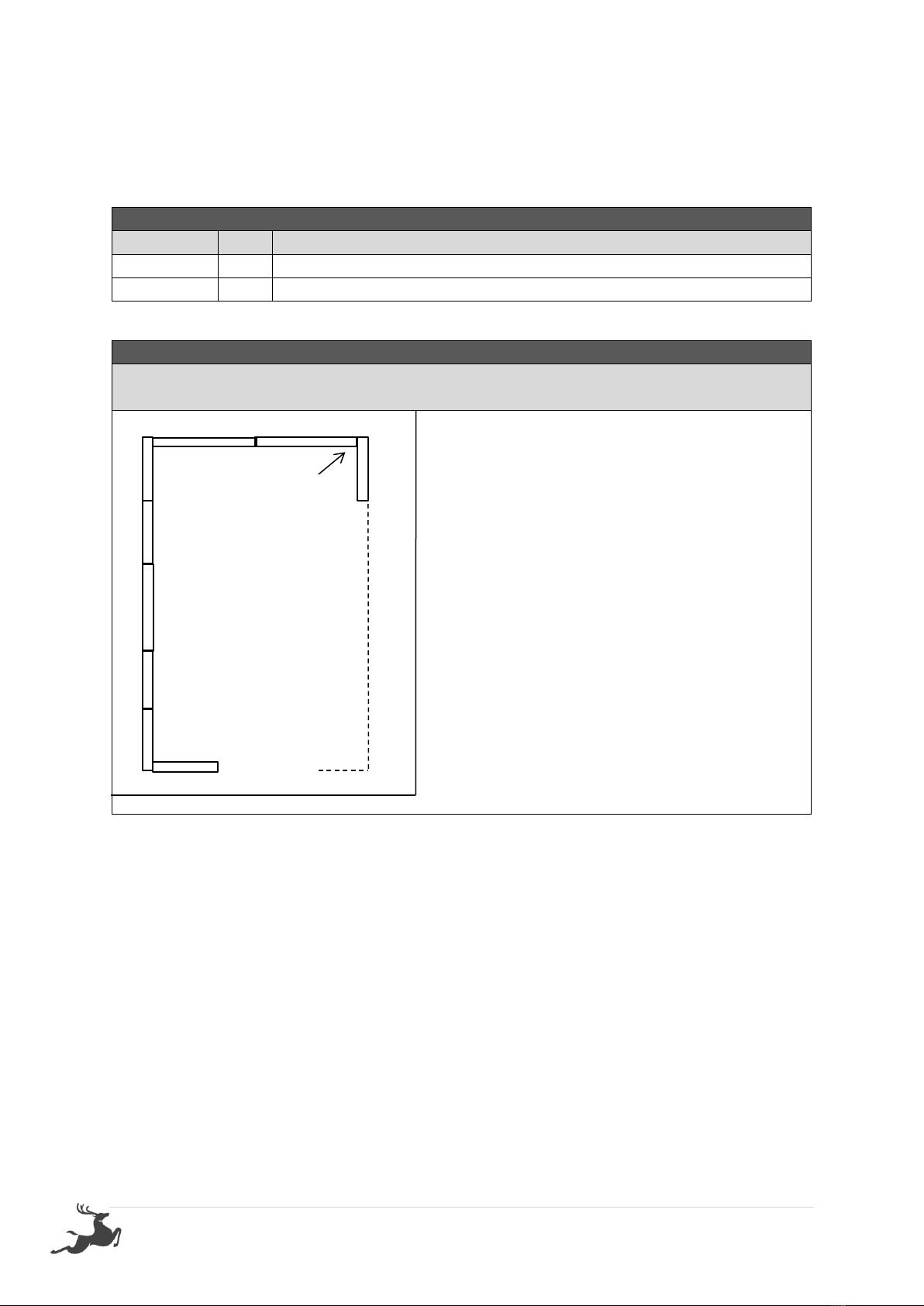

Screw through 12P into 12P (top, centre & bottom) using 3 x 65HHS holding studs flush on
the inside.
Screw 3 x 65HHS (Top,
centre & bottom)
P
P

14 | P a g e
STEP 2.6
WALL ASSEMBLY
2.6 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
9P
1
900mm Wall panel
65HHS
3
65mm Hex head screw
2.6 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through 12P into 9P (top, centre & bottom) using 3 x 65HHS holding studs flush on
the outside.
Screw 3 x 65HHS (Top,
centre & bottom)

15 | P a g e
STEP 2.7
WALL ASSEMBLY
2.7 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
9P
1
900mm Wall panel
65HHS
3
65mm Hex head screw
2.7 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through 9P into 9P (top, centre & bottom) using 3 x 65HHS holding studs flush on
the inside.
Screw 3 x 65HHS (Top,
centre & bottom)

16 | P a g e
STEP 2.8
WALL ASSEMBLY
THE WINDOW PANEL (WP –1200MM WINDOW PANEL) CAN BE POSITIONED ANYWHERE ON
THE SHED WHERE WE HAVE USED A P (1200MM WALL PANEL)
2.8 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
WP
1
1200mm Window wall panel
65HHS
3
65mm Hex head screw
2.8 - ASSEMBLY –WALL ASSEMBLY

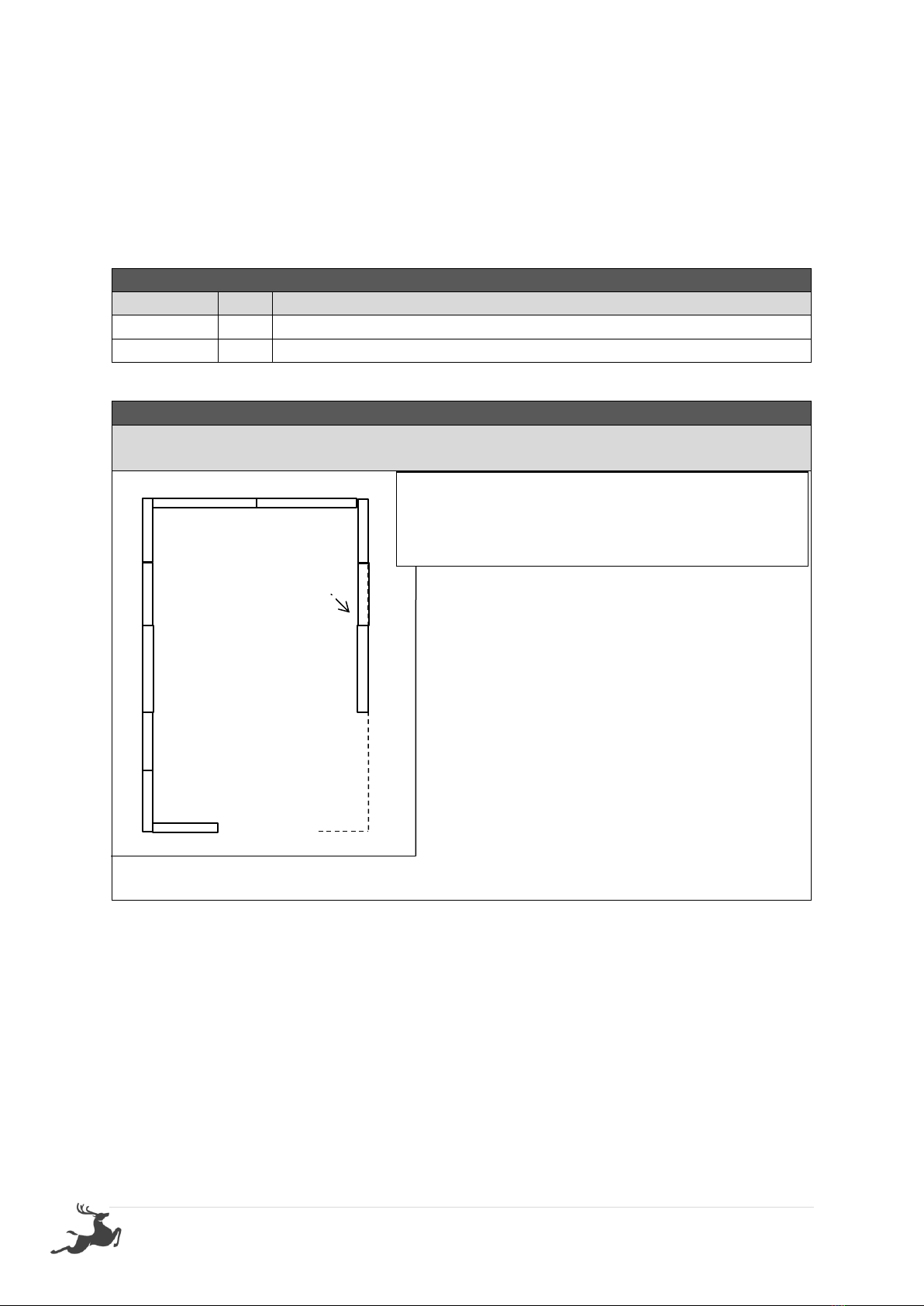

Screw through 9P into WP (top, centre & bottom) using 3 x 65HHS. (Holding studs flush on
the inside).
Screw 3 x 65HHS (Top,
centre & bottom)

17 | P a g e
STEP 2.9
WALL ASSEMBLY
2.9 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
9P
2
900mm Wall panel
65HHS
3
65mm Hex head screw
2.9 - ASSEMBLY PARTS –WALL ASSEMBLY

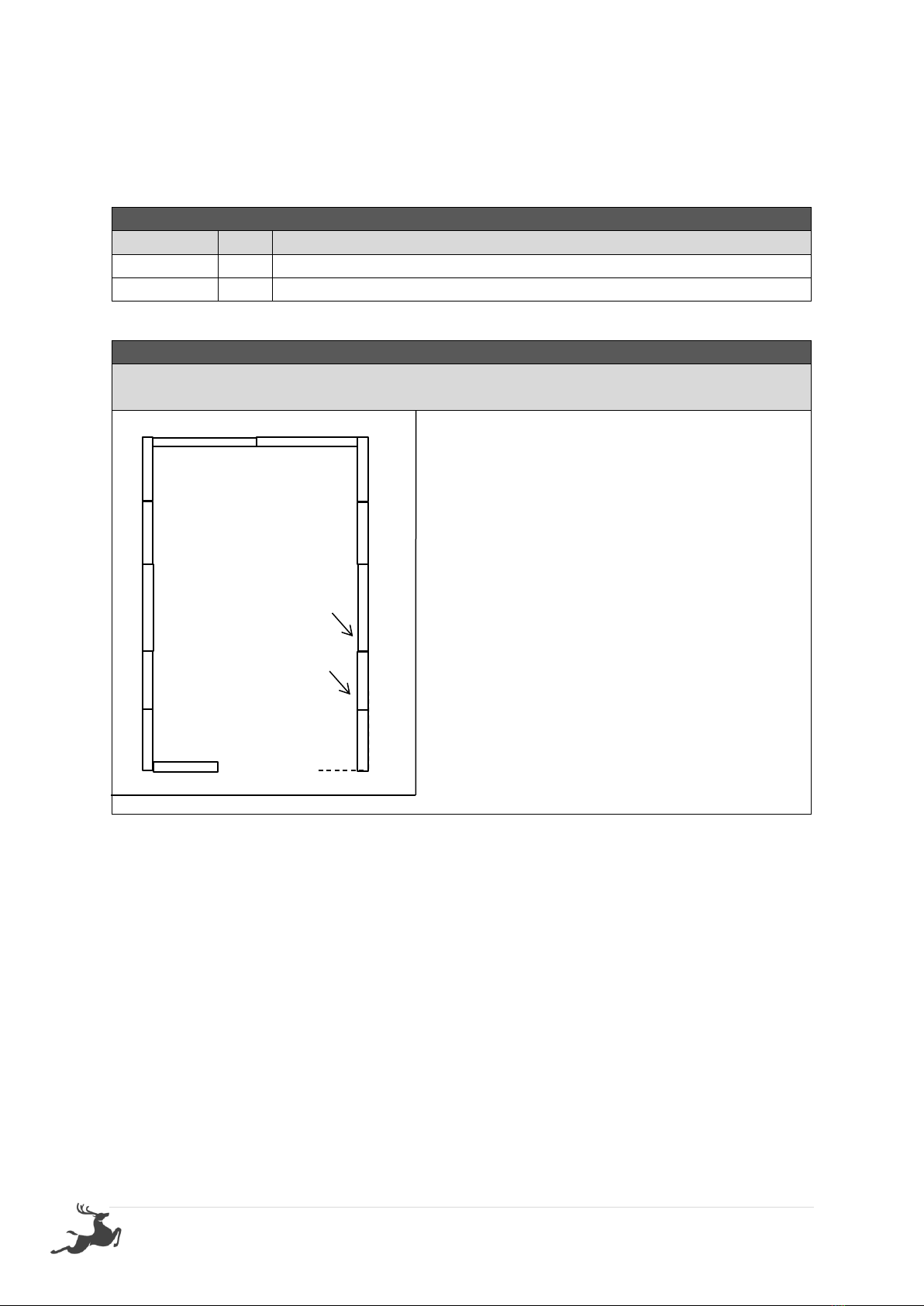

Screw through WP into 9P (top, centre & bottom) using 3 x 65HHS holding studs flush on
the inside.Repeat again for final panel on side wall
Screw 3 x 65HHS (Top,
centre & bottom)

18 | P a g e

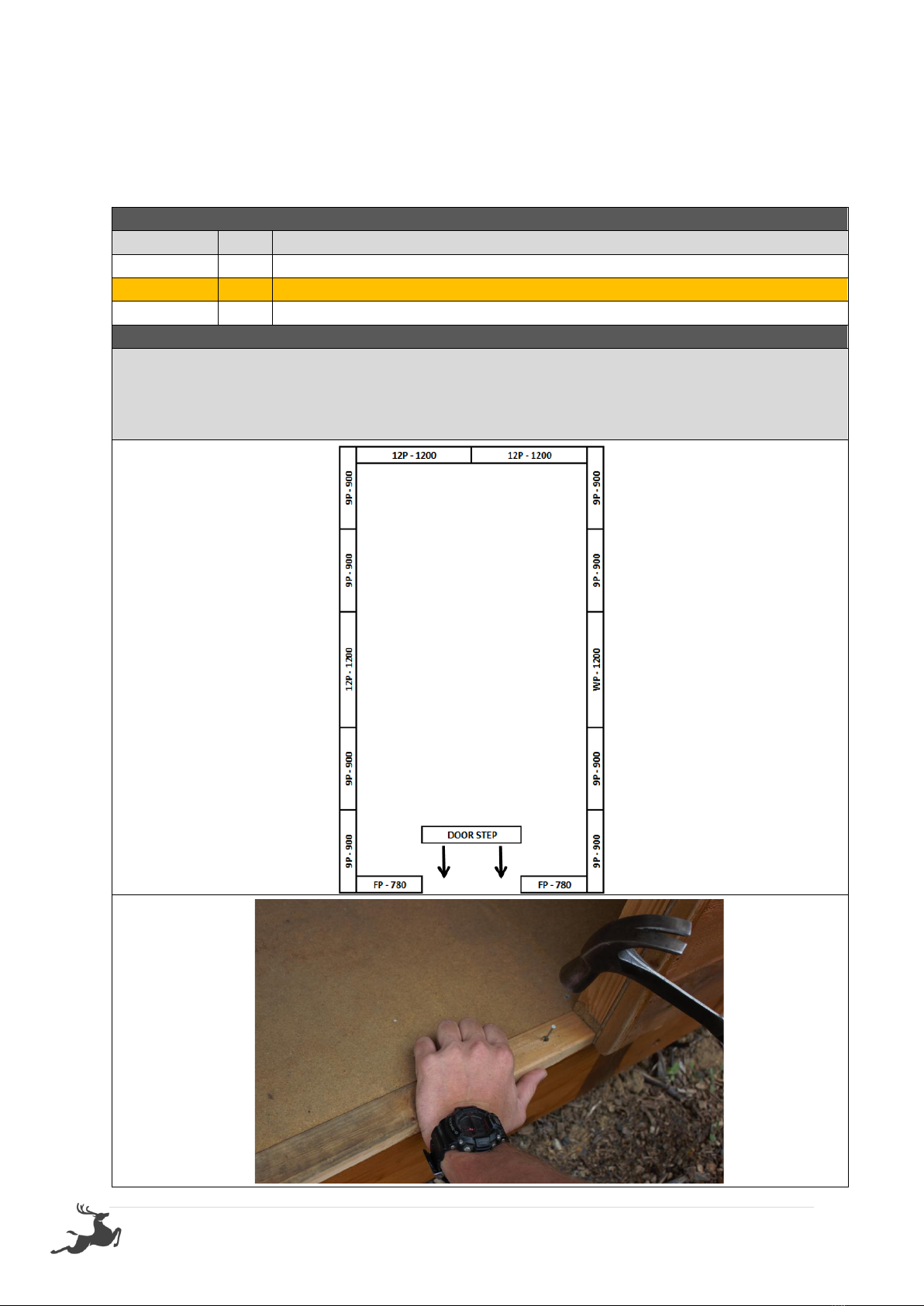

STEP 3.0
WALL ASSEMBLY
3.0 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
FP
1
Front wall panel
65HHS
3
65mm Hex head screw
3.0 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through FP into 9P (top, centre & bottom) using 3 x 65HHS holding studs flush on
the outside.
Screw 3 x 65HHS (Top,
centre & bottom)
P
FP

19 | P a g e
STEP 3.1
DOOR STEP INSTALL
3.1 - ASSEMBLY PARTS –DOOR STEP INSTALL
PART CODE
QTY
DESCRIPTION
DS
1
840x42x19mm Door Step (Replace with 1440 DS if DD)
DS
1
1440x42x19mm Door Step (ONLY IF DOUBLE DOOR OPTION PURCHASED)
40N
4
40mm Nail
3.1 - ASSEMBLY –DOOR STEP INSTALL
Nail Door Step in position using 4x 40N* as seen below. Ensure wall panels are tight against DS.
* This is if floor option was chosen. If you are installing on concrete slab, use small dyno bolts to
fasten (not provided).
