STILLA Oxford 6x9 S3021 User manual

STILLA
ASSEMBLY INSTRUCTIONS
‘Oxford’ 6x9
S3021
Every part needed to construct your shed is included inside the pack; cedar
panels, doors, windows, hardware kits & roof sheeting. Please ensure you fully
unpack all the parts & check against the parts checklist before contacting
customer service about anything you believe may be missing. Thank-you!

1 | P a g e
Caution
Please be careful when handling all components, some parts have sharp metal edges.
Always wear work gloves, eye protection and long sleeves when assembling or maintaining
your shed.
Tools required for assembly
•Level
•Drill
•Hammer
•Ladder
•Phillips head drive
•5mm Bugle drive bit
•Hex Head Drive (5/16’)
•Safety glasses
•Gloves
Before assembly
•Before proceeding with installation, we recommend viewing the Cedar Shed video at
www.stilla.com.au/installation/ or search Stilla Classic Cedar Sheds on Youtube. This doesn’t
show the installation in detail however it could give you some handy tips. Please note we
haven’t videoed the assembly of each shed however the video online is the Maple 12x6 and
will give you an overall idea on how the installation process is completed.
•Remove all parts from packages and place in a safe place close to assembly area.
•Check all parts on assembly parts list are included, prior to commencing assembly.
•Review all instructions; continue to refer to instructions throughout assembly –step
by step.
Preparing your site
•If you are installing your shed on the Stilla rebated floor we recommend finding a
place in your yard that is very close to level. Pavers or a solid material that will not be
affected by weather can be used to perfectly level the shed by placing under the
floor frame where required, make sure all members are supported.
•If you are installing your shed on the Stilla heavy duty floor, this can be placed on
unlevelled surfaces and levelled up by using the 100x100 stumps provided.

2 | P a g e
OXFORD 6x9 PARTS CHECKLIST
Part Code
Checked
Part Description
Qty
P
Cedar Clad Panel 900x1895mm
7
WP
Cedar Clad Window Panel 900x1895mm
1
FP
Cedar Clad Panel 480x1895mm (180x1895mm if Double Doors)
2
CD
Colonial Door 830x1875mm
1
FG
6ft Front Gable
1
BG
6ft Back Gable
1
CP
Corner Post 1890x60x18mm
4
CS
Cover Strip 1890x40x7mm
5
F
6ft Fascia Pack (4)
1
CT
Collar Tie
2
R
Roof Rafter 870x70x45mm
8
DH
Door Head 840x42x35mm (1440mm if double doors)
1
DS
Door Step 840x19x42mm (1440mm if double doors)
1
E
Roof End Piece 203x70x30mm
12
RS
1120mm Roof Sheeting
8
RC
1800mm Ridge Cap
2
C
1510mm Channel
4
HK
6x9 Hardware Kit
1
IM
6x9 Instruction Manual
1
REP
Roof End Plate 1307x70x45mm
8
JP
Joining Plate 812x70x45mm
4
Floor Kit –Option
Floor Frame - 140x38
Part Code
Checked
Part Description
Qty
EP
End Plate 1884x140x38mm
4
DJ
Double Joist 1274x140x38mm
4
SJ
Single Joist 1274x140x38mm
6
L
Logs 750mm
6
FB
1798x800mm
3
FB
1798x211mm
1

3 | P a g e
Double Doors –Option –Changes to above kit
Part Code
Checked
Part Description
Qty
CD
Colonial Door 714x1875mm
2
FP
Double Door Panel 180x1895mm
2
DP
Door Leaver Packer 100x100x18mm
1
DH
Door Head 1440x42x35mm
1
DS
Door Stop 1440x42x18mm
1
Annex Kit –Option
3020mm x 1400mm
Part Code
Checked
Part Description
Qty
VBJ
Veranda Beam Joiner 700x70x45mm
1
VOBJ
Veranda Outer Beam Joiner 700x140x35mm
1
VB
Veranda Beam 1510x70x45mm
2
VOB
Veranda Outer Beam 1510x140x35mm
2
VR
Veranda Rafter 1320x70x45mm
4
VF
Veranda fascia 1350x75x20 block cedar
2
VRS
1450mm Veranda Roof Sheet
4
VP
Veranda Posts 2400x90x90mm
2

4 | P a g e
If no floor option was purchased, go to step 2.0 (Wall Assembly)
SKIP TO BACK FOR IMAGES TO HELP WITH FLOOR INSTALL
STEP 1.0
FLOOR KIT
1.0 –FLOOR KIT (1 of 2 floor frames)
PART CODE
QTY
DESCRIPTION
EP
2
End Plate 1884mm
SJ
3
Single Joist 1274mm
DJ
2
Double Joist 1274mm
100BS
24
100mm Batten Screw
1.0 –FLOOR FRAME (1 of 2 floor frames)
Fasten floor frame together as indicated in diagram below, using lines and predrilled holes.
Screw through EP into DJ using 3x 100BS.
Screw through EP into SJ using 2 x 100BS per join.
Ensure frame is square by measuring from corner to corner diagonally, frame will be square
when both diagonal measurements equal the same.
REPEAT THIS PROCESS FOR FASTENING 1 MORE FLOOR FRAME.
ENSURE 42x35 side of the DJ sits at top.

5 | P a g e
STEP 1.1
FLOOR FRAME INSTALLATION
The 9x6 floor frame comes in two parts. Install first floor frame in desired position at
desired height and fasten to logs once level and square, then join and fasten next frame
and repeat.
1.1 –FLOOR FRAME INSTALLATION
PART CODE
QTY
DESCRIPTION
L
6
Logs 750x100x100mm
100BS
24
100mm batten screws
65BS
8
65mm Batten Screws
200PB
6
200mm M12 Post Bolt
W
12
M12 Washers
1.1 –FLOOR FRAME INSTALLATION
Repeat the steps below for each floor frame, joining the floor frames together as you go in
order displayed in diagram below.
1. Lay out frame in desired position and mark holes to dig, as indicated on diagram
below (use shovel or marking paint).
2. Dig and place logs in holes (using concrete if you wish).
3. Fasten floor frame to logs at desired height, using 4x 100BS per log, ensuring frame is
level*.
4. Butt next floor frame into installed frame and join using 8x 65BS evenly spaced along
the EP.
5. Repeat process until all frames are joined.
* Fasten frame to logs when roughly level and then critique by hammering in or adding dirt
(or concrete) to corners until perfectly level at every post.
Once all frames are joined, predrill holes (using a 13mm drill bit) and bolt each log to the
floor frame in spots indicated with 200PB, using washers on both sides.

6 | P a g e
STEP 1.2
FLOOR INSTALLATION
1.2 –FLOORING INSTALLATION
PART CODE
QTY
DESCRIPTION
FB
3
Floor Board 1798x800mm
FB
1
Floor Board 1798x211mm
50PS
75
50mm Philips Screw
1.2–FLOORING INSTALLATION
Fasten floor sheets to floor frame as shown in diagram below using 50PS.
Bring Floor sheets in 43mm on all 4 sides from the outside of the floor frame.
Note- The x marked on the floor sheets do not line up with out joists.

7 | P a g e
STEP 2.0
WALL ASSEMBLY
WALL PANEL WP (900MM WINDOW PANEL) CAN BE POSITIONED ANYWHERE ON THE SHED
WHERE WE HAVE USED A P (900MM WALL PANEL).
2.0 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
FP
1
Front Wall panel
P
1
900mm Wall panel
65HHS
3
65mm Hex head screw
2.0 - ASSEMBLY –WALL ASSEMBLY
Screw through FP into P (top, centre & bottom) using 3 x 65HHS. (Holding studs flush on the
outside)
P
Screw 3 x 65HHS (Top,
centre & bottom)
FP
Cedar Strip
When screwing the four corners together please
make sure the studs are flush on the outside (not
the inside) as per image below.

8 | P a g e
STEP 2.1
WALL ASSEMBLY
2.1 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
P
1
900mm Wall panel
65HHS
3
65mm Hex head screw
2.1 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through P into P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on the
inside.
P
Screw 3 x 65HHS (Top,
centre & bottom)
P

9 | P a g e
STEP 2.2
WALL ASSEMBLY
2.2 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
P
1
900mm Wall panel
65HHS
3
65mm Hex head screw

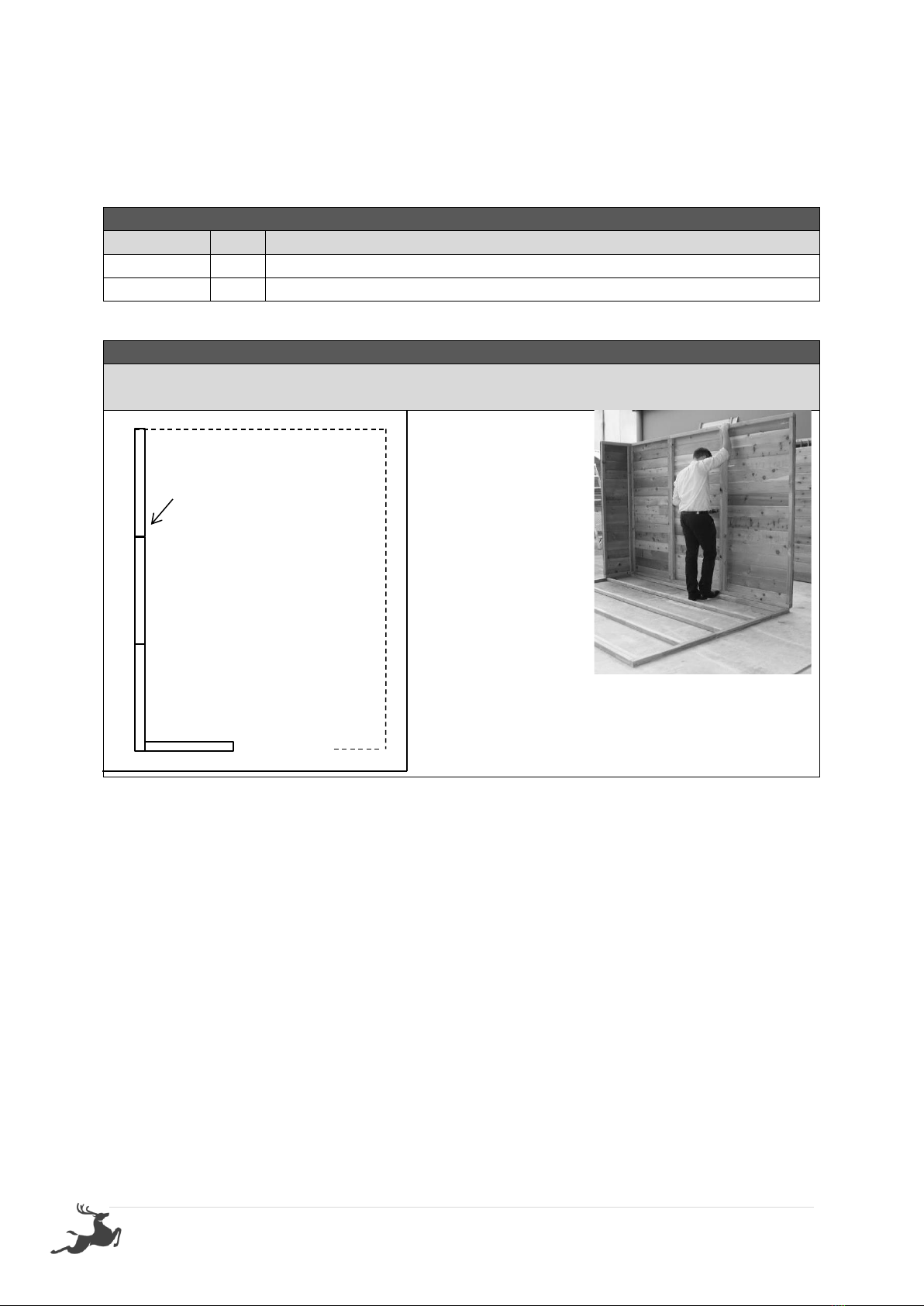

2.2 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through P into P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on the
inside.
P
Screw 3 x 65HHS (Top,
centre & bottom)
P

10 | P a g e
STEP 2.3
WALL ASSEMBLY
2.3 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
P
1
900mm Wall panel
65HHS
3
65mm Hex head screw

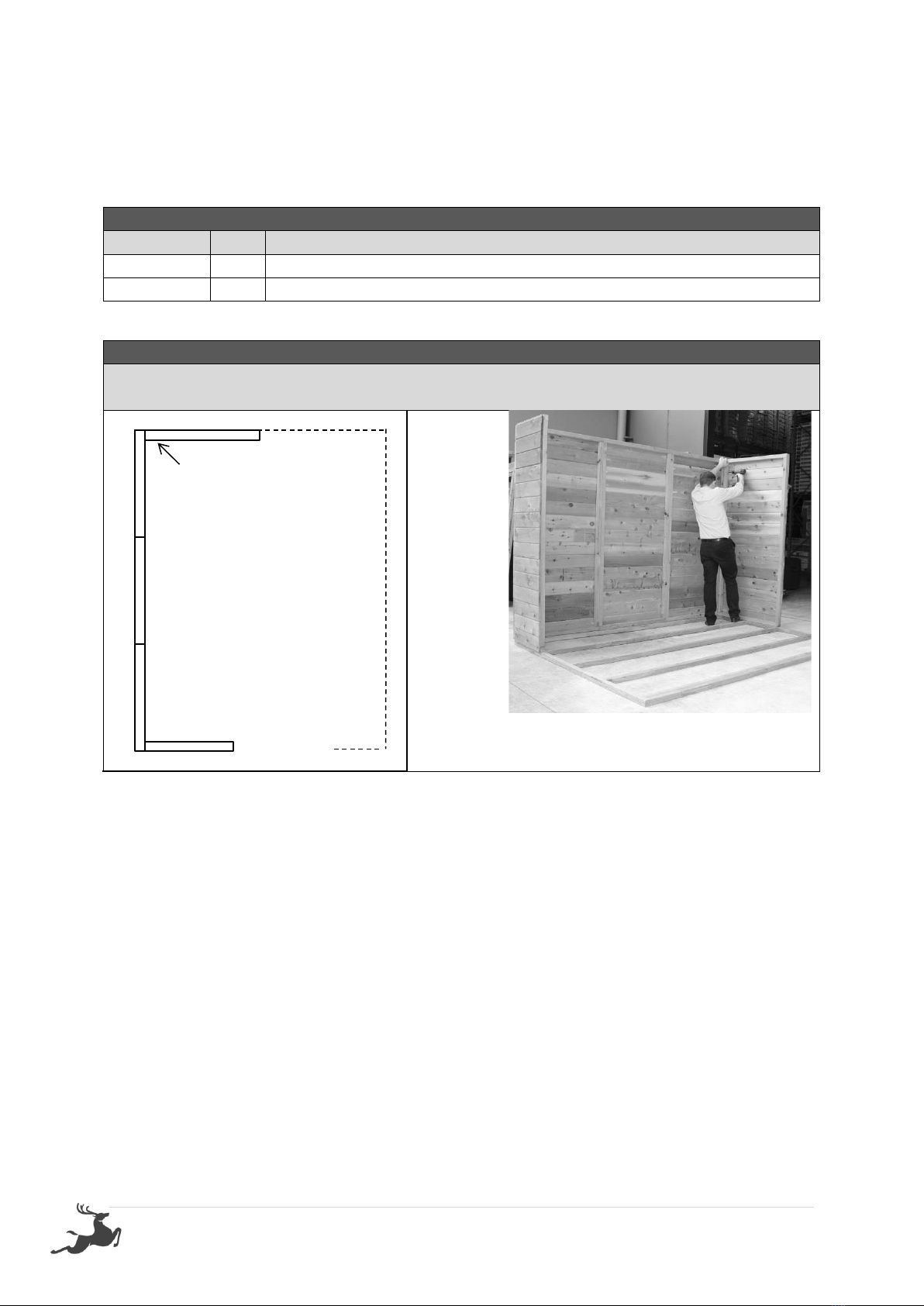

2.3 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through P into P (Top, centre & bottom) using 3 x 65HHS, holding studs flush on the
outside.
P
Screw 3 x 65HHS (Top,
centre & bottom)
P

11 | P a g e
STEP 2.4
WALL ASSEMBLY
2.4 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
P
1
900mm Wall panel
65HHS
3
65mm Hex head screw

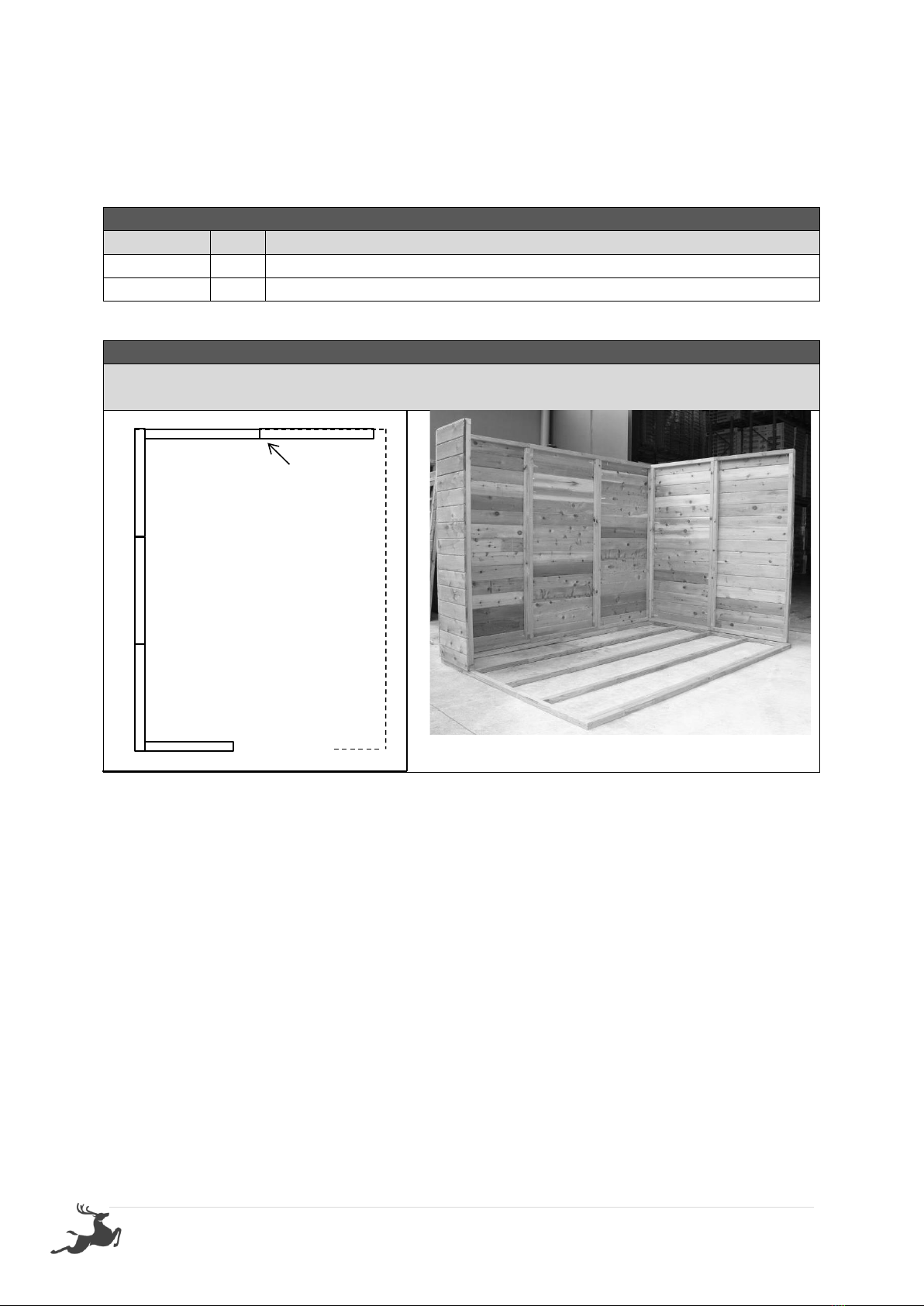

2.4 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through P into P (top, centre & bottom) using 3 x 65HHS holding studs flush on the
inside.
P
Screw 3 x 65HHS (Top,
centre & bottom)
P

12 | P a g e
STEP 2.5
WALL ASSEMBLY
2.5 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
P
1
900mm Wall panel
65HHS
3
65mm Hex head screw
2.5 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through P into P (top, centre & bottom) using 3 x 65HHS holding studs flush on the
outside.
P
Screw 3 x 65HHS (Top,
centre & bottom)
P

13 | P a g e
STEP 2.6
WALL ASSEMBLY
2.6 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
WP
1
900mm Window panel
65HHS
3
65mm Hex head screw

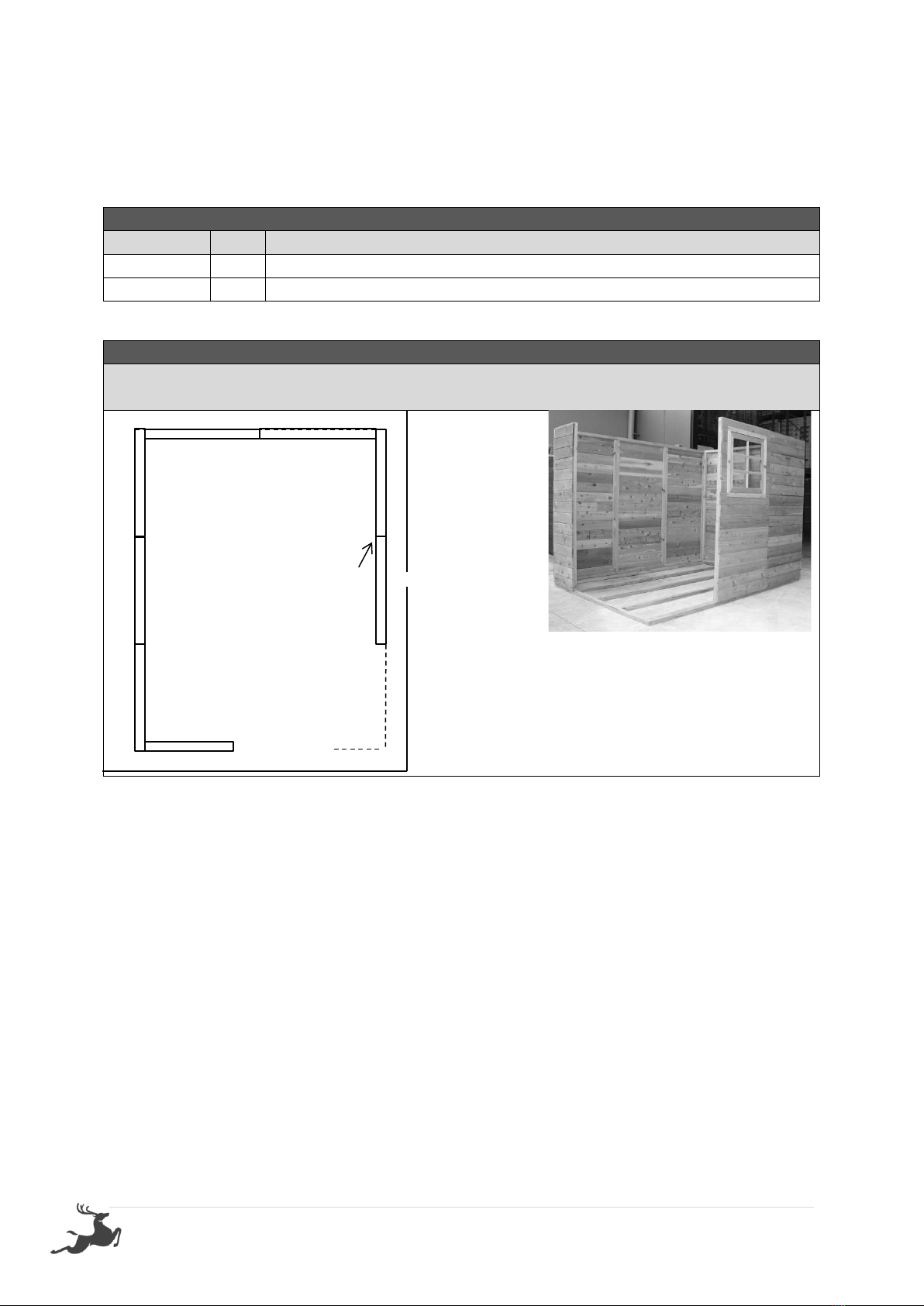

2.6 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through WP into P (top, centre & bottom) using 3 x 65HHS holding studs flush on the
inside.
P
Screw 3 x 65HHS (Top,
centre & bottom)
WP

14 | P a g e
STEP 2.7
WALL ASSEMBLY
2.7 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
P
1
900mm Wall panel
65HHS
3
65mm Hex head screw
2.7 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through P into P (top, centre & bottom) using 3 x 65HHS holding studs flush on the
inside.
P
Screw 3 x 65HHS
(Top, centre &
bottom)
P

15 | P a g e
STEP 2.8
WALL ASSEMBLY
2.8 - ASSEMBLY PARTS –WALL ASSEMBLY
PART CODE
QTY
DESCRIPTION
FP
1
Front Wall panel
65HHS
3
65mm Hex head screw
2.8 - ASSEMBLY PARTS –WALL ASSEMBLY
Screw through FP into P (top, centre & bottom) using 3 x 65HHS holding studs flush on the
inside.
P
Screw 3 x 65HHS
(Top, centre &
bottom)
FP
Cedar Strip

16 | P a g e
STEP 2.9
DOOR STEP INSTALL
2.9 - ASSEMBLY PARTS –DOOR STEP INSTALL
PART CODE
QTY
DESCRIPTION
DS
1
840x42x19mm Door Step (Replace with 1440 DS if DD)
DS
1
1440x42x19mm Door Step (ONLY IF DOUBLE DOOR OPTION PURCHASED)
40N
4
40mm Nail

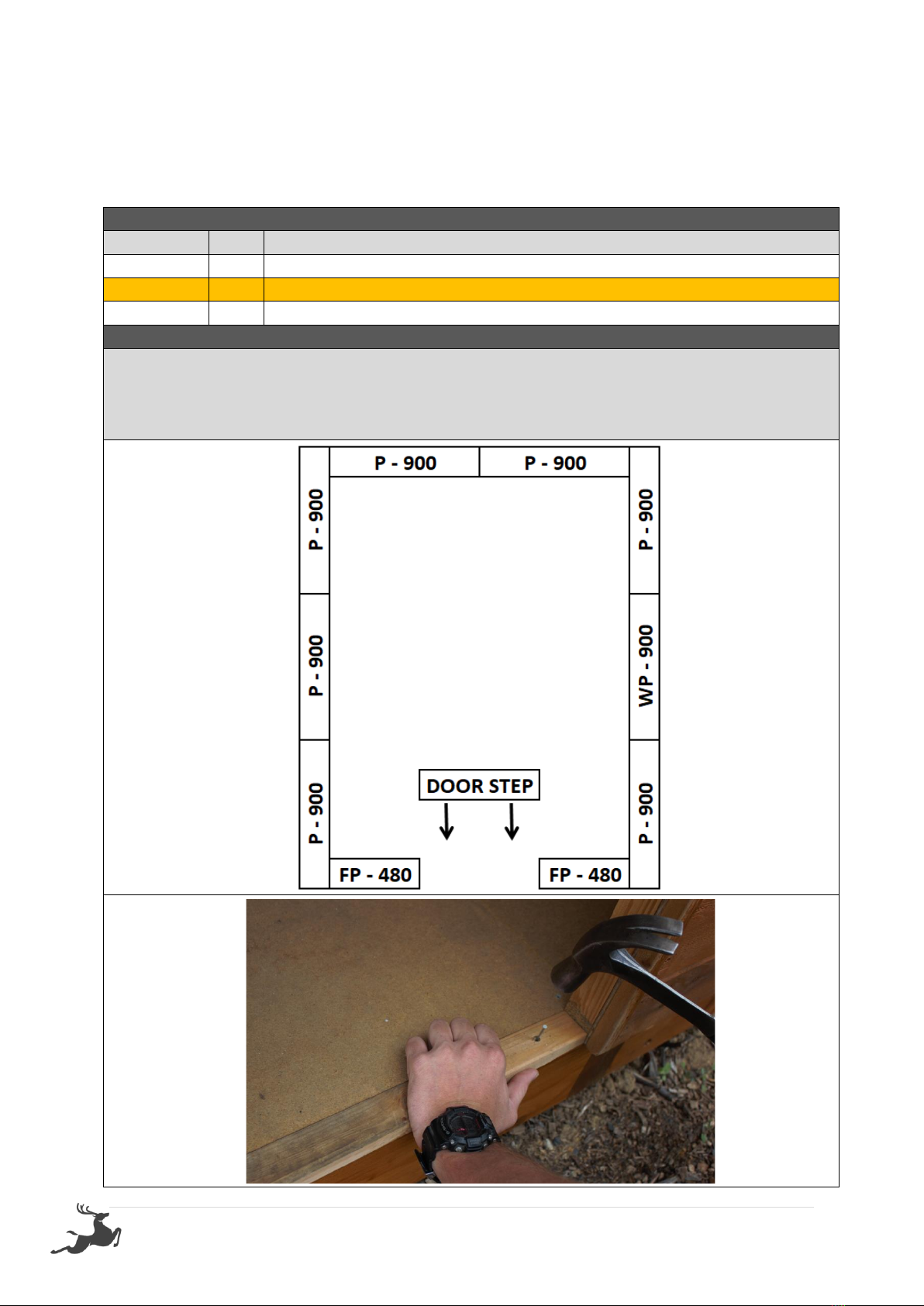

2.9- ASSEMBLY –DOOR STEP INSTALL
Nail Door Step in position using 4x 40N* as seen below. Ensure wall panels are tight against DS.
* This is if floor option was chosen. If you are installing on concrete slab, use small dyno bolts to
fasten (not provided).

17 | P a g e
STEP 3.0
DOOR HEAD ASSEMBLY
3.0 - ASSEMBLY PARTS –DOOR HEAD ASSEMBLY
PART CODE
QTY
DESCRIPTION
1
Front End 6ft Gable
DH
1
840x42x35mm Door Head (replace with 1440mm DH if DD)
DH
1
1440x42x35mm Door Head (ONLY IF DD OPTION PURCHASED)
65HHS
4
65mm Hex head screw

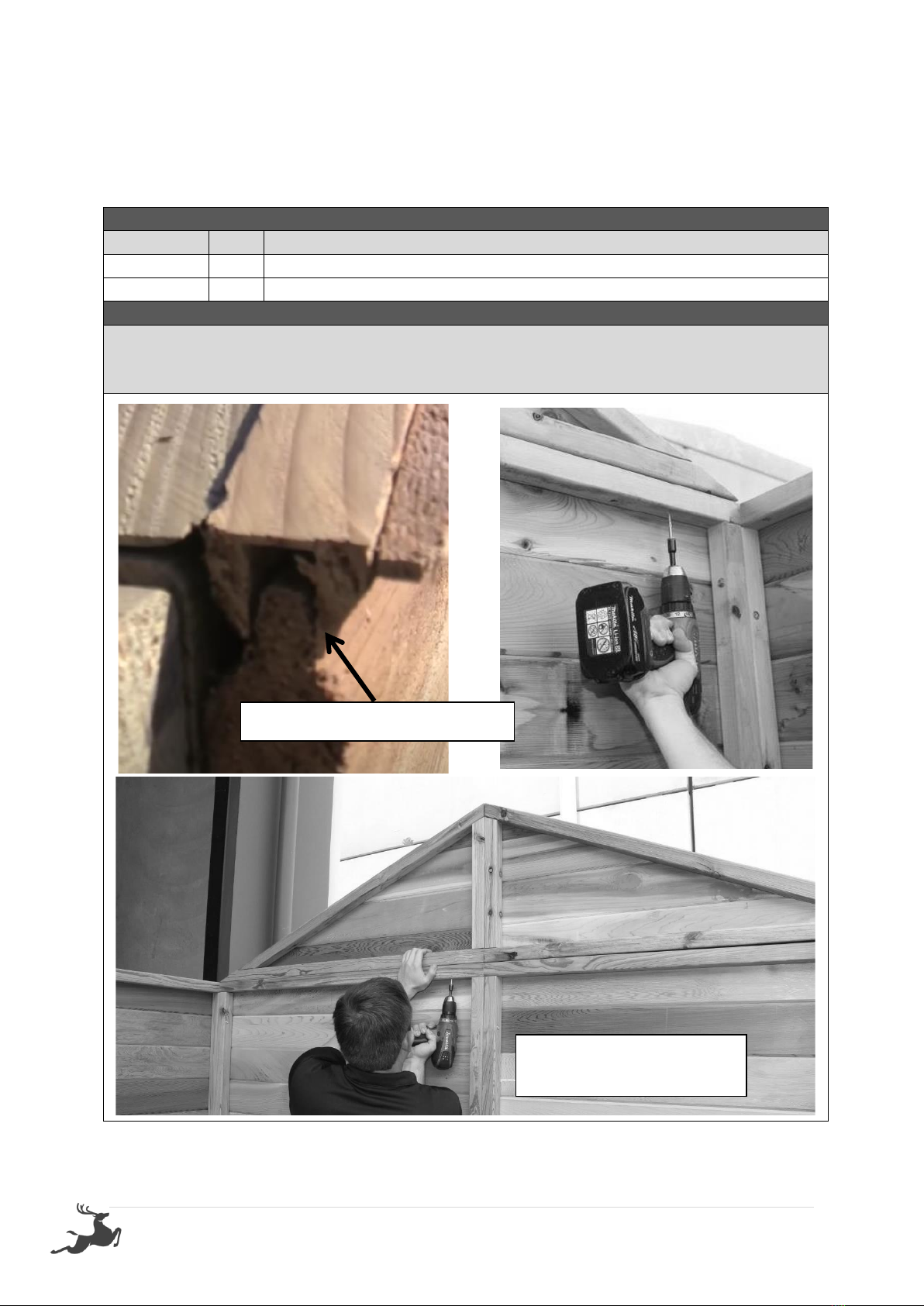

3.0 - ASSEMBLY –DOOR HEAD ASSEMBLY
Measure and mark middle of Door Head (DH)*. Lay Assembled front end Gable on a flat
surface with the frame facing upwards, as seen below. Line up middle mark on DH with
gable join centre, hold and screw down through gable into DH using 4x 65HHS- 2 either
side of gable join (as seen below).
* 420mm mark for SD / 720mm mark for DD.
Measure and mark middle of
Door Head
Screw through gable frame
into Door Head
Centre Door Head in
middle of Gable

18 | P a g e
STEP 3.1
FRONT END GABLE INSTALL
3.1 - ASSEMBLY PARTS –FRONT END GABLE INSTALL
PART CODE
QTY
DESCRIPTION
FG
1
Front End 6ft Gable
65HHS
4
65mm Hex head screw
3.1 - ASSEMBLY –FRONT END GABLE INSTALL
Carefully place assembled gable on front wall, ensuring groove on gable slots into the tongue
on the wall, as seen below. Ensure end of gable sits flush with side of back wall panel and
fasten by screwing 4x 65HHS through panels into gable- 2 screws either side of join.
Ensure groove slots into tongue
Screw upwards through
wall panel into gable

19 | P a g e
STEP 3.2
BACK END GABLE INSTALL
3.2 - ASSEMBLY PARTS –BACK END GABLE INSTALL
PART CODE
QTY
DESCRIPTION
BG
1
Back End 6ft Gable
65HHS
4
65mm Hex head screw
3.2 - ASSEMBLY –BACK END GABLE INSTALL
Carefully place assembled gable on back wall, ensuring groove on gable slots into the tongue
on the wall, as seen below. Ensure end of gable sits flush with side of back wall panel and
fasten by screwing 4x 65HHS through panels into gable- 2 screws either side of join.
Ensure groove slots into tongue
Screw upwards through
wall panel into gable
